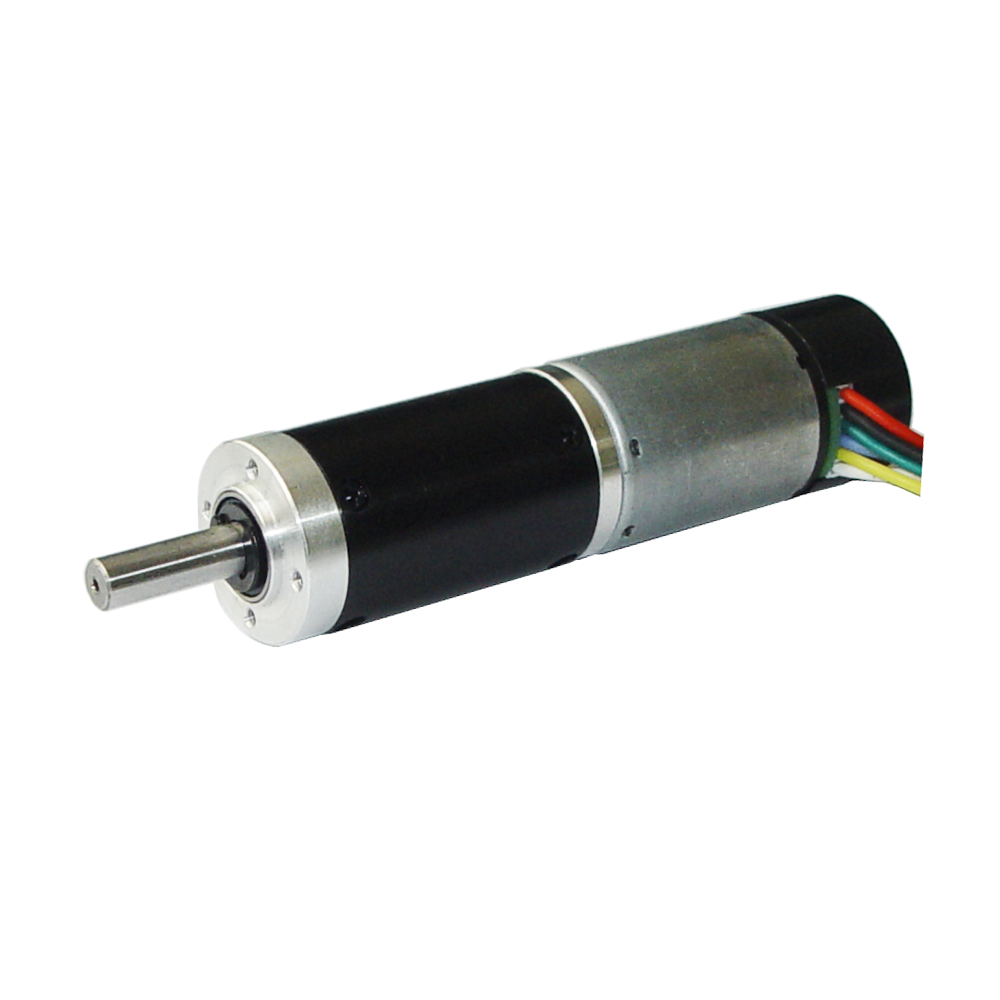

12V Automatic Door & Window, Roller Shutter, Curtain Enclosed Micro DC Planetary Gear Motor 24JN10K/24ZY30 with 12PPR Encoder
12V Automatic Door & Window, Roller Shutter, Curtain Enclosed Micro DC Planetary Gear Motor 24JN10K/24ZY30 with 12PPR Encoder
12V Automatic Door & Window, Roller Shutter, Curtain Enclosed Micro DC Planetary Gear Motor 24JN10K/24ZY30 with 12PPR Encoder
12V Automatic Door & Window, Roller Shutter, Curtain Enclosed Micro DC Planetary Gear Motor 24JN10K/24ZY30 with 12PPR Encoder
12V Automatic Door & Window, Roller Shutter, Curtain Enclosed Micro DC Planetary Gear Motor 24JN10K/24ZY30 with 12PPR Encoder
1 / 5
12V Automatic Door & Window, Roller Shutter, Curtain Enclosed Micro DC Planetary Gear Motor 24JN10K/24ZY30 with 12PPR Encoder
12V Automatic Door & Window, Roller Shutter, Curtain Enclosed Micro DC Planetary Gear Motor 24JN10K/24ZY30 with 12PPR Encoder
12V Automatic Door & Window, Roller Shutter, Curtain Enclosed Micro DC Planetary Gear Motor 24JN10K/24ZY30 with 12PPR Encoder
12V Automatic Door & Window, Roller Shutter, Curtain Enclosed Micro DC Planetary Gear Motor 24JN10K/24ZY30 with 12PPR Encoder
12V Automatic Door & Window, Roller Shutter, Curtain Enclosed Micro DC Planetary Gear Motor 24JN10K/24ZY30 with 12PPR Encoder

12V Automatic Door & Window, Roller Shutter, Curtain Enclosed Micro DC Planetary Gear Motor 24JN10K/24ZY30 with 12PPR Encoder

Send Inquiry

Product Description

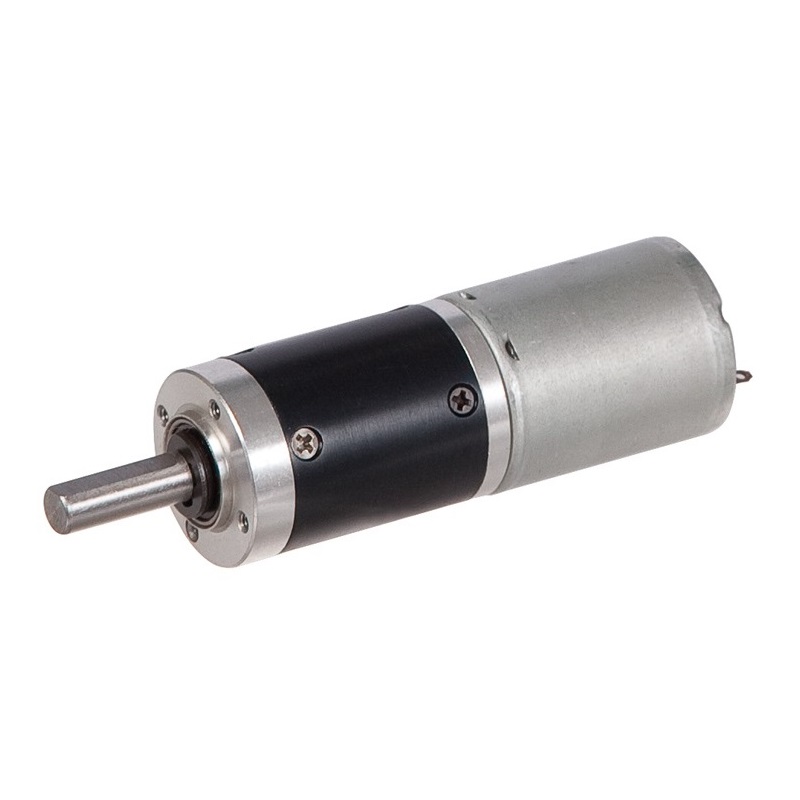

Roller Shutter Tubular Micro DC Planetary Gear Motor with 12PPR Encoder
Roller Shutter Tubular Micro DC Planetary Gear Motor
  • Model: 24JN10K/24ZY30+12ppr encoder
  • Type: Tubular DC motor with planetary gearbox / micro DC gear motor / electric DC motor / DC gearmotor
  • Voltage: 12 ~ 400V DC
  • Rated Torque: Up to 1.0N.m for continuous running
  • Compliance: CE, UKCA, EMC, Reach and RoHS approval
  • Optional Components: Magnetic/optical encoder; brake; cable connector
  • Customization: Customized shaft & flange dimensions and technical specifications are available upon request.
  • Typical Applications: Automatic door & window; roller shutter; curtain
Only Motor Technical Data
Type Rated voltage (VDC) No-load speed (r/min) No-load current (mA) Rated speed (r/min) Rated torque mN.m Output power (W) Rated current (mA) Stall torque (mN.m) Stall current (A)
24ZY30-1255S 12 5500 40 4400 3 3 200 16 1.6

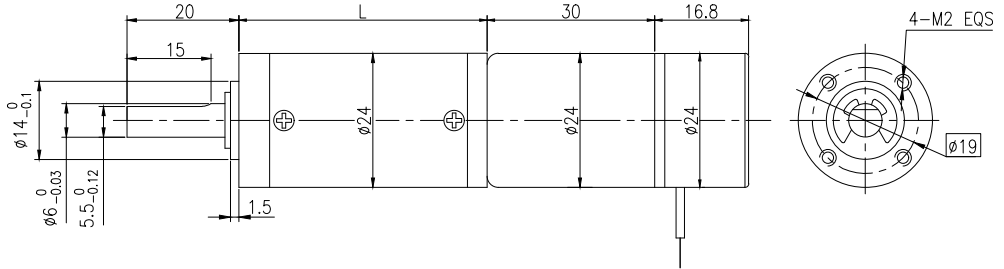

Motor Technical Drawing
Gear Motor Technical Data
Model No. Reduction ratio Number of gear trains Length(L) mm No-load speed r/min Rated speed r/min Rated torque N.m Max. permissible load in a short time N.m
24ZY30-1255S 3.71 1 25 1482 1186 0.01 0.3
5.18 1 25 1062 849 0.013 0.3
14 2 31.6 393 314 0.03 1.2
19 2 31.6 289 232 0.05 1.2
27 2 31.6 204 163 0.07 1.2
51 3 38 108 86 0.1 2.5
71 3 38 77 62 0.2 2.5
100 3 38 55 44 0.2 2.5
139 3 38 40 32 0.3 2.5
189 4 44.4 29 23 0.4 3
264 4 44.4 21 17 0.5 3
369 4 44.4 15 12 1 3
516 4 44.4 11 8.5 1 3
720 4 44.4 7.6 6.1 1 3
DC Planetary Gear Motors Characteristics
DC Planetary Gear Motors Characteristics Summary
Gearbox diameter 16 ~ 120MM
Gear ratio 3.6 : 1 ~ 2000 : 1
Motor type Brushed DC Motors, Brushless DC Motors, Stepper Motor
Motor diameter 20 ~ 170mm
Nominal voltage 6V ~ 400V DC
Nominal speed 1 ~ 900rpm
Rated torque Up to 1000N.m
Nominal power Up to 5KW
IP rating Up to IP68
Option Magnetic/optical encoder, power-on/power-off brake, connector
Customized Gear Motors for Typical Applications
Tarp Gear Motors
Slow Juicer Motors
Curtain & Window Motors
Robot Pool Cleaner Motors
Door & Gate Motors
Robot Lawn Mower Motors
Automatic Pool Cover Motors
Solar Tracking System Motors
Applications Demonstration
Overview

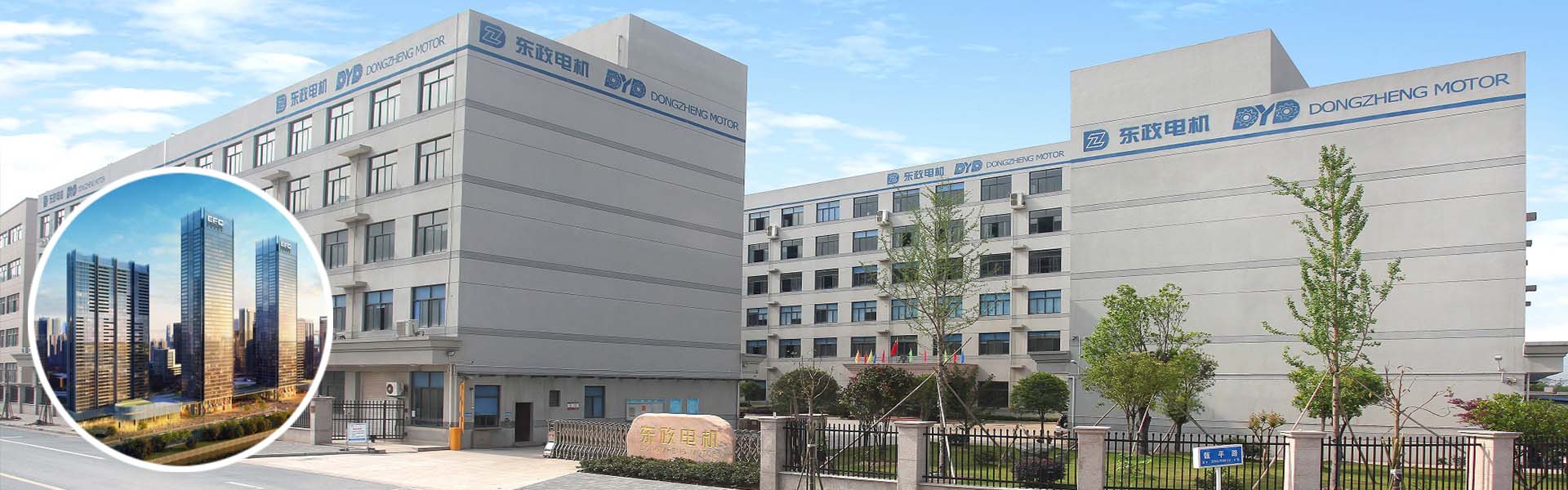

Manufacturing Plant Overview
We are a state-level high-tech enterprise which professionally involves in research, development, manufacture, and sales of various AC/DC Planetary Gear Motors, AC/DC Right Angle Gear Motors, AC/DC Parallel Shaft Gear Motors, Small DC Motors, Compact AC Motors, Brushless DC Gear Motors, Motor Magnets, Gearboxes etc.
Certification & Management
All products have passed the REACH, CE & CCC approval, RoHS Compliance, and in part pass the UL approval; Adopting the ISO9001: 2015 Quality Management System, ISO14001 Environmental Management System as well as OHSAS18001 Occupational Health and Safety Management System.
Our Services & Strength
Professional Teams
Sufficient Sales Teams for International Business.
Strong R&D
Strong R&D capability for customized motor solutions.
Quality & Production
Large production capacities, stable massive production quality, and excellent pre/after-sales service.
Certifications & Patents
Certification 1 Certification 2 Patent Certificate
Production and Testing Facilities

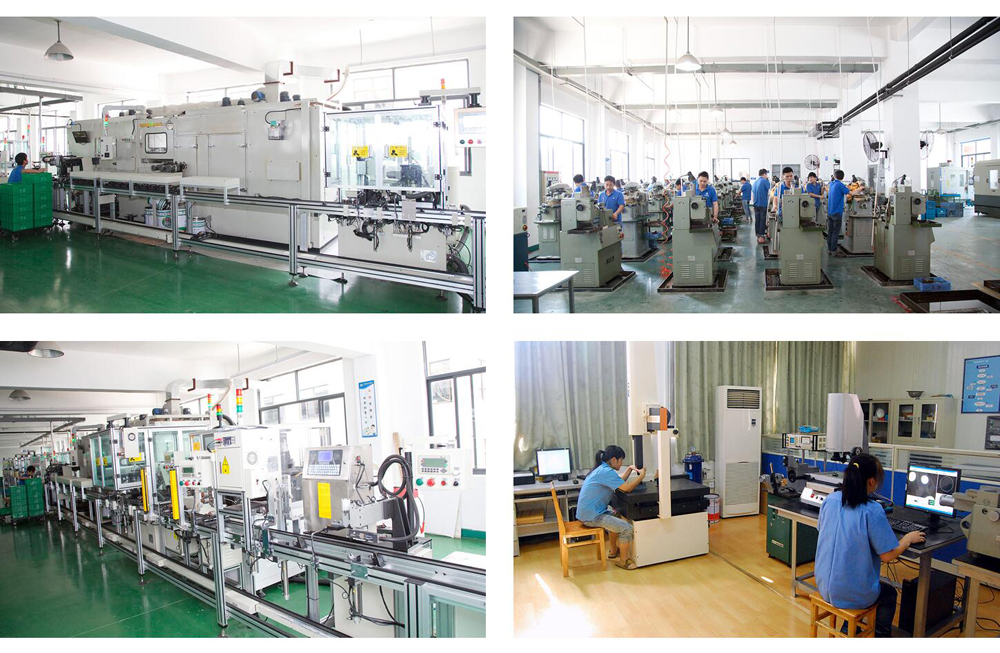

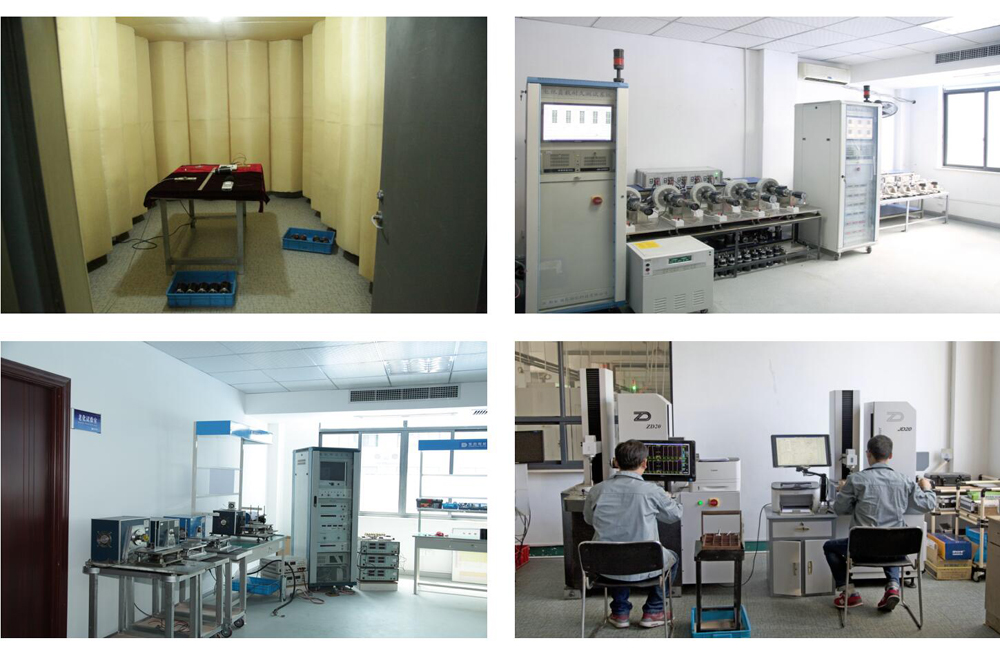

Production Facility 1 Production Facility 2
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A1: We are a professional OEM manufacturer.
Q2: What is your main product range?
A2: We manufacture both motors and gearboxes. Our main products are various AC/DC Planetary Gear Motors, AC/DC Right Angle Gear Motors, AC/DC Parallel Shaft Gear Motors, Small DC Motors, Compact AC Motors, Brushless DC Gear Motors, Motor Magnets, Gearboxes etc.
Q3: How about the MOQ of your motors?
A3: Customized testing samples are available before serial production.
Q4: What is the warranty period of your motors?
A4: We offer free maintenance in a warranty period of one year.
Q5: Which shipping ways are available?
A5: DHL, UPS, FedEx, TNT are available for sample shipment. Sea/air/train shipments are available for serial production.
Q6: Are customized shafts and flange specifications available?
A6: Yes, customized shaft and flange dimensions, as well as customized technical specifications, can be designed and manufactured upon request.
