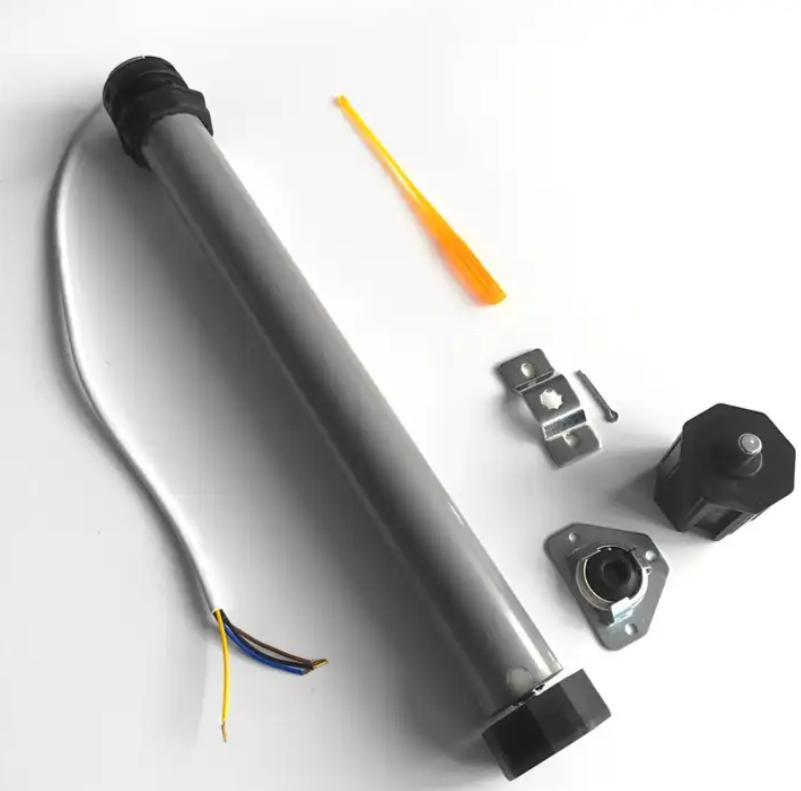

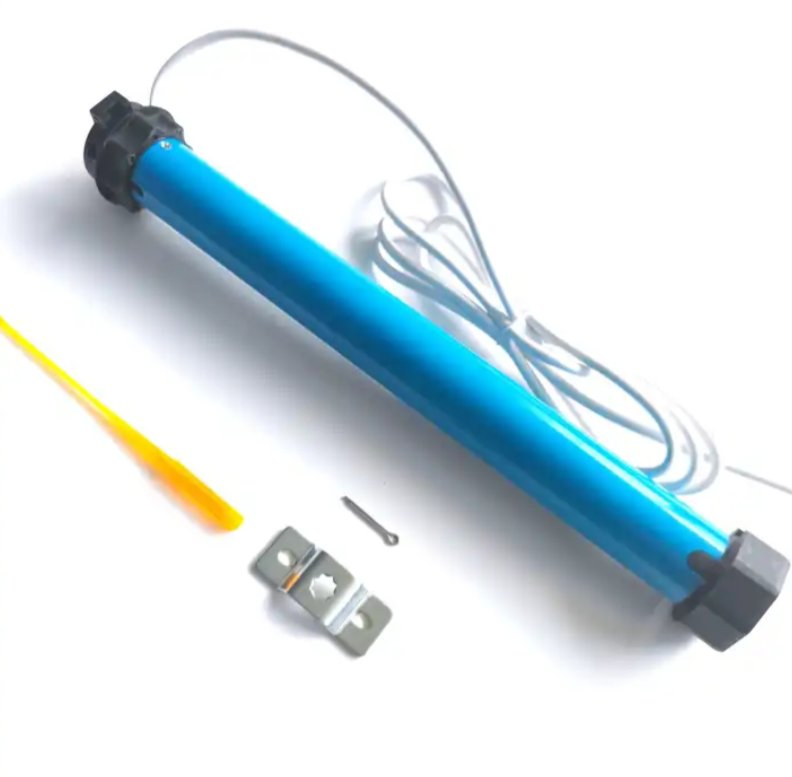

AC 110-230V 50nm Manual Tubular Motor Electric Motor for Awning

1 / 5

AC 110-230V 50nm Manual Tubular Motor Electric Motor for Awning

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Overview & Basic Info

Model NO.:45M

Number of Stator:Single-Phase

Function:Driving, Control

Casing Protection:Protection Type

Number of Poles:2

Starting Mode:Direct on-line Starting

Certification:ISO9001, CCC, CE, ROHS

HS Code:8501109990

Capacity:50000 Pcs / Month

Origin:China

⚙️

Product Description

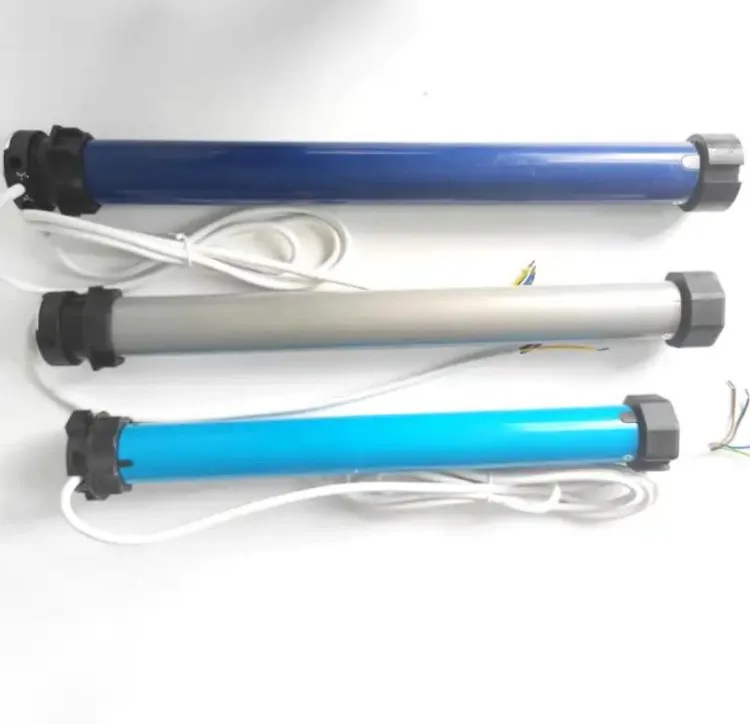

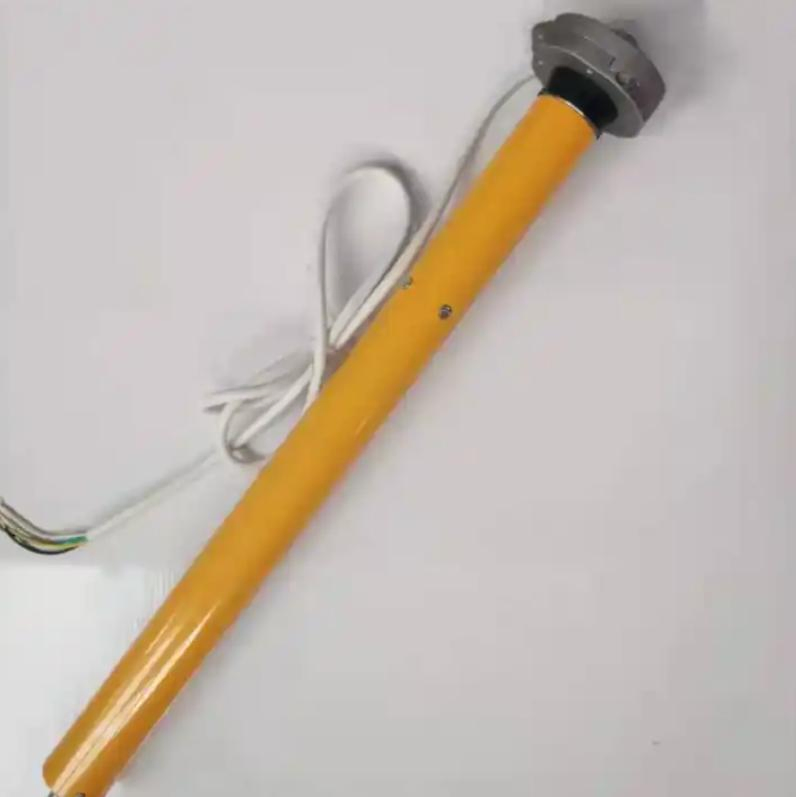

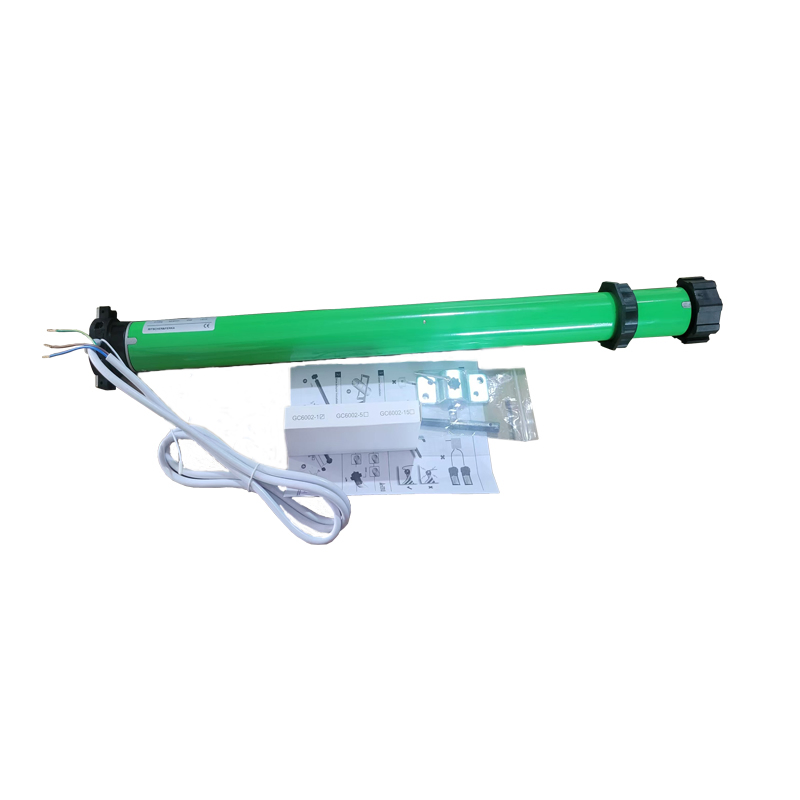

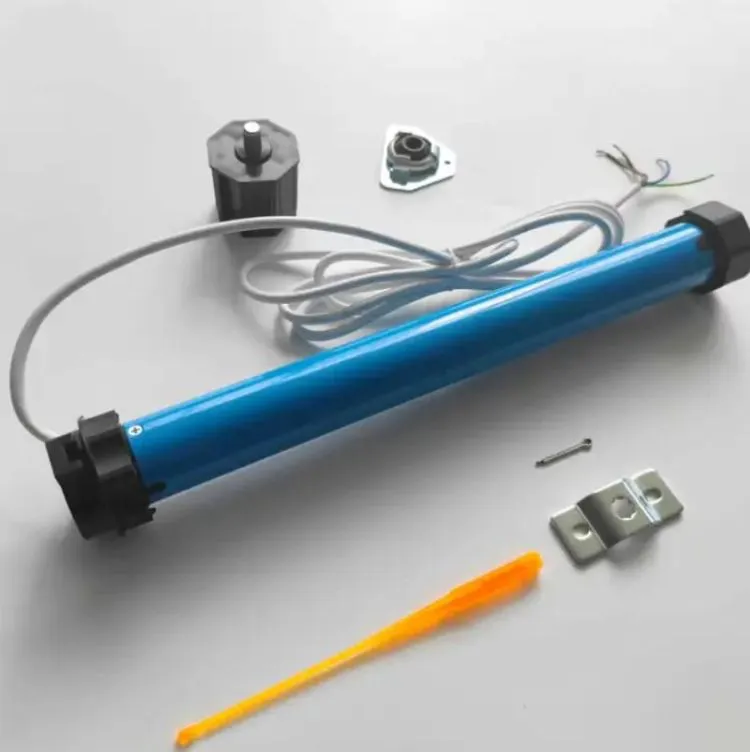

AC 110-230V 50Nm Manual Tubular Motor Electric Motor For Awning

Stator size is optional
Safe, reliable, low noise, good starting, long life
Strong power output
Rated voltage 110-130V/220~240V-50/60Hz

Typical Applications: Rolling Shutter Window, Rolling Shutter Door, Auto Door, Awning, Electric lifting door and window, Automatic Clothes Hanger, Projection Screen.

📊

Product Parameters

Model No.	45M	45M-1
Rated Torque(N.m)	50	50
Rated Speed(rpm)	12	14
Rated Power(W)	280	280
Rated Current(A)	1.2	1.5
Running Time(min)	>4	>4
Limit Rating(turn)	30	30
Complete Length(mm)	660	680
Complete Weight(KG)	3.4	3.4
Rated Voltage(V)	220-230	100-110
Rated Frequency(Hz)	50	60
Tube Diameter(mm)	45	45

🏠

Product Application

🏢

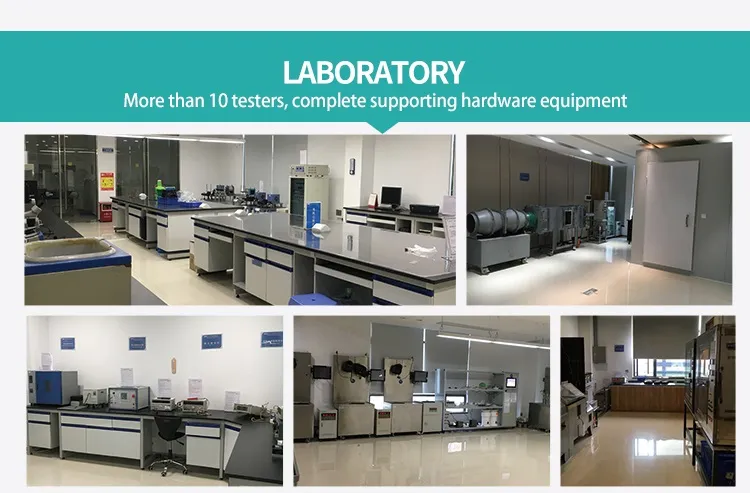

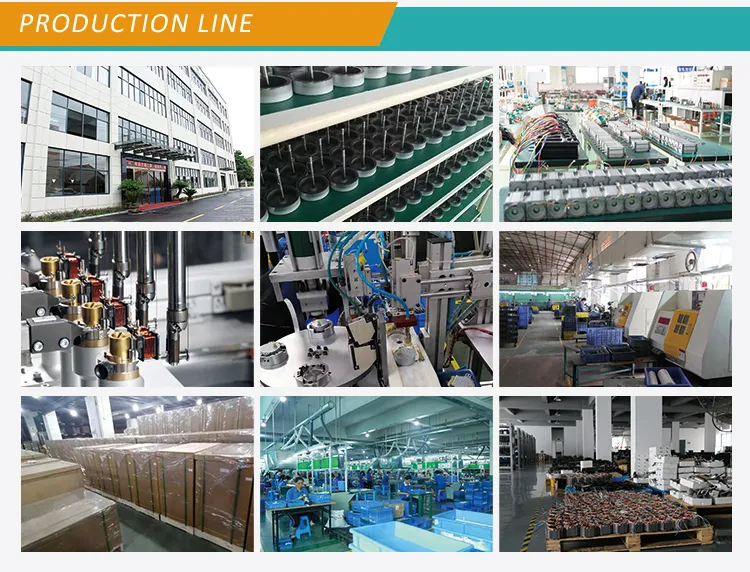

About & Production

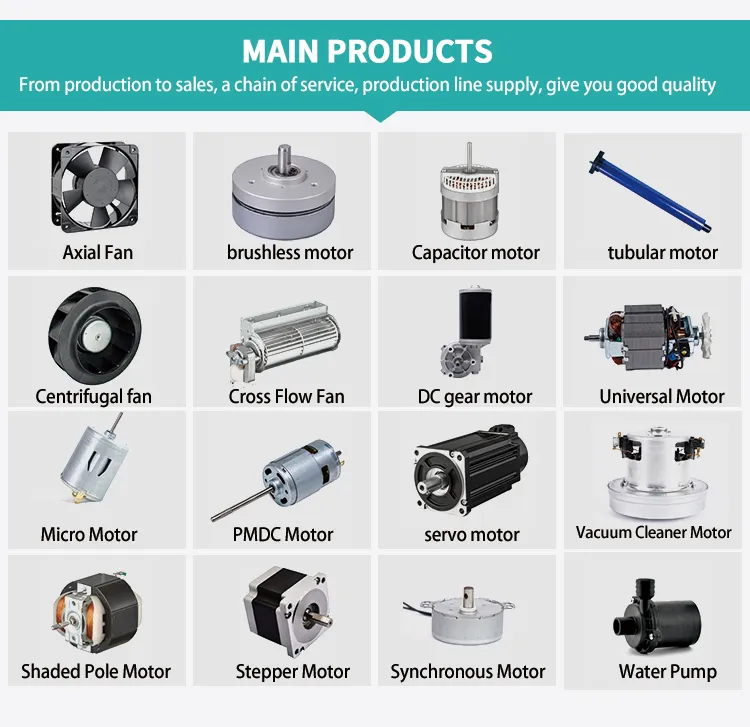

Main Product Range

📦

Packaging & Shipping

Package Size:50.00cm * 28.00cm * 15.00cm

Gross Weight:6.000kg

❓

Frequently Asked Questions

(1) What kind of motors can you provide? We provide a wide range including Kitchen Hood Motors, DC Motors, Gear Motors, Fan Motors, Shaded Pole Motors, Capacitor Motors, BLDC Motors, and Tubular Motors.

(2) Is it possible to visit the factory? Sure. Please keep us posted a few days in advance so we can check our schedule and availability.

(3) Can I get some samples for testing? Yes, if it is for sample testing before an official order and our MOQ/price terms are acceptable, we'd love to provide samples.

(4) Is there a MOQ for your motors? Yes. The MOQ is usually between 1000~10,000pcs depending on the model, but smaller lots can be accepted for initial orders.

(5) What are the typical applications for these tubular motors? They are widely used for rolling shutters, awnings, automatic doors, projection screens, and electric lifting windows.

(6) What voltages are available for the 45M series? We offer versions supporting 220-230V at 50Hz and 100-110V at 60Hz to meet different regional requirements.
