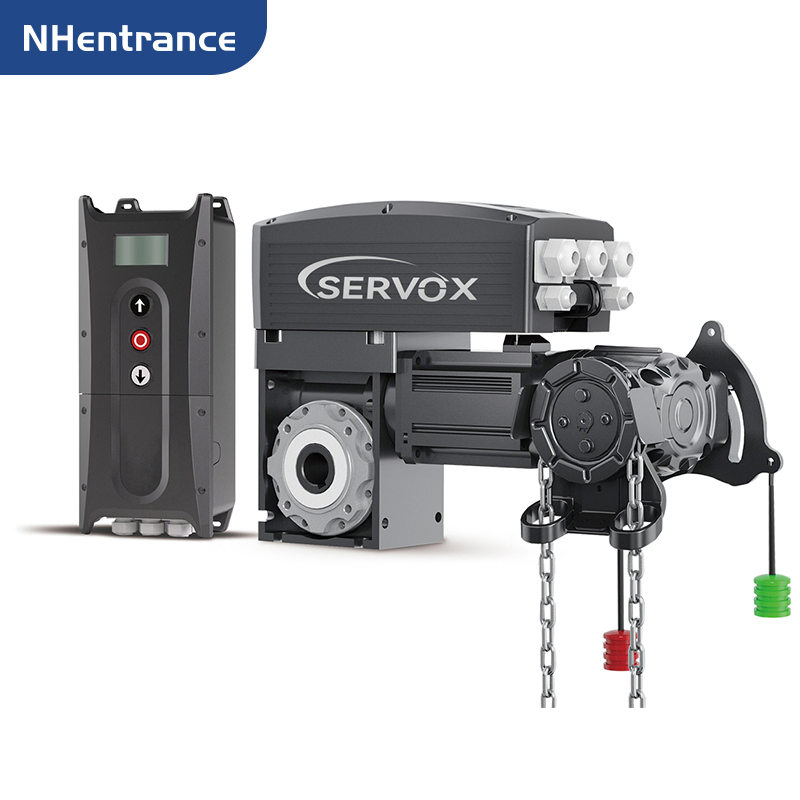

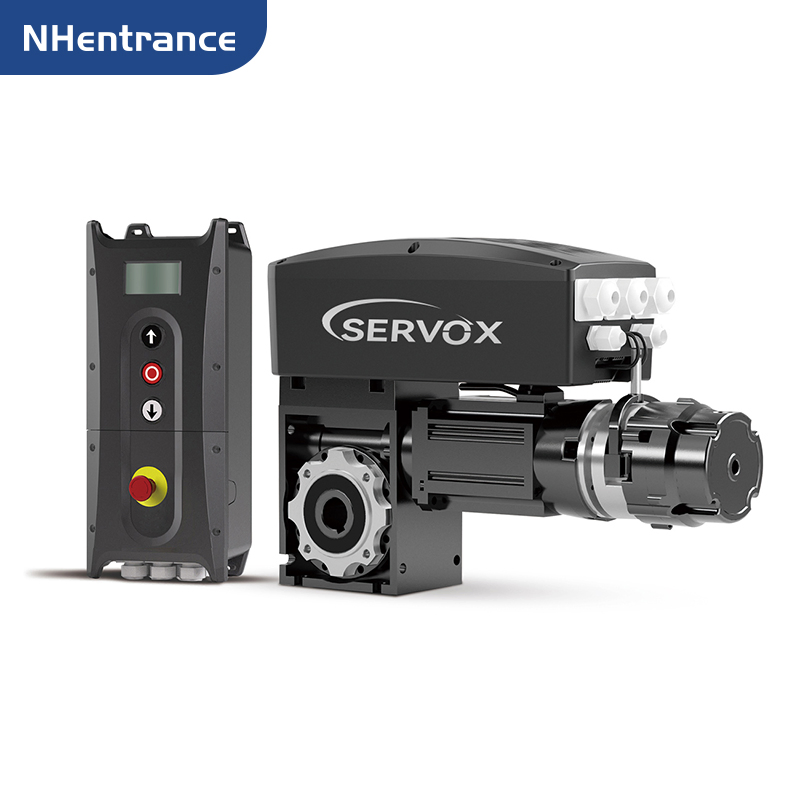

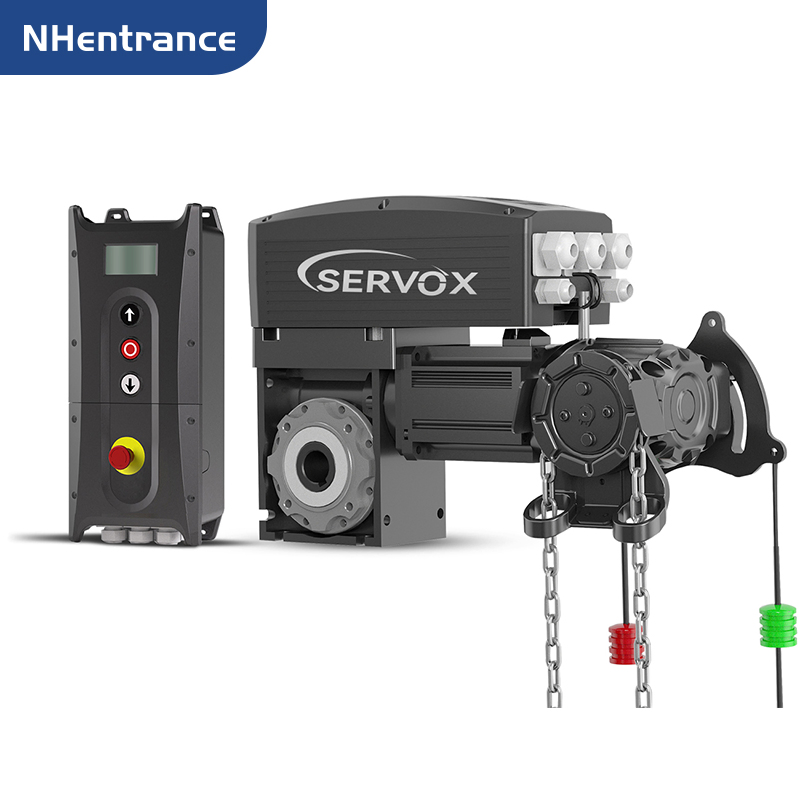

Advanced Durable Precise Control Industrial Sectional Door AC Servo Motor Price Quick and Smooth for High-Traffic Industrial Doors

1 / 5

Advanced Durable Precise Control Industrial Sectional Door AC Servo Motor Price Quick and Smooth for High-Traffic Industrial Doors

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview

Product Parameters

Our Advantages

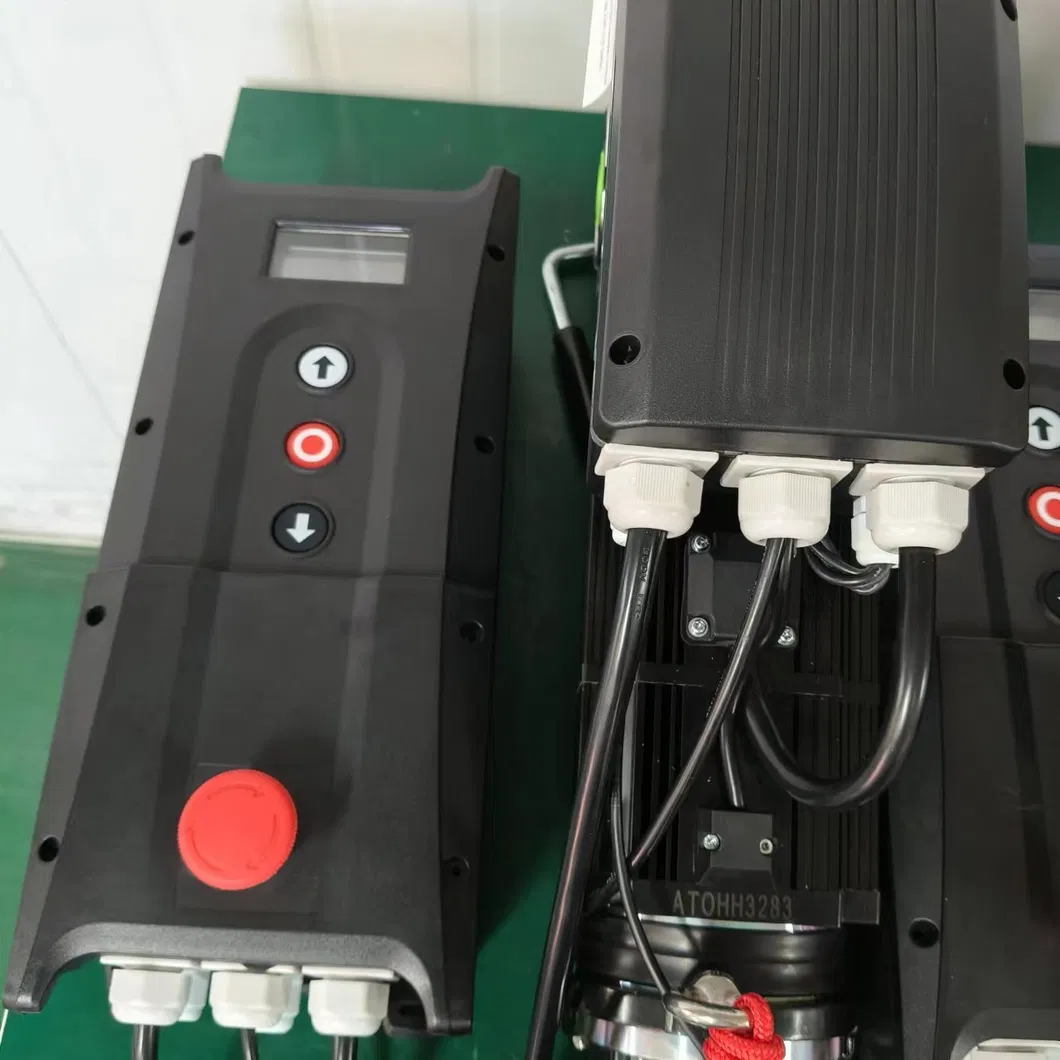

Detailed Photos

Other Product Links

Basic Info

Model NO.

Sectional Door Motor

Structure

Straight Arm

Driving Type

Electromechanical

Electric Current Type

After-Sale Service

Online Technical Support

Waterproof and Dustproof Rating

IP54 (IP65 available)

Certificate

CE / ISO9001

Max. Door Area

25 / 49 / 60 M²

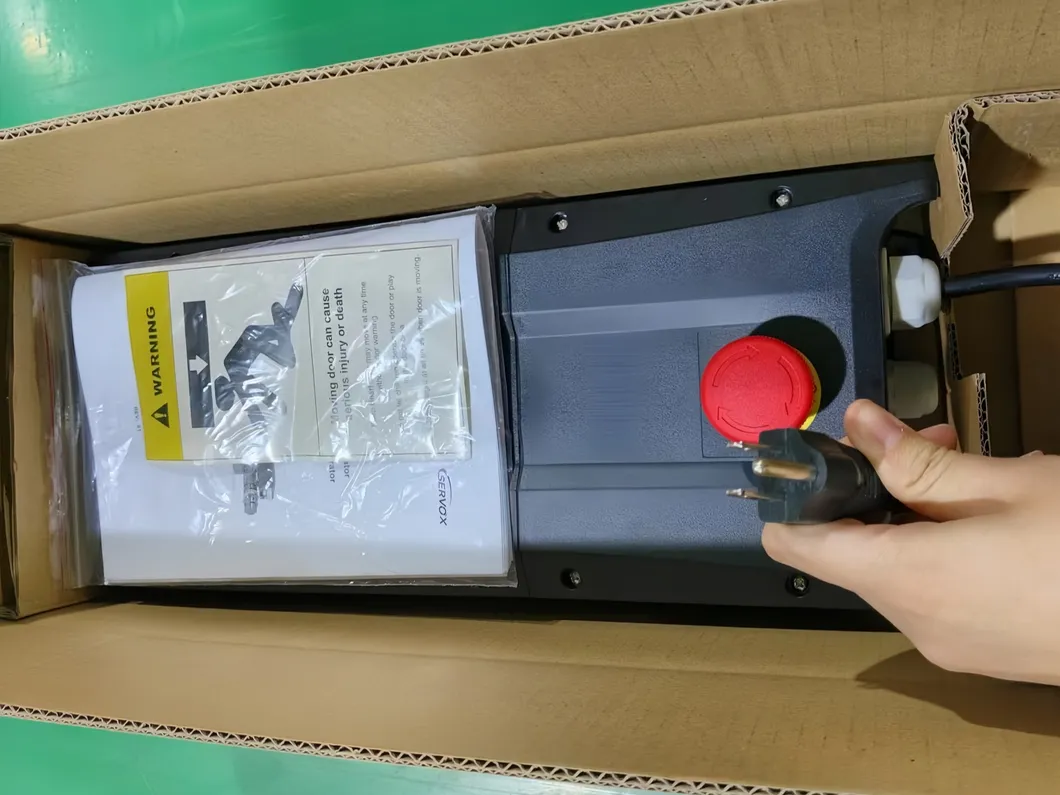

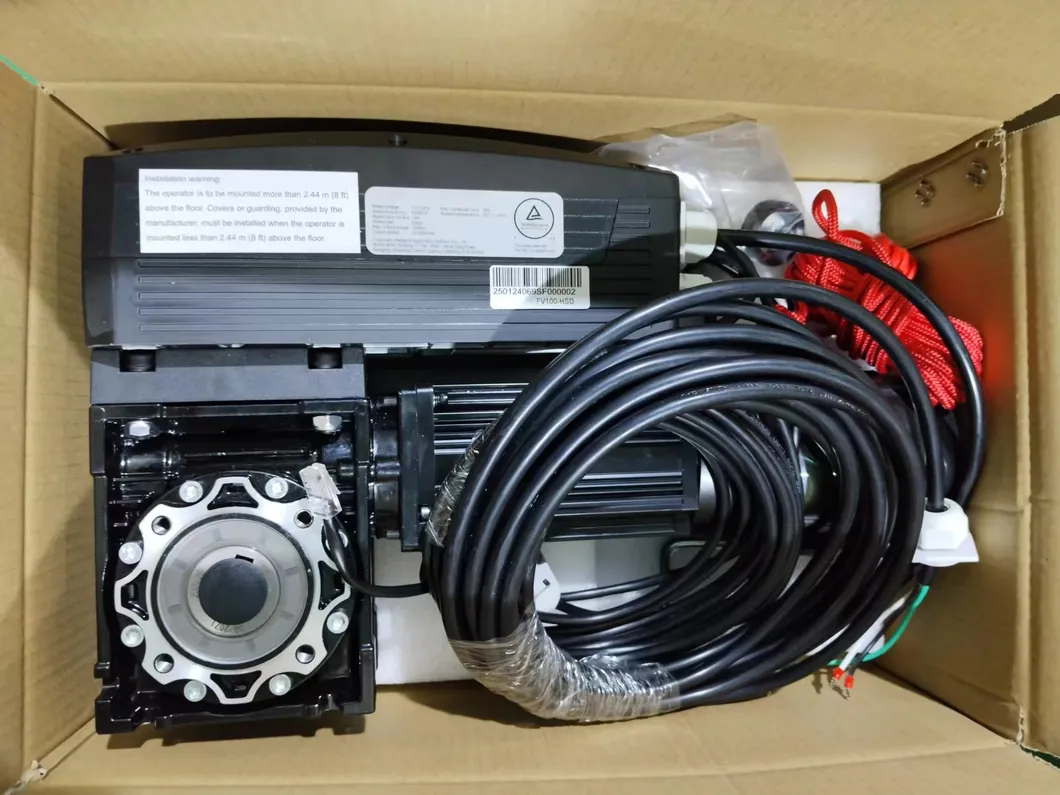

Transport Package

Pallets / Wooden Case

Specification

0.4 / 0.75 / 1.0 kW

Packaging & Delivery

Package Size

42.00cm * 35.50cm * 37.00cm

Package Gross Weight

22.500kg

Product Description

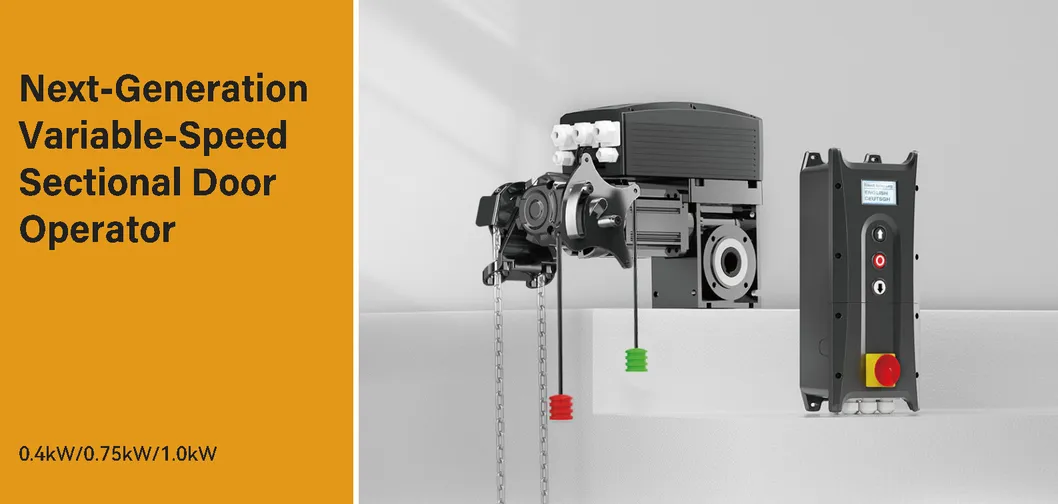

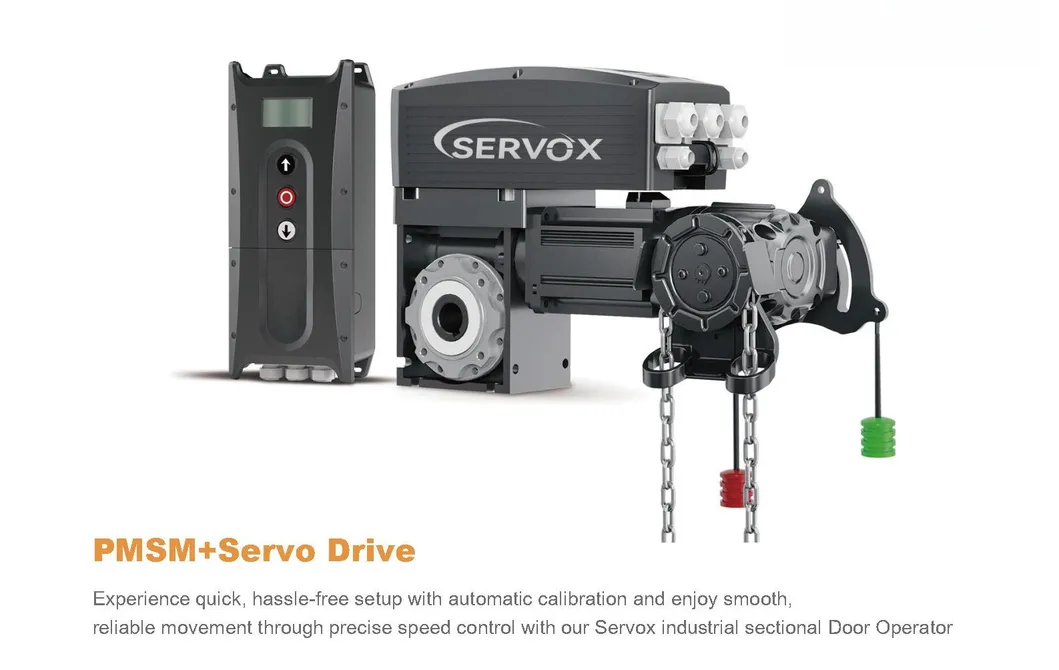

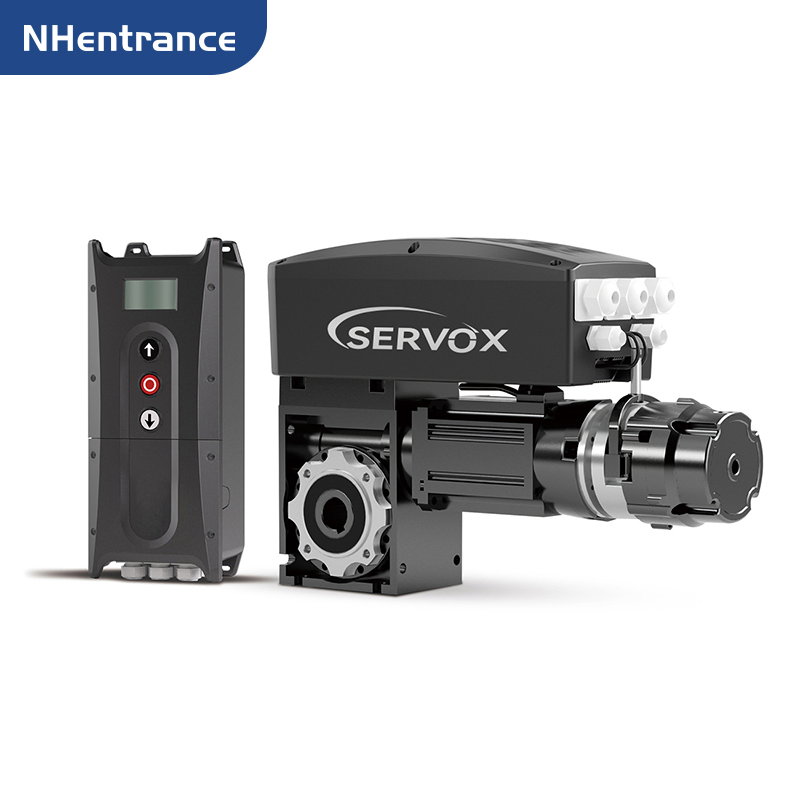

Our Servo Motor System for Industrial Sectional Doors is engineered for efficient and reliable performance in industrial applications. Available in 0.4kW, 0.75kW, and 1.0kW options, it delivers consistent power with a rated output torque range between 60 and 140 Nm. Designed for high endurance and frequency, this motor supports door systems with areas up to 49 square meters, maintaining smooth operation under rigorous conditions.

Product Parameters

Parameter	Value
Model	SV80 ISD / SV120 ISD / SV140 ISD
Motor Power (kW)	0.4 / 0.75 / 1.0
Rated Output Torque (Nm)	60 / 100 / 120
Max Output Torque (Nm)	80 / 120 / 140
Hollow Shaft Diameter (mm)	25.44 / 31.75
Max Door Area (m²)	49
Speed (RPM)	60
Voltage	1N110-120VAC / 1N220-240VAC, 50/60Hz
Endurance (cycles/hour)	60
Waterproof and Dustproof Rating	IP54 (IP65 optional)
Limit Setting	Absolute encoder
Emergency Release	Chain hoist

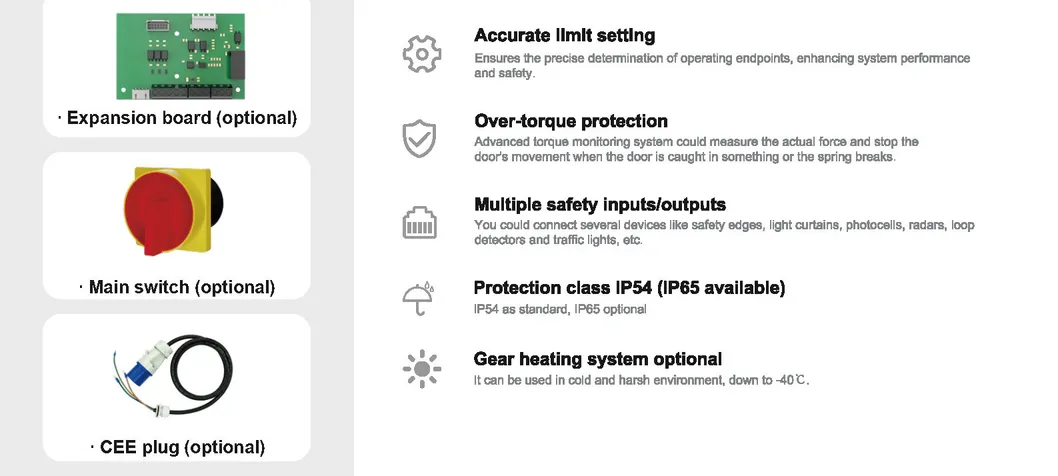

Optional Features	Main switch, CEE plug, expansion board

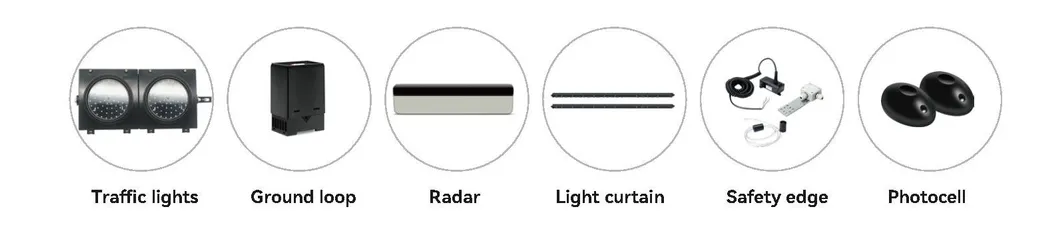

Compatible Safety Devices	Traffic lights, photocell, radar, ground loop, safety edge, light curtain

Our Advantages

High Efficiency

Offers optimized power output with options for different motor capacities (0.4kW to 1.0kW), accommodating various sectional door requirements.
Durable Performance

High endurance rating ensures continuous operation in demanding industrial environments.
Enhanced Safety

Equipped with advanced features such as absolute encoders and optional emergency release mechanisms, ensuring precise control and reliable performance.
Versatile Application

Compatible with multiple safety and control options, including traffic lights, photocells, and light curtains, providing adaptable solutions for diverse industrial needs.
Superior Protection

IP54 standard for dust and water resistance (IP65 optional), suitable for harsh environments.
