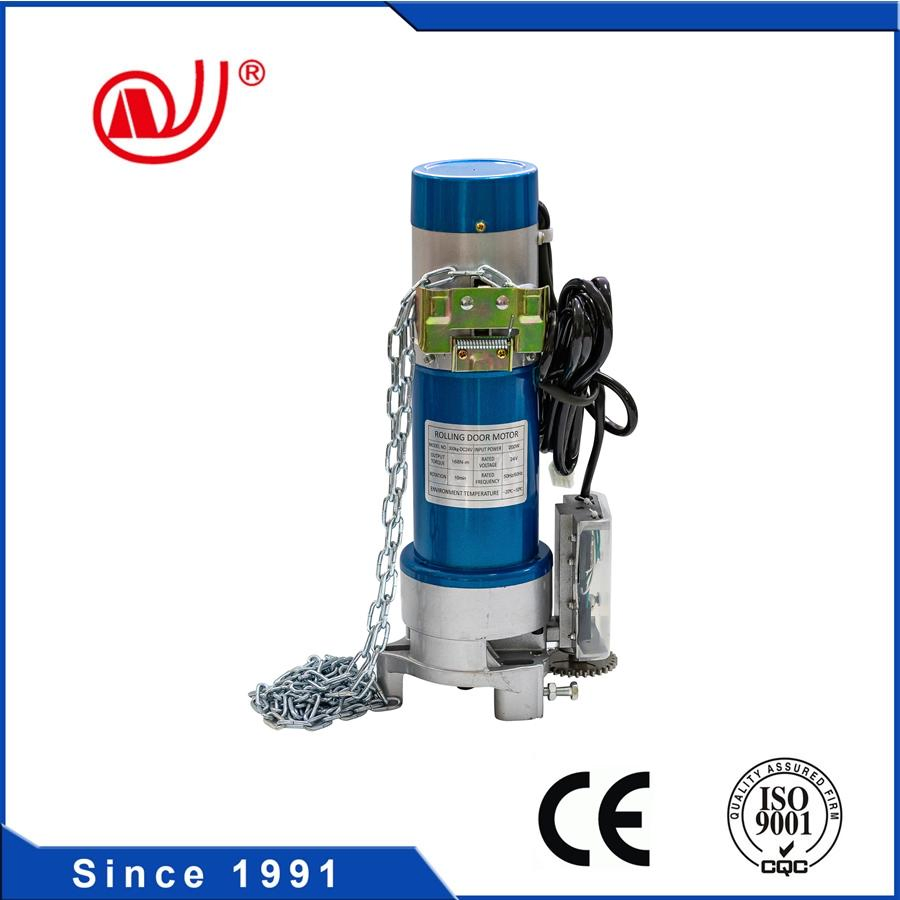

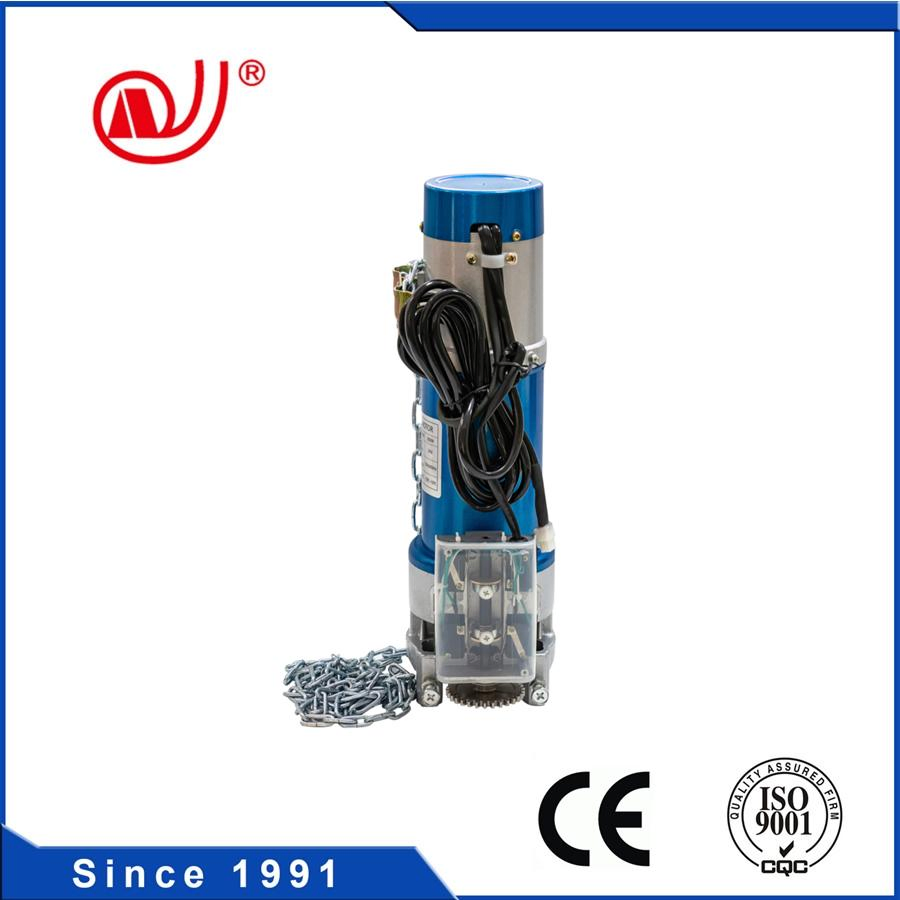

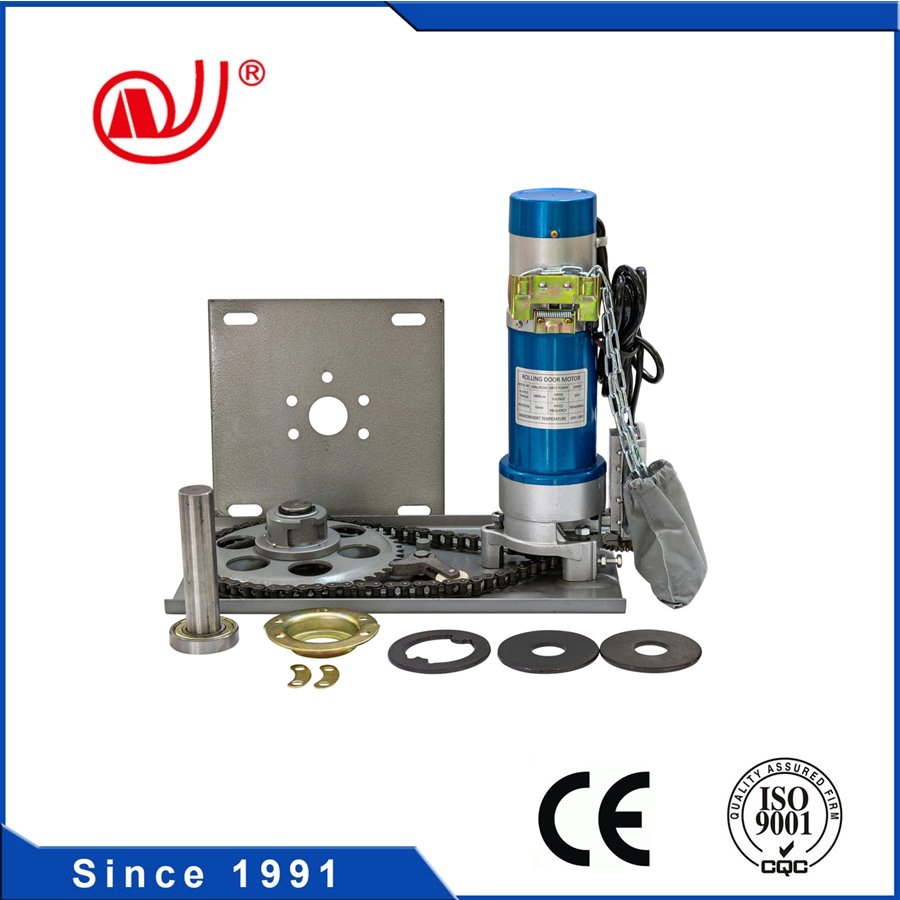

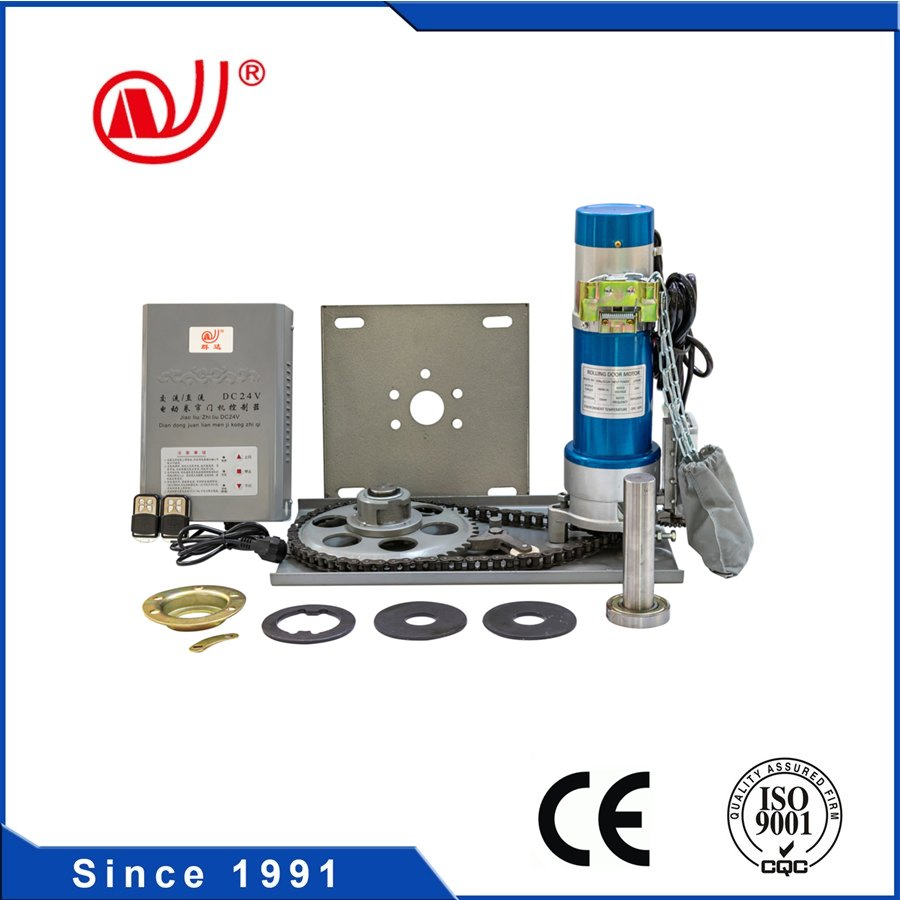

Automatic Easy Lift DC Motor Electronic Roller Shutter Door Machine

1 / 5

Automatic Easy Lift DC Motor Electronic Roller Shutter Door Machine

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

300KG-DC24V

Function

Control, Driving

Certification

ISO9001, CCC

Application Area

Supermarket, Hotel, Bank, Factory, etc

Usage

Control Rolling Door up and Down

Motor Winding

100% Copper Wire

Material

Aluminum Alloy

Rated Power

200W

Motor Input Voltage

DC24V

Production Capacity

12000sets/Month

📊

Technical Parameters

Model No.	Max Lifting Weight (kg)	Max Lifting Height (m)	Rated Input Power (W)	Output Torque (N.m)	Rotation (r/min)	Chain No.
220V/230V 50HZ/60HZ
AC300KG-1P	300	6.5	450	168	6.2	10A
AC500KG-1P	500	6.5	450	343	6.2	10A
AC600KG-1P	600	6.5	680	412	6.2	10A
AC800KG-1P	800	7.0	700	607	4.2	10A
AC1000KG-1P	1000	7.0	700	1102	3.5	12A
380V/415V 50HZ/60HZ
AC1000KG-3P	1000	8.0	400	1102	6.5	12A
AC1500KG-3P	1500	8.0	600	1610	5.7	12A
AC2000KG-3P	2000	8.0	800	2200	5.7	12A
DC Motors (24V)
300KG-DC24V	300	6.5	200	168	4.7	10A
500KG-DC24V	500	6.5	250	343	4.7	10A
600KG-DC24V	600	6.5	280	412	4.7	10A
800KG-DC24V	800	6.5	380	607	4.7	10A

🔍

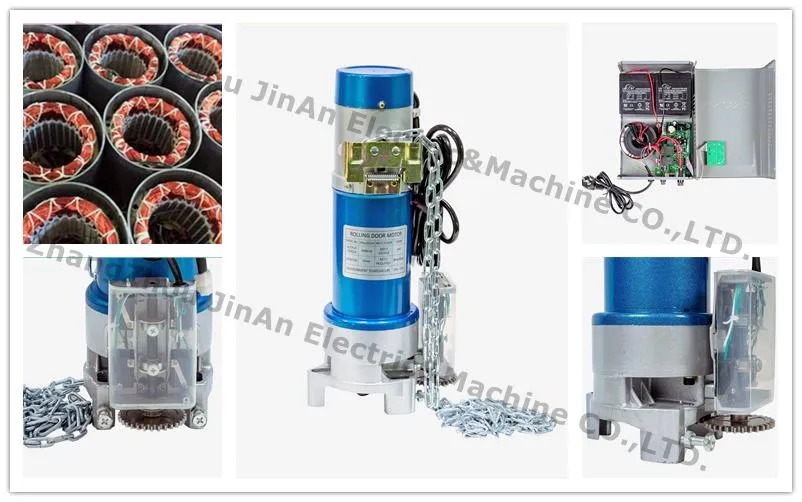

Key Features & Details

✅ 4 Relays: Ensures stable motor operation and high lifting power.

✅ 100% Copper Wiring: Provides larger capacity, stable current, and long-lasting durability.

✅ 4 Micro Switches: For precise limit control, easy operation, and wide control range.

✅ Anti-dropping Device: Built into the bracket board to ensure safety and prevent accidents.

✅ Aluminium Alloy Shell: Solid yet lightweight, easy to install, and vibration-resistant.

🏢

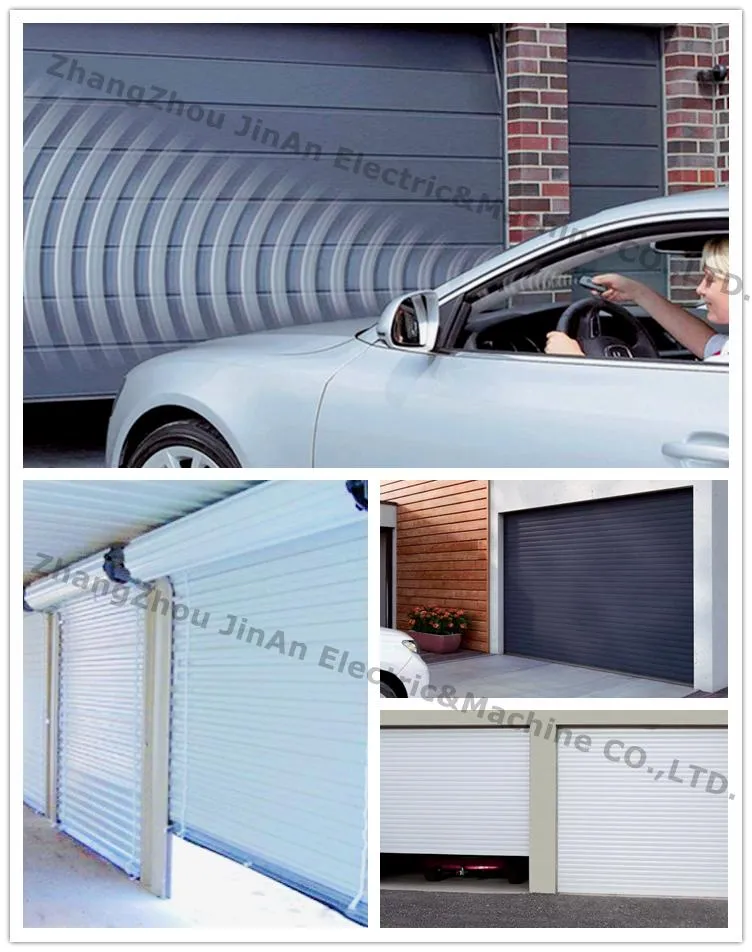

Application Areas

Our motors are ideal for shopping centers, warehouses, garages, theaters, hotels, banks, and factories. They support both electric and manual operation for rolling shutter doors.

Working Environment

Environment Temperature: -20ºC ~ 50ºC
Relative Humidity: ≤90%
Power Frequency: 50Hz ± 2Hz
Short working system: Continuous operation not exceeding 6 minutes.

📦

Packaging & Delivery

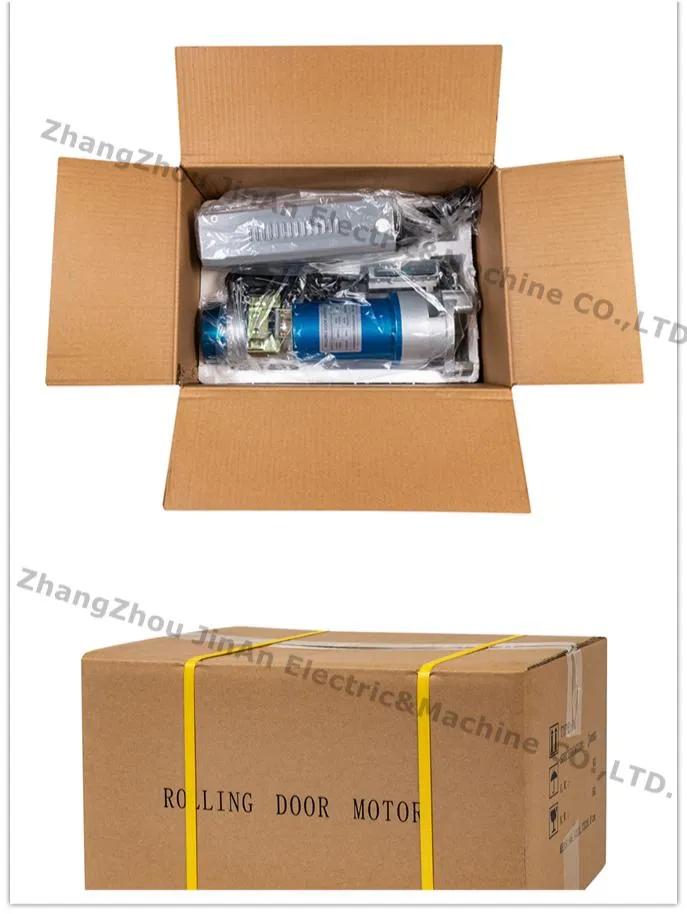

Packing: One set packed in two cartons, with plastic bag protection inside.

Loading Capacity: A 20 GP container holds approx 520-550 PCS AC motors or 480-520 PCS DC motors.

Delivery Time: Usually 10-45 days after deposit receipt, depending on quantity.

🛠️

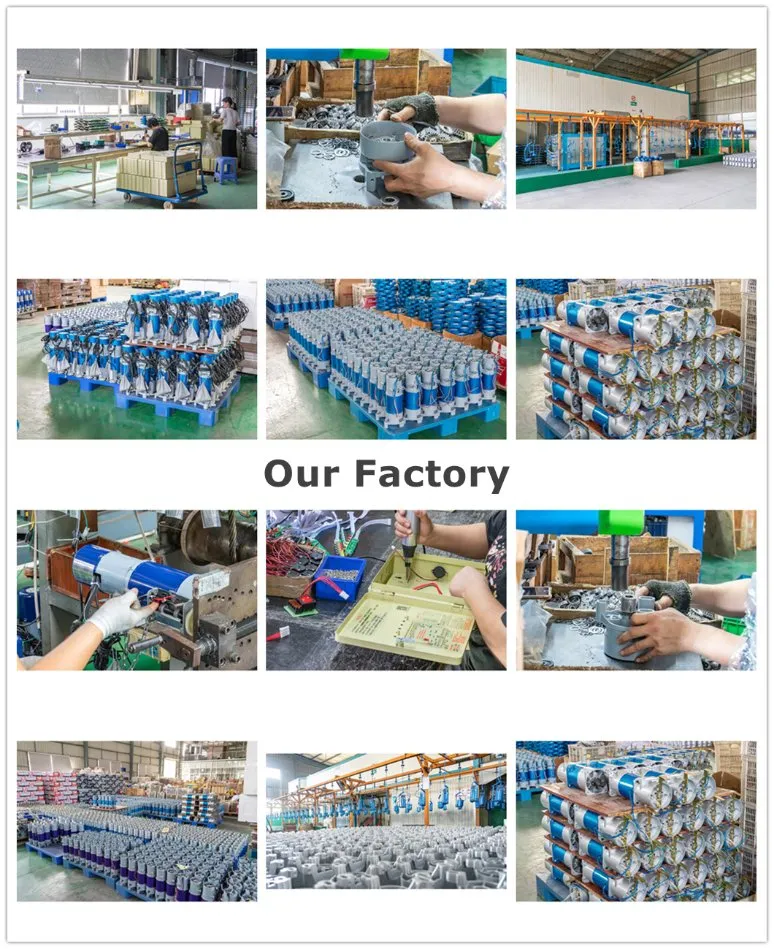

Quality Control & Equipment

Specializing in rolling door motors since 1991, we utilize advanced production technology and rigorous 100% full inspection to ensure high-quality output. Our products are popular across the Middle East, Asia, and South America due to their elegant design and stable quality.

🏆

Certificates & Exhibition

💡

More Choices

We provide a comprehensive range of AC Motors (300kg to 2000kg) and DC Motors (300kg to 600kg) to suit various requirements.

❓

Frequently Asked Questions

Are you a professional manufacturer? Yes, we are a professional manufacturer of rolling door motors with our own dedicated factory and production lines.

What is the standard delivery time? Normally, it is 7-10 days for stock items and 15-35 days for custom or bulk orders based on quantity and specific requirements.

Is OEM service available? Yes, OEM is acceptable. We can provide customized solutions and samples according to your specific requirements.

What materials are used for the motor winding? The primary material used is 100% copper wire. Aluminum wire is also available as an option for AC motors.

How do you ensure product quality? We have professional engineers for technical support, strict quality control protocols, and all motors are tested individually before packaging.

What are your payment terms? We accept company bank transfers. Generally, 30% T/T in advance and 70% balance before delivery. Sample orders require 100% T/T in advance.
