Automatic Roller Shutter Door AC Tubular Motor
Automatic Roller Shutter Door AC Tubular Motor
Automatic Roller Shutter Door AC Tubular Motor
Automatic Roller Shutter Door AC Tubular Motor
Automatic Roller Shutter Door AC Tubular Motor
1 / 5
Automatic Roller Shutter Door AC Tubular Motor
Automatic Roller Shutter Door AC Tubular Motor
Automatic Roller Shutter Door AC Tubular Motor
Automatic Roller Shutter Door AC Tubular Motor
Automatic Roller Shutter Door AC Tubular Motor

Automatic Roller Shutter Door AC Tubular Motor

Send Inquiry

Product Description

Product Description

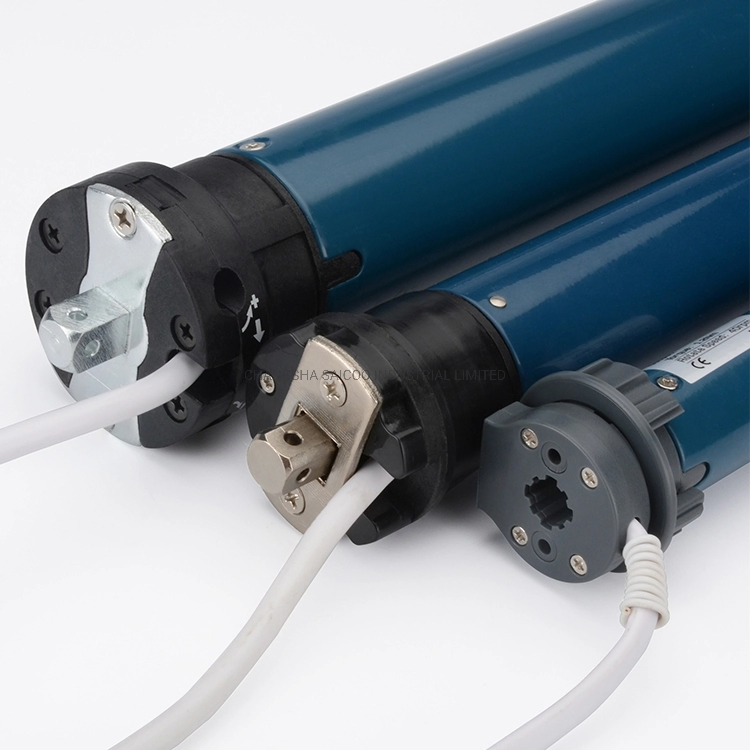

35/45/59/92mm tubular motor for window curtain/shutter/roller shutter blind. This high-performance motor is designed for reliability, efficiency, and seamless automation of your window treatments.

✔
Versatile Usage: Perfect for roller blinds, venetian blinds, honeycomb blinds, and pleated blinds.
⚡
Strong Power & Control: Rated voltage 5~120v/220~240v-50/60hz with output torque ranging from 3NM to 300NM.
🔇
Low Noise Operation: Delicate design ensuring noise levels are less than 38db for near-silent movement.
🛠
Durable Build: Stator size is optional; features plastic sealed technology for a service life of up to 10 years.
🎯
Accurate Limits: Limit accuracy <+-0.5 degree, equipped with screw pole drive for precise configuration.
📡

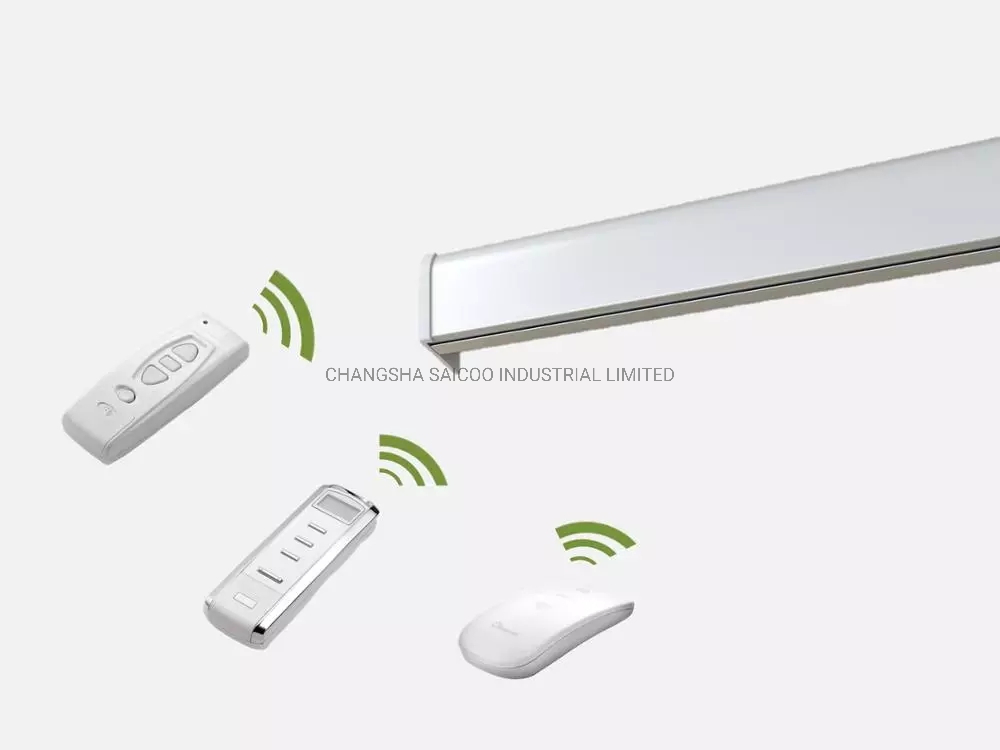

Built-in Remote: Stable built-in receiver with an effective control distance of more than 30m.
Technical Data

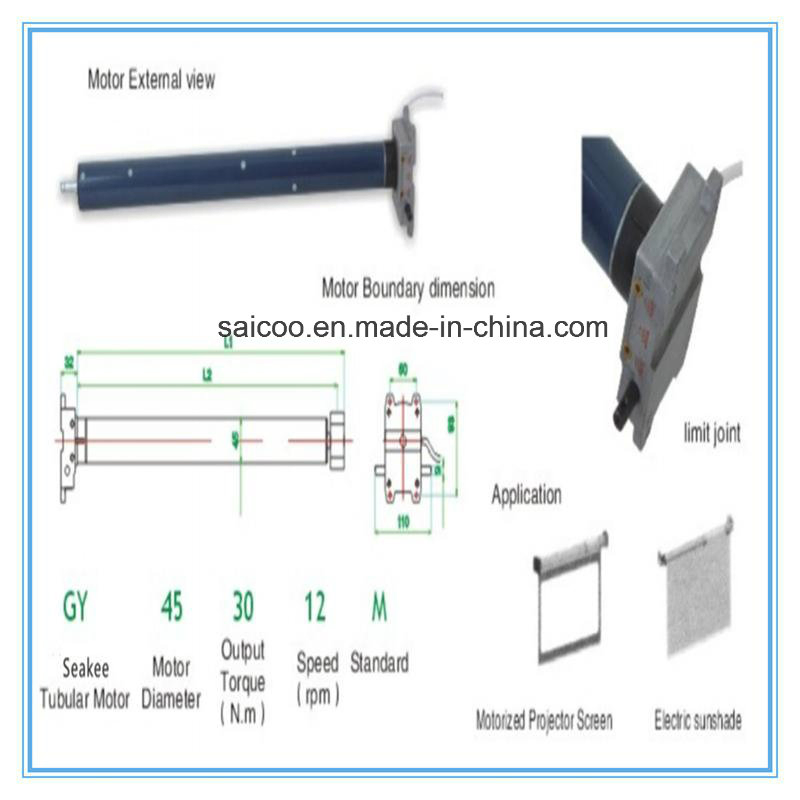

Model Spec Torque (N.m) Voltage (V) Freq (Hz) Speed (rpm) Limit (turn) Power (W) IP
230v/50hz
GY45WAGY45-30/1230230501230270IP44
GY45WAGY45-30/1730230501730300IP44
GY45WAGY45-40/1240230501230280IP44
GY45WAGY45-50/1250230501230300IP44
GY45WAGY45-60/1260230501230320IP44
120v/60hz
GY45WAGY45-30/1230120601230250IP44
GY45WAGY45-30/1730120601730270IP44
GY45WAGY45-40/1240120601230270IP44
GY45WAGY45-50/1250120601230280IP44
GY45WAGY45-60/1260120601230300IP44

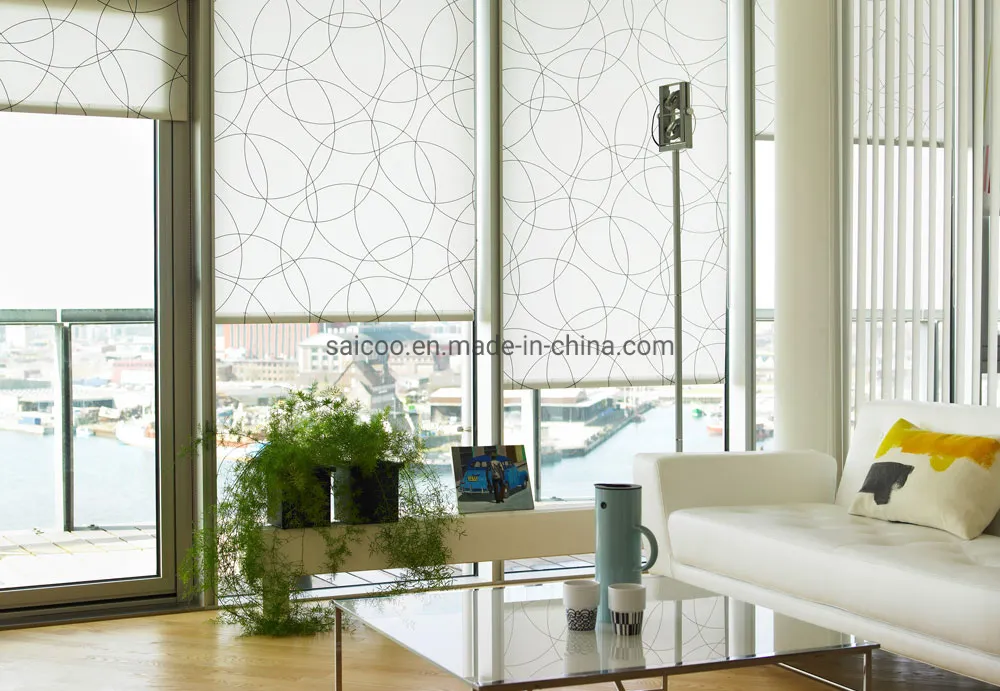

Usage Gallery
Automatic Roller Shutter Door AC Tubular Motor
Automatic Roller Shutter Door AC Tubular Motor
Automatic Roller Shutter Door AC Tubular Motor
Automatic Roller Shutter Door AC Tubular Motor
Automatic Roller Shutter Door AC Tubular Motor
Automatic Roller Shutter Door AC Tubular Motor
Frequently Asked Questions
Q: What types of window coverings are these motors suitable for?
These tubular motors are widely compatible with roller blinds, venetian blinds, honeycomb blinds, pleated blinds, as well as roller doors and shutters.
Q: How quiet is the motor during operation?
Our motors are engineered for low-noise performance, operating at less than 38db, ensuring a nearly silent and smooth movement.
Q: Does the motor come with remote control functionality?
Yes, many of our models feature a built-in remote control receiver with an effective range of over 30 meters, simplifying installation and usage.
Q: What is the expected service life of the motor?
Thanks to the advanced plastic sealed technology and high-quality gear materials, the motor is designed for durability, with a service life potentially reaching up to 10 years.
Q: How precise are the limit settings?
The motor offers high-precision limit settings with an accuracy of less than +/- 0.5 degrees, allowing for very stable and controlled operation.
