DC High Speed Curtain Roller Shutter Tubular Central Motor

1 / 5

DC High Speed Curtain Roller Shutter Tubular Central Motor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info

Model NO.FD-300

Electric Current TypeAC

BrandEverbright

Output PowerDC24V / 1A

Input Voltage1p,AC220V±15%/50~60Hz

Limit ControlAbsolute Encoder, Mechanical Limit

Rated Power0.75kw, 1.5kw, 2.5kw

Overload Capacity300% Rated 10s, 150% Rated 60s

Temperature-20℃ ~ 50℃

Dimension360×23×100mm

Weight5.2kg

OriginChina

Product Description

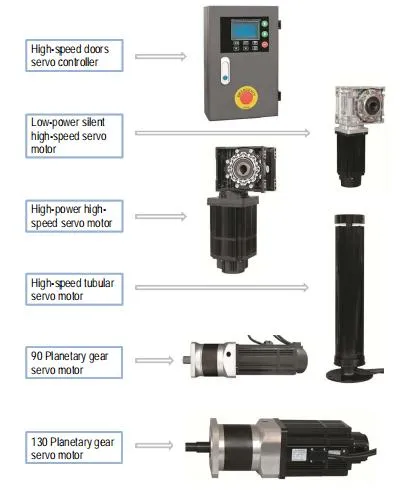

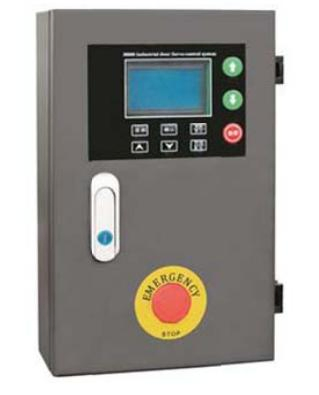

High-speed doors servo control system

DC High Speed Curtain Roller Shutter Tubular Central Motor

Features

Intelligent human-computer interaction interface, LCD display, built-in Chinese and English
Convenient wiring and simple operation
Built-in brake released battery, the brake can be quickly released with one button when power off
Low noise, stable operation and high efficiency
High-quality IPM intelligent module, with strong performance and full protection function
Record running time and number of times, lock and maintenance time can be set
Real-time monitor external signals and system alarm functions
The product is suitable for all kinds of PVC high-speed doors, PVC high-speed Fold-up doors and spiral doors.

Model	Rated Power	Brake Release Battery	Input Voltage
FD300	0.75kw, 1.5kw, 2.5kw	Built-in / None	1P, AC220V±15%/50~60Hz

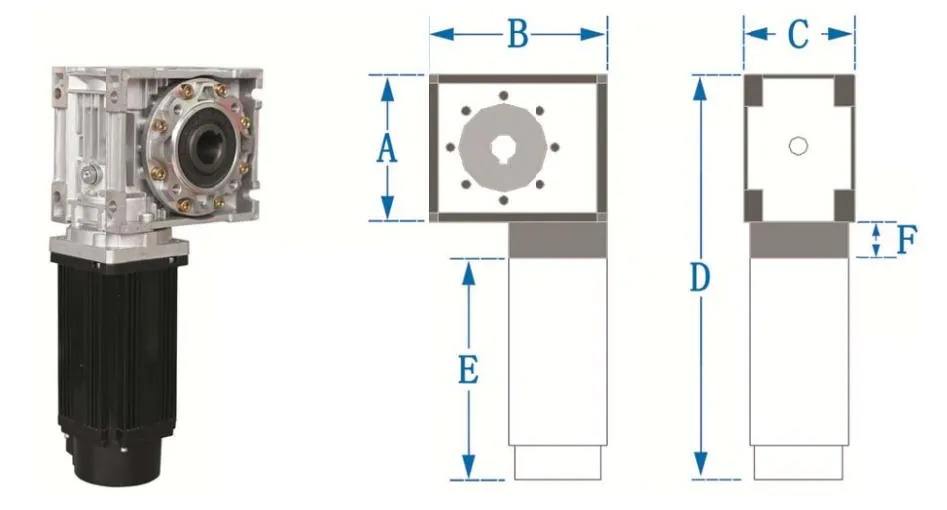

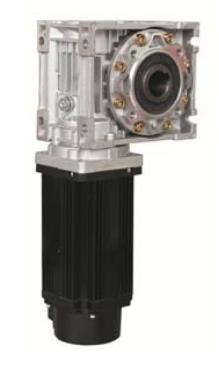

Low power silent high-speed servo motor

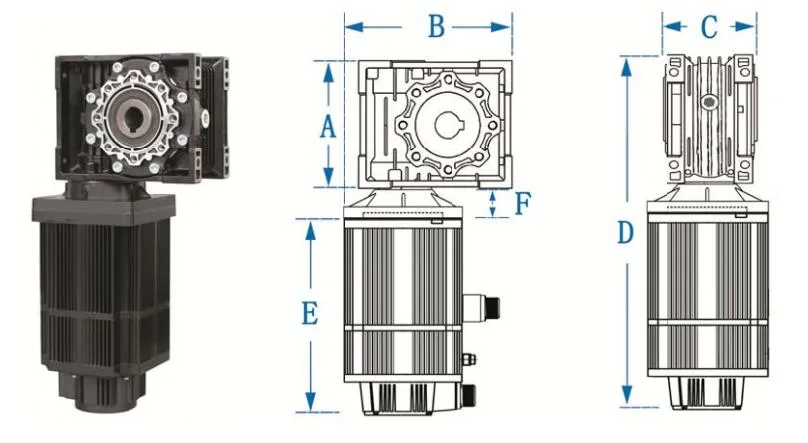

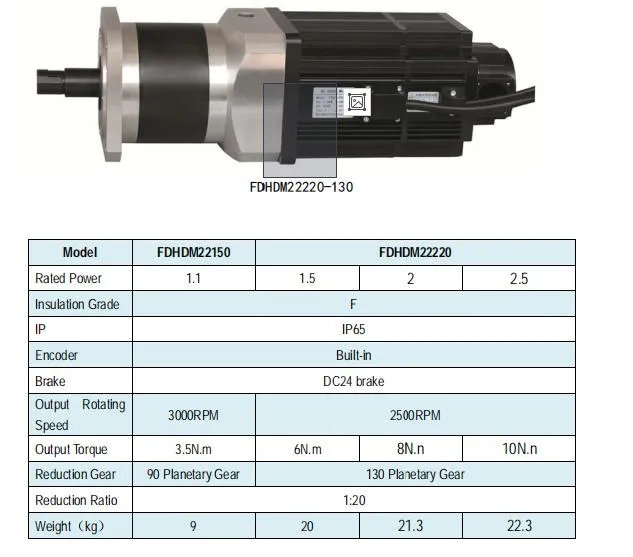

High-power high-speed servo motor

Product Gallery

FAQ

Q: What types of doors is this servo control system suitable for?

A: This system is specifically designed for various PVC high-speed doors, PVC high-speed fold-up doors, and spiral doors.

Q: Does the system function during a power outage?

A: Yes, it features a built-in brake release battery, allowing the brake to be quickly released with one button even when the power is off.

Q: What are the temperature operating ranges for this motor?

A: The motor is capable of operating in a wide range of environments, specifically between -20ºC and 50ºC (and up to 70ºC for specific models).

Q: Is the interface easy to operate?

A: Yes, it includes an intelligent human-computer interaction interface with an LCD display, supporting both Chinese and English for simple operation.

Q: How durable is the overload capacity of the servo motor?

A: The motor offers a constant high torque output with an overload capacity of up to 300% for 10 seconds and 150% for 60 seconds.
