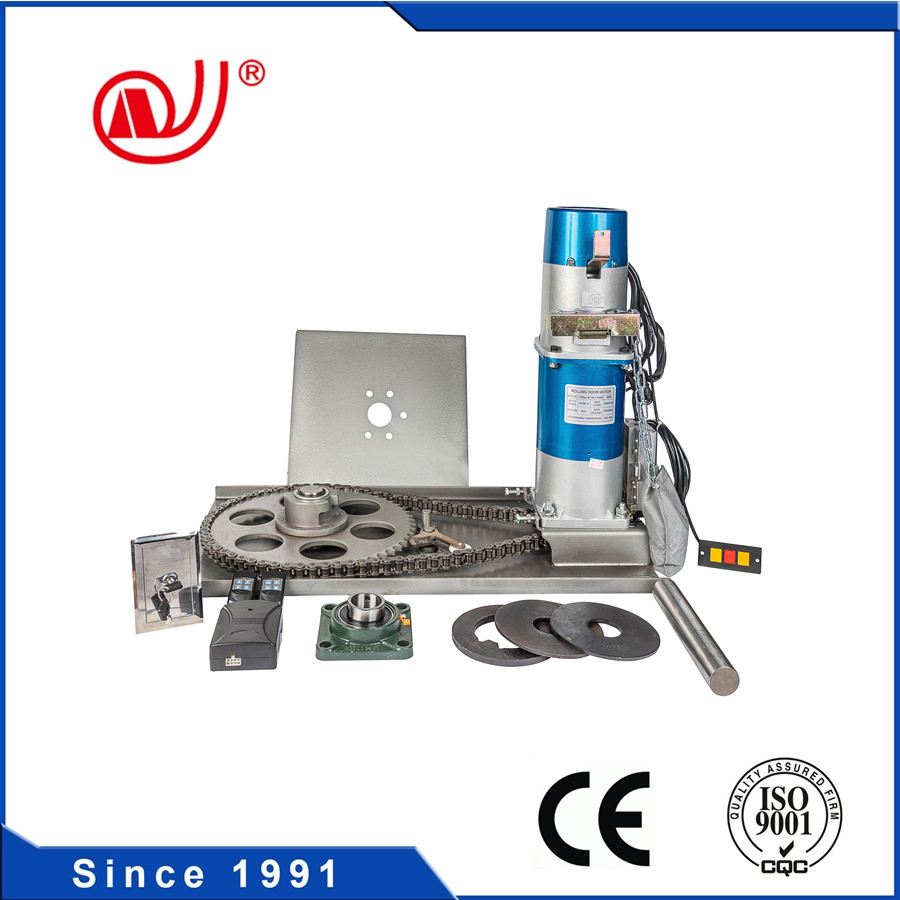

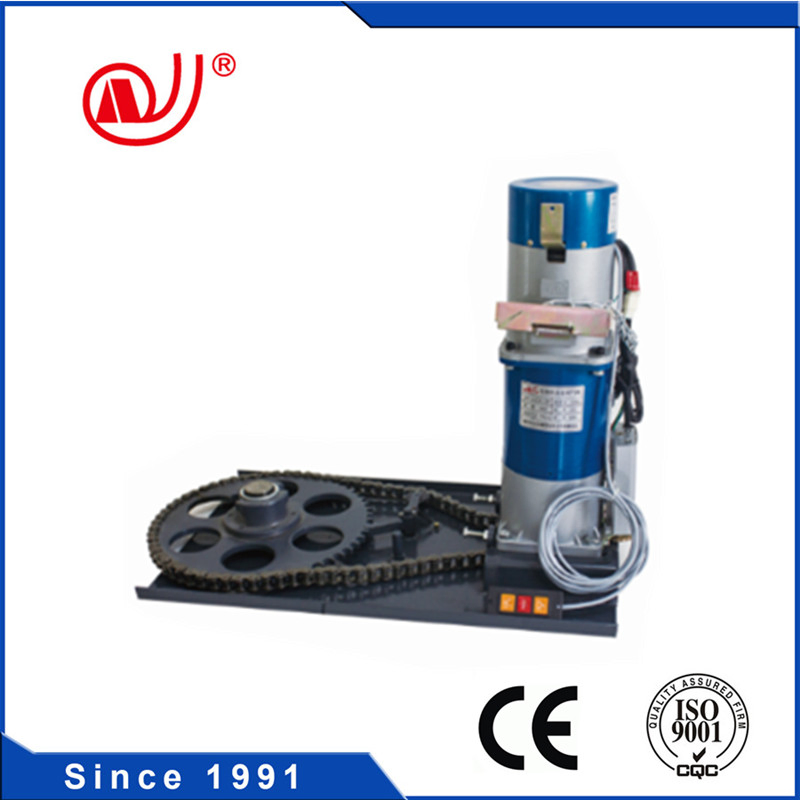

High Power Roller Shutter Industrial Automatic Operators Side Door Motor with Remote Control AC1500kg-3p

Product Description

Application Area:

Our roller shutter motors are widely used for opening and closing of garage doors, industrial doors, residential doors, commercial and industrial sectors. It can be operated by electricity and manual.

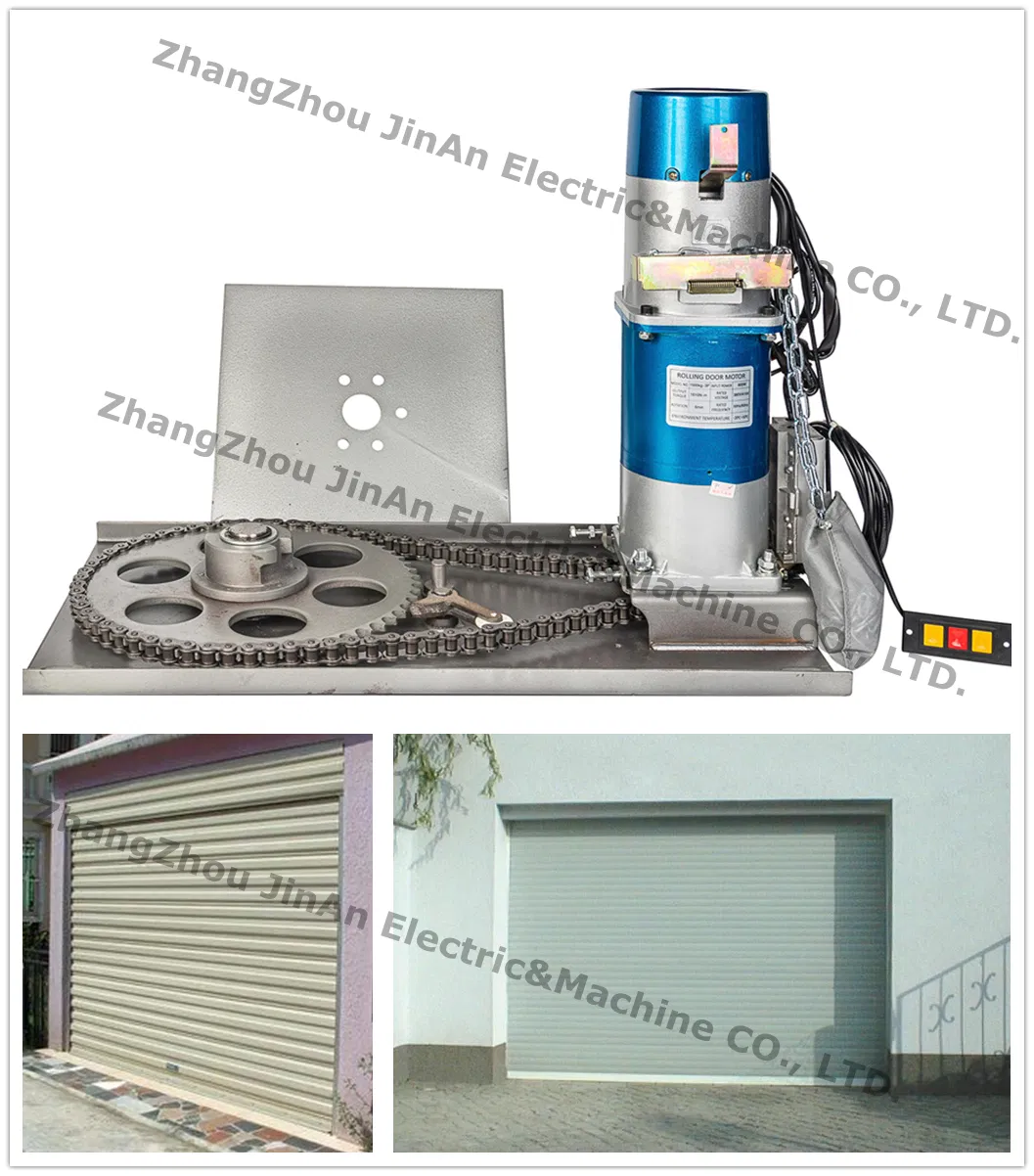

High Power Roller Shutter Industrial Automatic Operators Side Door Motor with Remote Control

Working Environment & Conditions

✓
Working Area: Indoor or similar places
✓
Environment Temperature: -20ºC ~ 50ºC
✓
Relative Humidity: ≤90%
✓
Voltage of Power: Fixed voltage × (1 ±10%)V
✓
Frequency of Power: 50Hz ±2Hz
✓
No strong electromagnetic interference source, explosive medium, corroding metal medium around.
✓
Short working hour system, continuous operation should not exceed 6 minutes.

Features

1
Shell: Aluminium alloy, solid and light but durable and easy to install.
2
Low noise: Low energy consumption, small vibration.
3
Limit System: Correct control, easy operation, and big control range.
4
Anti-dropping device: Preventing accidental injury and ensure safety.
5

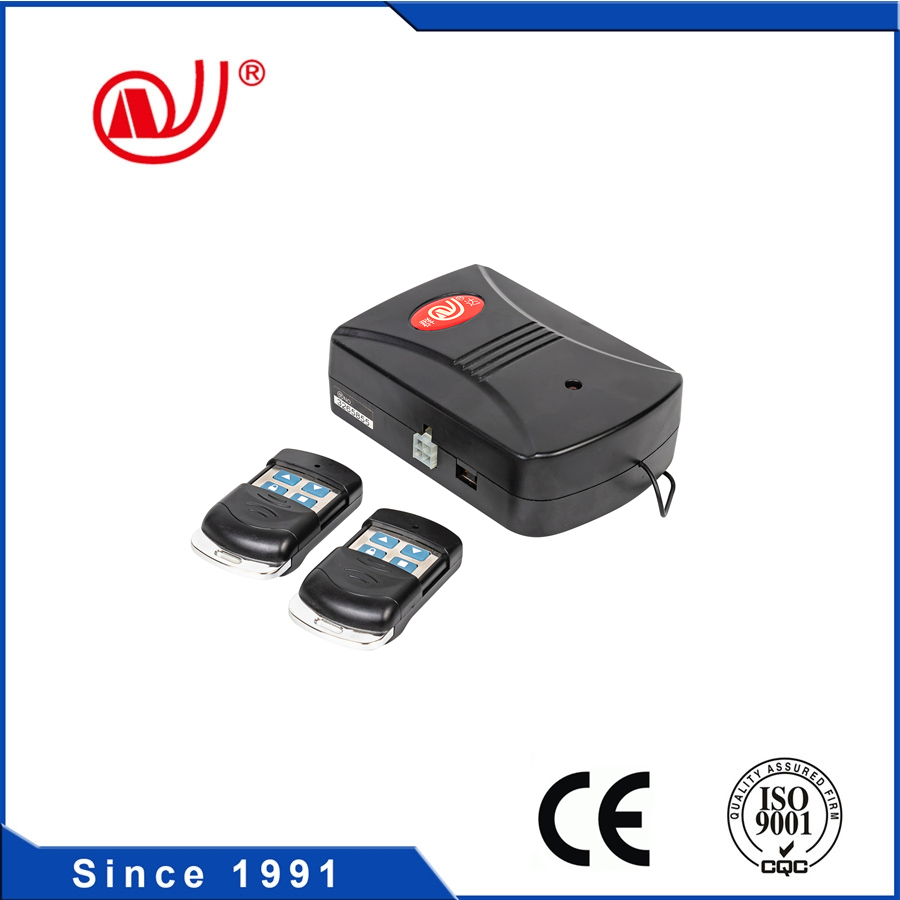

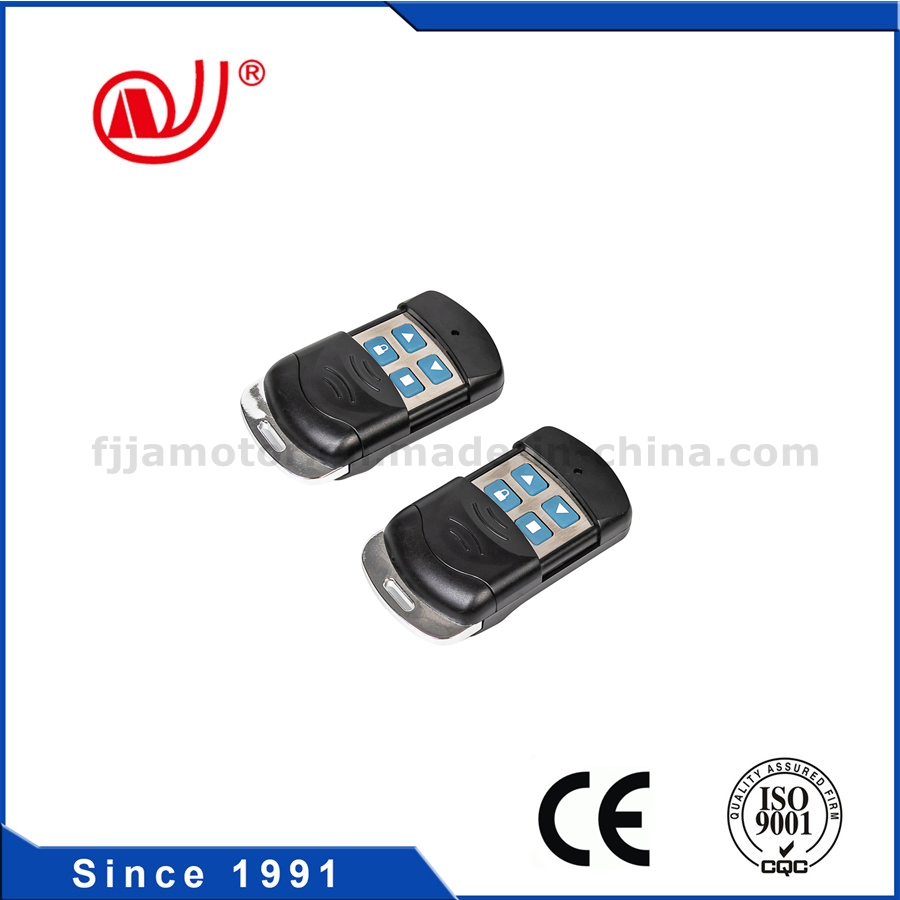

Transmitters: It outfits with remote control.

Technical Parameter

Model No.	Max lifting weight(kg)	Max lifting height(m)	Rated Input Power(W)	Output Torque(N.m)	Big reel sprocket Rotation(r/min)	Chain No.
220V/230V 50HZ/60HZ
AC300KG-1P	300	6.5	450	168	6.2	10A
AC500KG-1P	500	6.5	450	343	6.2	10A
AC600KG-1P	600	6.5	680	412	6.2	10A
AC800KG-1P	800	7	700	607	4.2	10A
AC1000KG-1P	1000	7	700	1102	3.5	12A
380V/415V 50HZ/60HZ
AC1000KG-3P	1000	8	400	1102	6.5	12A
AC1300KG-3P	1300	8	600	1372	6.5	12A
AC1500KG-3P	1500	8	600	1610	5.7	12A
AC2000KG-3P	2000	8	800	2200	5.7	12A
DC Motors (24V)
300KG-DC24V	300	6.5	200	168	4.7	10A
500KG-DC24V	500	6.5	250	343	4.7	10A
600KG-DC24V	600	6.5	280	412	4.7	10A

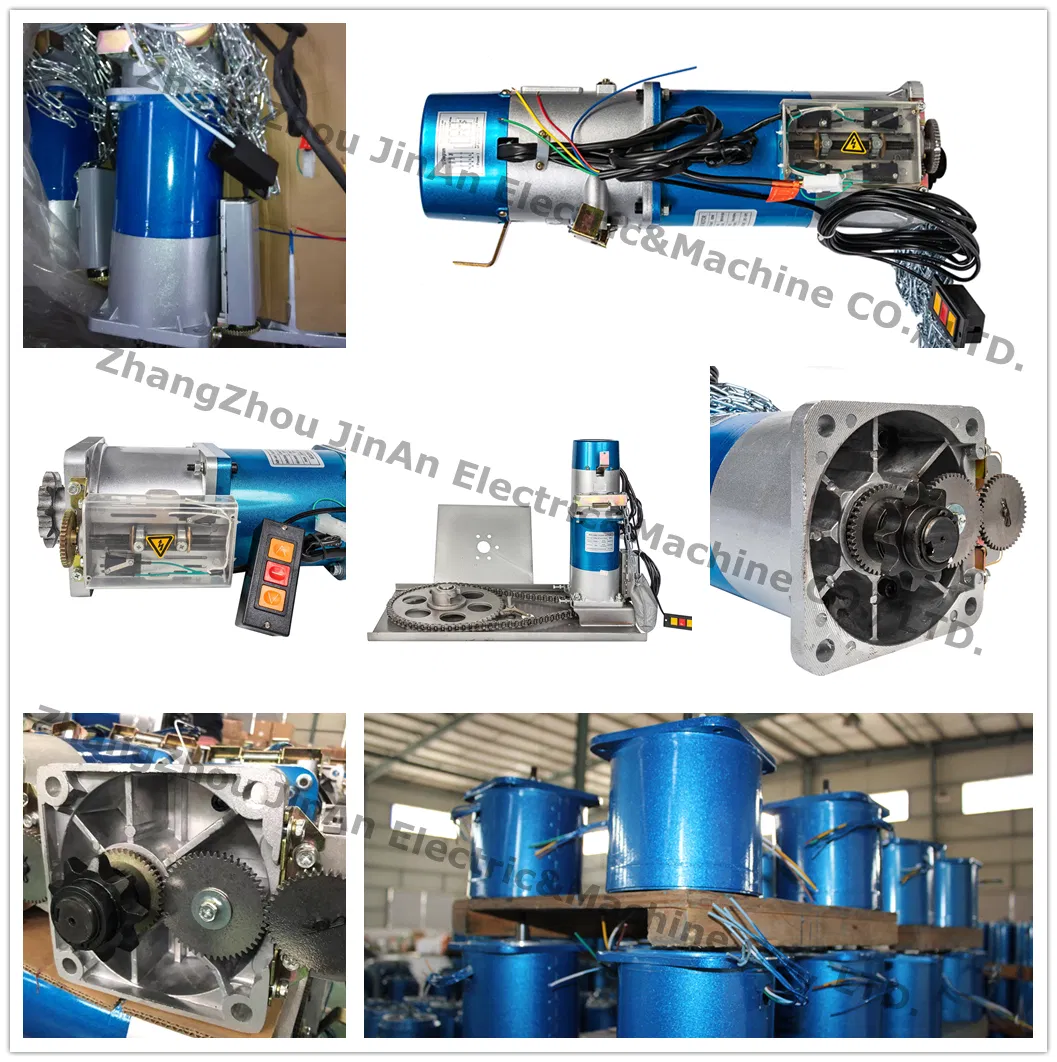

Product Details

✓
4 relays to make motors work more stable and big lifting power.
✓
100% copper wiring makes Motors with larger capacity, stable current and durable character.
✓
4 Micro switches in limit utensil for correct control, easy operation and big control range.
✓

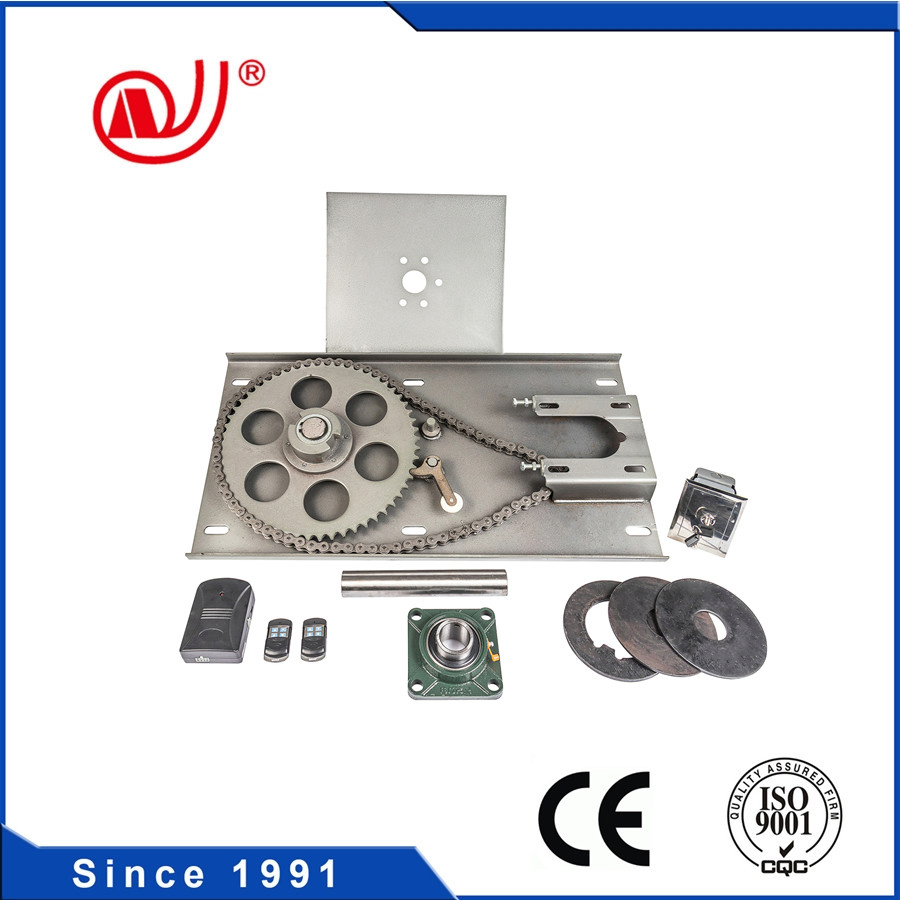

An anti-dropping device in bracket board to prevent accidental injury and ensure safety.
✓
Motors can be customized based on your requirements.

Packing & Delivery

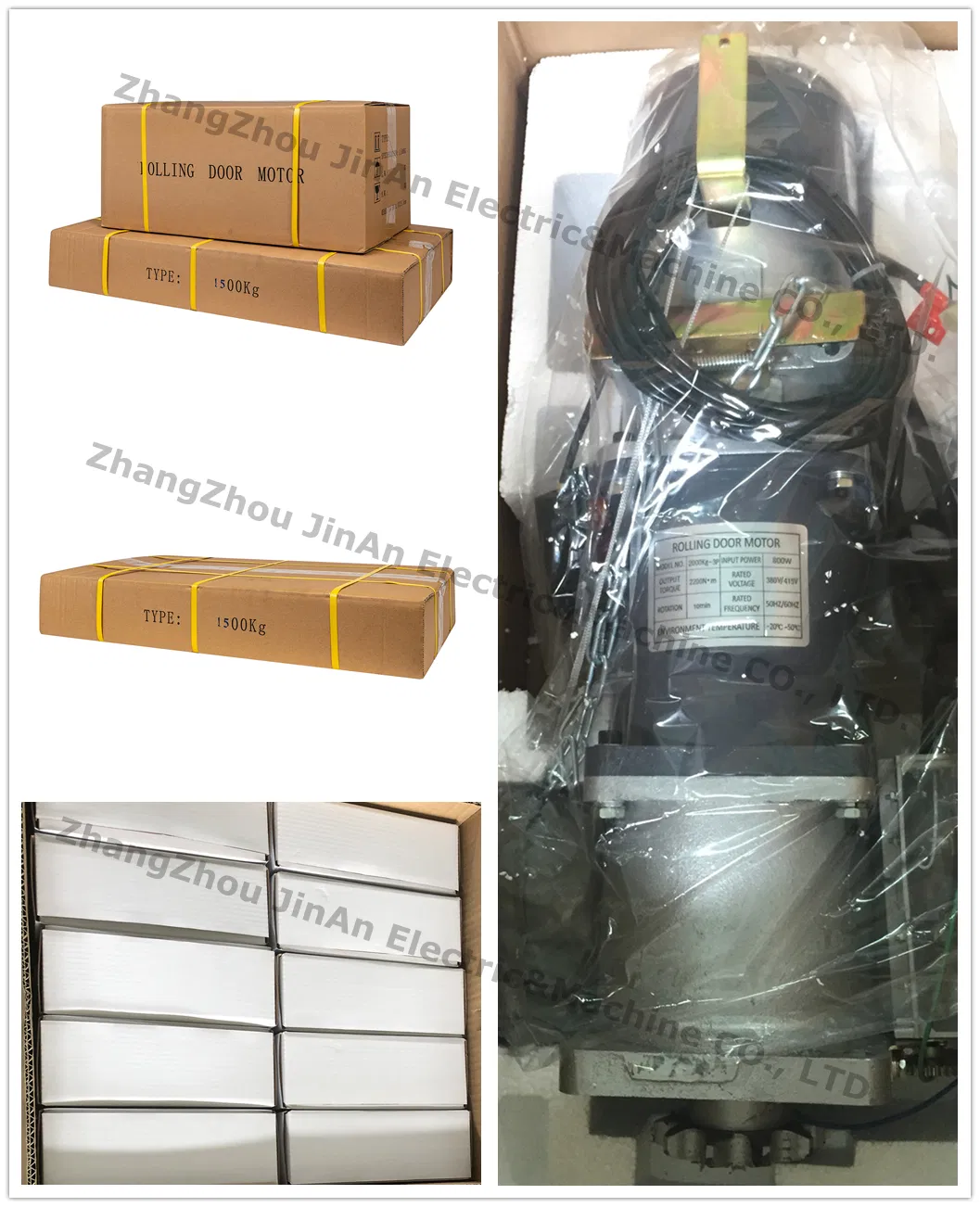

Packing and Loading Roller Shutter Motors

Packing: One set in two cartons, plastic bag inside, carton outside. (The outside cartons can be customized according to customers' requirements, like printing logo or words on it or according to your own design to print it.)

Loading Capacity: A 20 GP container can hold about 520-550 PCS AC motor, if DC motors, 480-520PCS is available.

Delivery time: We will deliver the goods in 10-45 days after receiving your deposit, which is according to your exact quantity and requirements.

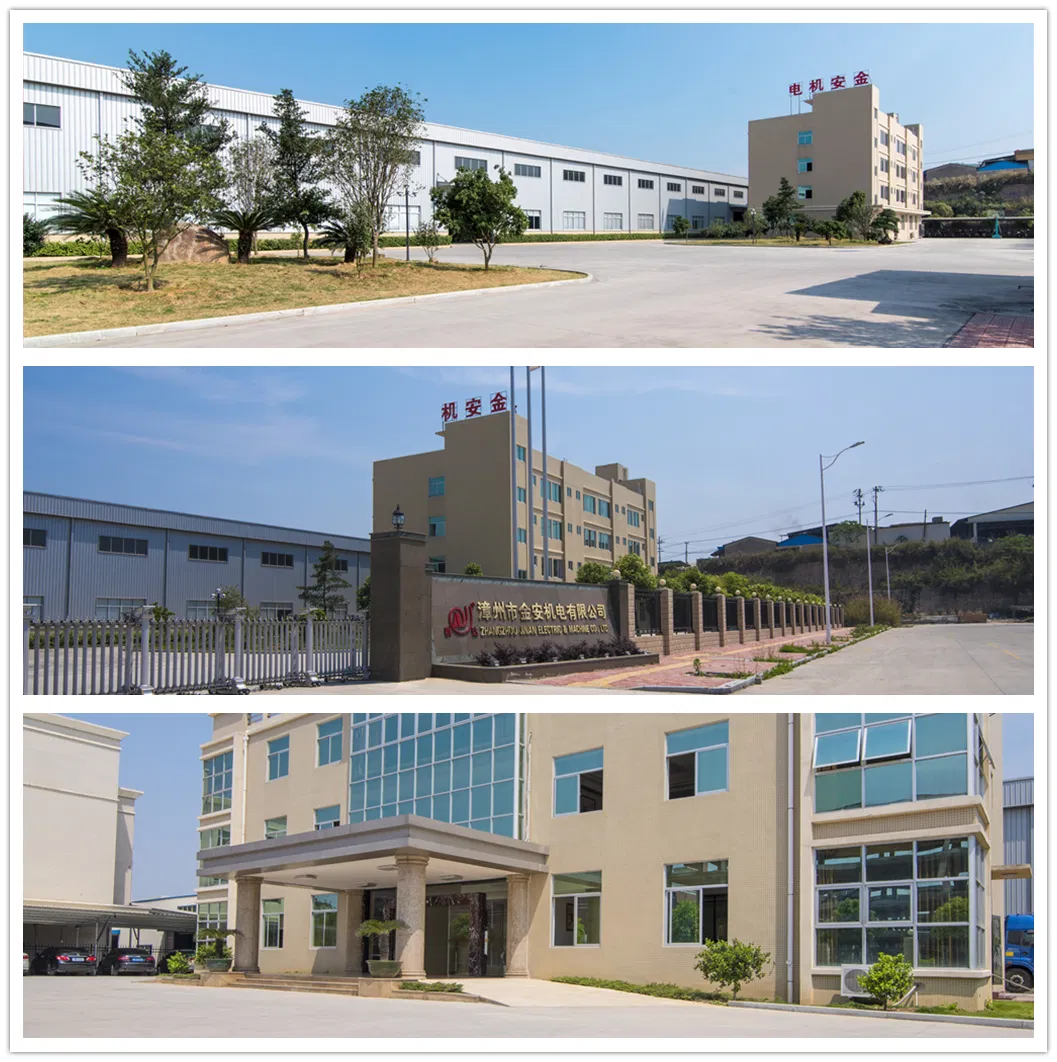

About The Manufacturer

We are a manufacturer who has been specializing in developing and producing all kinds of rolling door motors since 1991. Through the introduction of advanced production technology and equipment and a strong quality-oriented workforce, we have gained CE and ISO9001 quality certification. With strict quality control under 100% full inspection to ensure all products in good quality in your hands. Meanwhile, we have a professional engineering team to offer technical support for our customers. With the features of elegant design, stable quality, strong power, quiet running, easy installation, and long service life, our motors are popular globally.

We consistently insist on our motto "Pursuing quality, permanent and continuous service" to satisfy our customers from different countries. With the positive attitude of keeping improving and the spirit of striving, exploring, and being responsible, we sincerely hope to open long-term, mutual reliance businesses with friends from all over the world!

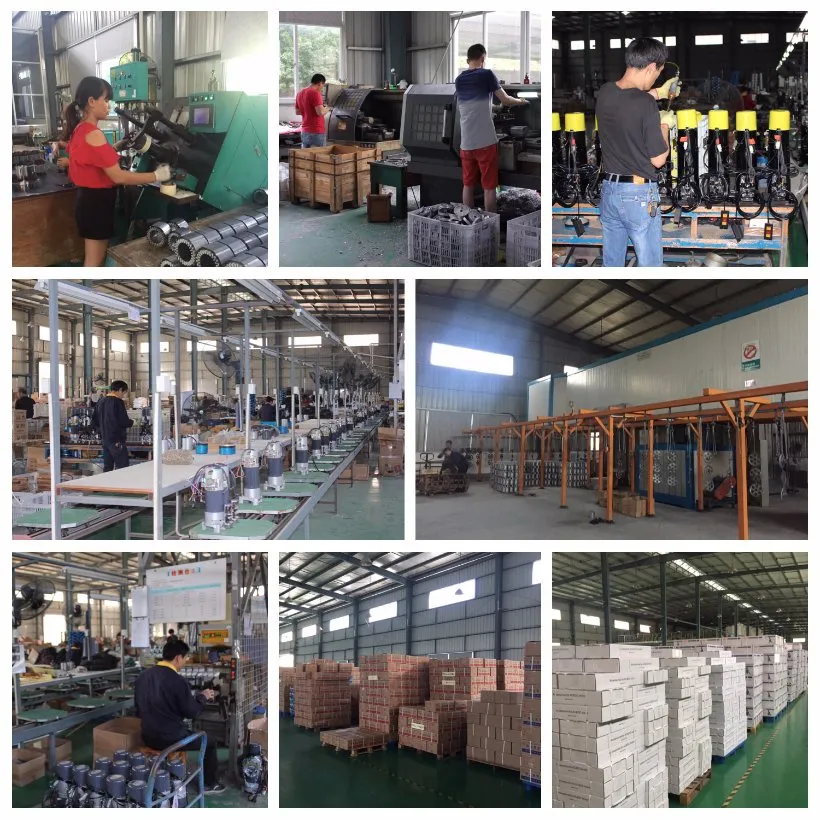

Our Equipment

Certificates

All of our motors are CE and ISO9001 certificated.

Exhibitions

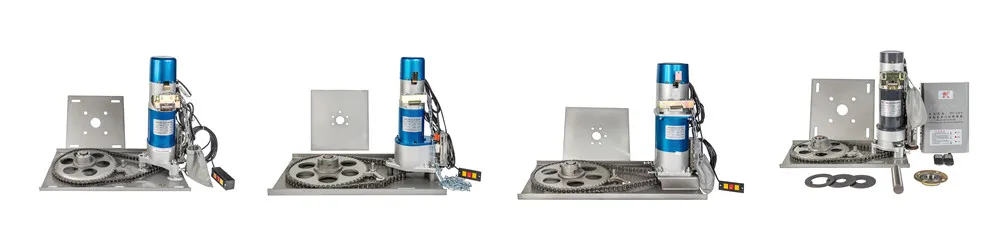

More Choice For You

We have AC Motor 300kg, 500kg, 600kg, 800kg, 1000kg, 1300kg, 1500kg, 2000kg and DC Motor 300kg, 500kg, 600kg for your option.

Frequently Asked Questions (FAQ)

Are you a manufacturer?

Yes, we are a professional manufacturer of rolling door motors, and we have our own factory.

How about the delivery time?

Normally, if the goods are in stock, it takes 7-10 days; if the goods are not in stock, it will be 15-35 days, based on the customer's quantity and requests.

Can you do OEM for me?

Yes, OEM is highly acceptable. Please contact us with your specifications, and we will provide reasonable prices and samples as soon as possible.

What's the material of your Motor Winding?

The primary material used is 100% Copper Wire, and Aluminum Wire is also available as an option for AC motors.

May I know the minimum Order Quantity?

Any order quantity is highly welcome. Sample orders for testing product quality are gladly provided.

What are your terms of payment?

We accept Company Bank transfers. For sample orders, 100% T/T in advance is required. For bulk orders, it is 30% T/T in advance and the remaining 70% balance before delivery.
