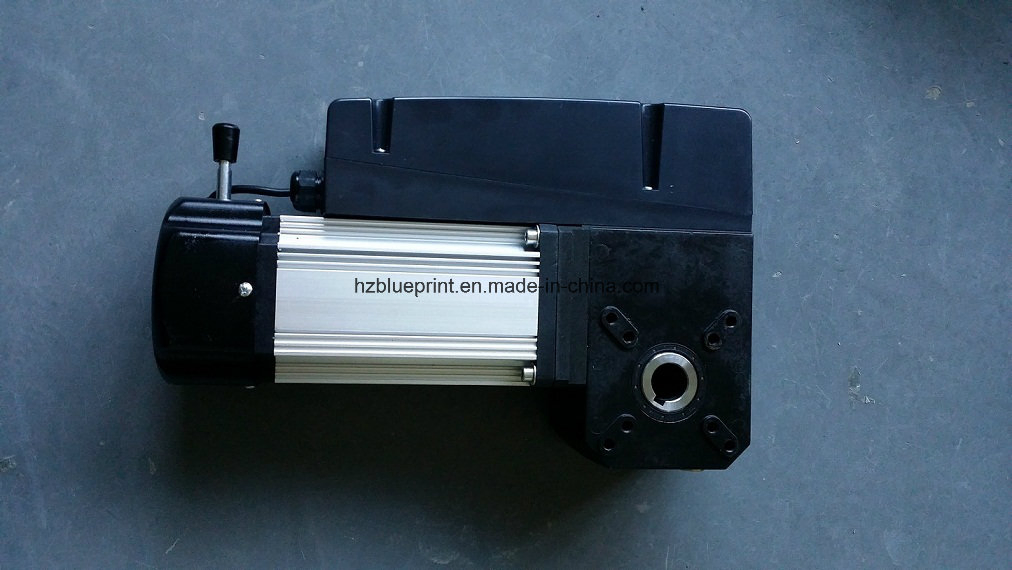

Torsion Motor
1 / 5
| Model | GK90S-A | GK150S-A | GK50-A |
|---|---|---|---|
| Power Supply | AC380V | AC380V | AC220V |
| Motor Power | 600W | 800W | 400W |
| Max. output torque | 90N.m | 150N.m | 50N.m |
| Load Running Time | 15min | ||
| Thermal Protection Temp | 120 ºC | ||
| Noise | <=58dB | ||
| Power Extrication | Drawstring Extrication | ||
| Limit Way | Cam Limit / Electronic Limit (optional) | ||
| Max. Limit Travel | Output Shaft 19 | ||
| Output Shaft Aperture | φ25.4mm | ||
| Environment Temp | -20ºC ~ +45ºC | ||
| Recommended Max. Area | 45 m² | 60 m² | 25 m² |

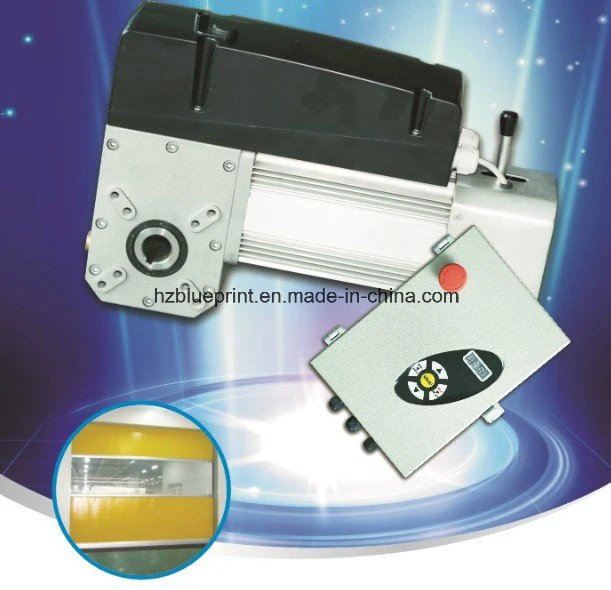

Includes open, close, and stop buttons. Features a red emergency switch to immediately cut off control unit power, resetting easily by rotating in the arrow direction.
Standard connection points for infrared photocells, airbags, door-in-door safety switches, three-button or single-button switches, and warning lights.
Safe and advanced hopping code programming system for adding new transmitters effortlessly.

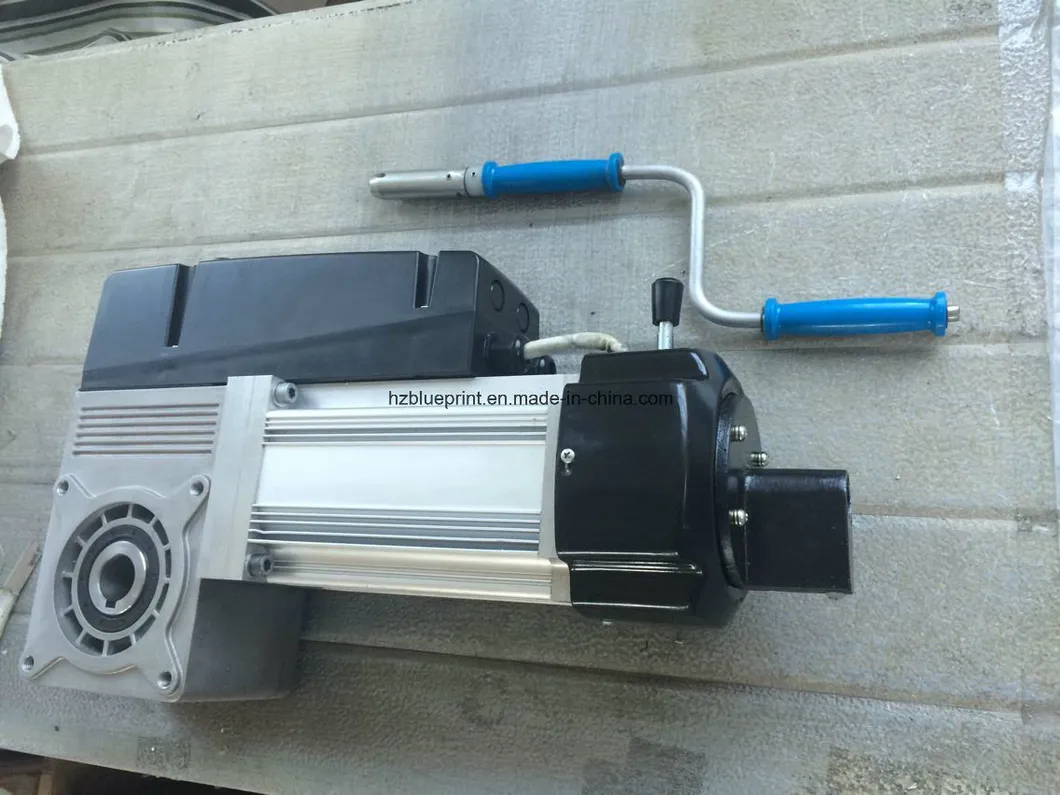

Quick motor release mechanism designed for manual gate operation. Enables standard manual release in case of power outages.
Features highly reliable double limit cam mechanics. Capable of outputting passive signals to accommodate special user operations.
There are three main models available: GK90S-A (600W), GK150S-A (800W), and GK50-A (400W), designed to support different power supplies, torques, and door sizes.
The recommended maximum area of the door is 45 m² for the GK90S-A, 60 m² for the GK150S-A, and 25 m² for the GK50-A.

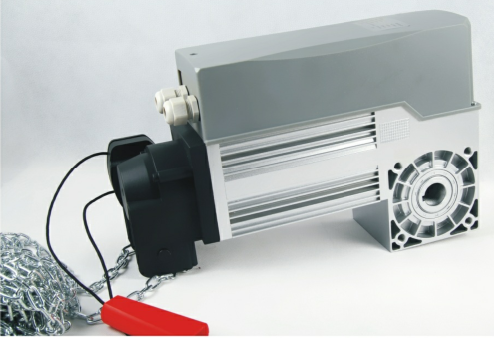

The operator is equipped with a drawstring power extrication system. It offers a quick motor release for manual gate operations and manual door release in the event of power cuts.
They incorporate multiple safety designs including a thermal protection system that activates at 120 ºC, overload and overcurrent protection, failure instant display, and a highly reliable double limit cam setup.
The electrical control box features easy connection wire terminals for infrared photocells, airbags, door-in-door safety switches, three-button switches, single-button switches, and warning lights.
The system adopts double limit cams, supports both Cam Limit and optional Electronic Limit methods, handles a maximum limit travel of Output Shaft 19, and is suited for an output shaft aperture of φ25.4mm.
