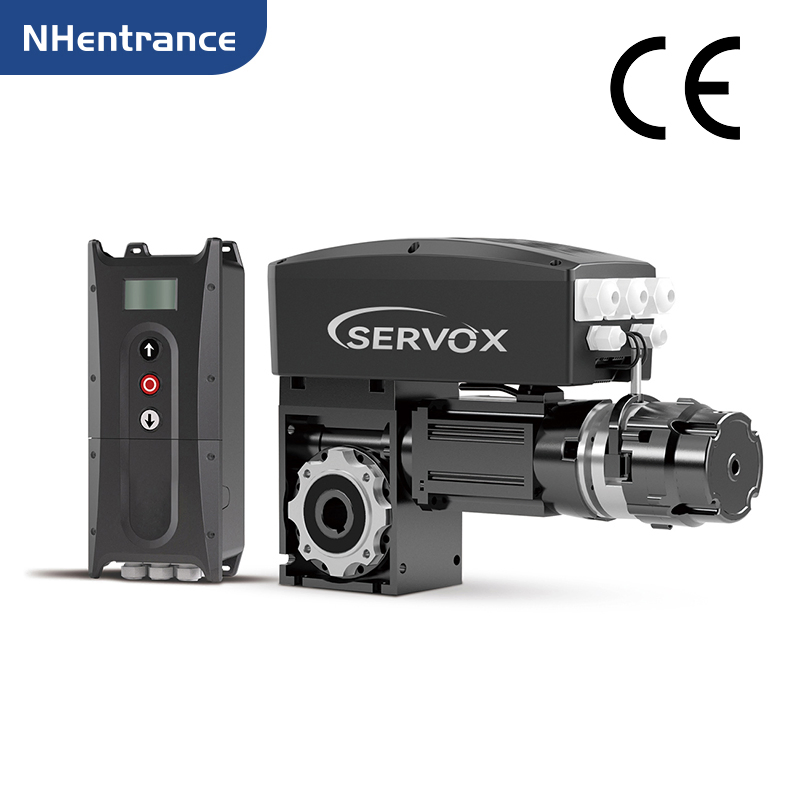

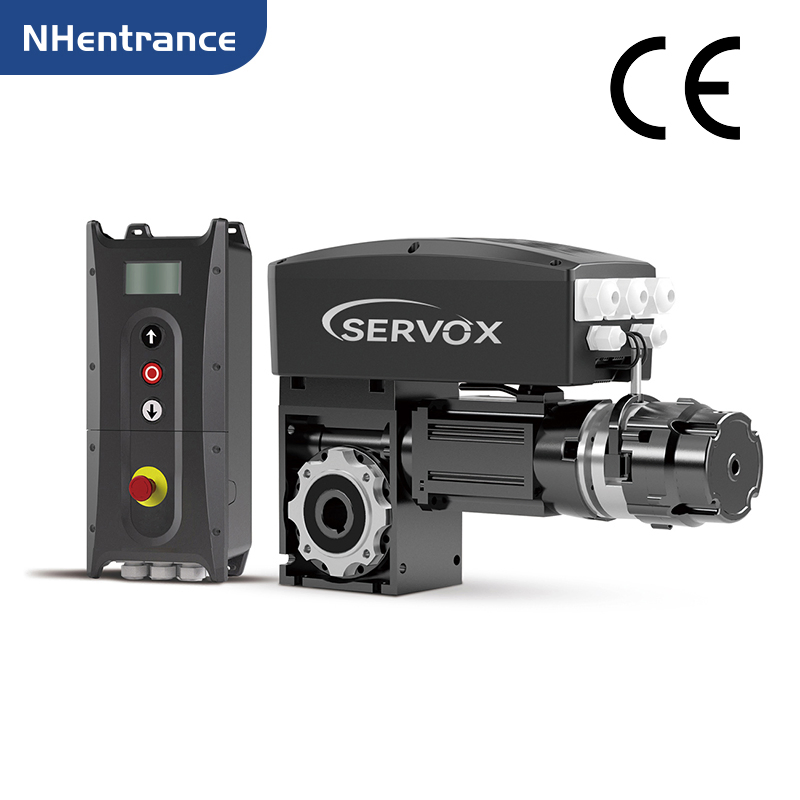

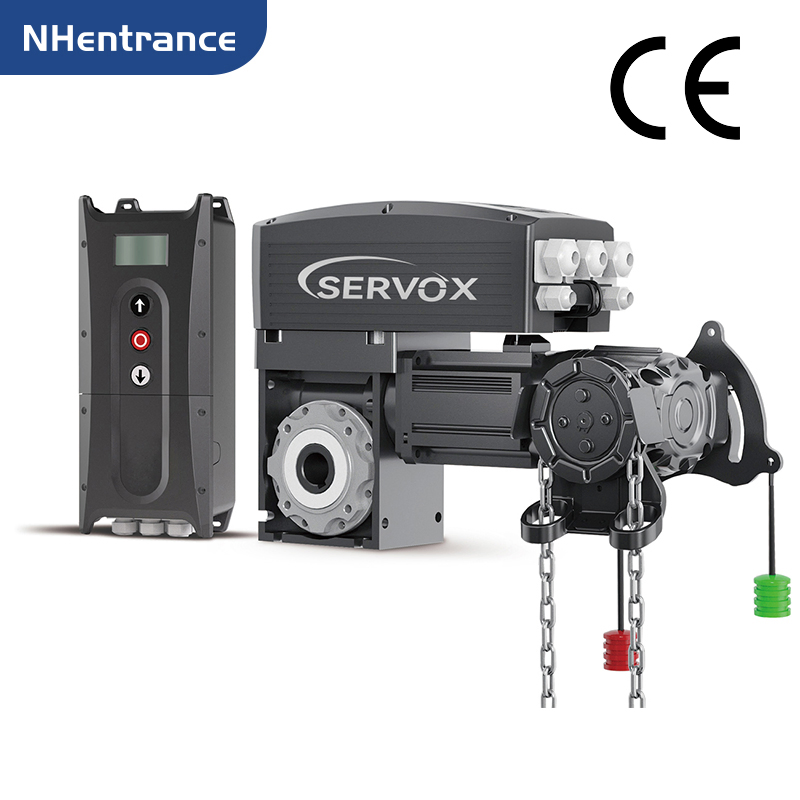

Reliable CE Certified Industrial Door Motor with Automatic System for Sectional Door Servo Motor Application

1 / 5

Reliable CE Certified Industrial Door Motor with Automatic System for Sectional Door Servo Motor Application

Send Inquiry

Product Description

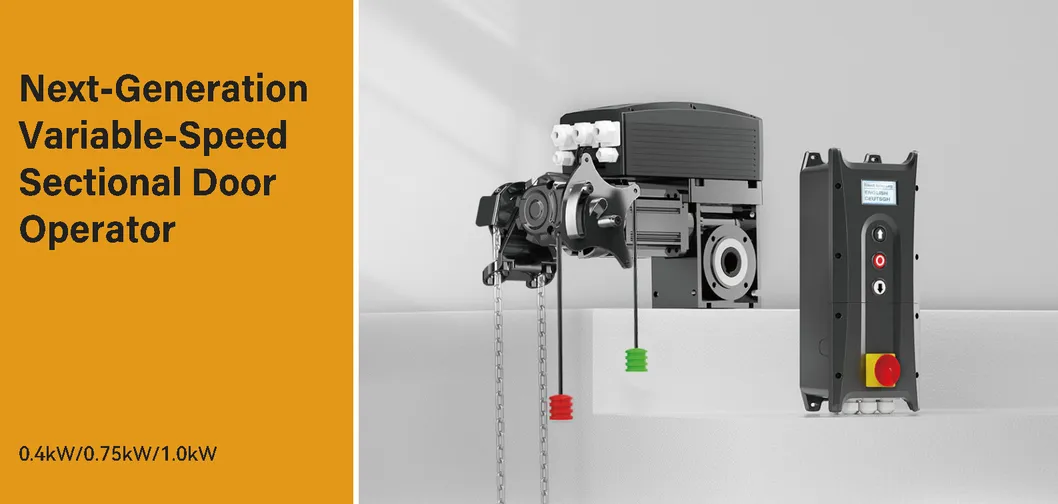

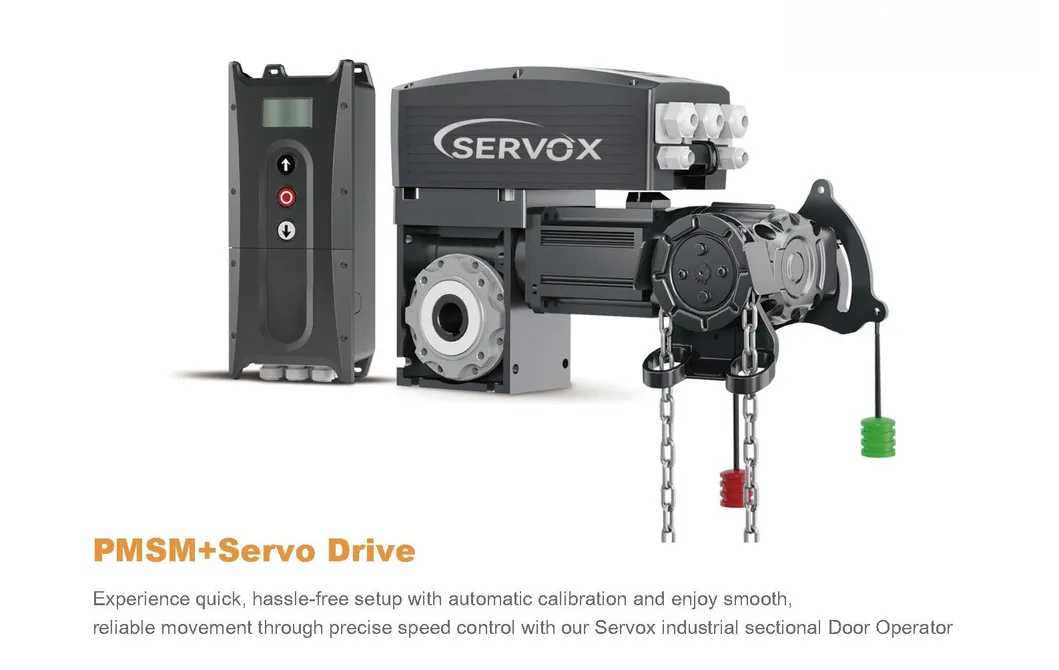

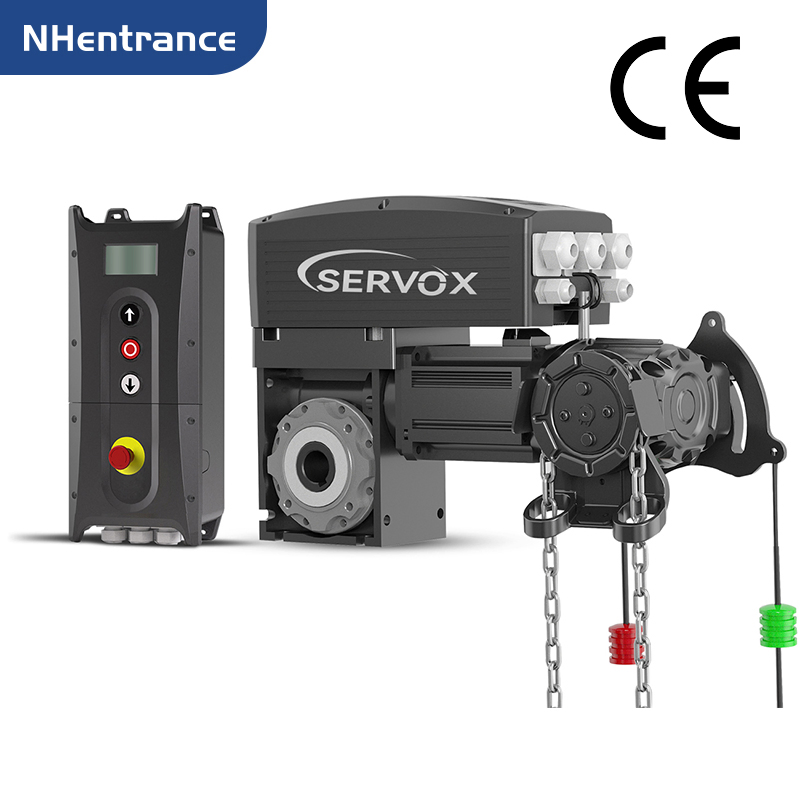

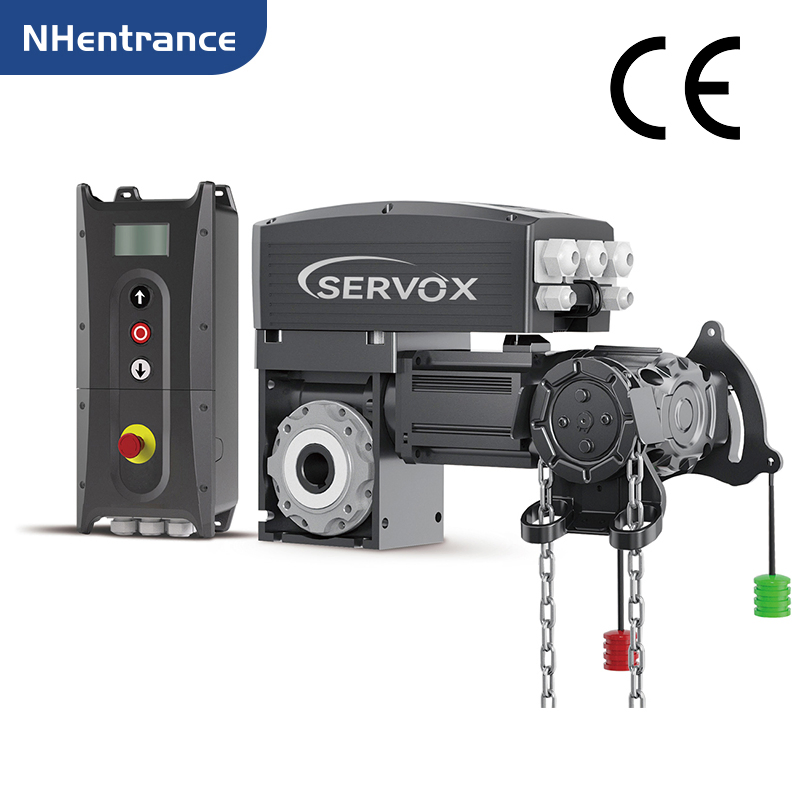

Our Servo Motor System for Industrial Sectional Doors is engineered for efficient and reliable performance in industrial applications. Available in 0.4kW, 0.75kW, and 1.0kW options, it delivers consistent power with a rated output torque range between 60 and 140 Nm. Designed for high endurance and frequency, this motor supports door systems with areas up to 49 square meters, maintaining smooth operation under rigorous conditions.

Product Parameters

Parameter	Value
Model	SV80 ISD / SV120 ISD / SV140 ISD
Motor Power (kW)	0.4 / 0.75 / 1.0
Rated Output Torque (Nm)	60 / 100 / 120
Max Output Torque (Nm)	80 / 120 / 140
Hollow Shaft Diameter (mm)	25.44 / 31.75
Max Door Area (m²)	49
Speed (RPM)	60
Voltage	1N110-120VAC / 1N220-240VAC, 50/60Hz
Endurance (cycles/hour)	60
Waterproof and Dustproof Rating	IP54 (IP65 optional)
Limit Setting	Absolute encoder
Emergency Release	Chain hoist
Optional Features	Main switch, CEE plug, expansion board

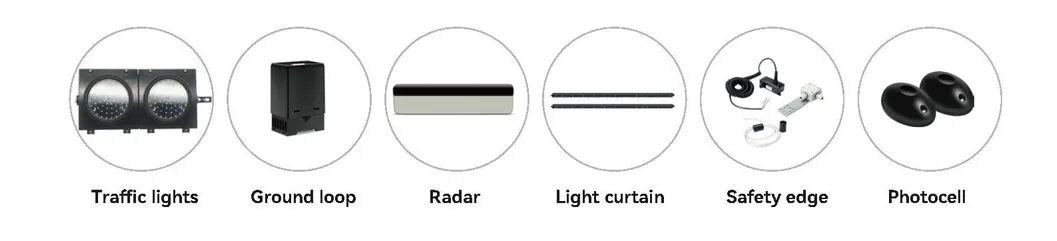

Compatible Safety Devices	Traffic lights, photocell, radar, ground loop, safety edge, light curtain

Our Advantages

High Efficiency

Offers optimized power output with options for different motor capacities (0.4kW to 1.0kW), accommodating various sectional door requirements.

Durable Performance

High endurance rating ensures continuous operation in demanding industrial environments.

Enhanced Safety

Equipped with advanced features such as absolute encoders and optional emergency release mechanisms, ensuring precise control and reliable performance.

Versatile Application

Compatible with multiple safety and control options, including traffic lights, photocells, and light curtains, providing adaptable solutions for diverse industrial needs.

Superior Protection

IP54 standard for dust and water resistance (IP65 optional), suitable for harsh environments.

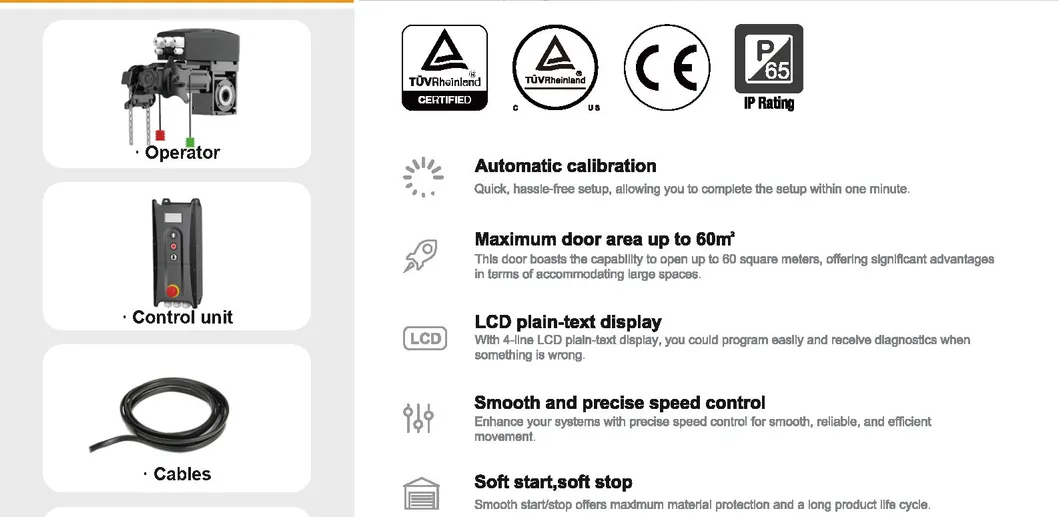

Industrial Door Motor Application Detail 1

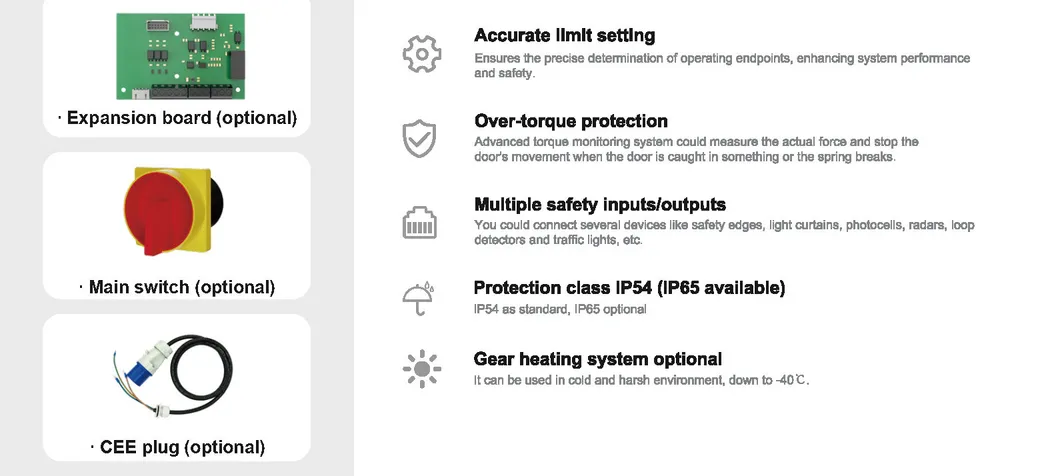

Industrial Door Motor Application Detail 2

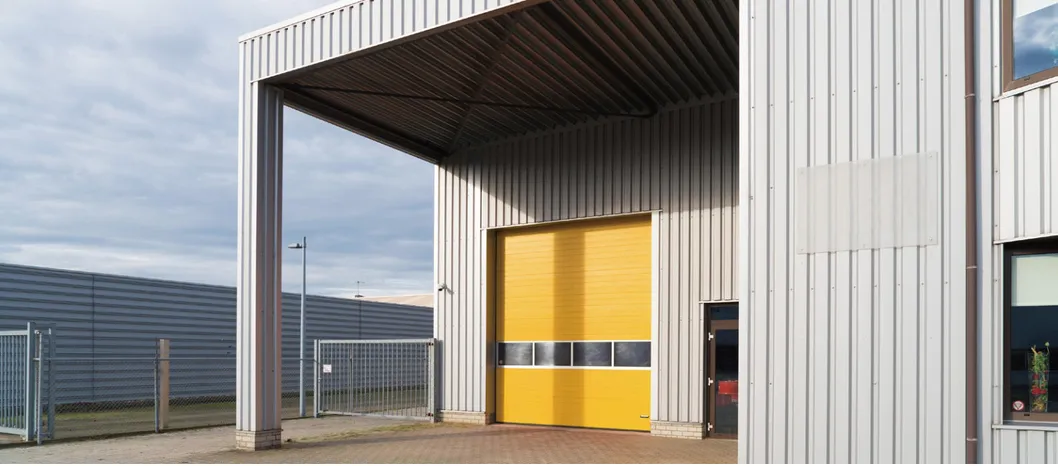

Industrial Door Motor Application Detail 3

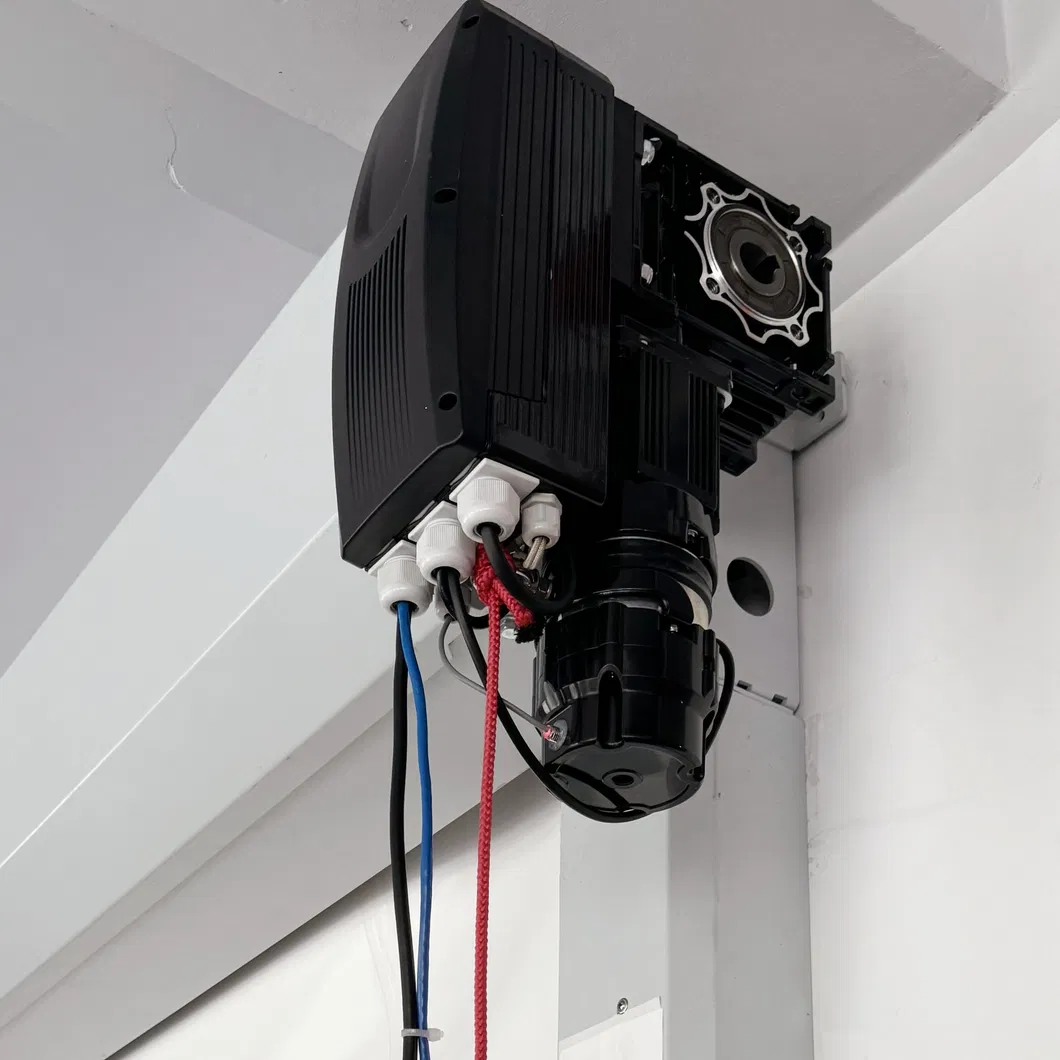

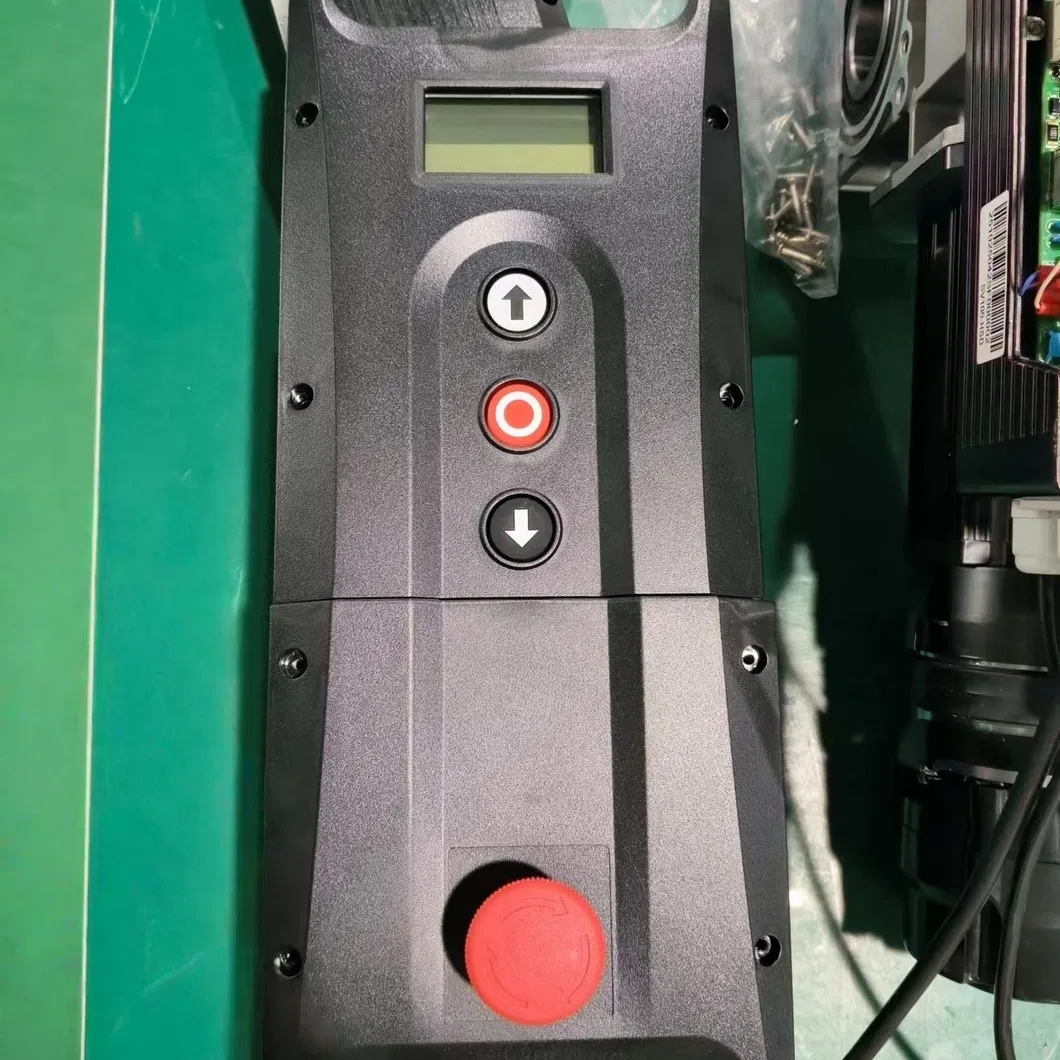

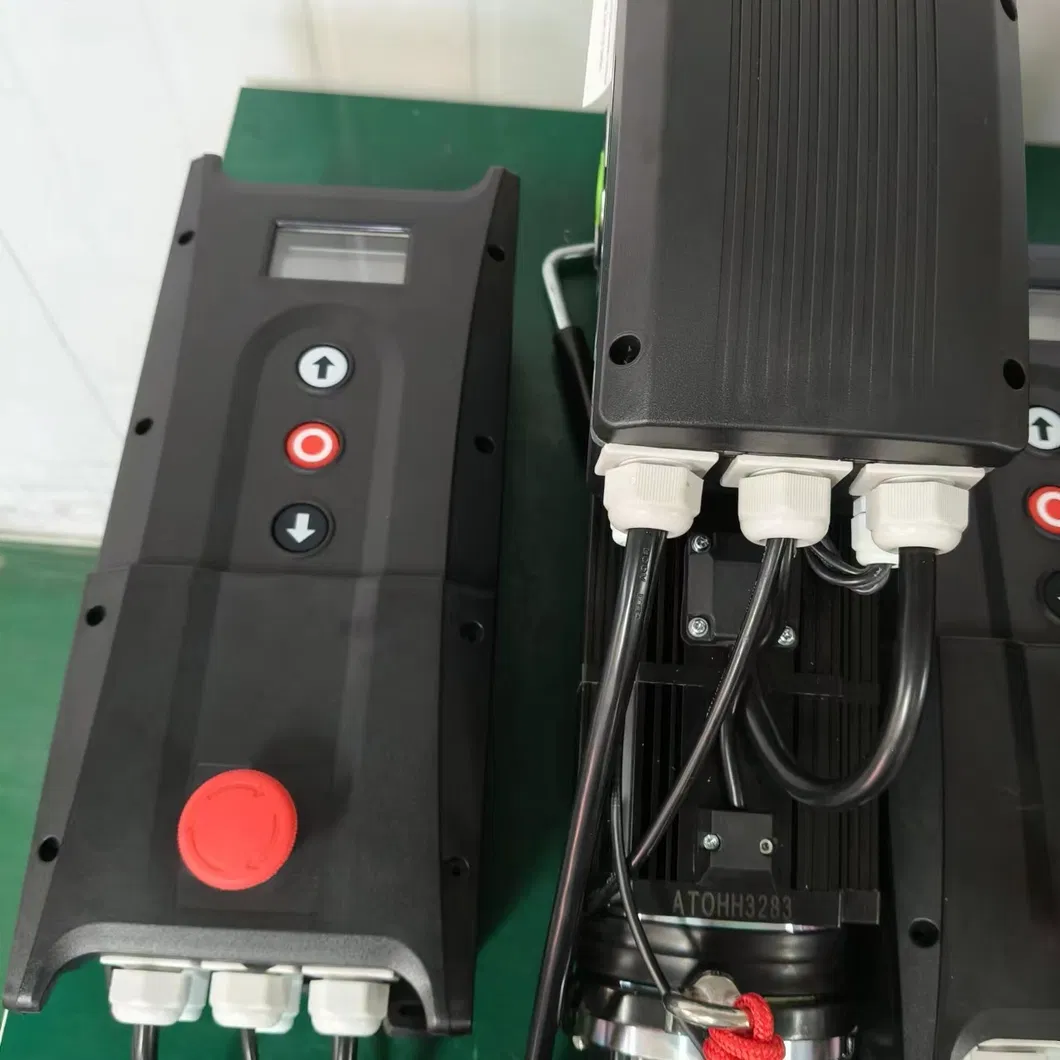

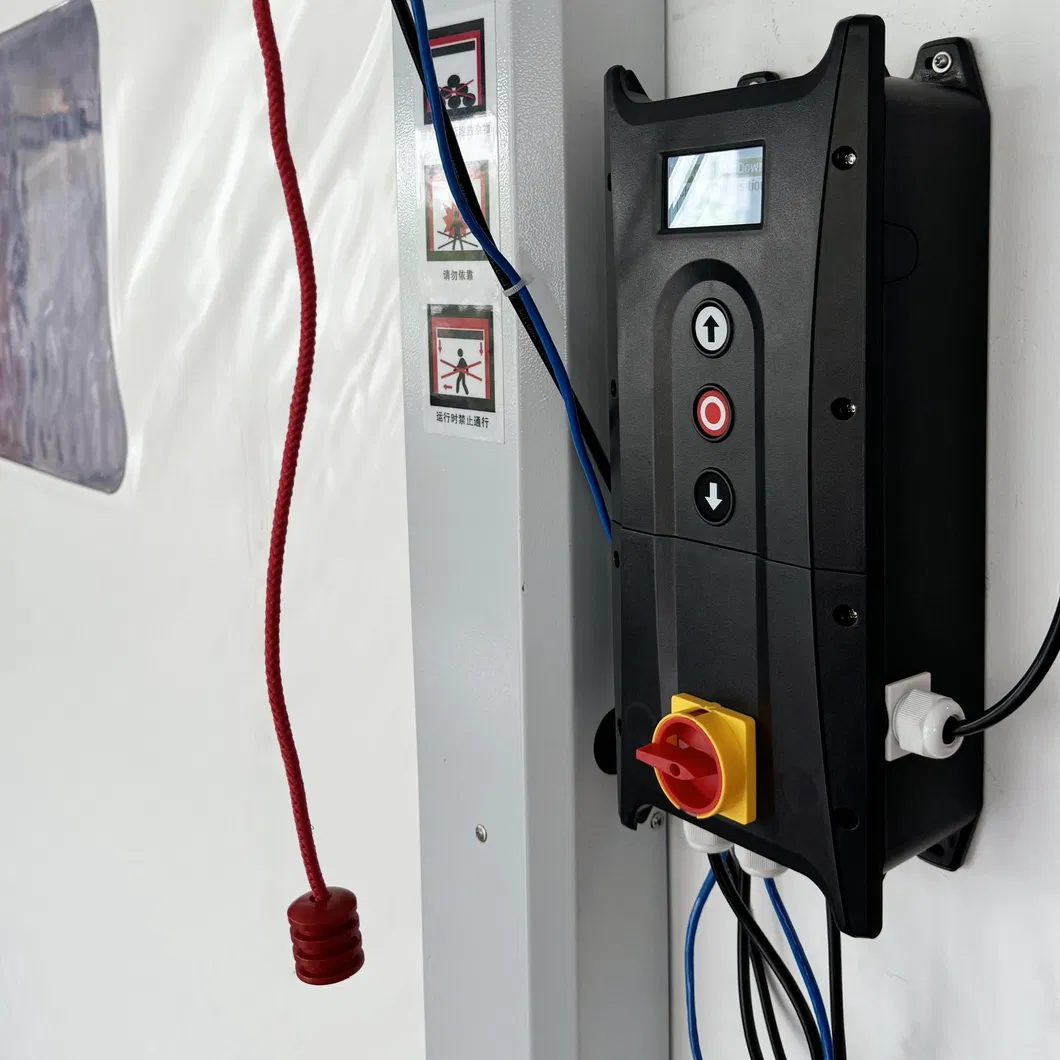

Detailed Photos

Related Products

Certifications

CE Certification and Industrial Standards Info

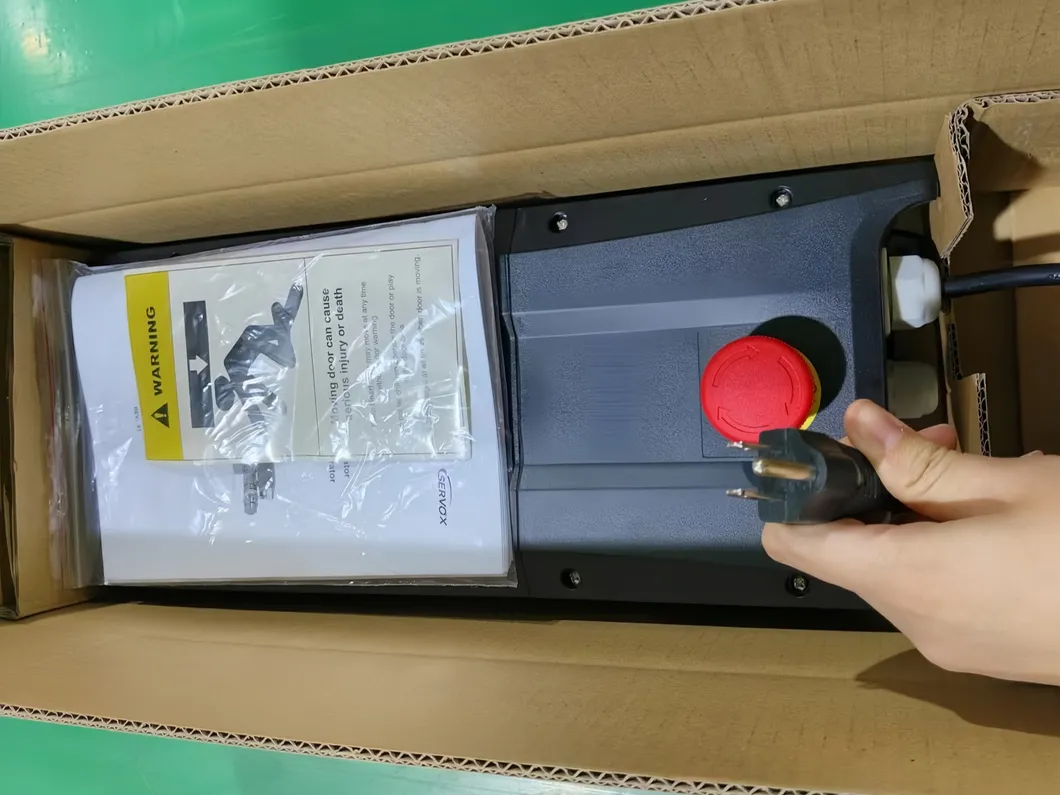

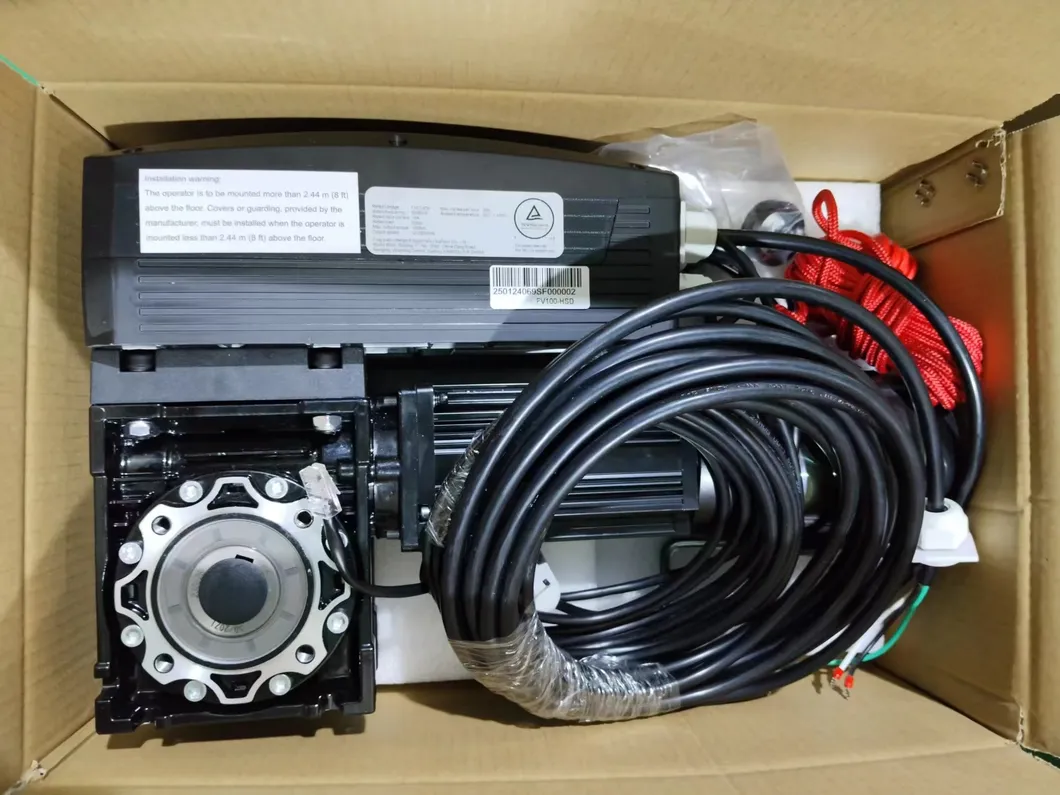

Packaging & Shipping

Other Products

Sectional Door Panel Garage Door Hardware Garage Door Spring Sectional Door

Frequently Asked Questions

What motor power options are available for the industrial sectional door motor?

The servo motor system is available in three power output options: 0.4kW, 0.75kW, and 1.0kW, providing flexible configurations to meet different door load specifications.

What is the maximum door area supported by this system?

This system is robustly designed to support large-scale industrial sectional doors with a maximum area of up to 49 square meters.

Does the motor system offer protection against dust and water?

Yes, the standard system comes with an IP54 waterproof and dustproof rating. An IP65 upgrade is also optionally available for more demanding or harsh environments.

What kind of emergency release mechanism is provided?

In the event of a power outage or system override, the motor is integrated with a manual chain hoist mechanism for safe and secure emergency door release.

Which safety devices are compatible with the control system?

The control system features high compatibility and easily connects with various safety systems, including traffic lights, photocells, radars, ground loops, safety edges, and light curtains.

How are the operational limits set for this motor?

The motor utilizes a highly accurate absolute encoder system for digital limit setting, which ensures precise open/close cycles and robust performance memory over time.
