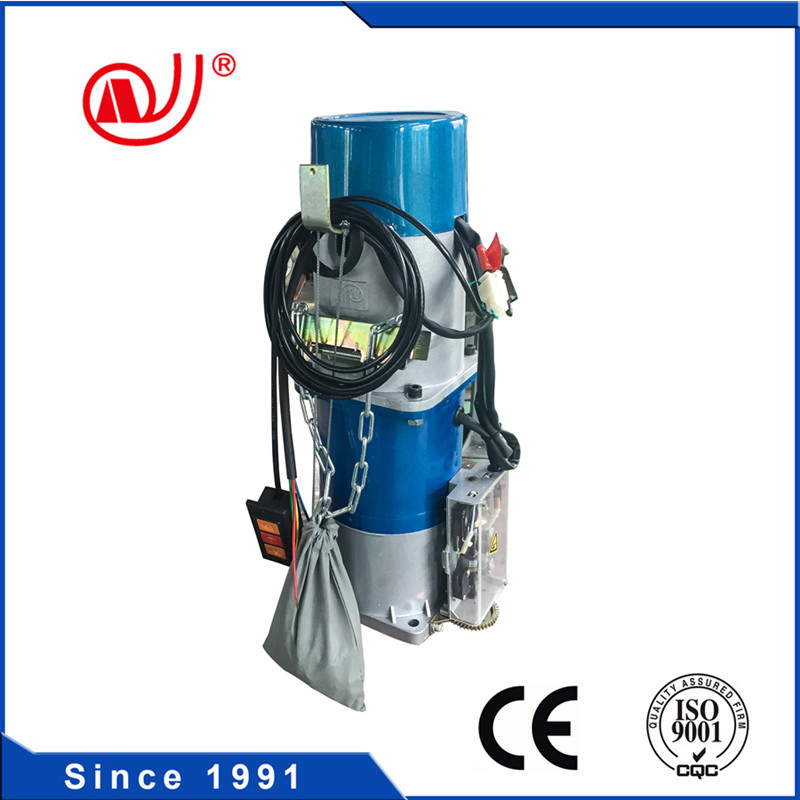

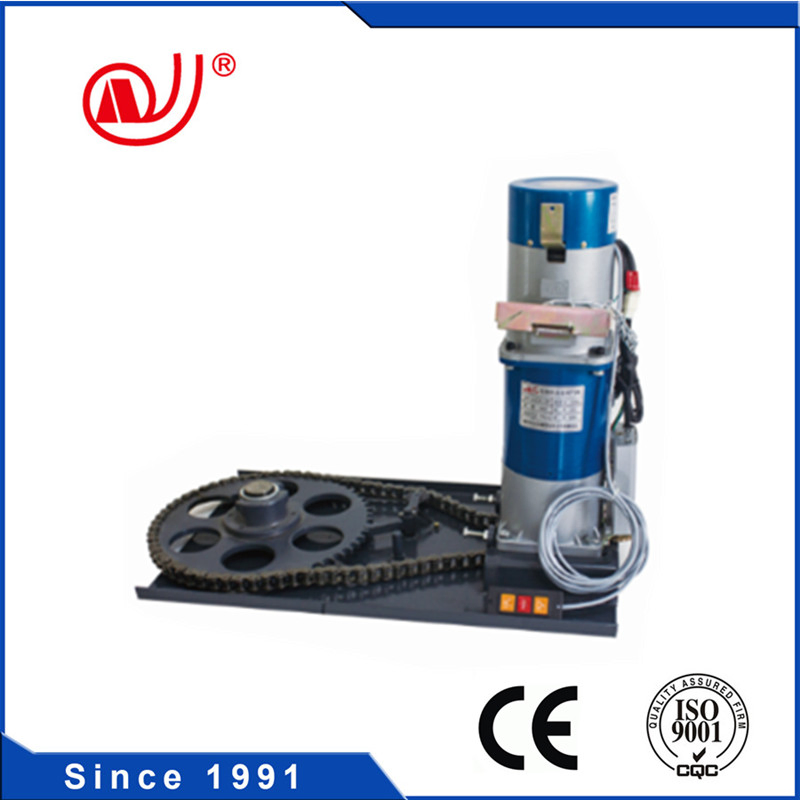

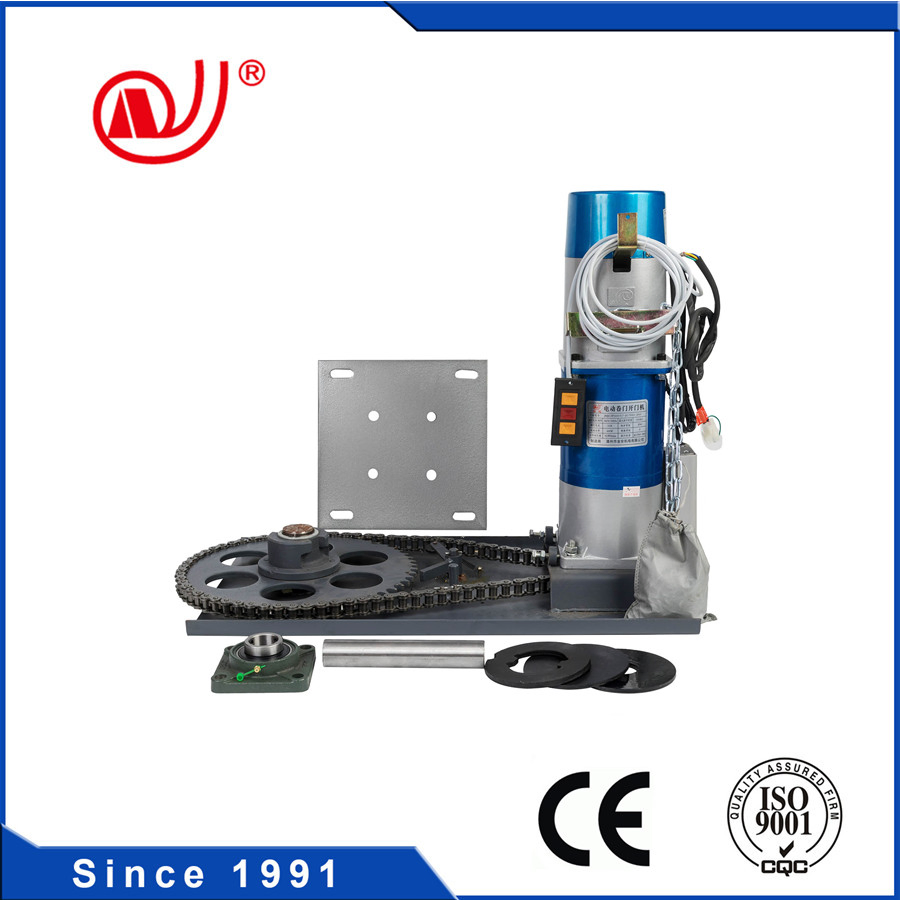

Remote Control AC Rolling Door Motor Roller Shutter Motor Side Motor Rolling Gate Side Motor
Remote Control AC Rolling Door Motor Roller Shutter Motor Side Motor Rolling Gate Side Motor
Remote Control AC Rolling Door Motor Roller Shutter Motor Side Motor Rolling Gate Side Motor
Remote Control AC Rolling Door Motor Roller Shutter Motor Side Motor Rolling Gate Side Motor
Remote Control AC Rolling Door Motor Roller Shutter Motor Side Motor Rolling Gate Side Motor
1 / 5
Remote Control AC Rolling Door Motor Roller Shutter Motor Side Motor Rolling Gate Side Motor
Remote Control AC Rolling Door Motor Roller Shutter Motor Side Motor Rolling Gate Side Motor
Remote Control AC Rolling Door Motor Roller Shutter Motor Side Motor Rolling Gate Side Motor
Remote Control AC Rolling Door Motor Roller Shutter Motor Side Motor Rolling Gate Side Motor
Remote Control AC Rolling Door Motor Roller Shutter Motor Side Motor Rolling Gate Side Motor

Remote Control AC Rolling Door Motor Roller Shutter Motor Side Motor Rolling Gate Side Motor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
AC1300KG-3P
Open Style
Rolling
Opening Type

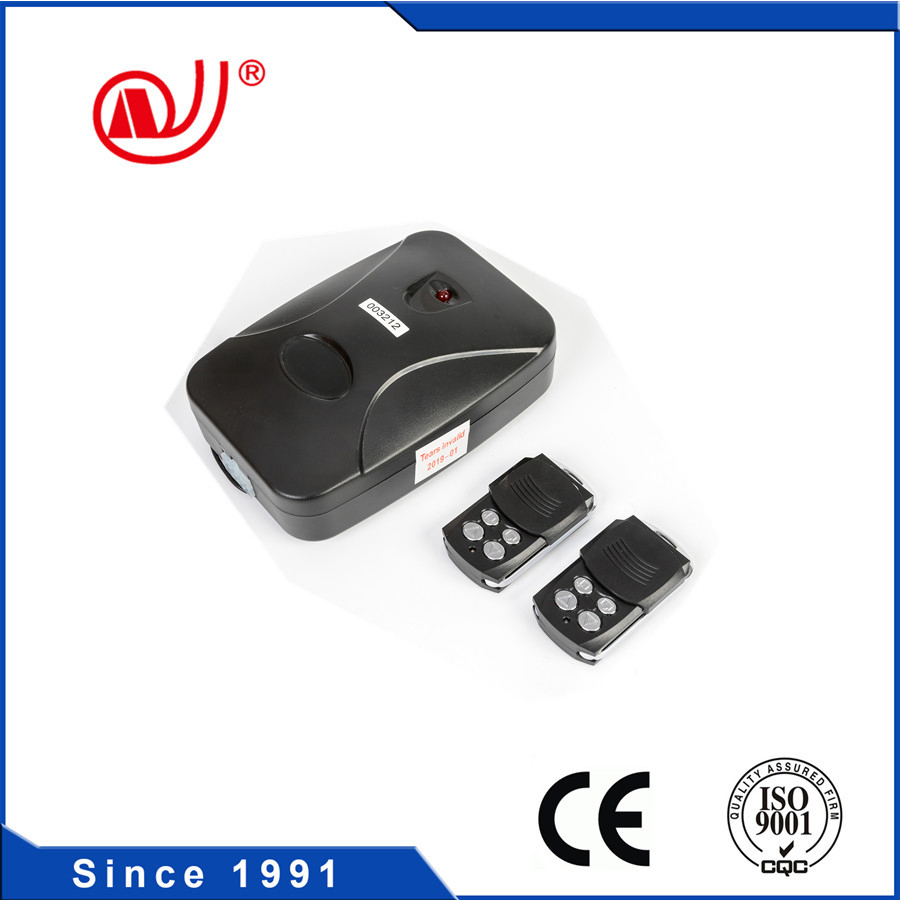

With Remote Control
Special Function
Security
Certification
CCC, ISO9001, CE
Position
Garage
Surface Finishing
Finished
Lifting Capacity
1300kg
Max. Lifting Height
6.5m
Voltage
380V+_10%
Transport Package
in Cartons
Production Capacity
12000sets/Month

Product Description

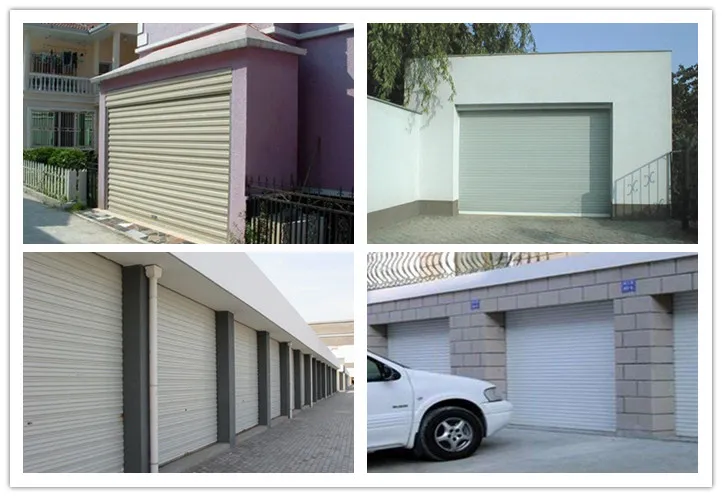

Application Area:
Our motors are applied to shopping centers, warehouses, garages, theaters, hotels, banks, factories, and other buildings' rolling shutter doors' opening and closing with electric and manual functions.

Rolling Door Motor Application

Key Features

  • Shell: Aluminium alloy, solid and light but durable and easy to install.
  • Gearbox: High-quality alloy steel and special technical treatment to guarantee big lifting power.
  • Brake Structure: Special device mechanical brakes, power cut off in an instant to ensure absolute safety.
  • Transmission System: High accuracy, smooth running, and low noise.

Technical Parameters

Model No. Max Lifting Weight (kg) Max Lifting Height (m) Rated Input Power (W) Output Torque (N.m) Rotation (r/min) Chain No.
220V/50HZ
AC300KG-1P3006.54501686.210A
AC500KG-1P5006.54503436.210A
AC600KG-1P6006.56804126.210A
AC800KG-1P80077006074.210A
AC1000KG-1P1000770011023.512A
380V/50HZ
AC1000KG-3P1000840011026.512A
AC1300KG-3P1300860013726.512A
AC1500KG-3P1500860016105.712A
AC2000KG-3P2000870022005.712A

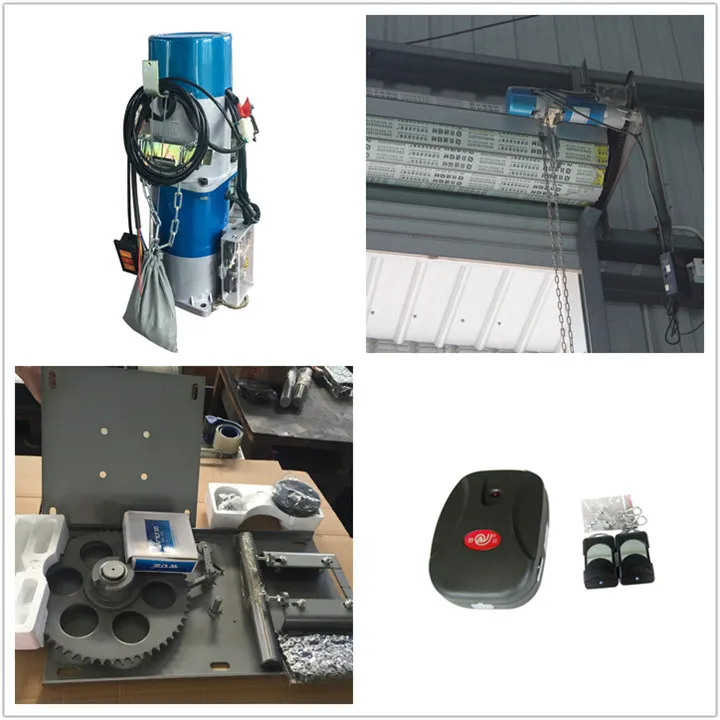

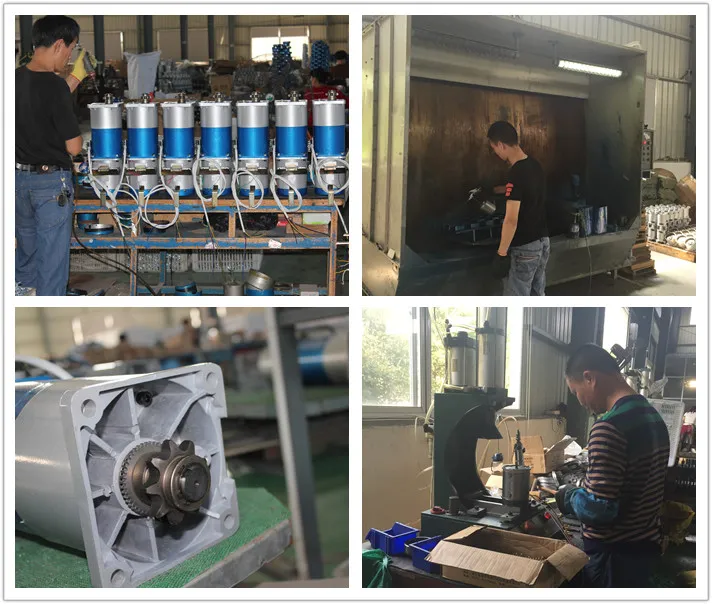

Motor Components Motor Wiring Detail
  • 4 Relays: Ensures motors work more stably with high lifting power.
  • 100% Copper Wiring: Larger capacity, stable current, and durable character.
  • 4 Micro Switches: Precise control and easy operation.
  • Anti-dropping Device: Safety bracket board to prevent accidental injury.

Packing & Delivery

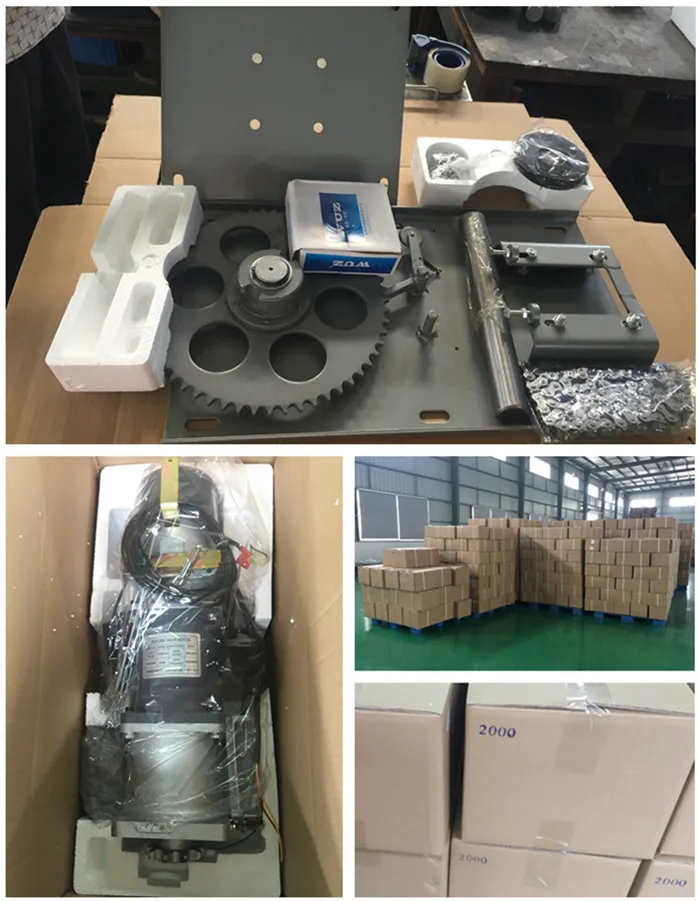

Packing and Loading

Packing: One set in two cartons, plastic bag inside, carton outside. Custom branding available.
Loading Capacity: A 20 GP container can hold approximately 520-550 PCS AC motors.
Delivery Time: Standard delivery within 10-45 days after deposit, depending on quantity.

Production Environment

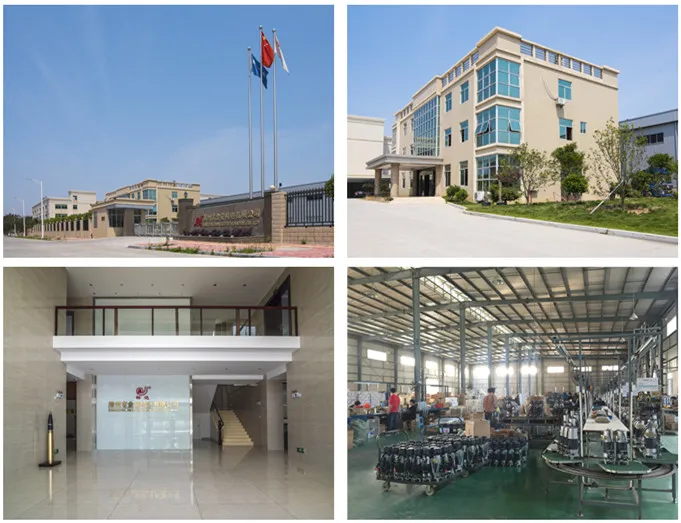

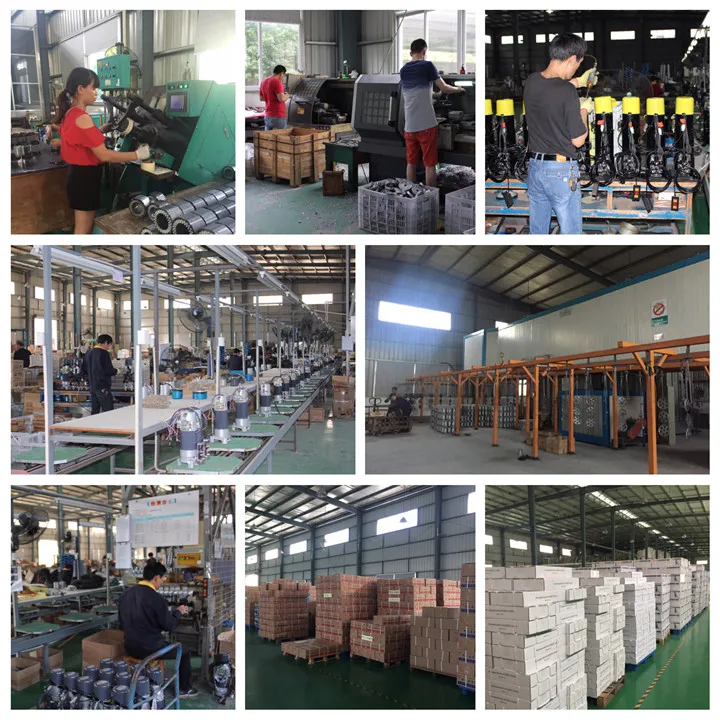

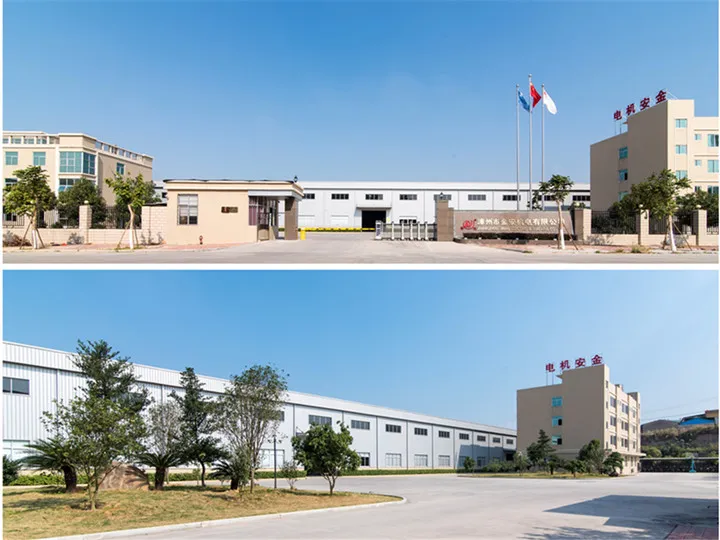

Factory Overview Workshop Production Line

Exhibitions & Certificates

Exhibition 1 Exhibition 2 CE ISO Certifications

Related Products

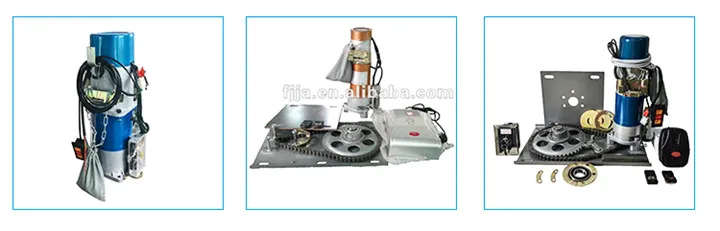

Full Product Range

Comprehensive options available including AC300KG to 2000KG and DC300KG to 600KG models.

Frequently Asked Questions

Q1: What are the main applications for these rolling door motors? A: These motors are ideal for shopping centers, warehouses, garages, theaters, hotels, banks, and industrial factories.
Q2: What makes the motor's construction durable? A: We use a high-strength aluminium alloy shell and 100% copper wiring to ensure stability, high capacity, and long-term durability.
Q3: Are there safety features included in the motor system? A: Yes, the system includes special mechanical brakes for instant power cut-off and an anti-dropping device in the bracket board to prevent accidental injury.
Q4: Can the exterior cartons be customized? A: Yes, we can customize the printing, including logos and specific design requirements, on the outside cartons.
Q5: What is the typical lead time for an order? A: Delivery typically takes 10 to 45 days after receiving the deposit, depending on the specific quantity and customization requirements.
Q6: What certifications do your rolling door motors hold? A: All our motors are certified with CE, ISO9001:2008, and CCC standards, ensuring international quality compliance.
