Basic Info.
Casing Protection
Closed Type
Certification
CCC, CE/RoHS
Transport Package
Carton Packing
Production Capacity
5000PCS Per Day
Product Description

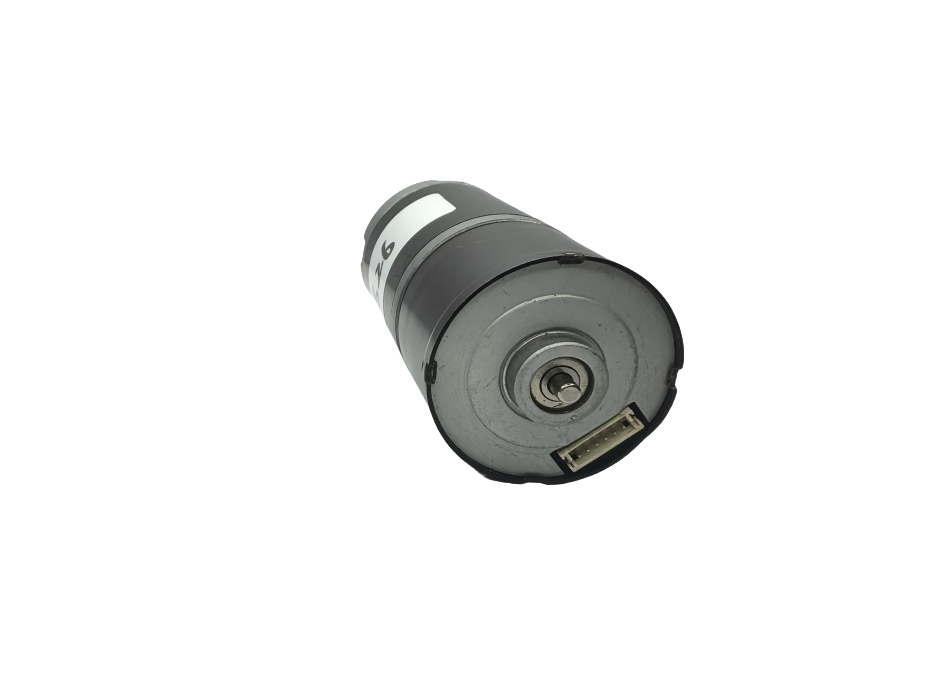

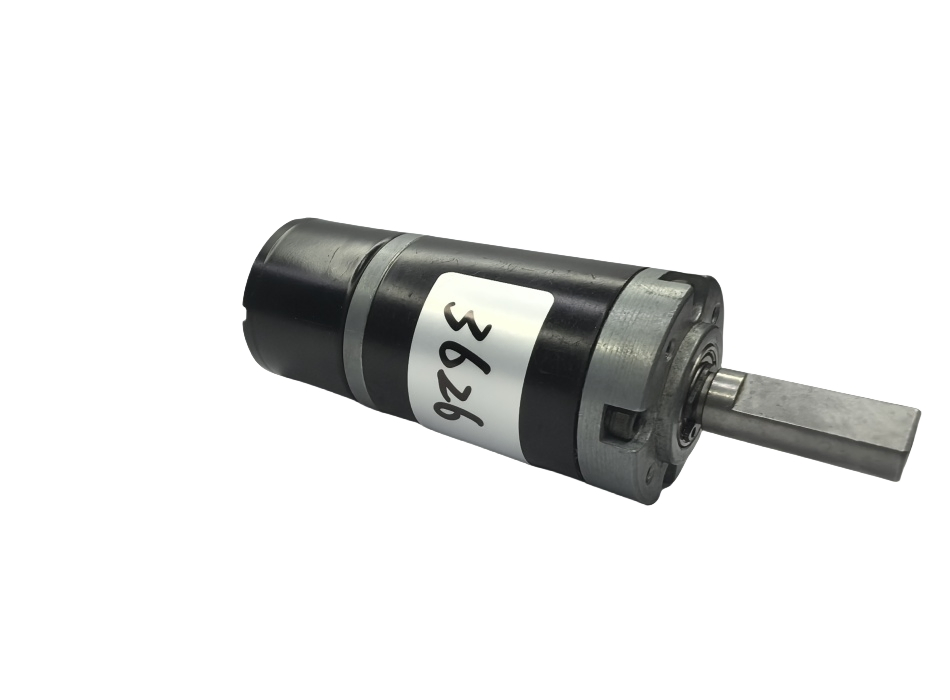

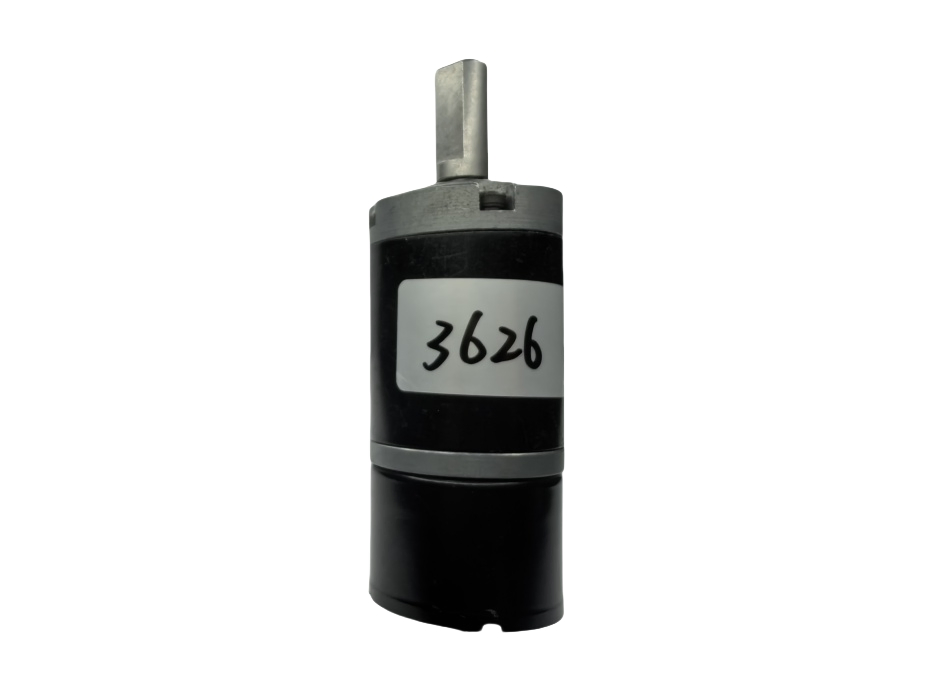

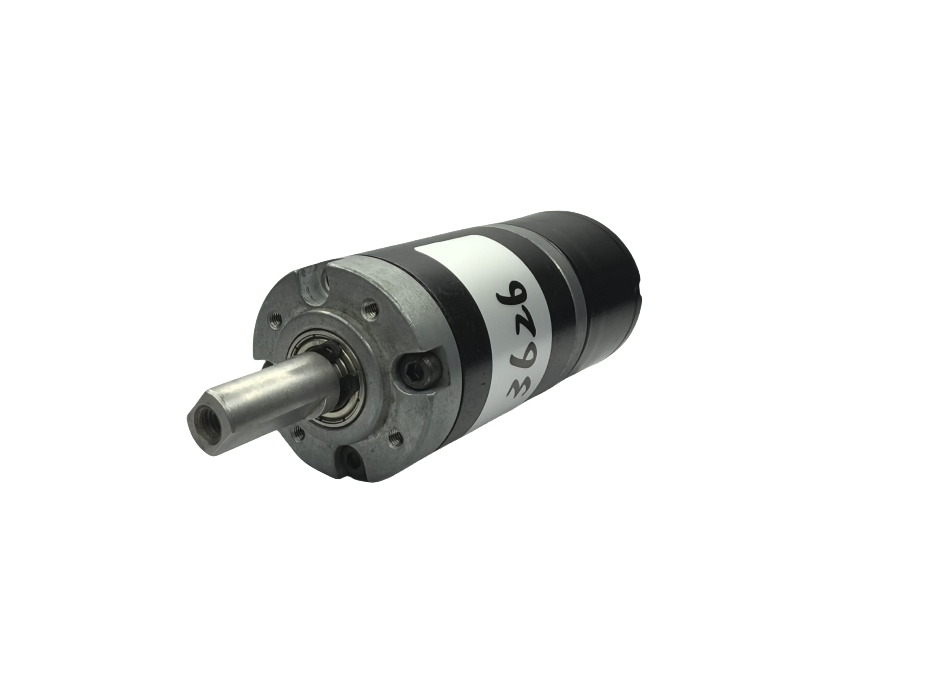

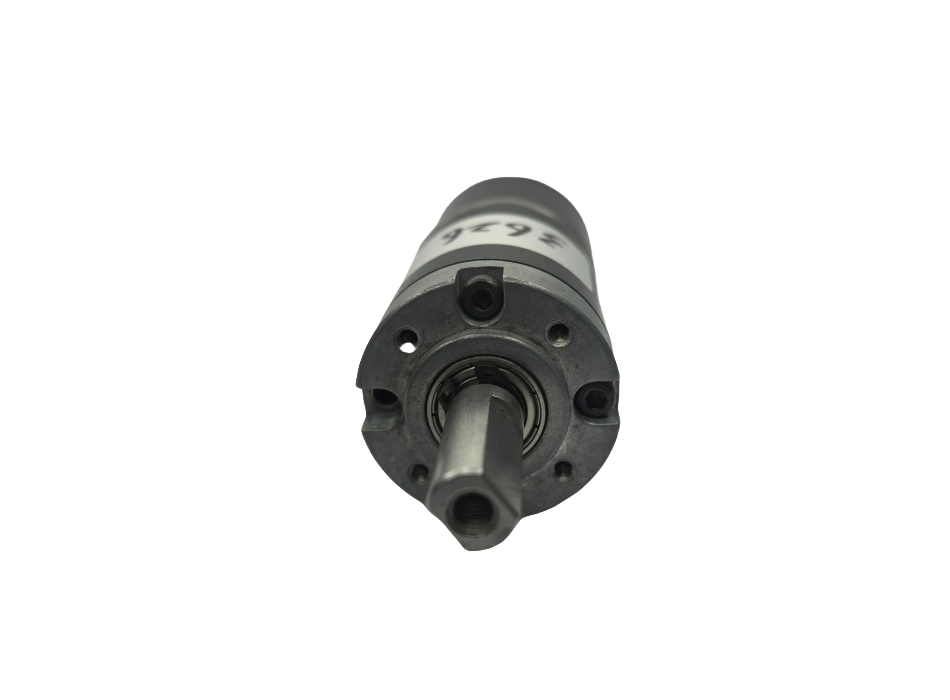

The height adjustment range, adjustment speed, noise level, and load capacity of an electric height-adjustable table are determined by the technical specifications of the motor used. Generally, an automatic height-adjustable table can choose an electric height-adjustable column motor! An electric height-adjustable column motor is a new type of electric height-adjustable device developed for realizing the height adjustment of various smart furniture work platforms. It mainly consists of an electric linear actuator motor and a control device, an extendable outer sleeve, etc. The electric height-adjustable column motor has the characteristics of low noise operation, large extension range, smooth operation, beautiful appearance, simple installation, and convenient operation. When combined with a controller, it can realize the adjustment of the electric height-adjustable column to any desired height at the adjustment position, meeting the needs of smart furniture products for freely adjusting the height. Therefore, the electric height-adjustable column motor is an ideal electric height-adjustable drive for an electric height-adjustable table.
| Model (GB36) | Voltage (VDC) | Rated Speed (rpm) | Rated Torque (N.m) | Rated Power (w) | Ratio | Speed from Gear (rpm) | Torque from Gear (N.m) | Stall Torque (N.m) | Mass (g) | Body length (mm) |
| 2420-GB36-001 | 24 | 4300 | 0.042 | 20 | 36:1 | 120 | 0.9 | 2.7 | 500 | 89 |
Frequently Asked Questions (FAQ)
1. What is the voltage range for this motor?
The motor operates within a voltage range of 12V to 29V, making it suitable for various power configurations.
2. Can I customize the gear ratio and Hall sensor?
Yes, both the gear ratio and Hall sensor configuration can be customized according to your specific project requirements.
3. What are the primary applications for this motor?
This motor is ideal for electric height-adjustable tables, smart furniture work platforms, and other automation equipment requiring smooth vertical movement.
4. Is the motor quiet during operation?
Yes, the motor is designed for low-noise operation, ensuring a smooth and quiet user experience for office or home furniture environments.
5. Does this product have quality certifications?
Yes, the motor is certified with CCC, CE, and RoHS standards, ensuring it meets safety and environmental regulations.
