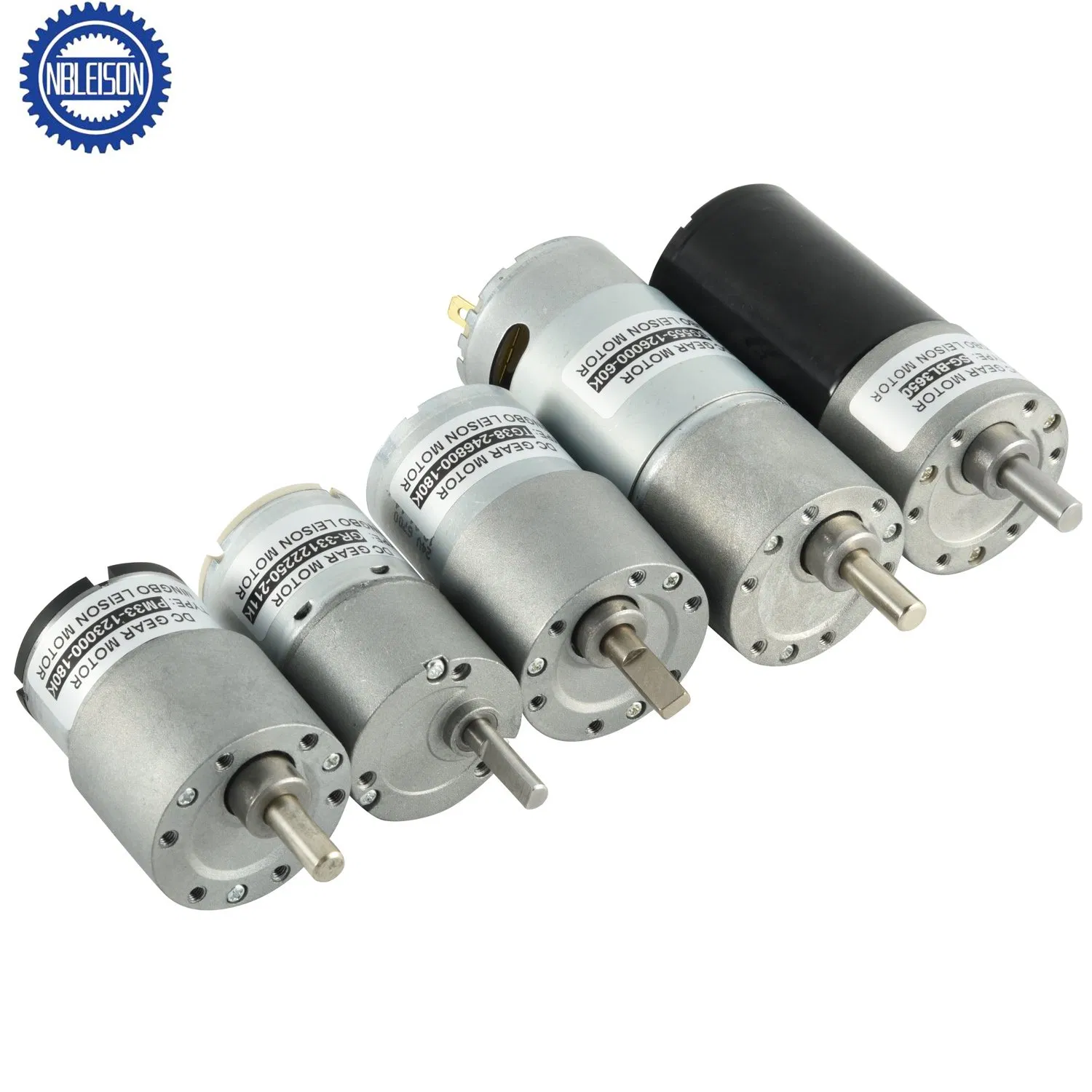

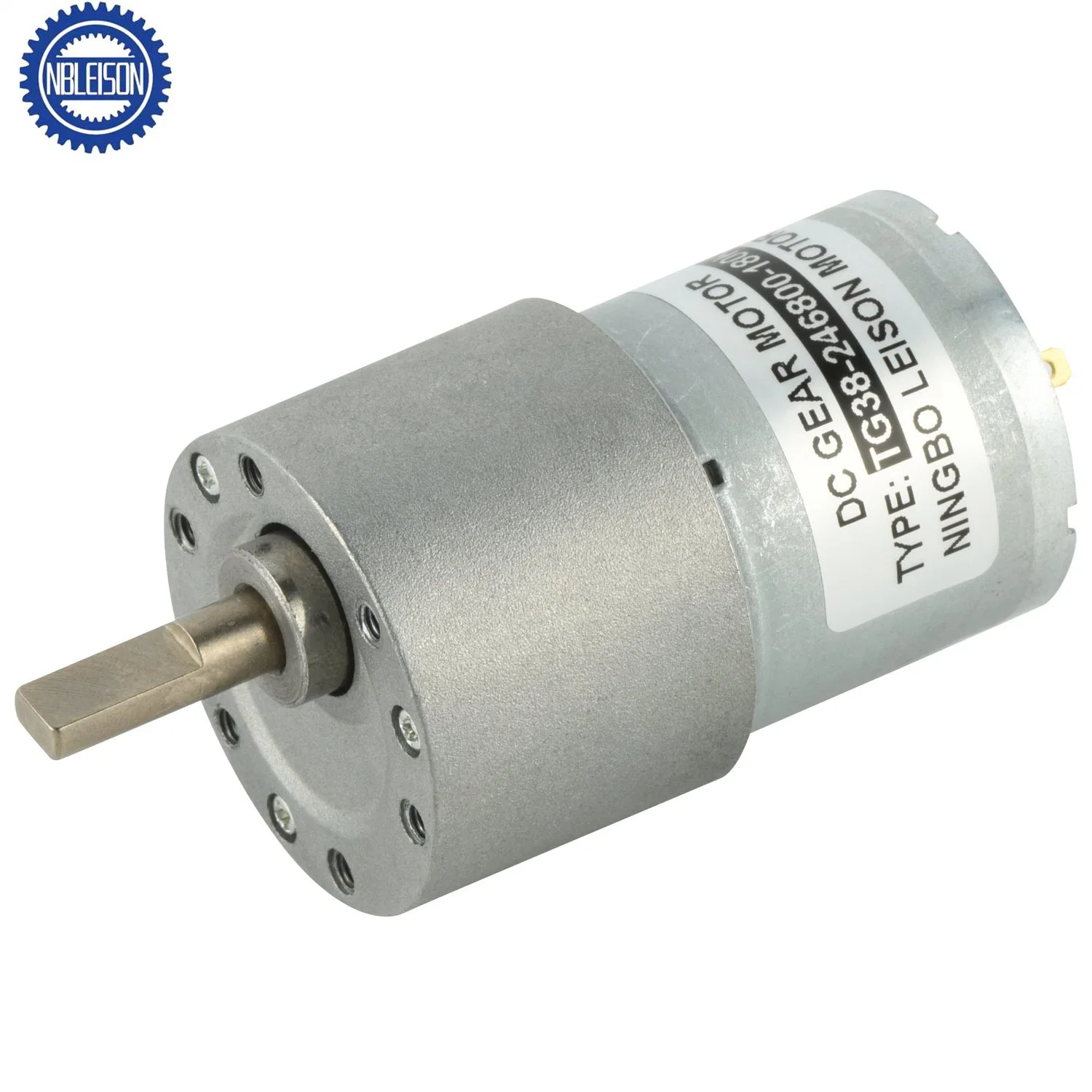

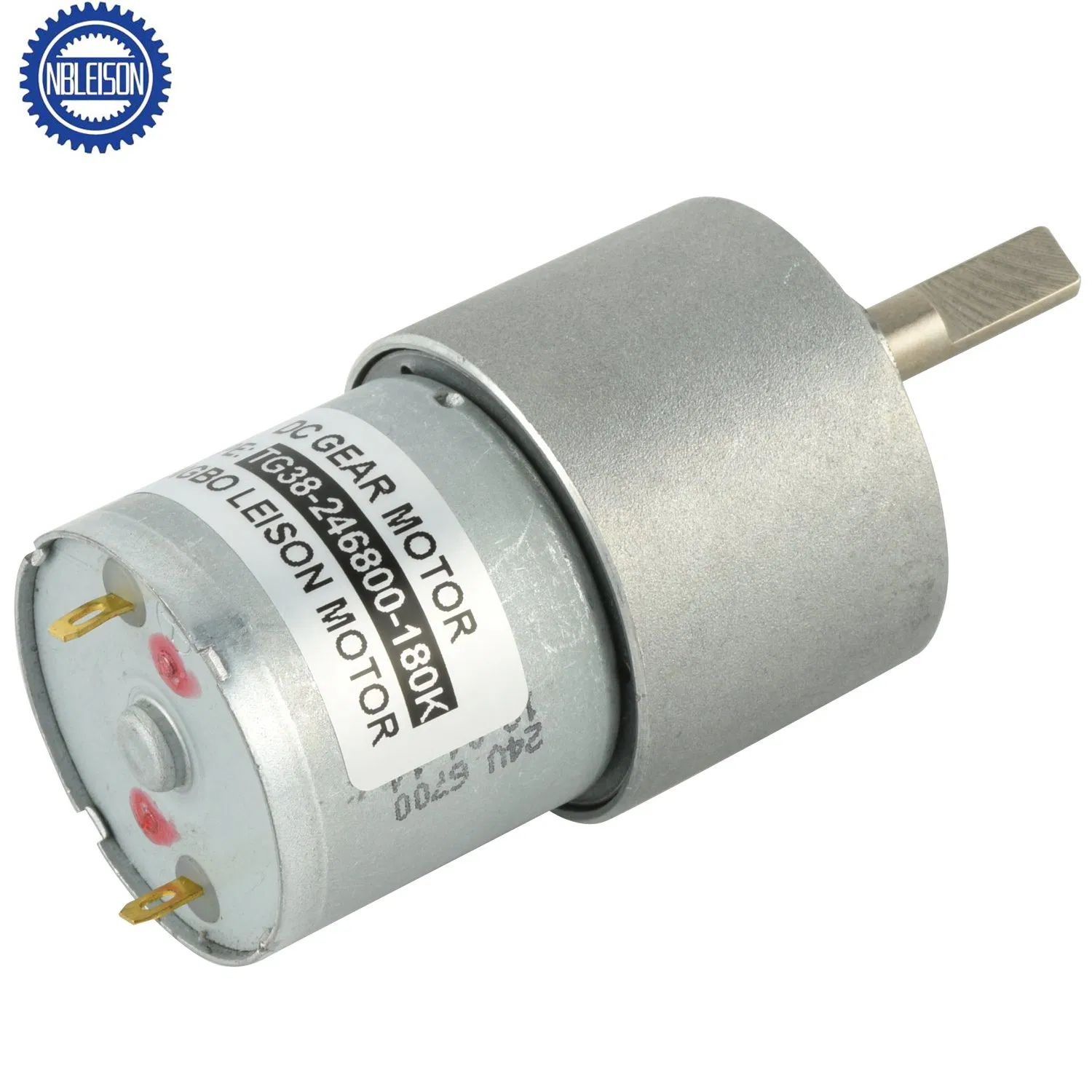

37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
1 / 5
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain

37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

ℹ️
Basic Product Information
Model NO.
LS-TG38
Function
Driving
Casing Protection
Open Type
Structure
Brush
Certification
ISO9001
Gear
Metal Gear
Construction
Permanent Magnet
Rotation
Reversible
Shaft
Round, D-Cut, Hole Thread or Customized
Gear Type
Spur Gear
Motor Type
Iron Core Permanent Magnet
Efficiency
Ie1
HS Code
8501109990
Capacity
50,000/Month
⚙️
Product Description & Specifications

37mm 6V 12V 24V Low Rpm High Torque Micro DC Gearbox Electric Metal Gear Motor

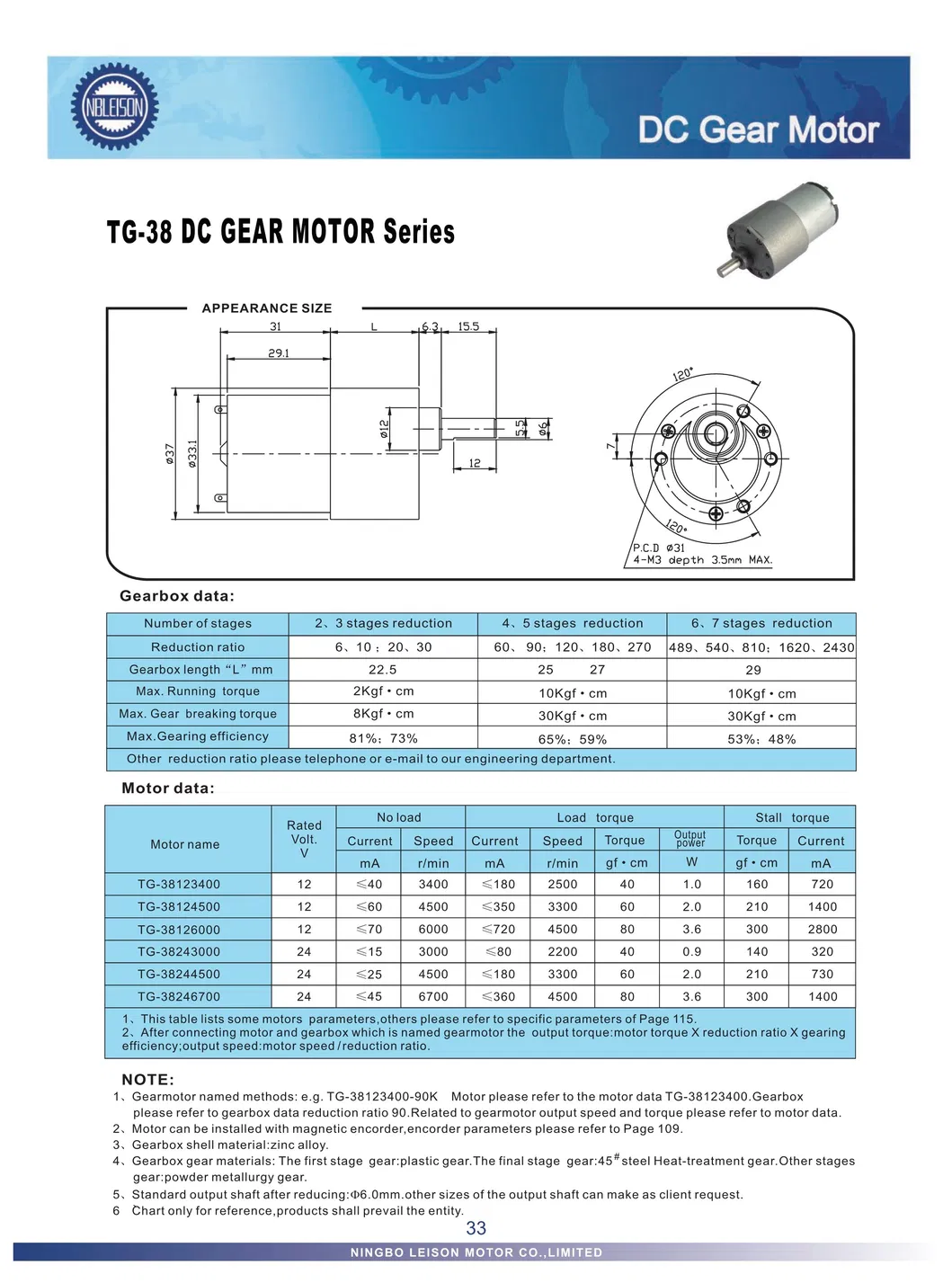

37mm DC Gear Motor
  • Voltage: 3V, 6V, 9V, 12V, 24V available
  • Reduction Ratio: From 1:6 up to 1:2430
  • Motor Dimensions: 32 (dia.) x 30 (L) mm
  • Gearbox Dimensions: 37 (dia) x 22-29 (H) mm
  • Shaft: 6mm, D-cut type, Customized lengths/types available
  • Applications: Vending Machines, Grills, Curtains, Robots, Automation, Printers, Office Equipment
  • Packing: 60 PCS/CTN, Standard export cartons
🏭
Production & Quality Control

Production Line:

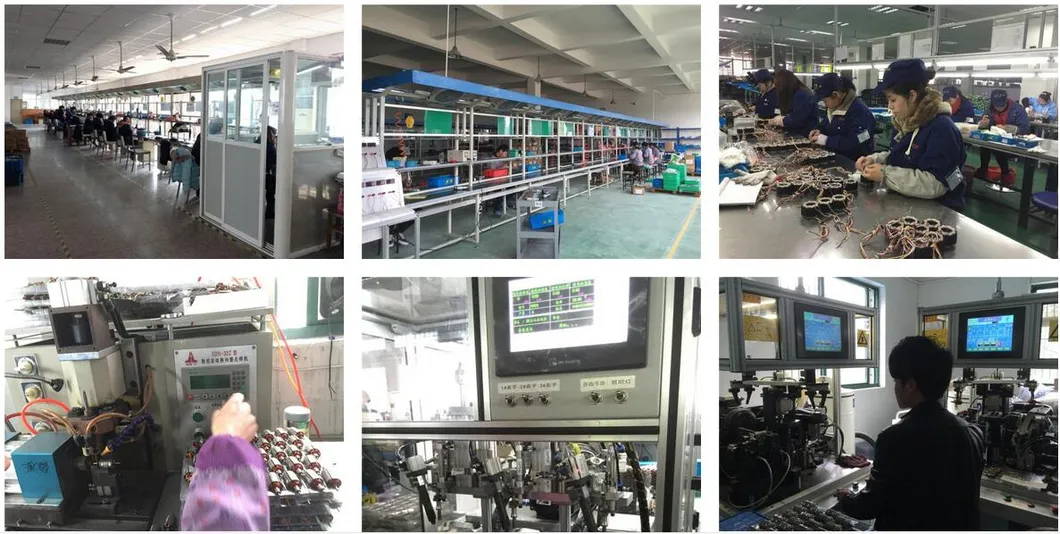

Production Line 1

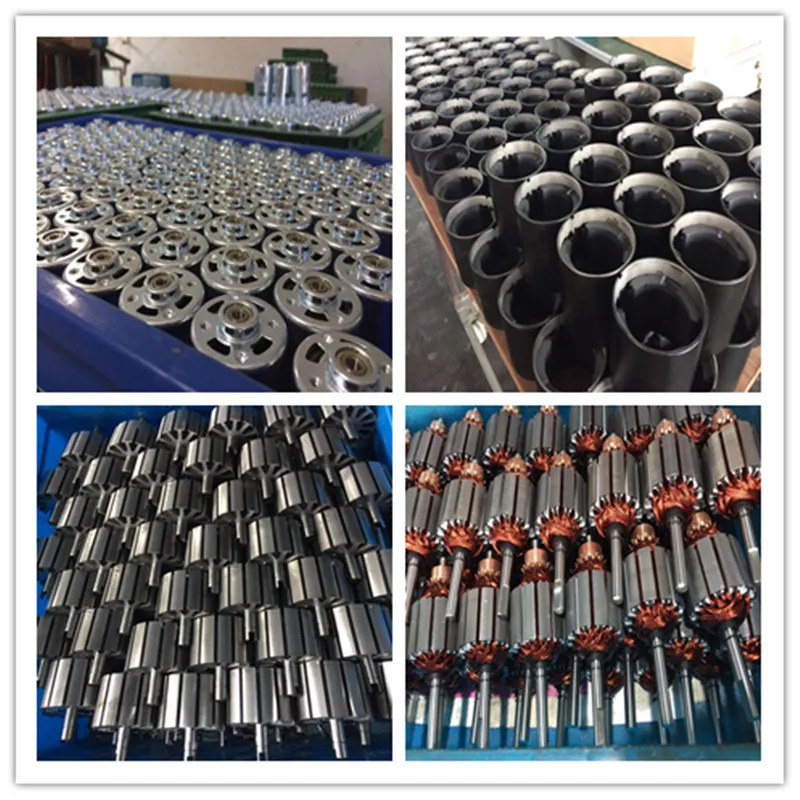

Production Line 2

Test Equipment & Certificates:

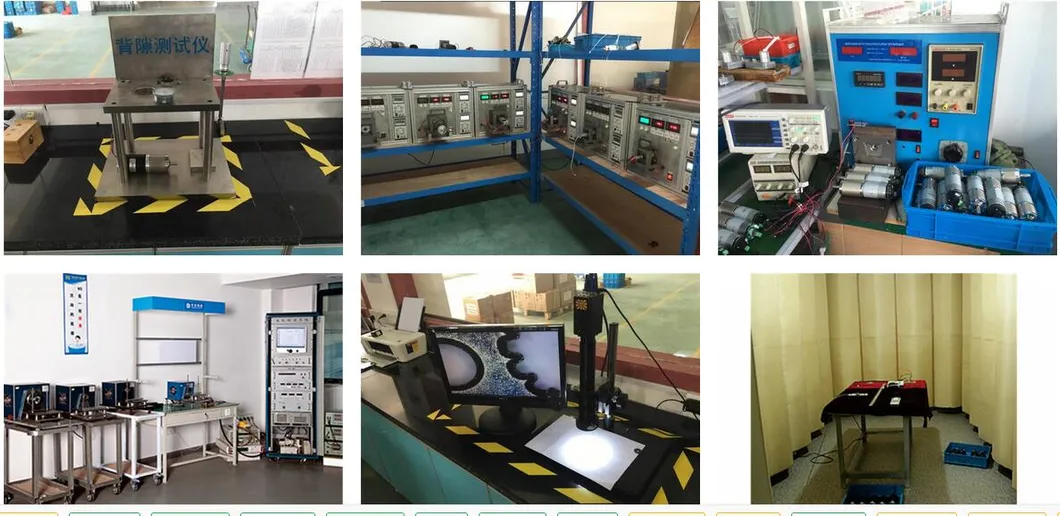

Test Equipment
Certificates

Exhibitions:

Exhibitions
❓
Frequently Asked Questions
What are your main motor products?
We produce Brushed DC Motors, Brushed DC Gear Motors, Planetary DC Gear Motors, Brushless DC Motors, Stepper Motors, and AC Motors.
How do I select a suitable motor?
Please provide parameters such as voltage, speed, torque, motor size, working mode, expected life time, and noise level so we can recommend the best fit.
Do you offer customized services?
Yes, we can customize voltage, speed, torque, and shaft size/shape. We can also add specific wires, connectors, capacitors, or EMC components.
Can I request samples for testing?
Yes, samples are available. Once specifications are confirmed and payment is received, we proceed with sample production.
How do you ensure product quality?
We use strict inspection procedures: incoming material checks against signed samples/drawings, in-process tour inspections, and final inspections before shipping.
What is the typical lead time?
Standard products typically take 25-30 days. Customized orders may take slightly longer depending on the specific requirements.
