Optical or magnetic encoder configuration for precise feedback controls.
Typical Product Models
Below are featured model configurations. Please get in touch for customized motor parameters and customized dimension inquiries.
1. Typical Model: 63WG.63ZYT Series PM DC Worm Gear Motor

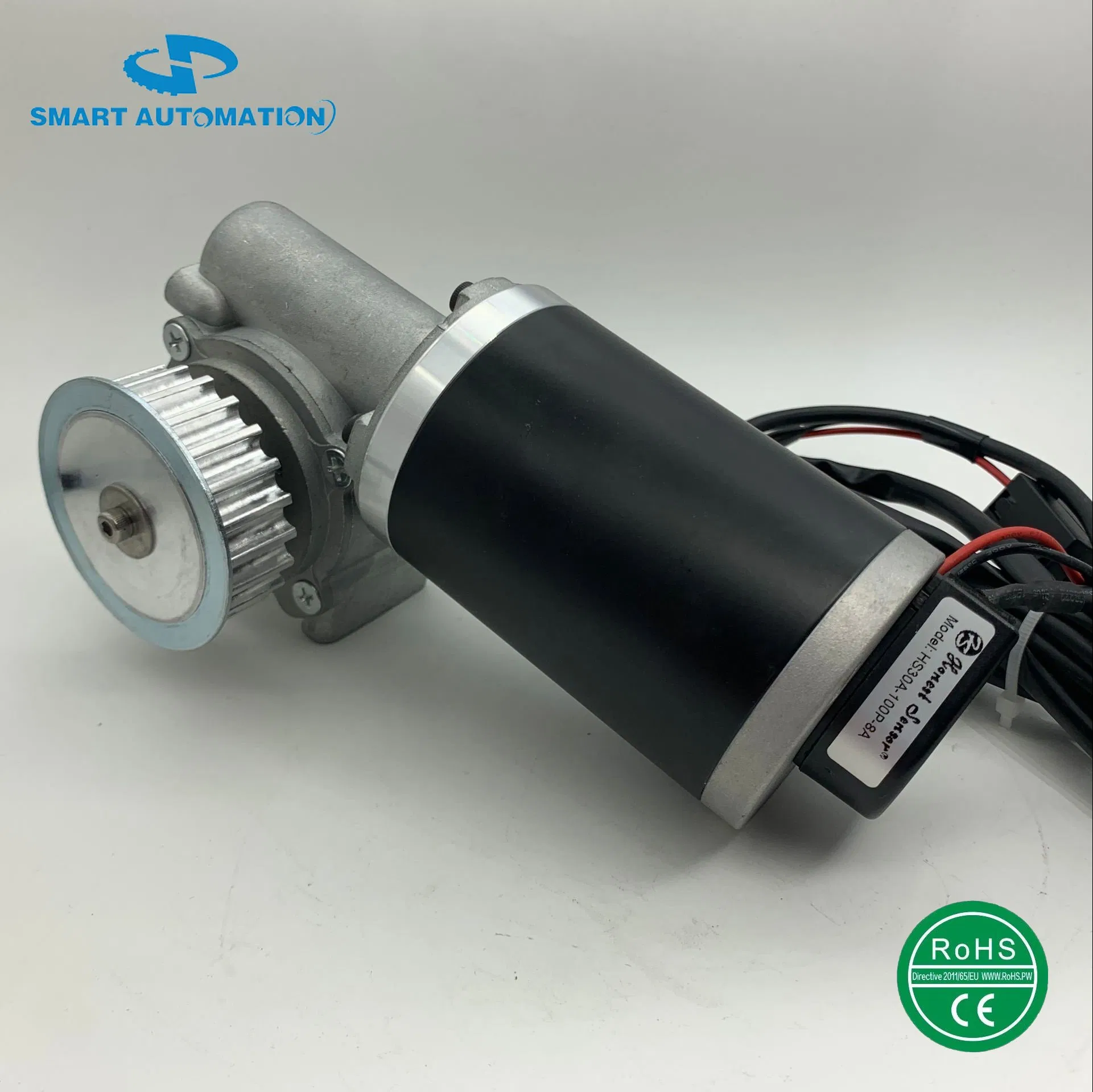

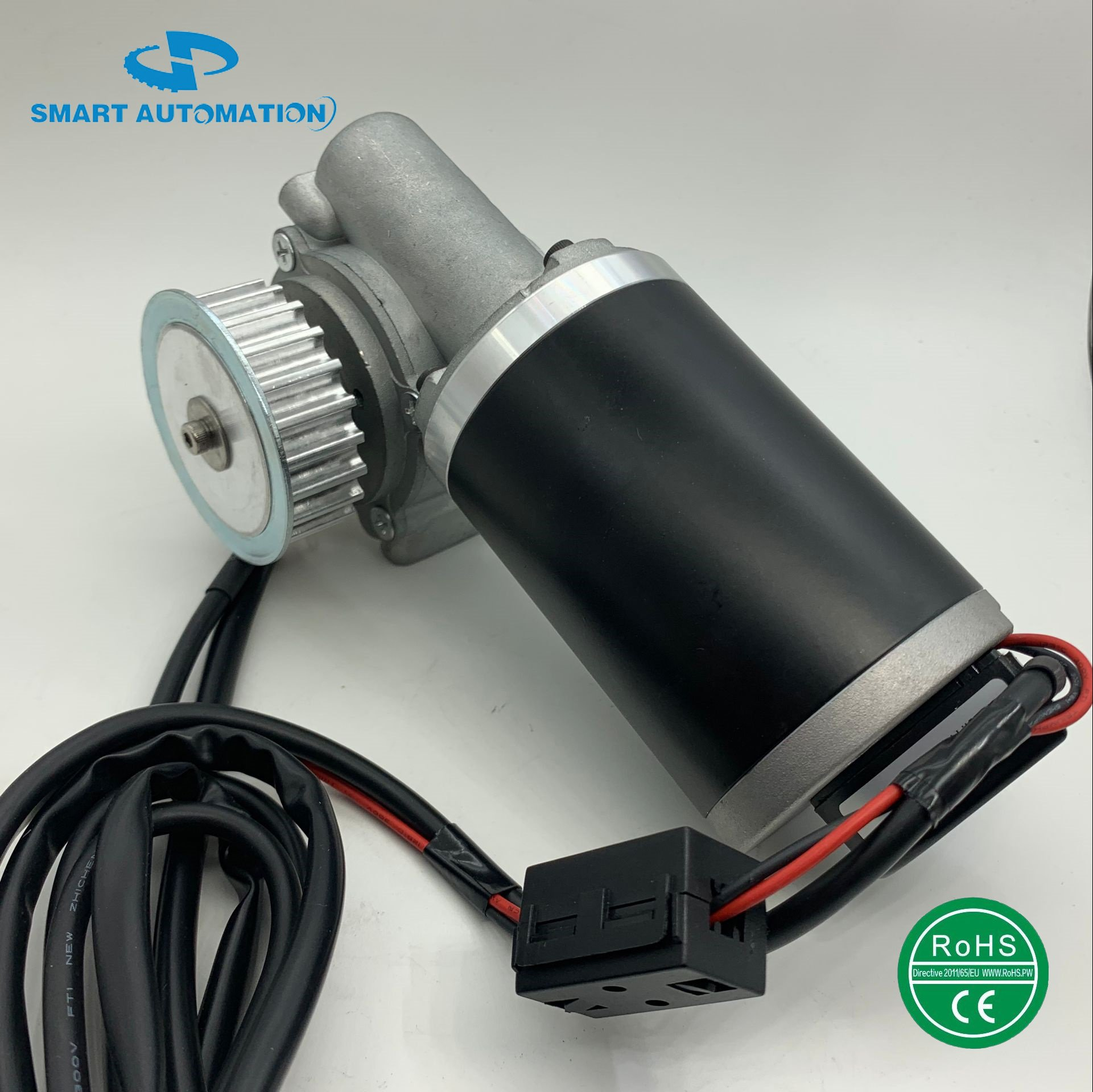

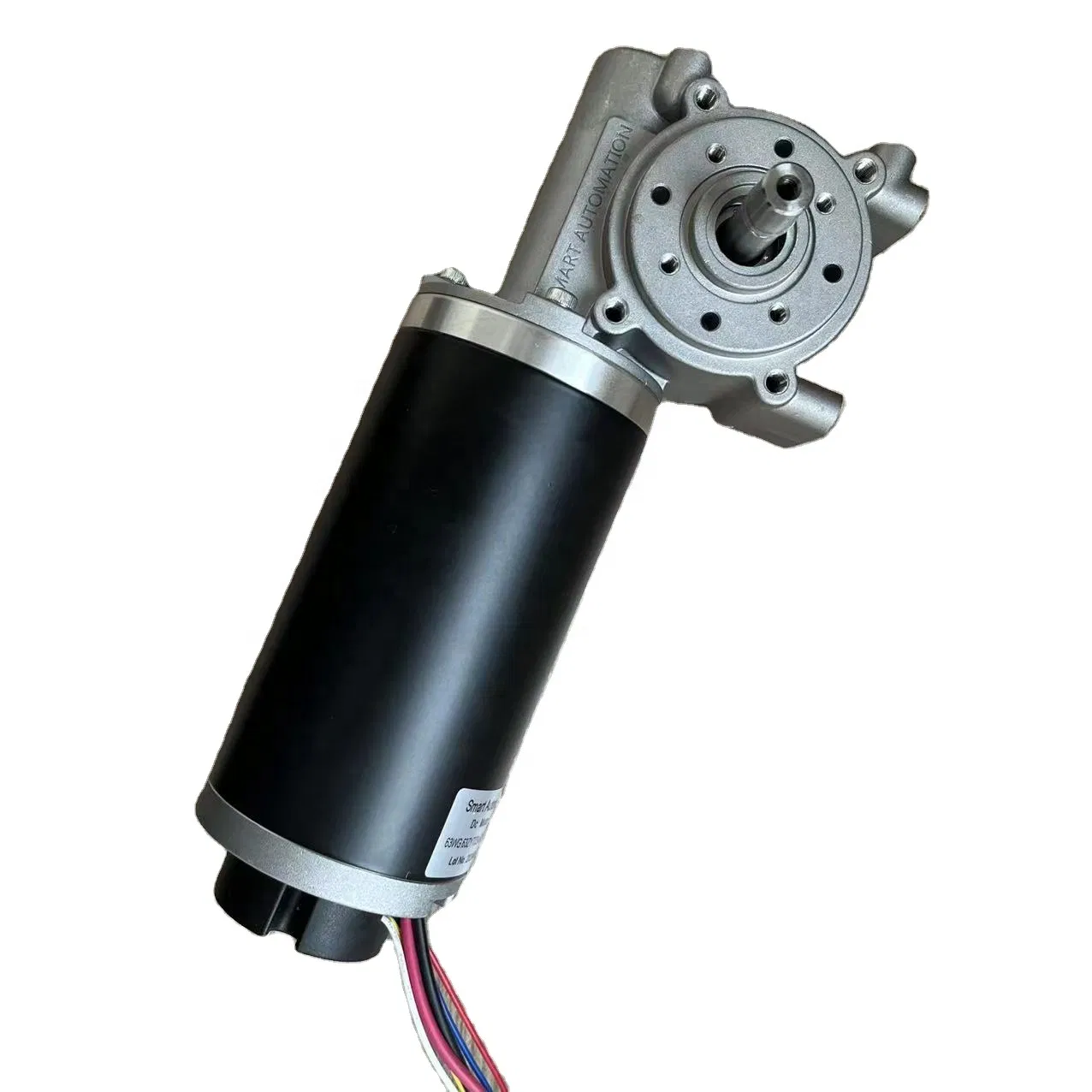

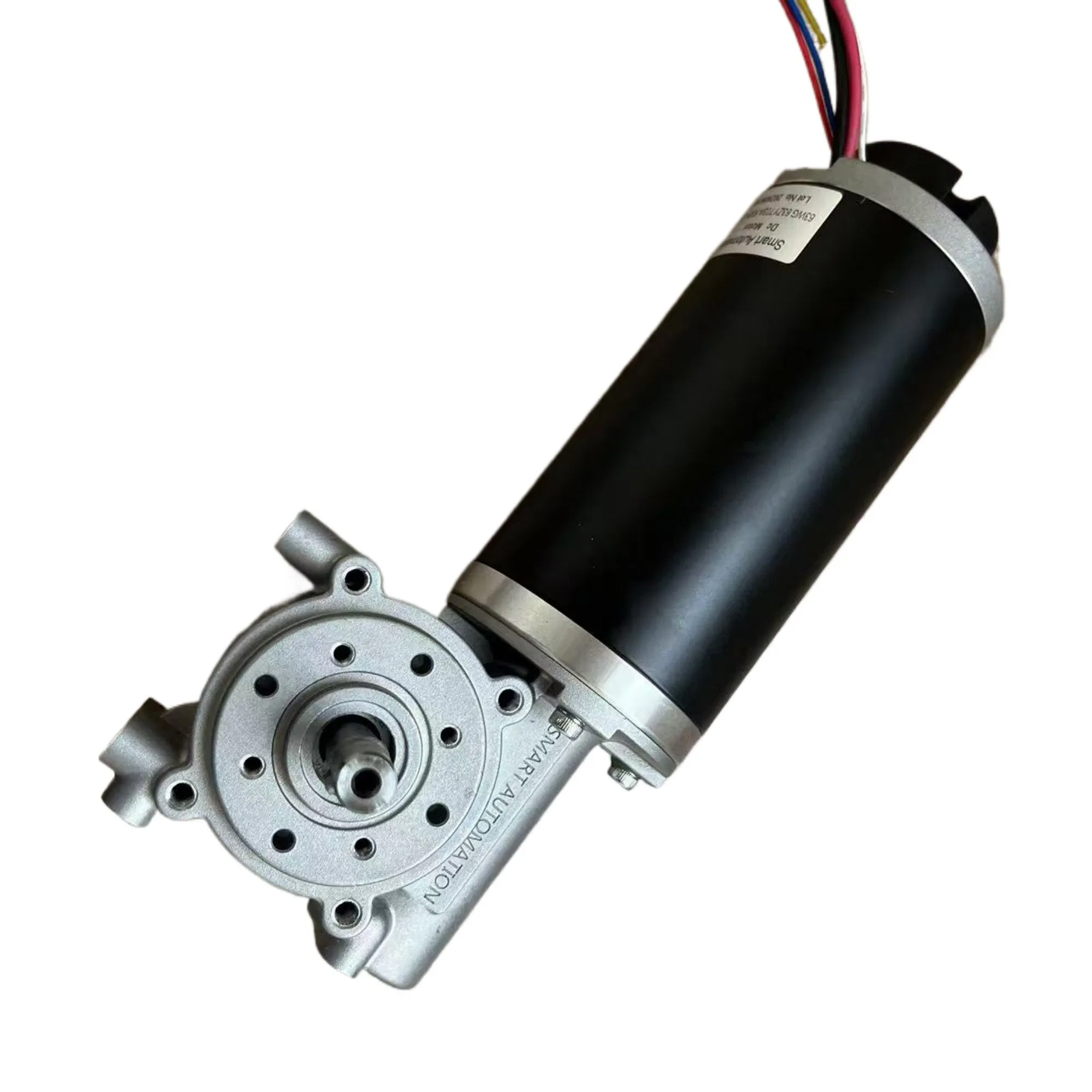

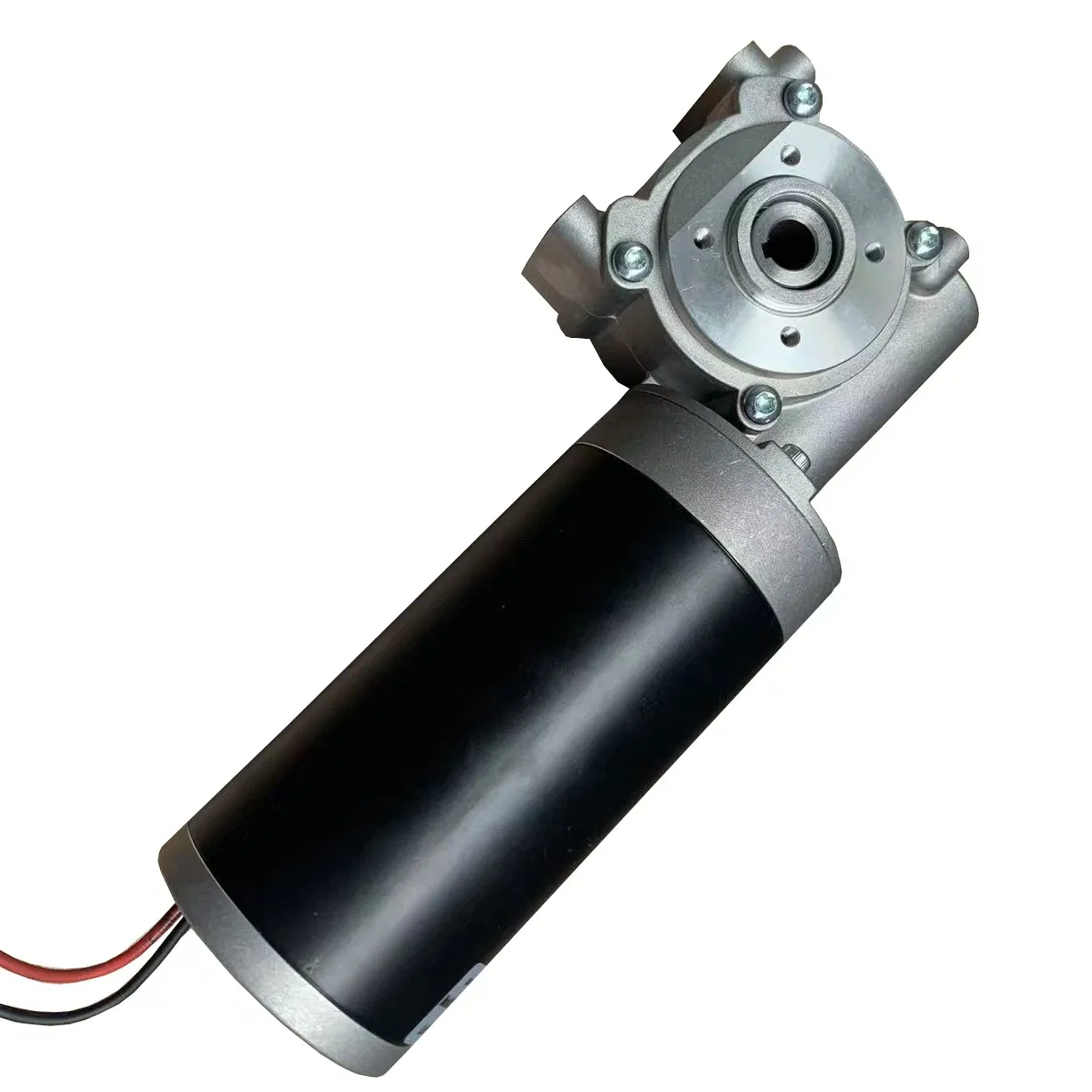

63WG.63ZYT PM DC Worm Gear Motor Unit

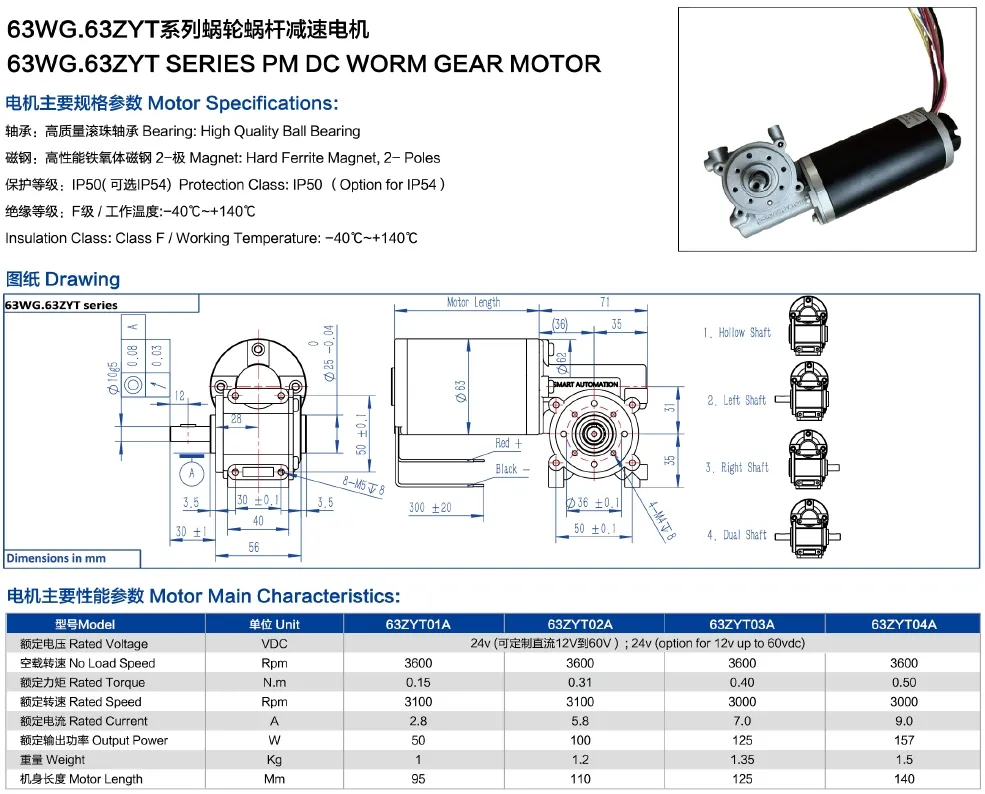

Dimension Drawing Scheme

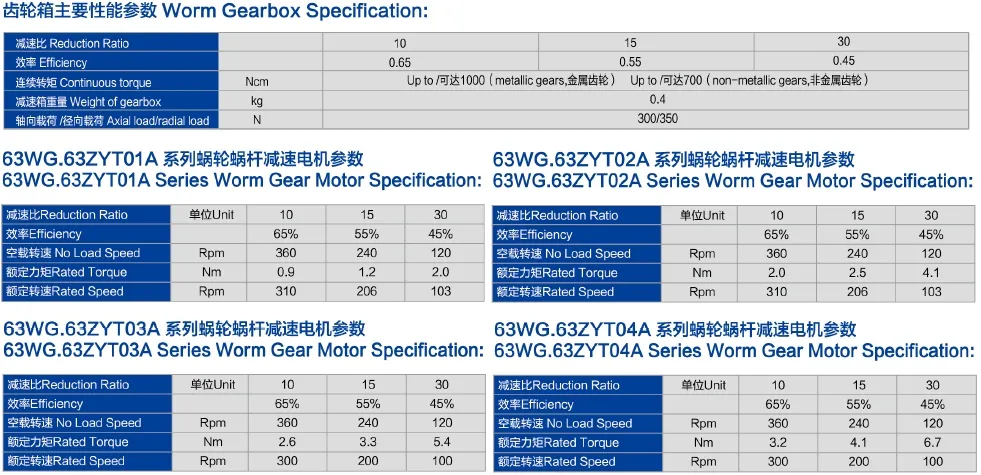

Structural Motor Integration Layout

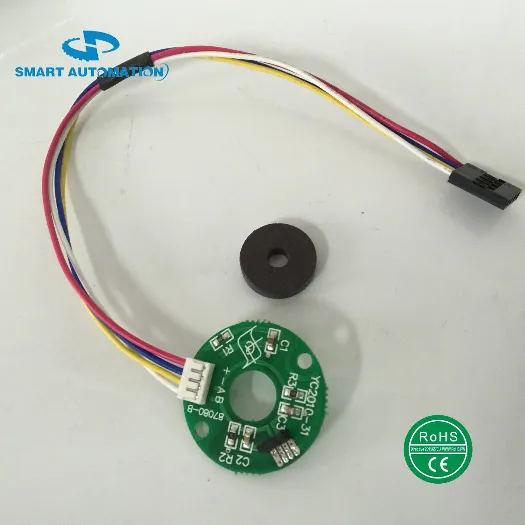

Option for Optical / Magnetic Encoder Integration
Encoder Option A
Encoder Option B

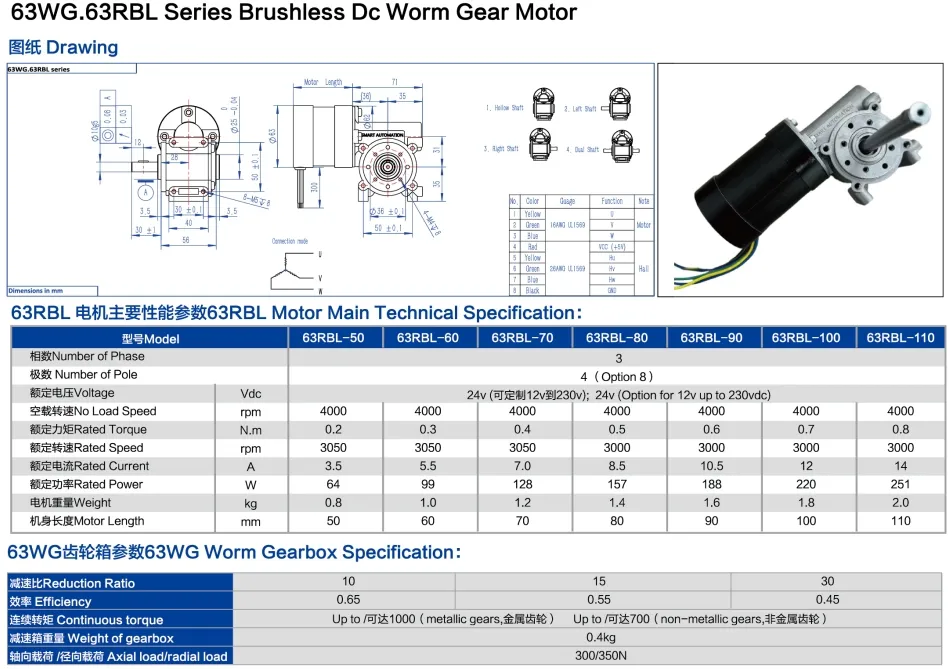

2. Typical Model: 63WG.63RBL Series BLDC Worm Gear Motor
Brushless (BLDC) Motor Assembly

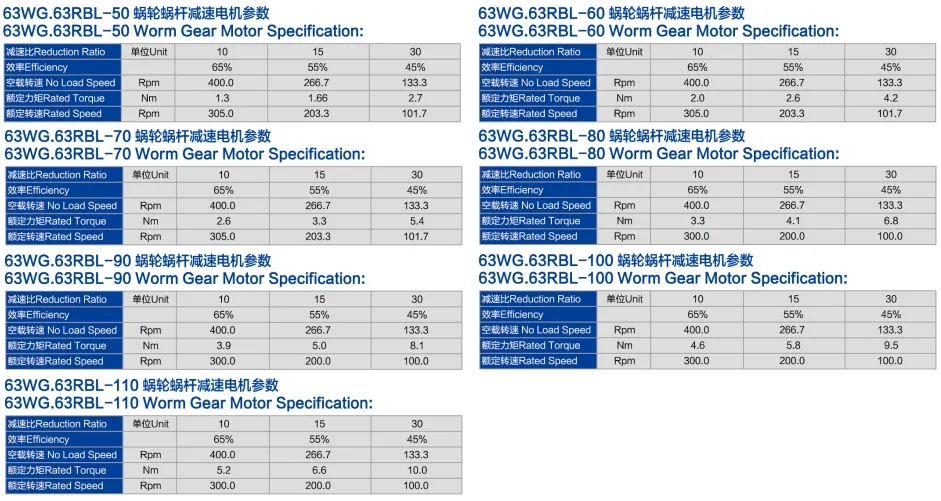

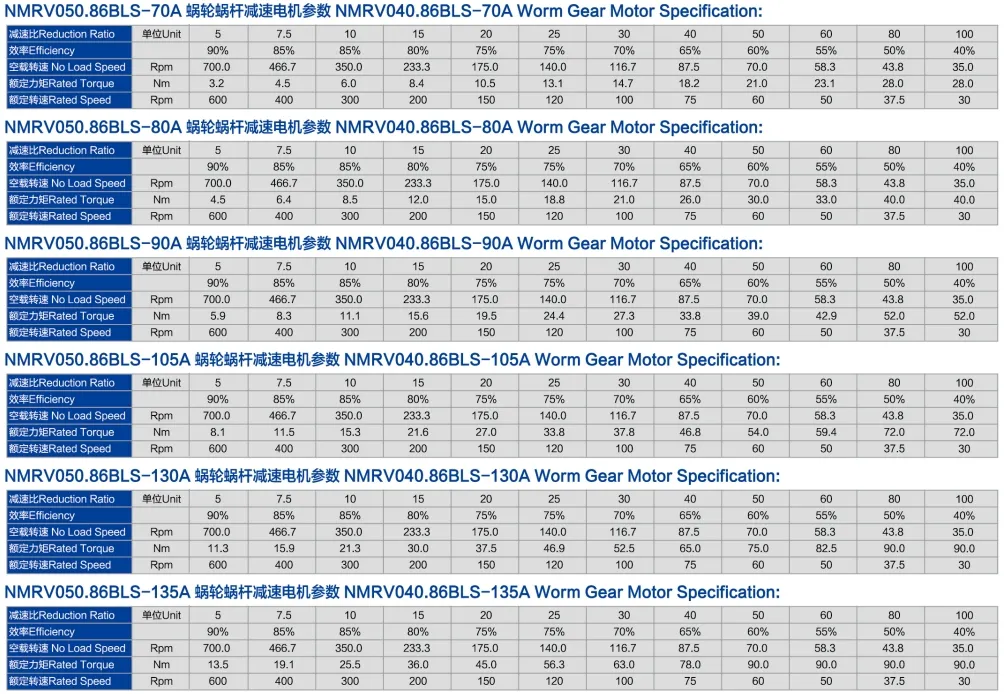

BLDC Gear Motor Structural Layout Dimensions

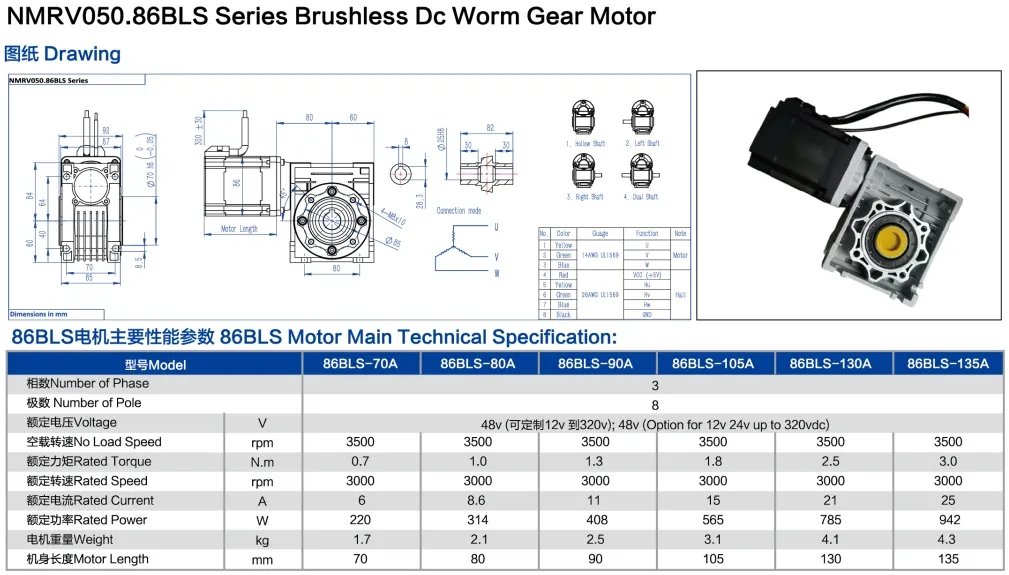

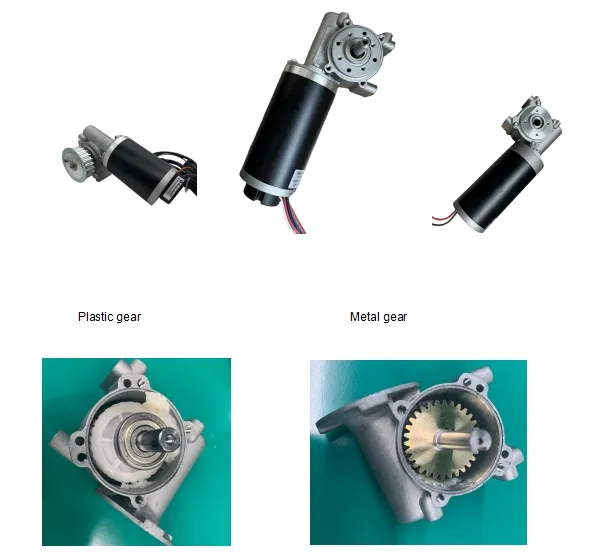

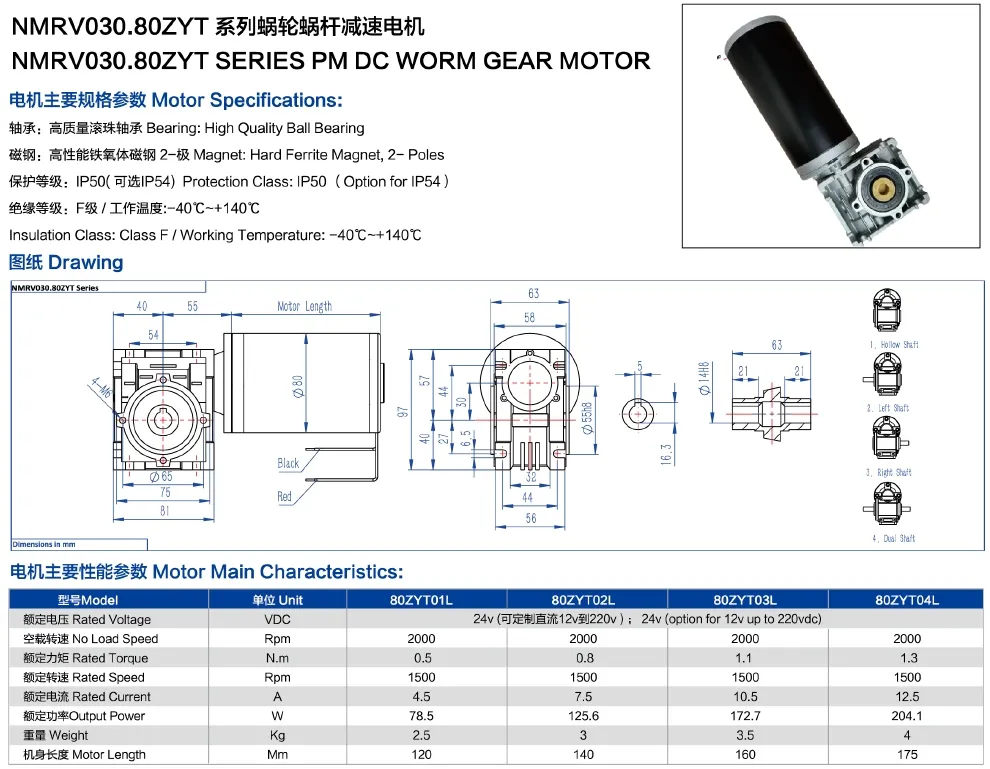

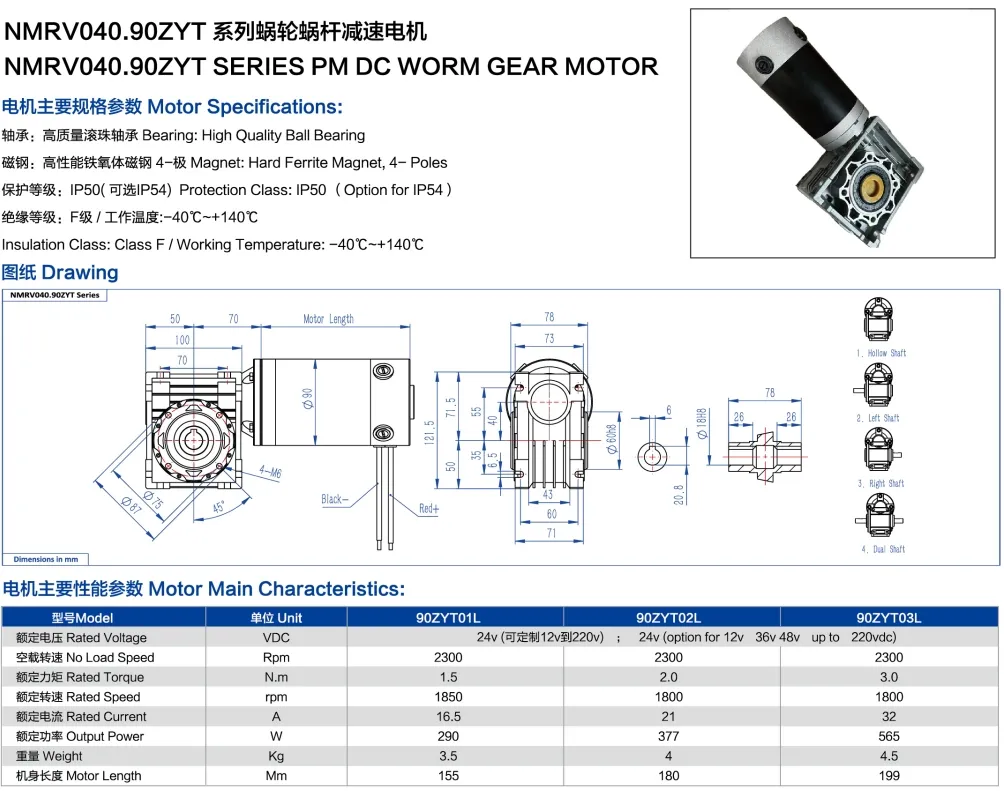

3. Comprehensive Gallery of Motor Ranges & Variations
Frequently Asked Questions (FAQ)
A1: Yes, we provide extensive custom engineering. We can adapt voltage levels (e.g., 12V, 24V, 36V, 48V, 220V), custom shaft lengths, specialized mounting faces, overall body dimensions, and custom performance curves matching your exact functional constraints.
A2: Brushed versions offer simplified control and excellent cost efficiency. Brushless (BLDC) versions offer enhanced operating efficiency, longer operational lifetimes, quieter operation, and integrated smart control modules suitable for high-frequency automated doors.
A3: We can build fully assembled drive systems configured with worm or planetary gearboxes for maximum torque output (up to 10Nm), highly accurate magnetic/optical encoders for door positioning systems, and electromagnetic brakes for sudden stop and security holding capabilities.
A4: Our door opener motors feature a standard closed protective structure. Depending on requirements, we support protection upgrades ranging from IP00, IP40, IP50, IP54 up to IP56. All units strictly adhere to CE, RoHS, and ISO9001 quality system certifications.
A5: We run robust production schedules capable of producing up to 10,000 PCS per month of customizable DC motors. This ensures reliable supply pipelines and stable delivery schedules for OEMs and distribution partners globally.
