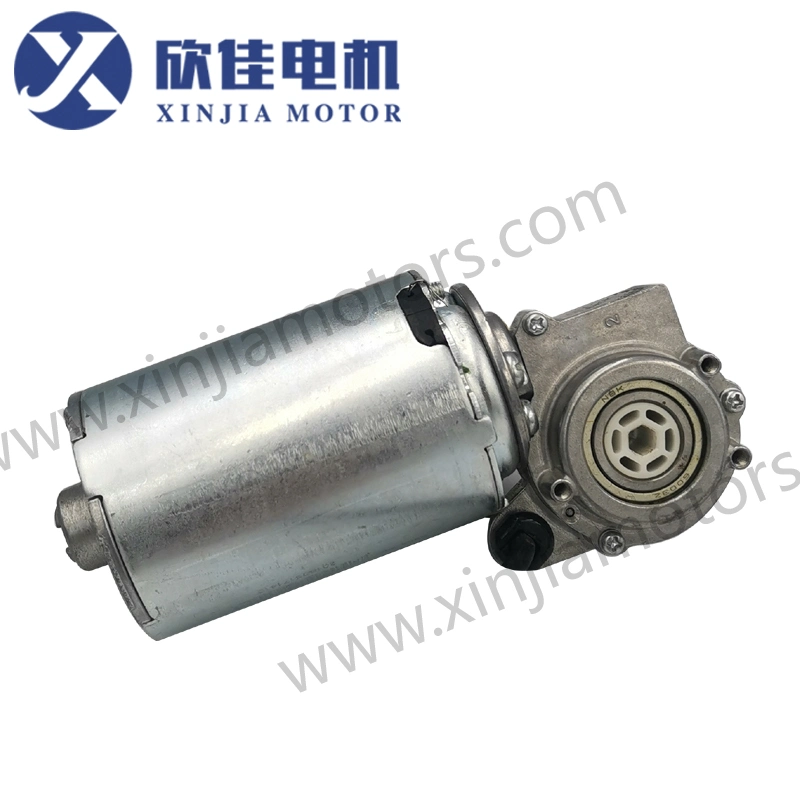

DC Motor DC Wormed Motor Gear Motor Electric Motor Electrical Engine 6034 with Gearbox Reduction for Automatic Door/Standing Desk
DC Motor DC Wormed Motor Gear Motor Electric Motor Electrical Engine 6034 with Gearbox Reduction for Automatic Door/Standing Desk
DC Motor DC Wormed Motor Gear Motor Electric Motor Electrical Engine 6034 with Gearbox Reduction for Automatic Door/Standing Desk
DC Motor DC Wormed Motor Gear Motor Electric Motor Electrical Engine 6034 with Gearbox Reduction for Automatic Door/Standing Desk
DC Motor DC Wormed Motor Gear Motor Electric Motor Electrical Engine 6034 with Gearbox Reduction for Automatic Door/Standing Desk
1 / 5
DC Motor DC Wormed Motor Gear Motor Electric Motor Electrical Engine 6034 with Gearbox Reduction for Automatic Door/Standing Desk
DC Motor DC Wormed Motor Gear Motor Electric Motor Electrical Engine 6034 with Gearbox Reduction for Automatic Door/Standing Desk
DC Motor DC Wormed Motor Gear Motor Electric Motor Electrical Engine 6034 with Gearbox Reduction for Automatic Door/Standing Desk
DC Motor DC Wormed Motor Gear Motor Electric Motor Electrical Engine 6034 with Gearbox Reduction for Automatic Door/Standing Desk
DC Motor DC Wormed Motor Gear Motor Electric Motor Electrical Engine 6034 with Gearbox Reduction for Automatic Door/Standing Desk

DC Motor DC Wormed Motor Gear Motor Electric Motor Electrical Engine 6034 with Gearbox Reduction for Automatic Door/Standing Desk

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO. DCR60-34
Excitation Mode Excited
Function Driving
Casing Protection Protection Type
Number of Poles 2
Structure & Working Principle Brush
Type Z2
Certification ISO9001, CCC
Thermal Protector Thermal Protector
Materials Copper
Protection Equipment Thermal Protector
Payment Term T/T, L/C, D/P
Rotation Ccw/Cw
MOQ 500
OEM Yes
Protection Grade IP00-IP68
ODM Yes
Inspection Full Inspection
Export Port Ningbo
Use for Household Application
Efficiency High Efficiency
Fuse Protector PTC/VDE/Ksd
Payment Method T/T, L/C, D/P
Transport Package Foam and Carton
Specification Pure Copper
Origin Ningbo
HS Code 8501310000
Production Capacity 1,000,000 Pcs/Year

Product Description

DC Motor DC Wormed Motor Gear Motor Electric Motor Electrical Engine 6034 with Gearbox Reduction
⚙️ PROFESSIONAL MANUFACTURER OF SINGLE-PHASE SERIES MOTOR / GEAR MOTOR
Power, Speed, Torque, Shaft, Stator Lamination, Rotation and Installing Location
Can be customized according to customer's requirements.
Product Name: DC Geared Motor
Model No. DCR60-34
Application: For Standing desk / adjustable desk / Juicer / Door opener
Starting Mode Direct on-line Starting
Rated Voltage: DC 24V
Rated Power: 40W
No-load Power: 36W±10%
Rated Speed: 80rpm±10%
No-load Speed: 102rpm±10%
Gear Ratio: 39:1
Rated Torque: 2.0N.m
No-load Current: 1.7A±10%
No-load Spark: Class ≤ 2
Withstand Voltage: 1750V / 1sec / 5mA
Output Bearing: Ball Bearing
Out-axis Diam: ø6.8
Customized: Yes
Packing: Foam & carton, or according to customers' specific requirements
MOQ: 500 pcs
Delivery Time: Depends on quantity from 2 weeks to 4 weeks.
Payment Term: T/T, L/C, D/P

Remarks

  • The performances listed above are for reference only. We can adjust our motor specifications according to detailed engineering demands.
  • OEM & ODM options are both available.
  • For detailed inquiries and quotes, please specify requirements such as voltage, draft, input power, and airflow to expedite response.

Detail View

DC Motor Detail View 1
DC Motor Detail View 2

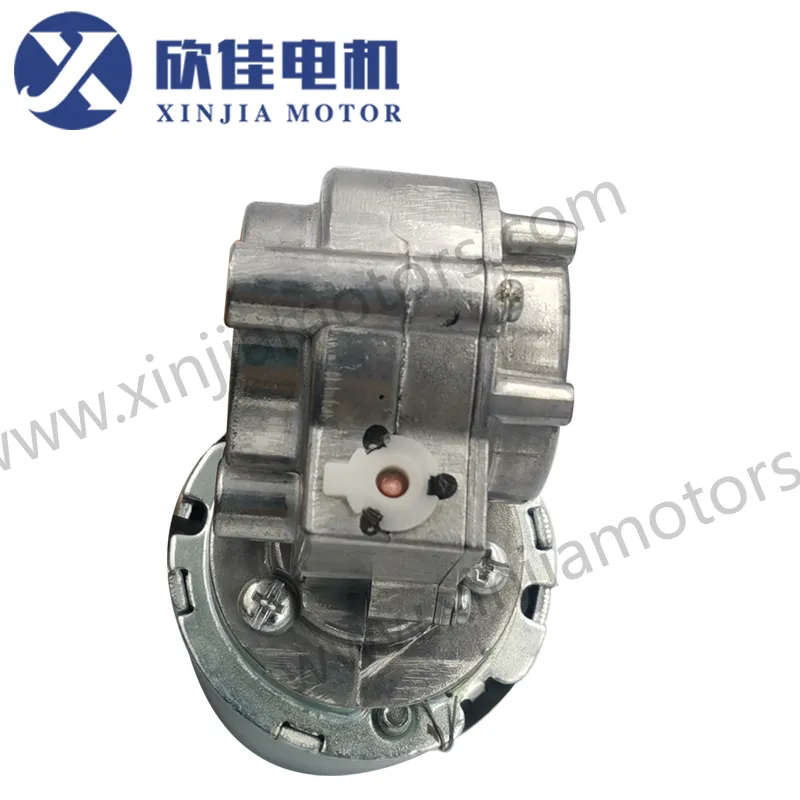

DC Motor Detail View 3

Assembly Drawing

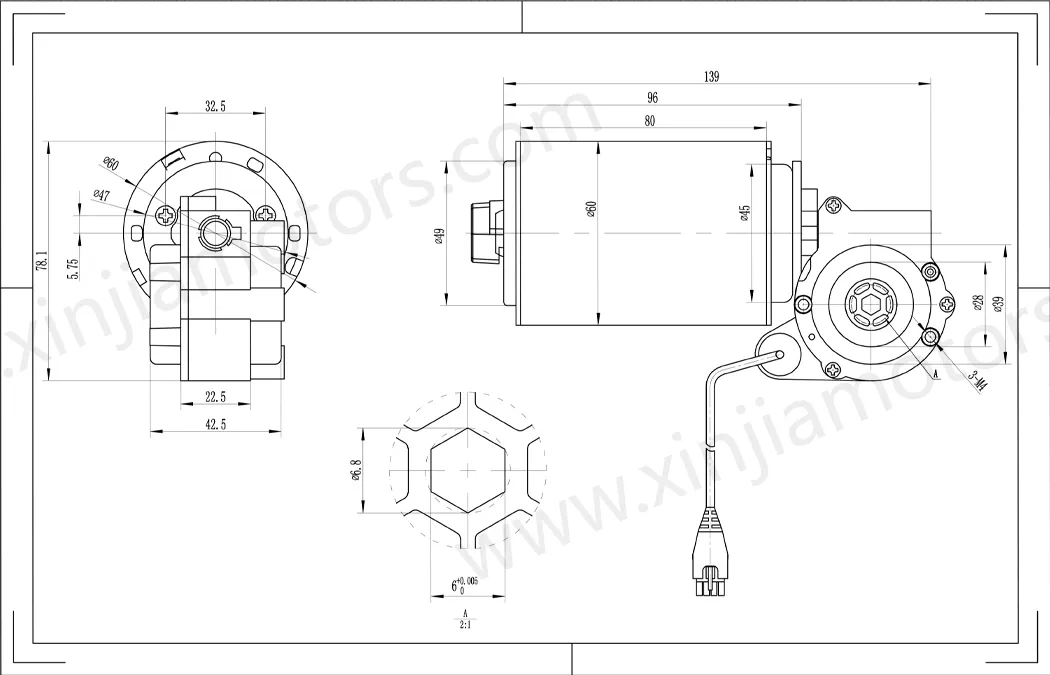

DC Motor Assembly Drawing 1
DC Motor Dimension Specifications
DC Motor Performance Chart

Frequently Asked Questions

What are the main applications of the DCR60-34 Geared Motor?
This DC geared motor is designed for household and office applications, specifically standing desks, adjustable desks, juicers, and automatic door openers.
Can the technical parameters of the motor be customized?
Yes, we provide full customization options for motor specifications including power output, speed, torque, shaft size, stator lamination, rotation direction, and mounting dimensions.
What protection features does this DC geared motor include?
The motor is designed with safety features such as thermal protection devices and optional fuse systems (PTC/VDE/Ksd) to prevent overheating and power surges.
What is the Minimum Order Quantity (MOQ) and production lead time?
Our standard Minimum Order Quantity (MOQ) is 500 pieces. The standard delivery time ranges between 2 to 4 weeks depending on the order volume.
What quality certifications does the motor hold?
The motor holds recognized quality and safety credentials including ISO9001 and CCC, and undergoes a full inspection process prior to export.
What are the standard payment terms and shipping options?
We support T/T, L/C, and D/P payment methods. Standard shipments are securely packaged in foam and cartons, departing from Ningbo port.
