Eight-Character Door Opener, Automatic Door Opener for Courtyard Gates, Electric Door Opener for Villa Gates, Fully Automatic Side-Hung Door Motor

Customization:	Available
After-sales Service:	Available
Warranty:	1 Years Under No-Human Damage

Send Inquiry

Product Description

Eight-character Door Opener, Electric Door Opener for Villa Gates, Fully Automatic Side-hung Door Motor

Basic Info

StructureWheeled

Driving TypeElectromechanical

Electric Current TypeDC

ColorGray/Black

Opening MethodRemote Control, Mobile Phone, Key

Transport Package10*17*38cm

Specification9.2*15.8*34cm

OriginChina

HS Code8501310000

Production Capacity100,000/Year

Product Description

Applications

Residential and Villa Buildings

Commercial and Public Buildings

Medical and Educational Institutions

Industrial and Warehousing Facilities

Transportation and Security Nodes

Drawings & Dimensions

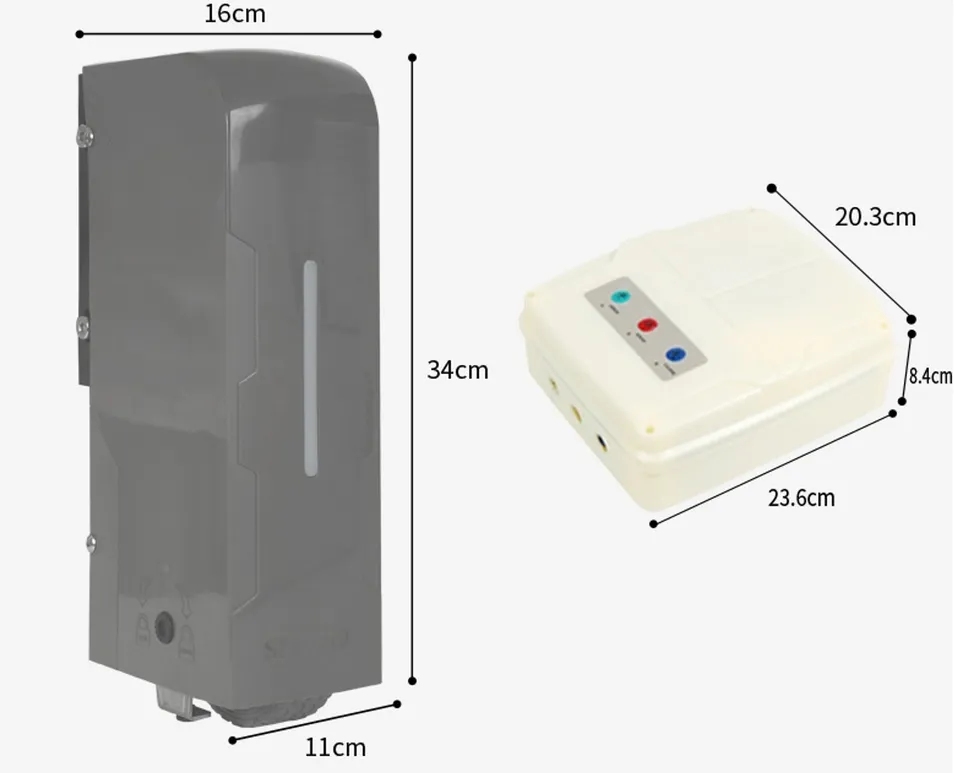

Eight-Character Door Opener Technical Drawing 1

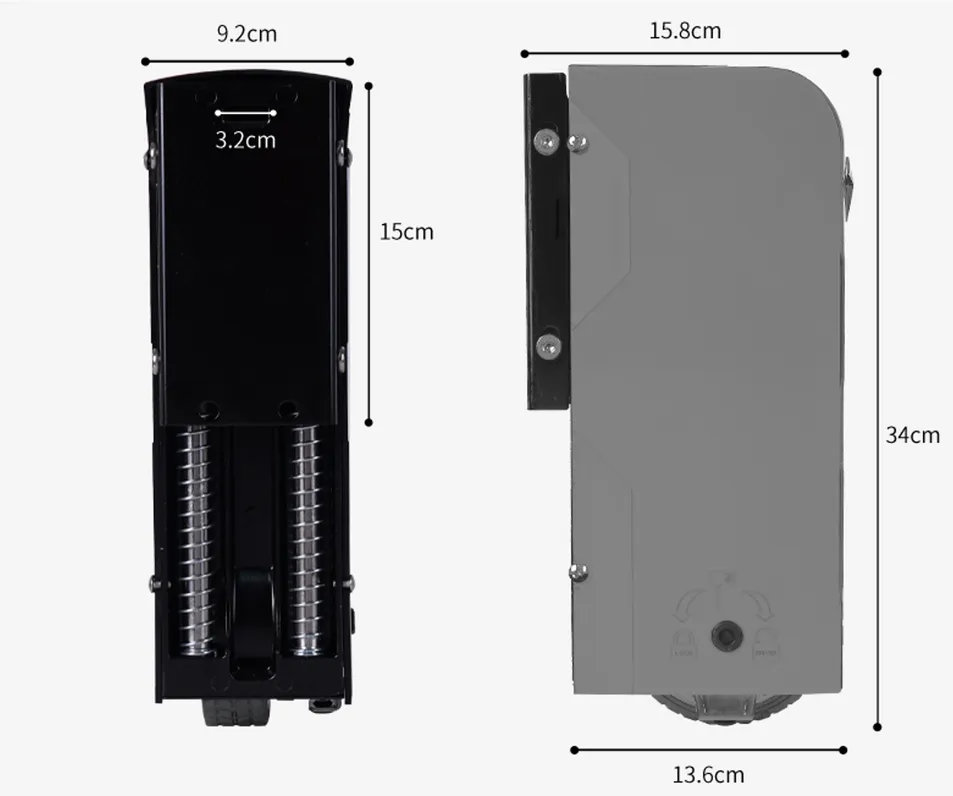

Eight-Character Door Opener Technical Drawing 2

Specifications & Guidelines

Technical Specifications

■ Power Supply: DC24

■ Motor: DC Motor

■ Motor Speed: 1450 RPM

■ Power: 40W / pcs

■ Ambient Temperature: -40℃ to +55℃

■ Running Speed: 15 M/Min

■ Max Single Door Leaf Width: 4M

■ Max Door Weight: 400kg

■ Motor Size: 9.2 * 15.8 * 34cm

Important Notes

1. The load-bearing capacity of a single door should be less than 400kgs.

2. The ground surface must be solid/firm (should not be soft).

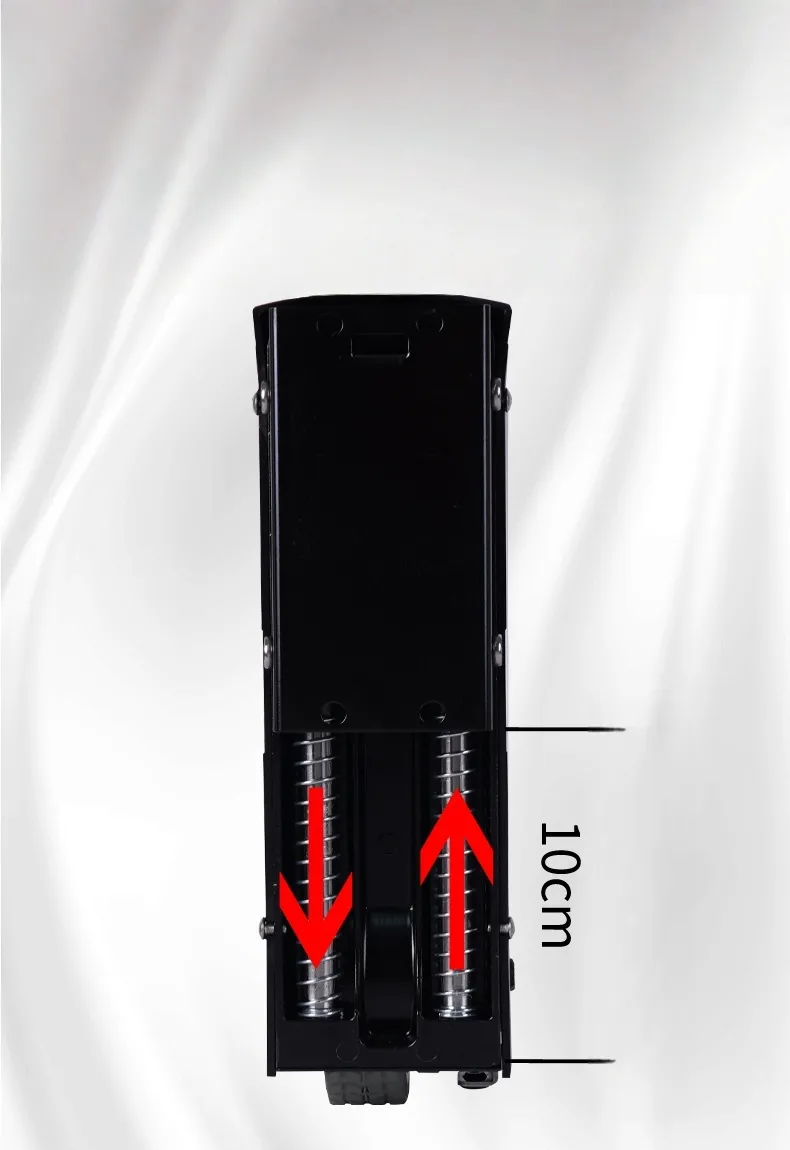

3. The standard version supports a maximum drop height within 8cm inside the courtyard.

4. Spacing between the bottom door edge and the ground must be greater than 2.5cm.

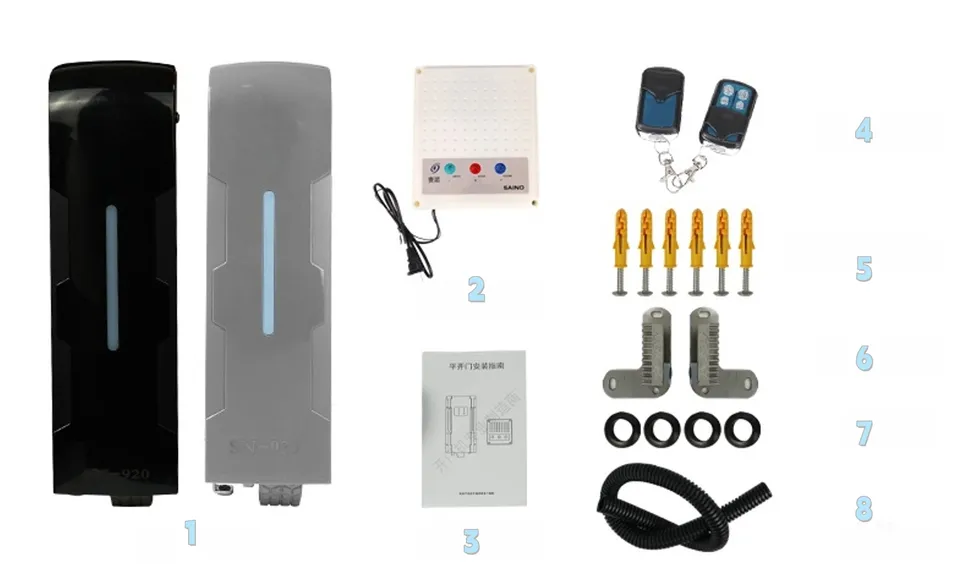

Product List

Standard Package Includes:

✓ Motor * 2

✓ Controller * 1

✓ Instruction Manual * 1

✓ Remote Control * 1

✓ Expansion Screws * 6

✓ Positioning Block * 2

✓ Black Rings * 4

✓ Sleeve * 1

Key Features & Precautions

1. Extremely Compact

Maximum motor width is only 9.2cm, making it highly adaptable for narrow installations.

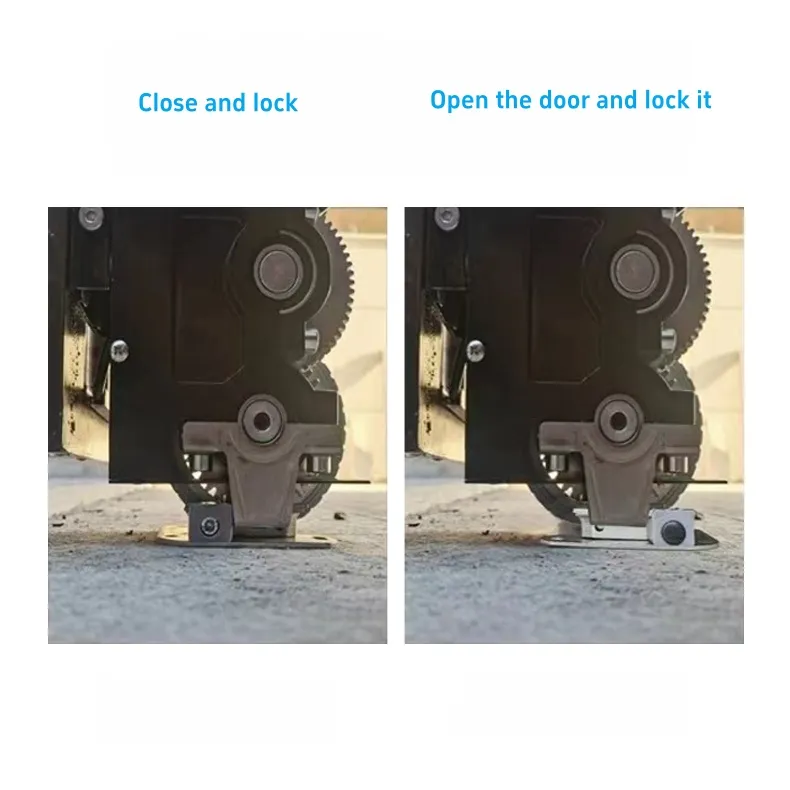

2. Windproof Safety

Equipped with a robust toothed limit mechanism, securing the doors effectively during both opening and closing phases against heavy winds.

3. Mechanical Reliability

Uses physical mechanical limits instead of easily damaged electronic limits, eliminating typical electronic component failures.

4. Smooth Operation

Configured to start slowly and stop slowly, protecting the gate hinges and mechanism by avoiding sudden shocks.

5. Smart System Integration

Equipped with auxiliary ports to readily connect with smart security platforms, including infrared sensors, mobile apps, card readers, and face-recognition terminals.

6. Remote Access

Allows convenient fully-automated opening and closing operations via compact remote control units.

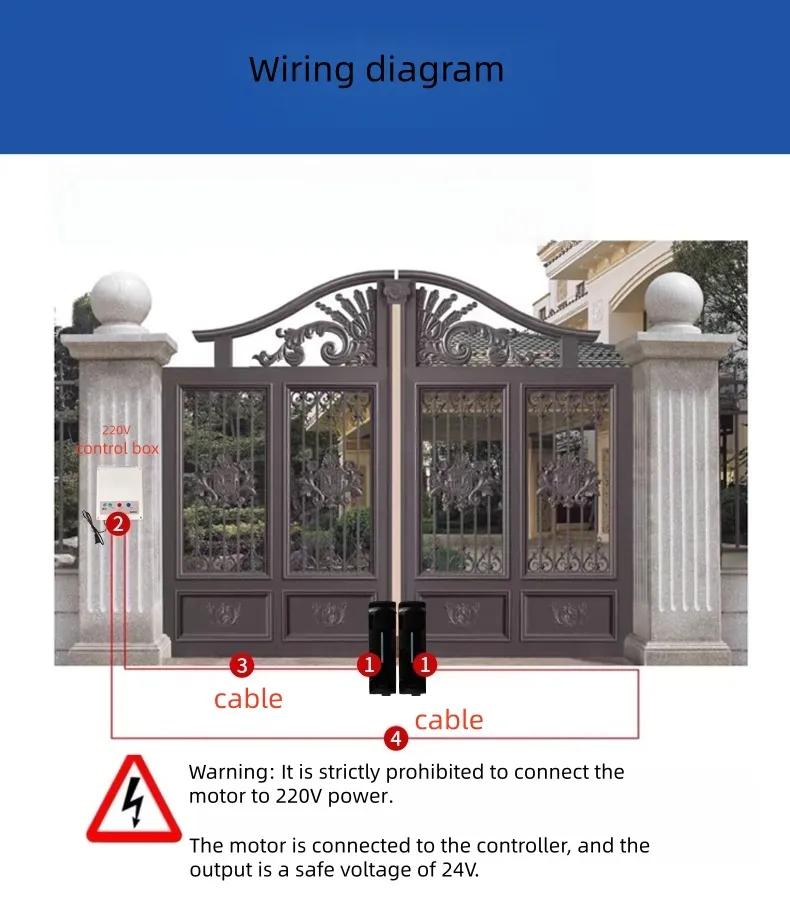

Product Showcase

After Sales Service

Standard Warranty

12 months or 2,000 operating hours (whichever comes first) providing total peace of mind.

Global Support

24/7 technical assistance and prompt spare parts supply channels.

Expert Training

Detailed remote operations and maintenance training protocols tailored for your technicians.

Production & Development Center

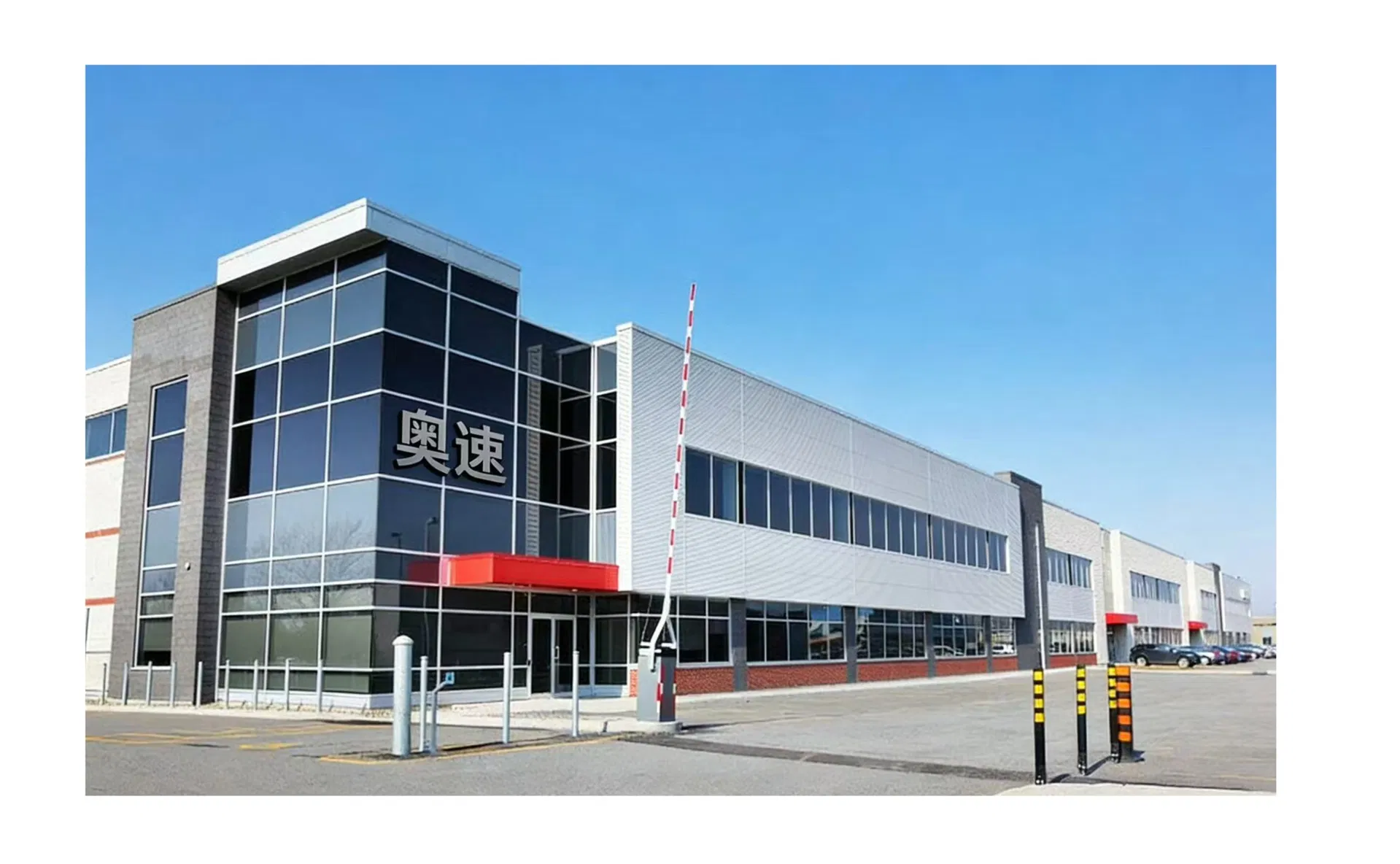

Production Manufacturing Facilities Banner

We are a modern, high-tech intelligent gate systems provider. Our facilities integrate research, development, custom manufacturing, rigorous quality control testing, and comprehensive distribution channels to ensure industry-leading standards.

Frequently Asked Questions

Q: What's the lead time for orders?

A: Standard models ship in 7-15 days; customized units require 15-30 days.

Q: Do you provide after-sales service overseas?

A: Yes, we have partnered service centers in key regions.

Q: What documents do you provide for export?

A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?

A: Contact us for a quote, then confirm with a formal PO.

Q: What is the maximum load weight and width it can handle?

A: The motor supports a maximum single door leaf width of 4 meters and a maximum load capacity of up to 400kg.

Q: What external smart devices can be connected to the controller?

A: The interface reserves ports for connecting various smart terminals including infrared sensors, mobile door openers, card readers, and face-recognition devices.
