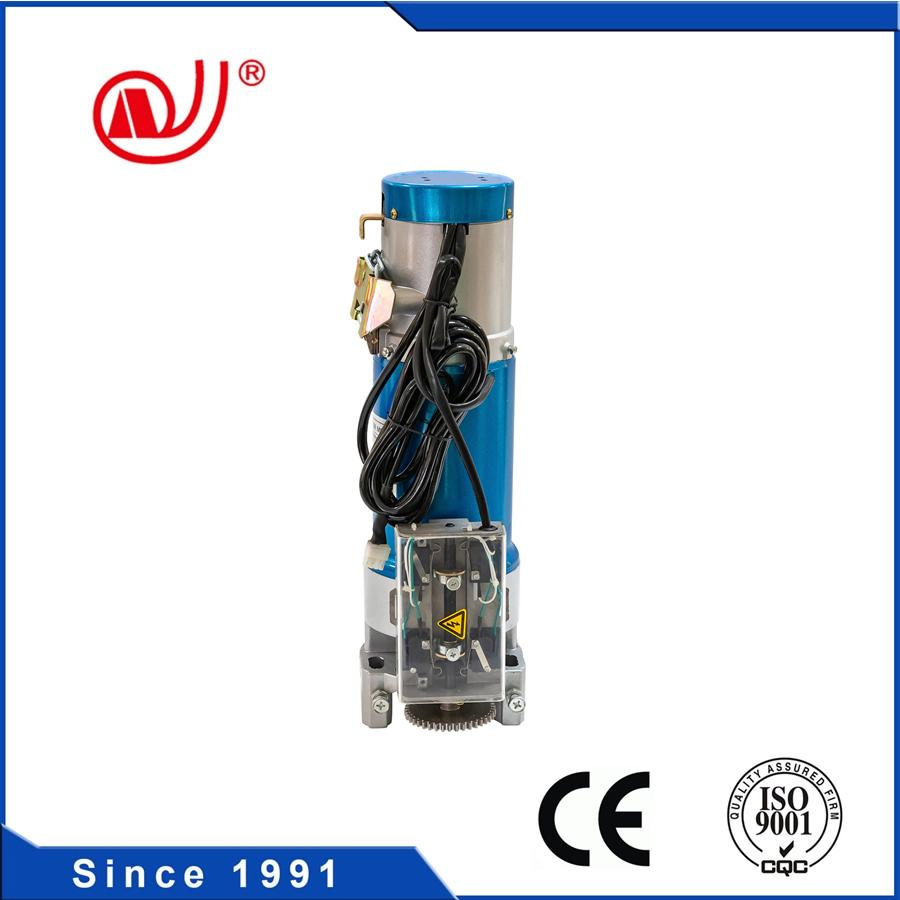

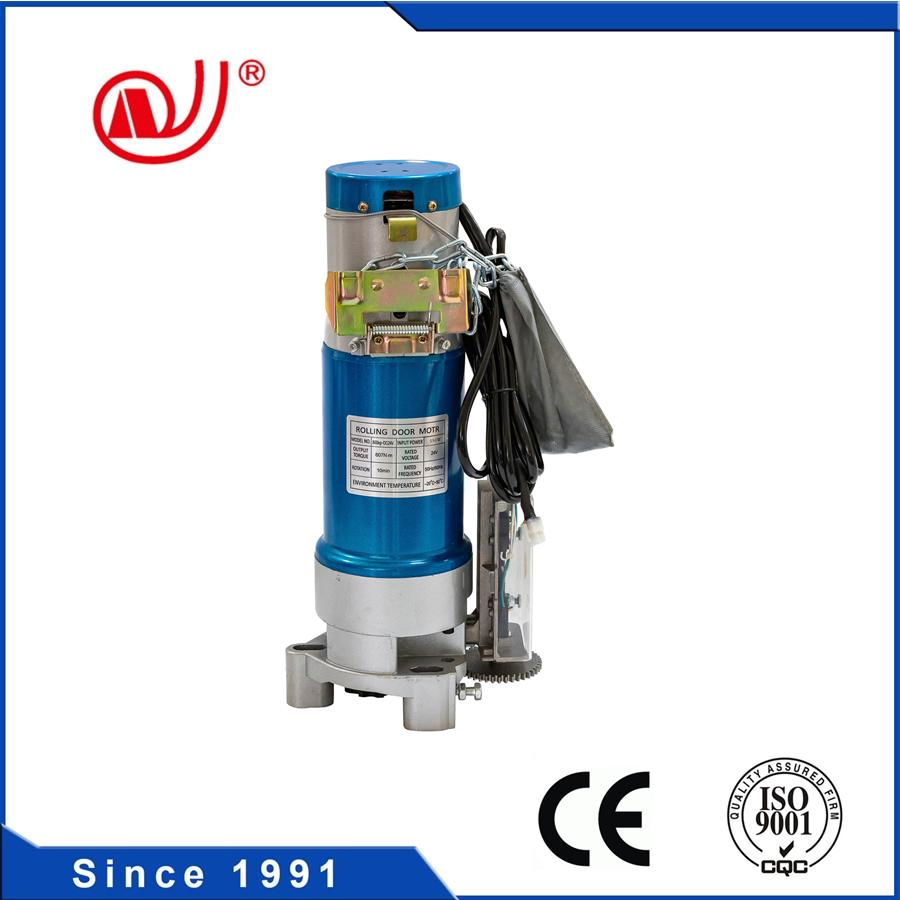

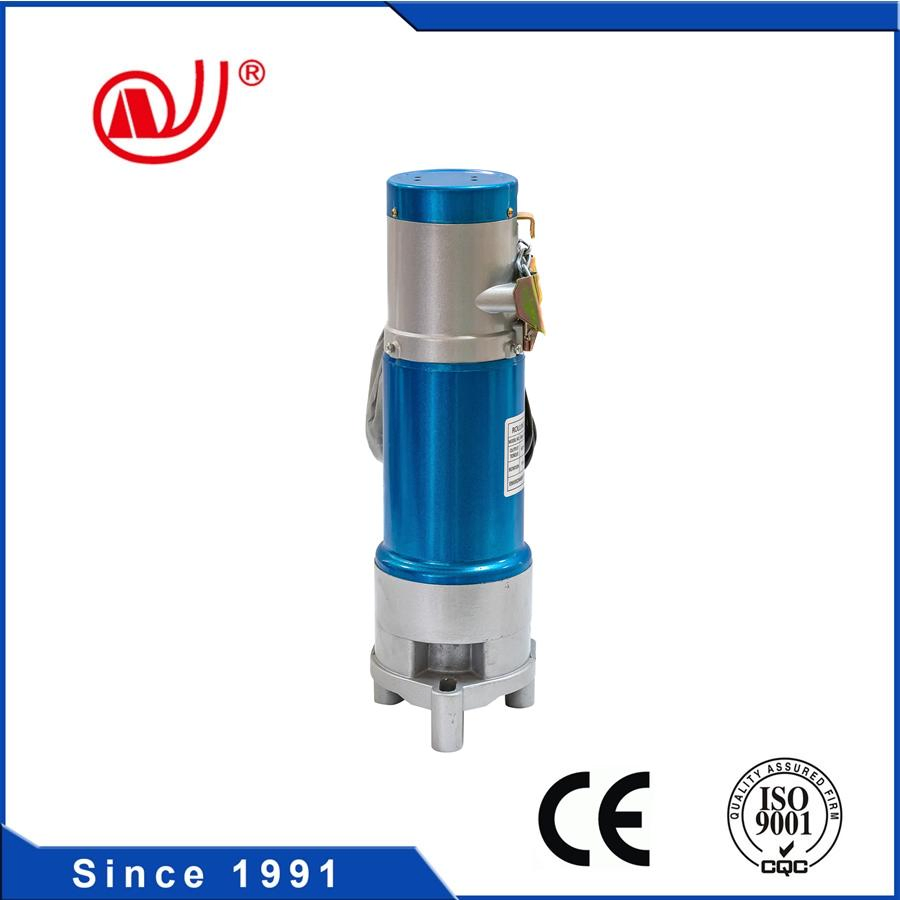

Torsion Motor
1 / 5
| Model No. | Max Lifting Weight (kg) | Max Lifting Height (m) | Rated Input Power (W) | Output Torque (N.m) | Rotation (r/min) | Chain No. |
|---|---|---|---|---|---|---|
| AC300KG-1P | 300 | 6.5 | 450 | 168 | 6.2 | 10A |
| AC500KG-1P | 500 | 6.5 | 450 | 343 | 6.2 | 10A |
| AC600KG-1P | 600 | 6.5 | 680 | 412 | 6.2 | 10A |
| AC800KG-1P | 800 | 7.0 | 700 | 607 | 4.2 | 10A |
| AC1000KG-1P | 1000 | 7.0 | 700 | 1102 | 3.5 | 12A |
| DC Motors (24V) | ||||||
| 300KG-DC24V | 300 | 6.5 | 200 | 168 | 4.7 | 10A |
| 500KG-DC24V | 500 | 6.5 | 250 | 343 | 4.7 | 10A |
| 600KG-DC24V | 600 | 6.5 | 280 | 412 | 4.7 | 10A |
| 800KG-DC24V | 800 | 6.5 | 380 | 607 | 4.7 | 10A |

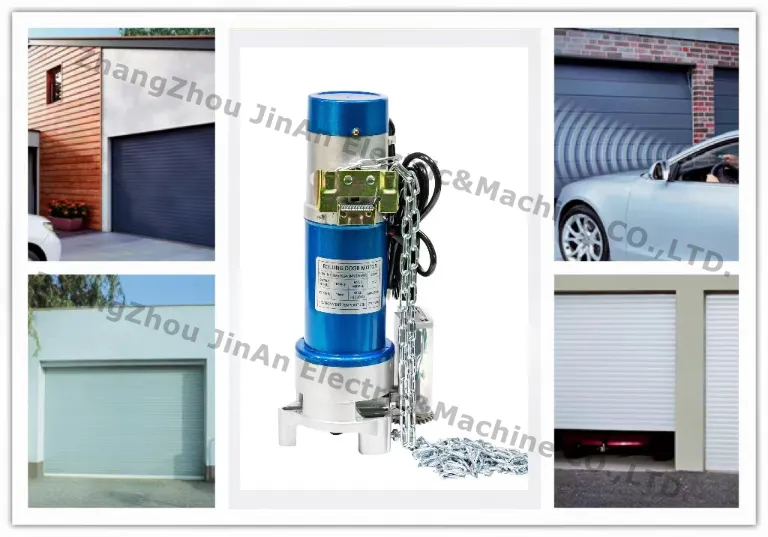

Our motors are ideal for shopping centers, warehouses, garages, theaters, hotels, banks, and factories. They support both electric and manual rolling shutter operation.

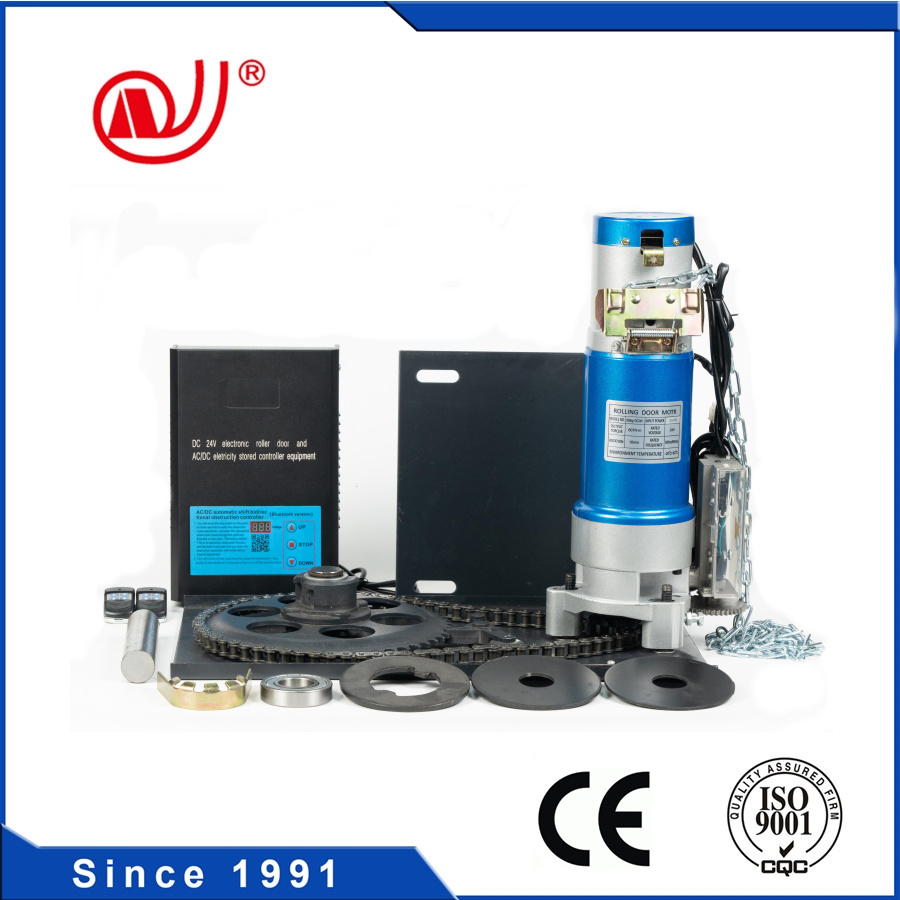

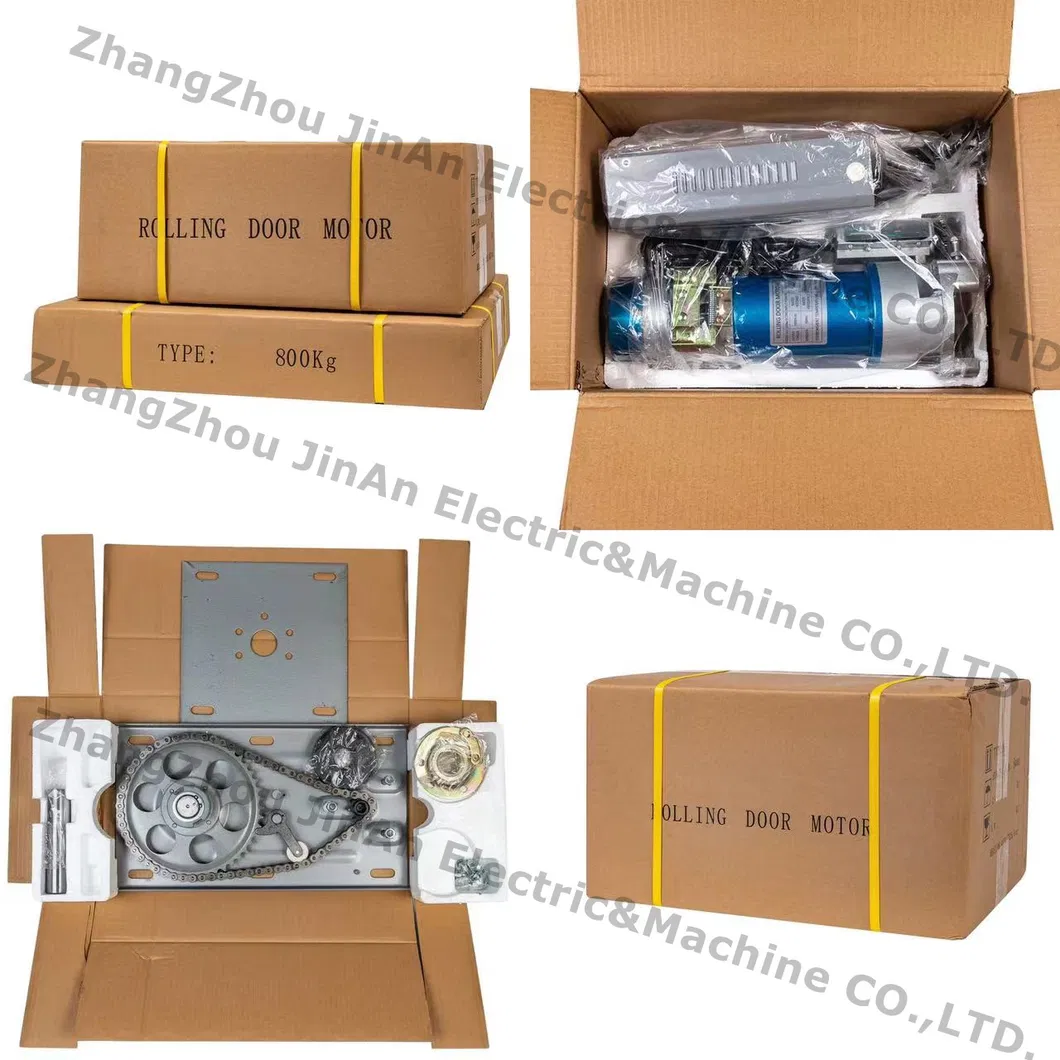

Packing: One set in two cartons, plastic bag inside, carton outside. Custom printing available.
Loading: A 20 GP container holds approx 520-550 PCS AC motors or 480-520 PCS DC motors.
Delivery: 10-45 days after receiving deposit, depending on quantity.

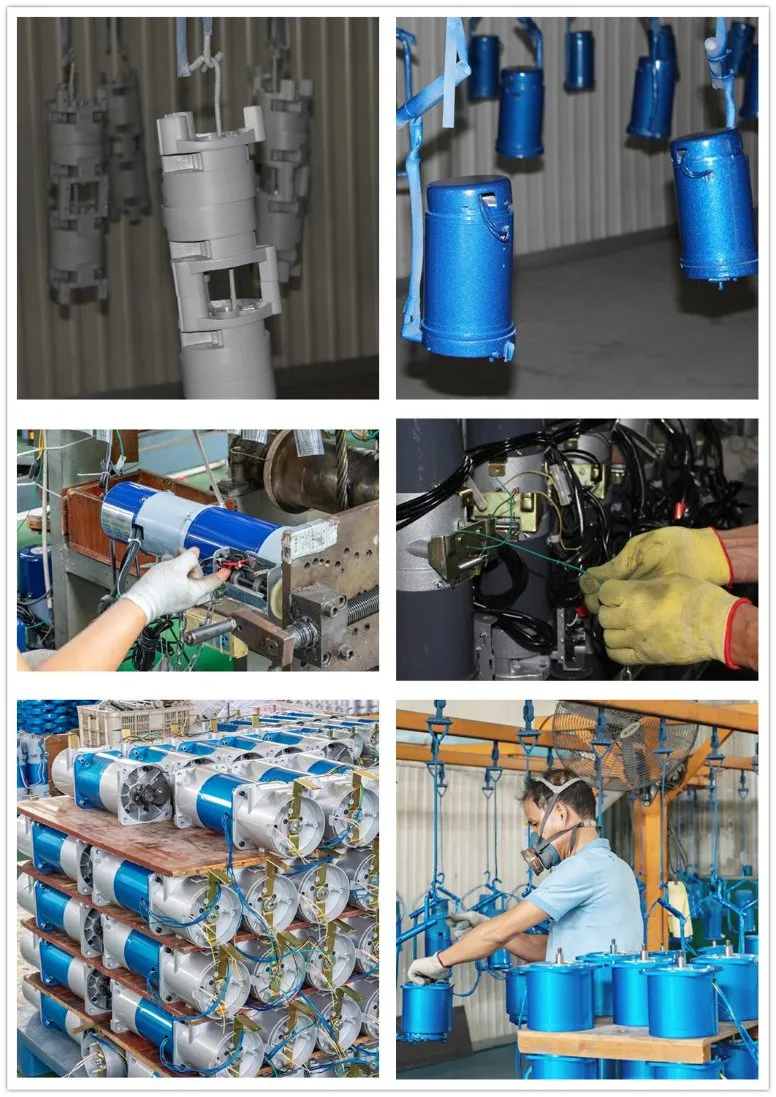

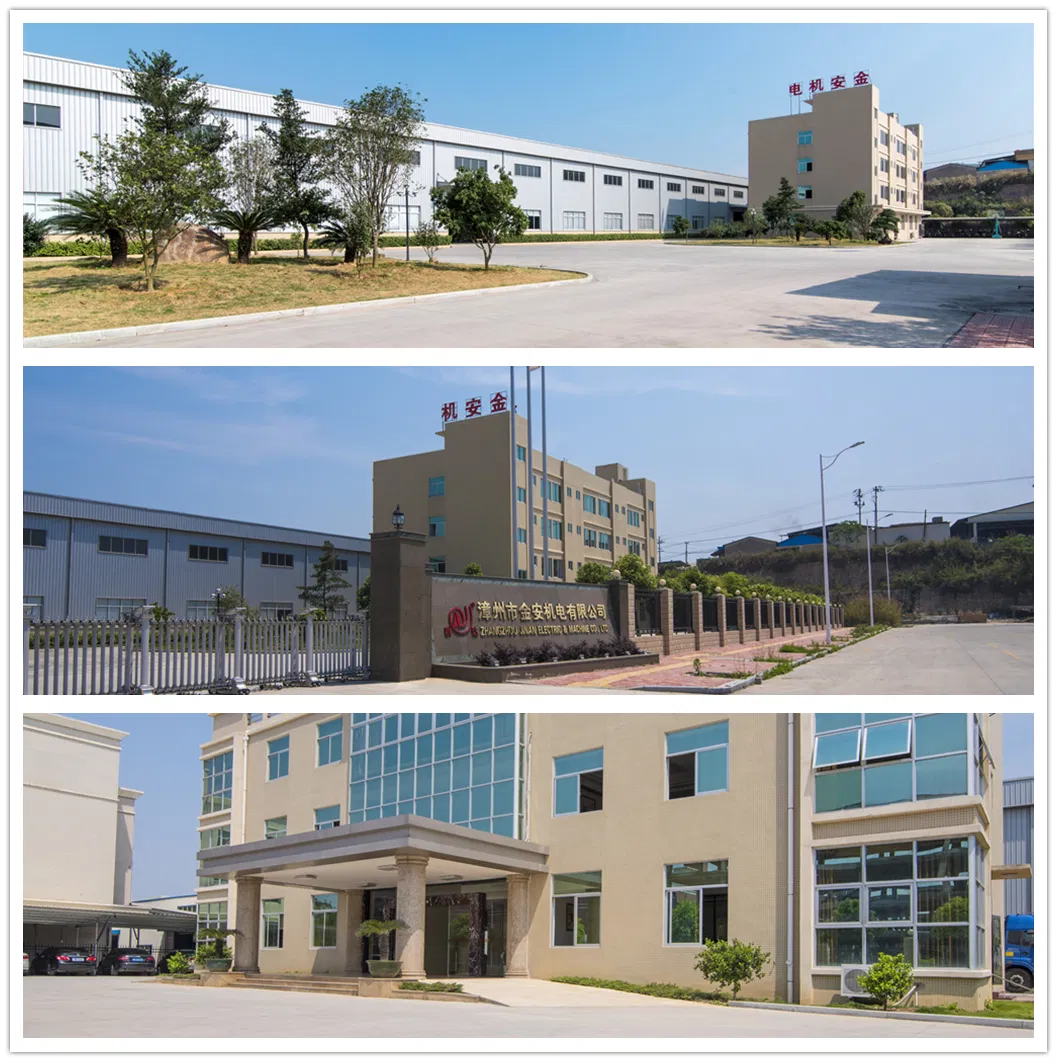

Specializing in developing and producing all kinds of rolling door motors since 1991. We employ advanced production technology and a strong quality-oriented workforce.
