Basic Info
Function
Control, Driving
Casing Protection
Protection Type
Certification
ISO9001, CCC
Application Area
Supermarket, Hotel, Bank, Factory, etc
Usage
Control Rolling Door up and Down
Color
Gray, Black, Blue, Can Be Customized
Motor Winding
100% Copper Wire
Motor Input Voltage
DC24V
Transport Package
One Set in Two Cartons
Specification
46.4*31.7*26cm
Production Capacity
12000sets/Month
Technical Parameter
| Model No. |
Max lifting weight(kg) |
Max lifting height(m) |
Rated Input Power(W) |
Output Torque(N.m) |
Big reel sprocket Rotation(r/min) |
Chain No. |
| AC300KG-1P |
300 |
6.5 |
450 |
168 |
6.2 |
10A |
| AC500KG-1P |
500 |
6.5 |
450 |
343 |
6.2 |
10A |
| AC600KG-1P |
600 |
6.5 |
680 |
412 |
6.2 |
10A |
| AC800KG-1P |
800 |
7 |
700 |
607 |
4.2 |
10A |
| AC1000KG-1P |
1000 |
7 |
700 |
1102 |
3.5 |
12A |
| AC1000KG-3P |
1000 |
8 |
400 |
1102 |
6.5 |
12A |
| AC1300KG-3P |
1300 |
8 |
600 |
1372 |
6.5 |
12A |
| AC1500KG-3P |
1500 |
8 |
600 |
1610 |
5.7 |
12A |
| AC2000KG-3P |
2000 |
8 |
800 |
2200 |
5.7 |
12A |
| 300KG-DC24V |
300 |
6.5 |
200 |
168 |
4.7 |
10A |
| 500KG-DC24V |
500 |
6.5 |
250 |
343 |
4.7 |
10A |
| 600KG-DC24V |
600 |
6.5 |
280 |
412 |
4.7 |
10A |
| 800KG-DC24V |
800 |
6.5 |
380 |
607 |
4.7 |
10A |

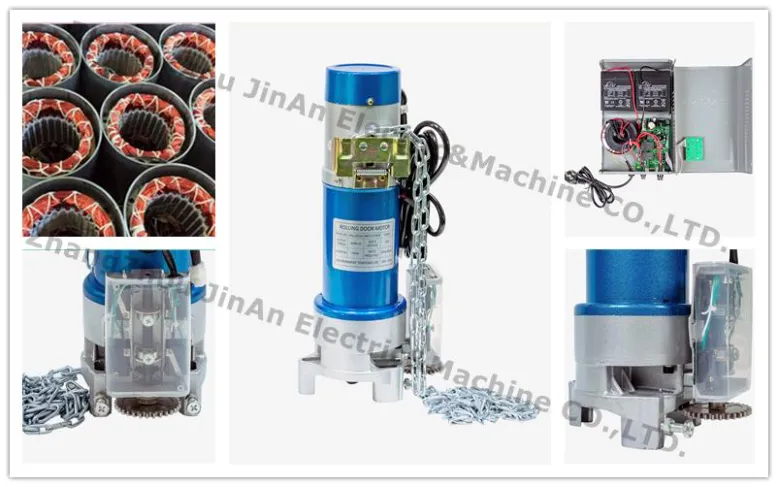

Product Details
1
4 Relays Configured: Ensures a much more stable operation and robust lifting power.
2
100% Copper Wiring: Empowers the motor with larger capability, highly stable current patterns, and long-lasting durability.
3

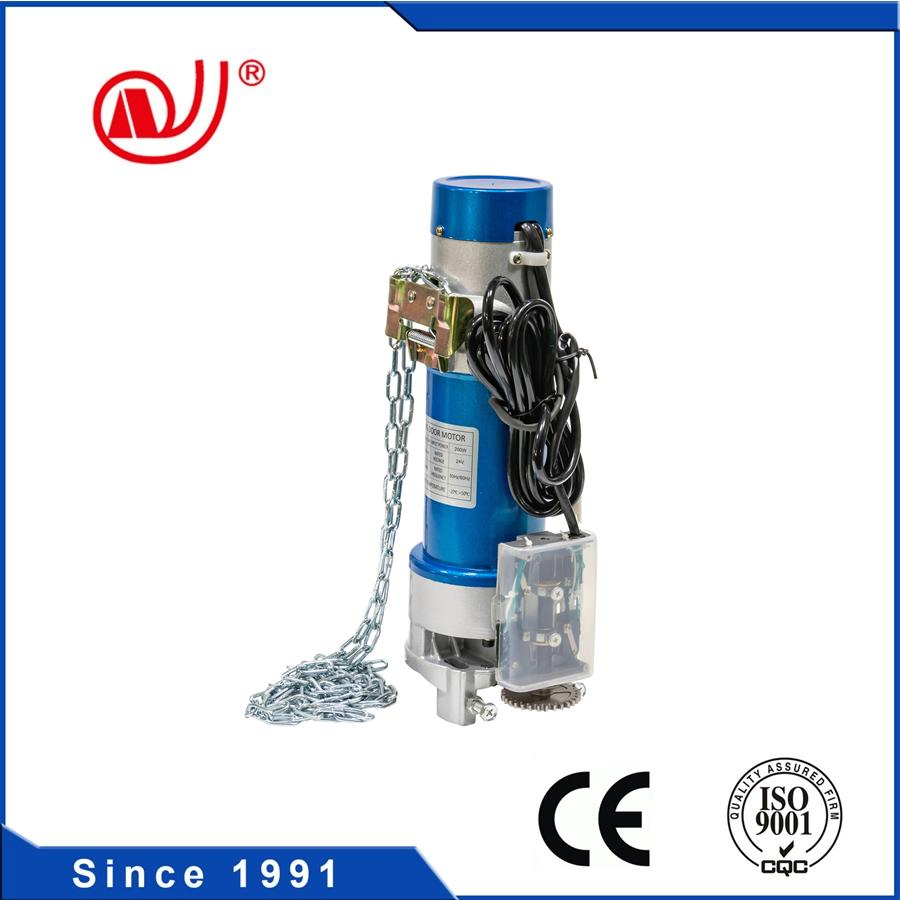

4 Limit Micro Switches: Provides precise control boundaries, extremely easy operation configurations, and wide operational scopes.
4

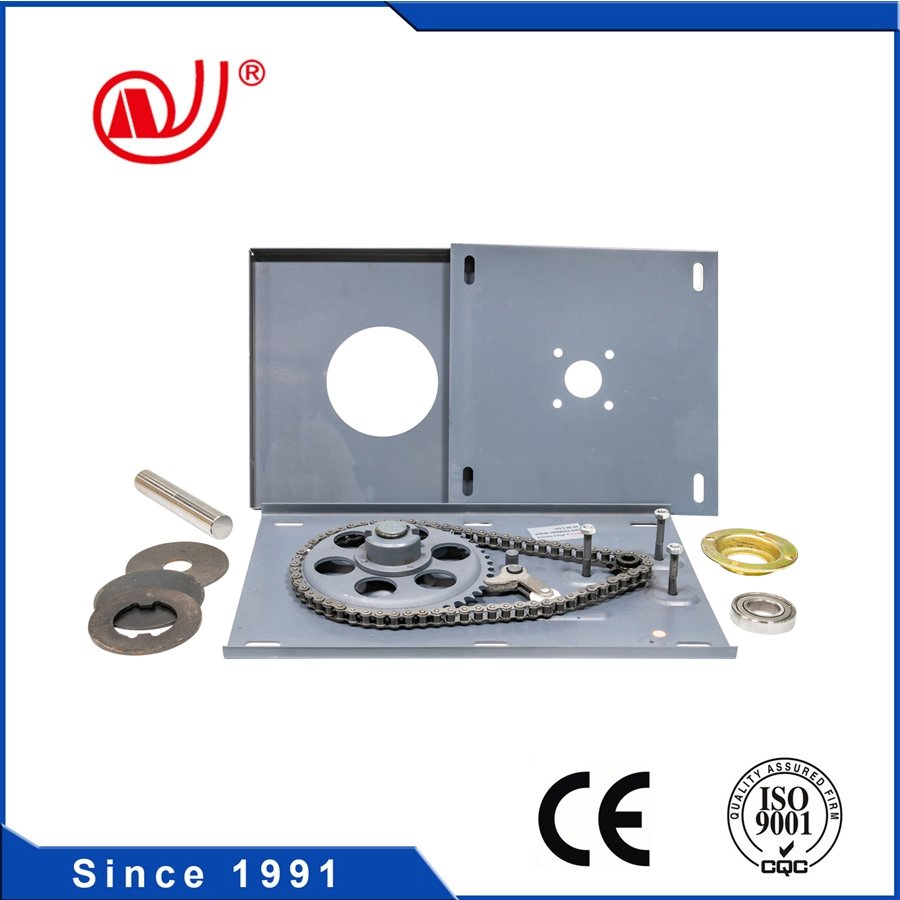

Integrated Anti-dropping Device: Safely secured in the bracket board to prevent accidental falls and secure absolute safety.
5
Customization Support: Fully tailored configuration options designed around your structural applications.
Product Description

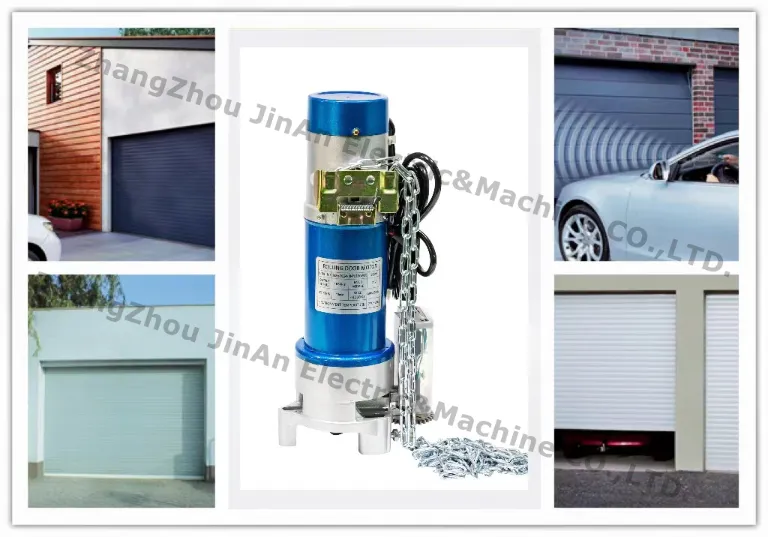

Our dynamic motors are ideally engineered and applied across shopping centers, major warehouses, secure garages, modern theaters, hotels, financial banks, factories, and multiple multi-use commercial structures. Designed to control rolling shutter door operation with seamless electrical convenience and standard manual fallback functions.
Shopping Centers
Warehouses
Garages
Theaters
Factories
❄️ Working Environment & Conditions
- Location: Indoor spaces or similarly sheltered environments.
- Environment Temp: Optimized for -20ºC ~ 50ºC operations.
- Relative Humidity: ≤ 90% RH capacity.
- Power Voltage: Supported within Rated Voltage × (1 ± 10%) V limits.
- Power Frequency: 50Hz ± 2Hz.
- Protection: Safe zones with zero electromagnetic interference, non-explosive, and non-corroding surroundings.
- System Cycle: Short-term operation cycle (continuous running under 6 minutes).
Key Structural Features
Shell Body: Heavy-duty Aluminum alloy, exceptionally solid and light, highly durable, and very easy to configure and install.
Low Noise System: Superb low energy footprint, minimal physical vibration outputs.
Limit Setup: Provides accurate control limits alongside robust operational ranges.
Remote Control: Fully integrated remote receiver configuration matching stable, long-distance transmitters.
Packing & Delivery

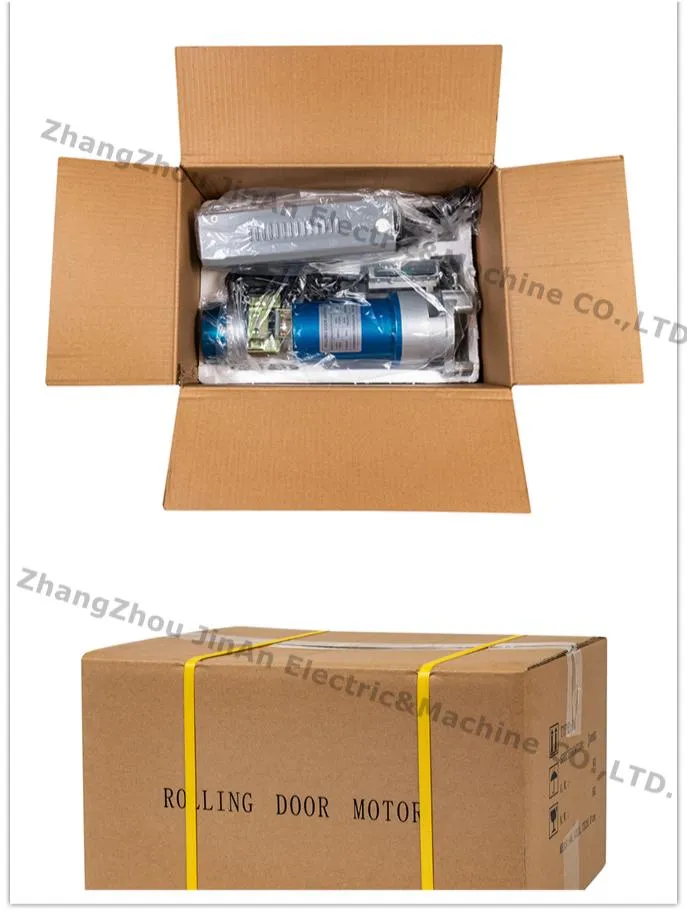

Packing Method
One complete set packaged carefully inside two heavy-duty industrial cartons. Features robust internal plastic bag layers and reinforced export boxes outside. Cartons are customizable (logo printing, custom texts, design matches).
Container Loading Capacity
A standard 20 GP container easily holds approximately 520 - 550 PCS of our AC motors. For DC motor systems, about 480 - 520 PCS capacity is fully available.
Estimated Delivery Lead Time
Deliveries are scheduled smoothly within 10 - 45 days upon receipt of the deposit. Timeframes are calculated depending strictly on exact quantity levels and specified requirements.

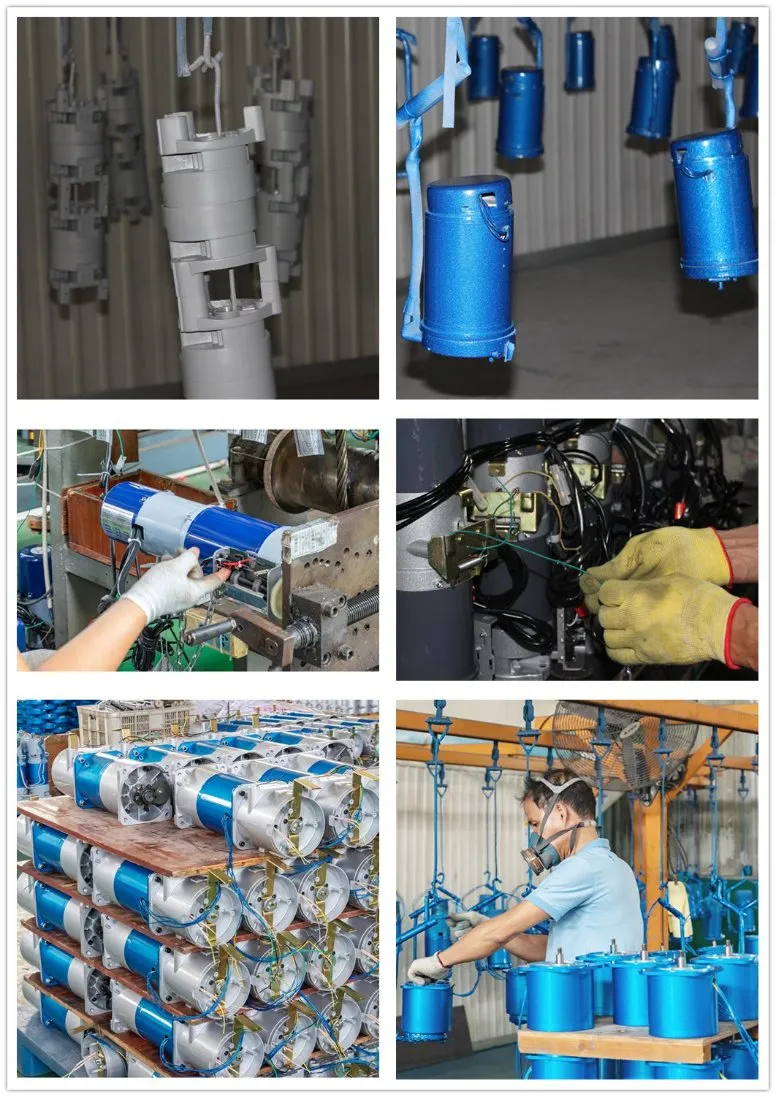

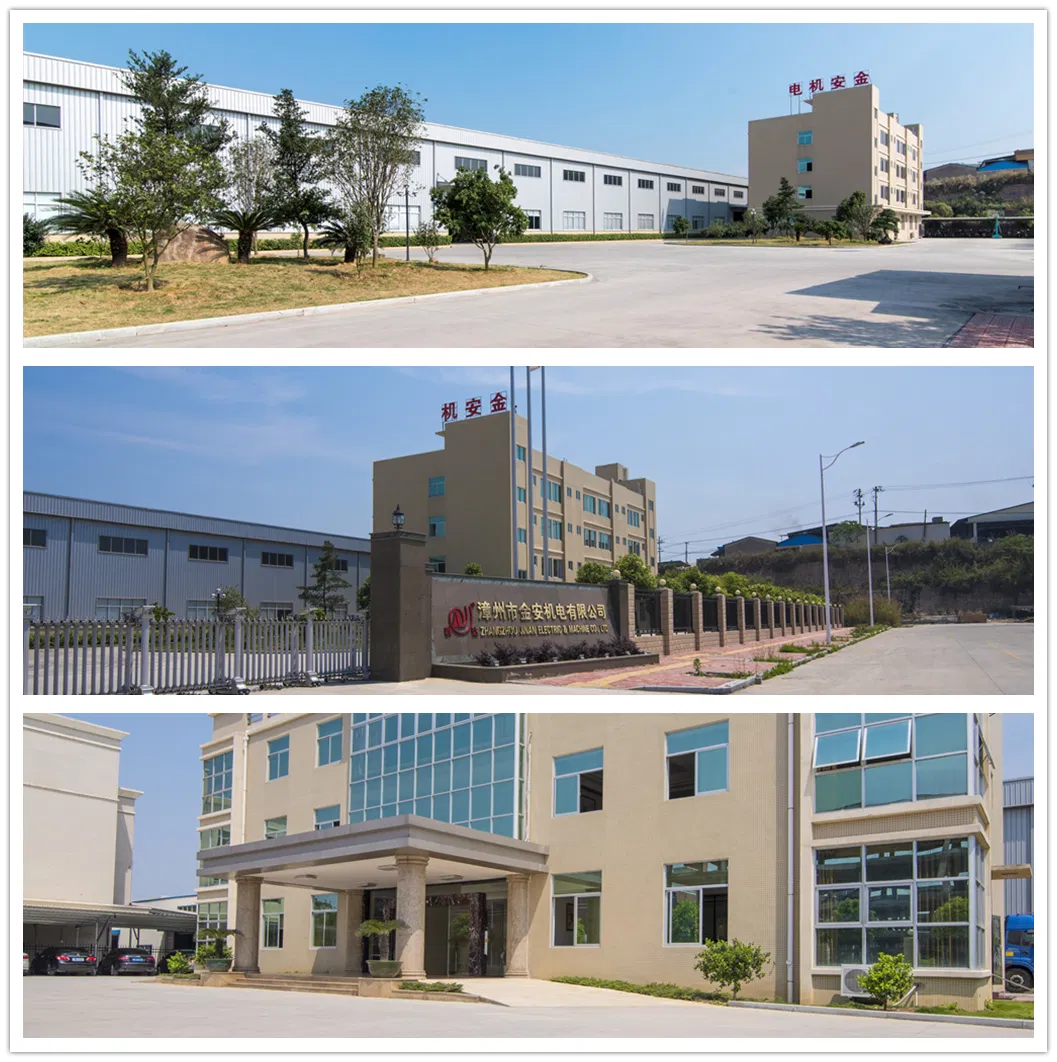

Manufacturing Facilities
Our specialized manufacturing base has been focused on developing and producing high-grade rolling door motor lines since 1991. Incorporating highly advanced production equipment and precision technology, backed by an expert quality-centric technical force. We have achieved comprehensive CE and ISO9001 quality system certifications.
Every product goes through 100% full inspection procedures to secure excellent operational quality in your hands. Backed by dedicated engineering teams to deliver prompt technical support. Characterized by elegant exterior engineering, robust active motor power, exceptionally quiet execution profiles, simple configuration steps, and solid operational lifecycles.
More Choices For You
We provide a diverse selection of industrial solutions to suit varying requirements: AC Motor capacities (300kg, 500kg, 600kg, 800kg, 1000kg, 1300kg, 1500kg, 2000kg) and robust DC Motor lines (300kg, 500kg, 600kg) to handle your project scale.
Frequently Asked Questions
Q1.
Are you a manufacturer?
Yes, we are a professional manufacturer of high-quality rolling door motors with our own dedicated production factory and facilities.
Q2.
How about the delivery lead time?
Generally, standard stock items require 7 - 10 days. If the products are out of stock, it will range between 15 - 35 days, determined strictly by custom order volumes and requirements.
Q3.
Can you do OEM service?
Yes! OEM projects are fully accepted. Please reach out to us with your target specifications, and we will formulate competitive quotation plans and sample modules as soon as possible.
Q4.
What is the core material configured inside the Motor Winding?
The principal winding material is 100% pure copper wire. Additionally, robust aluminum wiring configurations are available for AC motor series.
Q5.
What is your Minimum Order Quantity (MOQ)?
Any order quantity is highly welcome. Standard sample orders for initial quality and performance testing are available to be arranged.
Q6.
What are your standard terms of payment?
We accept standard bank transfers. For pre-production sample orders, we require 100% T/T payment in advance. For bulk orders, payment terms are configured at 30% T/T in advance with the remaining 70% balanced and cleared prior to shipping.
Q7.
How do you guarantee overall product quality?
We incorporate highly trained technical engineers, partner with top-tier material suppliers, and maintain highly rigid testing criteria. Our factory operators are extensively experienced, and all motor units undergo individual, single-unit testing checks before final packaging to secure superb performance.
If you require more detailed information, please feel free to leave a direct message with your specific project needs.
