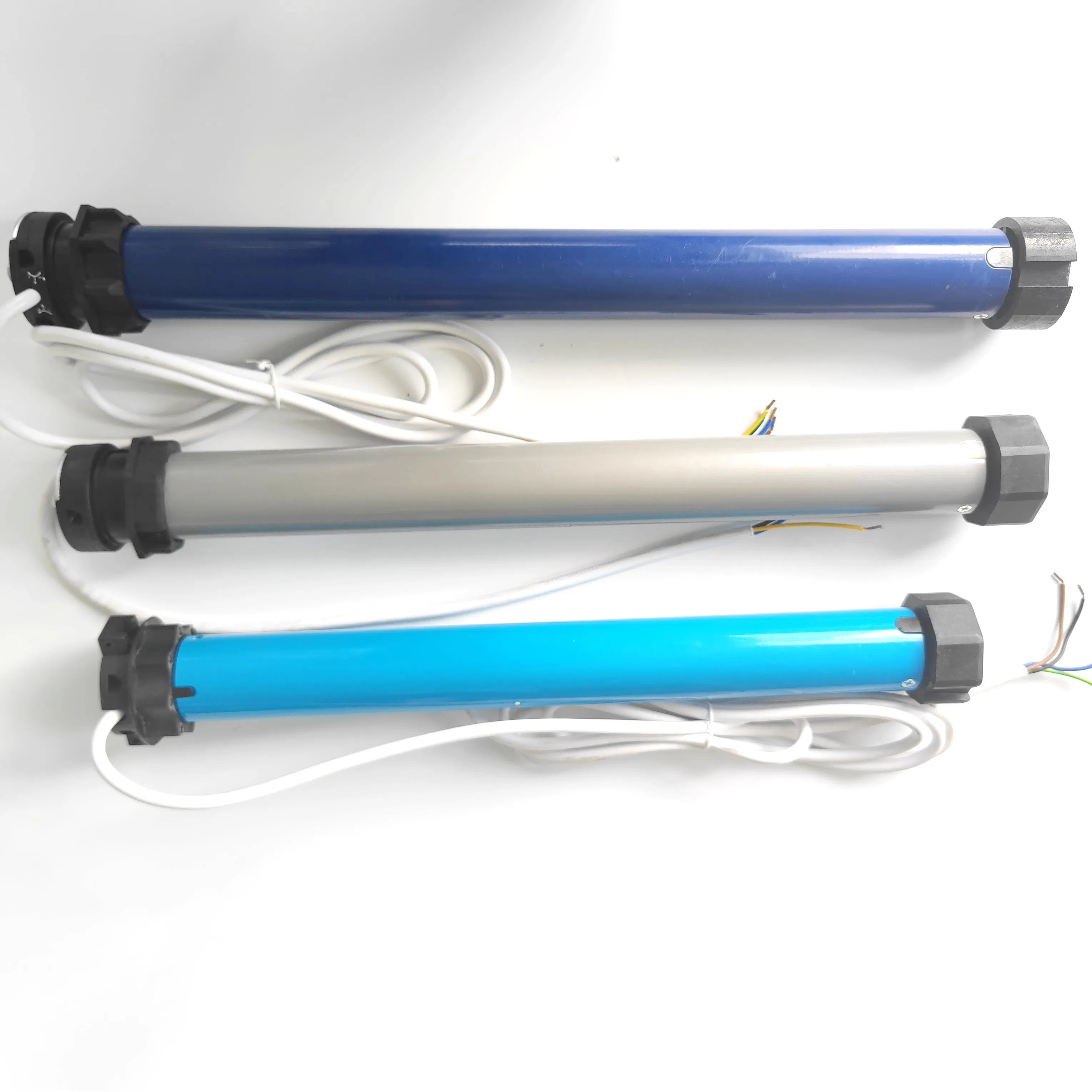

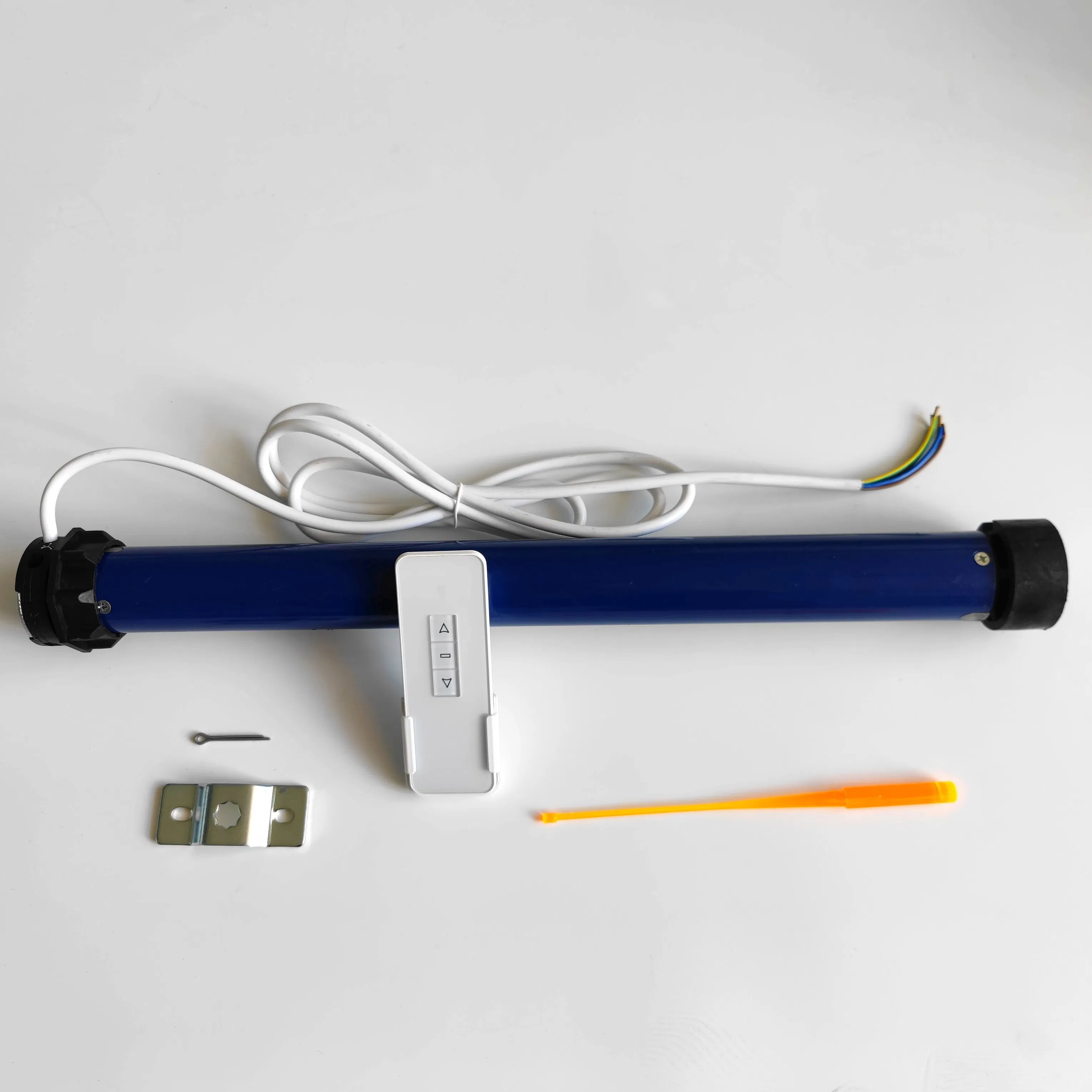

Torsion Motor
1 / 5
| Parameter | YM45-40R (220-230V) | YM45-40R (100-110V) |
|---|---|---|
| Rated Torque(N.m) | 40 | 40 |
| Rated Speed(rpm) | 12 | 14 |
| Rated Power(W) | 260 | 260 |
| Rated Current(A) | 1 | 1.4 |
| Running Time(min) | >4 | >4 |
| Limit Rating(turn) | 30 | 30 |
| Complete Length(mm) | 580 | 580 |
| Complete Weight(KG) | 2.6 | 2.6 |
| Rated Frequency(Hz) | 50 | 60 |
| Tube Diameter(mm) | 45 | 45 |
Application Range:
The tubular motor is highly versatile and can be efficiently used in:
