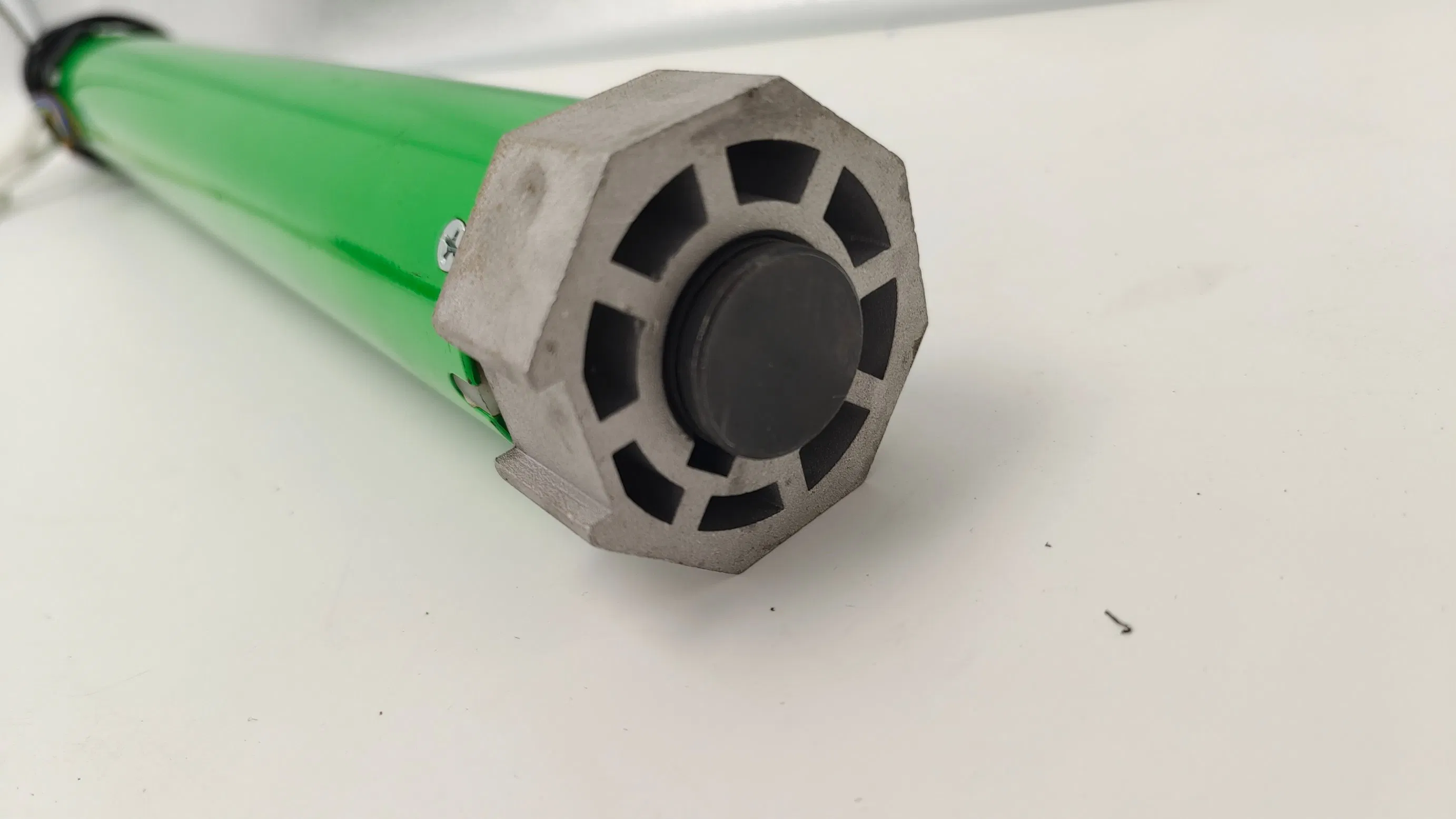

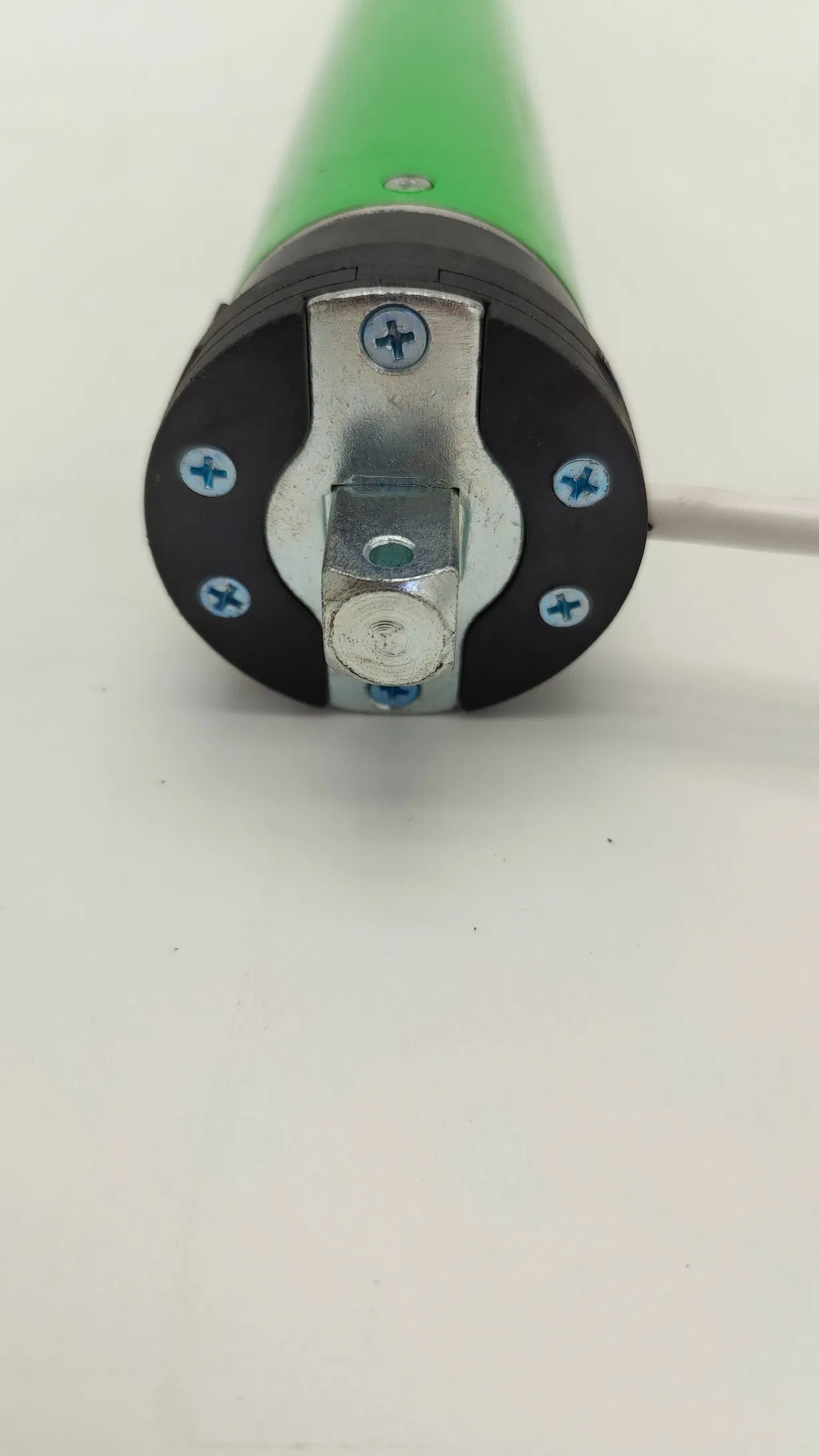

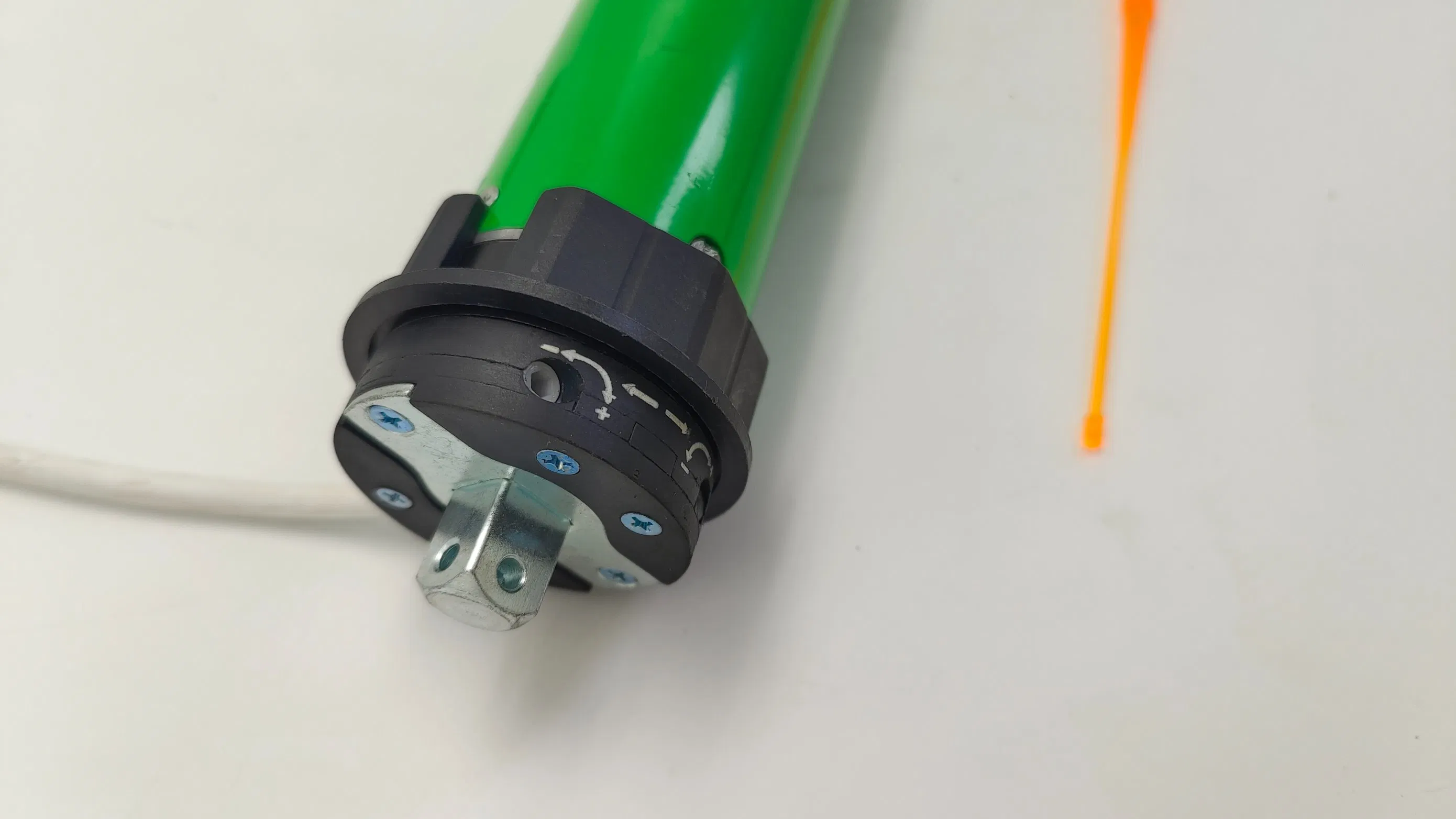

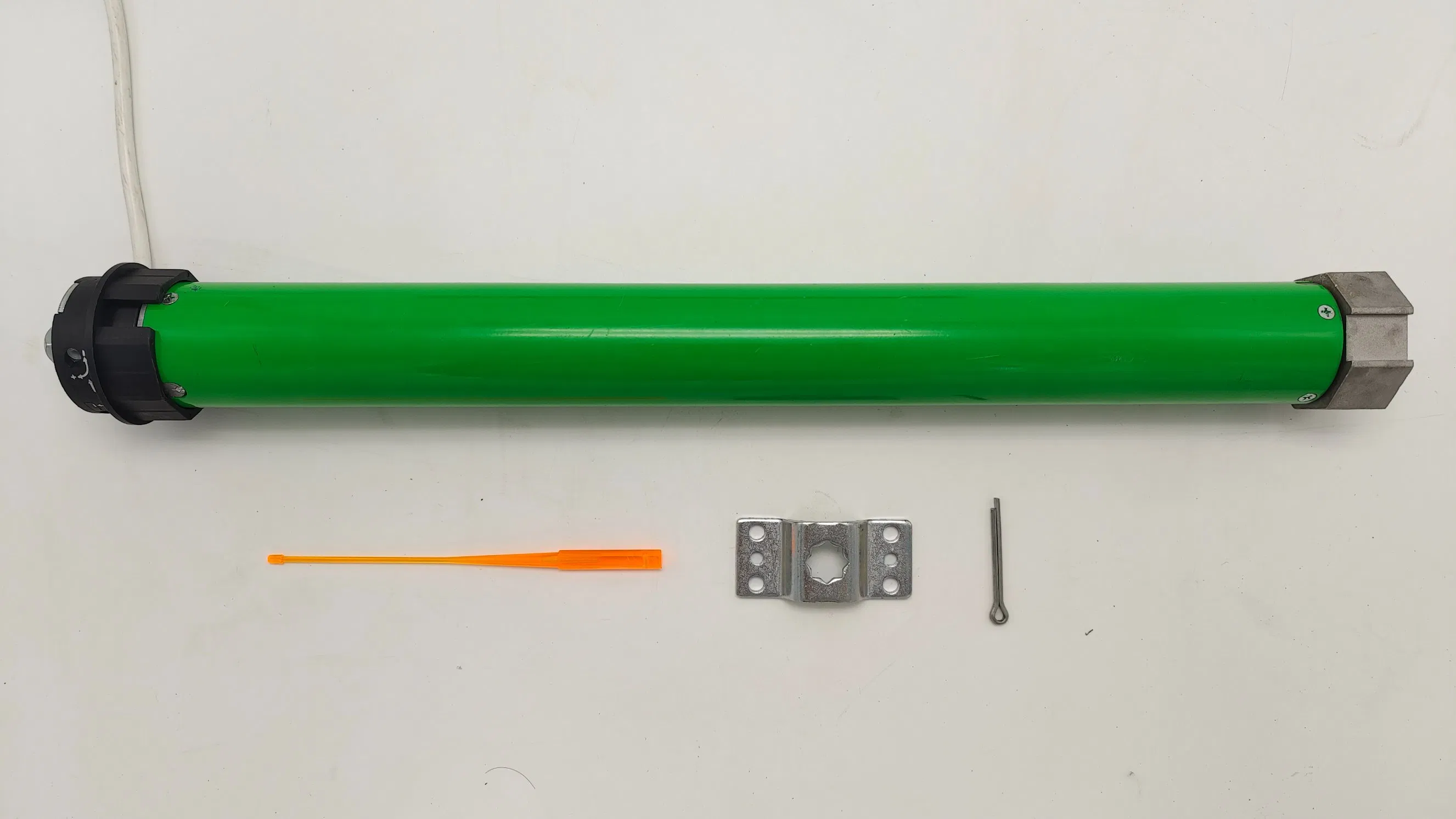

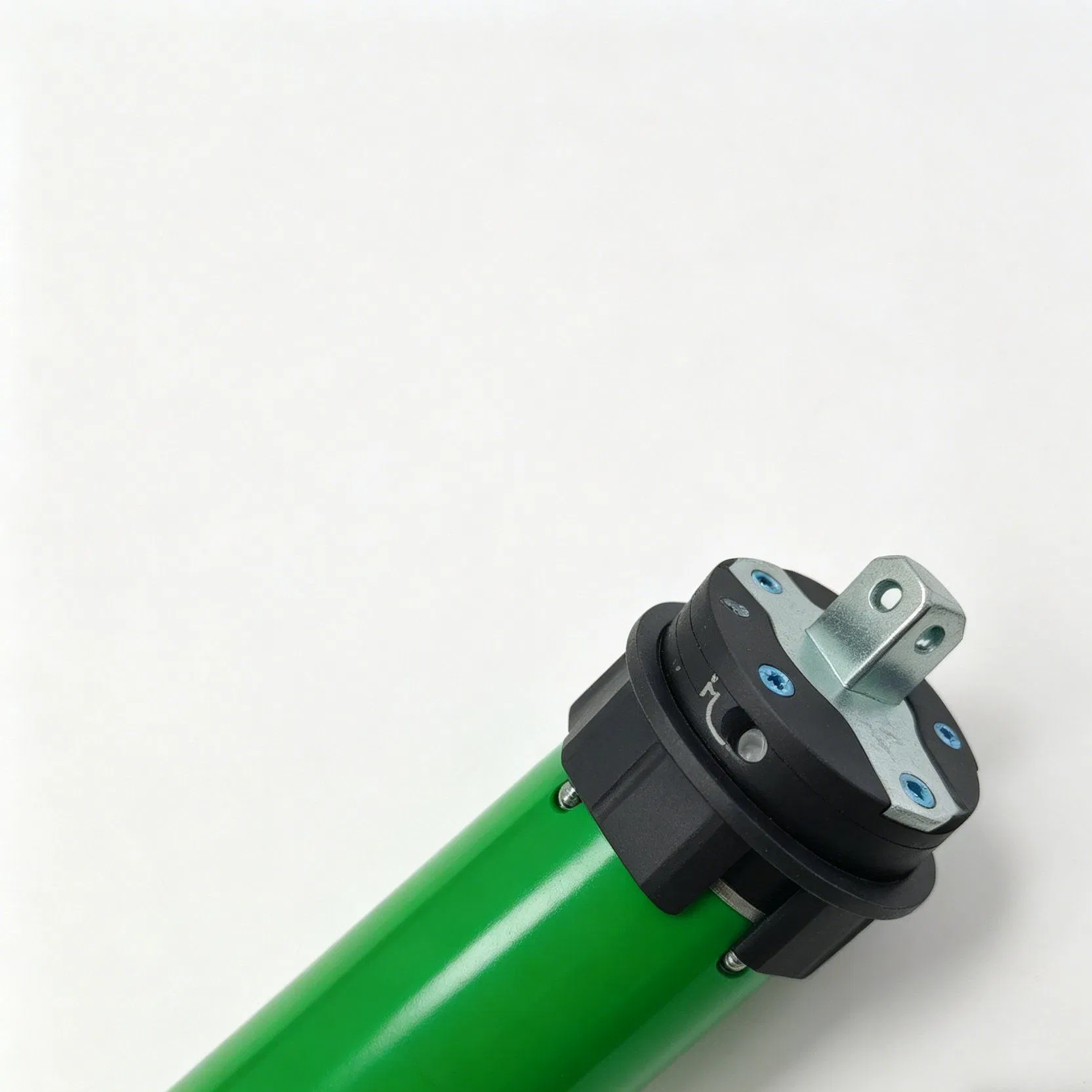

59mm Standard Rolling Shutter Door Motor Smart Electric Garage Door Tubular Motor
59mm Standard Rolling Shutter Door Motor Smart Electric Garage Door Tubular Motor
59mm Standard Rolling Shutter Door Motor Smart Electric Garage Door Tubular Motor
59mm Standard Rolling Shutter Door Motor Smart Electric Garage Door Tubular Motor
59mm Standard Rolling Shutter Door Motor Smart Electric Garage Door Tubular Motor
1 / 5
59mm Standard Rolling Shutter Door Motor Smart Electric Garage Door Tubular Motor
59mm Standard Rolling Shutter Door Motor Smart Electric Garage Door Tubular Motor
59mm Standard Rolling Shutter Door Motor Smart Electric Garage Door Tubular Motor
59mm Standard Rolling Shutter Door Motor Smart Electric Garage Door Tubular Motor
59mm Standard Rolling Shutter Door Motor Smart Electric Garage Door Tubular Motor

59mm Standard Rolling Shutter Door Motor Smart Electric Garage Door Tubular Motor

Customization: Available
Speed: Constant Speed
Number of Stator: Single-Phase
Send Inquiry

Product Description

Basic Info.
Model NO. YM59S-80
Function Driving, Control
Casing Protection Closed Type
Certification ISO9001, CCC, CE, RoHS
Toruqe 60nm
Transport Package Carton and Pallet
Specification 0.5m*0.04m*0.15m
Origin China
HS Code 8501400090
Production Capacity 1000000 Sets/Year
Packaging & Delivery
Package Size 68.00cm * 7.00cm * 7.00cm
Package Gross Weight 6.000kg
Product Description
Technical Parameters YM59-60M (220-230V) YM59-60M (100-120V)
Rated Torque (N.m) 60 60
Rated Speed (rpm) 12 14
Rated Power (W) 330 330
Rated Current (A) 1.2 1.9
Running Time (min) >4 >4
Limit Rating (turn) 25 25
Complete Length (mm) 600 600
Complete Weight (KG) 5 5
Rated Voltage (V) 220-230 100-120
Rated Frequency (Hz) 50 60
Tube Diameter (mm) 59 59
59mm Standard Rolling Shutter Door Motor Smart Electric Garage Door Tubular Motor
Smart Electric Garage Door Tubular Motor Feature 1 Smart Electric Garage Door Tubular Motor Feature 2 Smart Electric Garage Door Tubular Motor Feature 3 Smart Electric Garage Door Tubular Motor Feature 4
Detailed Technical Specifications and Diagram

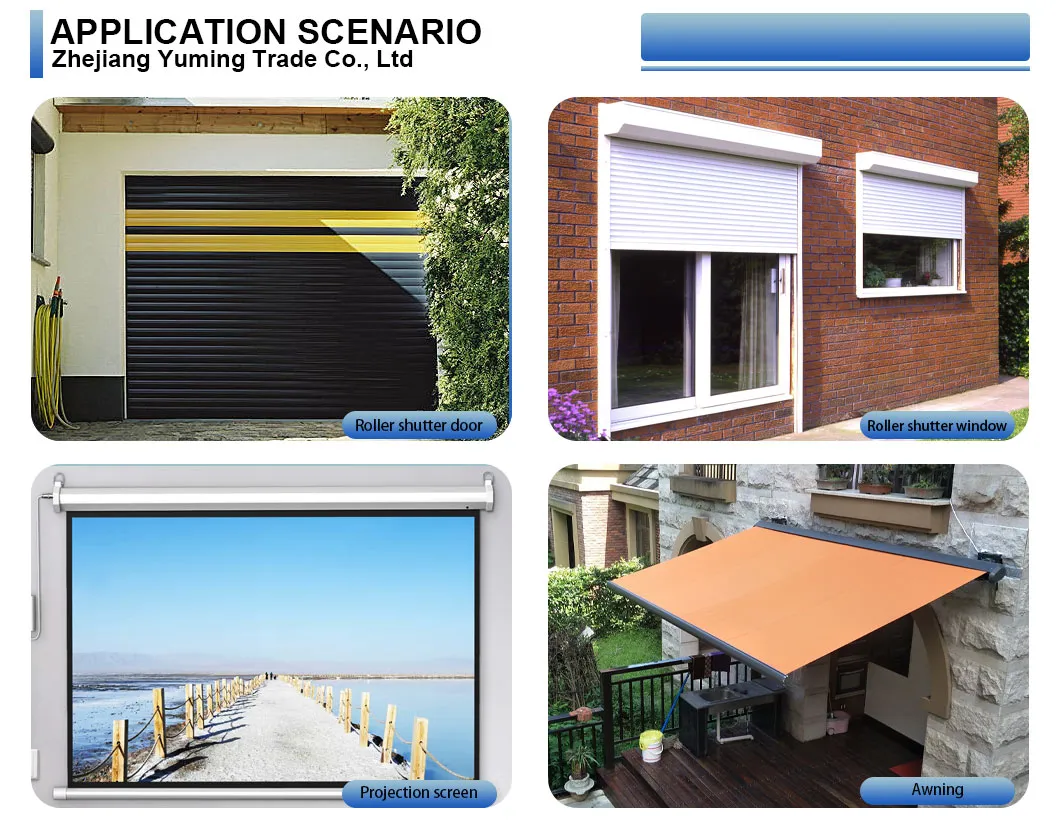

Tubular Motor Application Overview
Usage:
The tubular motor can be used in roller shutters, garage doors & windows, projection screens, and awnings.
Tubular Motor Setup and Configuration
Tubular Motor Core Structure details
FAQ
Q1 What is your payment term?
30% T/T in advance, 70% when receiving B/L copy. Or irrevocable L/C.
Q2 What is the normal lead time for product orders?
Generally it is 5-7days if the goods are in stock. or it is 15-20 days if the goodsare not in stock, it is according to quantity.
Q3 Do you offer OEM service?
Yes. We can custom-designed for any specific application.
Q4 How can you ensure the motor can drive the machine?
Our factory elaborately chooses 100% pure copper wire and capacitor with appropriate volume; Our professional manager provides you accurate purchase guide.
Q5 How can you guarantee the quality?
Our producers carefully check the drawing and process the shaft and end cover; Our inspectors check the dynamic balance repeatedly.
Q6 What is your standard packaging method?
All goods will be packed in cartons and loaded on pallets. Special packaging methods can also be adopted if necessary.
