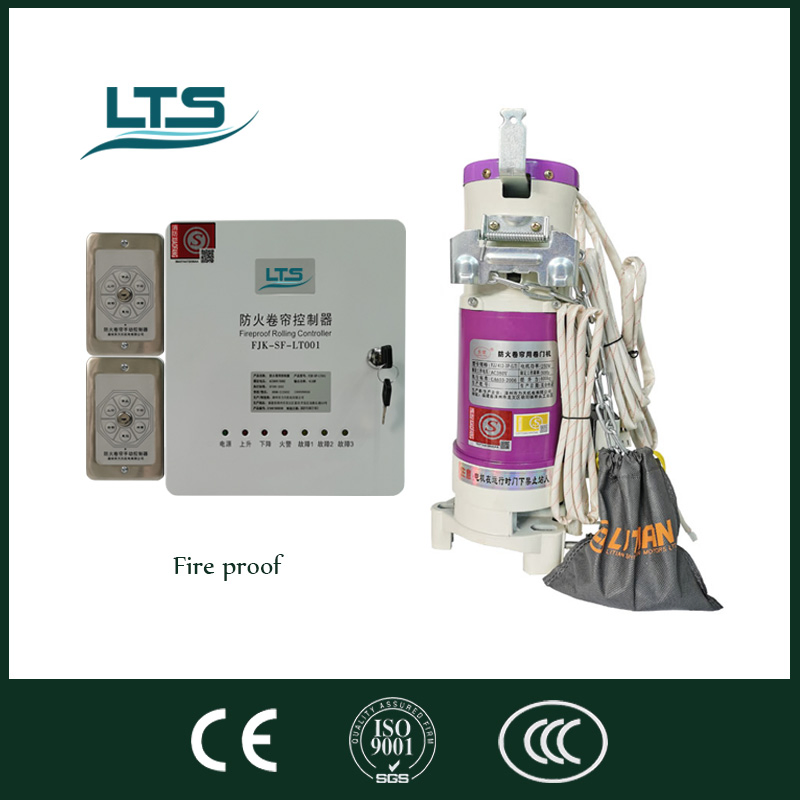

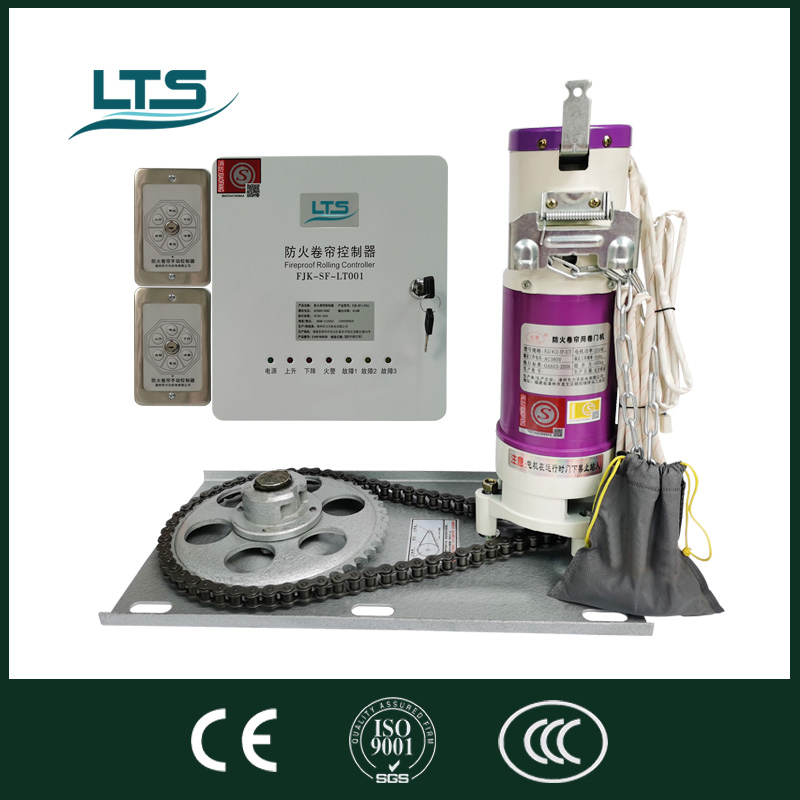

600kg AC Automatic Garage Door Opener Rolling Shutter Side Motor Fire Rated Roller Shutter Rolling Door Opener High Quality Roller Shutter Side Motor Electric
600kg AC Automatic Garage Door Opener Rolling Shutter Side Motor Fire Rated Roller Shutter Rolling Door Opener High Quality Roller Shutter Side Motor Electric
600kg AC Automatic Garage Door Opener Rolling Shutter Side Motor Fire Rated Roller Shutter Rolling Door Opener High Quality Roller Shutter Side Motor Electric
600kg AC Automatic Garage Door Opener Rolling Shutter Side Motor Fire Rated Roller Shutter Rolling Door Opener High Quality Roller Shutter Side Motor Electric
600kg AC Automatic Garage Door Opener Rolling Shutter Side Motor Fire Rated Roller Shutter Rolling Door Opener High Quality Roller Shutter Side Motor Electric
1 / 5
600kg AC Automatic Garage Door Opener Rolling Shutter Side Motor Fire Rated Roller Shutter Rolling Door Opener High Quality Roller Shutter Side Motor Electric
600kg AC Automatic Garage Door Opener Rolling Shutter Side Motor Fire Rated Roller Shutter Rolling Door Opener High Quality Roller Shutter Side Motor Electric
600kg AC Automatic Garage Door Opener Rolling Shutter Side Motor Fire Rated Roller Shutter Rolling Door Opener High Quality Roller Shutter Side Motor Electric
600kg AC Automatic Garage Door Opener Rolling Shutter Side Motor Fire Rated Roller Shutter Rolling Door Opener High Quality Roller Shutter Side Motor Electric
600kg AC Automatic Garage Door Opener Rolling Shutter Side Motor Fire Rated Roller Shutter Rolling Door Opener High Quality Roller Shutter Side Motor Electric

600kg AC Automatic Garage Door Opener Rolling Shutter Side Motor Fire Rated Roller Shutter Rolling Door Opener High Quality Roller Shutter Side Motor Electric

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
LTS-600kg-3P
Structure
Wheeled
Driving Type
Electromechanical
Electric Current Type
AC
Brand
Lts
Voltage
380V
Frequency
50Hz
Input Power
710W
Reted Output Torque
412 N.M
Lifting Capacity
600 Kgs
Lifting Height
6 Meters
Continuous Workingtime
7 Min
Transport Package
Carton
Trademark
LTS
Origin
China
Production Capacity
100000 Pieces/Year
Product Description

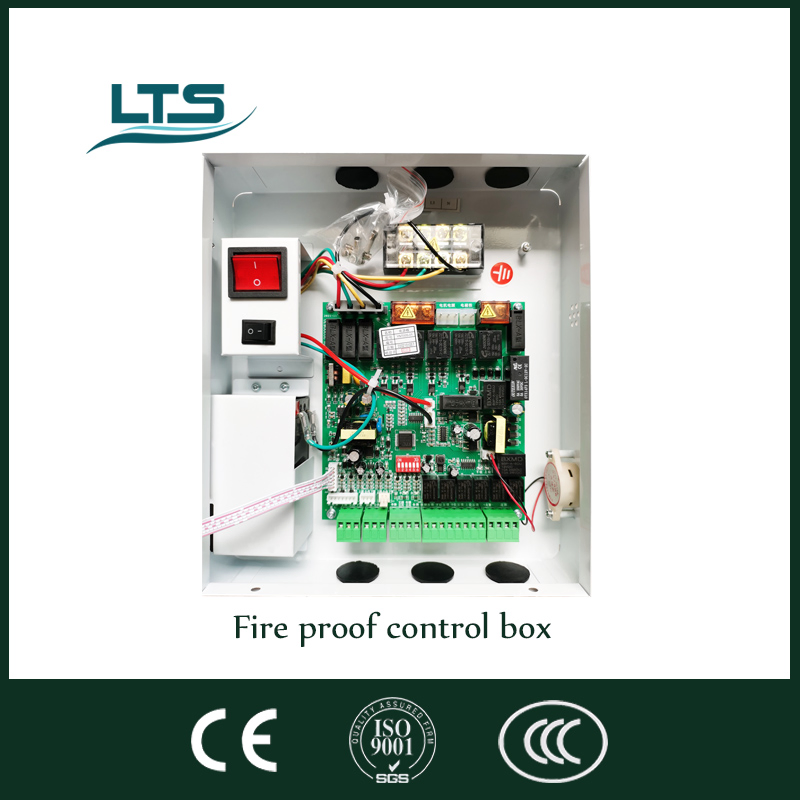

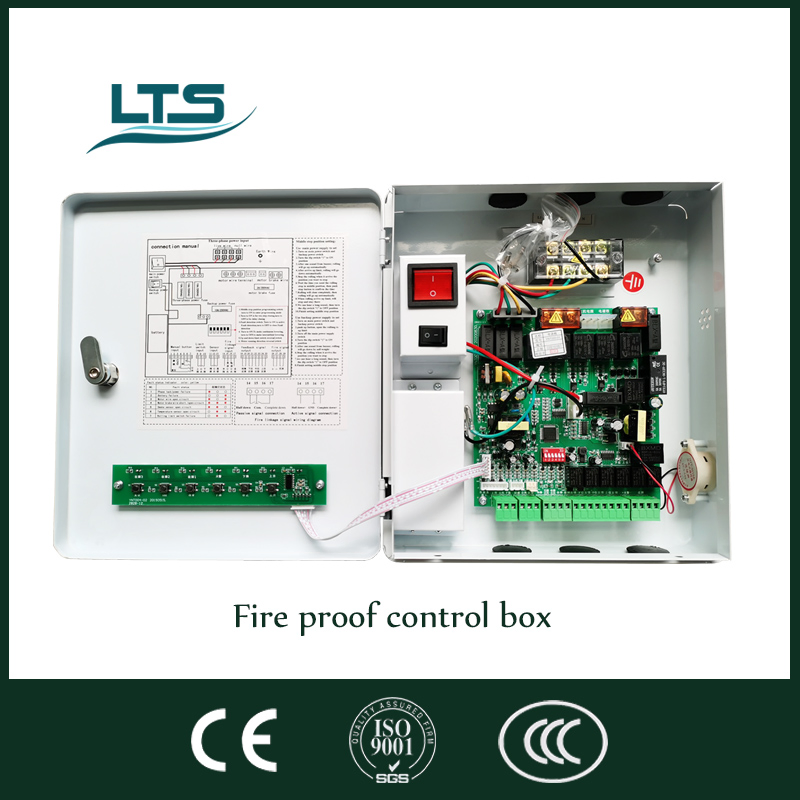

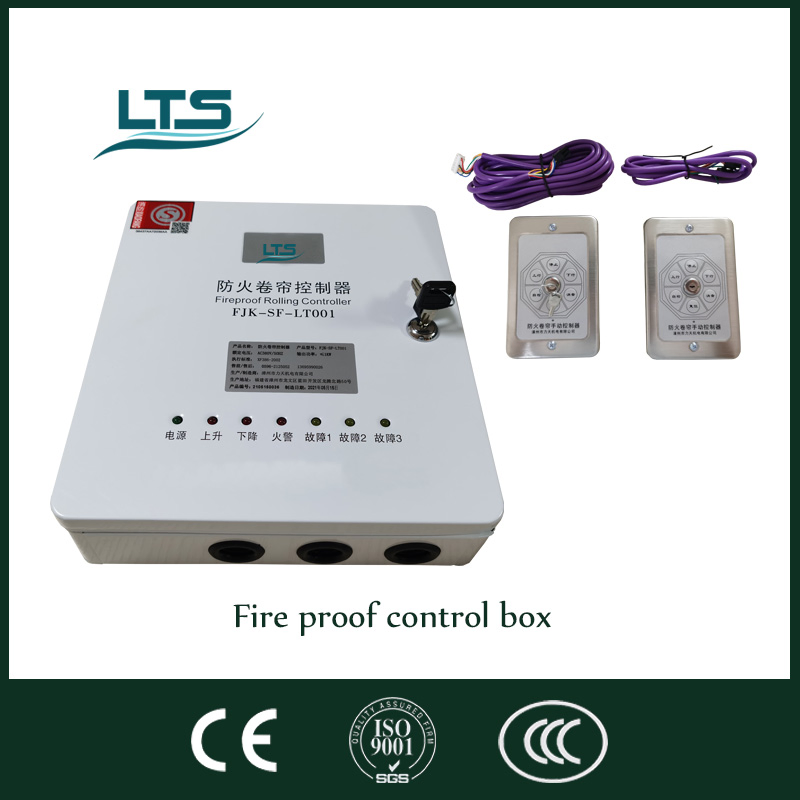

Fire rated roller shutter is made of a highly quality roller shutter motor with a intelligent fire rated control box, which can be connected to smoke sensor, temperature sensor and the fire control center.

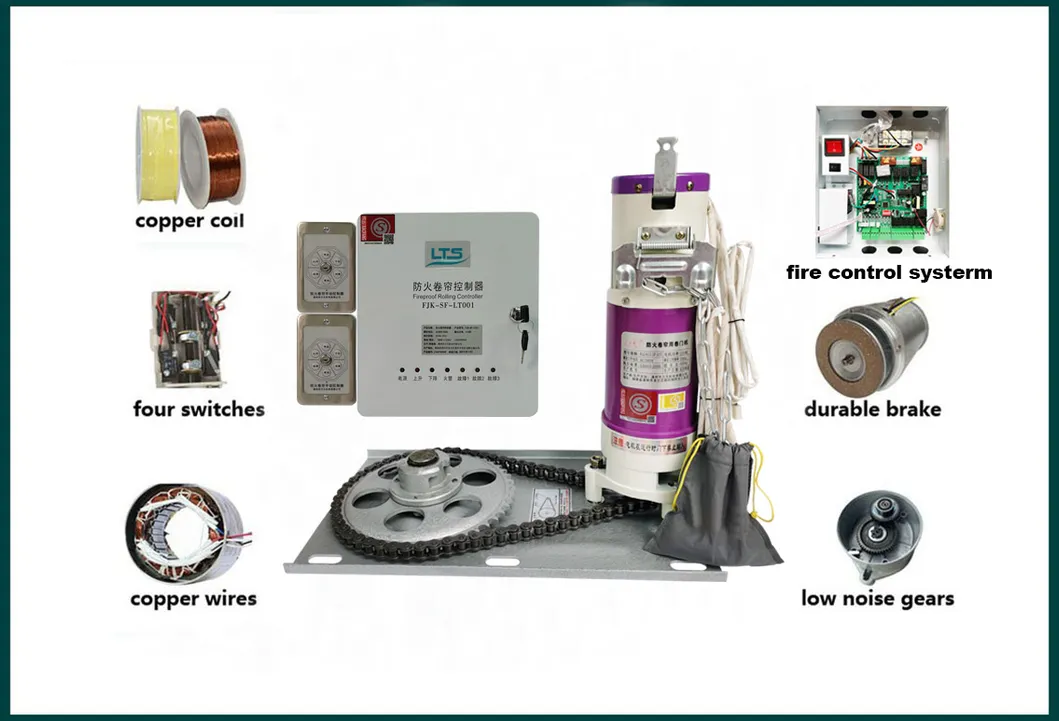

Fire Rated Roller Shutter Motor
Working Environment & Conditions
  • Working Area: Indoor or similar places
  • Environment Temperature: -20ºC ~ 50ºC
  • Relative Humidity: ≤90%
  • Voltage: Fixed voltage × (1 ±10%)V
  • Frequency: 50Hz ± 2Hz
  • Environment: No strong electromagnetic interference, explosive or corrosive media
  • Working System: Short working hour (Max 6 minutes continuous)
Key Features & Benefits
  • Stylish design, up-to-date Technology
  • Overheat protection and overload protection
  • Low noise operation
  • Easy manual operation during power failure
  • Precise and accurate Limit switch
  • Easy to install and adjust
  • Low maintenance requirements
  • Security with anti-fall protection device
  • Long service life and high durability

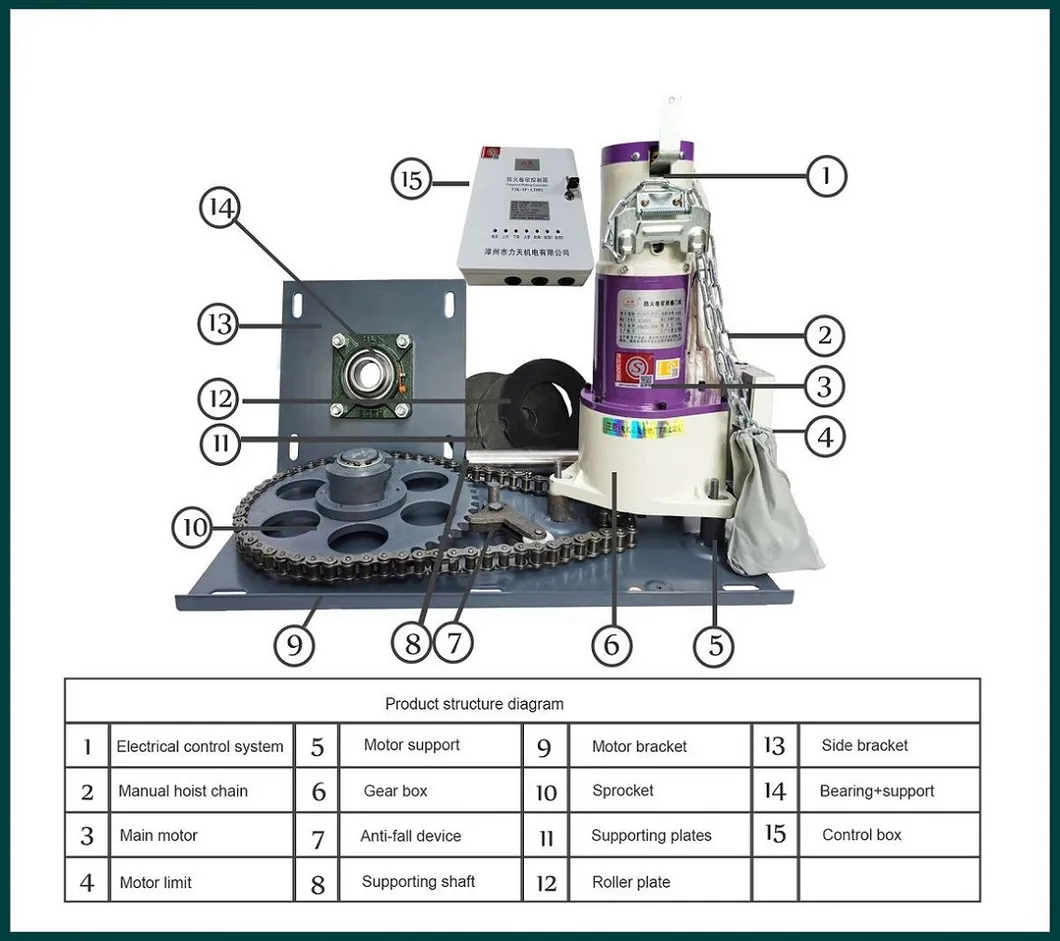

Roller Shutter Side Motor Details
Technical Specifications
Model Voltage / Frequency Power Torque Lifting Cap. Current Speed Height Work Time Temp Range
LTS-600-3P 380V / 50Hz 710W 412N.m 600 KGS 3.3 A 4.8 r/min 6m 7 Min -20°C~+50°C
LTS-800-3P 380V / 50Hz 780W 647N.m 800 KGS 4.7 A 4 r/min 7m 7 Min -20°C~+50°C
LTS-1000-3P 380V / 50Hz 780W 809N.m 1000 KGS 2.8 A 3.5 r/min 7m 15 Min -20°C~+50°C
LTS-1300-3P 380V / 50Hz 1050W 1401N.m 1300 KGS 3.2 A 4.4 r/min 7m 15 Min -20°C~+50°C
LTS-1500-3P 380V / 50Hz 1250W 1617N.m 1500 KGS 3.8 A 5.2 r/min 8m 15 Min -20°C~+50°C
LTS-2000-3P 380V / 50Hz 1350W 2450N.m 2000 KGS 4.1 A 3.6 r/min 12m 15 Min -20°C~+50°C
LTS-3000-3P 380V / 50Hz 1500W 3450N.m 3000 KGS 4 A 3.3 r/min 12m 30 Min -20°C~+50°C
LTS-4000-3P 380V / 50Hz 3000W 5500N.m 4000 KGS 7.8A 3.2 r/min 12m 30 Min -20°C~+50°C
Optional Items & Accessories

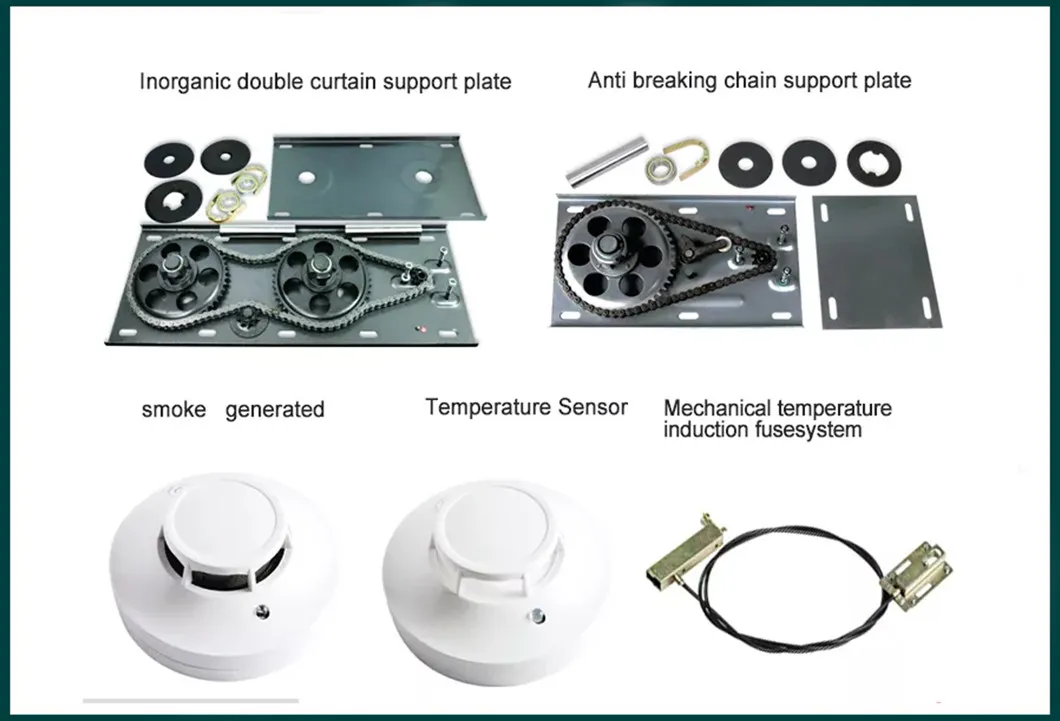

Optional accessories
Applications

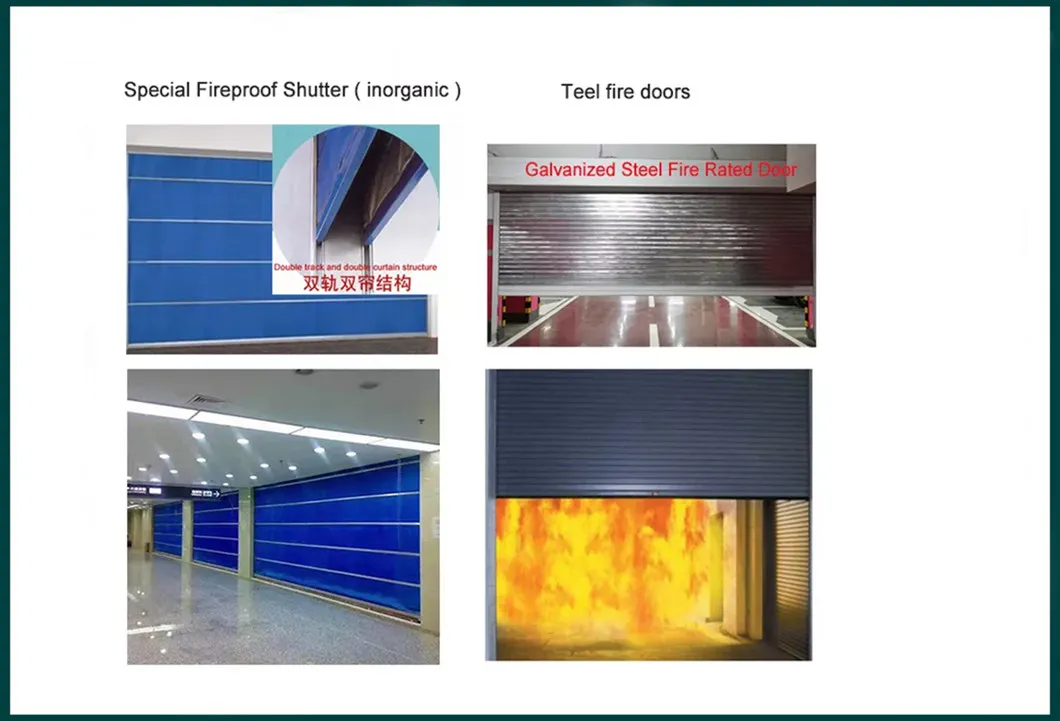

Application view 1

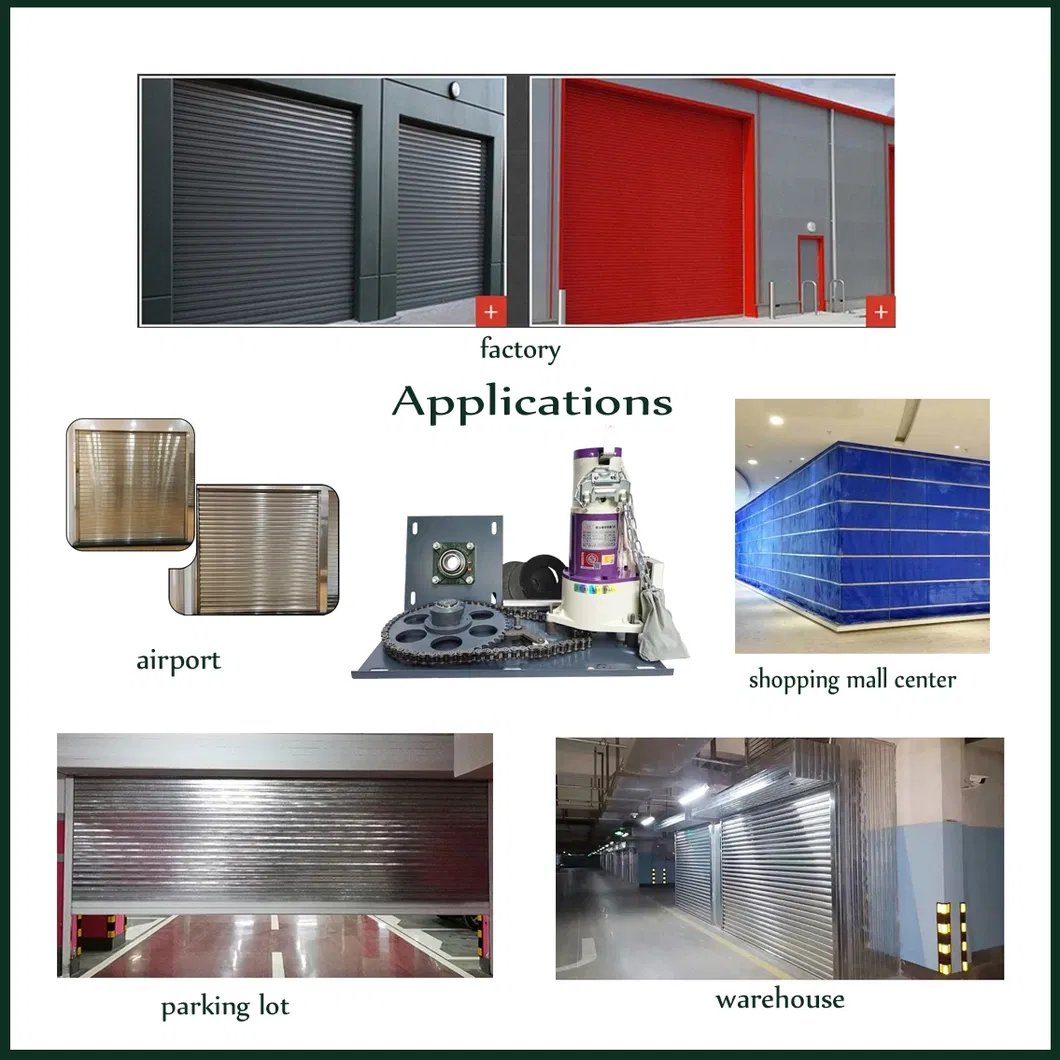

Application view 2
Quality Control & Certification

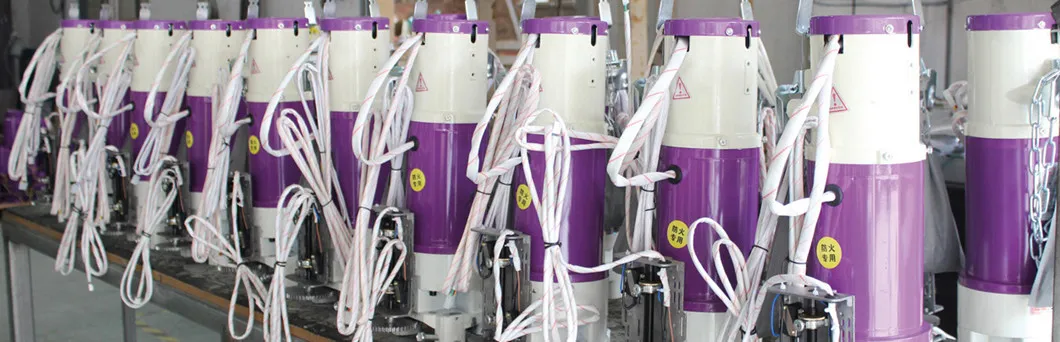

Management Quality

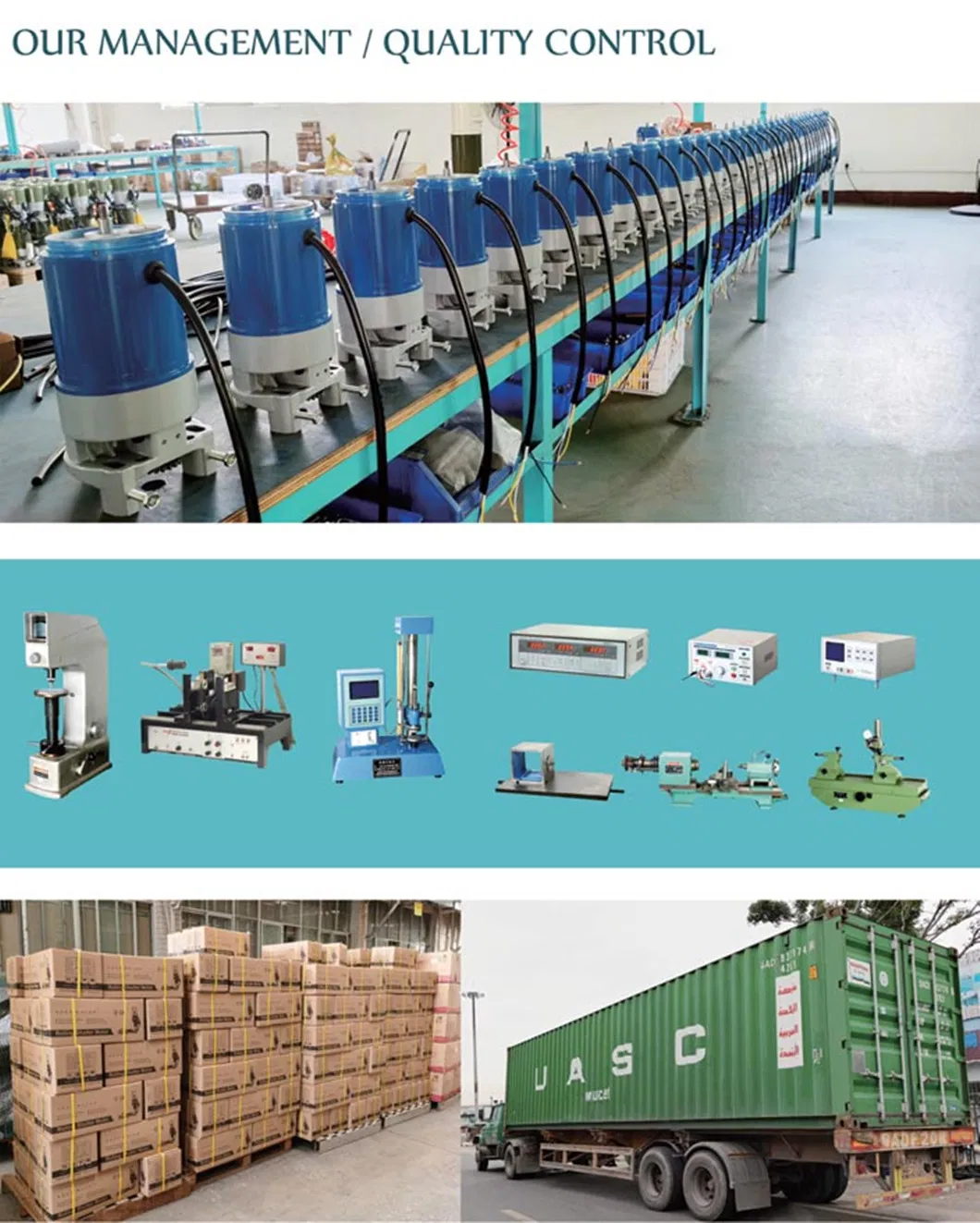

Production process
Certifications
Frequently Asked Questions
What is the input power for the 600kg model?
The LTS-600kg-3P model requires an input power of 710W and operates on a 380V/50Hz AC power supply.
Does the motor have safety features?
Yes, it includes overheat protection, overload protection, and an anti-fall device to ensure long-term safety and security.
Can this motor be used during a power failure?
Yes, the system is designed for easy manual operation in case of power failure, ensuring access at all times.
Is the roller shutter motor fire-rated?
Yes, it features an intelligent fire-rated control box that can be connected to smoke sensors, temperature sensors, and central fire control systems.
What is the maximum lifting capacity available in this series?
The series offers models ranging from 600kg up to 4000kg lifting capacity to suit different industrial requirements.
What is the recommended working environment?
It is ideal for indoor use with temperatures between -20ºC and 50ºC and relative humidity levels below 90%.
