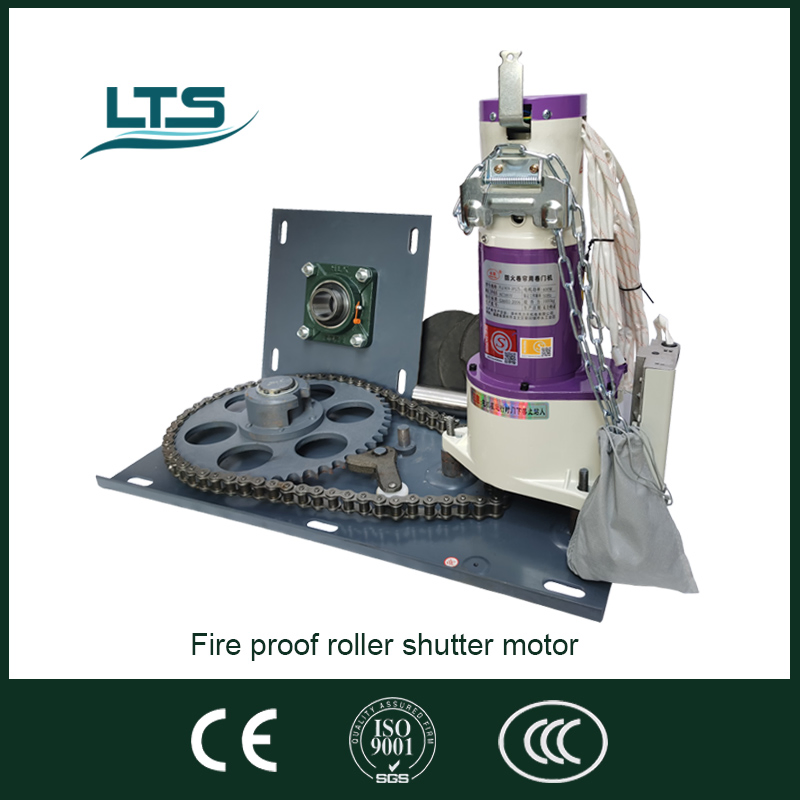

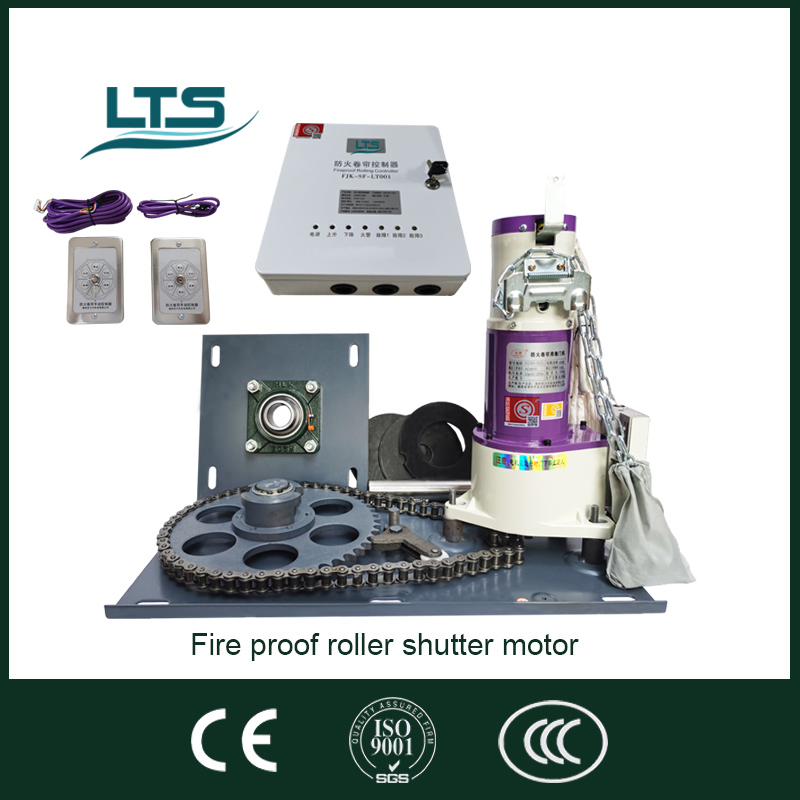

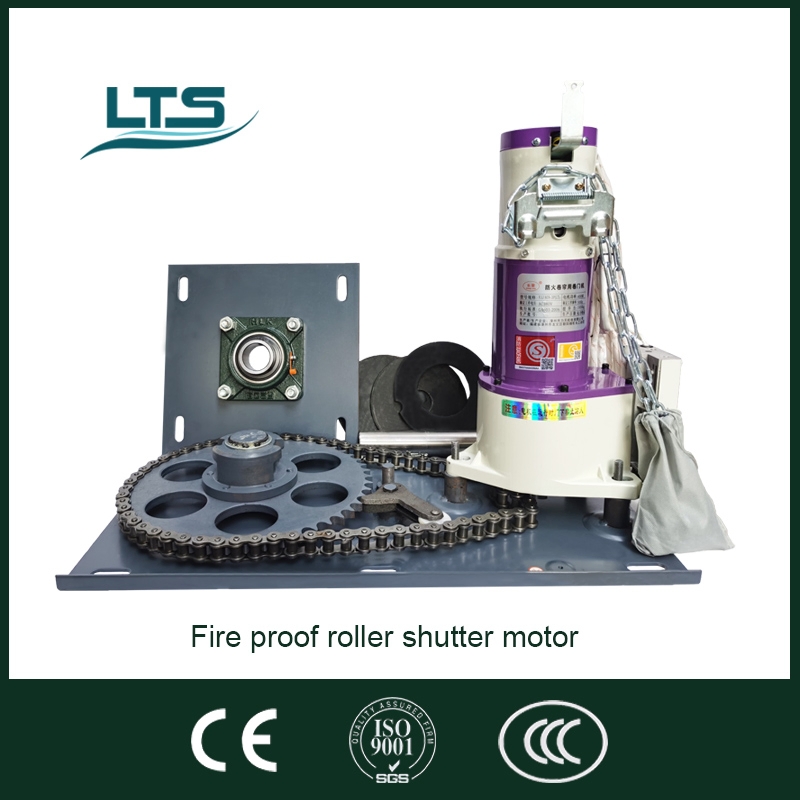

Torsion Motor
1 / 5
| Model | Rated voltage / Frequency | Input power | Rated output torque | Max lifting capacity | Rated current | Rated output speed | Max lifting height | Continuous working time | Ambient temp range |
|---|---|---|---|---|---|---|---|---|---|
| Three Phases | |||||||||
| LTS-600-3P | 380 V / 50 Hz | 710W | 412N.m | 600 KGS | 3.3 A | 4.8 r/min | 6 meters | 7 Min | -20°C ~ +50°C |
| LTS-800-3P | 380 V / 50 Hz | 780W | 647 N.m | 800 KGS | 4.7 A | 4 r/min | 7 meters | 7 Min | -20°C ~ +50°C |
| LTS-1000-3P | 380 V / 50 Hz | 780 W | 809 N.m | 1000 KGS | 2.8 A | 3.5 r/min | 7 meters | 15 Min | -20°C ~ +50°C |
| LTS-1300-3P | 380 V / 50 Hz | 1050W | 1401 N.m | 1300 KGS | 3.2 A | 4.4 r/min | 7 meters | 15 Min | -20°C ~ +50°C |
| LTS-1500-3P | 380 V / 50 Hz | 1250W | 1617 N.m | 1500 KGS | 3.8 A | 5.2 r/min | 8 meters | 15 Min | -20°C ~ +50°C |
| LTS-2000-3P | 380 V / 50 Hz | 1350W | 2450 N.m | 2000 KGS | 4.1 A | 3.6 r/min | 12 meters | 15 Min | -20°C ~ +50°C |
| LTS-3000-3P | 380 V / 50 Hz | 1500W | 3450 N.m | 3000 KGS | 4 A | 3.3 r/min | 12 meters | 30 Min | -20°C ~ +50°C |
| LTS-4000-3P | 380 V / 50 Hz | 3000W | 5500 N.m | 4000 KGS | 7.8A | 3.2 r/min | 12 meters | 30 Min | -20°C ~ +50°C |
