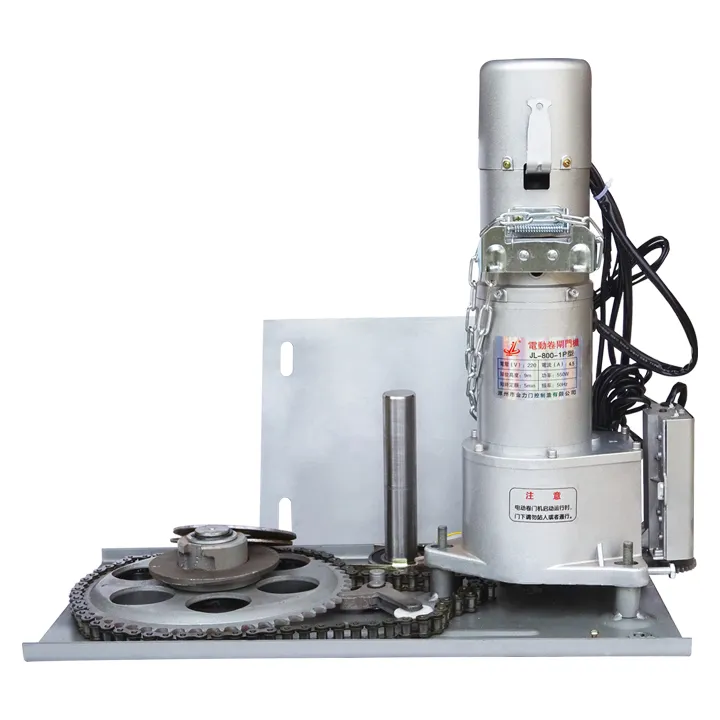

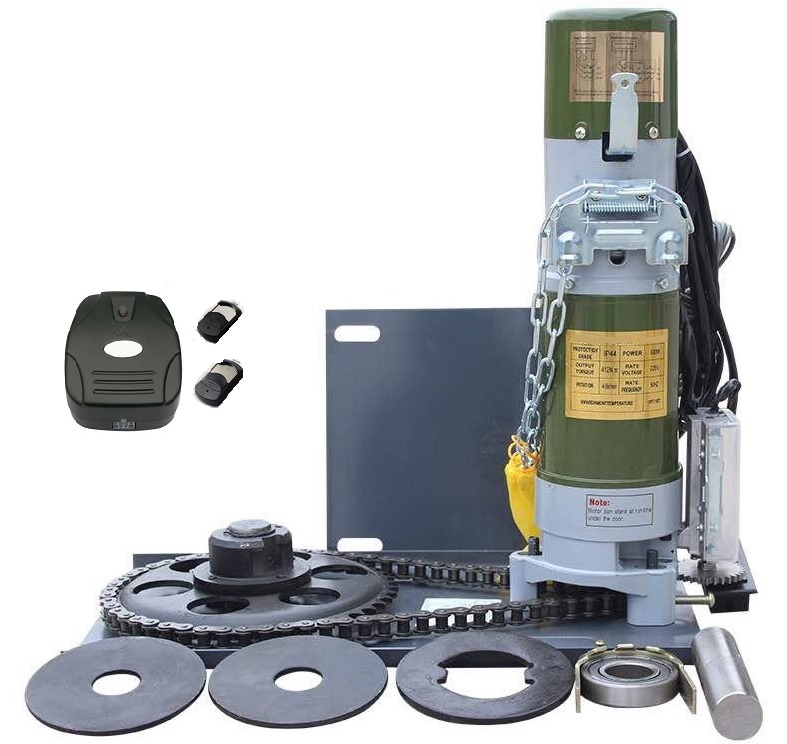

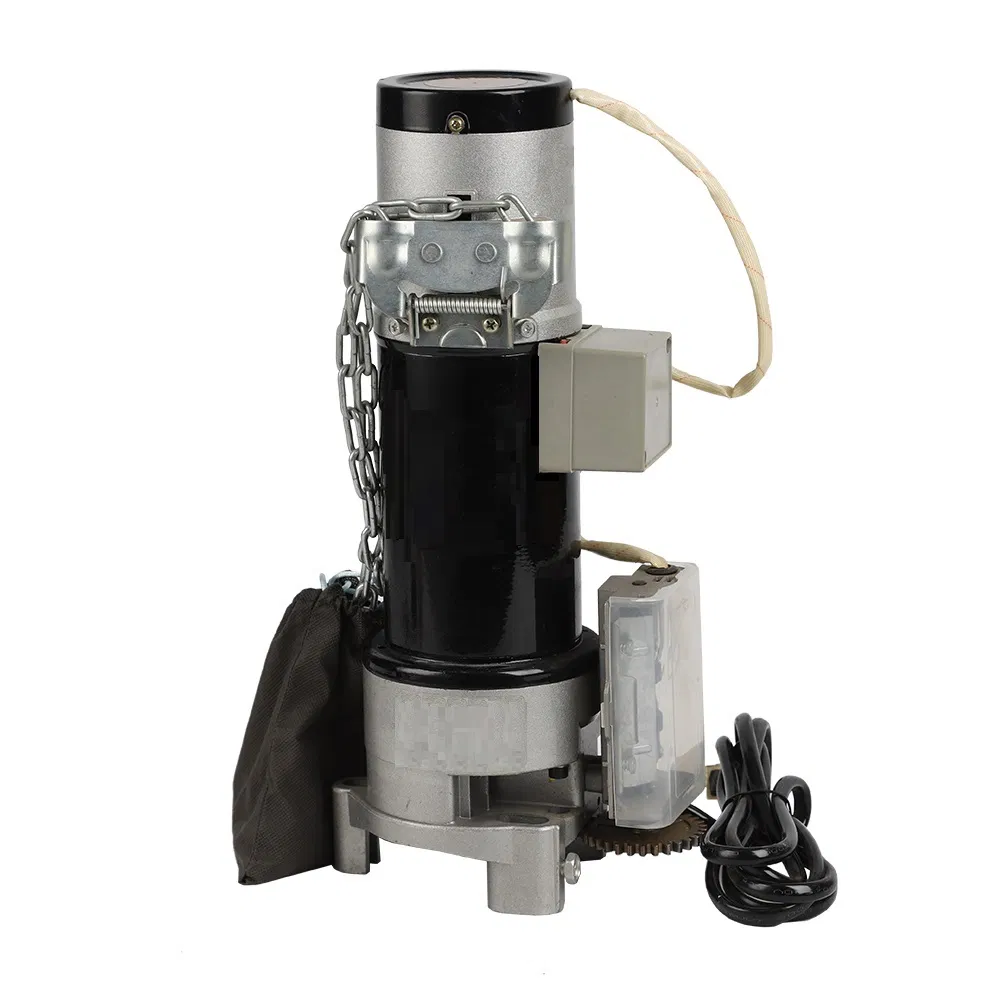

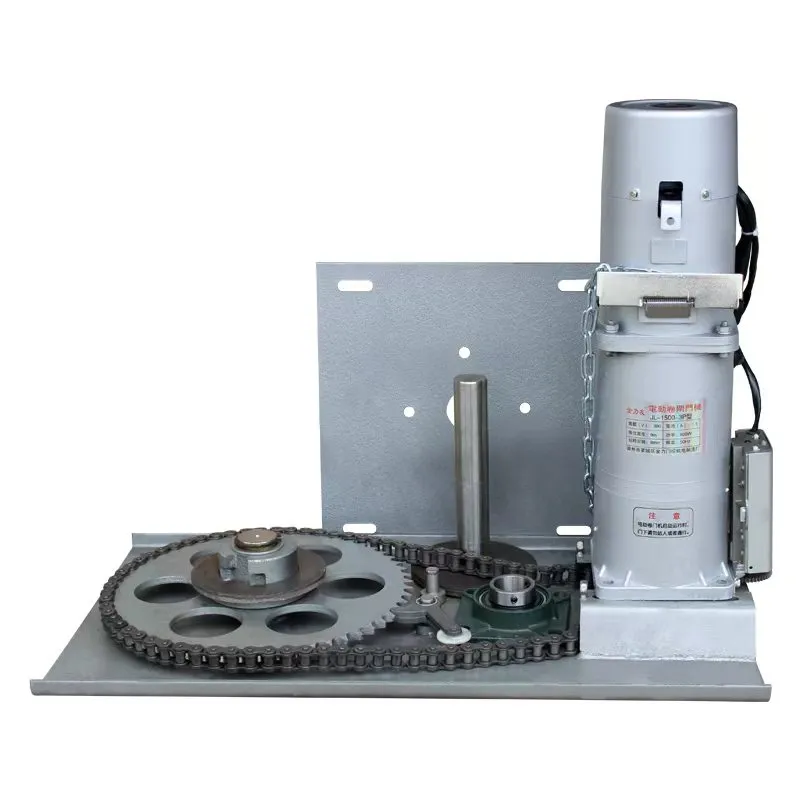

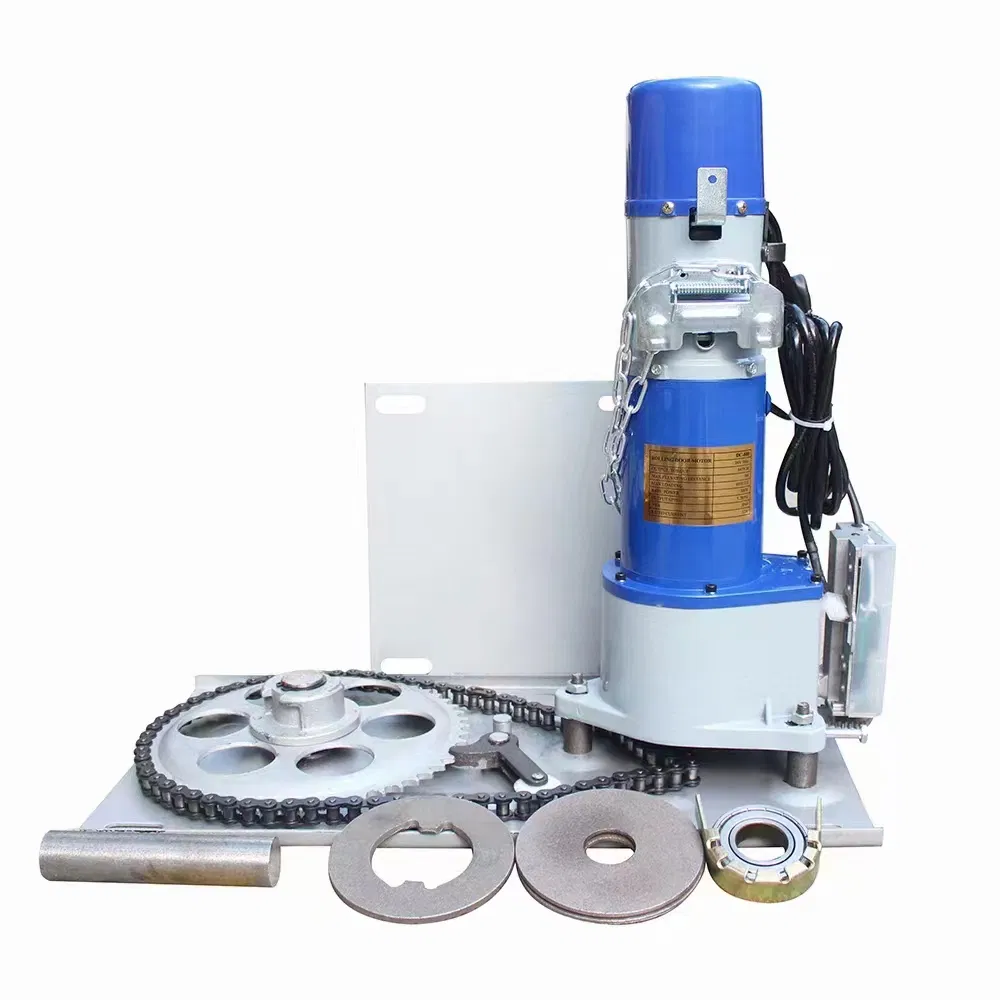

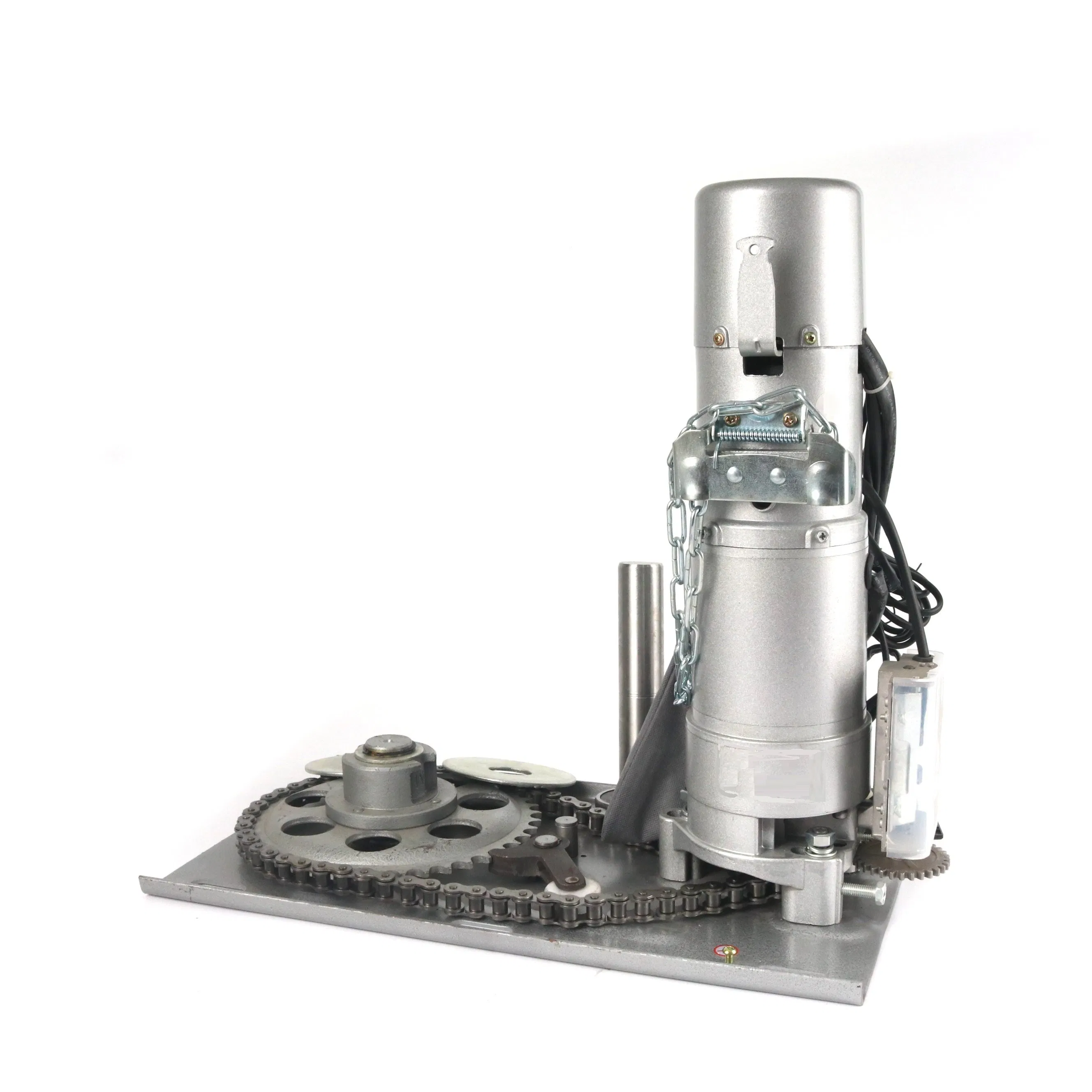

Professional Electric Rolling Door Motor Supplier
We are one professional supplier of electric rolling door motor. We developed and supply for our customers roller shutter door motor (300KG-2000KG), and AC-DC rolling door motor, fire-proof rolling door motor and accessories.
Our products are made of aluminum alloy casing with a light weight, low noise, long life, power strong, safe, durable quality, and anti-roll over protection. Most of them are widely used in shopping malls, garages, hotels, factories and so on.
🏷️
Customized Service
Customize Brand, Colour and Packing: We offer customized logo services, allowing you to brand your product with your company's name or logo.
🛡️
Reliable Performance
With a 1-year warranty and free spare parts, you can trust our product to provide reliable performance for years to come.
🔇
Low Noise Operation
Our motor winding is made from high-quality copper/aluminum, ensuring a low noise operation that won't disturb the surroundings.
⚡
Multi-Phase Compatibility
This motor is compatible with both single and three-phase power sources, making it a versatile option for various applications.
Electric Rolling Door Motor Technical Parameters
| Type |
Rated Power (W) |
Lifting Strength (KG) |
Max Torque (N.m) |
Output Speed (r/min) |
Max Lift Height (M) |
Chain No. |
Work Time (Min) |
| 600 KG-1P | 200 | 350 | 168 | 4.8 | 6 | 10A | 5 |
| 600 KG-1P | 250 | 450 | 343 | 4.8 | 6 | 10A | 5 |
| 600 KG-1P | 300 | 500 | 412 | 4.8 | 6 | 10A | 5 |
| 600 KG-1P | 370 | 600 | 412 | 4.8 | 6 | 10A | 5 |
| 800 KG-1P | 550 | 800 | 647 | 3.94 | 9 | 10A | 8 |
| 1000 KG-1P/3P | 550 | 1000 | 809 | 3.75 | 9 | 12A | 13 |
| 1300 KG-1P/3P | 600 | 1300 | 1401 | 4.4 | 9 | 12A | 13 |
| 1500 KG-1P/3P | 800 | 1500 | 1617 | 5.2 | 9 | 16A | 13 |
| 2000 KG-3P | 1500 | 2000 | 2450 | 6 | 13 | 16A | 13 |
Fire-proof Motor Technical Parameters
| Type |
Rated Power (W) |
Lifting Strength (KG) |
Max Torque (N.m) |
Output Speed (r/min) |
Max Lift Height (M) |
Chain No. |
Work Time (Min) |
| F-600 KG-3P | 250 | 600 | 412 | 4.8 | 6 | 10A | 5 |
| F-800 KG-3P | 300 | 800 | 590 | 3.94 | 9 | 10A | 5 |
| F-1000 KG-3P | 300 | 1000 | 617 | 3.75 | 9 | 12A | 5 |
| F-1500 KG-3P | 800 | 1500 | 1617 | 5.2 | 9 | 12A | 5 |
| F-2000 KG-3P | 1500 | 2000 | 2450 | 3.6 | 16 | 16A | 13 |
Frequently Asked Questions (FAQ)
Q1: What is the lifting capacity range for your motors?
Our electric rolling door motors range from 300KG to 2000KG lifting strength to suit various residential and industrial needs.
Q2: Can I customize the motor with my own brand?
Yes, we offer comprehensive OEM services, including customized logos, specific colors, and personalized packaging for your business.
Q3: What kind of warranty do you provide?
We provide a 1-year warranty on our products along with free spare parts to ensure long-term reliable performance.
Q4: Are these motors suitable for both single and three-phase power?
Yes, our motors are designed for multi-phase compatibility, supporting both single-phase and three-phase power sources depending on the model.
Q5: What are the main applications for these door motors?
They are widely used for roller shutters in shopping malls, commercial garages, hotels, and large-scale industrial factories.
Q6: How do you ensure low noise during operation?
We use high-quality copper or aluminum windings and precision-engineered aluminum alloy casings to minimize noise and heat generation.
