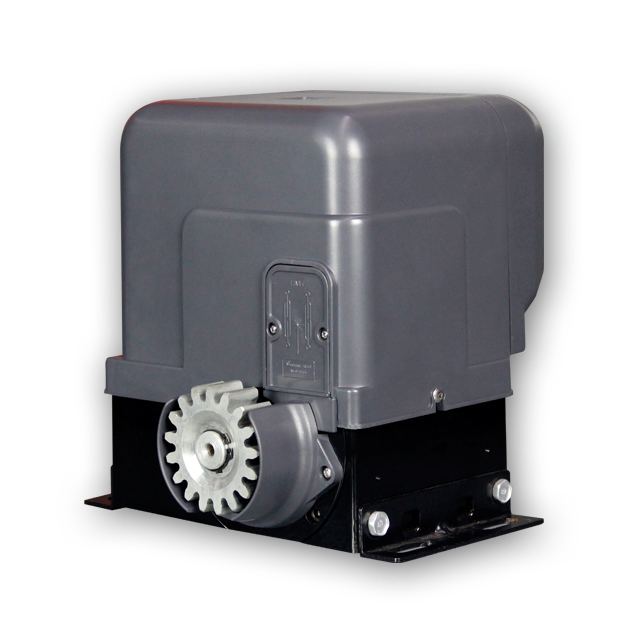

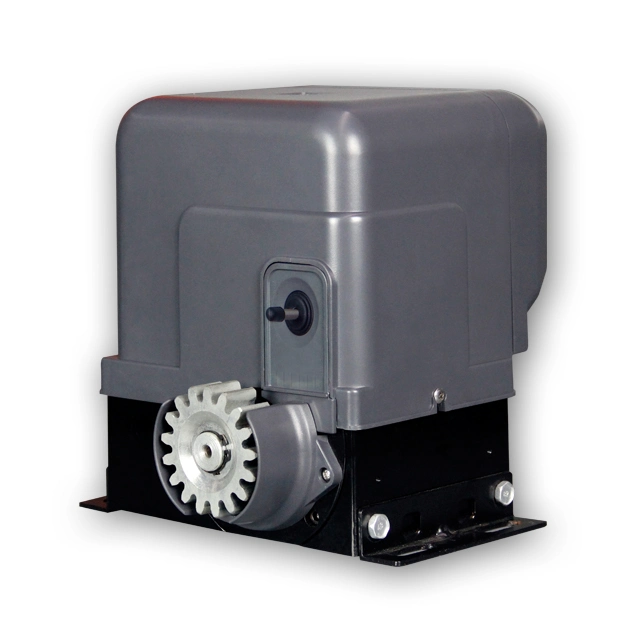

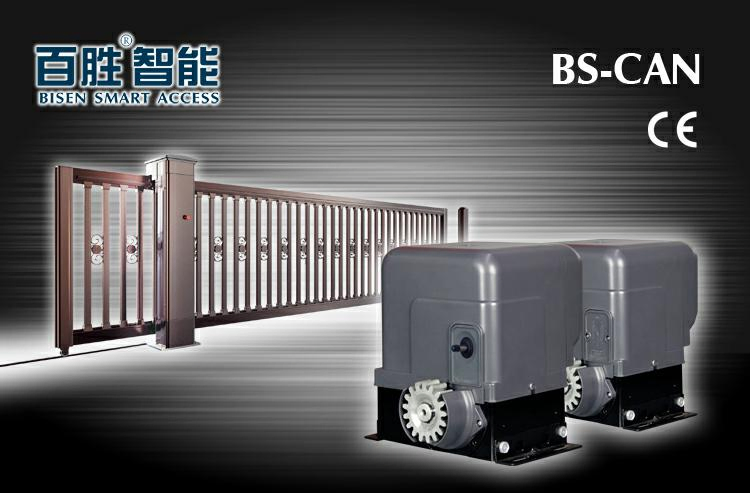

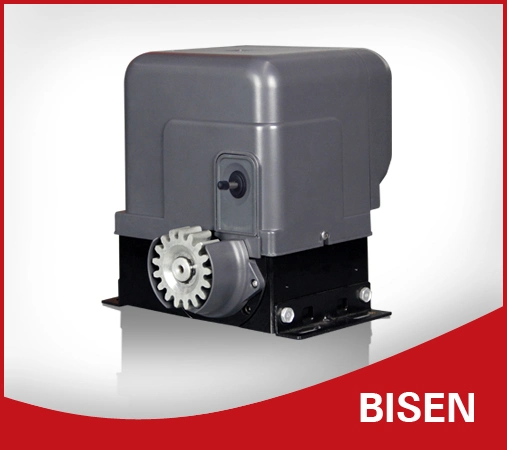

Automatic Sliding Door Mechanism Limit Gate Operator / Remote Control Door Operator Motors Kit (BS-CAN)
Automatic Sliding Door Mechanism Limit Gate Operator / Remote Control Door Operator Motors Kit (BS-CAN)
Automatic Sliding Door Mechanism Limit Gate Operator / Remote Control Door Operator Motors Kit (BS-CAN)
Automatic Sliding Door Mechanism Limit Gate Operator / Remote Control Door Operator Motors Kit (BS-CAN)
Automatic Sliding Door Mechanism Limit Gate Operator / Remote Control Door Operator Motors Kit (BS-CAN)
1 / 5
Automatic Sliding Door Mechanism Limit Gate Operator / Remote Control Door Operator Motors Kit (BS-CAN)
Automatic Sliding Door Mechanism Limit Gate Operator / Remote Control Door Operator Motors Kit (BS-CAN)
Automatic Sliding Door Mechanism Limit Gate Operator / Remote Control Door Operator Motors Kit (BS-CAN)
Automatic Sliding Door Mechanism Limit Gate Operator / Remote Control Door Operator Motors Kit (BS-CAN)
Automatic Sliding Door Mechanism Limit Gate Operator / Remote Control Door Operator Motors Kit (BS-CAN)

Automatic Sliding Door Mechanism Limit Gate Operator / Remote Control Door Operator Motors Kit (BS-CAN)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
BS-CAN
Installation Type
Slide
Function
Adjustable
Standard
European Standard
Remote Control
With Remote Control
Door Width
Customized
Door Weight
800kgs
Color
Grey
Power Supply
110V 60Hz/220V 50Hz
Motor Power
280W
Max Gate Weight
800kgs
Certification
CE&RoHS

Product Description

Sliding Gate Opener, automatic sliding gate opener, with remote control. This system provides a robust solution for automated gate access.

Sliding Gate Opener
Gate Operator Motor

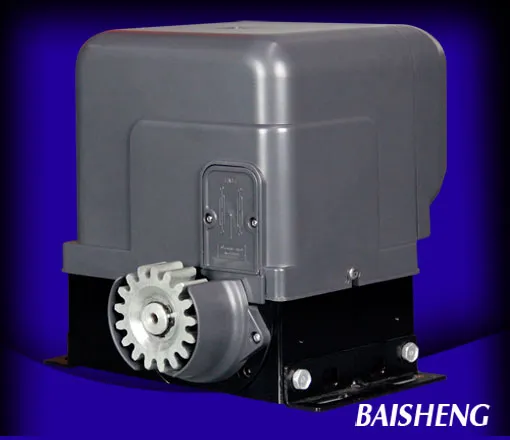

Automatic Sliding Gate Mechanism

Features

  • Integrated Mechanical and electrical design with internal PCB.
  • Mechanical limit switch or magnetic limit switch options.
  • Includes a release key for power failure situations.
  • Electronic soft-start ensures steady, smooth operation and easy installation.
  • Intelligent terminals compatible with alarm lamps, photocells, and external receivers.
  • Supports both line control and remote control operation.
Specification AC220V/50Hz DC24V
Motor Power280W120W
Capacitor16uF-
Motor Rotational Speed1400r/min1200r/min
Output Rotational Speed46.7r/min40r/min
Absorbed Current3A3A
Weight14Kg13.5Kg
Max Gate Weight800kg600kg

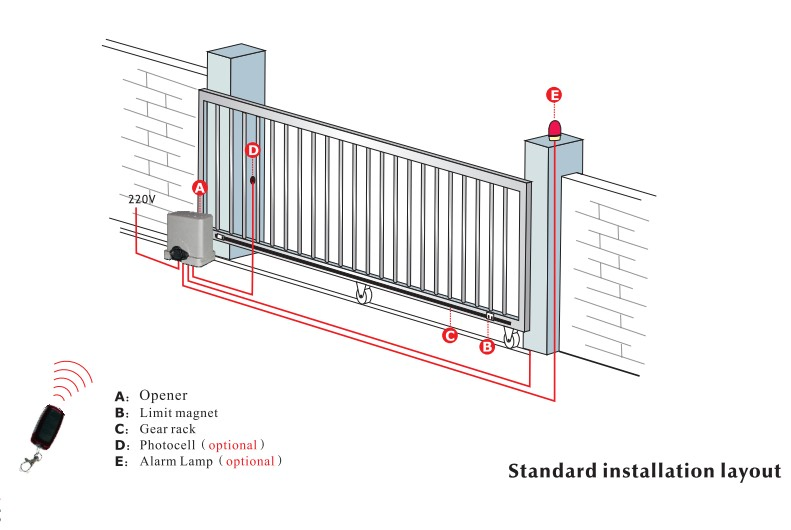

Installation Detail
Gate Opener Component
Motor Details
Control Board
Accessories
Final Assembly

Frequently Asked Questions

What is the maximum weight capacity of this sliding gate opener?
The BS-CAN sliding gate opener is designed to handle gates weighing up to 800kgs for the AC version.
Can this operator be controlled remotely?
Yes, the system comes with remote control capabilities, providing convenience for home, office, and industrial use.
What happens if there is a power failure?
The unit is equipped with a manual release key, allowing you to open or close the gate manually during power outages.
Is the installation difficult?
No, it is designed for easy installation and maintenance, featuring an electronic soft-start function to ensure smooth operation from the first use.
Are there safety sensors compatible with this gate opener?
Yes, the control system includes intelligent terminals that support additional safety devices like photocells and alarm lamps.
What kind of limit switch options are available?
You can choose between a mechanical limit switch (spring) or a magnetic limit switch based on your specific requirements.
