Torsion Motor
1 / 5
Support for professional product photography
Full design team support for projects
Personalized branding services available
Specialized packaging design support

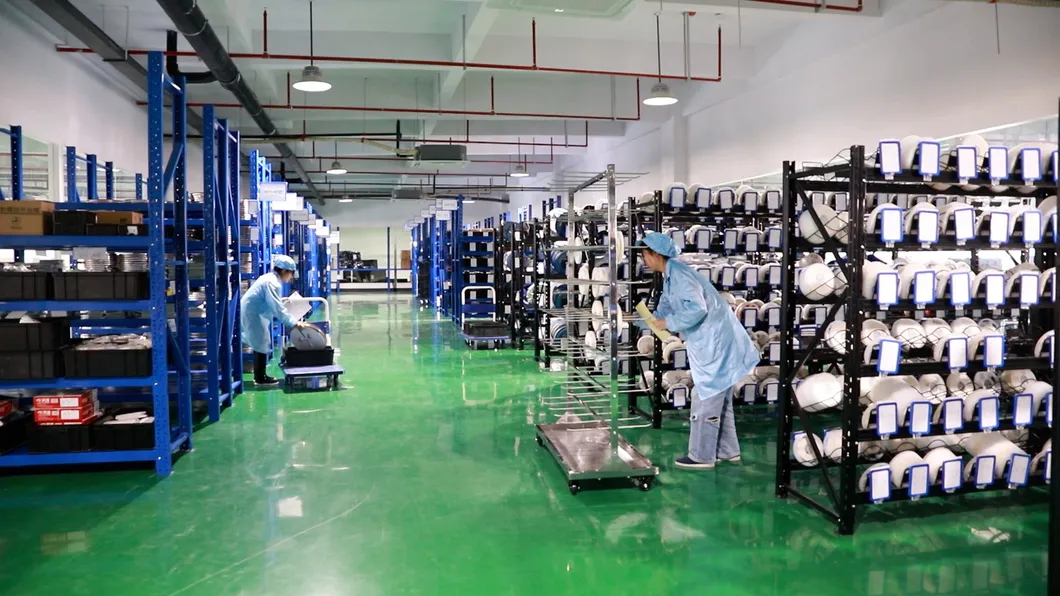

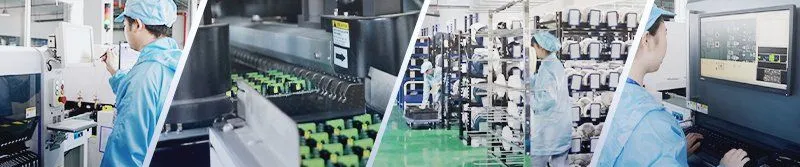

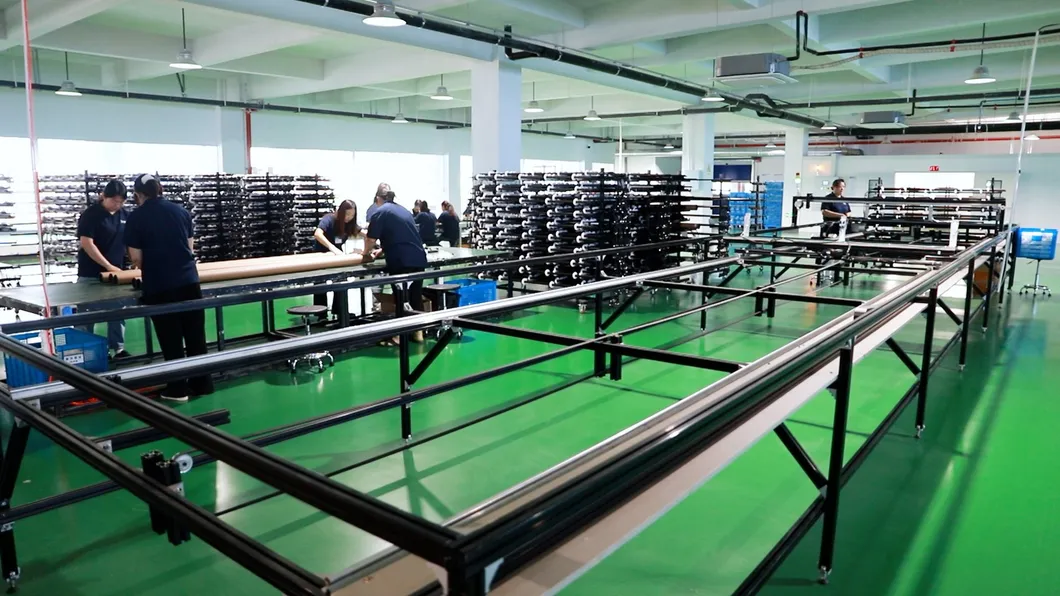

Advanced Production Capacity: We operate 3 SMT lines and 2 DIP lines with a capacity for 200,000 controllers per year, and 3 Automatic winding machines with a capacity for 120,000 motors per year.
Professional R&D Team
Max Loading Weight: 300kg / 400kg Optional
🌟 Intelligent Control

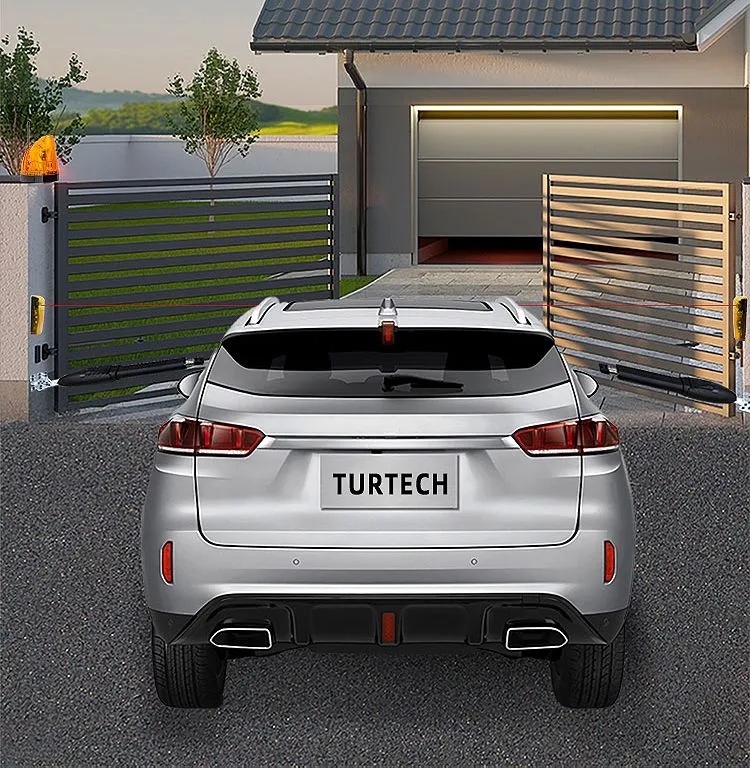

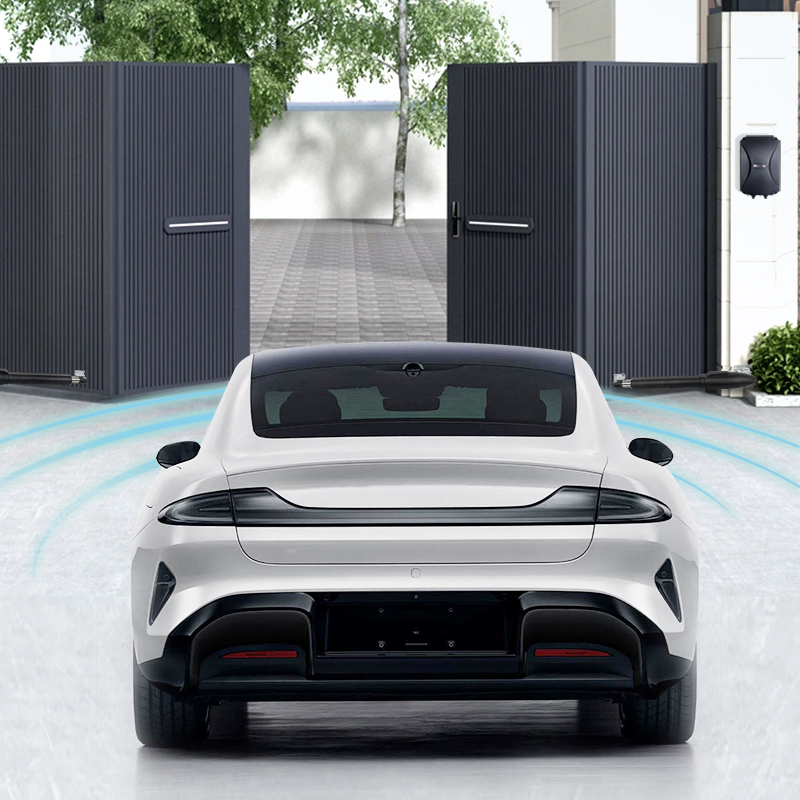

Car Sensing: With on-board electronic tags (Bluetooth control), the gate opens and closes automatically without manual operation.
Access Control: Supports alarm lamps, photo beams, and safety beam interfaces for complete identification and security.

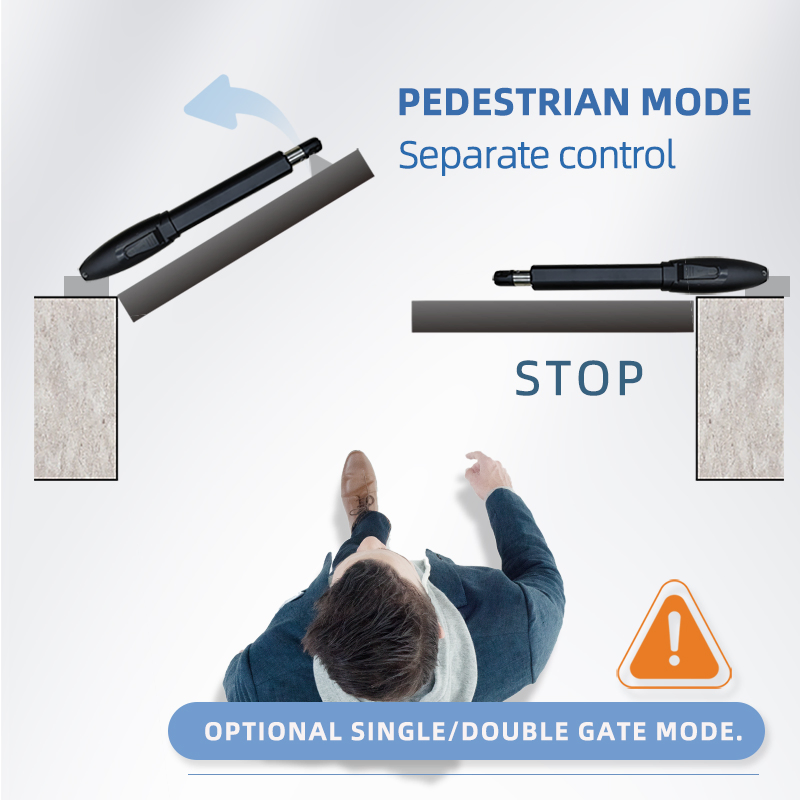

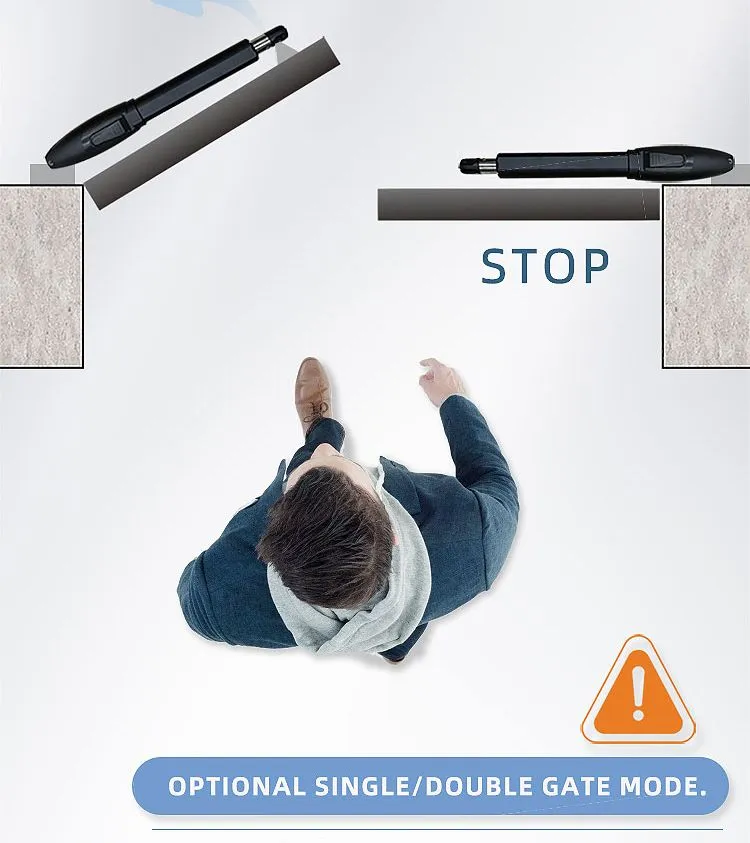

Pedestrian Mode: Supports single door opening via external switches or specific remote controls.

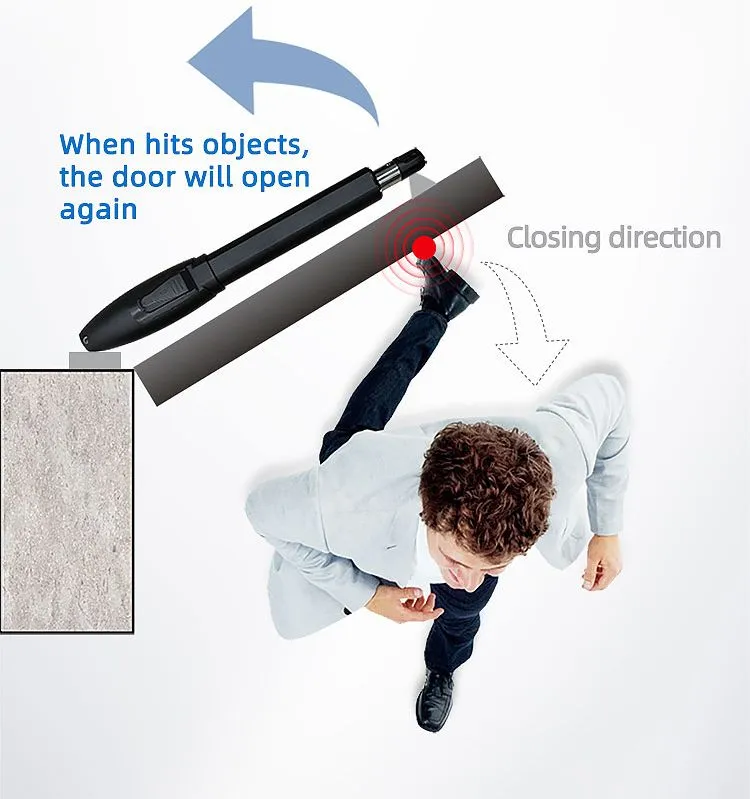

Safety Resistance Bounce: Reliable protection—when hitting objects, the door automatically re-opens.

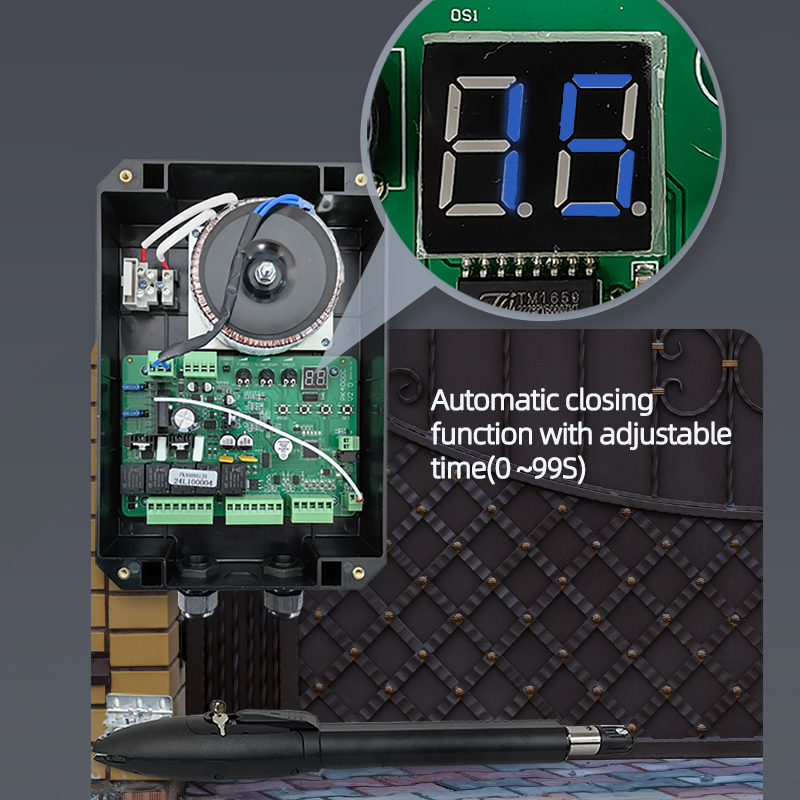

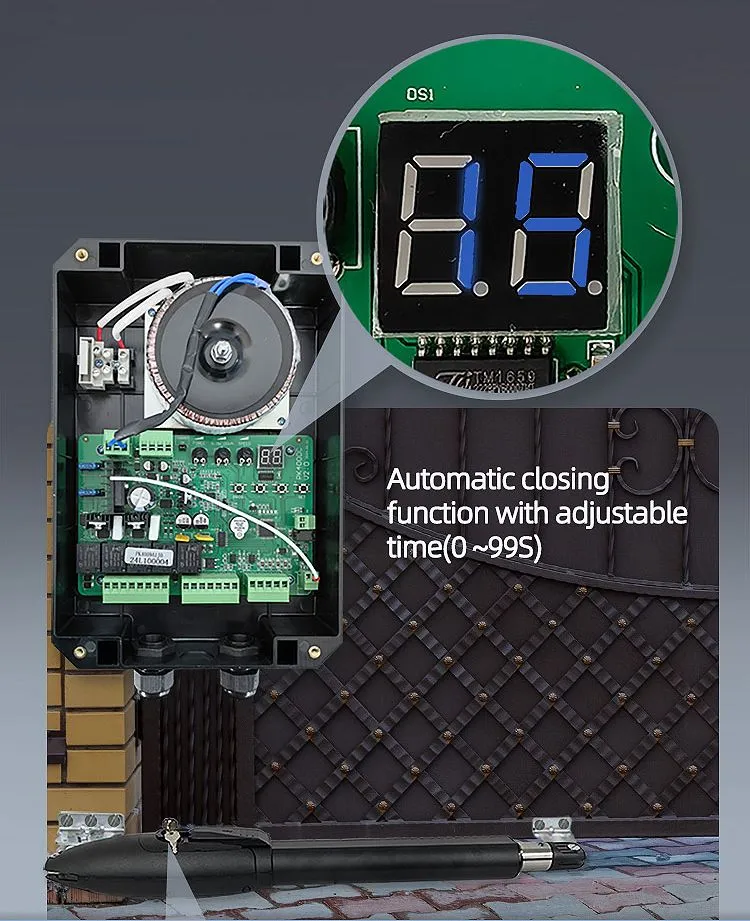

Digital Adjustment: Easy and convenient setup with an automatic closing function (adjustable 0-99s).

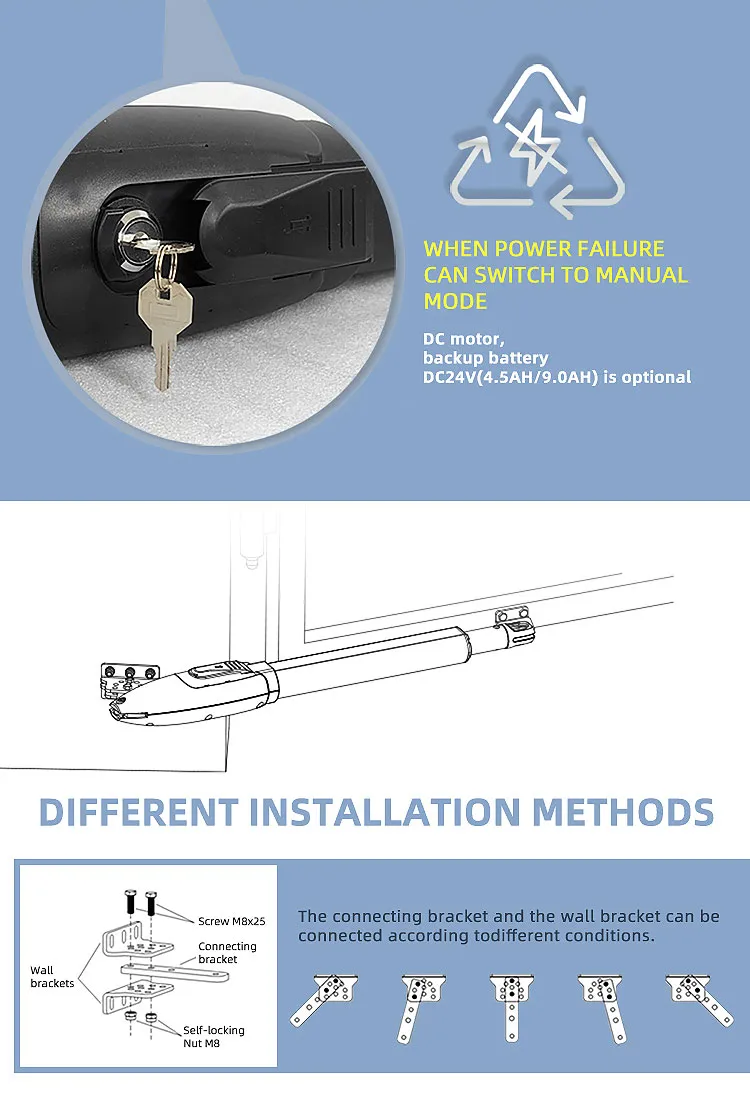

Manual Mode: During power failure, easily switch to manual mode. Supports DC24V backup batteries.

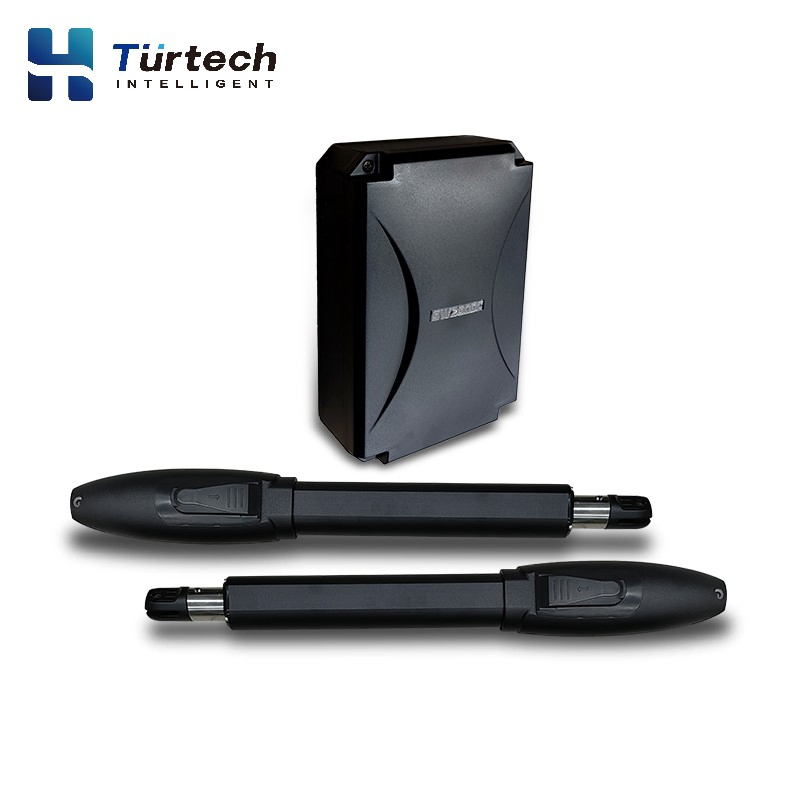

| SWG-B-300-DC Parameters | |
|---|---|
| Power Supply | AC220V/50Hz; AC110V/60HZ |
| Maximum Loading Weight | 300KG / Leaf |
| Motor Power | DC24V / 50W |
| Driving Method | Screw driving piston type |
| Max. Single-Leaf Length | 3.0m |
| Gate Moving Speed | 2.5cm/sec. |
| Working Temperature | -20ºC ~ 70ºC |
| SWG-A-300-DC Parameters | ||
|---|---|---|
| Model | SWG-A-300a-DC | SWG-A-300b-DC |
| Motor Power | 80W | |
| Max. Force | 1500N | |
| Max. Piston Stroke | 34cm | 54cm |
| Noise Level | ≤58dB | |

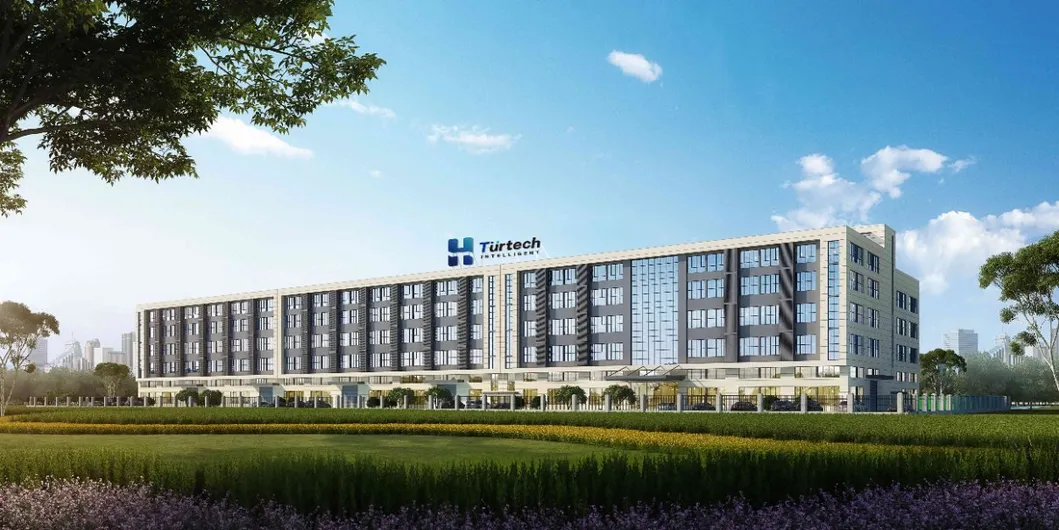

With over 15 years of industry focus since 2010, our company specializes in R&D and production of automatic systems. Our manufacturing base covers 34,000m² with advanced production lines and a global market presence in over 100 countries.

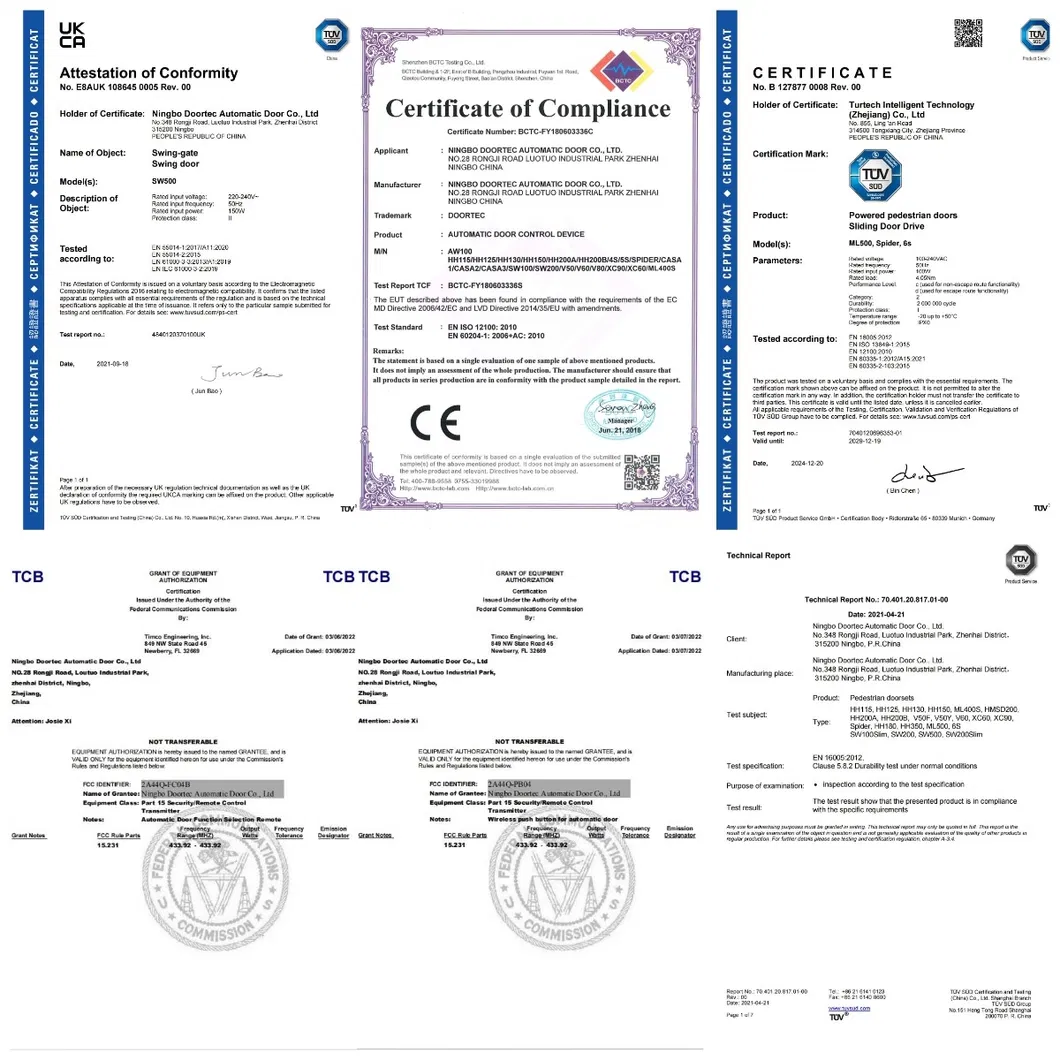

We actively participate in global exhibitions and contribute to industry standards, ensuring high quality and safety compliance.
