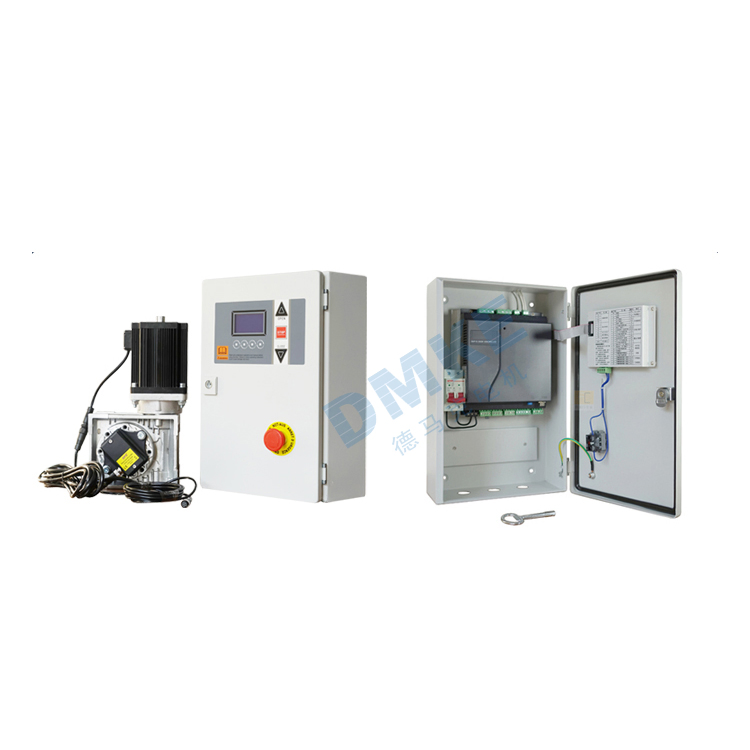

Beudmke General Roller Shutter Motor AC Motor with Remote Controller Rolling Door Operator Side Motor

1 / 5

Beudmke General Roller Shutter Motor AC Motor with Remote Controller Rolling Door Operator Side Motor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Technical Overview

Model NO.

DM400

Motor Type

Worm Gear Servo Motor

Rated Power

0.75kw

Rated Voltage

DC48V

Rated Current

Lifting Weight

50kg

Door Size

10m²

Insulation Grade

Ambient Temp

-40~+50℃

Protection Grade

IP54

Position Control

Absolute Value Encoder or Mechanical Limit Switch

Overload Capacity

150% Rated Current for 1 Minute

Product Description

Key Features

Leading power-cut braking technology: Motor is isolated from controller's HV output circuit.
Safety priority: No charged door body spontaneous combustion or electric leakage hazards.
Simple Installation: Only 2 connecting cables between motor reducer and electric box.

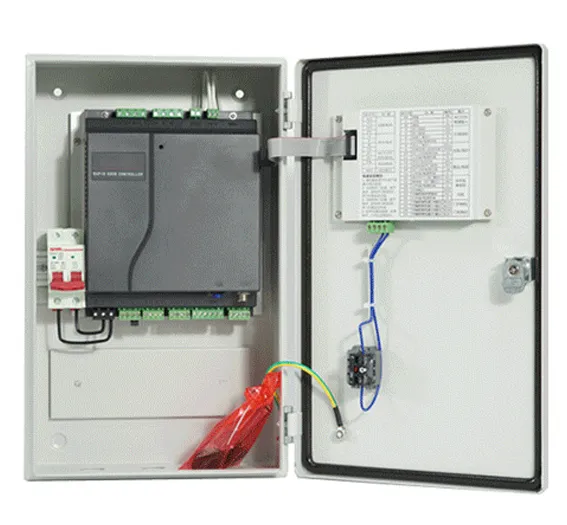

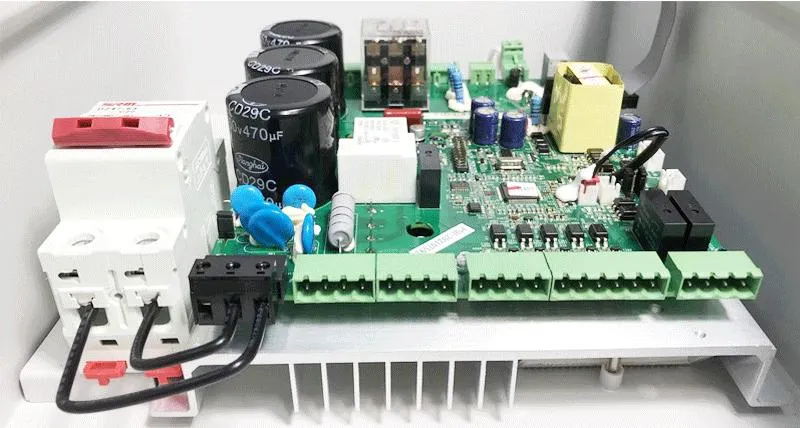

Smart Control: IPM intelligent module with compact structure and powerful functionalities.
Multiple Modes: Supports inching/manual/automatic, fully/partially open, and RS485 IoT remote control.
Real-time Monitoring: Instant signal and alarm tracking with one-key factory reset functionality.

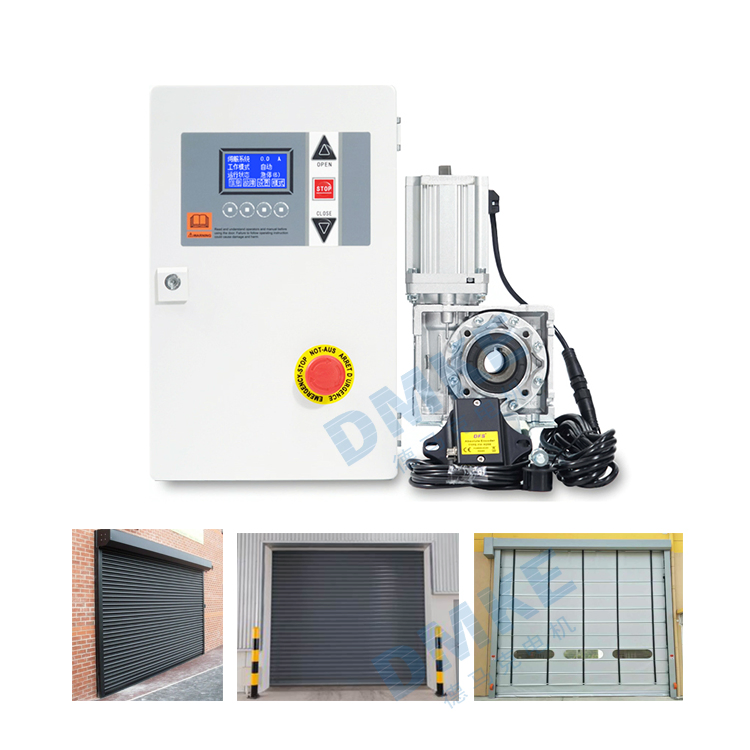

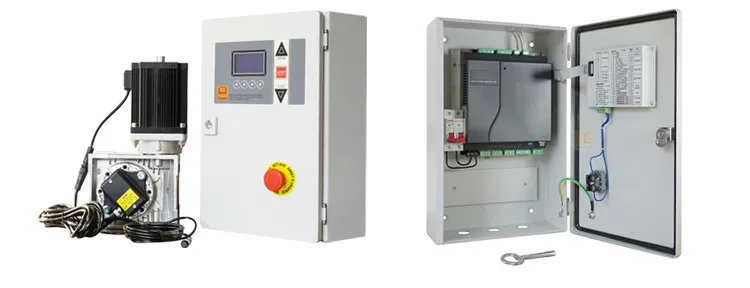

The DM400 series includes a complete set of servo control boxes, motors, and absolute encoders. Designed for PVC fast rolling shutter doors, stacking doors, hard fast rolling doors, and sliding doors.

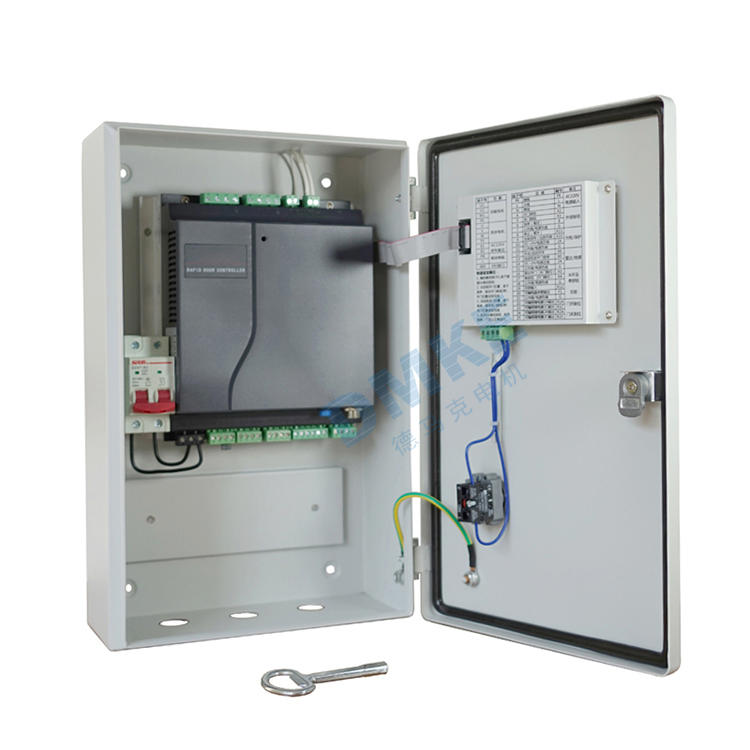

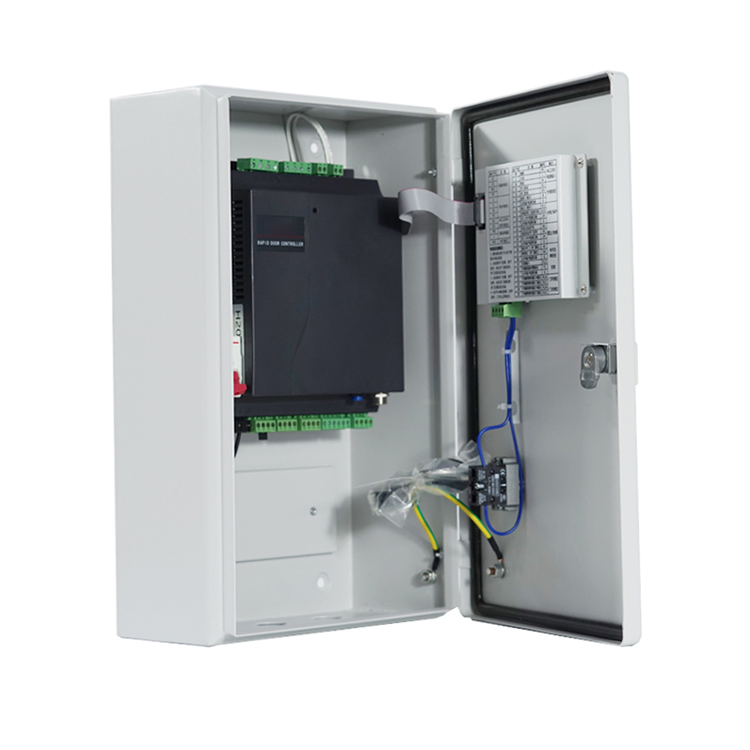

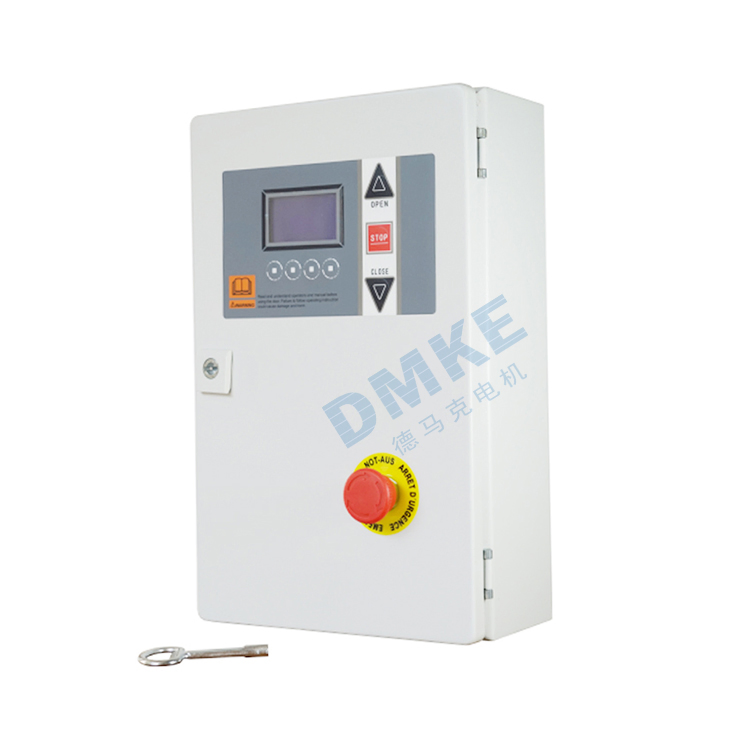

Control Box Specifications

Model	DM400	DM401	DM402
Rated Power	0.75kw	1.5kw	2.2kw
Dimensions	250 x 400 x 130 mm
Power Supply	Single-phase AC220V~240V 50~60Hz
Weight	6Kg

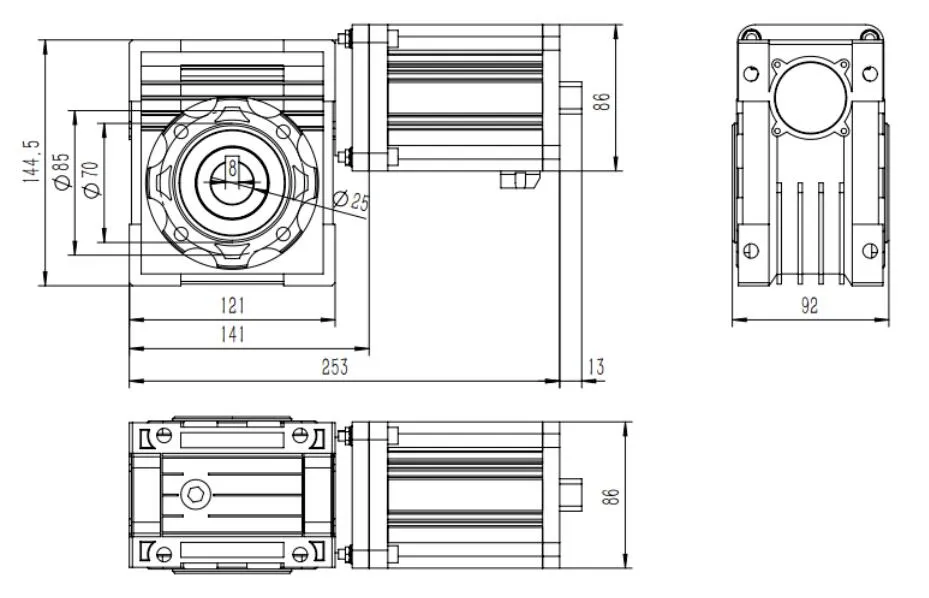

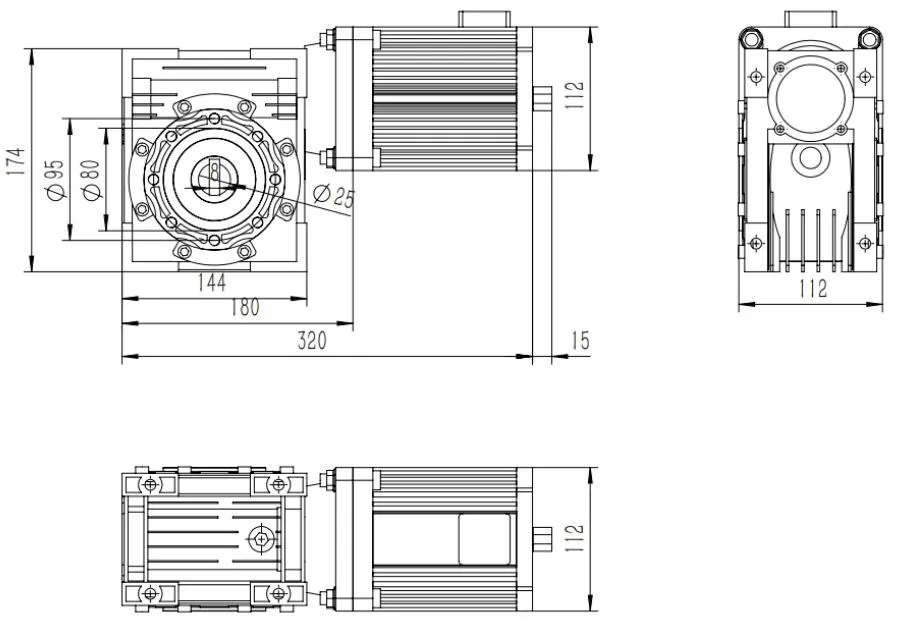

Technical Drawings

Manufacturing Expertise

Specializing in high-precision micro DC gear motors, brushless motors, brushless controllers, and DC servo systems. Our products range from 5W to 20KW, serving various industries including robotics, lifting equipment, medical devices, and industrial automation.

Frequently Asked Questions

What types of motors are available?

We provide permanent magnet brushless DC motors, DC gear motors, planetary gear motors, DC servo motors, and brush DC motors with power ranges from 5W to 20KW.

Is there a minimum order quantity (MOQ)?

No, we can accept 1 piece for sample testing. Please note that sample pricing may vary slightly from bulk pricing depending on the model.

Can you provide a standard price list?

Since our motors are customized based on requirements like voltage, gear ratio, and torque, prices vary. Please provide your detailed specifications for a specific quote.

Are the motors reversible?

Yes, nearly all our DC and AC motors are reversible. Technical guidance can be provided for different wire connections to achieve this function.

What is the typical delivery time?

Sample delivery usually takes 2-15 days depending on the motor type. Bulk orders typically range from 15-20 days.

What is the warranty period?

All products come with a one-year warranty.
