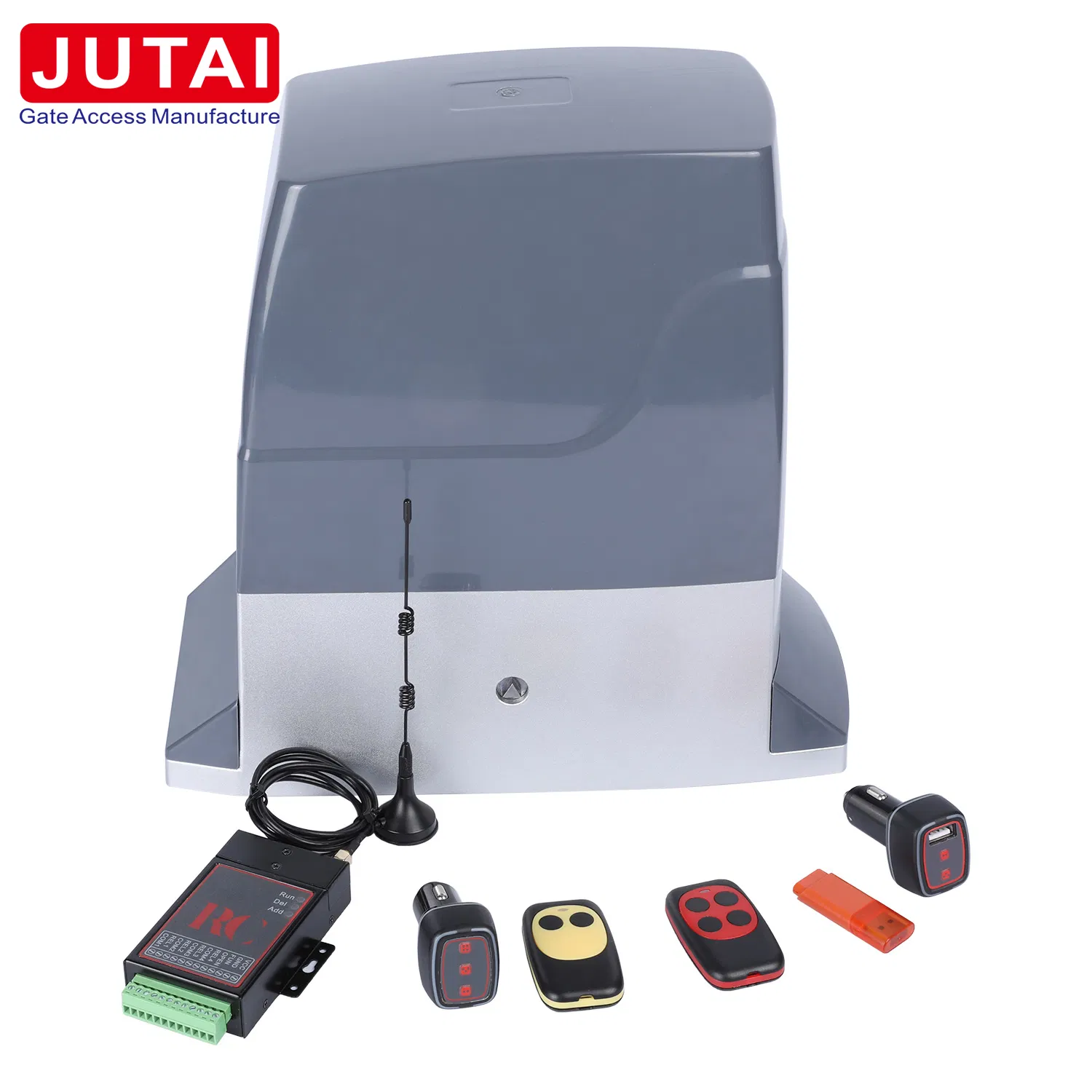

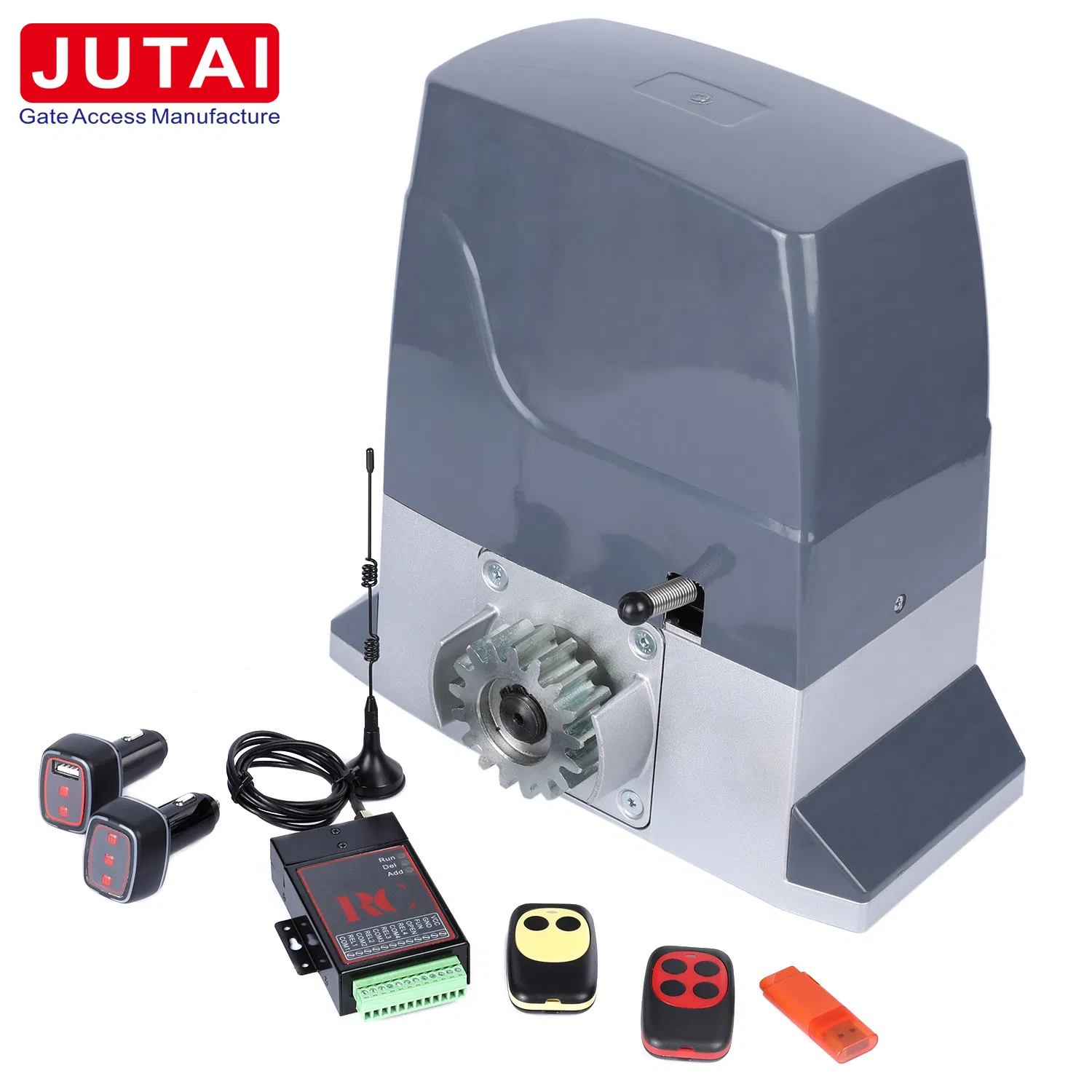

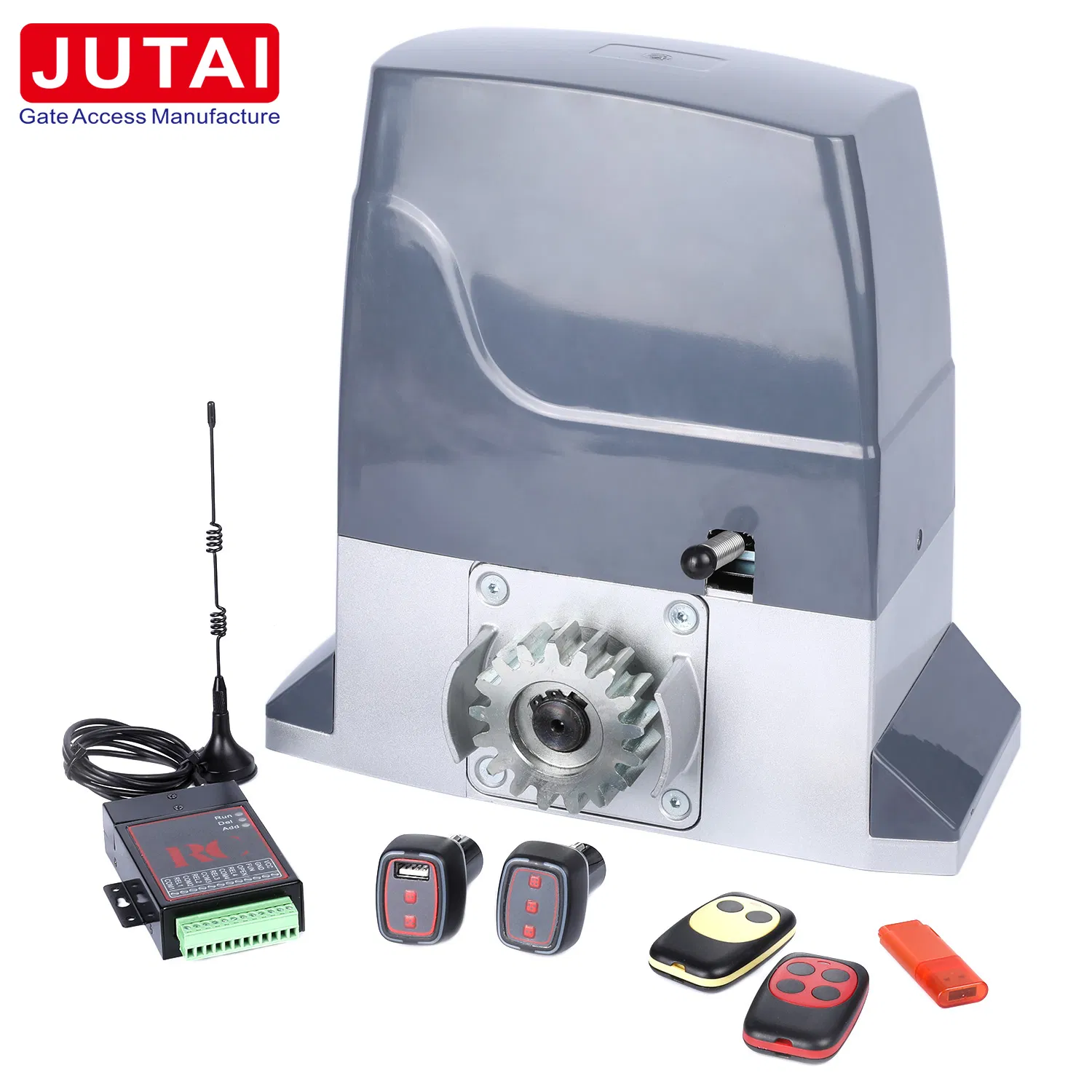

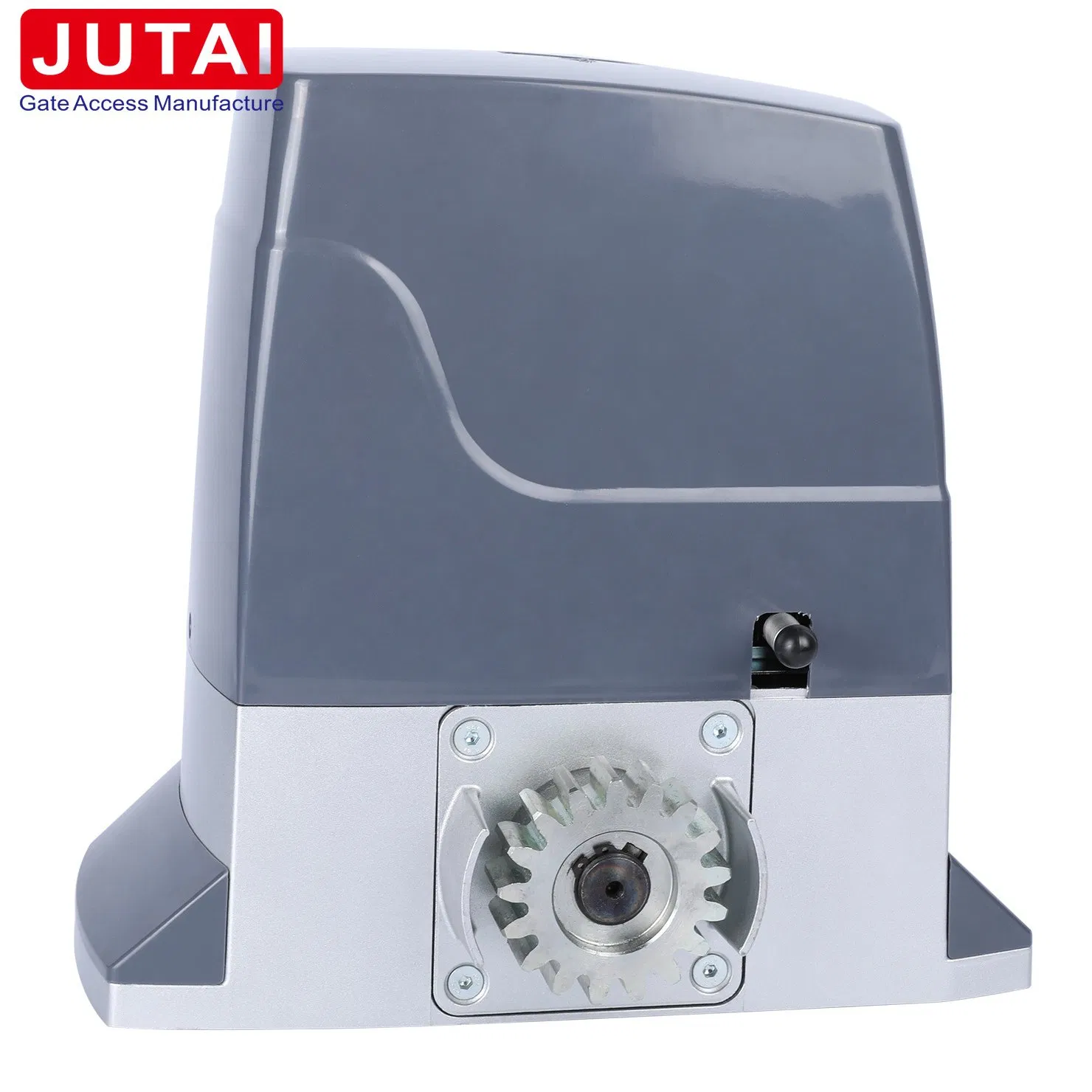

The SDM-10G32/SDM-20G32 Encryption Sliding Gate Motor is an intelligent system designed for easy installation and configuration. Featuring a microcomputer chip and digital control, it offers high safety performance and practical functions. It is fully compatible with smartphone apps (WiFi/3G/4G/5G) and Bluetooth control.
| Working Voltage | DC24V output |
| Max Output Current | 10A |
| Fuse | AC220 20A |
| Remote Distance | ≥30m |
| Remote Control Type | 2pcs Anti-copy Rolling Code |
| Working Temperature | -25ºC to +75ºC |
| Max Gate Weight | 1000kg |
| Output Torque | 21N.m |
| Rotation Speed | 12m/min |
| Limit Switch | Magnetic (NC/NO) Spring |
| Noise Level | < 50dB |
| Mobile APP Support | WIFI or Bluetooth |

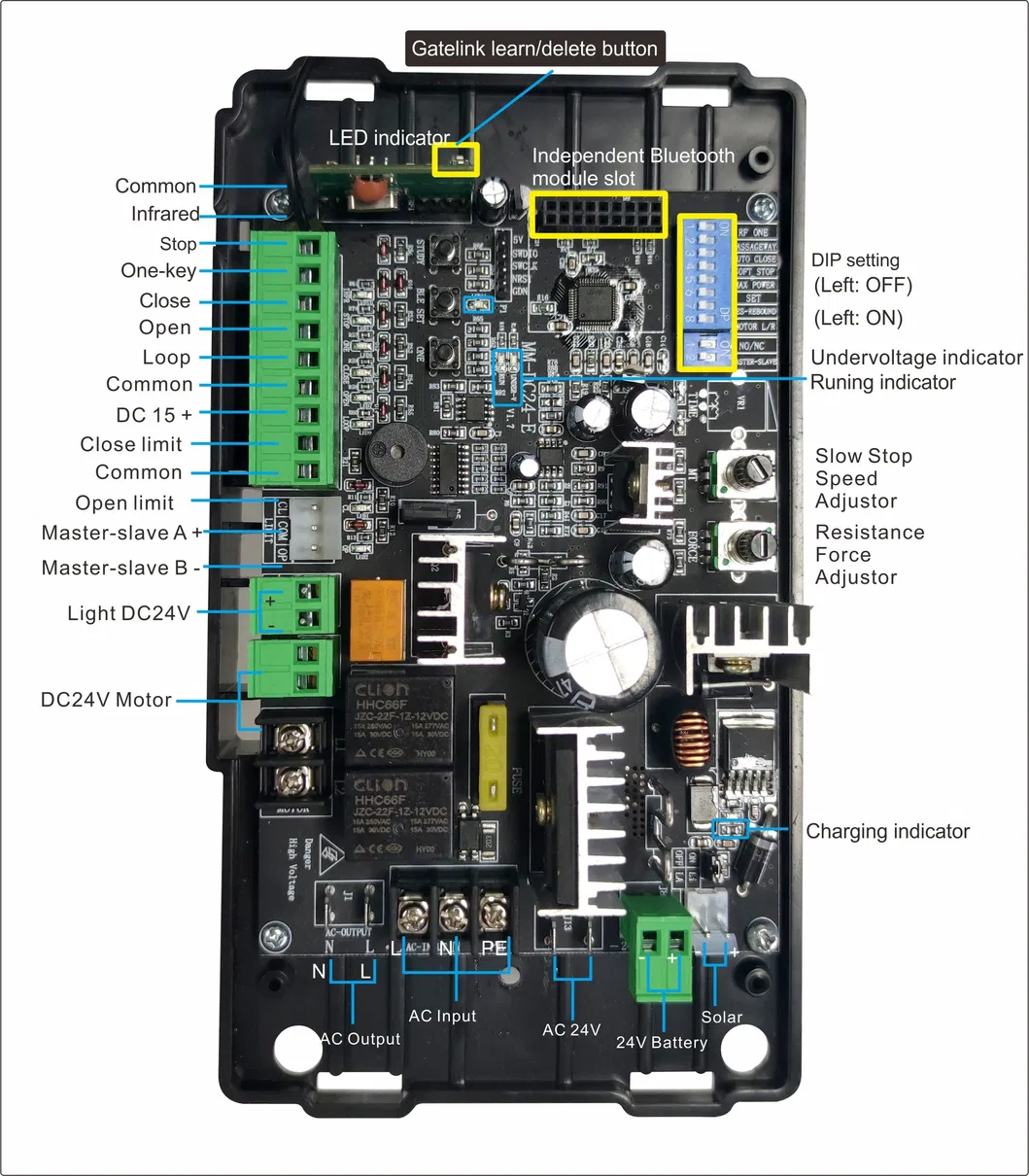

• RUN: Flashes during motion (1/sec opening, 5/sec closing).
• UNDER-V: Flashes when battery is below 19V.
• Buzzer Logic: 3 buzzes for limit reached; 5 buzzes for resistance rebound during closing.
• Limiters: LED stays on when gate reaches the open or closed magnet position.
For double machine synchronization, connect two motors via 485A+B- interfaces. Set the Master dip switch to ON and Slave to OFF. The Slave motor will replicate all commands from the Master unit, including remote signals and manual button presses.

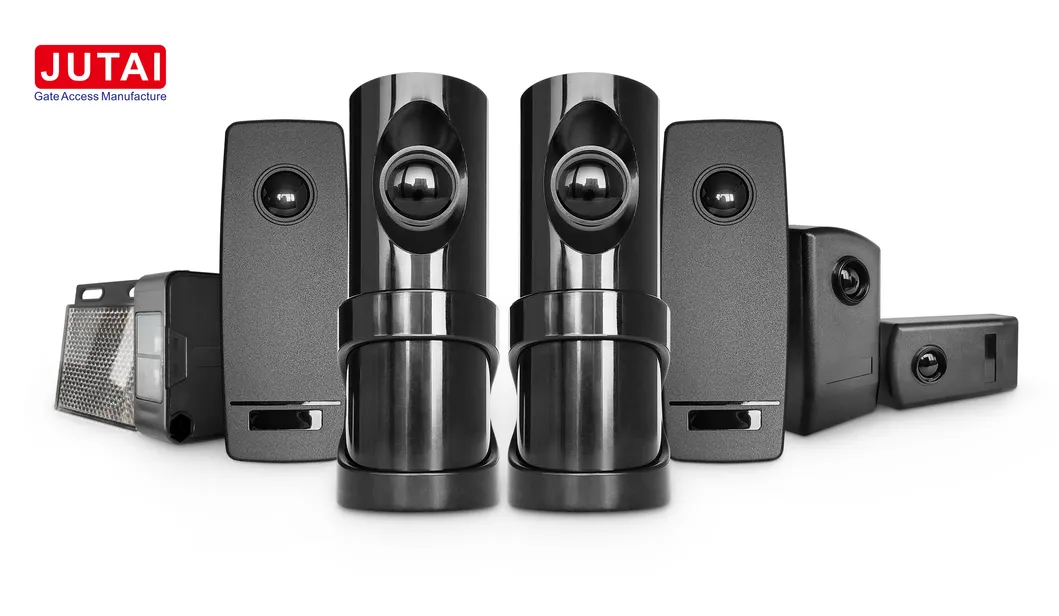

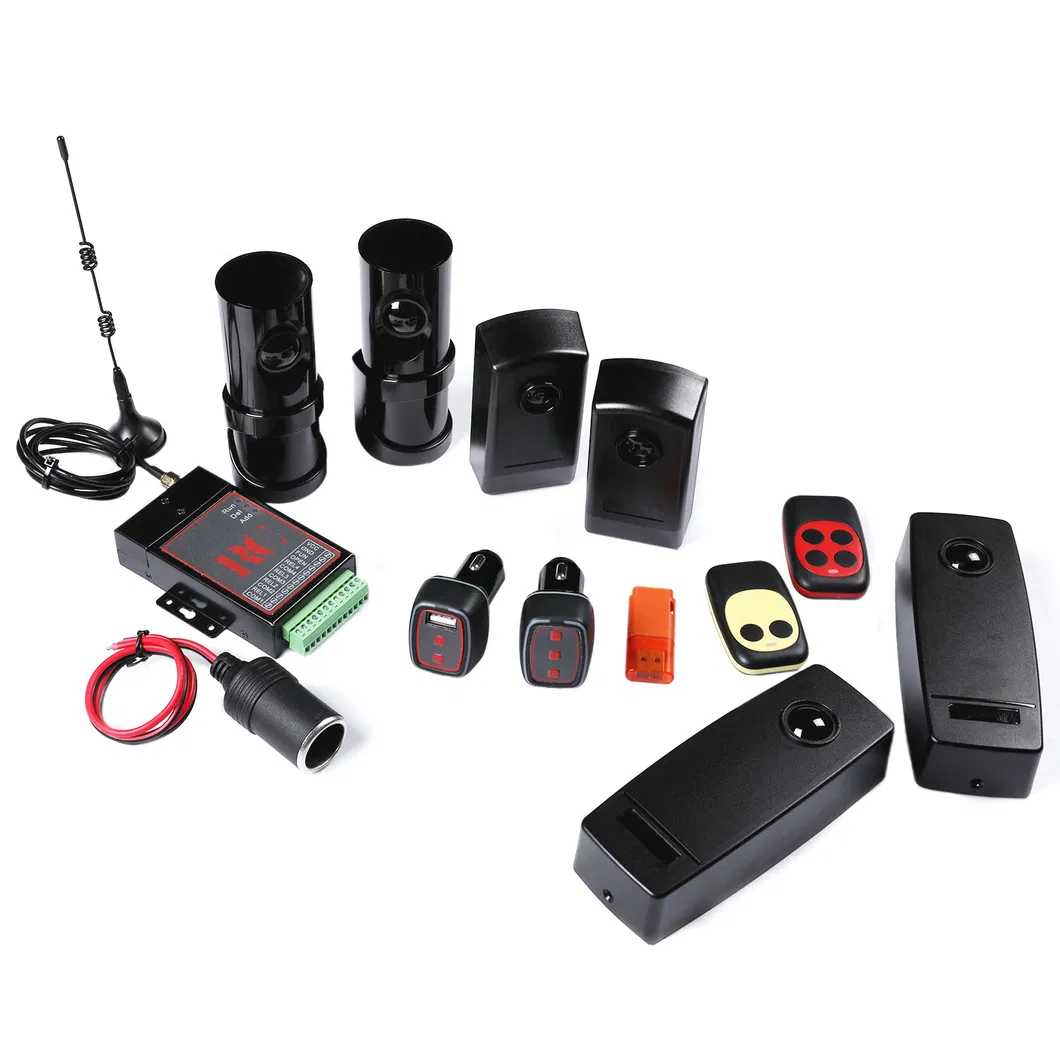

Integrated solutions include loop detectors, photocell beams, safety light curtains, card readers, and traffic lights for a complete parking and gate management system.
