Overview - Basic Info
Casing Protection
Protection Type
Structure & Working Principle
Brush
Transport Package
Inside Carton+Outside Carton
Production Capacity
100000pieces/Year
Product Description
Product Parameters
Key Features:
| No. |
Feature Description |
Details / Capabilities |
| A |
Rated power |
180w |
| B |
Stock and shipping time |
Production completion within 45 working days |
| C |
Speed & direction adjustment |
Easy |
| D |
Size range and noise |
37mm to 54mm size range with low noise |
| E |
Stability for driver/controller |
Strong |
| F |
Lifetime |
Above continuous 10000 hours |
| G |
Protection rank |
IP68 protection rank is available |
| H |
Energy efficiency |
Above 92% energy efficiency motor is available |
| I |
2D and 3D file |
2D and 3D file is available if customers needed |
| J |
Motor type |
Brushless DC motors |
| K |
Driver and controller |
High-performance and stable matching |
⚡ Long Lifespan: Built to last, saving you time and money in the long run.

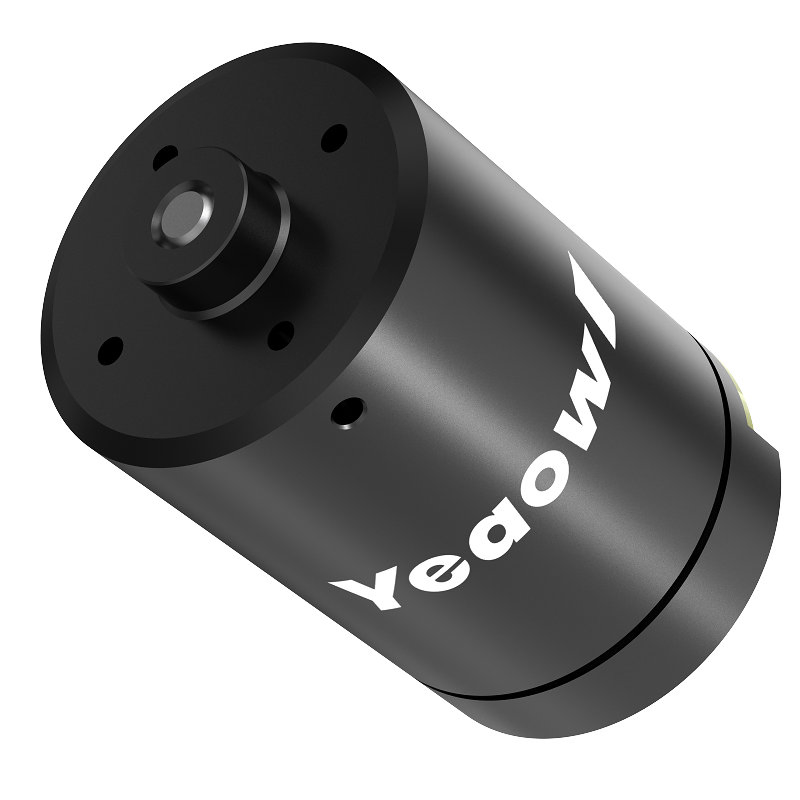

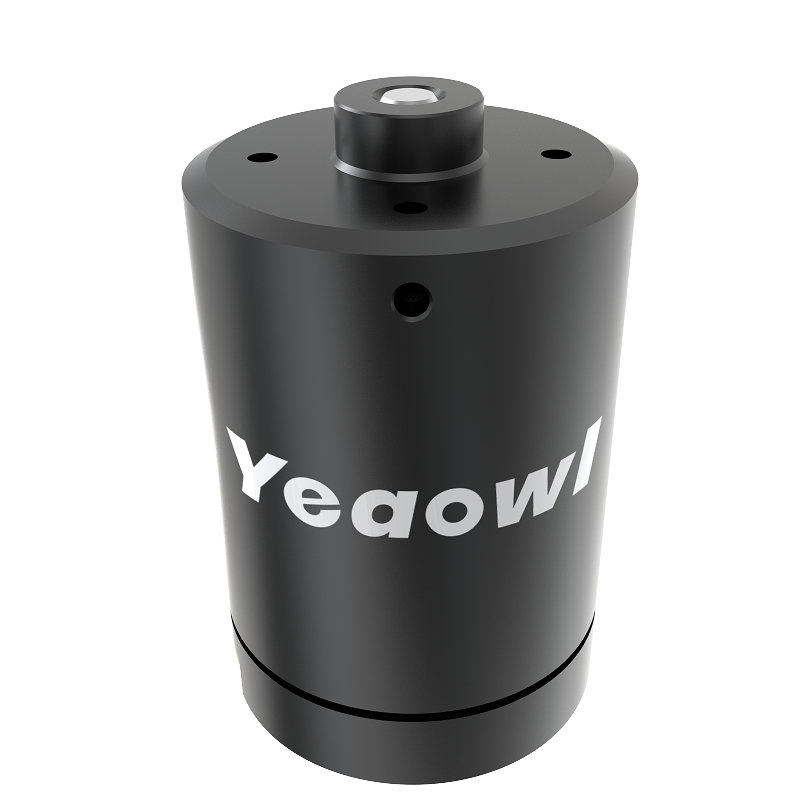

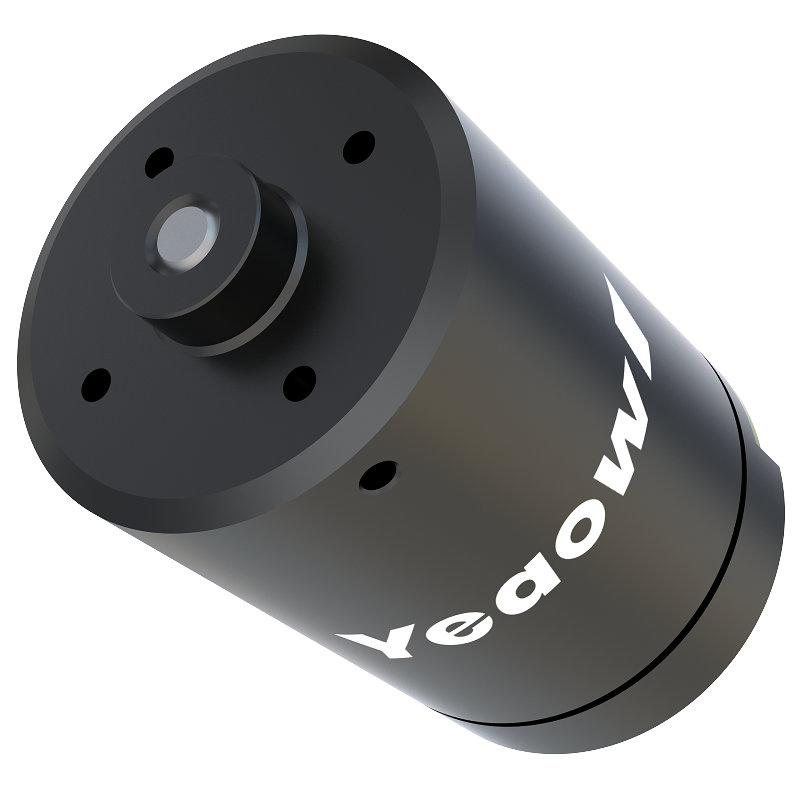

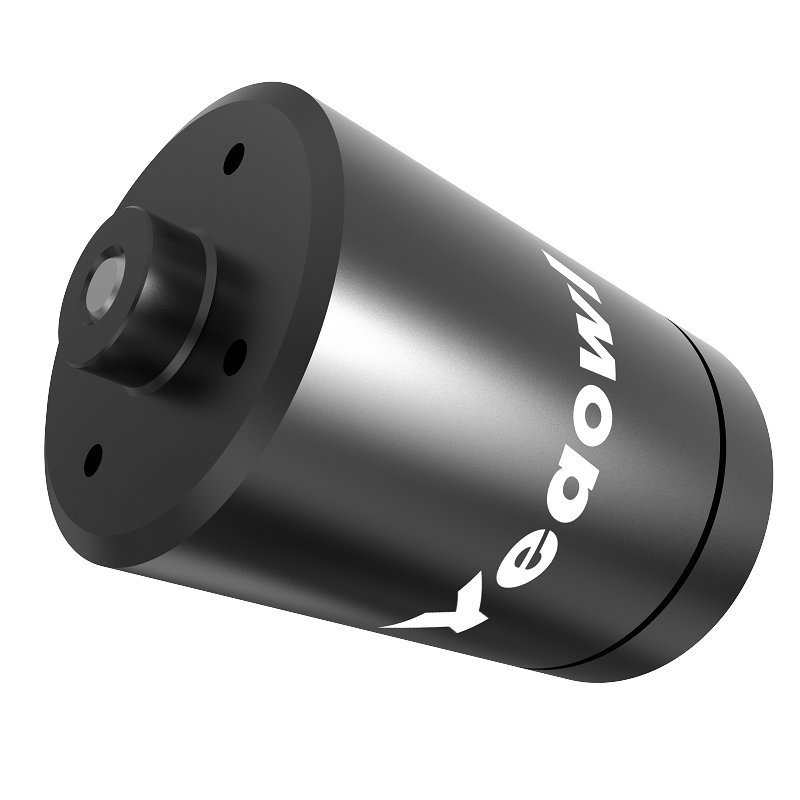

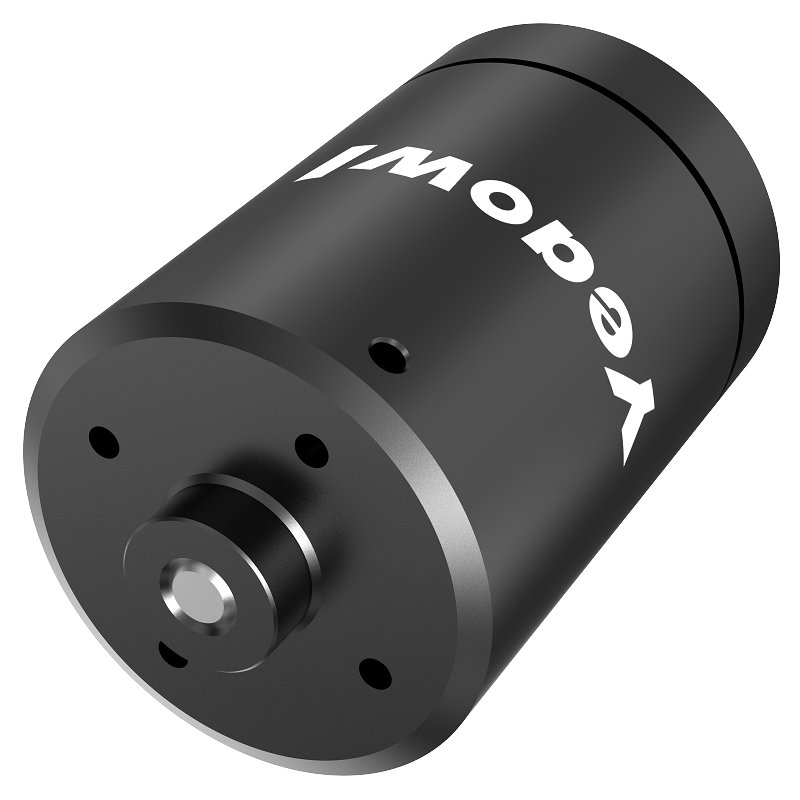

⚙ High Precision: Experience the power and precision of the YO3754X motor, crafted with cutting-edge technology for unmatched performance.
| Model No. |
T |
KV |
Max Amps (A) |
Max Volt (V) |
Continuous (W) |
Rated torque (N.M) |
Max Power (W) |
Max RPM |
RM (MΩ) |
No-Load Current |
Shaft Dia (mm) |
Size (mm) |
Bolt Pattern |
Weight (g) |
Poles |
| 3754X |
20T |
170 |
16.5 |
36V |
180 |
0.5 |
350 |
6000 |
630 |
0.5A |
Φ5 |
Φ37*54 |
4-M4 |
260 |
14P |

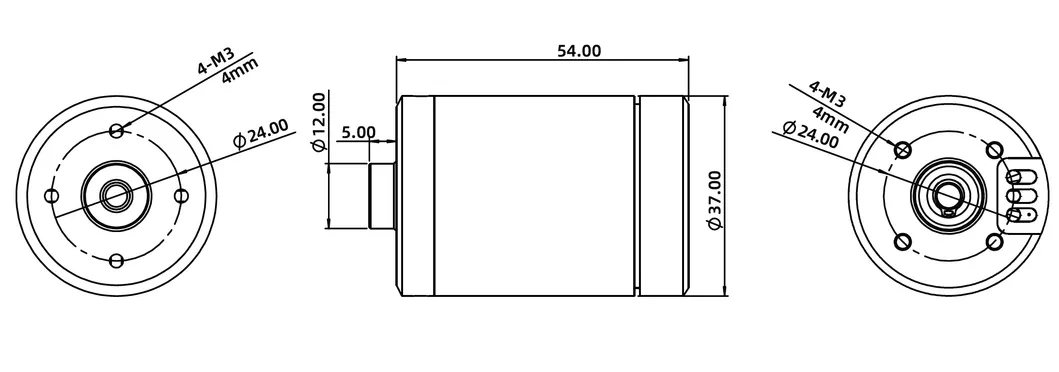

✉ For more details on product specifications and parameters, please contact us for the latest dimensional drawings. Thank you!

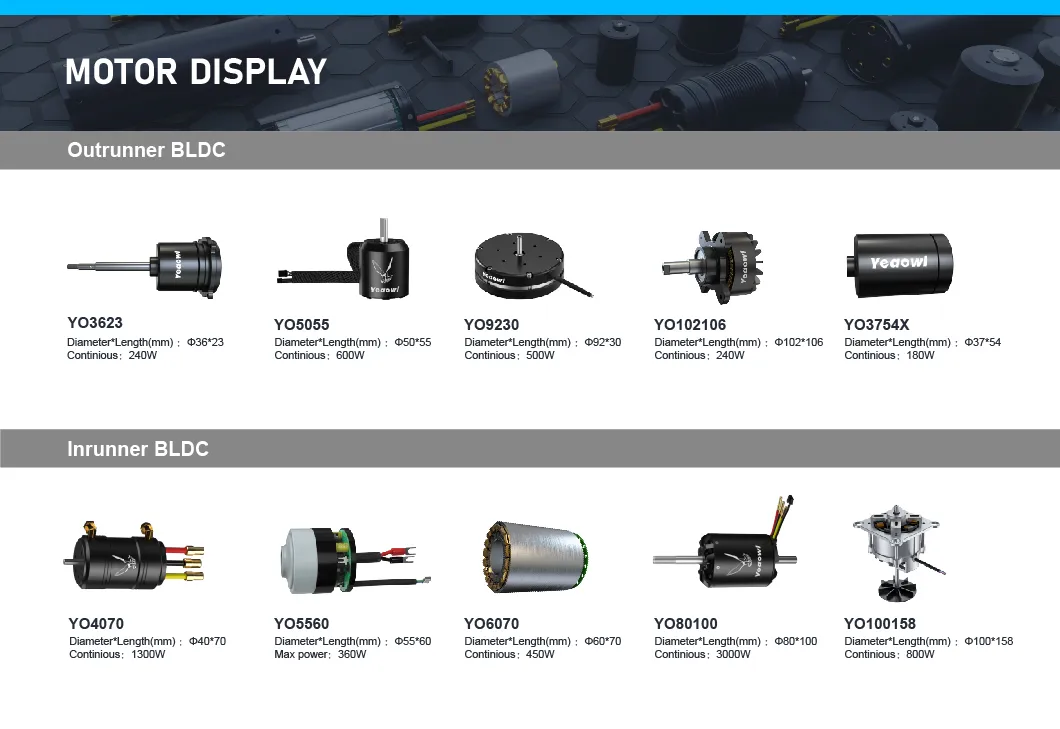

More Motor Display
The shape and technical parameters can be modified according to the customer's needs. We can customize the brushless motor needed for research and development according to customer requirements.

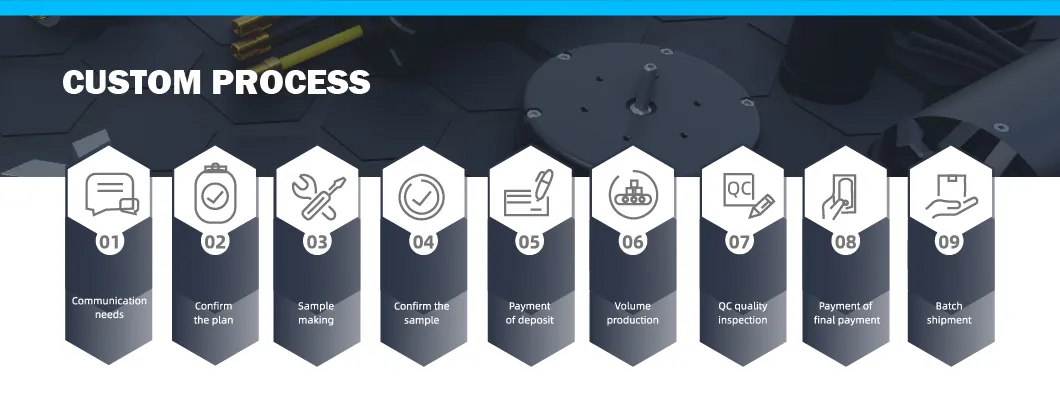

Motor Customization Process
We customize high-quality motors that truly meet customer requirements in terms of motor cost, product matching, functional requirements, etc. Our professional R&D team will work with you to provide you with excellent services.
Simpler processes, more efficient communication, and stricter quality control to ensure that we deliver truly excellent motors to you.

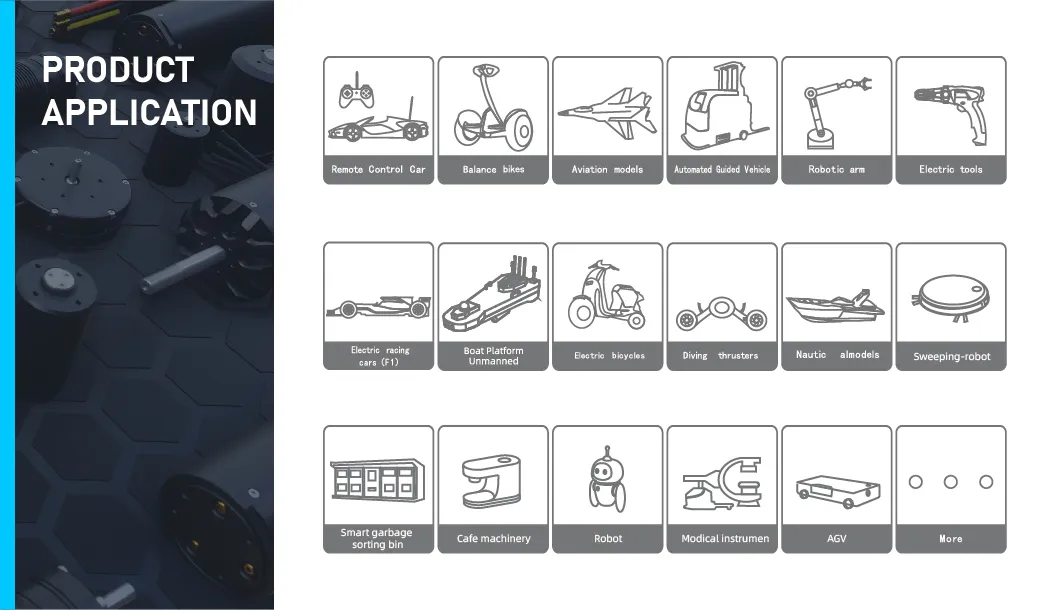

Our brushless DC motors are widely used in various electric drive products. Within the effective space size of your product, we can provide stronger power, and we are particularly adept at customizing motors for various application scenarios. For instance, we can cater to requirements such as waterproofing, dustproofing, customized irregular shapes for motor housings, various shaft output methods, different positioning holes, and more, in order to effectively meet your needs for motors.
Company Profile
As a leading enterprise dedicated to the research and development, production, and manufacturing of various types of motors, we focus on the cutting-edge research and breakthroughs in brushless DC motor technology. Our team is technically oriented and driven by market demand, independently developing and manufacturing various types of high-performance motors. Our products are exported to all parts of the world and have been highly recognized by customers and the market.
We rely on advanced manufacturing and testing equipment, mature manufacturing processes and rich manufacturing experience, excellent technical and management teams, and provide attentive service to customers. Solving customers' pain points is our unremitting goal.
We can provide customers with OEM processing and manufacturing, ODM customized research and development manufacturing based on customer needs to meet your various needs. We look forward to cooperating with you!

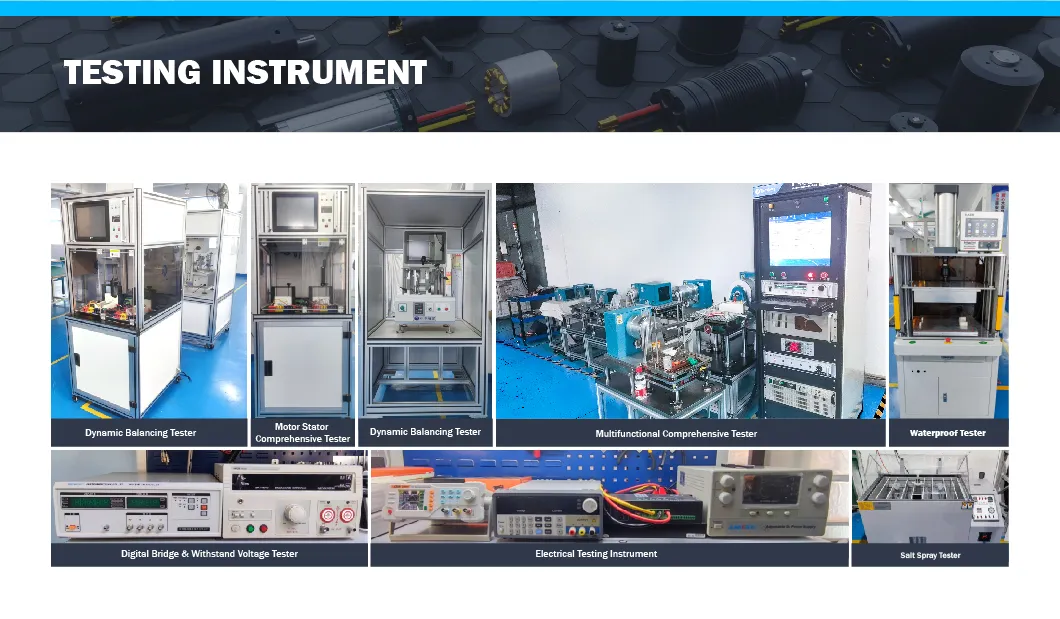

In terms of quality control, we conduct inspections through various professional instruments and equipment, from the inspection of raw materials upon arrival, to the inspection during the production process, and finally to the inspection of finished products. By relying on reliable instrument data, we ensure the superior quality of our products.
FAQ
Q1 What kind of motors can you provide?
For now, we mainly provide DC permanent magnet motors, DC brushless motors, waterproof motors, BLDC motors, motor drives, motor controllers, and comprehensive solutions for electric drive products.
Q2 Is there a MOQ for your motors?
Yes. Our minimum order quantity is 100 units or more, but we can accept 1 piece of sample production for your test. The price of sample production will be 100% to 300% different from the bulk price according to different styles.
Q3 Could you send me a price list?
For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque, and shaft diameter etc. The price also varies according to different order quantities, making it difficult to provide a fixed price list. If you can share your detailed specifications and order volume, we will prepare a targeted quote.
Q4 Are your motors reversible?
Yes, nearly all DC and AC motors are reversible. We have technical staff who can guide you on how to configure the direction using different wire connections.
Q5 Is it possible for you to develop new motors if we provide the tooling cost?
Yes. Please kindly share your detailed requirements like performance, size, annual quantity, and target price. Then we will make our evaluation to see if we can arrange development.
Q6 How about your delivery time?
For brushless DC motors, sample delivery time is approximately 45-60 days; lot production time is 50-70 days. Please refer to the sales confirmation for final reference dates.
