Torsion Motor
1 / 5

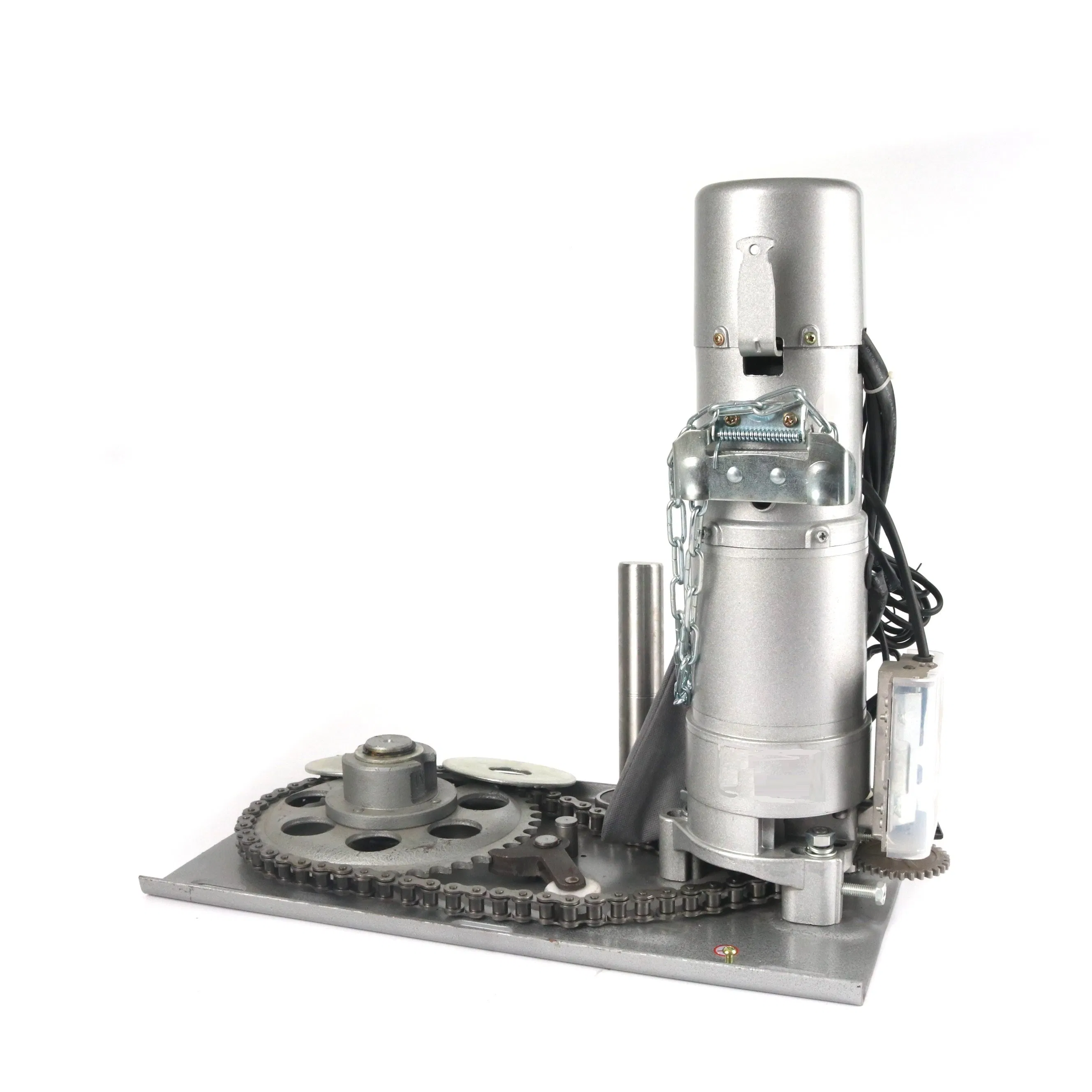

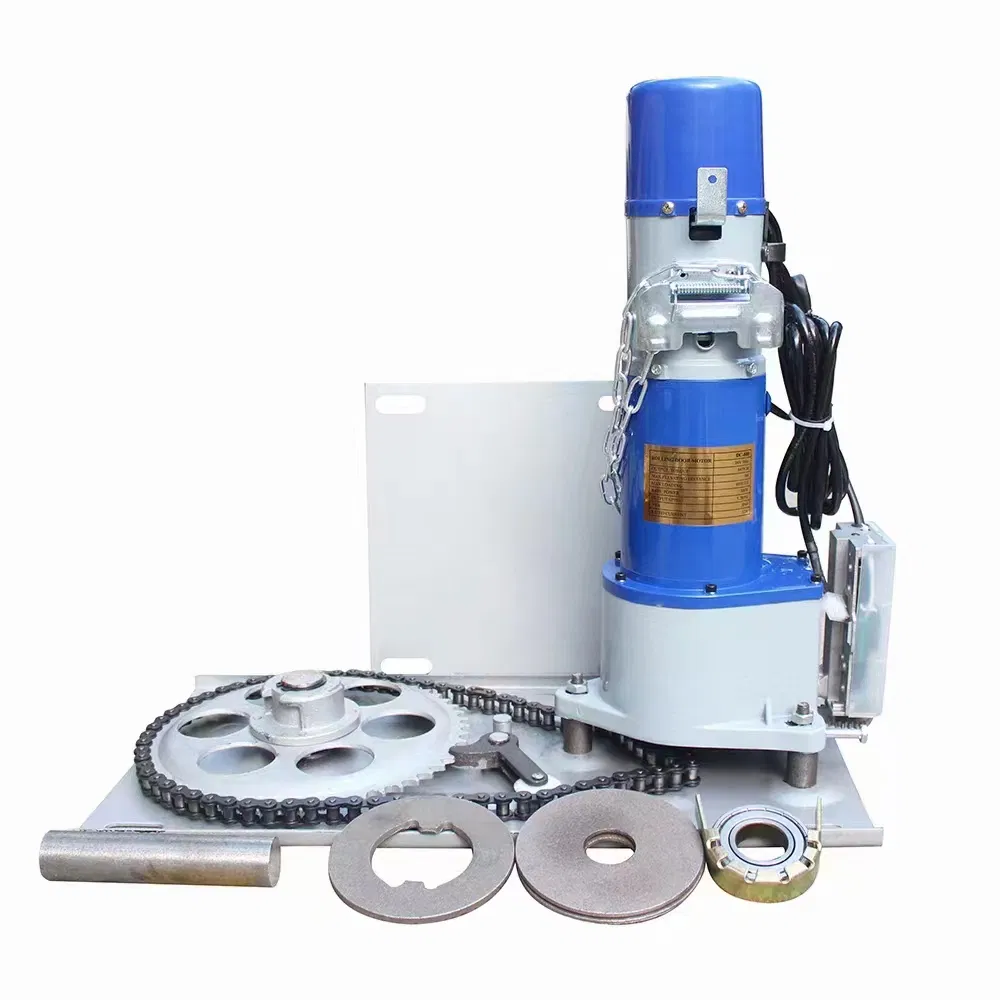

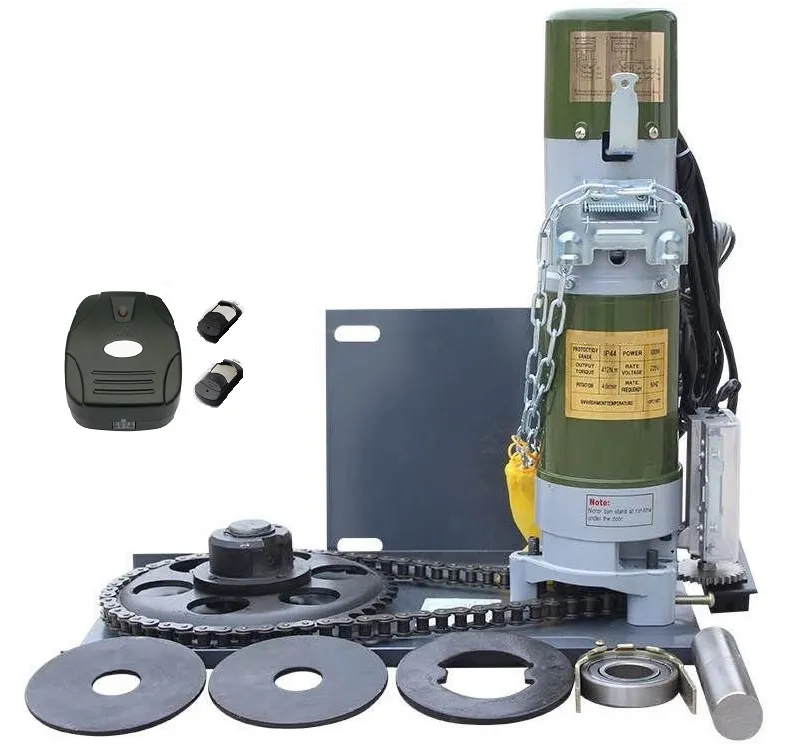

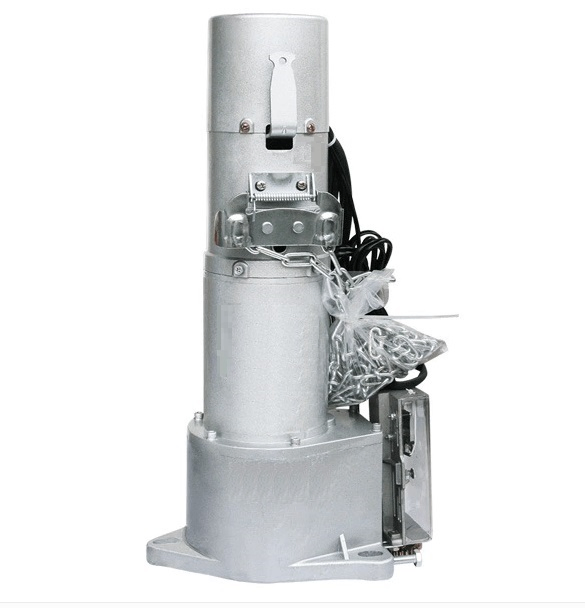

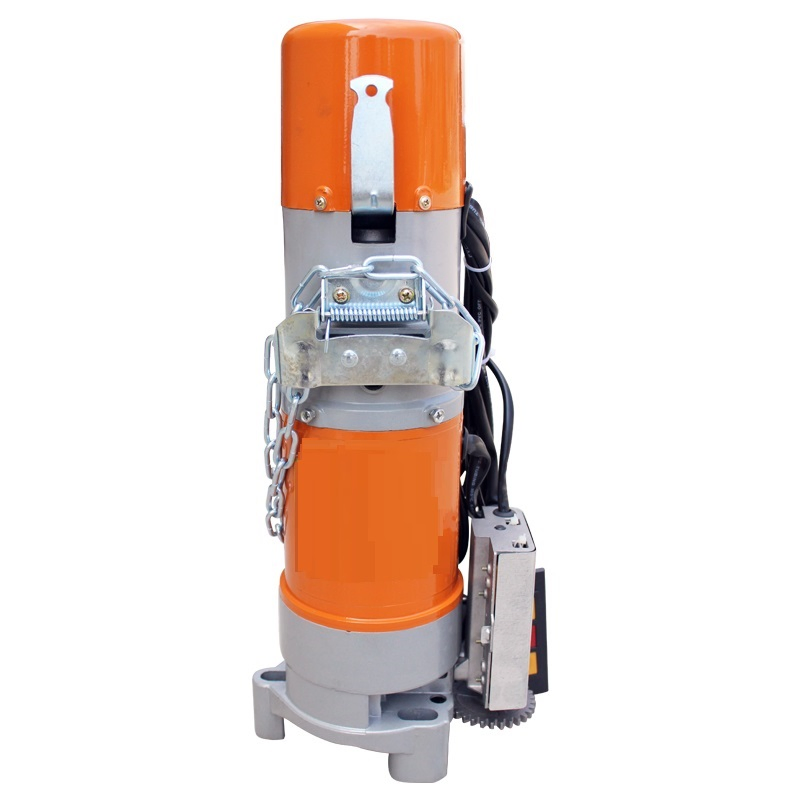

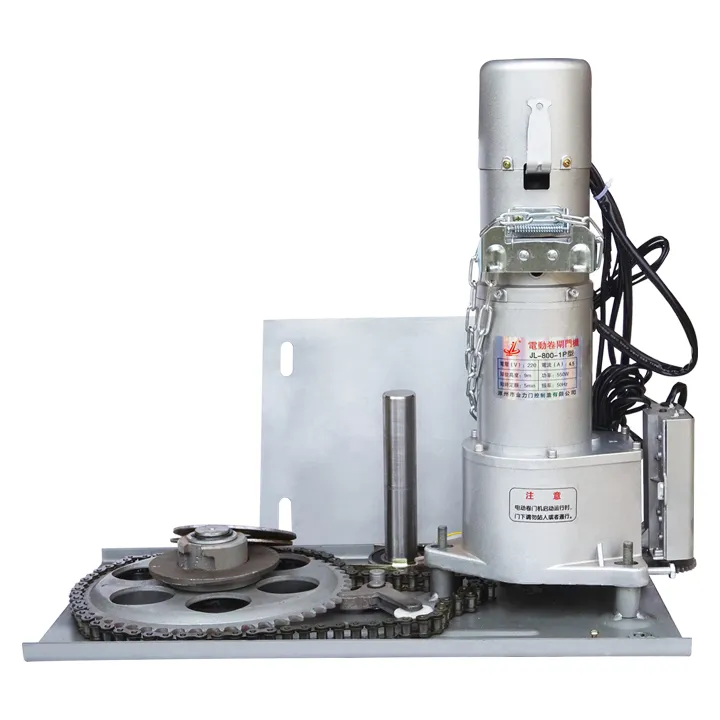

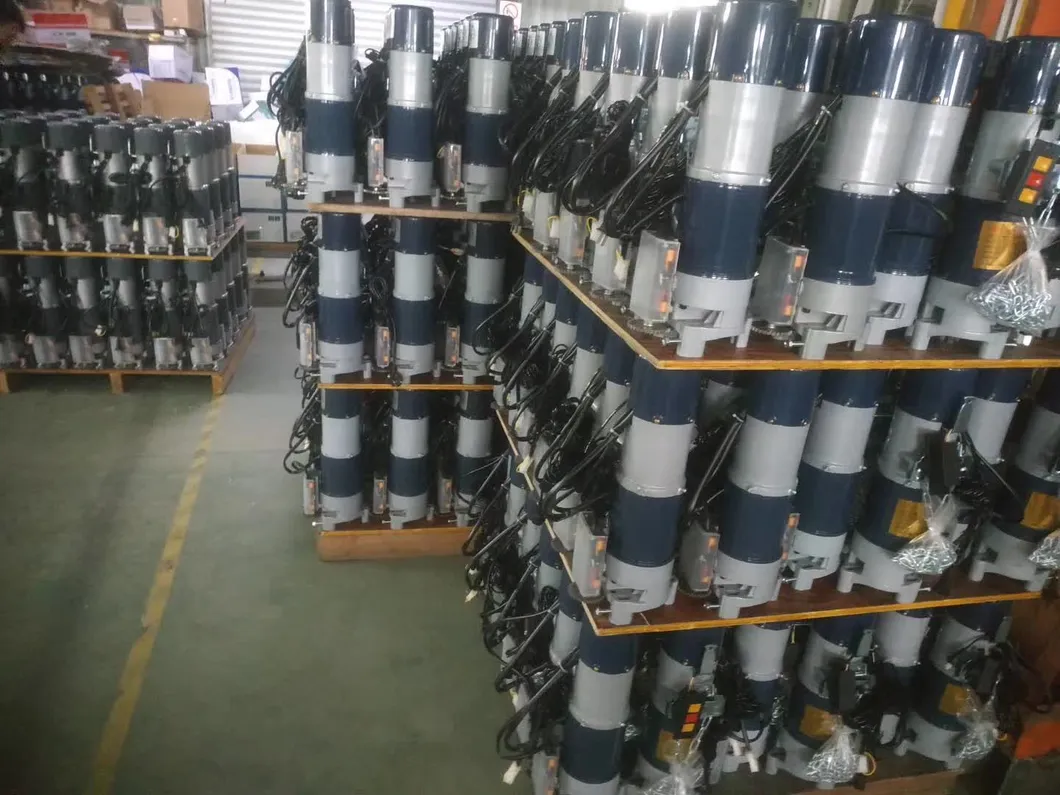

We are one professional supplier of electric rolling door motors. We develop and supply roller shutter door motors ranging from 300KG to 2000KG, including AC-DC rolling door motors, fire-proof rolling door motors, and accessories. Our products feature aluminum alloy casings, offering lightweight performance, low noise, long service life, and strong, safe, durable quality with anti-roll over features.
Our motors are widely utilized in shopping malls, garages, hotels, factories, and other commercial settings.
We offer customized brand, color, and packing services, allowing you to logo your products for your specific business needs.
Includes a 1-year warranty and free spare parts to ensure consistent and reliable performance for years.

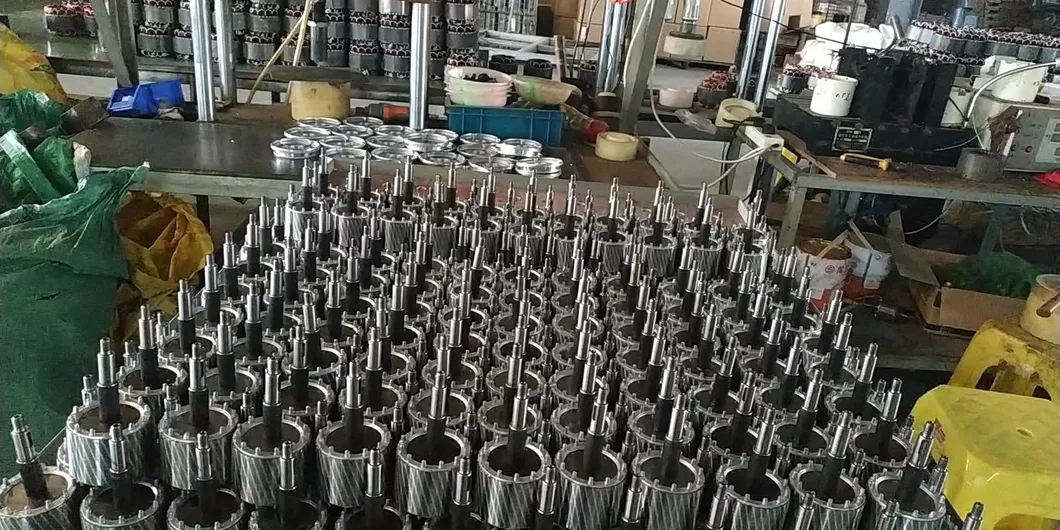

Motor windings are crafted from high-quality copper/aluminum, ensuring quiet operation suitable for any environment.
| Type | Rated Power (W) | Lifting Strength(KG) | Max Torque(N.m) | Output Speed (r/min) | Max Height (M) | Chain No | Work Time |
|---|---|---|---|---|---|---|---|
| 600 KG-1P | 200 | 350 | 168 | 4.8 | 6 | 10A | 5 |
| 600 KG-1P | 250 | 450 | 343 | 4.8 | 6 | 10A | 5 |
| 600 KG-1P | 300 | 500 | 412 | 4.8 | 6 | 10A | 5 |
| 600 KG-1P | 370 | 600 | 412 | 4.8 | 6 | 10A | 5 |
| 800 KG-1P | 550 | 800 | 647 | 3.94 | 9 | 10A | 8 |
| 1000 KG-1P/3P | 550 | 1000 | 809 | 3.75 | 9 | 12A | 13 |
| 1300 KG-1P/3P | 600 | 1300 | 1401 | 4.4 | 9 | 12A | 13 |
| 1500 KG-1P/3P | 800 | 1500 | 1617 | 5.2 | 9 | 16A | 13 |
| 2000 KG-3P | 1500 | 2000 | 2450 | 6 | 13 | 16A | 13 |
| Type | Rated Power (W) | Lifting Strength(KG) | Max Torque(N.m) | Output Speed (r/min) | Max Height (M) | Chain No | Work Time |
|---|---|---|---|---|---|---|---|
| F-600 KG-3P | 250 | 600 | 412 | 4.8 | 6 | 10A | 5 |
| F-800 KG-3P | 300 | 800 | 590 | 3.94 | 9 | 10A | 5 |
| F-1000 KG-3P | 300 | 1000 | 617 | 3.75 | 9 | 12A | 5 |
| F-1500 KG-3P | 800 | 1500 | 1617 | 5.2 | 9 | 12A | 5 |
| F-2000 KG-3P | 1500 | 2000 | 2450 | 3.6 | 16 | 16A | 13 |
