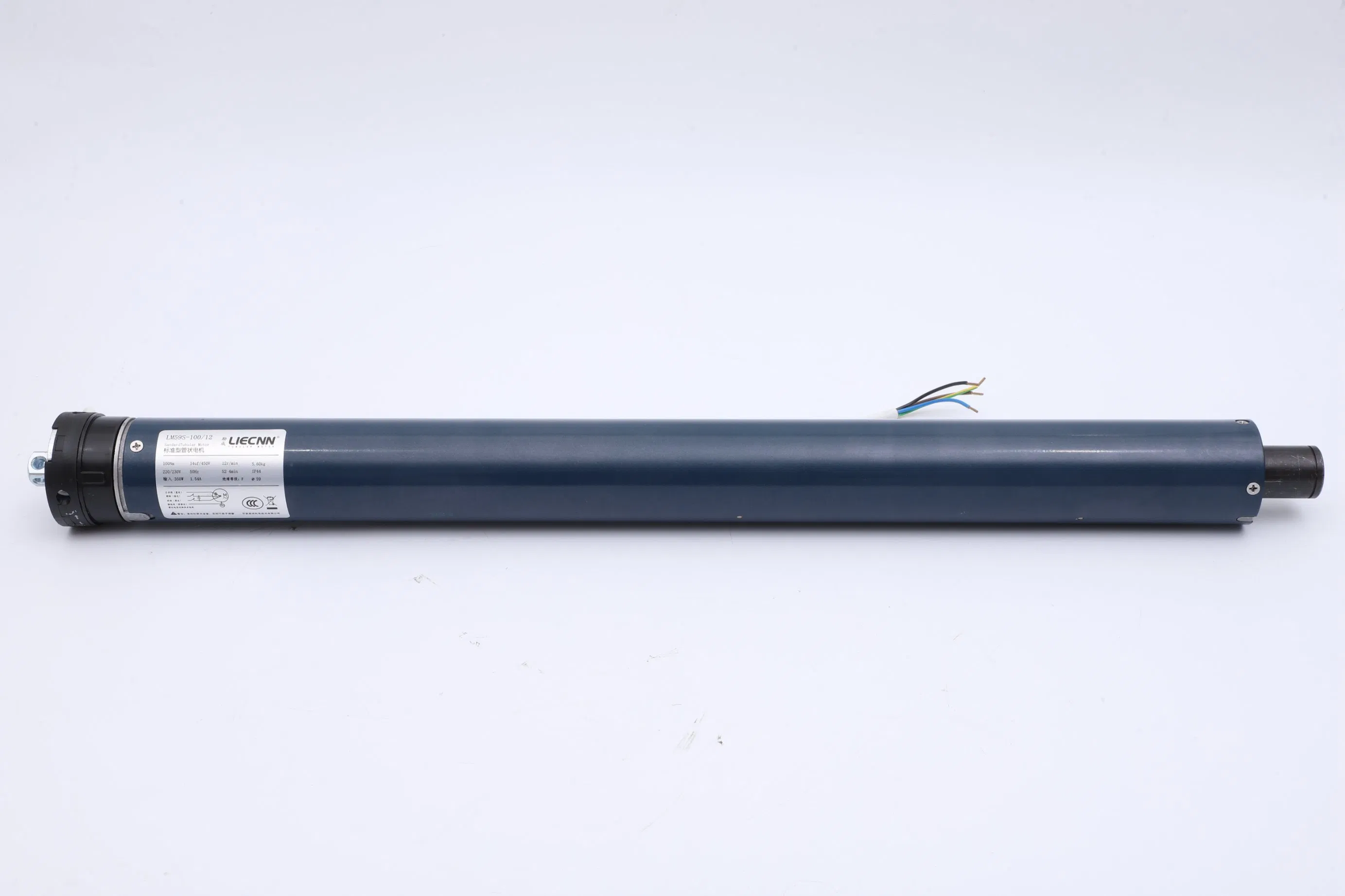

Torsion Motor
1 / 5

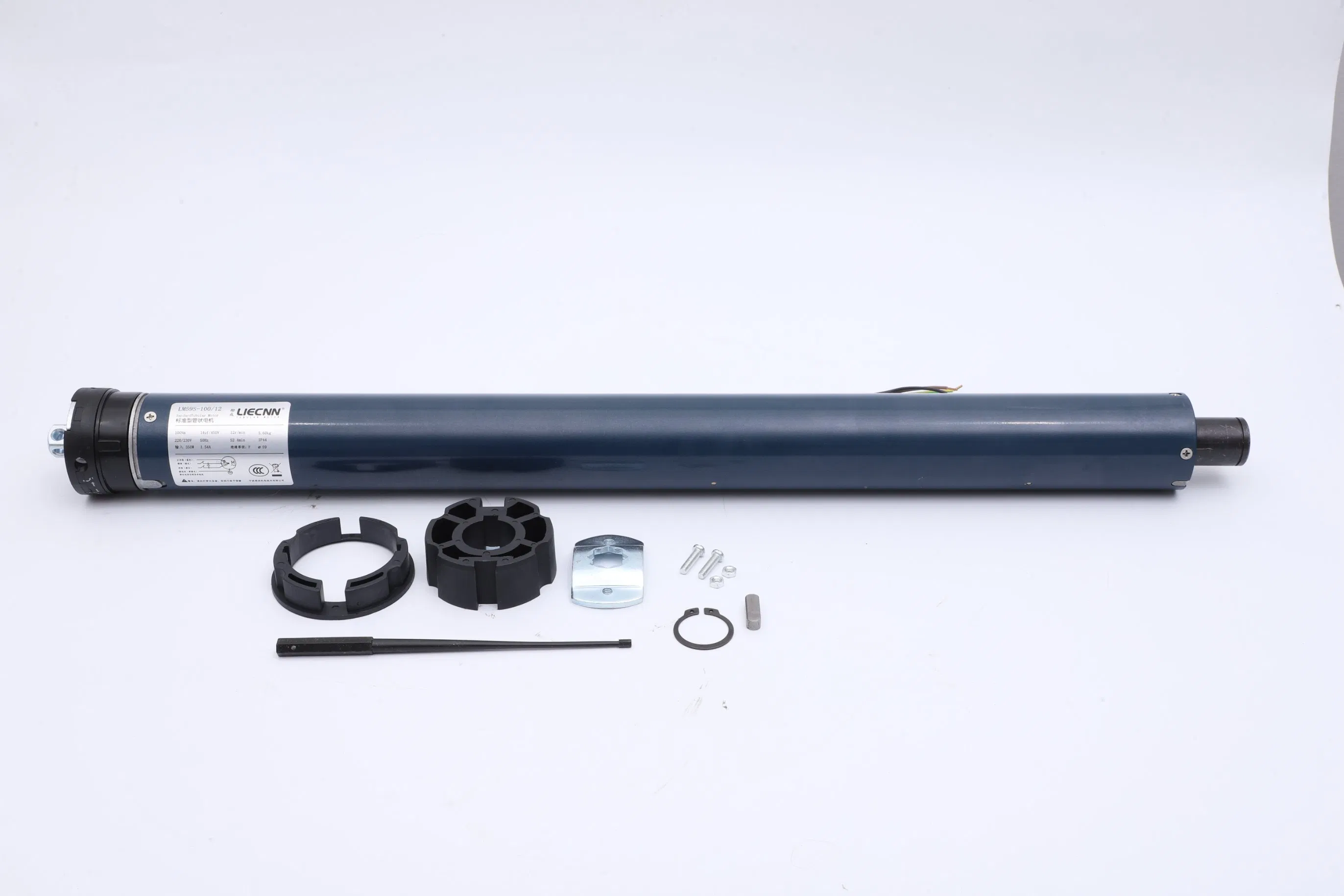

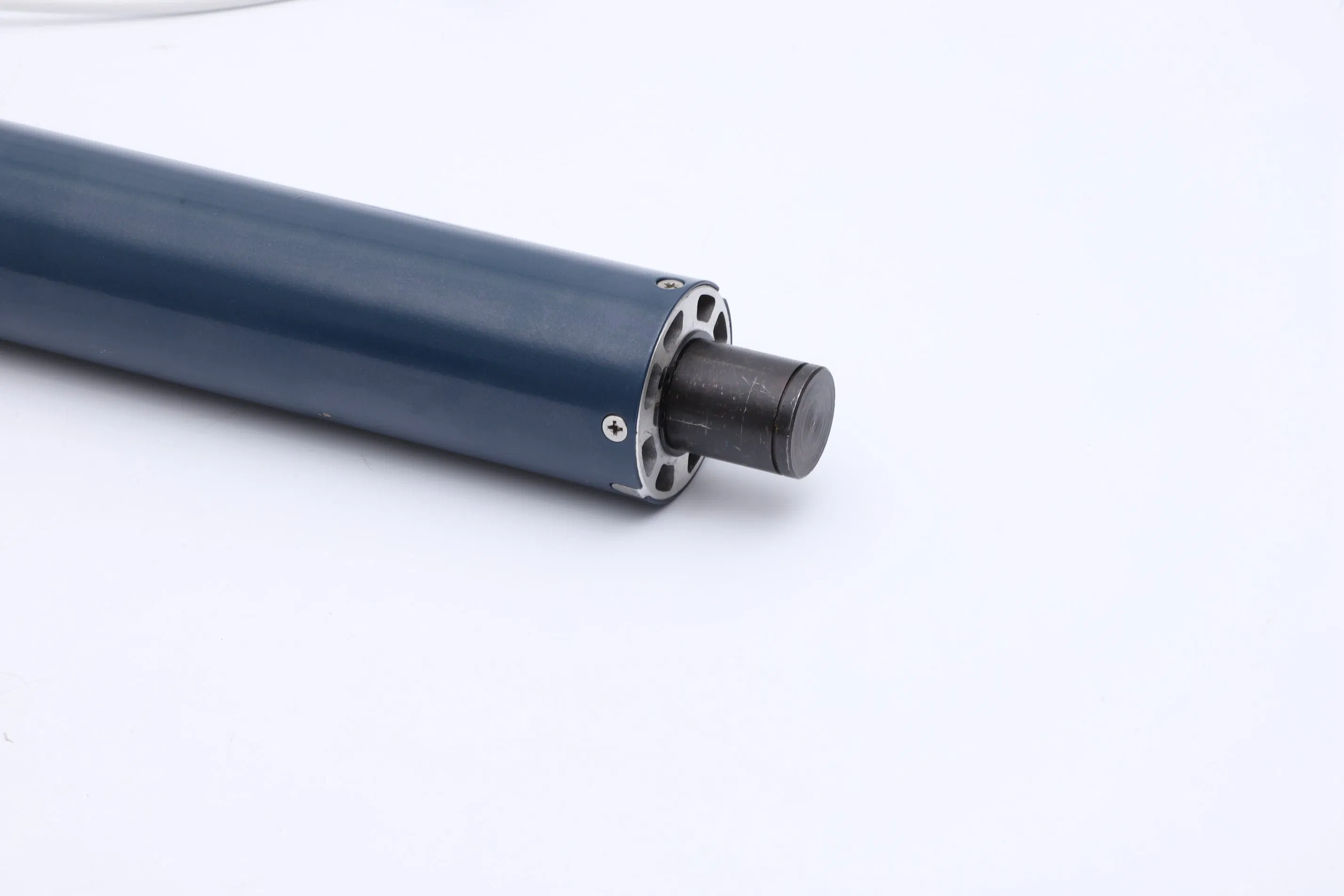

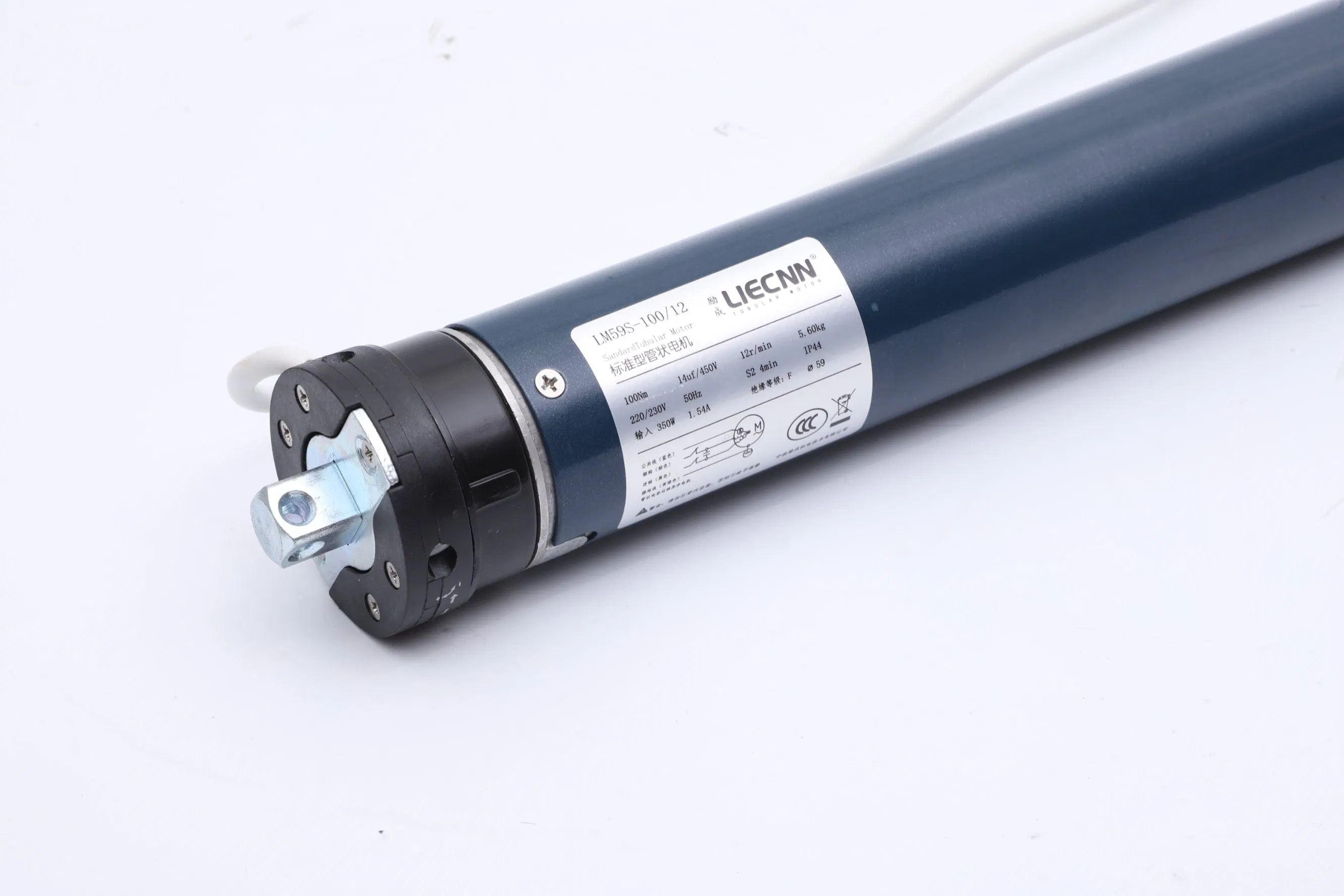

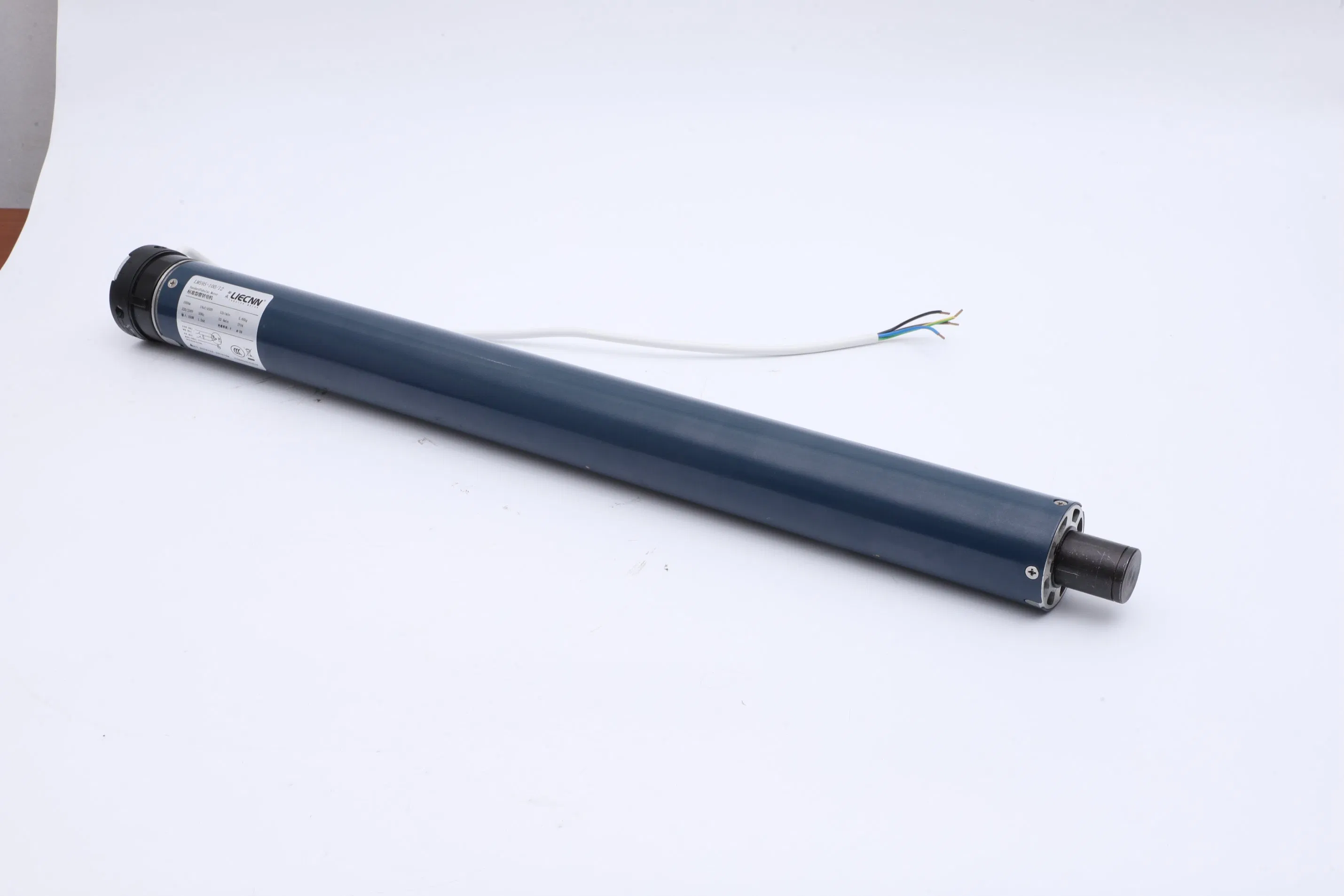

Model: LM59S-80N/12R. Support batch customization.
Voltage: 220v, 110v, 24v, 12v
The lifting forces of the motor are 80N, 100N, 140N, 160N, and 180N respectively. The pipe diameter is 59 millimeters.
The 45 standard tubular motor is mostly used in industries such as automatic projection screens, electric curtains, electric blinds, electric Roman shades, electric awning curtains, and Shangri-La blinds. The AC rated voltage is 220V and 110V, while the DC rated voltage is 24V and 12V. Both the packaging and nameplates support customization.
| LM59S-80N/12R | ||
| 80Nm | 230V | 12r/min |
| 14uf/450V | 50Hz | Φ59 |
| 330W | 1.8A | S2:4min |
| 5.6kg | IP44 | I.CI.F |
| LM59S-100N/12R | ||
| 100Nm | 230V | 12r/min |
| 14uf/450V | 50Hz | Φ59 |
| 350W | 1.54A | S2:4min |
| 5.6kg | IP44 | I.CI.F |
| LM59S-120N/10R | ||
| 120Nm | 230V | 10r/min |
| 14uf/450V | 50Hz | Φ59 |
| 460W | 1.8A | S2:4min |
| 5.6kg | IP44 | I.CI.F |
