Factory Direct Industrial Roll up Door Motor 150kg Automatic Industrial Door Motor for Industrial Metal Door Gate
Factory Direct Industrial Roll up Door Motor 150kg Automatic Industrial Door Motor for Industrial Metal Door Gate
Factory Direct Industrial Roll up Door Motor 150kg Automatic Industrial Door Motor for Industrial Metal Door Gate
Factory Direct Industrial Roll up Door Motor 150kg Automatic Industrial Door Motor for Industrial Metal Door Gate
Factory Direct Industrial Roll up Door Motor 150kg Automatic Industrial Door Motor for Industrial Metal Door Gate
1 / 5
Factory Direct Industrial Roll up Door Motor 150kg Automatic Industrial Door Motor for Industrial Metal Door Gate
Factory Direct Industrial Roll up Door Motor 150kg Automatic Industrial Door Motor for Industrial Metal Door Gate
Factory Direct Industrial Roll up Door Motor 150kg Automatic Industrial Door Motor for Industrial Metal Door Gate
Factory Direct Industrial Roll up Door Motor 150kg Automatic Industrial Door Motor for Industrial Metal Door Gate
Factory Direct Industrial Roll up Door Motor 150kg Automatic Industrial Door Motor for Industrial Metal Door Gate

Factory Direct Industrial Roll up Door Motor 150kg Automatic Industrial Door Motor for Industrial Metal Door Gate

Send Inquiry

Product Description

Industrial Roll up Door Motor
Product Features
Advanced Braking Motor is isolated from controller's HV output circuit. Quiet, soft braking, more stable operation and safer braking.
Simple Installation Only 2 connecting cables between motor reducer and electric box. Easy wiring on site.
Intelligent Control Controller adopts IPM intelligent module with compact structure and strong functionalities.
Multiple Modes Supports manual/automatic, fully/partially open, interlocking, and RS485 Internet of Things remote control.
Absolute Encoder Absolute value encoder or mechanical limit switch can be selected for precise position control.
Real-time Monitoring Real-time monitoring on signal and alarm, with one-key to restore factory preset values.

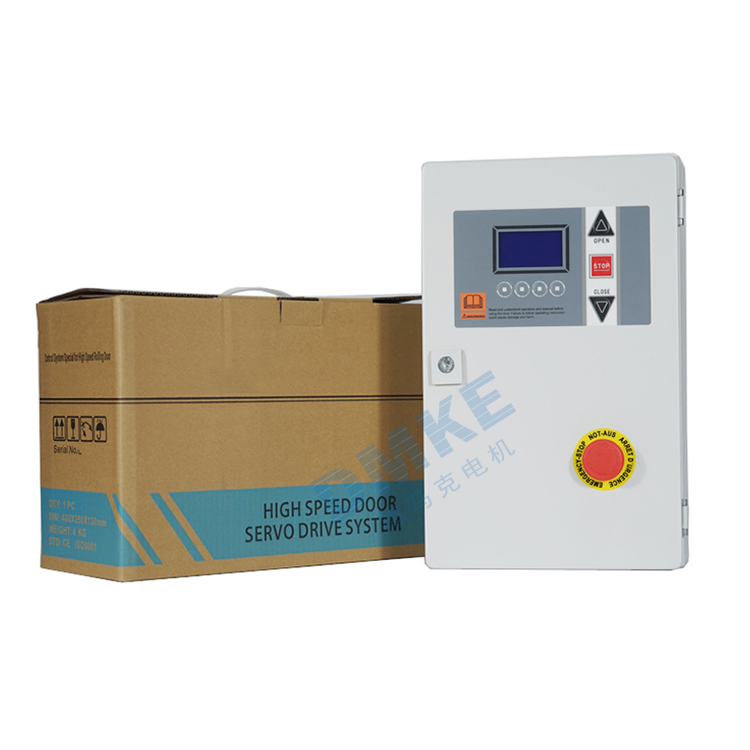

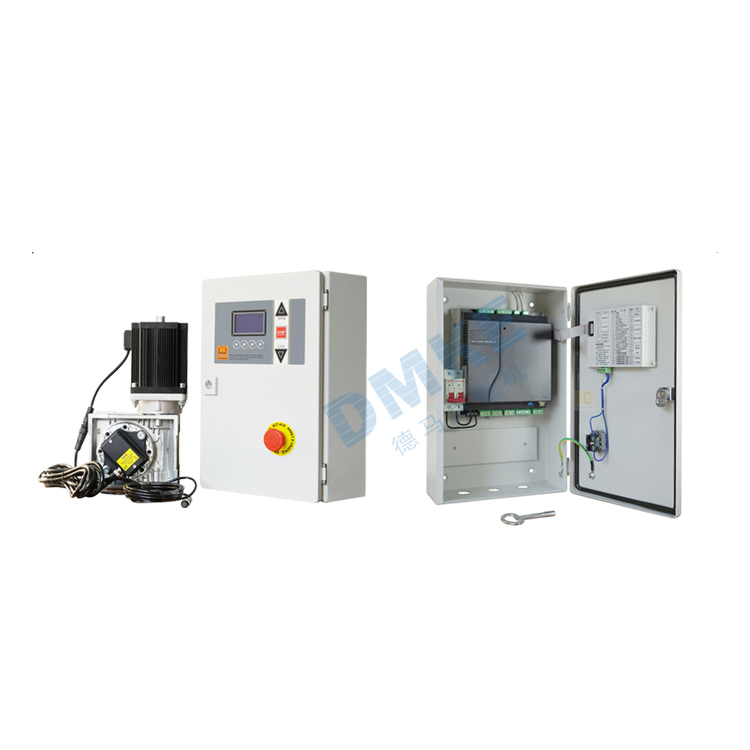

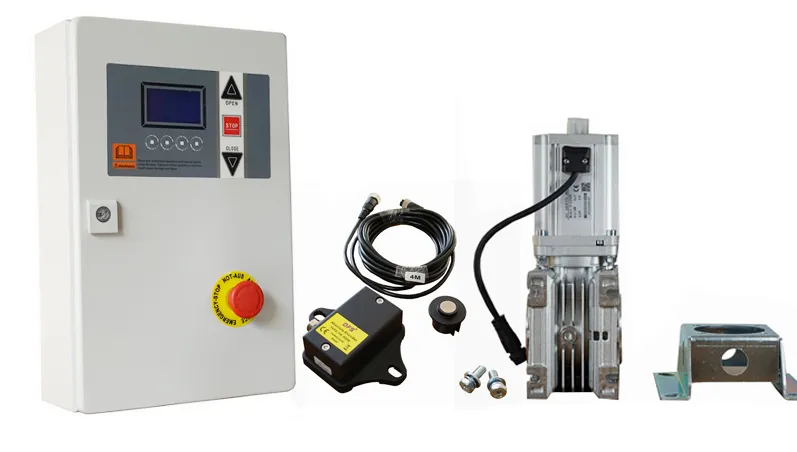

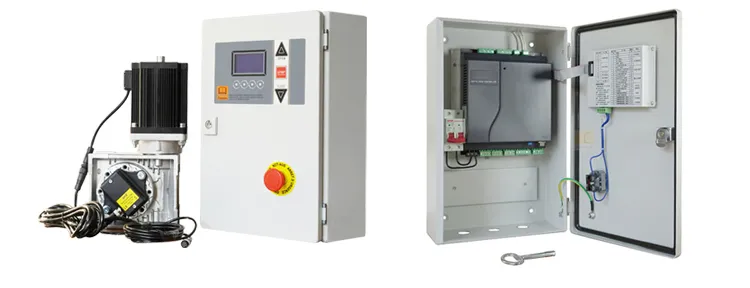

Servo Control Box and Motor Set

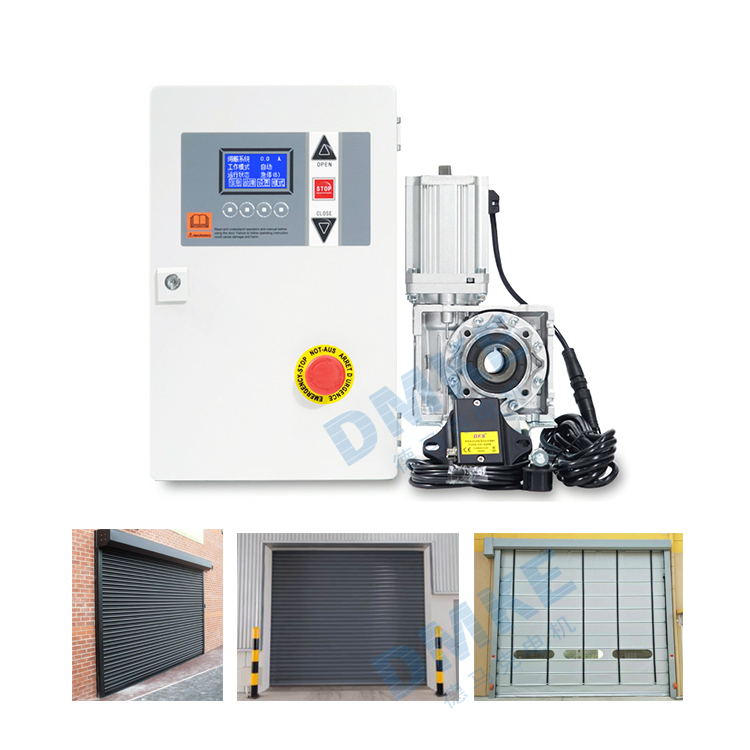

The products include a set of servo control boxes, servo motors, and absolute encoders, used to support the control of PVC fast rolling shutter doors, stacking doors, hard fast rolling doors, sliding doors and other industrial categories. Plug and play, stable performance, and easy to debug.

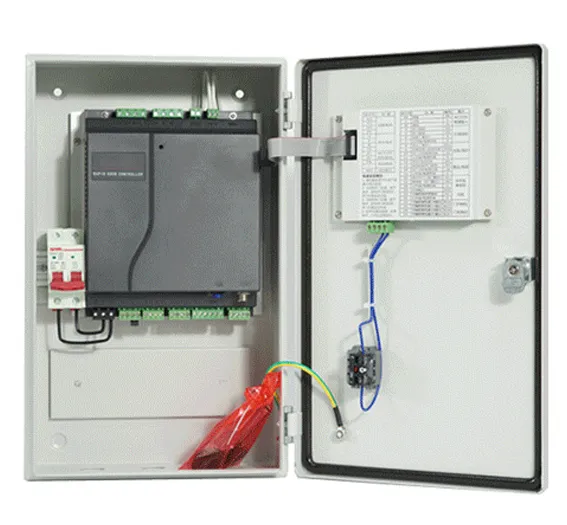

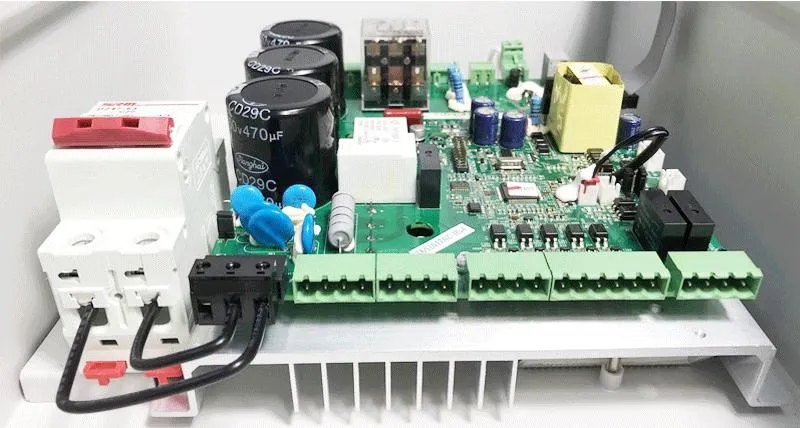

IPM Power Module

IPM Intelligent Power Module Design

The control box adopts the leading IPM intelligent power module design. The structure is clean and compact, and only two cables are connected between the control box and the motor, ensuring a plug-and-play experience.

Control Box Specifications

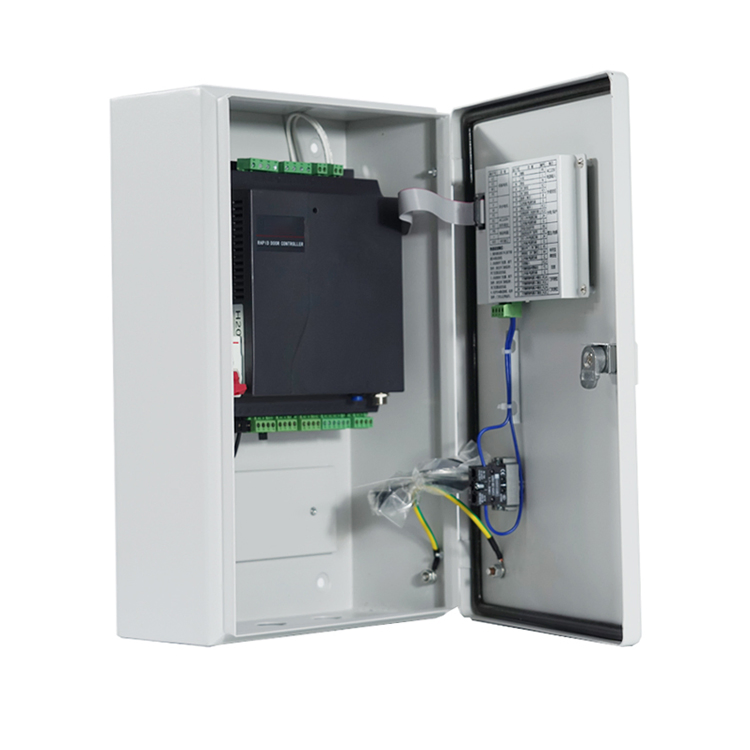

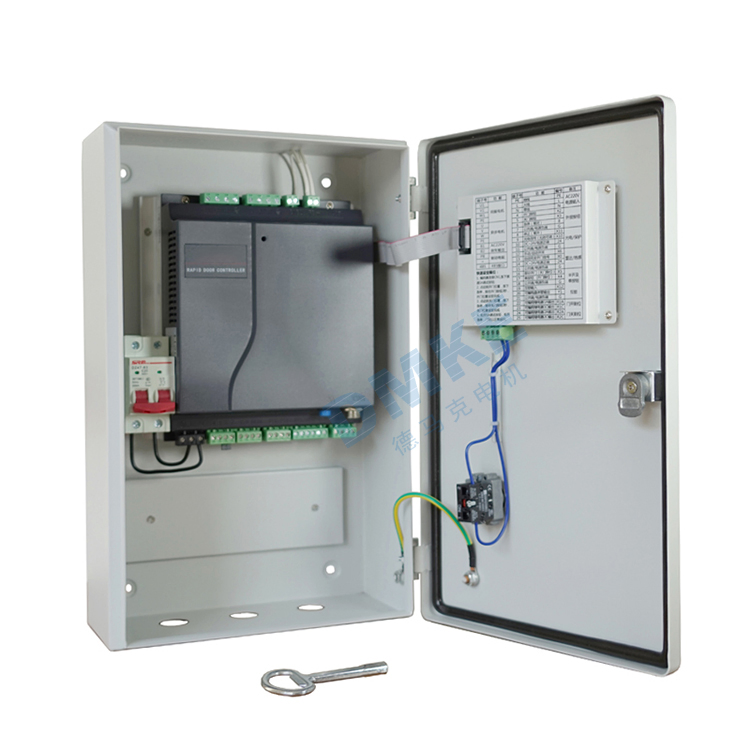

Control Box Panel Control Box Internal
Model DM400 DM401 DM402
Rated Power 0.75kw 1.5kw 2.2kw
Shell Size 250 x 400 x 130 mm
Power Supply Voltage Single-phase AC220V~240V 50~60Hz
Control Voltage DC24V, Max. current 400 mA
Operating Temperature -10~50ºC
Motor Specifications
Motor Specification Details
Motor Model DM-2430 DM-4030 DM-6030
Rated Power 0.75KW 1.5KW 2.2KW
Lifting Weight 50KG 100KG 150KG
Applicable Door Size 10M² 30M² 50M²
Protection Grade IP54
Technical Drawings

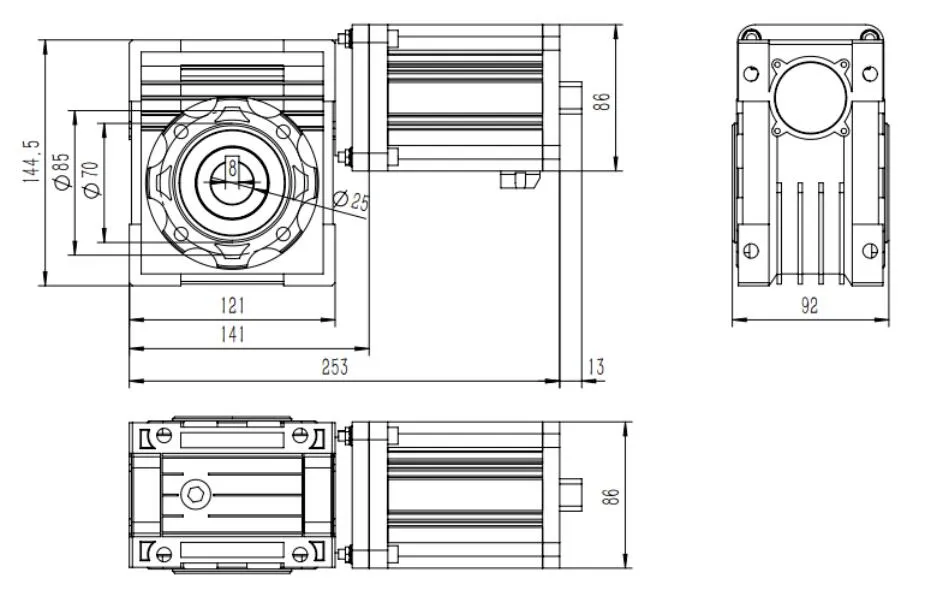

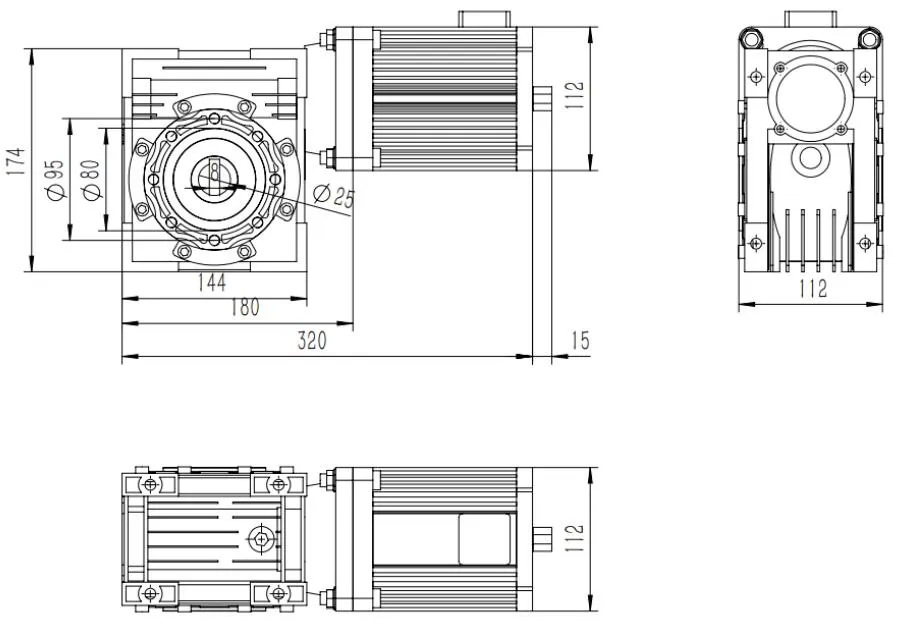

0.75KW Size Drawing 1.5KW Size Drawing Encoder Drawing

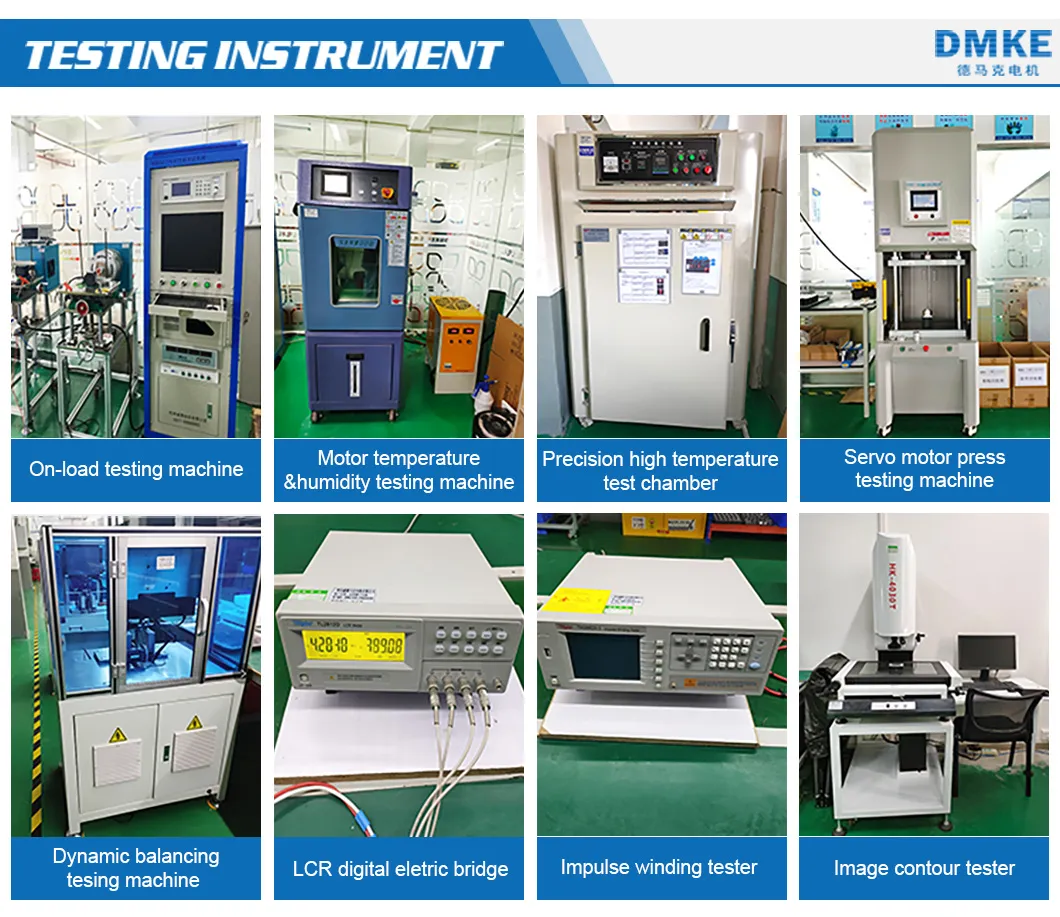

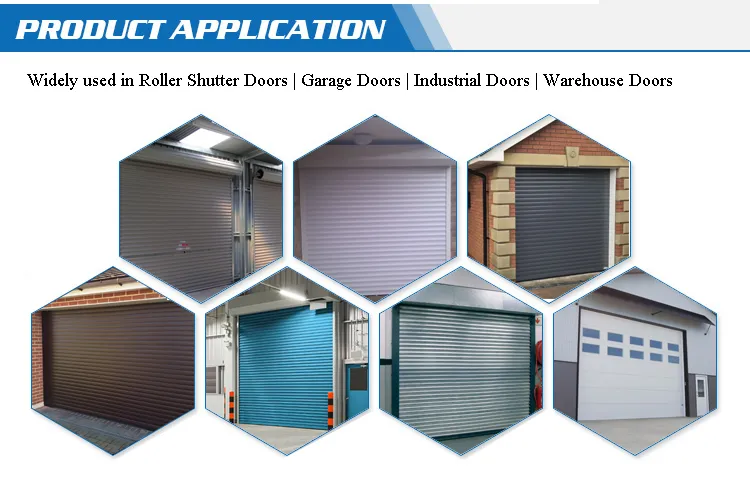

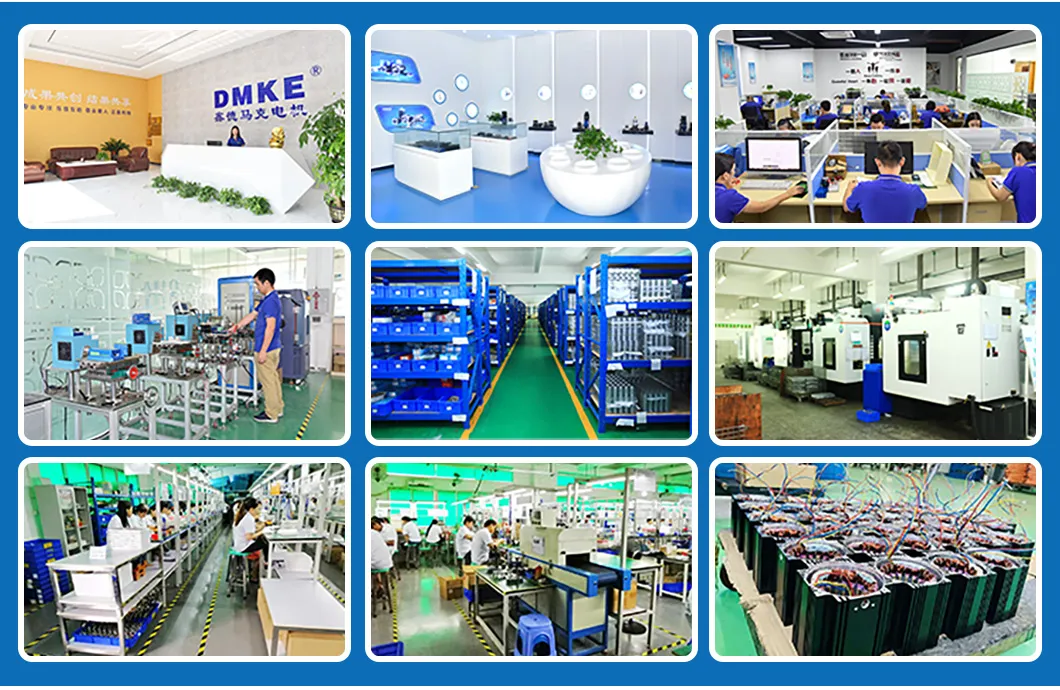

Product Application Warehouse Stock Production Line
Frequently Asked Questions
What kind of motors can you provide?
We mainly provide permanent magnet brushless DC motors, DC gear motors, micro DC motors, planetary gear motors, DC servo motors, and brush DC motors, with power ranges from 5W to 20KW.
Is there a minimum order quantity (MOQ)?
No. We can accept 1 piece for sample testing. Please note that sample pricing may differ from bulk pricing by 10% to 30%.
Are your motors reversible?
Yes, nearly all DC and AC motors we provide are reversible. Our technical team can guide you on the wire connection required for this function.
Can you develop new motors for custom requirements?
Yes, if requirements like performance, size, and annual quantity are provided, we can evaluate the feasibility of developing new motors.
What is the typical delivery time?
For micro brush DC gear motors, samples take 2-5 days and bulk orders take 15-20 days. For brushless DC motors, samples take about 10-15 days.
What are your warranty terms?
We provide a one-year warranty on our products.
