Basic Info.
Driving Type
Electromechanical

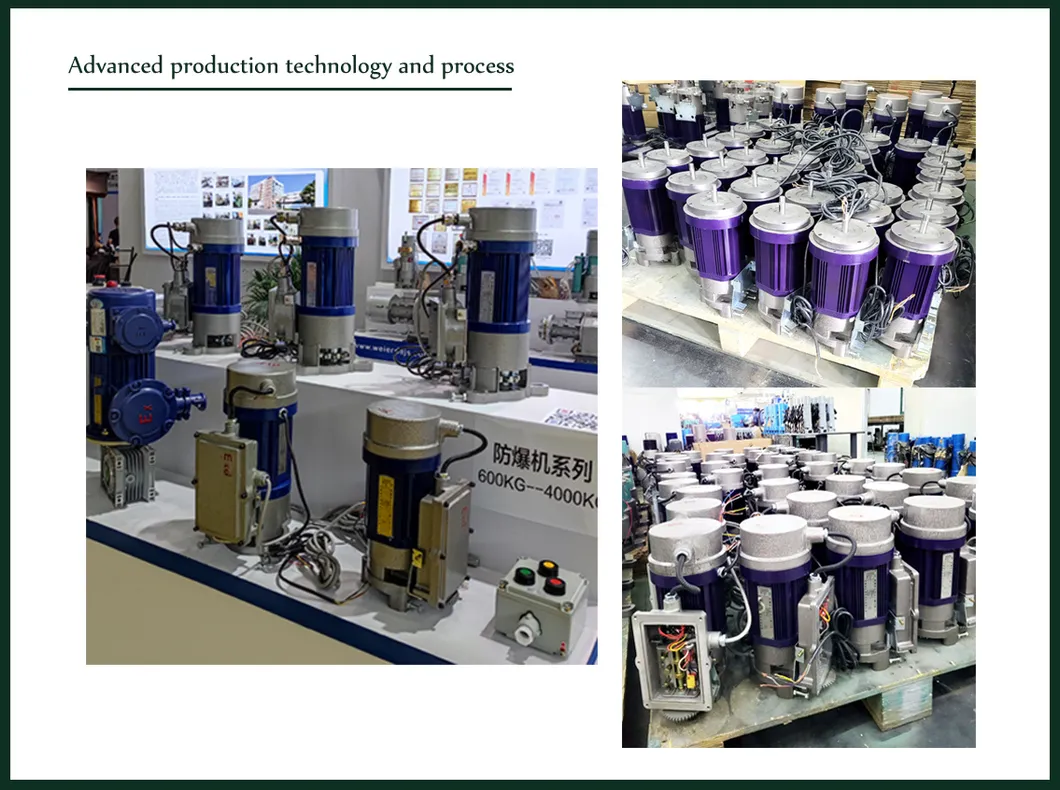

Production Capacity
50000 Pieces/Year
Product Description

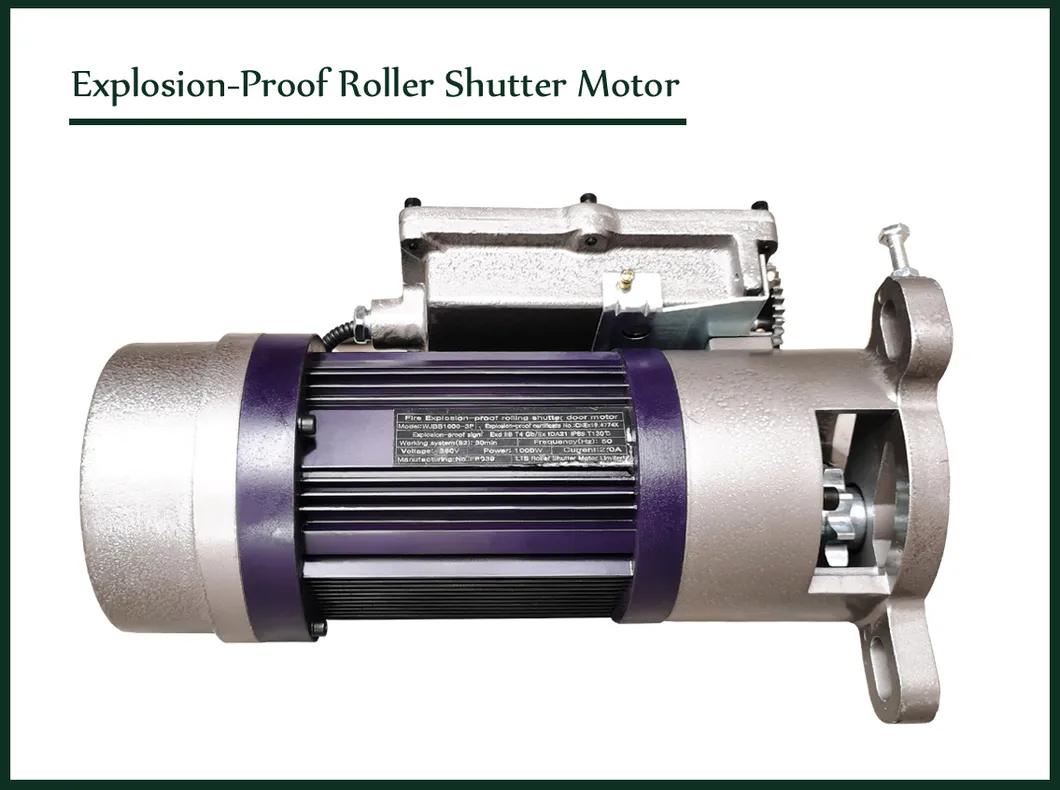

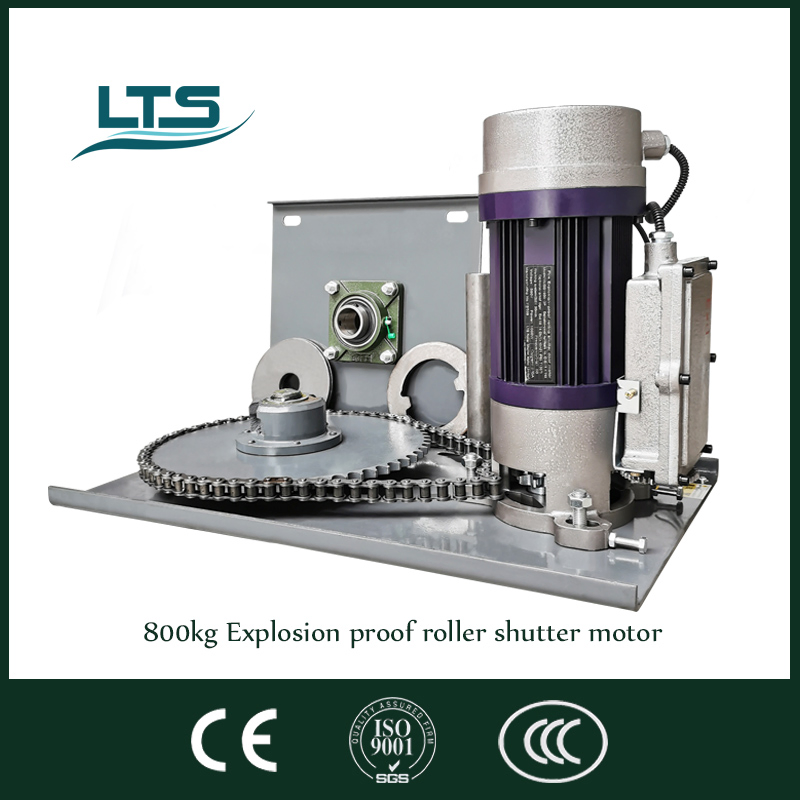

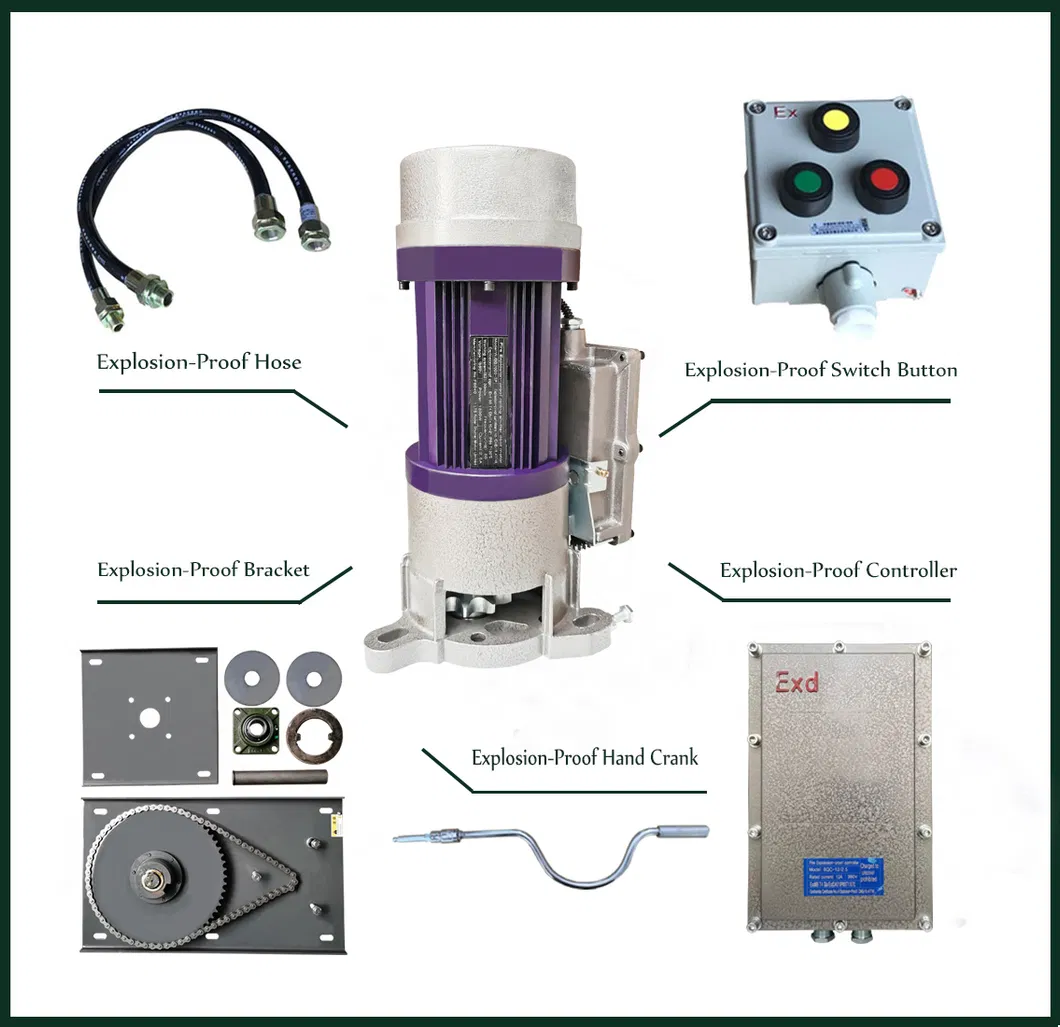

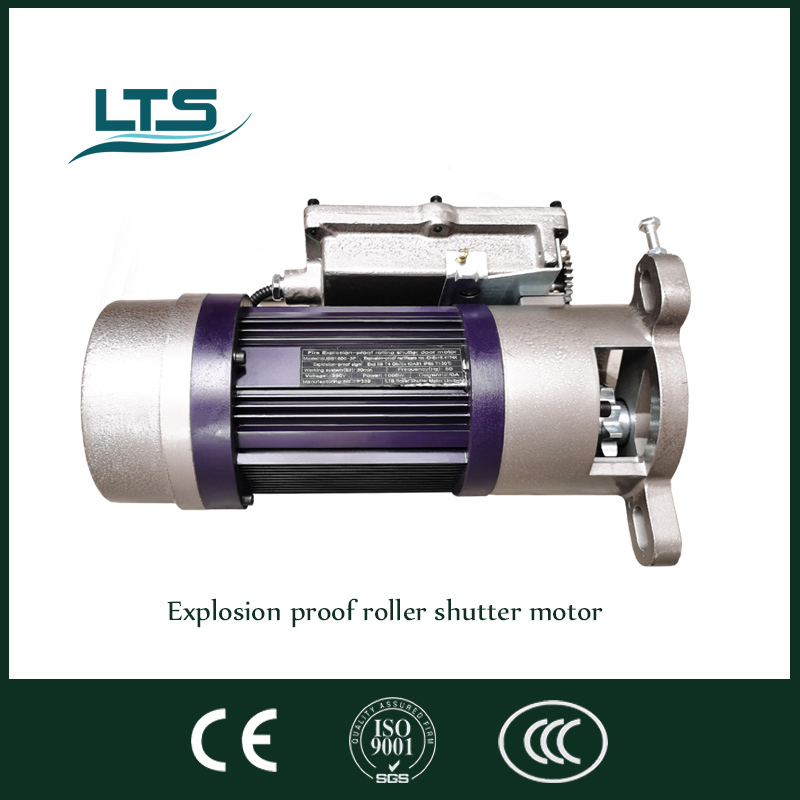

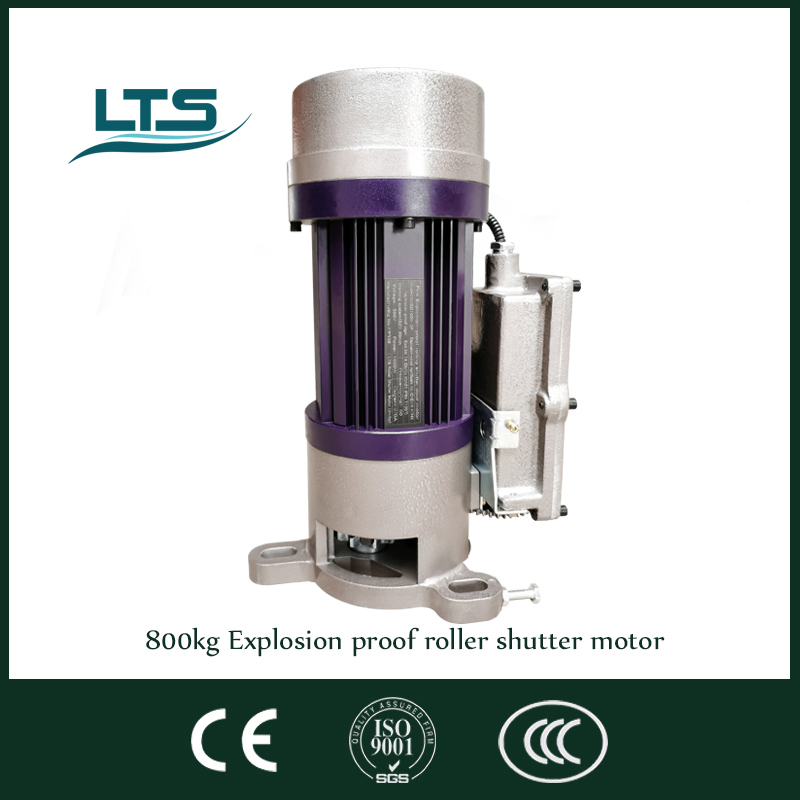

LTS explosion proof roller shutter motor is suitable for gas stations, chemical plant and so on where need to door of explosion-proof places. Action button switch can automatically complete the shutter open or closed. In special conditions (power outages, fire and electrical fault) can be manipulated manual control.

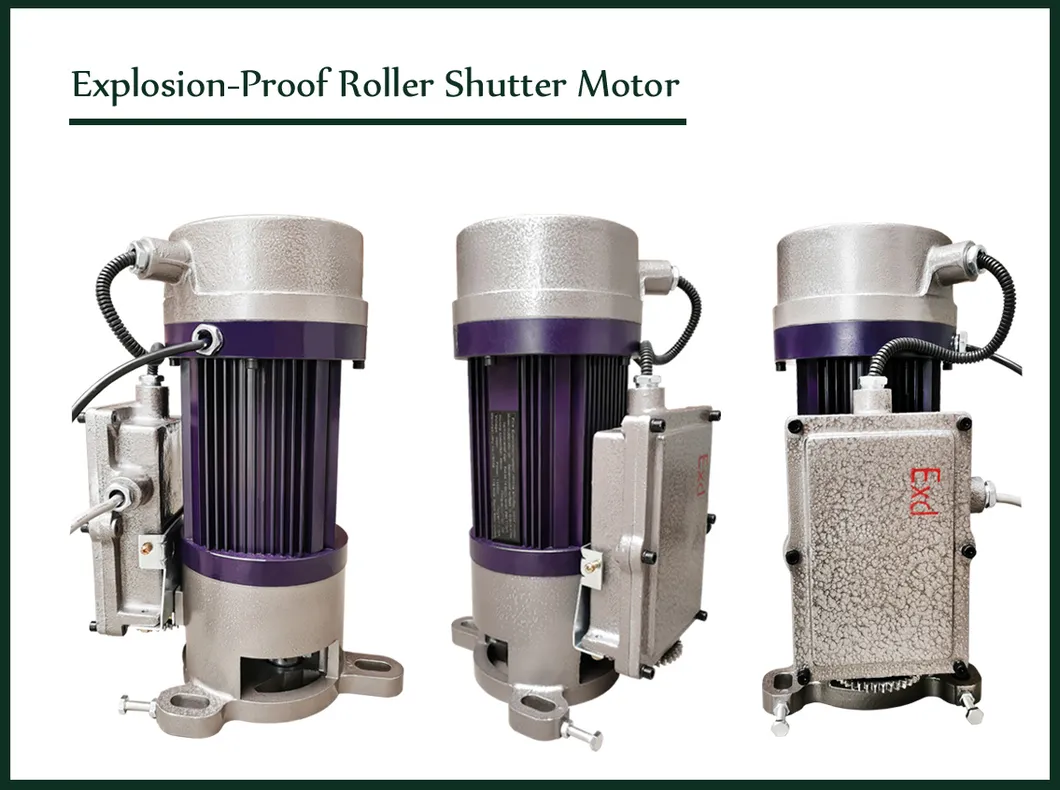

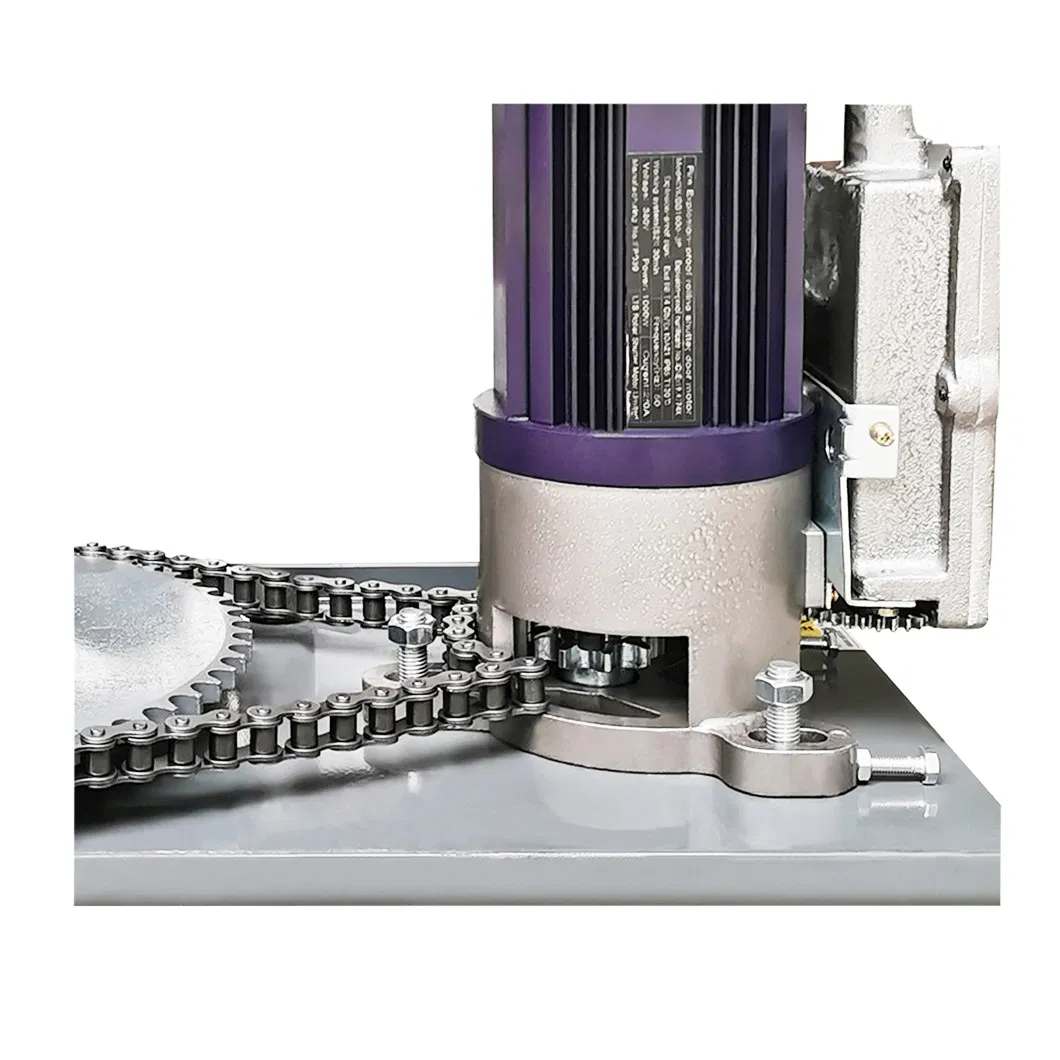

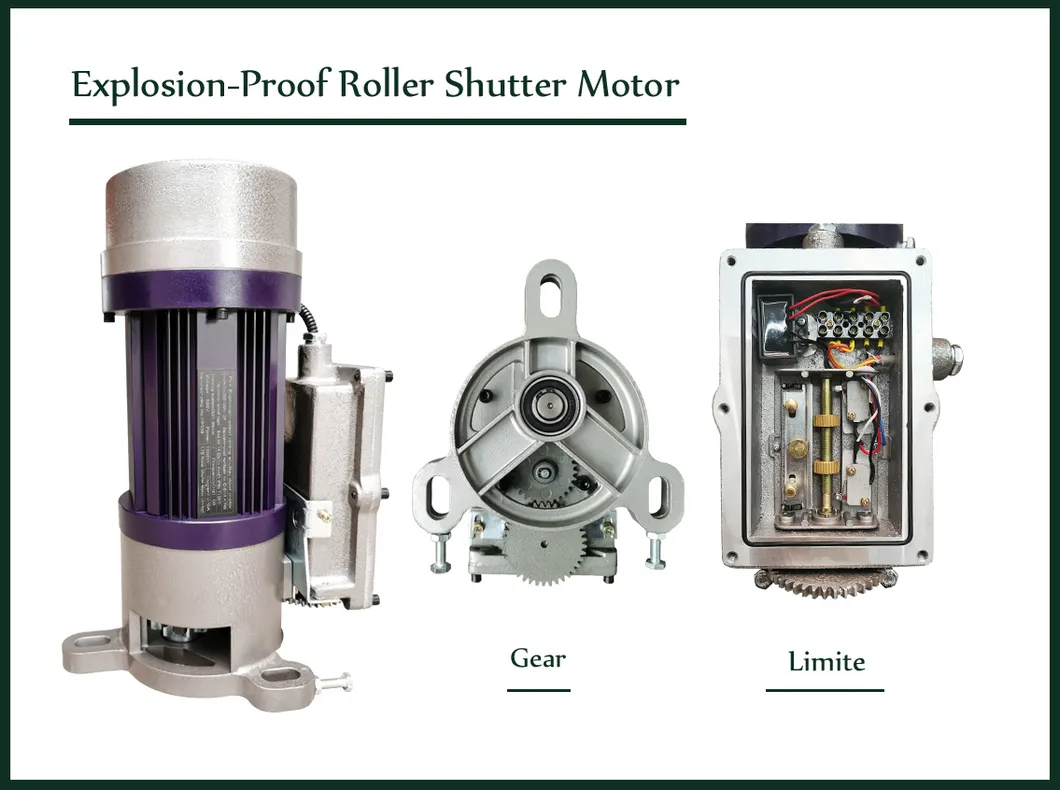

Product Features
- Stylish design, up-to-date Technology
- Overheat protection and overload protection
- Low noise
- Easy manual operation when power failure
- Precise/accurate Limit switch
- Easy to install and adjust
- Low maintenance
- Security, with anti-fall protection device
- Long service life, Durable
- No spark, antistatic, make it become a practical and safe products

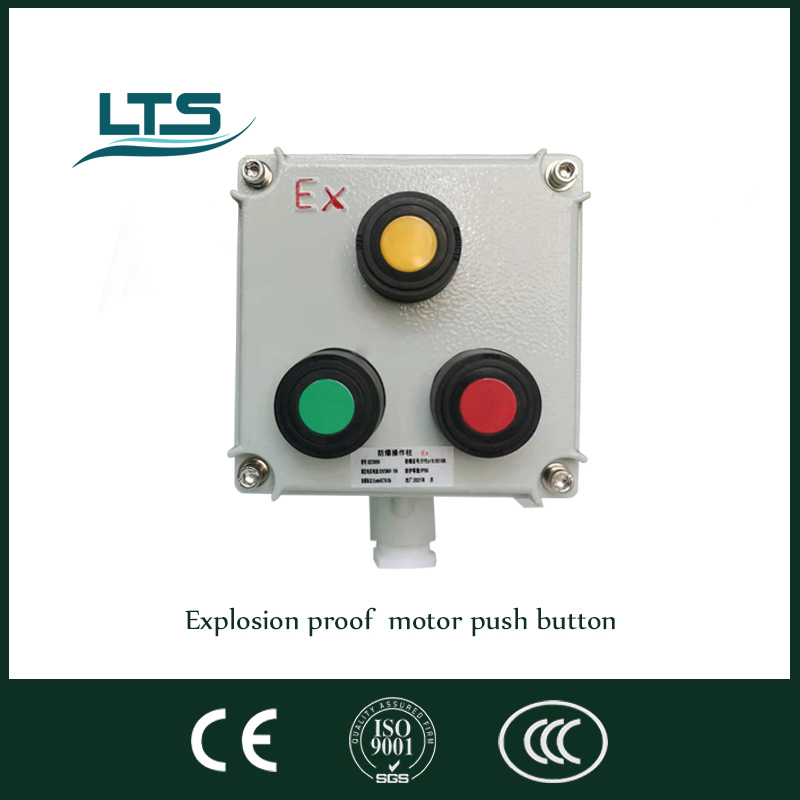

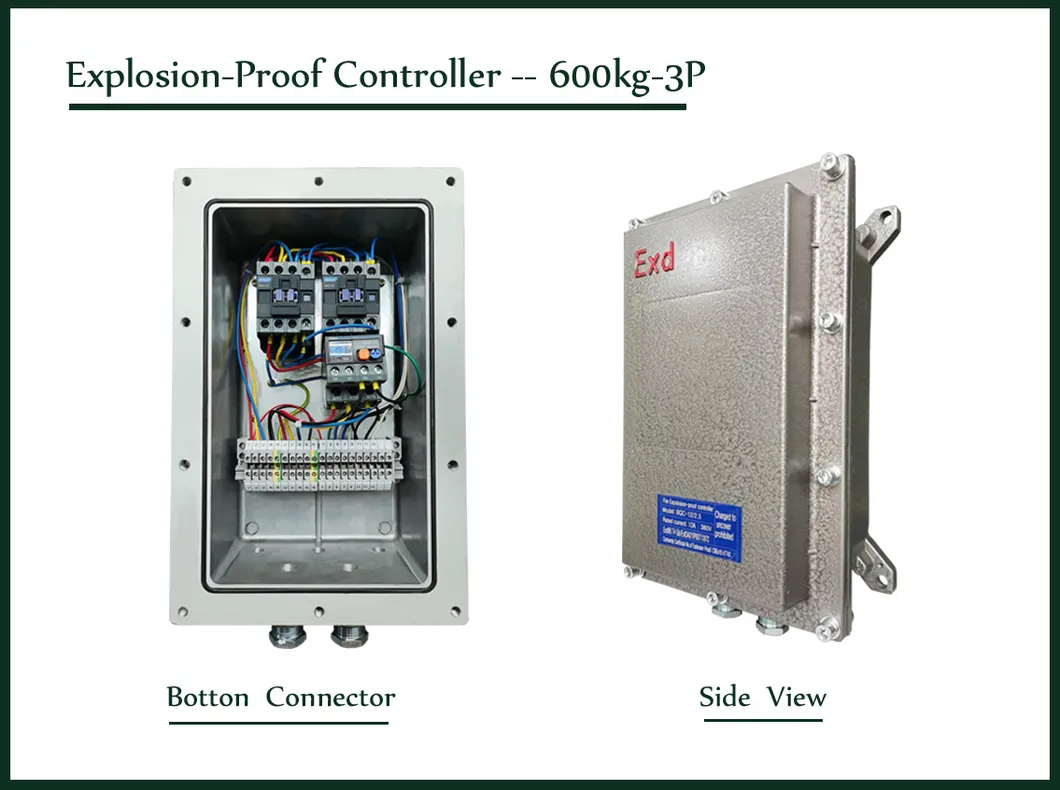

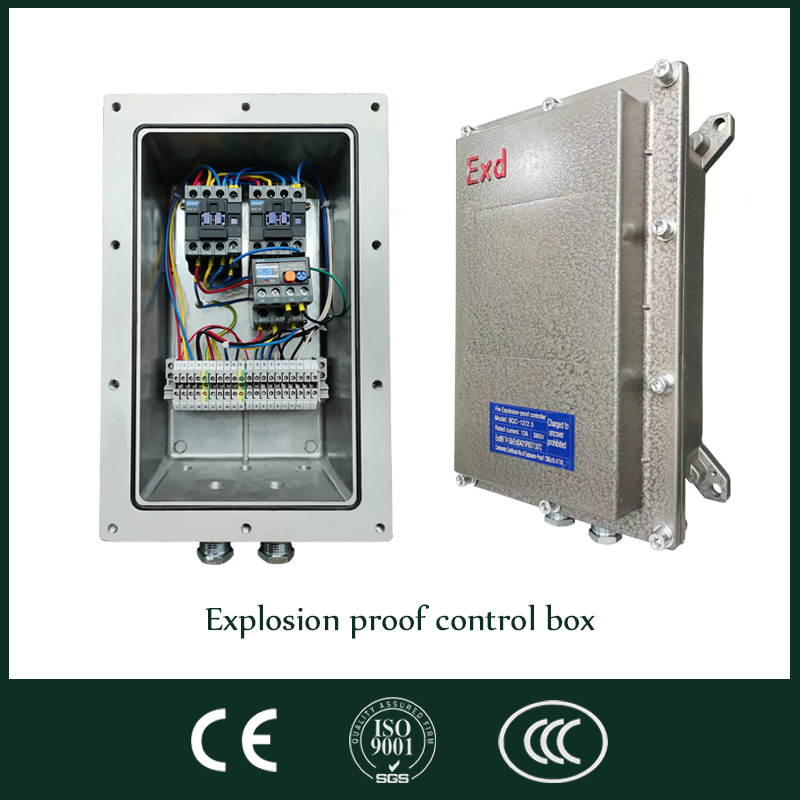

Explosion Proof Control Box
Technical Specifications
| Model |
Rated voltage / Frequency |
Rated Power(W) |
Max Lifting (kgs/f) |
Rated Current(A) |
Rated speed(r/min) |
Max lifting height |
Ambient temperature range |
| EP-600-1P | 220 V / 50 Hz | 370 | 600 | 2.2 | 5.4 | 6 meters | -20°C ~ +50°C |
| EP-600-3P | 380V / 50 Hz | 700 | 600 | 1.4 | 5.4 | 6 meters | -20°C ~ +50°C |
| EP-800-3P | 380 V / 50 Hz | 800 | 800 | 1.6 | 3.9 | 9 meters | -20°C ~ +50°C |
| EP-1000-3P | 380V / 50 Hz | 1000 | 1000 | 2 | 3.9 | 9 meters | -20°C ~ +50°C |
| EP-1500-3P | 380V / 50 Hz | 1200 | 1500 | 2.3 | 3 | 9 meters | -20°C ~ +50°C |
| EP-2000-3P | 380 V / 50 Hz | 1300 | 2000 | 2.5 | 3 | 9 meters | -20°C ~ +50°C |
| EP-3000-3P | 380V / 50 Hz | 1500 | 3000 | 5 | 3.3 | 12 meters | -20°C ~ +50°C |
| EP-4000-3P | 380 V / 50 Hz | 3000 | 4000 | 7.8 | 3.2 | 12 meters | -20°C ~ +50°C |

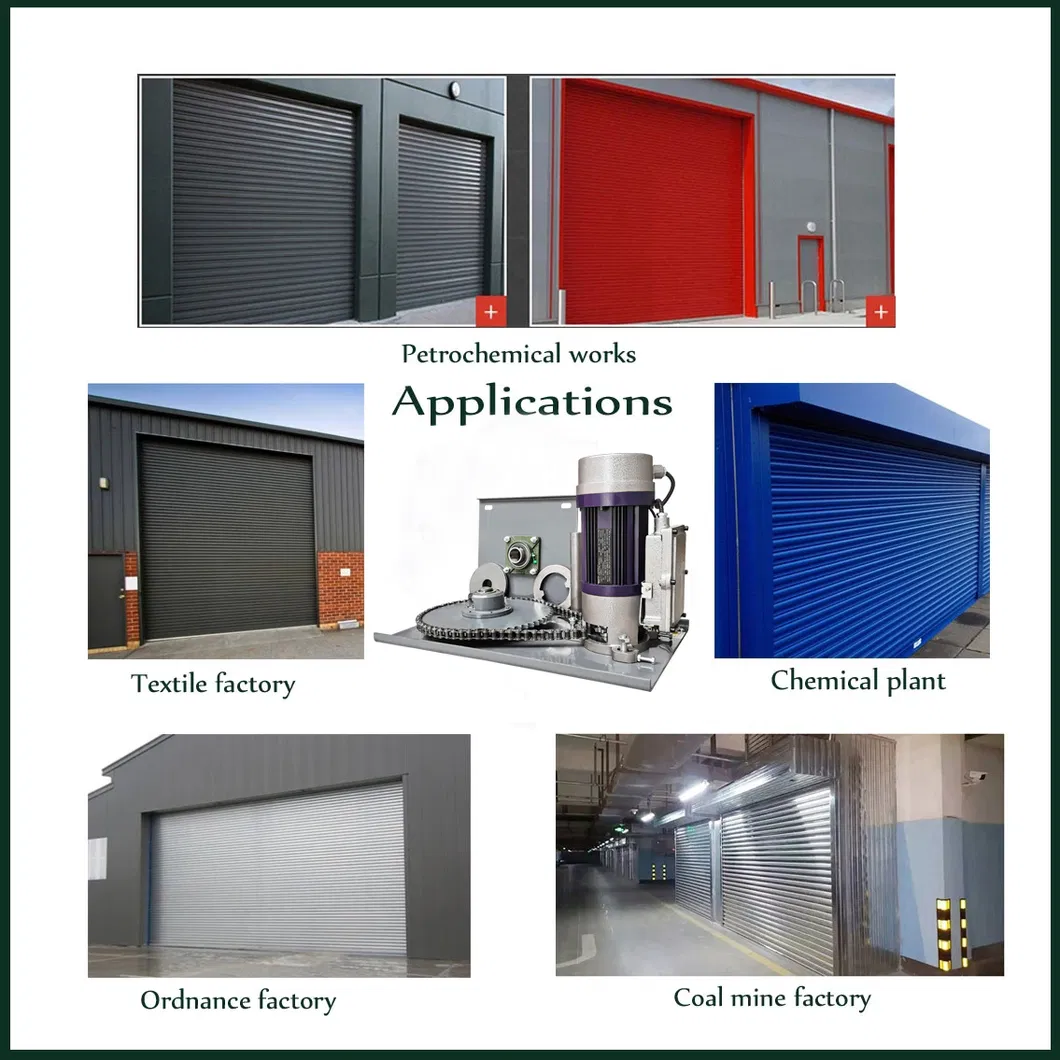

Application & Certifications
LTS explosion proof roller shutter motor is suitable for gas stations, chemical plant and so on where need to door of explosion-proof places.
Frequently Asked Questions (FAQ)
1. What are the key features of the explosion-proof motor?
The motor features overheat and overload protection, low noise operation, anti-fall safety devices, and is designed for static-free environments.
2. Can this motor be operated manually?
Yes, in case of power outages, fire, or electrical faults, the motor can be easily switched to manual control mode.
3. Where is this motor commonly installed?
It is primarily designed for high-safety areas like gas stations, chemical plants, and other environments that require explosion-proof equipment.
4. What is the ambient temperature range for this motor?
The motor is designed to operate reliably in ambient temperatures ranging from -20°C to +50°C.
5. Does the motor require frequent maintenance?
The motor is engineered for durability and long service life with low maintenance requirements, ensuring stable performance in industrial settings.
