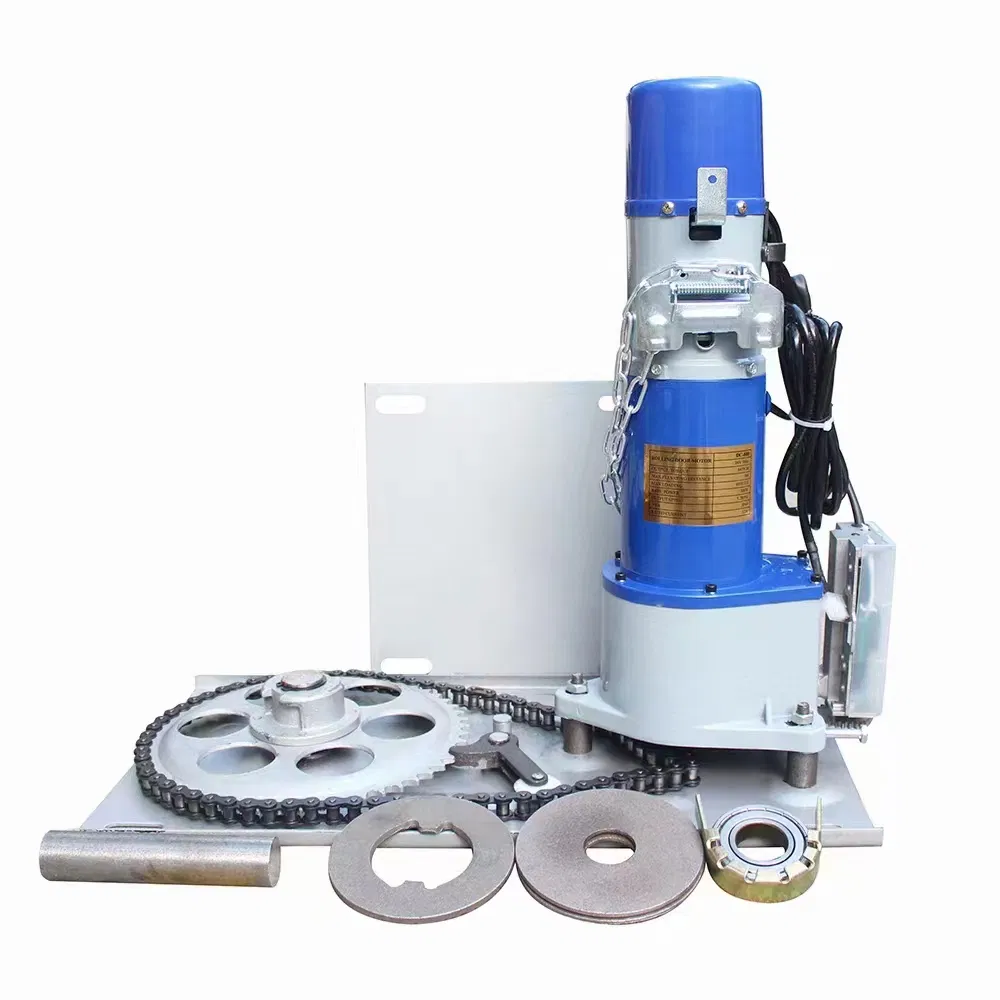

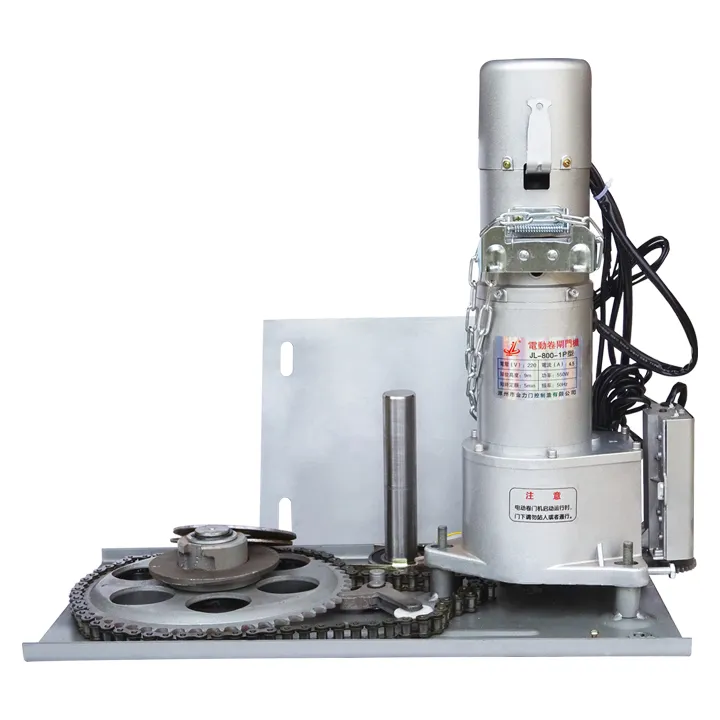

We are one professional supplier of electric rolling door motor.

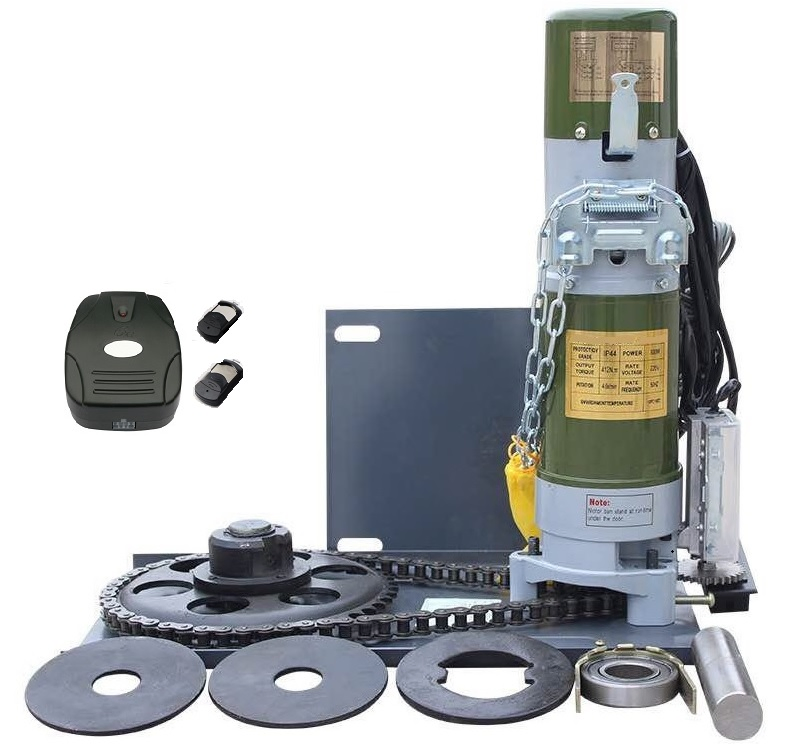

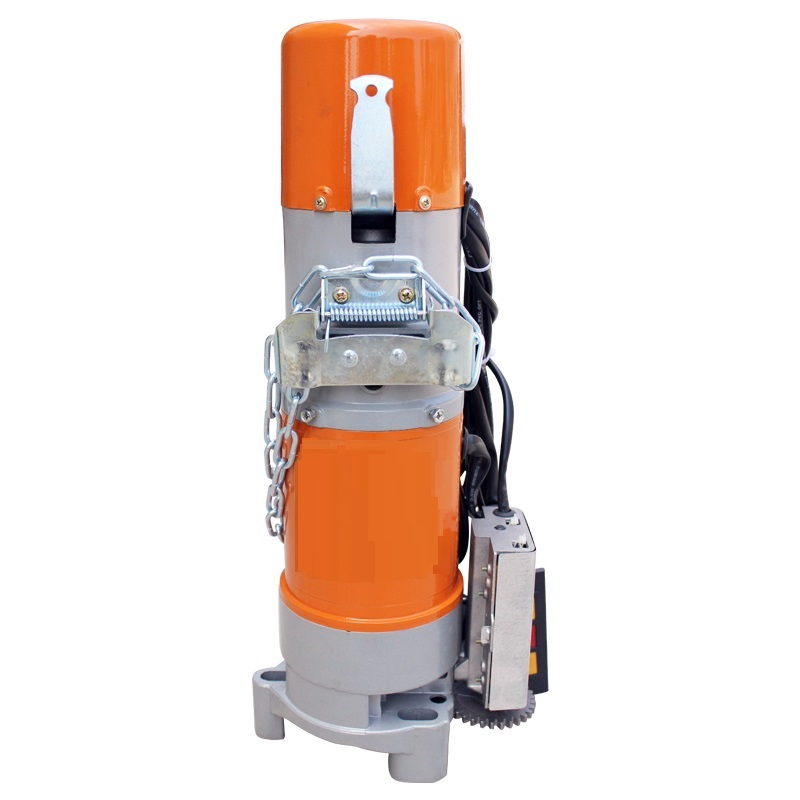

We developed and supply for our customers roller shutter door motor (300KG-2000KG), and AC-DC rolling door motor, fire-proof rolling door motor and accessories. Our products are made of aluminum alloy casing with a light weight, low noise, long life, power strong, safe, durable quality, anti-roll over.
Most of them are widely used in shopping malls, garages, hotels, factories and so on.
In addition, we also provide many extra services for customers.
| Electric Rolling Door Motor Technical Parameters | |||||||
|---|---|---|---|---|---|---|---|
| Type | Rated Power (W) | Rated Lifting Strength (KG) | Maximum Output Torque (N.m) | Output Speed (r/min) | Maximum Lift Height (M) | Use Chain No | Continued Work Time (Min) |
| 600 KG-1P | 200 | 350 | 168 | 4.8 | 6 | 10A | 5 |
| 600 KG-1P | 250 | 450 | 343 | 4.8 | 6 | 10A | 5 |
| 600 KG-1P | 300 | 500 | 412 | 4.8 | 6 | 10A | 5 |
| 600 KG-1P | 370 | 600 | 412 | 4.8 | 6 | 10A | 5 |
| 800 KG-1P | 550 | 800 | 647 | 3.94 | 9 | 10A | 8 |
| 1000 KG-1P/3P | 550 | 1000 | 809 | 3.75 | 9 | 12A | 13 |
| 1300 KG-1P/3P | 600 | 1300 | 1401 | 4.4 | 9 | 12A | 13 |
| 1500 KG-1P/3P | 800 | 1500 | 1617 | 5.2 | 9 | 16A | 13 |
| 2000 KG-3P | 1500 | 2000 | 2450 | 6 | 13 | 16A | 13 |
| Fire-proof Motor Technical Parameters | |||||||
|---|---|---|---|---|---|---|---|
| Type | Rated Power (W) | Rated Lifting Strength (KG) | Maximum Output Torque (N.m) | Output Speed (r/min) | Maximum Lift Height (M) | Use Chain No | Continued Work Time (Min) |
| F-600 KG-3P | 250 | 600 | 412 | 4.8 | 6 | 10A | 5 |
| F-800 KG-3P | 300 | 800 | 590 | 3.94 | 9 | 10A | 5 |
| F-1000 KG-3P | 300 | 1000 | 617 | 3.75 | 9 | 12A | 5 |
| F-1500 KG-3P | 800 | 1500 | 1617 | 5.2 | 9 | 12A | 5 |
| F-2000 KG-3P | 1500 | 2000 | 2450 | 3.6 | 16 | 16A | 13 |
