Tt38 5n. M Low Rpm DC Gear Motor 3V/6V/9V/12V/24V High Torque

1 / 5

Tt38 5n. M Low Rpm DC Gear Motor 3V/6V/9V/12V/24V High Torque

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

TT38

Function

Driving

Casing Protection

Open Type

Structure

Brush

Type

DC Gear Motor

Certification

ISO9001, Ce, RoHS

Voltage(V)

3-24V

Speed(Rpm)

3-250rpm

Torque

1-50kgf.Cm

Output Power

1-5W

Gearbox Ratio

1:36 to 1: 1166

Gearbox Size

60*95mm

Shaft Diameter

8mm

HS Code

8501109990

Product Description

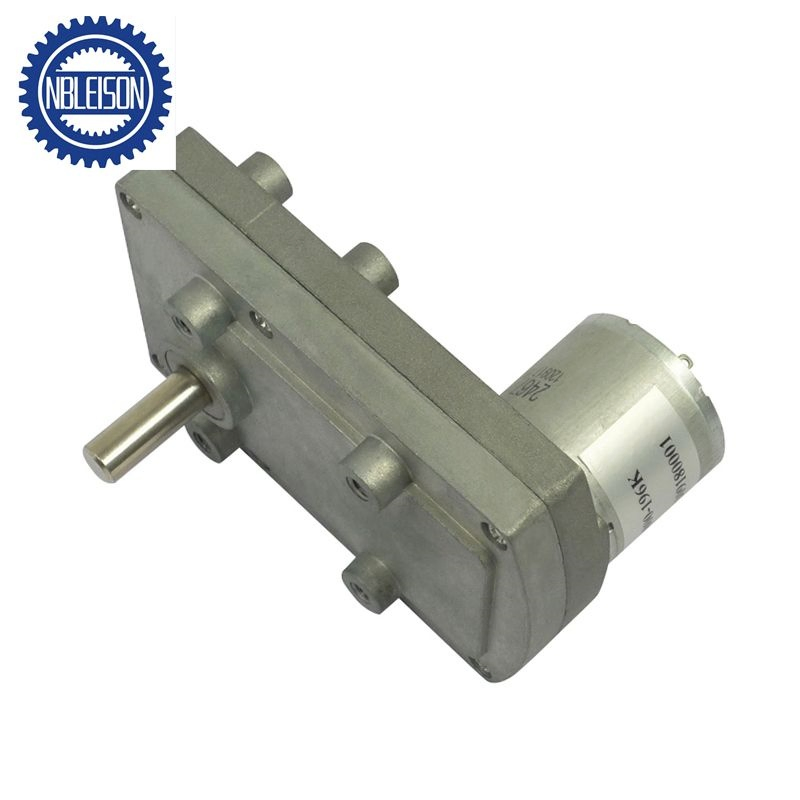

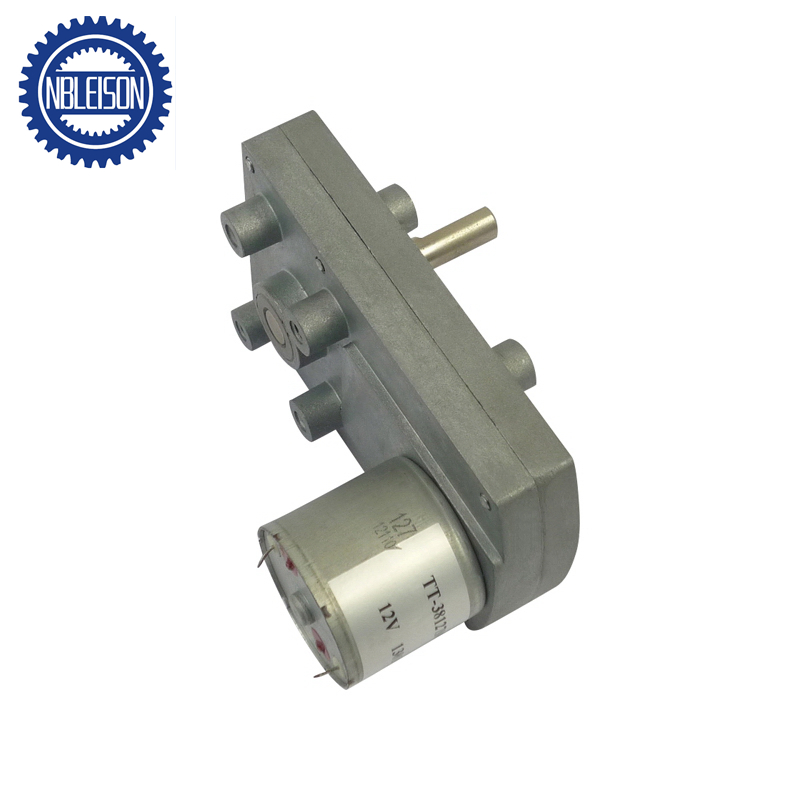

Tt38 5n. M Low Rpm DC Gear Motor 3V/6V/9V/12V/24V high torque:

Voltage: 3-24V
Speed: 3-250RPM
Torque: 1-50Kgf.cm
Output Power: 1-5W
Gearbox Ratio: 1:36 to 1: 1166
Gearbox Diameter: 60*95mm
Shaft Diameter: 8mm

Typical Application: Central air conditioning valve, Amusement equipment, Coinrefund devices, Grill, Oven, Peristaltic pump, ATM bank automatic system, Medical equipment, Office equipment, Household appliance, Automatic actutor and others.

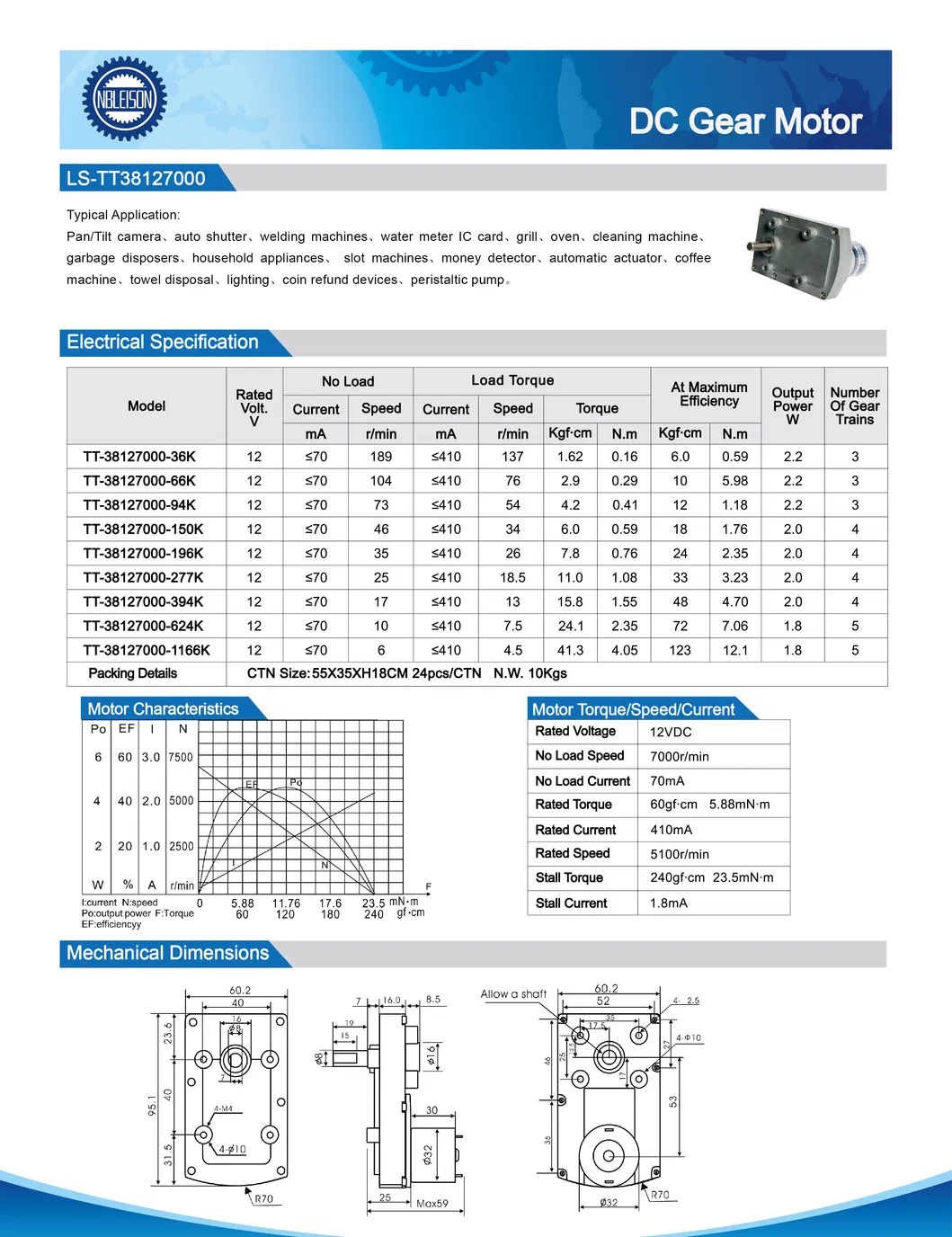

Note: The data sheet is only for reference, We can make the motor according to your requirement after Evaluation.

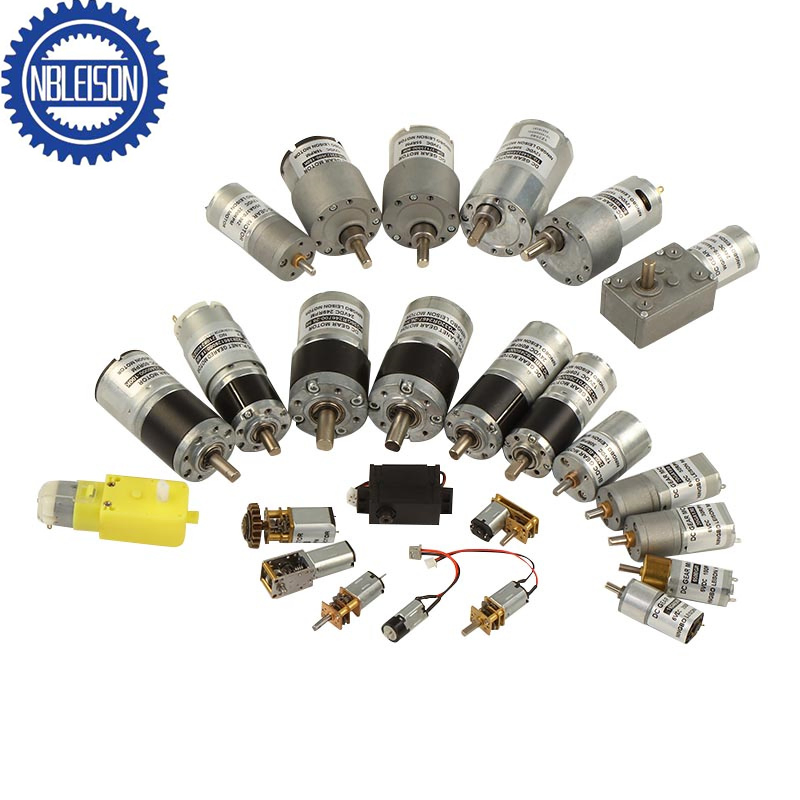

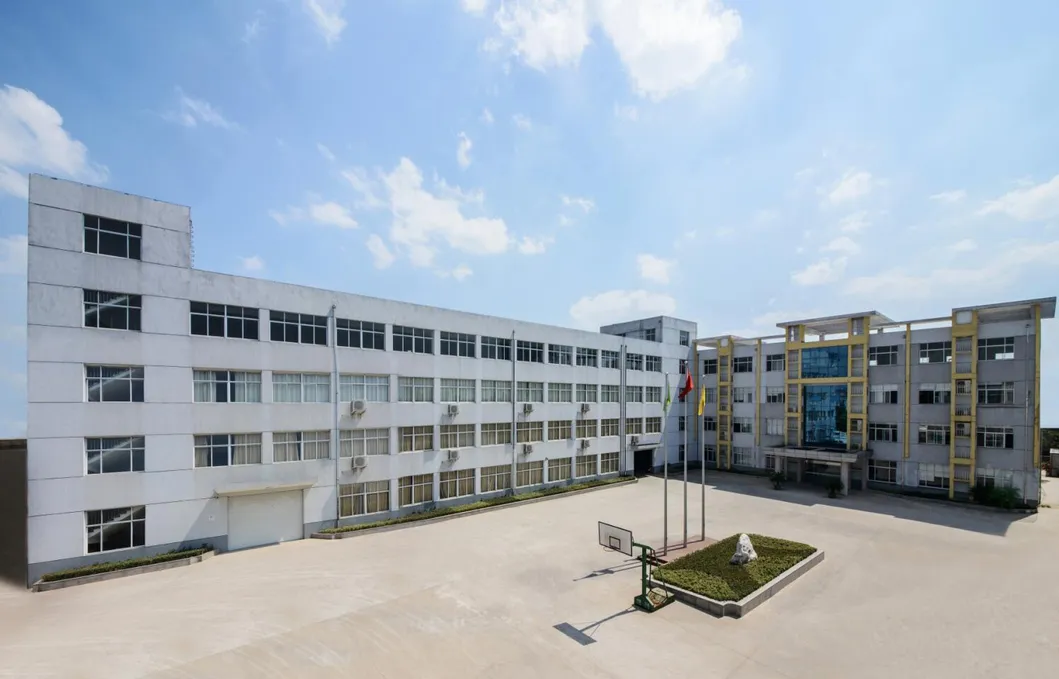

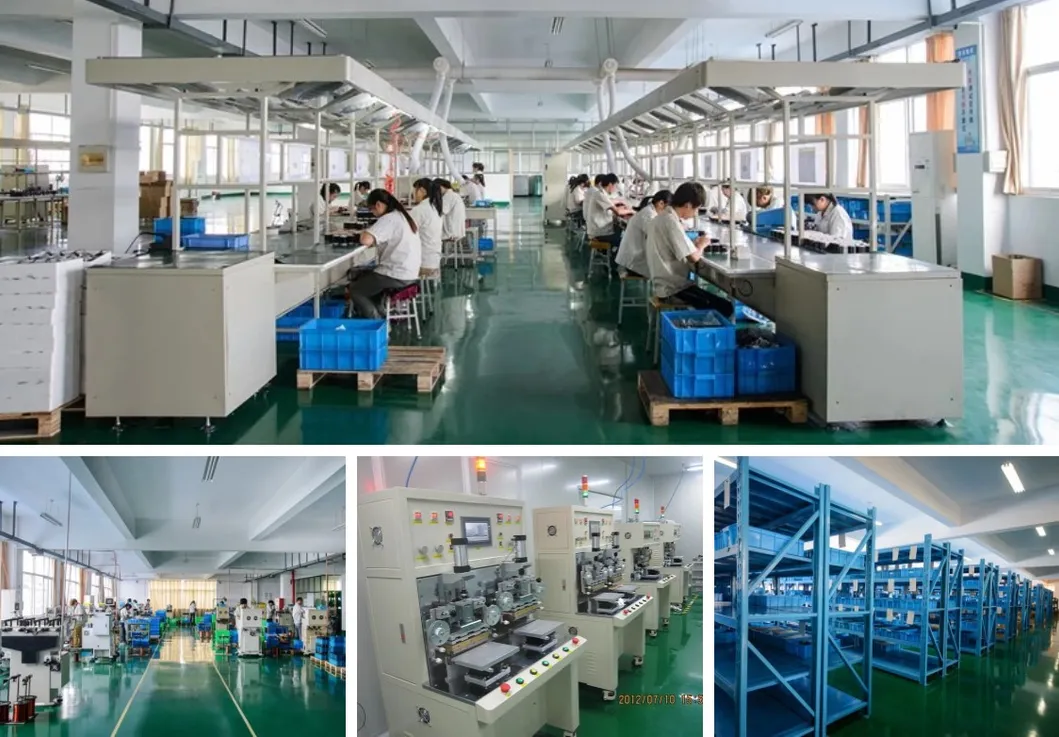

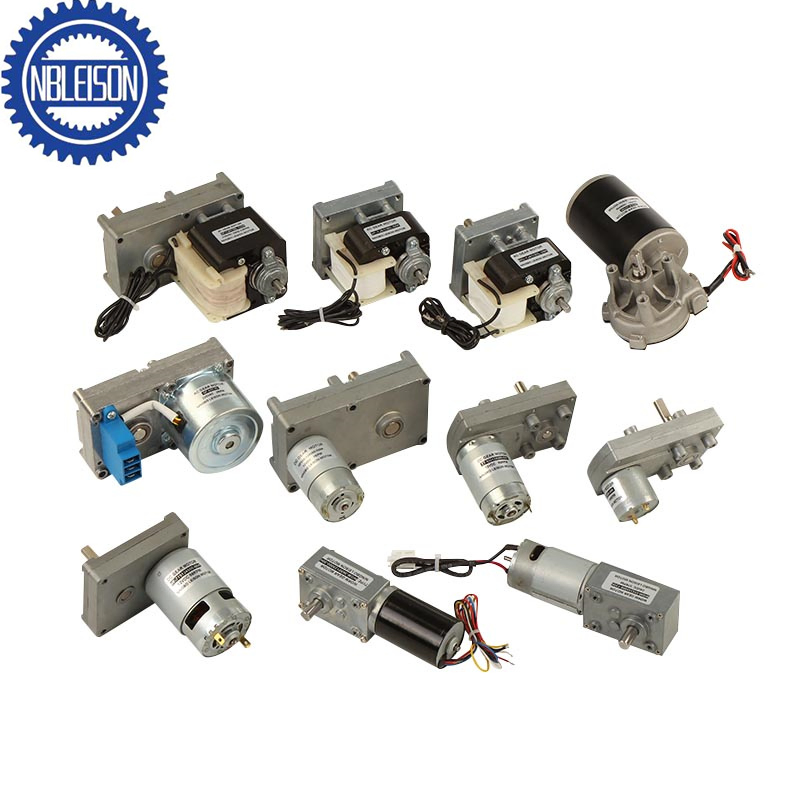

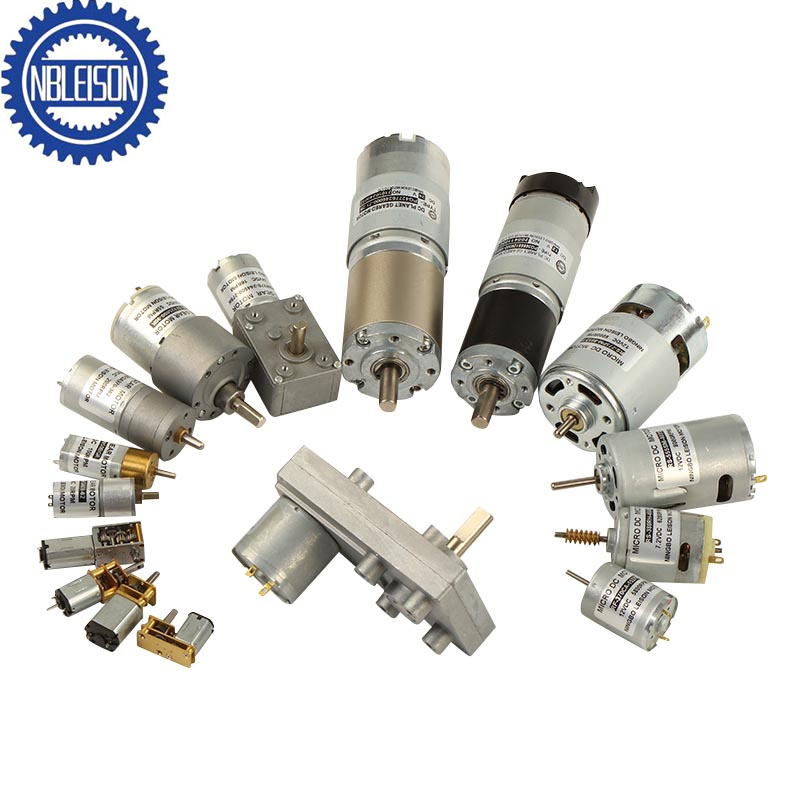

Product Gallery & Capacity

Frequently Asked Questions

Q: What's your main products?

We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors and Ac Motors etc.

Q: How to select a suitable motor?

If you have detailed specs like voltage, speed, torque, motor size, working mode, needed life time and noise level, please let us know so we can recommend the suitable motor.

Q: Do you have customized service for your standard motors?

Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. Additional wires, cables, connectors, capacitors or EMC can be added as well.

Q: Can I have samples for testing first?

Yes, we can provide samples for testing after confirming the required motor specifications.

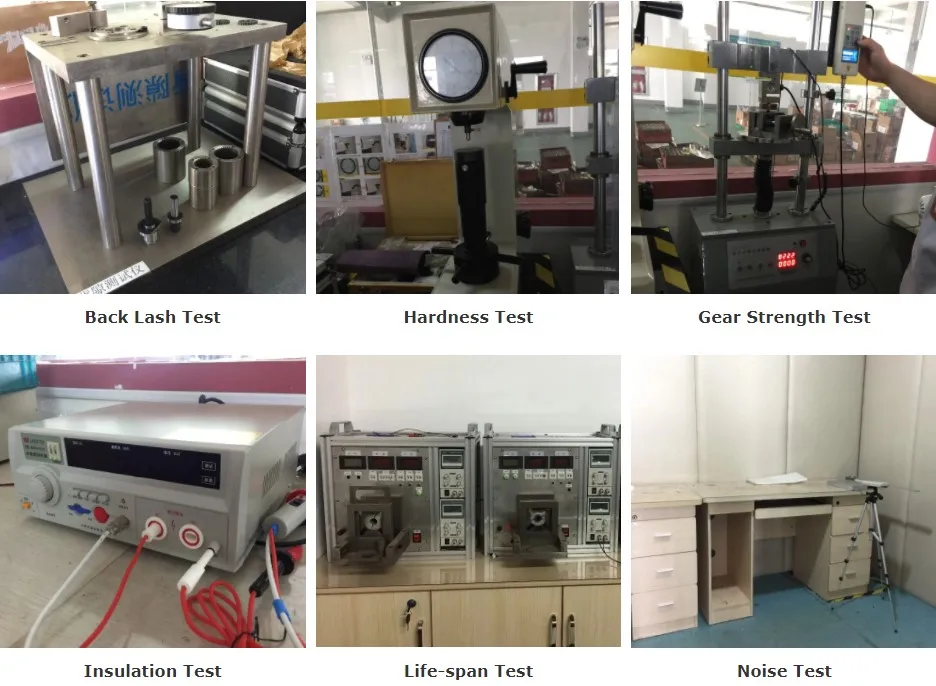

Q: How do you ensure motor quality?

We have our own inspection procedures: for incoming materials, we have signed samples and drawings; for the production process, we conduct tour inspections and final inspections to ensure qualified products before shipping.

Q: What certifications do you have?

We currently have CE and ROSH certifications.
