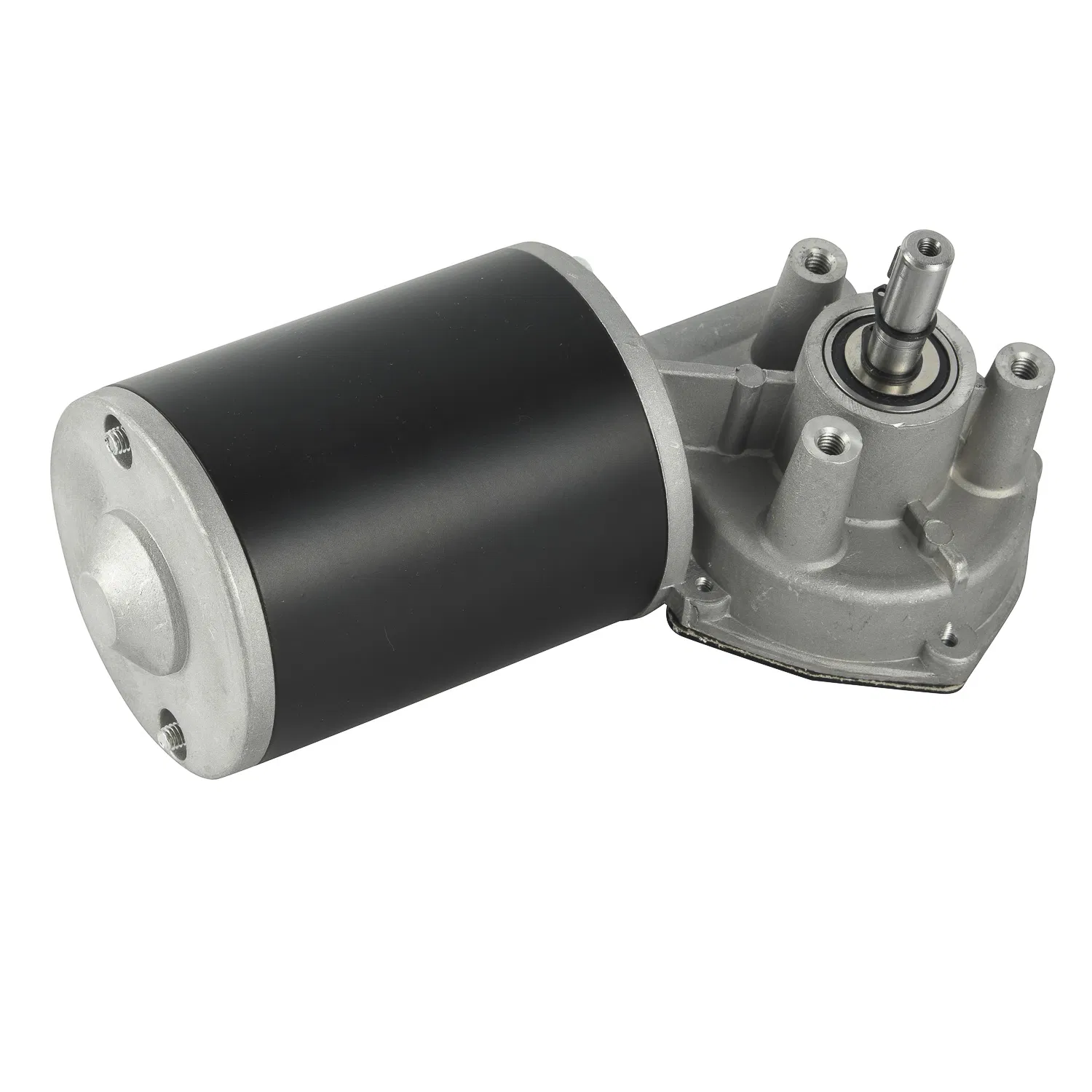

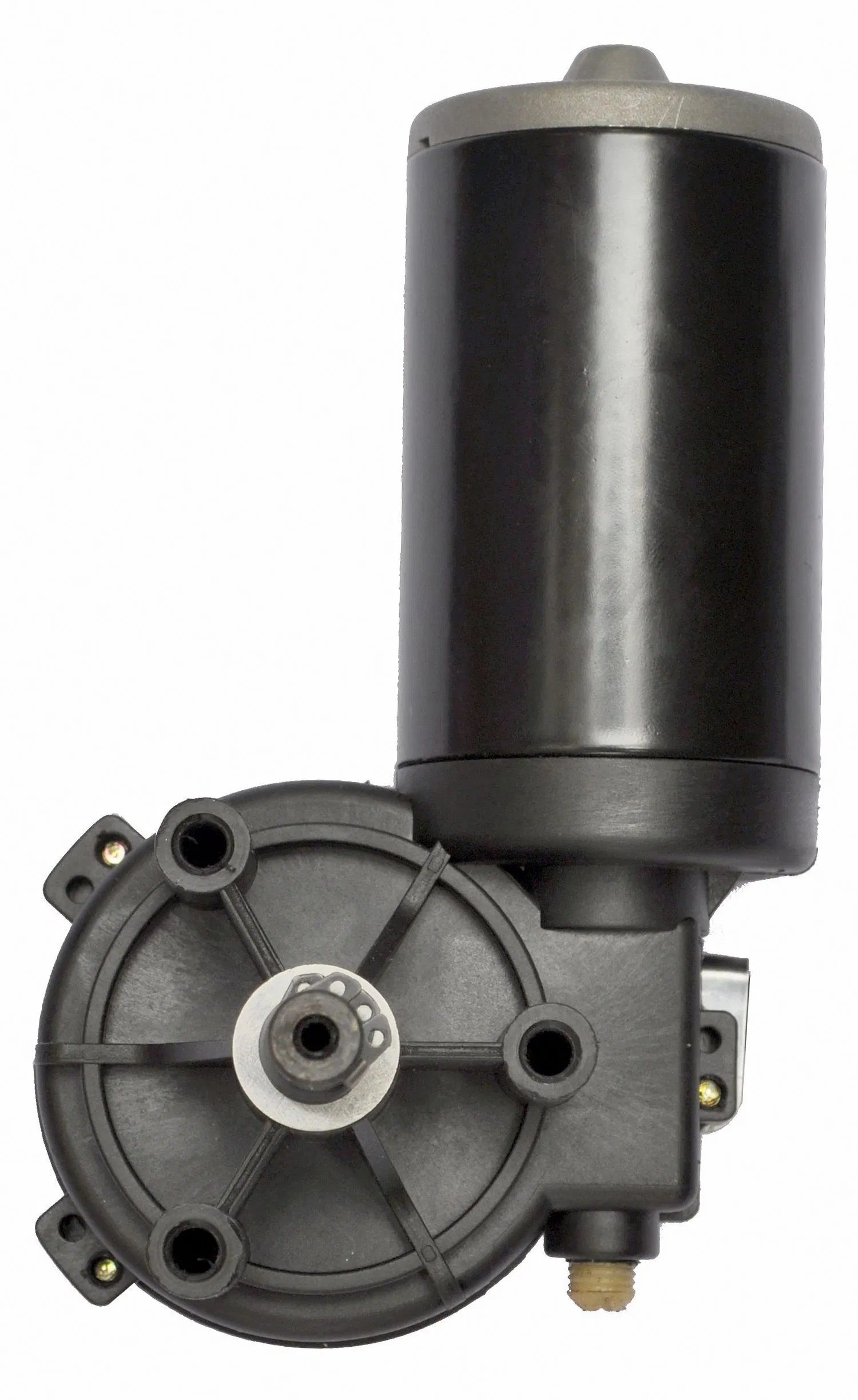

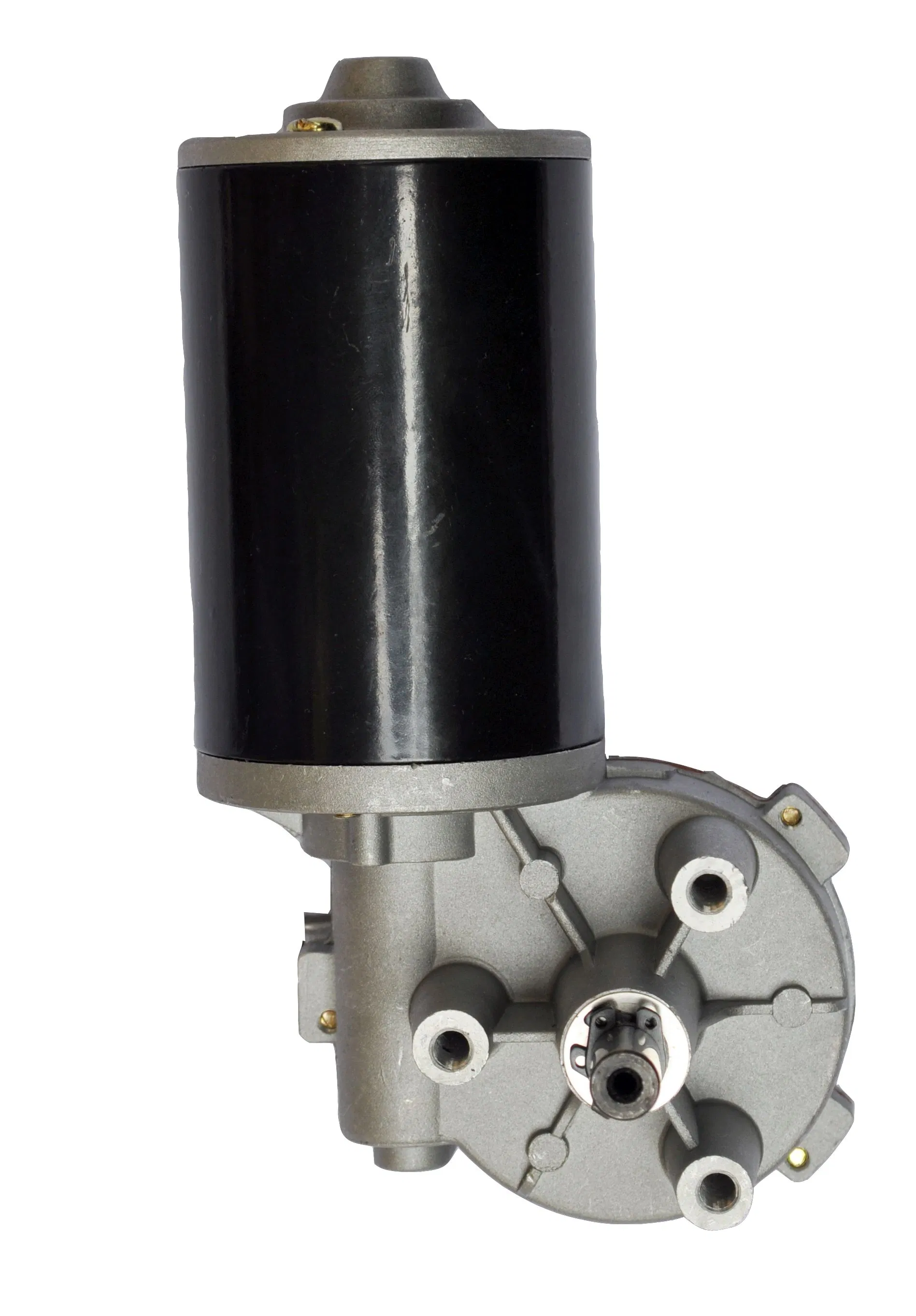

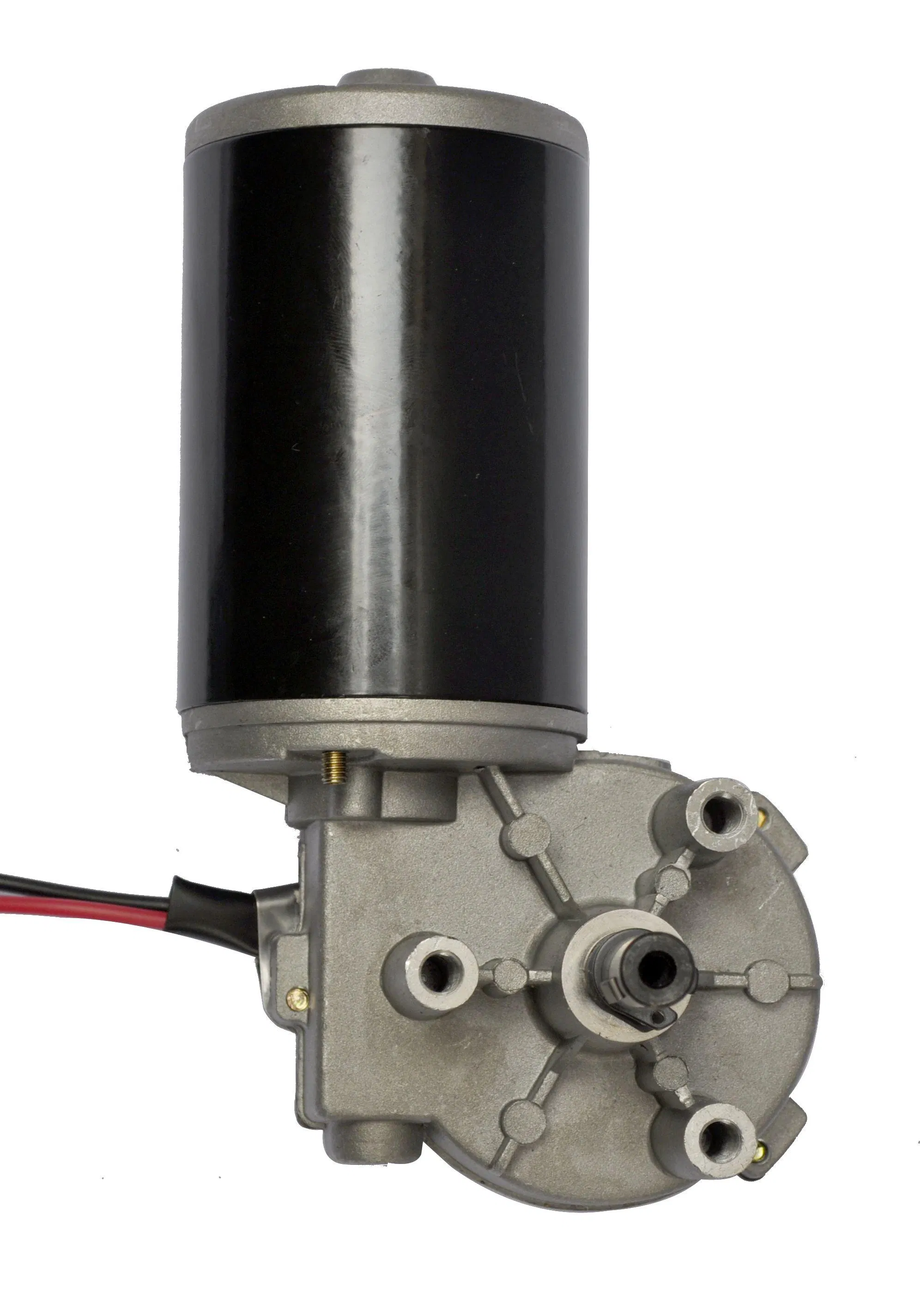

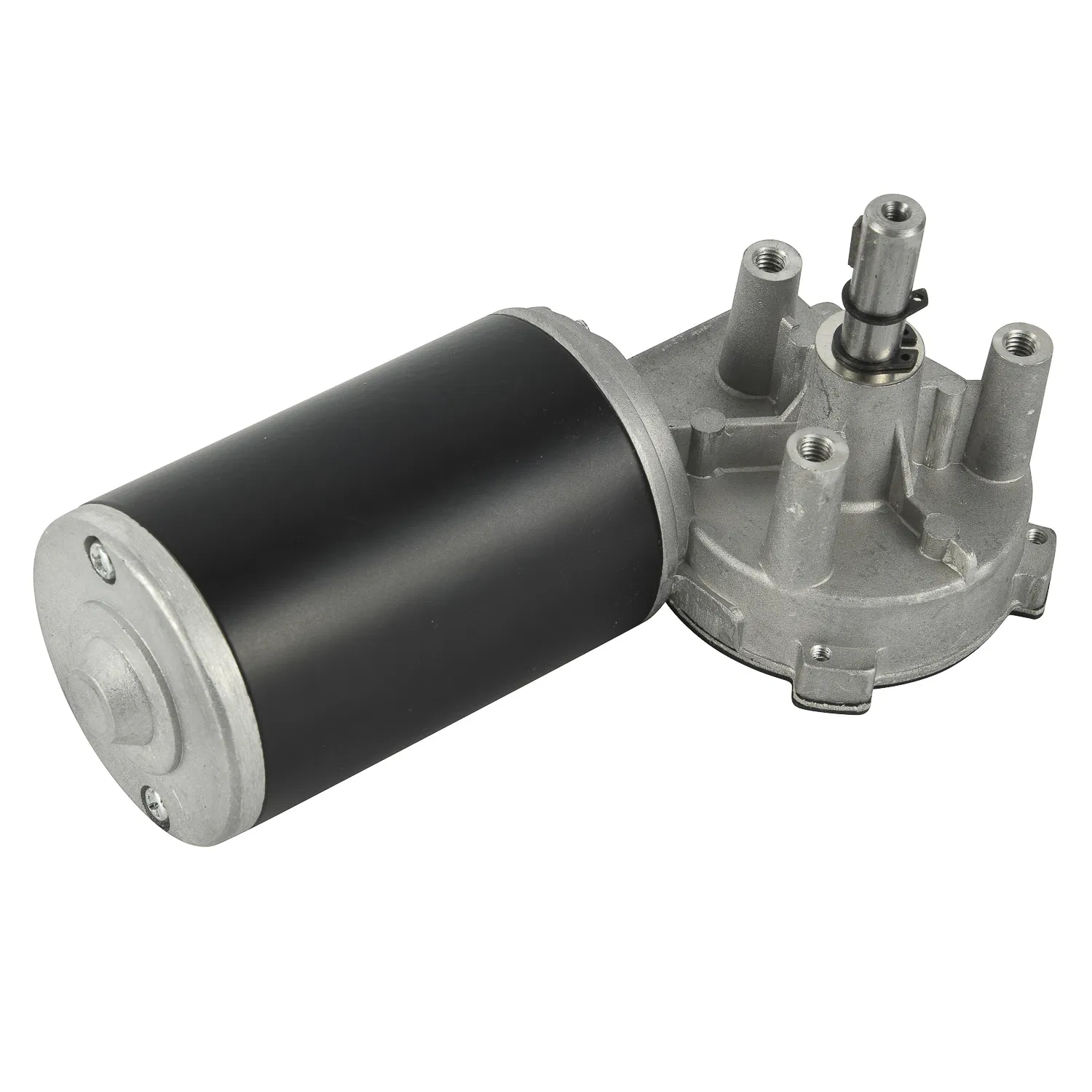

12V DC Permanent Magnet Motor with Worm Reducer for Garage Door

Product Description

12V Permanent Magnet Motor with worm reducer for garage door

59mm diameter high quality 12V/ 24V DC worm gear motor

Size

Diameter 59mm

Life Time

5000 Hours

Material

Copper or Plastic

Application Scope

Welding Machine

Electrical Household

Diamond Machinery

Office Intelligent Equipment

Hotel Leisure

Automated Machine and so on

Range of Motor Specifications

Motor Voltage: DC12V, 24V, 42V, 48V, 90V, 110V, 300V

Motor Rated Power: 15W, 25W, 30W, 45W, 65W, 95W, 120W, 50W, 180W

Motor no-load Speed: 15RPM, 30RPM, 60RPM, 80RPM, 120RPM, 150RPM, 180RPM, 200RPM, 220RPM

MODEL	VOLTAGE (V)	POWER (W)	NO-LOAD SPEED (RPM)	NO-LOAD CURRENT (A)	LOAD SPEED (RPM)	LOAD CURRENT (A)	LOAD TORQUE (N.M)	RATIO	MOTOR LENGTH (MM)
59ZYT	12	30	15±2	≤1.2	12±2	≤4.5	≥4.0	1:70	80
59ZYT	24	30	15±2	≤1.2	12±2	≤4.5	≥4.0	1:70	80
59ZYT	24	50	36±2	≤1.2	32±2	≤6.5	≥8.0	1:70	80
59ZYT	12	30	65±3	≤1.2	60±3	≤5.5	≥6.0	1:56	80
59ZYT	24	30	65±3	≤1.2	60±3	≤5.5	≥6.0	1:56	80
59ZYT	48	30	65±3	≤1.2	60±3	≤5.5	≥6.0	1:56	80
59ZYT	42	30	130±5	≤1.5	100±5	≤6.5	≥4.0	1:28	80
59ZYT	42	30	150±5	≤1.0	130±5	≤6.5	≥4.0	1:28	80
59ZYT	24	30	180±5	≤1.2	150±5	≤6.5	≥4.0	1:28	80
59ZYT	24	30	210±3	≤1.5	180±5	≤6.5	≥4.2	1:28	80

Remarks: We also manufacture products according to customer's requirements.

Production Flow

Our Services

1). General Service:

Quick Reply

All enquiries or emails will be replied to within 12 hours, ensuring no delays for your business operations.

Professional Team

Product inquiries will receive professional, precise responses alongside our expert recommendations.

Short Lead Time

Samples or small orders are sent within 7-15 days, with bulk or customized orders taking around 30 days.

Payment Choice

Flexible and convenient transaction options including T/T, Western Union, L/C, etc.

Before Shipment

We capture and send photos to customers for confirmation. Shipment is only processed upon customer approval.

Language Choice

In addition to English, you can correspond in your native language via email, and we will translate it accordingly.

2). Customization Service:

Motor specifications (including no-load speed, voltage, torque, diameter, noise, life expectancy, and testing parameters) and shaft length can be fully customized based on client requirements.

Package & Shipping

12V DC Permanent Magnet Motor with Worm Reducer for Garage Door

Frequently Asked Questions

1. What are the key technical specifications of this worm gear motor?

The motor features a 59mm diameter, operates on 12V or 24V DC, utilizes premium copper or plastic internal gear materials, and is designed with an impressive operational lifetime of up to 5,000 hours.

2. What are the typical applications for this 12V DC Permanent Magnet Motor?

This motor with a worm reducer is highly versatile and widely used in garage doors, welding machines, electrical household appliances, diamond machinery, office intelligent equipment, hotel leisure equipment, automated machines, and similar machinery.

3. Can the motor configurations and shaft dimensions be customized?

Yes, we provide full customization services tailored to your specific requirements. This includes adjustments to motor specifications such as voltage, no-load speed, torque, structural outer diameter, noise level, operational life testing, and custom shaft lengths.

4. What voltage and power configurations are available?

We support multiple DC motor voltage options including 12V, 24V, 42V, 48V, 90V, 110V, and 300V. Rated power options can be selected from 15W, 25W, 30W, 45W, 65W, 95W, 120W, 50W, up to 180W.

5. What is the standard lead time and inquiry response time?

We guarantee a response to all enquiries and emails within 12 hours. Standard samples or small orders are shipped within 7 to 15 days, while bulk or highly customized orders typically take around 30 days.

6. How is quality control handled before the motor is shipped?

To guarantee full satisfaction, we take high-quality pictures of the completed order before shipment and send them to you for confirmation. We only ship the order once it has been fully approved by the client.
