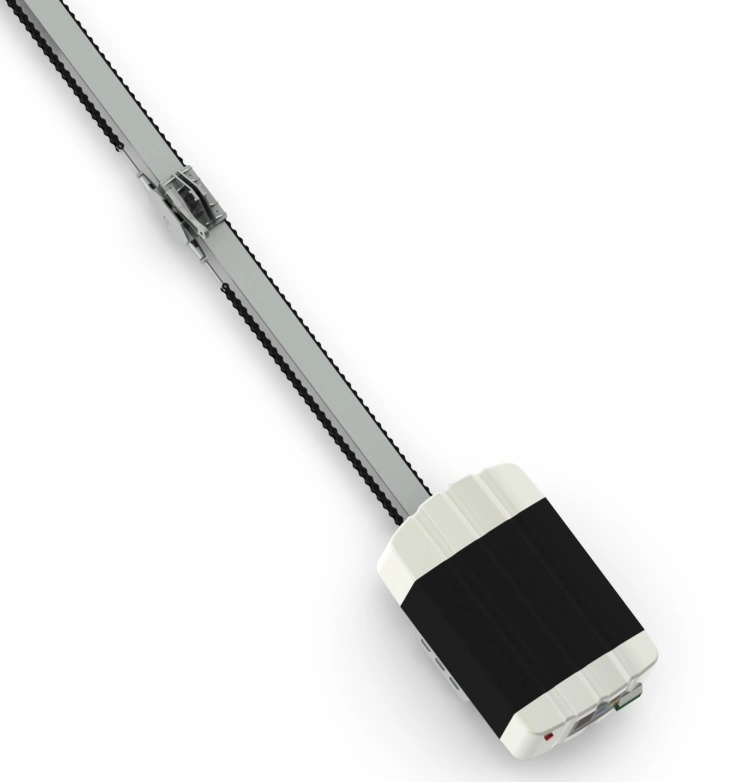

220V/110V Garage Door Opener Motor with High Speed

1 / 5

220V/110V Garage Door Opener Motor with High Speed

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Matic series

Excitation Mode

Series Excitation

Function

Driving, Open and Close Garage Door

Casing Protection

Protection Type

Number of Poles

Structure & Principle

Brush

Certification

Ce, Ce-Red, LVD, EMC, En12453&12445, TUV, C-Tick

Brand

OEM

Lifting Speed

160mm/S

Case Material

Plastic / Aluminum

Base Material

Steel

Color

Black / Grey / Aluminum / Customizing

Rail Length

3000~4000mm

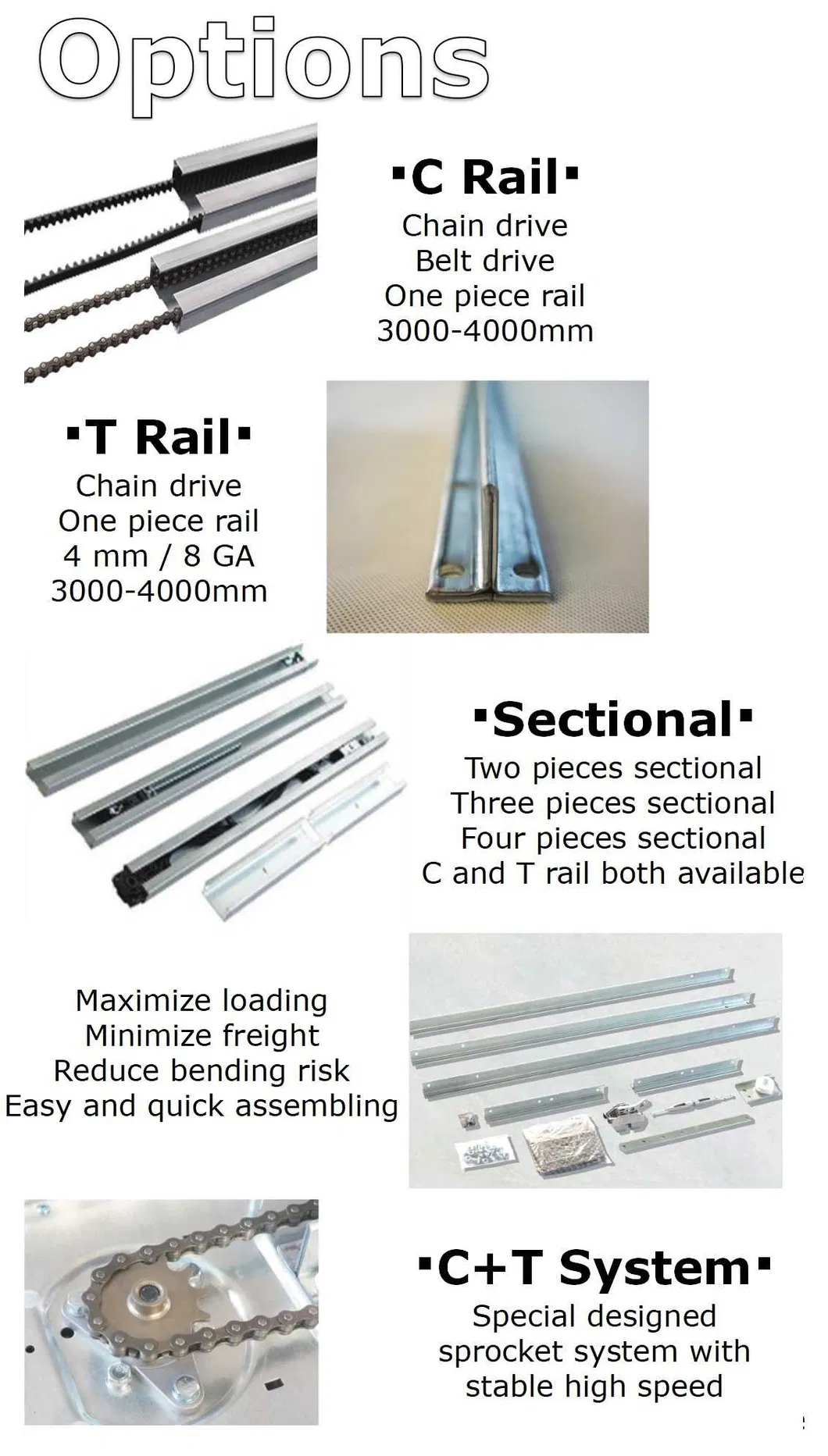

Drive Option

Chain Drive / Belt Drive

Transport Package

Carton / Wooden Box / Pallet

Specification

600N / 1000 / 1200N

Trademark

OEM

Origin

China

HS Code

8501520000

Capacity

1,000,000 sets / Year

Product Overview

MATIC

600N / 1000N / 1200N

600N Speed / 1000N Speed • Intelligent Home Automation for Garage Doors

Model	600N / 600N Speed	1000N / 1000N Speed	1200N
Input voltage	220-240V / 110-127V , 50-60Hz
Max. opening speed	160mm/s or 200mm/s (Speed model)
Max. door height	2400-5000mm

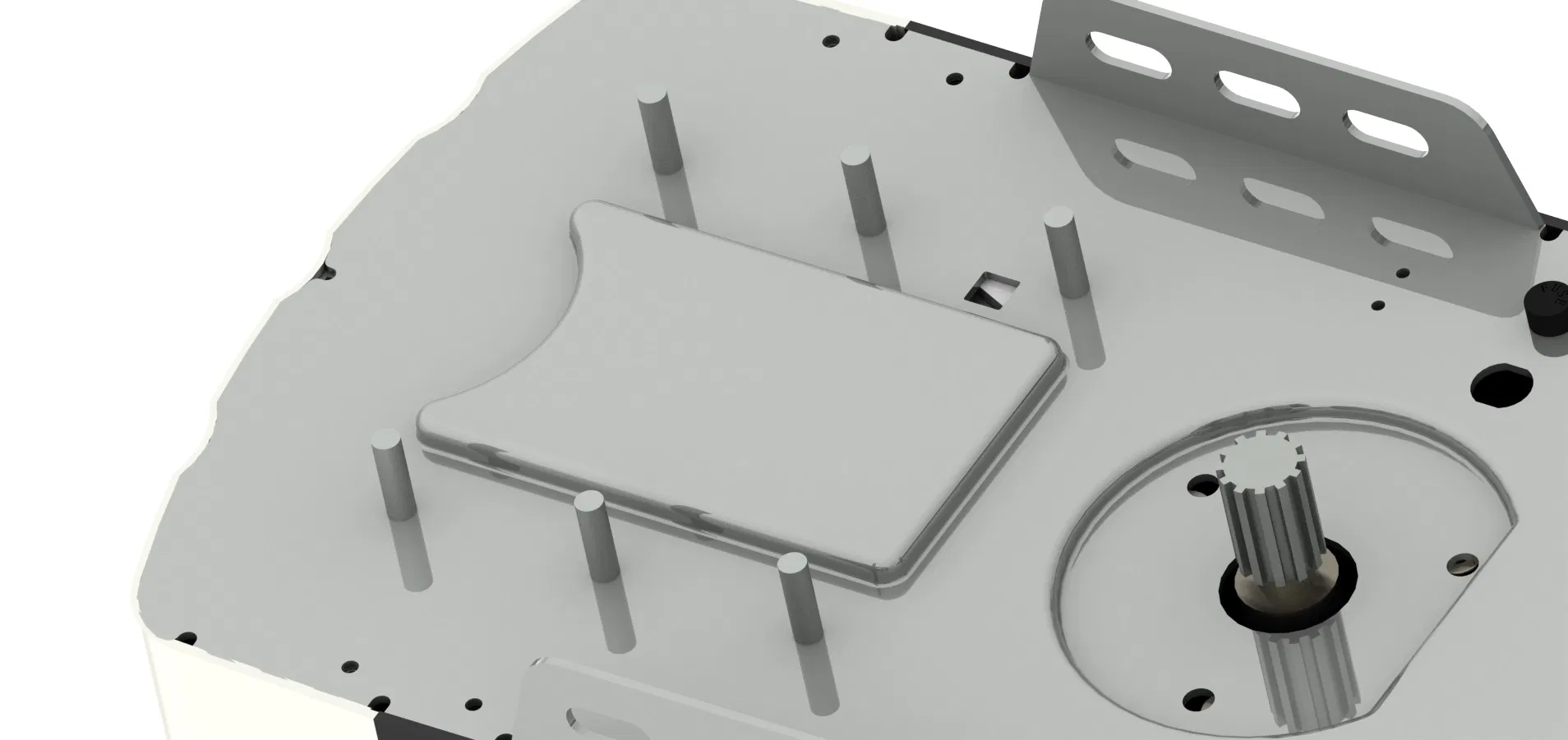

Bottom base material	Metal
Drive mechanism	Chain / Belt
Max. door size	10 m²	15 m²	18 m²
Max. door load	80 kg	100 kg	130 kg

Soft-start / Soft-stop	More Information Display Support
Automatic Closing Time Setting	Reversal Force Setting
Maintenance Alarm Indicator	Terminal Devices Supported
Transformer Overload Protection	3 Min. L.E.D Off Delay
433MHz / Rolling Code technology	Photo Cell ON/OFF Setting
Electronic Travel Limit Setting

Common Troubles with Standard Openers

Losing traveling limit settings after hundreds of operations?
Doors failing to close or open completely over time?
Openers constantly requiring manual reprogramming?

Advanced Protection & Efficiency

Enjoy less maintenance, minimal traveling deviation, and an extended system lifetime.

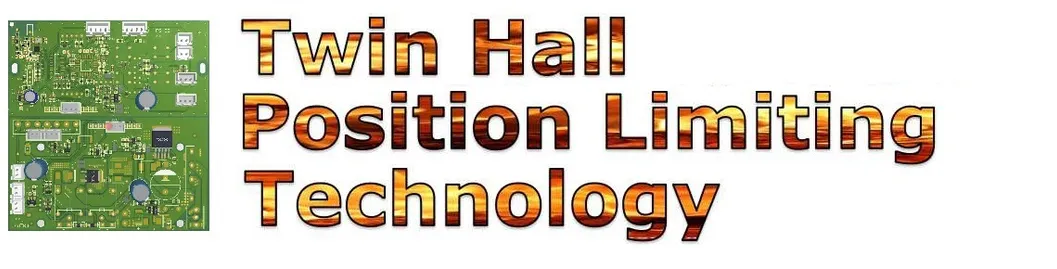

Built-in Twin-Encoder

Synchronizing device ensures precise position limits without manual physical checks.

High Precision Limits

Reduces physical wear, preventing operational deviations completely.

Self-Adjustment System

Adapts seamlessly to doors of varying weights, spring tensions, and physical states.

No Mechanical Switches

Purely digital and electronic limits mean fewer hardware components to maintain.

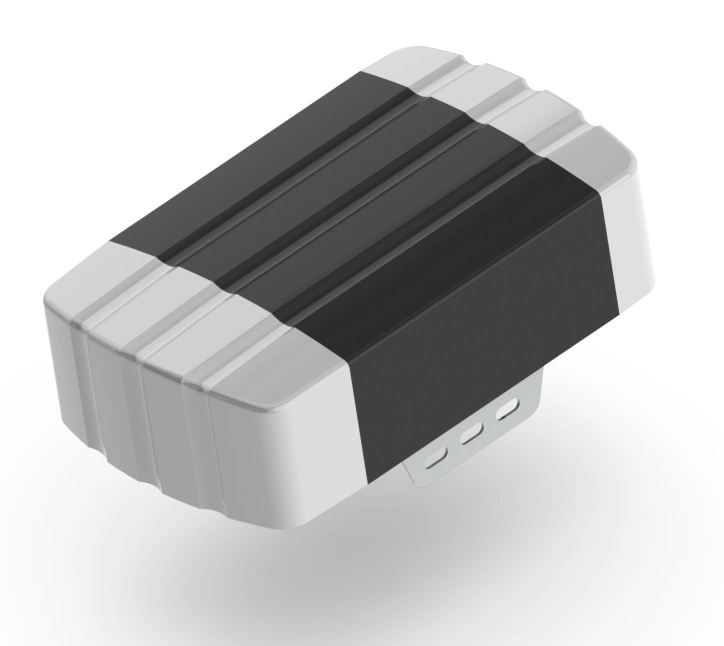

Garage Door Opener Structure & Dimension Layout

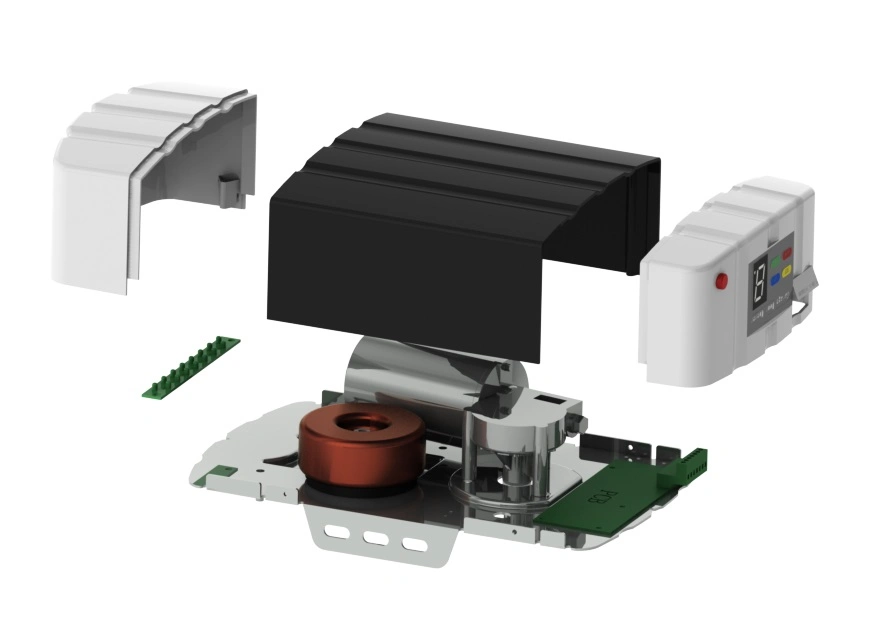

Internal Component Architecture & Electronics Overview

Product Exploded View & Spare Parts Specs

Frequently Asked Questions

1. What is the maximum opening speed of the Matic series garage door opener?

The standard models in the Matic series support a lifting speed of 160mm/s. For faster operation requirements, high-speed configurations are available that can achieve up to 200mm/s.

2. Which drive mechanisms are supported by this opener?

The system supports both Chain Drive and Belt Drive configurations, giving you the flexibility to choose between heavy-duty strength or quiet operation based on your needs.

3. How does the built-in twin-encoder improve the performance of the door?

The integrated twin-encoder operates alongside a synchronization device to establish and maintain ultra-precise travel limits. This eliminates the need for traditional external mechanical limit switches and prevents traveling deviations even after hundreds of continuous cycles.

4. What is the maximum door size and weight that the Matic series can handle?

The series is highly versatile and comes in different capacities: the 600N model handles doors up to 10 m² (80 kg), the 1000N model supports up to 15 m² (100 kg), and the heavy-duty 1200N model supports doors up to 18 m² with a maximum load of 130 kg.

5. What safety and customization options are available?

Safety features include soft-start/stop functions, transformer overload protection, automatic closing, maintenance alarms, and photocell integration. In terms of customization, the unit offers both OEM branding and color configurations including Black, Grey, and Aluminum finishes.
