📘 Product Description
A garage door opener is a device used to open and close a garage door. It usually consists of an electric drive system, rollers, guides and a controller.
The main function of this machine is to automatically open and close the garage door to facilitate vehicle access. When the owner needs to enter or leave the garage, simply press the button on the remote control and the garage door machine will start.
The controller is the intelligent core of the garage door machine, which receives commands from the user and controls the operation of the drive system.

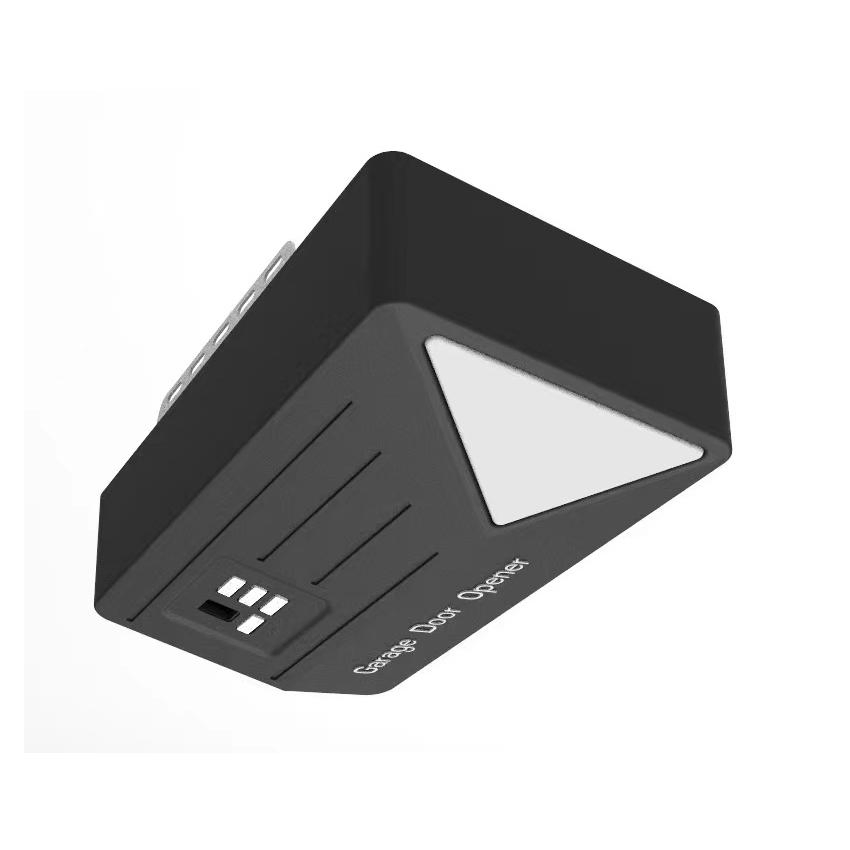

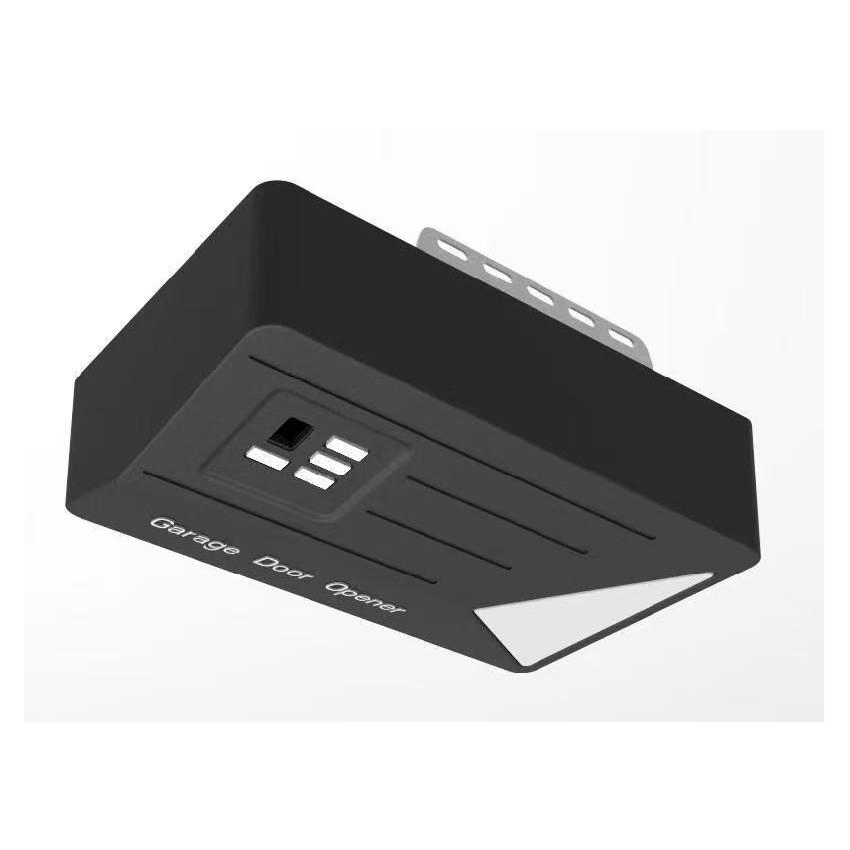

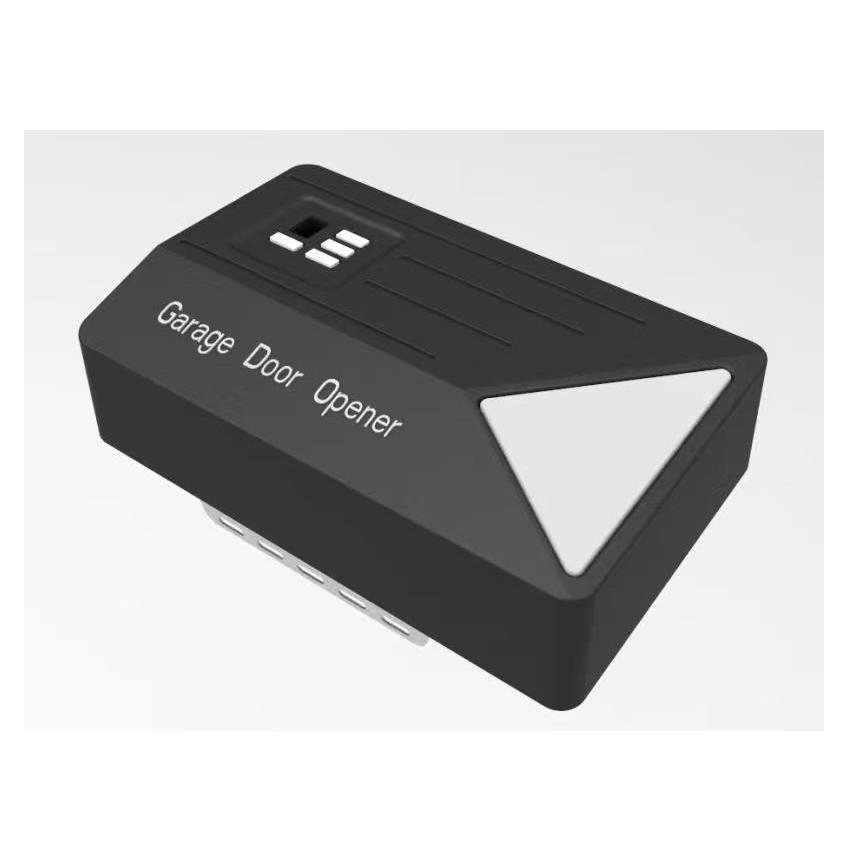

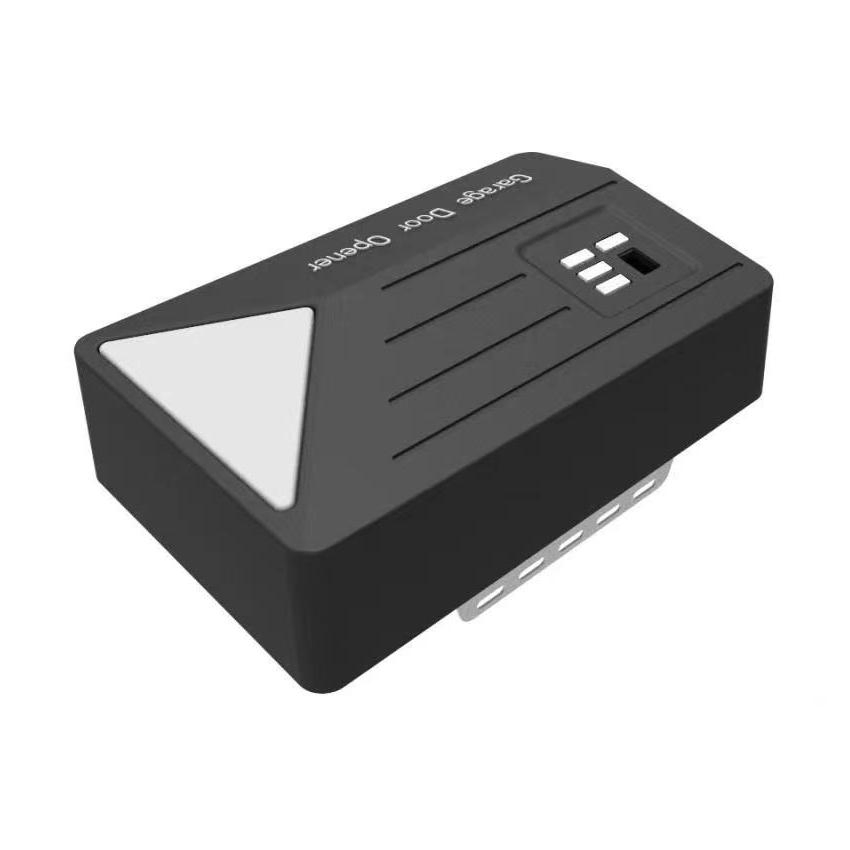

The garage door opener CN800 features a new design, widely matching different garage doors. The 800N and 100W DC motor is engineered to best match your operational needs.
⚙️ Product Parameters
1
Power supply options of 110V/220V to match local power requirements.
2
Model CN800 provides 800N output torque, suitable for 12 square meters garage doors.
3
DC24V 100W motor power, compatible with wireless keypads, wifi control, and exit buttons.
4
Moving speed of approximately 12 meters per minute for efficient operation.
5
Electric limit switch for easy user-defined setting and adjustment.
6
433.92MHz frequency with support for up to 25 remote control units.
7
Wide operating temperature range from -20ºC to +50ºC.
8
Low noise operation at only 56dB for a quiet residential environment.
9

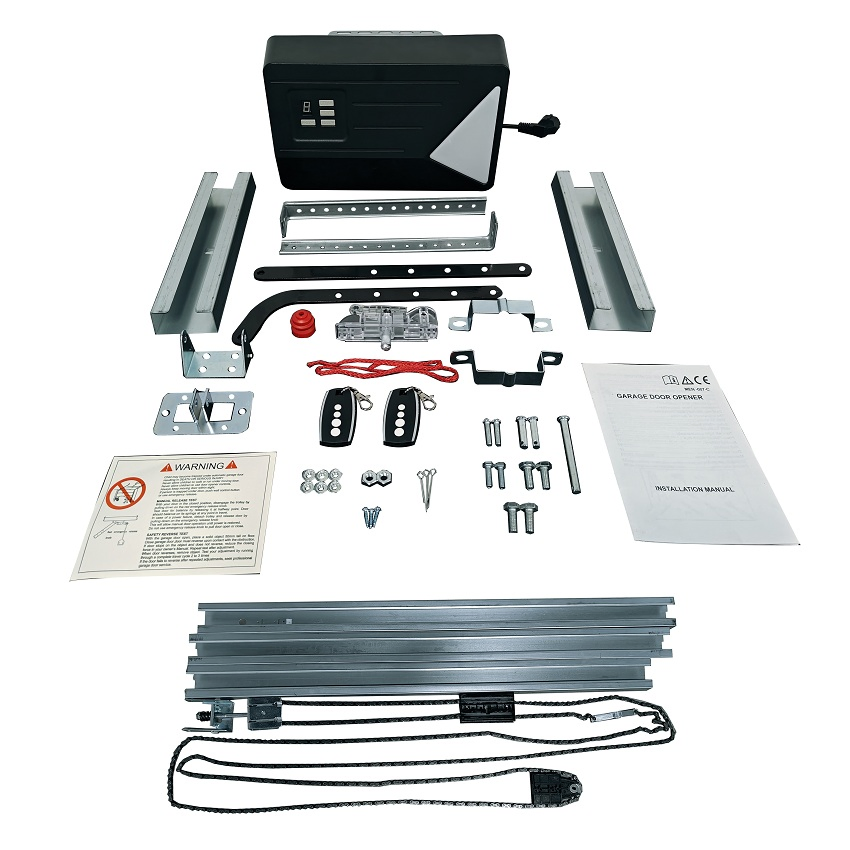

Includes a standard configuration track with a length of 3.3m.
❓ Frequently Asked Questions
Q1: What size of garage door is the CN800 suitable for?
A: The CN800 model is designed with 800N torque, which is ideal for garage doors up to 12 square meters.
Q2: Can I use this opener with my local 110V power supply?
A: Yes, you can choose between 110V or 220V power supply options to ensure compatibility with your local electrical standards.
Q3: How many remote controls can be paired with the system?
A: The system operates on a 433.92MHz frequency and supports up to 25 remotes, making it convenient for large families or multiple users.
Q4: Does the motor make a lot of noise during operation?
A: No, the garage door opener operates at a noise level of approximately 56dB, which is well within the acceptable range for residential use.
Q5: Is the garage door opener weather-resistant?
A: Yes, it is designed to operate reliably in a temperature range from -20ºC to +50ºC, making it suitable for various climates globally.
Q6: What is the standard length of the guide track?
A: The standard configuration includes a track with a length of 3.3 meters, which fits most standard garage setups.
