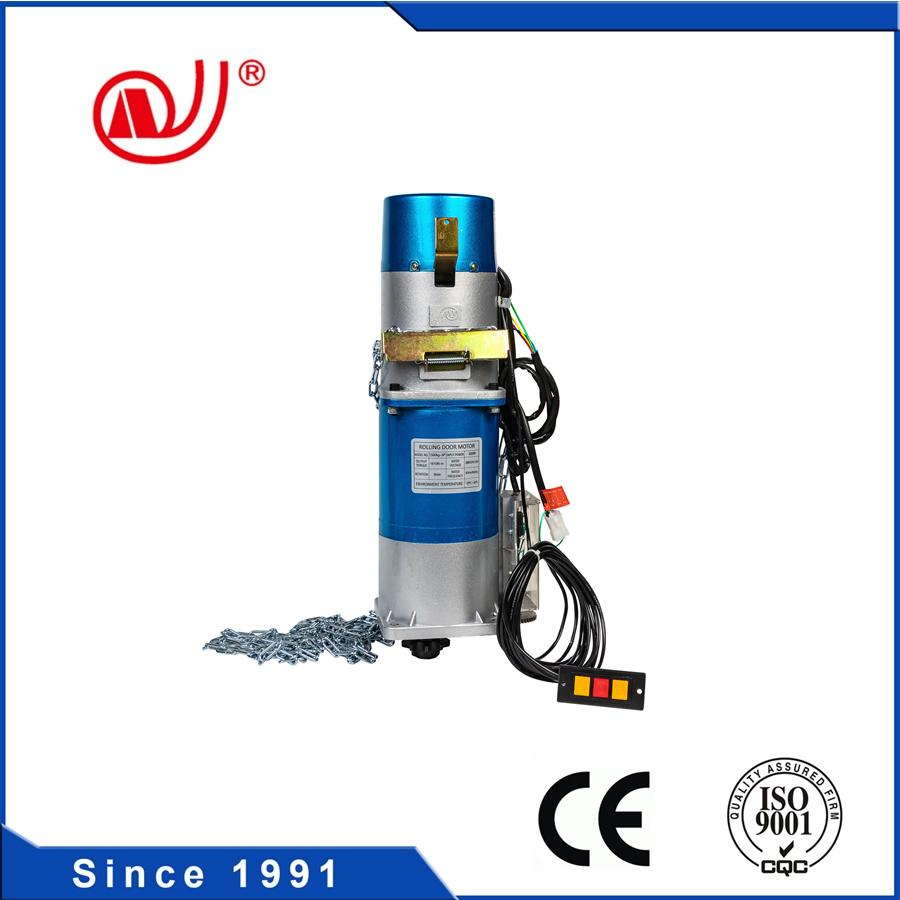

Torsion Motor
1 / 5
| Model No. | Max Lifting Weight (kg) | Max Lifting Height (m) | Rated Input Power (W) | Output Torque (N.m) | Big reel Sproket Rotation (r/min) | Chain No. |
|---|---|---|---|---|---|---|
| 220V/50HZ | ||||||
| AC300KG-1P | 300 | 6.5 | 450 | 168 | 6.2 | 10A |
| AC500KG-1P | 500 | 6.5 | 450 | 343 | 6.2 | 10A |
| AC600KG-1P | 600 | 6.5 | 680 | 412 | 6.2 | 10A |
| AC800KG-1P | 800 | 7 | 700 | 607 | 4.2 | 10A |
| AC1000KG-1P | 1000 | 7 | 700 | 1102 | 3.5 | 12A |
| 380V/50HZ | ||||||
| AC1000KG-3P | 1000 | 8 | 400 | 1102 | 6.5 | 12A |
| AC1300KG-3P | 1300 | 8 | 600 | 1372 | 6.5 | 12A |
| AC1500KG-3P | 1500 | 8 | 600 | 1610 | 5.7 | 12A |
| AC2000KG-3P | 2000 | 8 | 700 | 2200 | 5.7 | 12A |
Ensures motors work with higher stability and large lifting power output.
100% copper wiring allows for a larger capacity, stable current, and extended service life.
Limit utensil implementation for precision control, simple operation, and broad control range.

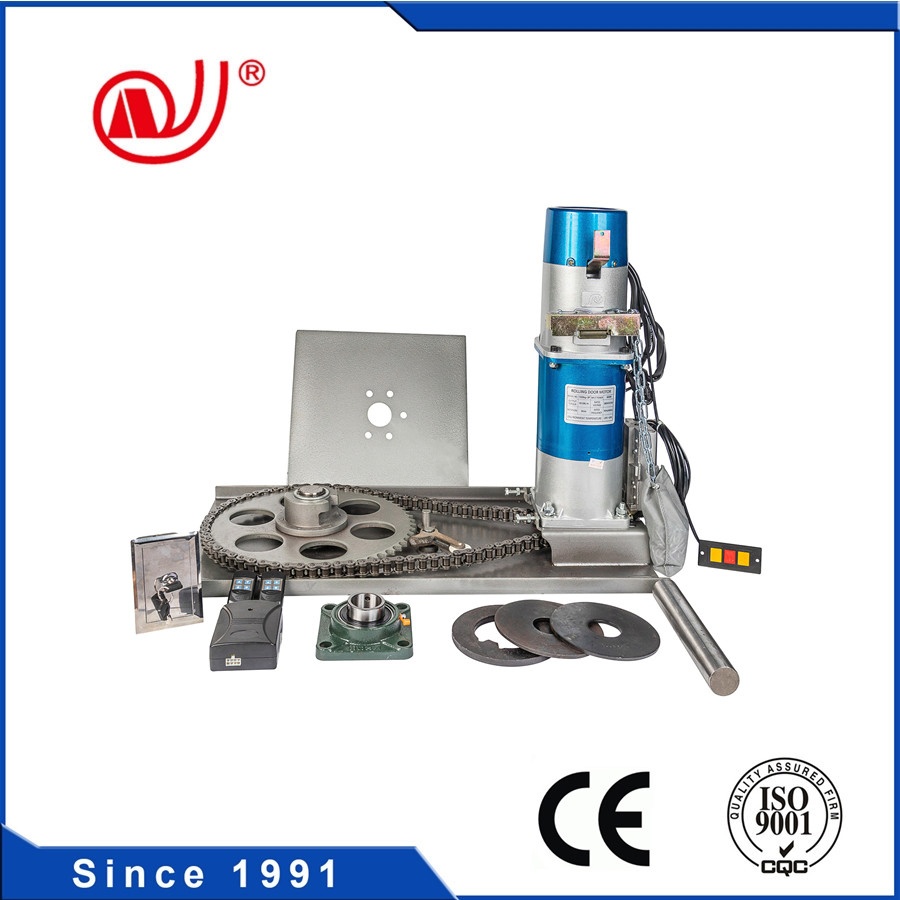

Equipped with an anti-dropping device in the bracket board to prevent accidental injury.
All motor selections are fully compliant and certified with CE and ISO9001 standards.
Yes, sample units are available prior to formal ordering. Please note that customers are responsible for both the sample cost and courier shipping expenses.

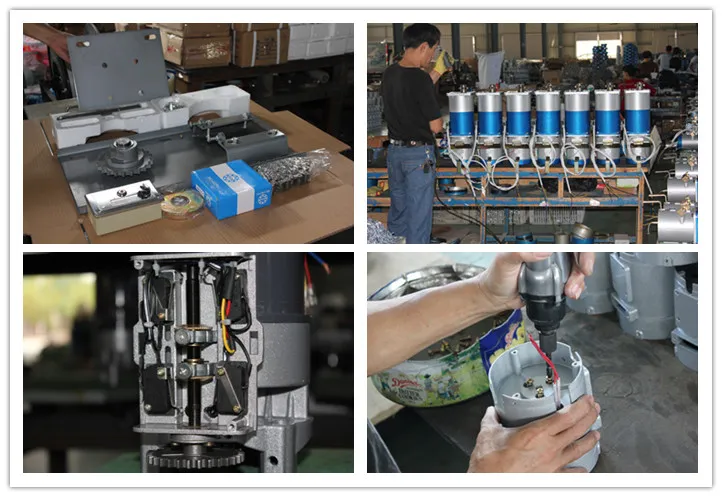

We maintain quality through experienced technical engineers, highly stable material supply chains, and strict testing standards. Each motor is tested individually before final packaging.
Generally, we require a 30% deposit prior to production, with the remaining 70% balance paid before loading via T/T. L/C and Western Union payments are also accepted.
Yes, OEM orders are fully accepted. We can customize motors, branding, and relevant accessories based on your exact requirements.
Our rolling shutter motor range is fully certified with CE, CCC, and ISO9001 quality marks.
Our minimum order quantity is 20 units. We offer highly competitive tiered pricing options for larger order volumes.
