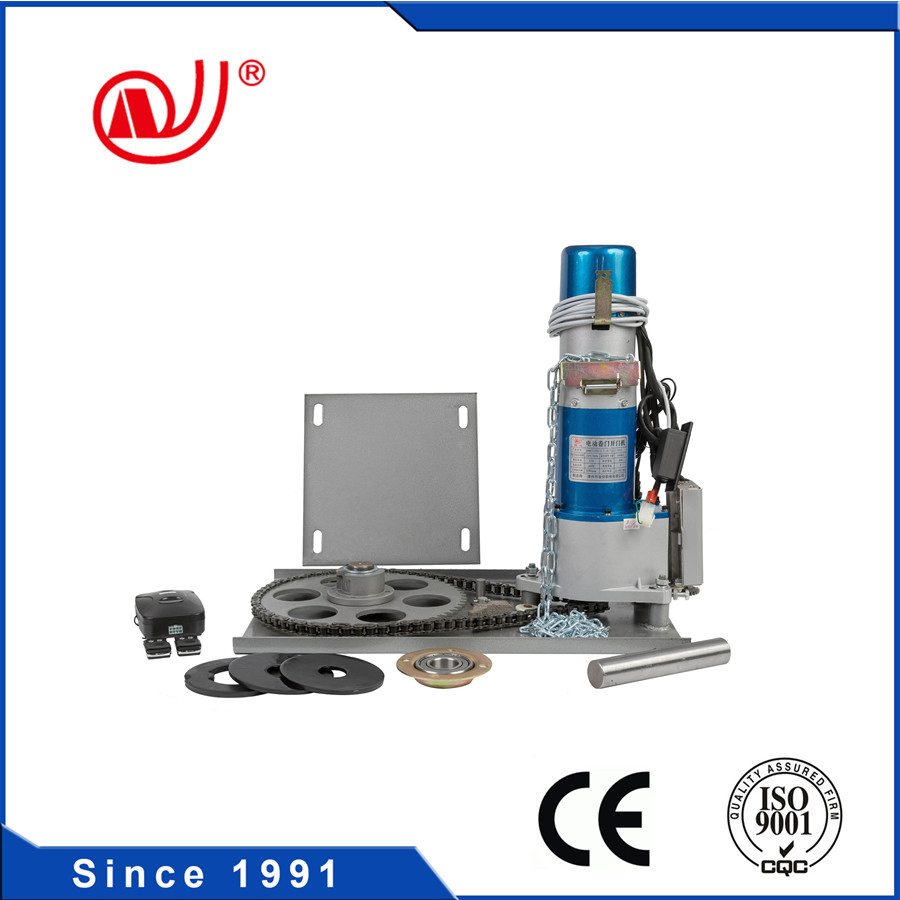

Torsion Motor
1 / 5

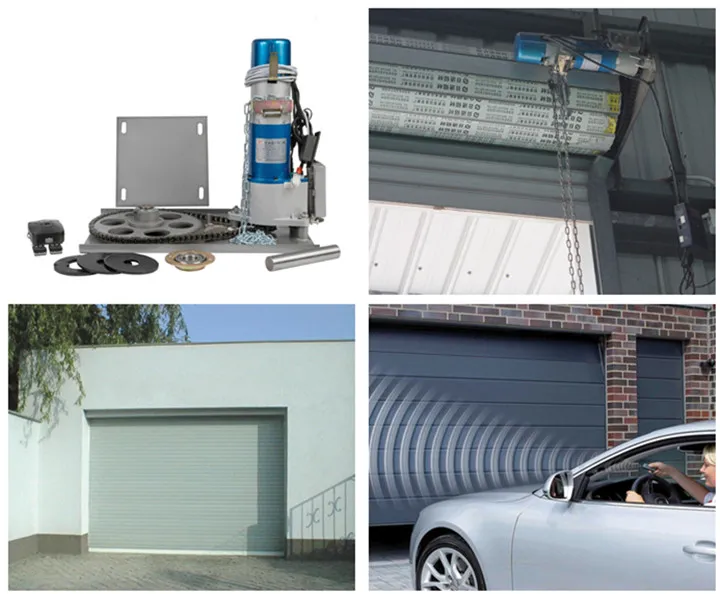

Our motors are applied to shopping centers, warehouse, garages, theaters, hotels, banks, factories and other buildings' rolling shutter doors' opening and closing, with electric and manual function.

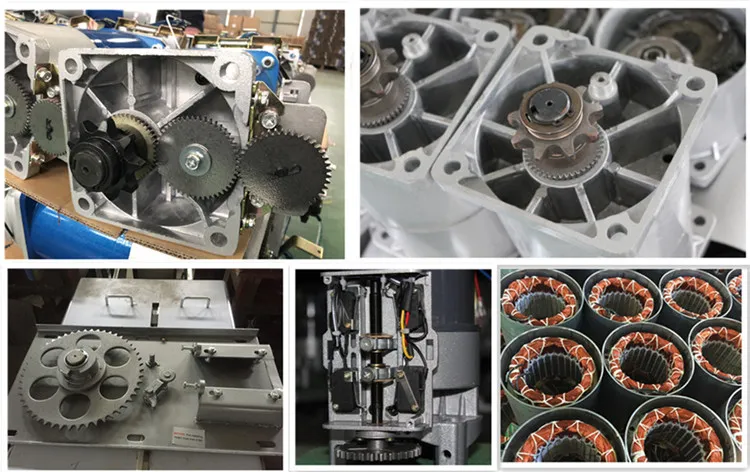

Aluminium alloy construction, solid and light but highly durable and easy to install.
Designed for low energy consumption and minimal vibration during operation.
Provides precise control, exceptionally easy operation, and a wide control range.
Prevents accidental injury and ensures maximum operation safety.

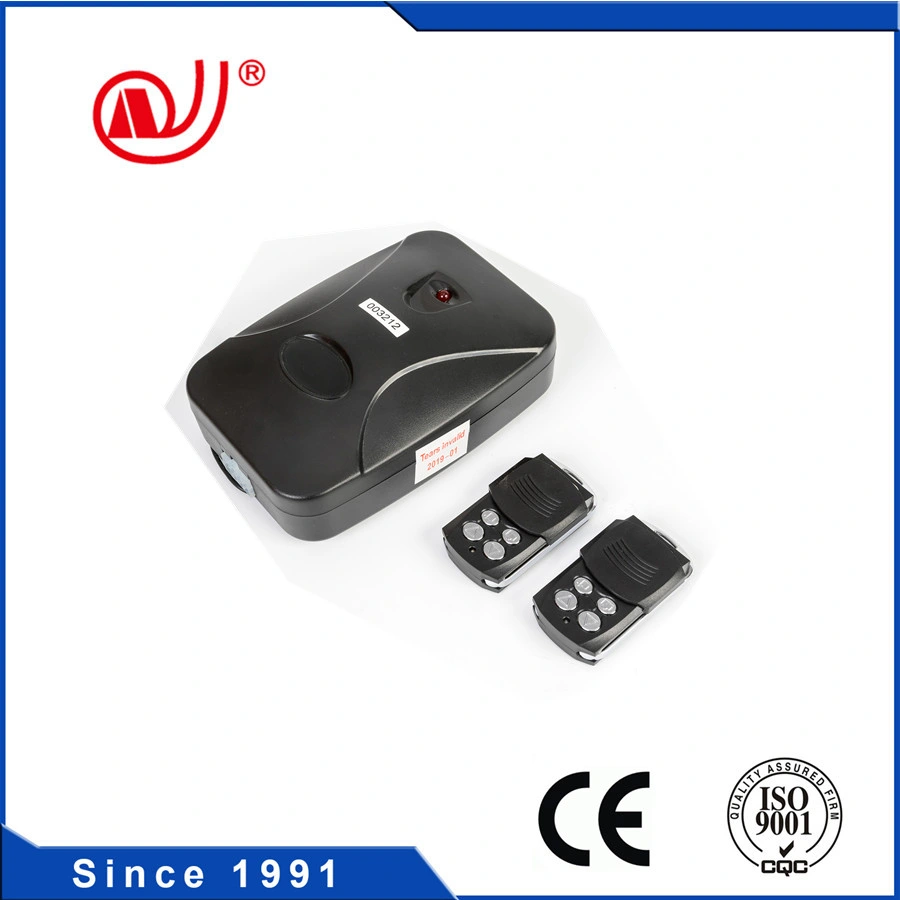

Conveniently outfitted with highly responsive remote control system.
| Model No. | Max lifting weight(kg) | Max lifting height(m) | Rated Input Power(W) | Output Torque(N.m) | Big reel sprocket Rotation(r/min) | Chain No. |
|---|---|---|---|---|---|---|
| 220V / 230V | 50HZ / 60HZ | ||||||
| AC300KG-1P | 300 | 6.5 | 450 | 168 | 6.2 | 10A |
| AC500KG-1P | 500 | 6.5 | 450 | 343 | 6.2 | 10A |
| AC600KG-1P | 600 | 6.5 | 680 | 412 | 6.2 | 10A |
| AC800KG-1P | 800 | 7 | 700 | 607 | 4.2 | 10A |
| AC1000KG-1P | 1000 | 7 | 700 | 1102 | 3.5 | 12A |
| 380V / 415V | 50HZ / 60HZ | ||||||
| AC1000KG-3P | 1000 | 8 | 400 | 1102 | 6.5 | 12A |
| AC1300KG-3P | 1300 | 8 | 600 | 1372 | 6.5 | 12A |
| AC1500KG-3P | 1500 | 8 | 600 | 1610 | 5.7 | 12A |
| AC2000KG-3P | 2000 | 8 | 800 | 2200 | 5.7 | 12A |
| DC Motors (24V) | ||||||
| 300KG-DC24V | 300 | 6.5 | 200 | 168 | 4.7 | 10A |
| 500KG-DC24V | 500 | 6.5 | 250 | 343 | 4.7 | 10A |
| 600KG-DC24V | 600 | 6.5 | 280 | 412 | 4.7 | 10A |

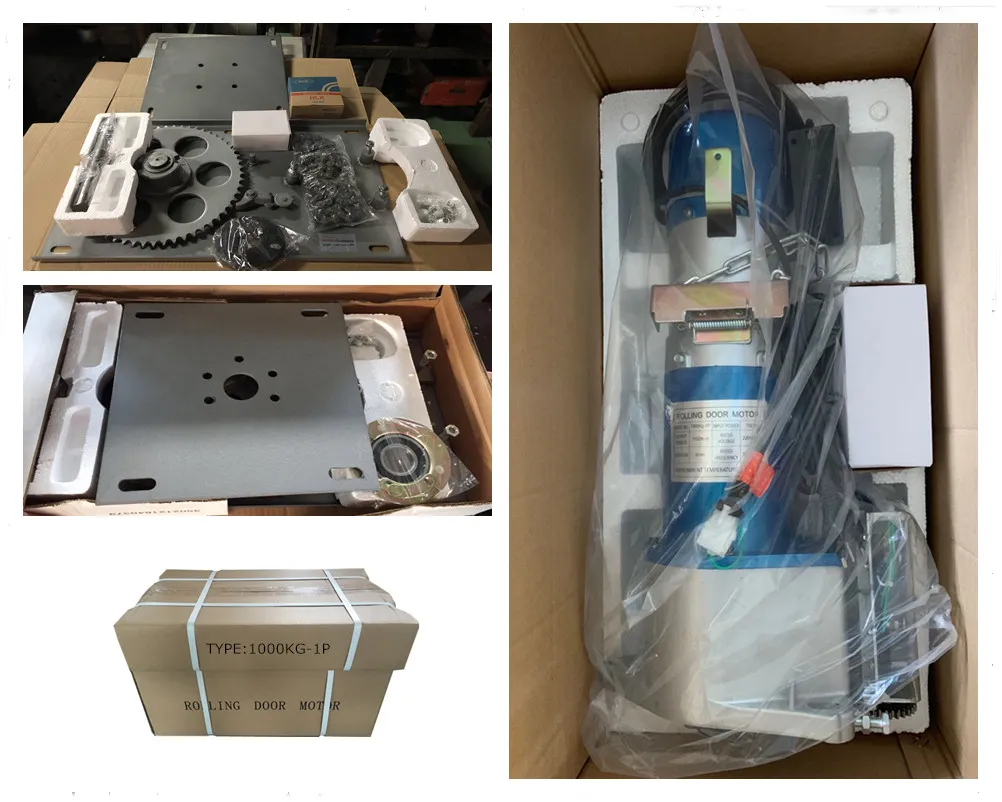

Packing System: One complete set packaged in two secure cartons. Utilizes a protective plastic bag interior and a heavy-duty carton exterior. Outer cartons can be customized with specific layouts, printed logos, or branding according to requests.
Loading Capacity: A standard 20 GP container easily holds approximately 520 to 550 PCS of AC rolling door motors. For DC motor units, it accommodates 480 to 520 PCS.
Delivery Lead Time: Shipments are reliably processed within 10 to 45 days after receiving the confirmation deposit, scaling according to exact quantity orders and customized features.
