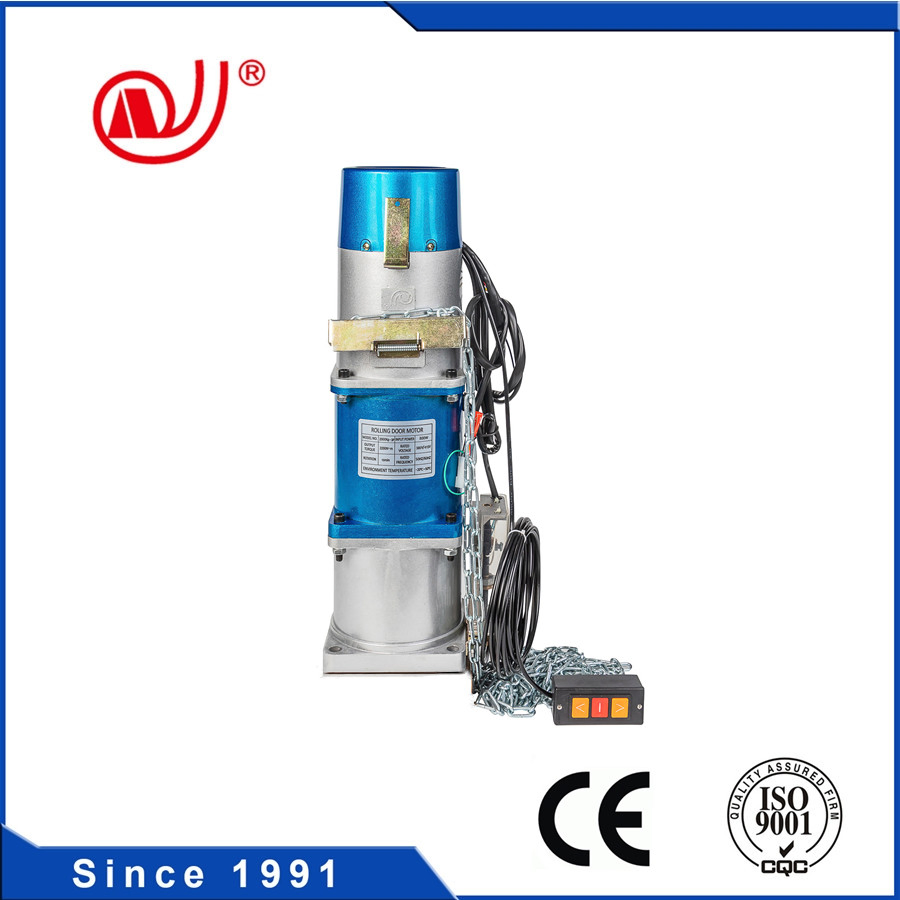

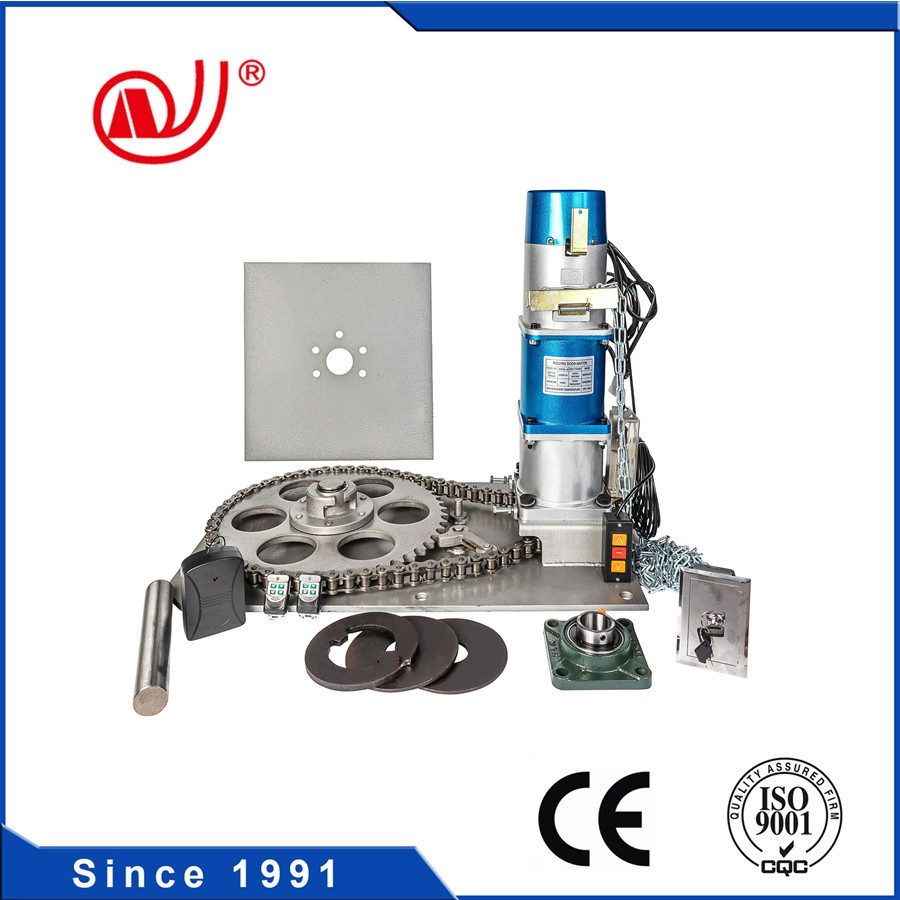

Roller Shutter Industrial Automatic Operators Side Door Motor Commercial Use with 1 Year Warranty AC2000kg-3p

Customization:	Available
Application:	Universal
Speed:	Constant Speed

Send Inquiry

Product Description

📊 Basic Information

Model NO.

AC2000kg-3P

Number of Stator

Three-Phase

Function

Driving, Control

Starting Mode

with Remote Control

Certification

ISO9001, CCC, CE

Lift Capacity

2000 Kg

Max. Lifting Height

Voltage

380V±10%

Rated Power

800W

Output Torque

2200 N.m

Material

Aluminum Alloy

Application

Bank, Hotel, Factory, Warehouse

⚙️ Product Description

Application Area

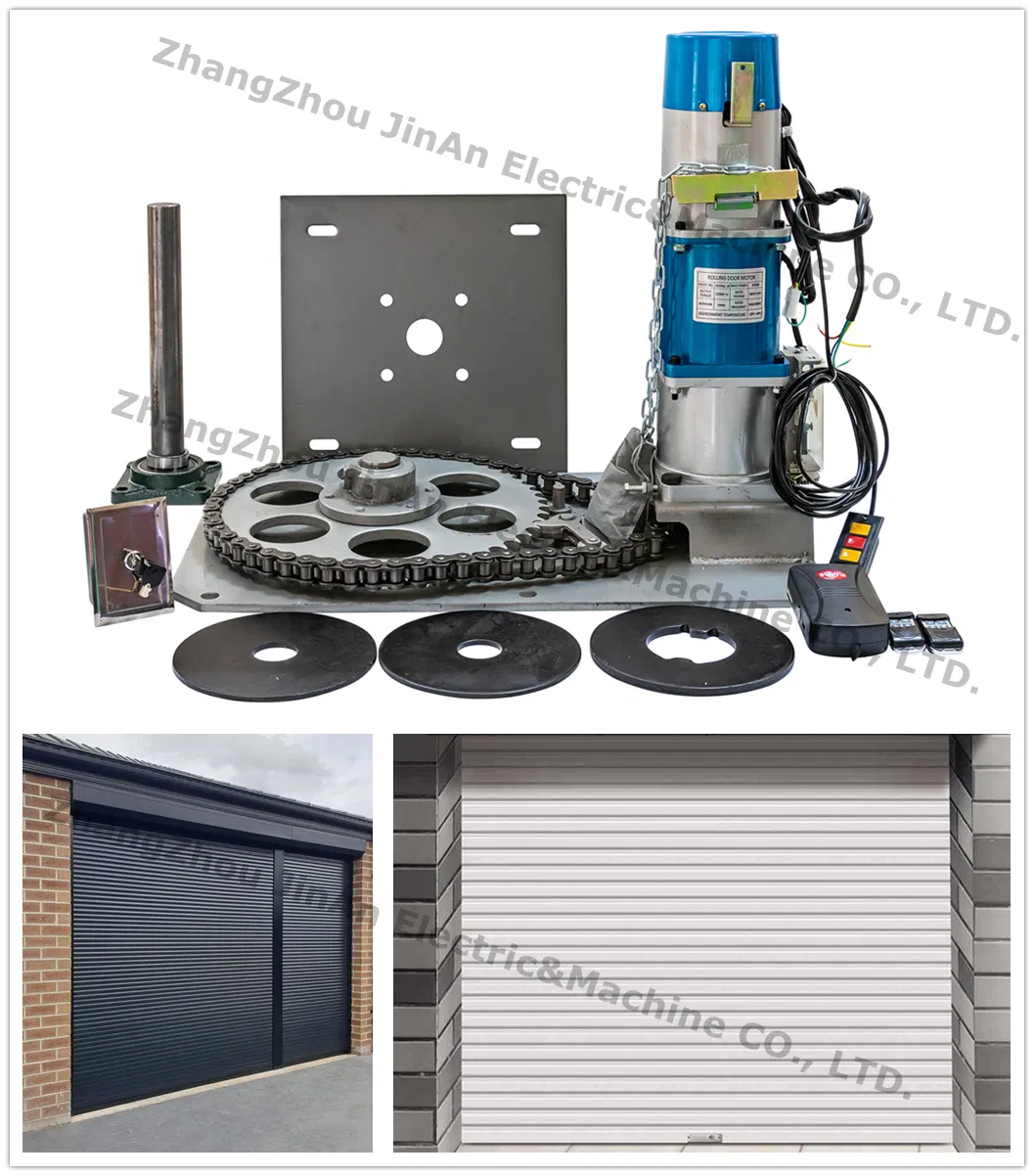

Our roller shutter motors are widely used for opening and closing of garage doors, industrial doors, residential doors, commercial and industrial sectors. It can be operated by electricity and manual.

Working Environment & Conditions

Working Area: Indoor or similar places
Environment Temperature: -20ºC ~ 50ºC
Relative Humidity: ≤90%
Voltage: Fixed voltage × (1 ±10%)V
Frequency: 50Hz ± 2Hz
Short working system: Continuous operation not over 6 minutes

Main Features

Shell: Aluminium alloy, solid and light but durable and easy to install.
Low Noise: Low energy consumption, small vibration.
Limit System: Correct control, easy operation, and big control range.
Anti-dropping device: Preventing accidental injury and ensure safety.

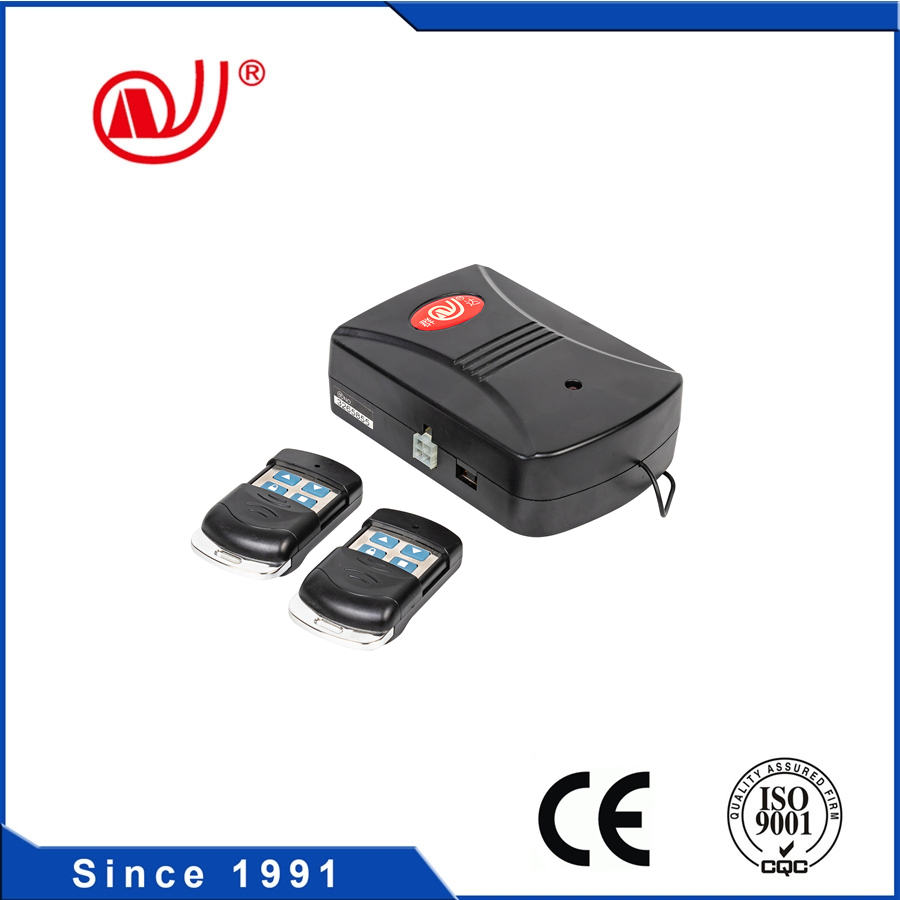

Transmitters: Equipped with remote control.

📋 Technical Parameter

Model No.	Max Lifting (kg)	Max Height (m)	Input Power (W)	Output Torque (N.m)	Rotation (r/min)	Chain No.
AC300KG-1P	300	6.5	450	168	6.2	10A
AC500KG-1P	500	6.5	450	343	6.2	10A
AC600KG-1P	600	6.5	680	412	6.2	10A
AC1000KG-1P	1000	7	700	1102	3.5	12A
AC1000KG-3P	1000	8	400	1102	6.5	12A
AC2000KG-3P	2000	8	800	2200	5.7	12A
DC Motors (24V)
300KG-DC24V	300	6.5	200	168	4.7	10A
600KG-DC24V	600	6.5	280	412	4.7	10A

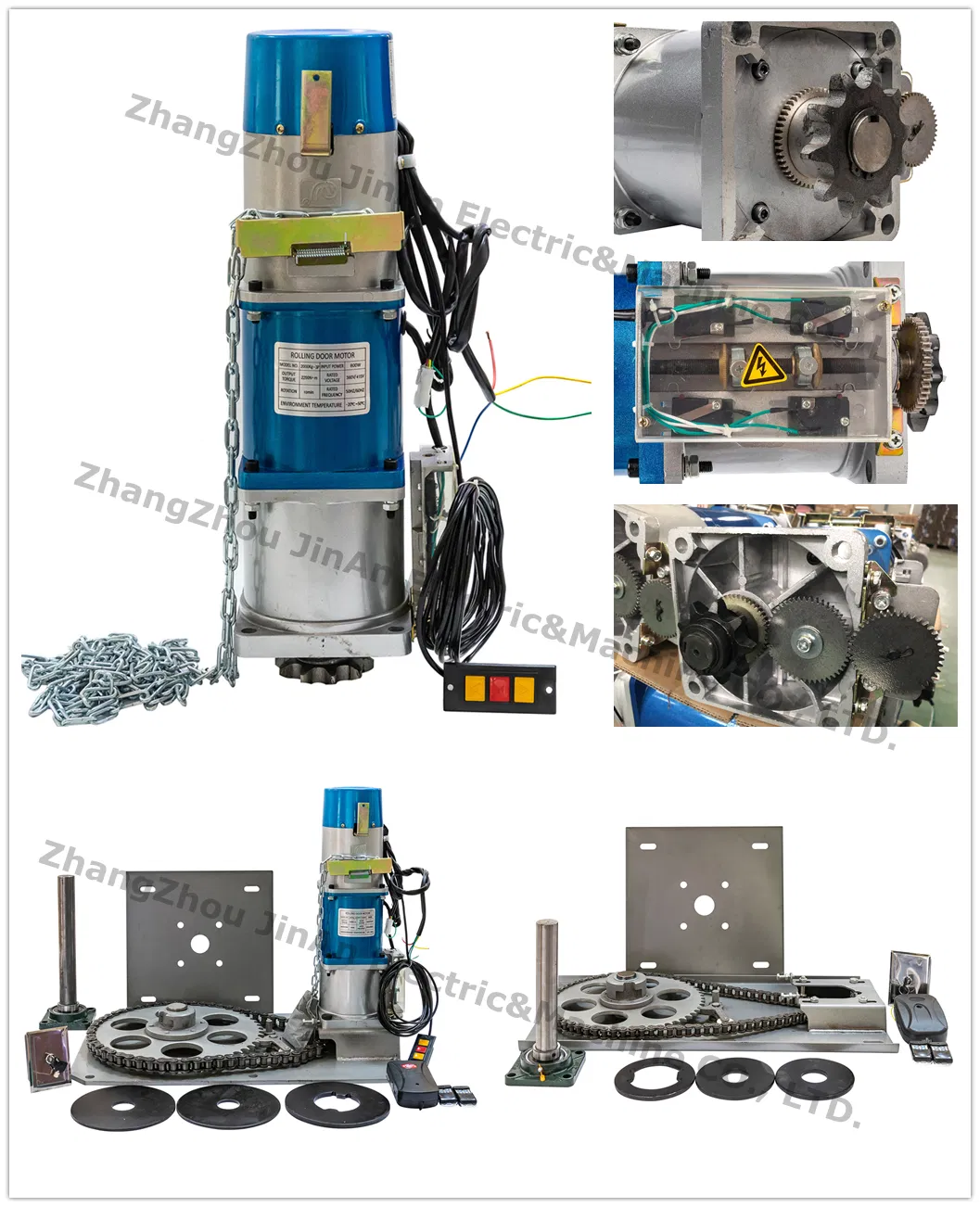

Technical Details

4 Relays: Stable performance and high lifting power.
100% Copper: High capacity, stable current, and extreme durability.
Micro Switches: 4 switches for precise limit control.

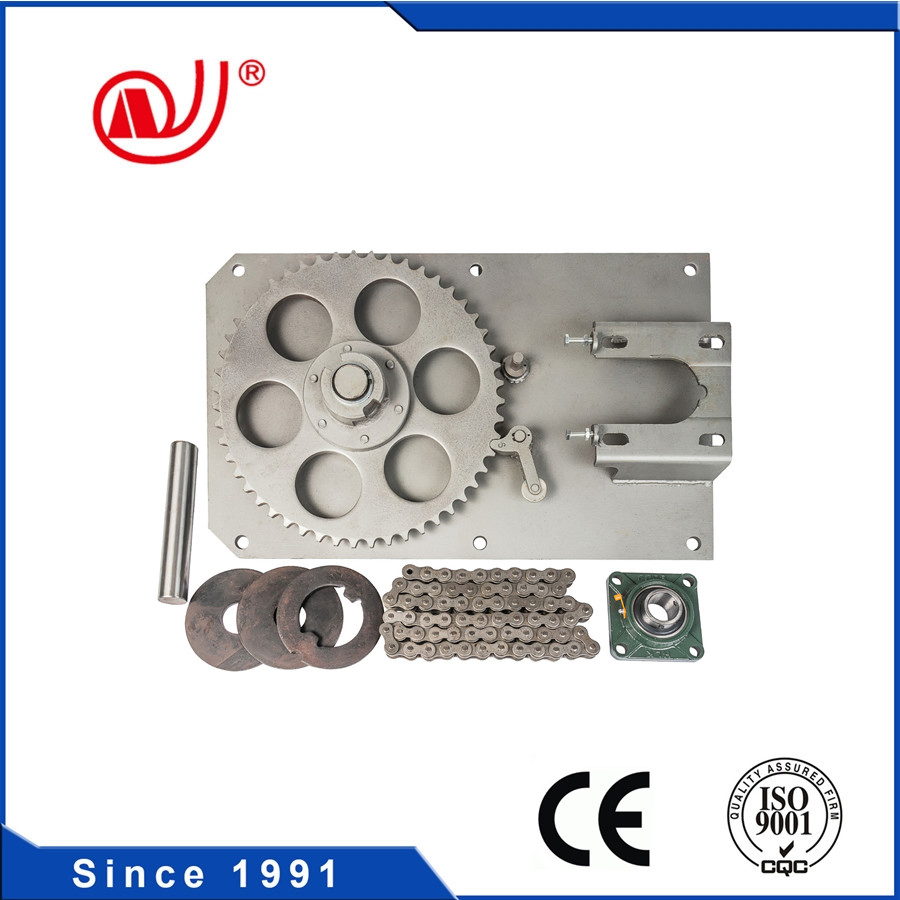

Safety: Integrated anti-dropping device on bracket board.

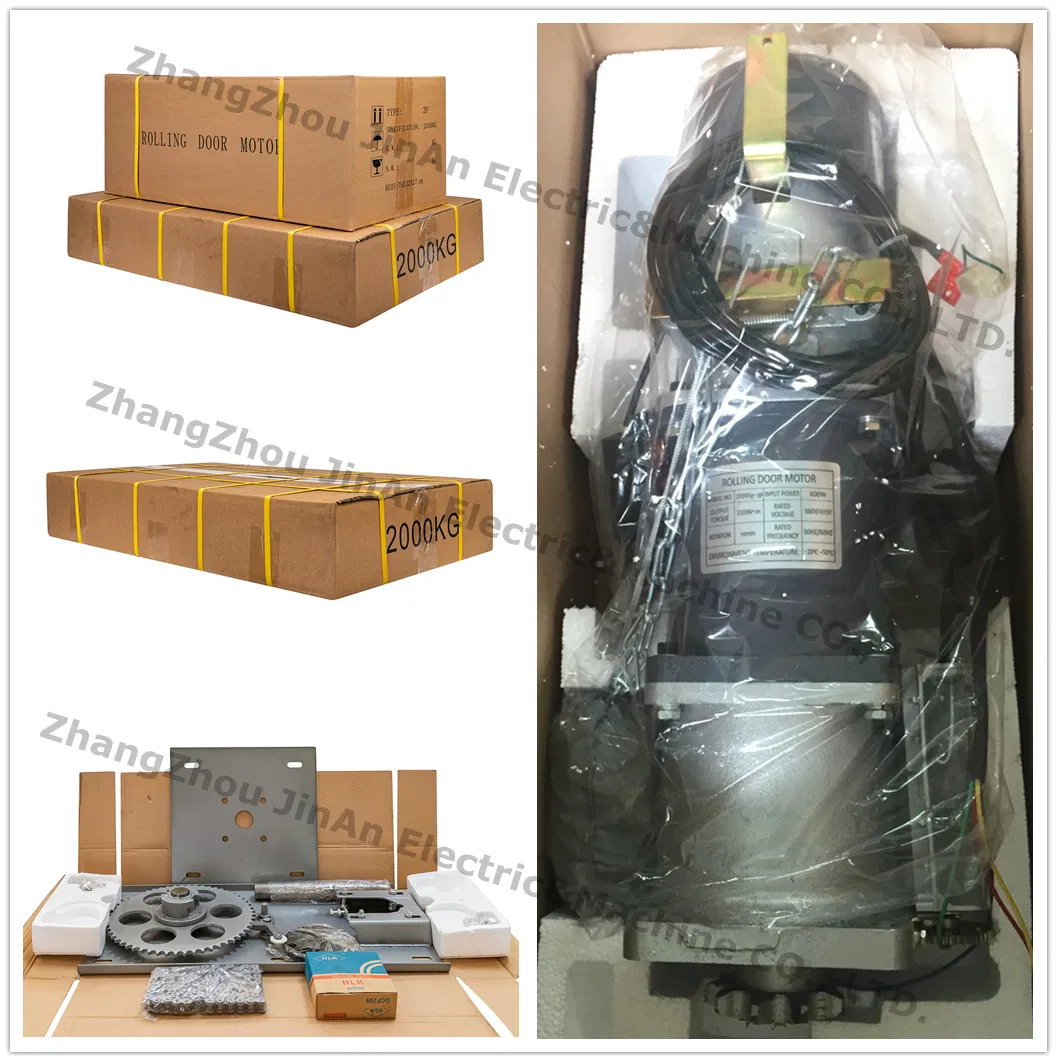

📦 Packaging & Delivery

Packing: One set in two cartons, plastic bag inside, carton outside. Support customized logo printing.
Loading Capacity: A 20 GP container can hold about 520-550 PCS AC motors.
Delivery time: 10-45 days after receiving deposit, depending on quantity.

🏢 Manufacturer Information

As a professional manufacturer specializing in rolling door motors since 1991, we utilize advanced production technology and strict quality control. All products undergo 100% full inspection. Our motors are known for elegant design, stable quality, and long service life.

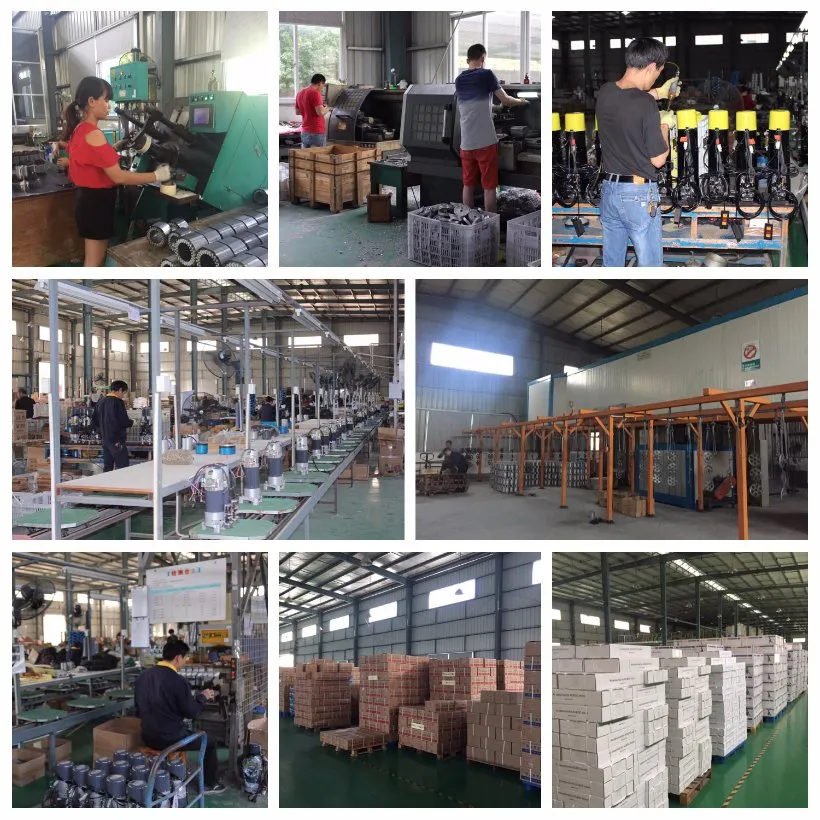

Professional Equipment

Certificates & Exhibition

💡 More Choices For You

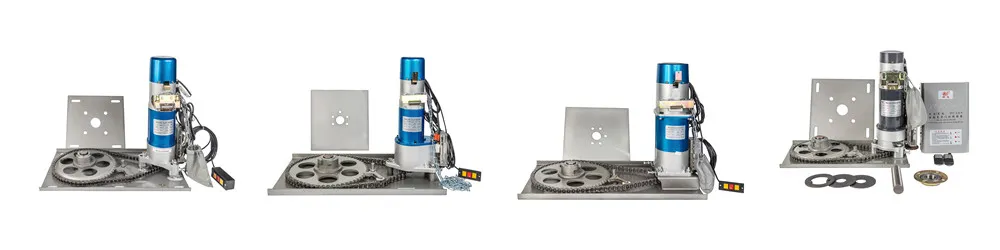

We offer a full range of AC Motors (300kg to 2000kg) and DC Motors (300kg to 600kg) to meet your specific project requirements.

❓ FAQ

Are you a manufacturer? Yes, we are a professional manufacturer of rolling door motors with our own specialized factory.

How about the delivery time? Generally, it is 7-10 days if in stock, and 15-35 days for larger orders or non-stock items.

Can you provide OEM services? Yes, OEM is acceptable. We can customize specifications and branding based on your requirements.

What is the material of your motor winding? The main material is 100% Copper wire. Aluminum wire is also available as an option for AC motors.

What are your terms of payment? We accept bank transfers. Typically 30% T/T in advance and 70% balance before delivery.

How do you ensure product quality? We have professional engineers, strict quality control systems, and all motors are tested individually before packaging.
