Wholesale Security Commercial Roller Down Remote-Controlled Shutters Motors
Wholesale Security Commercial Roller Down Remote-Controlled Shutters Motors
Wholesale Security Commercial Roller Down Remote-Controlled Shutters Motors
Wholesale Security Commercial Roller Down Remote-Controlled Shutters Motors
Wholesale Security Commercial Roller Down Remote-Controlled Shutters Motors
1 / 5
Wholesale Security Commercial Roller Down Remote-Controlled Shutters Motors
Wholesale Security Commercial Roller Down Remote-Controlled Shutters Motors
Wholesale Security Commercial Roller Down Remote-Controlled Shutters Motors
Wholesale Security Commercial Roller Down Remote-Controlled Shutters Motors
Wholesale Security Commercial Roller Down Remote-Controlled Shutters Motors

Wholesale Security Commercial Roller Down Remote-Controlled Shutters Motors

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

  • Overview
  • Product Description
  • Product Parameters
  • FAQ
Overview
Basic Info.
Model NO.SH59M-100Nm
MaterialSteel
Thickness40mm
Opening StyleRolling
Opening TypeWith Remote Control
Motor Shaft3cm
Power411W
Output Torque80-180nm
Door Panel PatternCustomized
ColorCustomized
Surface FinishingFinished
Torque100nm
Rotated Speed12rpm
Voltage230V/110V
Current1.92A
Protection ClassIP44
Running Time>4min
Weight6.6kgs
OriginChina
HS Code8501109190
Production Capacity50000
Packaging & Delivery
Package Size71.00cm * 14.00cm * 12.00cm
Package Gross Weight8.000kg
Transport PackageCarton/Pallet
Specification705*135*115mm
Product Description

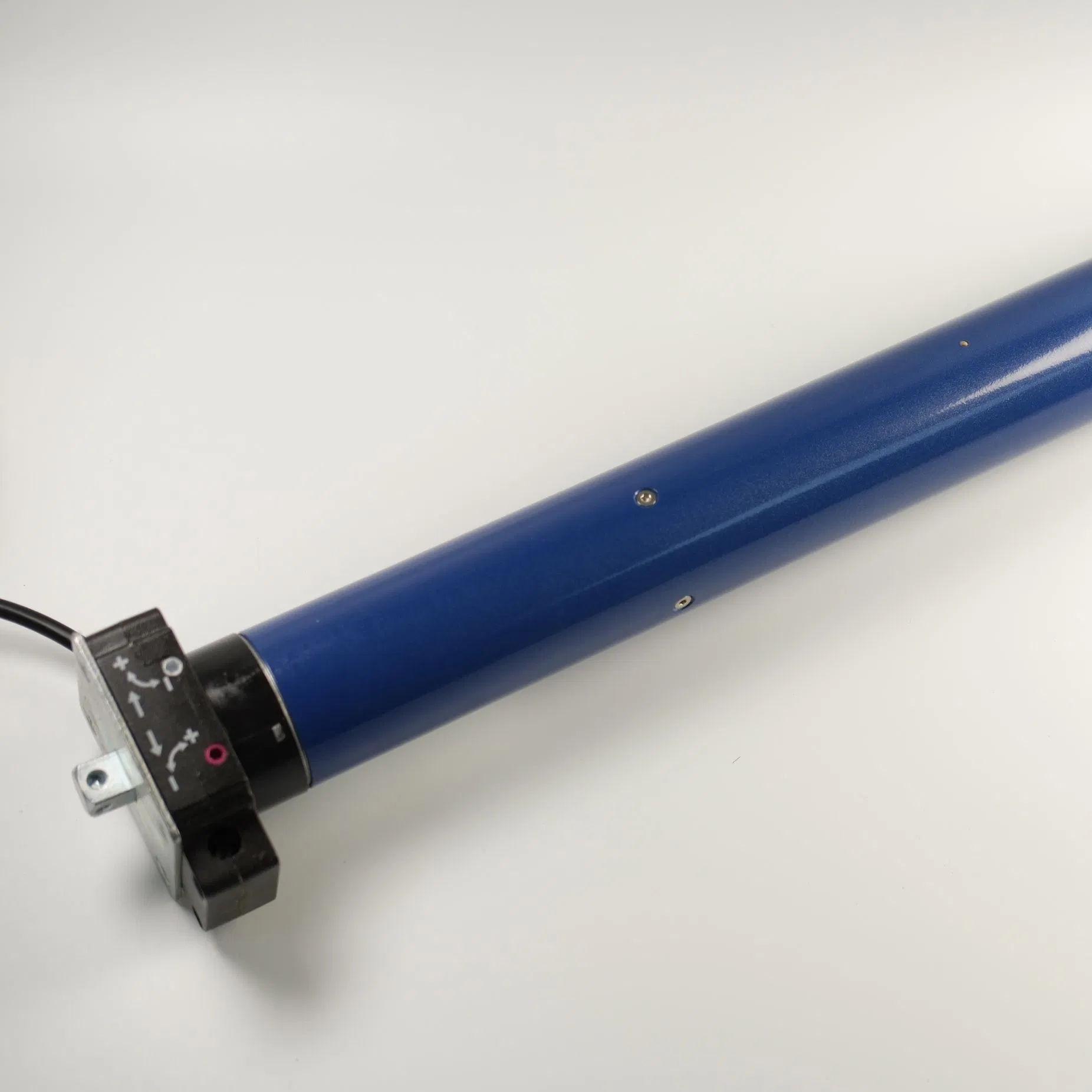

Override Roll down Shutter Motor 59mm 100Nm
  • Override Motor with Remote
  • Rated Torque: 100 Nm

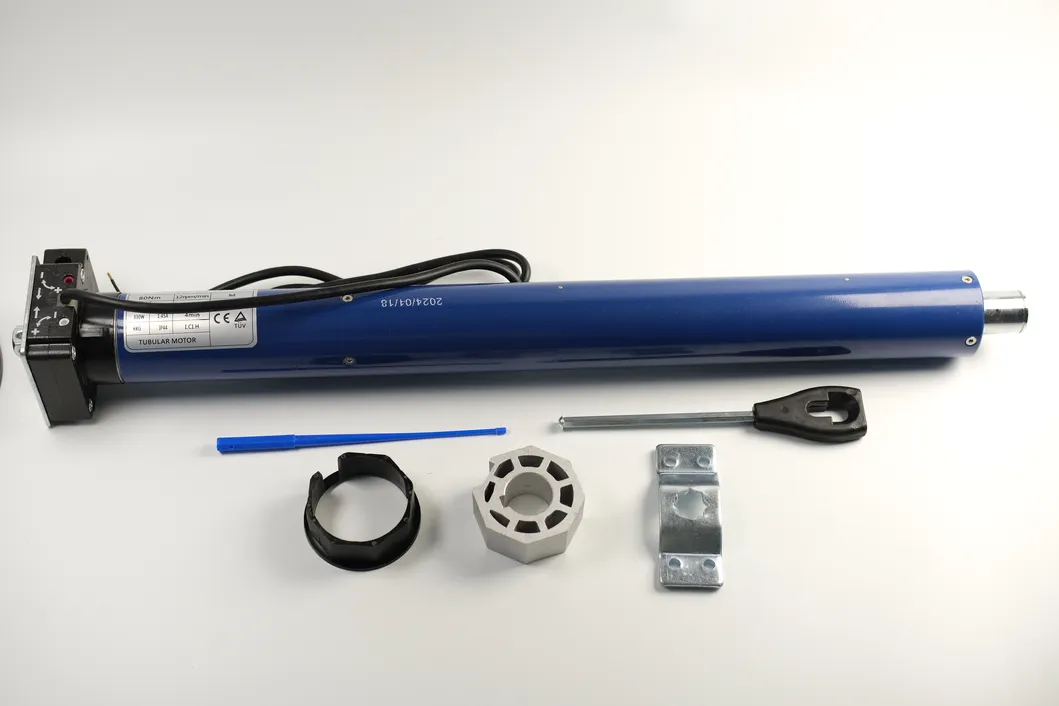

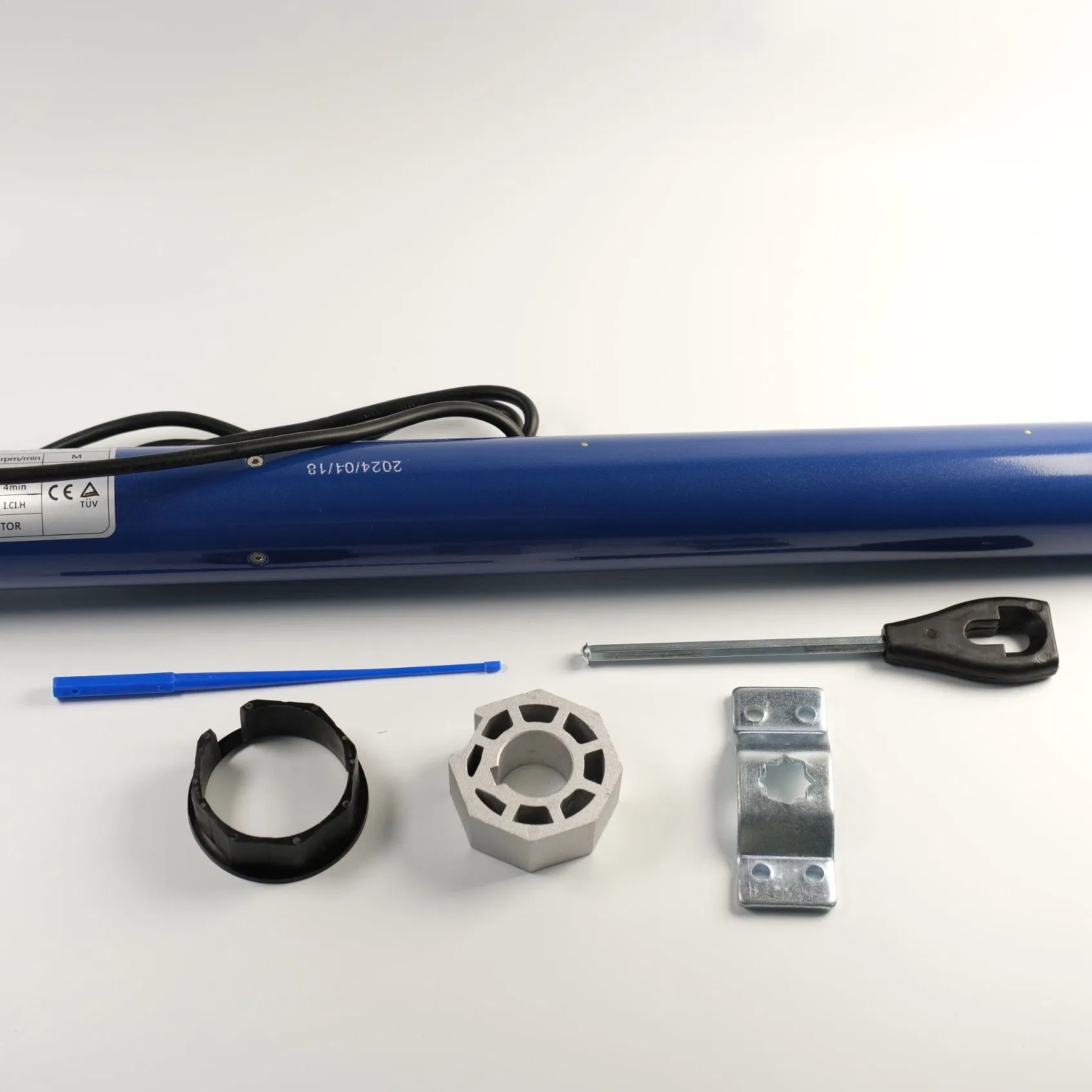

  • Kit includes 60 & 70mm crowns, 60 & 70mm drives, bracket
Wholesale Security Commercial Roller Down Remote-Controlled Shutters Motors
Wholesale Security Commercial Roller Down Remote-Controlled Shutters Motors
Wholesale Security Commercial Roller Down Remote-Controlled Shutters Motors
Product Parameters
Frequency / Voltage Model Torque (Nm) Speed (rpm) Voltage (V) Frequency (Hz) Power (W) Current (A) Drive size IP Class Running Time (min) Weight (kg)
230V 50Hz SH59M-60 60 12 230 50 288 1.25 26 IP44 4 5.8
SH59M-80 80 12 230 50 370 1.80 26 IP44 24 6.0
SH59M-100 100 12 230 50 411 1.92 26 IP44 ≥4 6.6
230V 50Hz (High Power) SH59M-120 120 12 230 50 450 2.00 26 IP44 24 6.8
SH59M-140 140 9 230 50 465 2.12 26 IP44 24 7.0
SH59M-180 180 9 230 50 530 2.45 26 IP44 4 7.0
Wholesale Security Commercial Roller Down Remote-Controlled Shutters Motors
Wholesale Security Commercial Roller Down Remote-Controlled Shutters Motors
Frequently Asked Questions
What types of roller shutter motors do you manufacture?
We manufacture a wide range of roller shutter motors, including tubular motors from 25mm to 92mm, central motors 60mm and 76mm, and side motors 300kgs to 2000kgs suitable for various types of roller shutters, also shutter accessories like switch, remotes.
What are the main features of your roller shutter motors?
Our roller shutter motors are backed by more than 10 years of experience. They are designed for durability, reliability, and ease of installation. They are equipped with advanced technology for smooth operation, low noise levels, and enhanced security features.
Can you customize roller shutter motors according to our specific requirements?
Yes, we offer customization services to meet the unique needs of our customers. Whether you require specific dimensions, motor power, or control options, we can tailor our products to fit your requirements.
What kind of warranty do you provide for your roller shutter motors?
Our tubular motor has 3 years of warranty. We stand behind the quality of our products and offer a comprehensive warranty on all our roller shutter motors.
What is the protection class and typical running time for the motors?
These motors feature an IP44 protection class, providing solid defense against water splashing and dust ingress. The typical running time is rated at >4 minutes.
What materials are used in the construction of the shutter motor?
The roller shutter motors are constructed using high-quality steel with a finished surface, ensuring maximum strength, stability, and longevity in commercial or residential usage.
