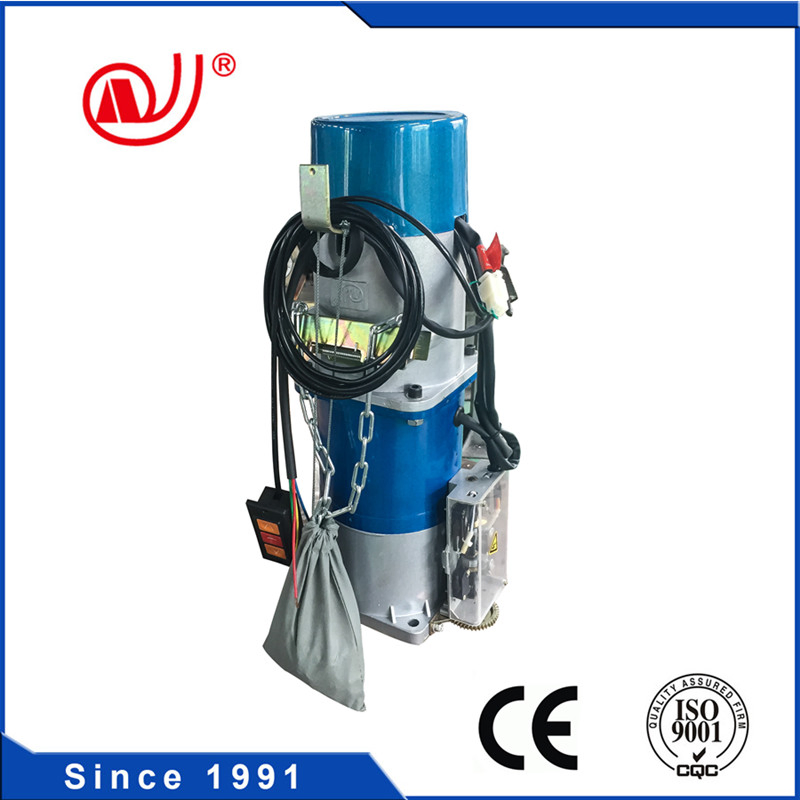

Torsion Motor
1 / 5

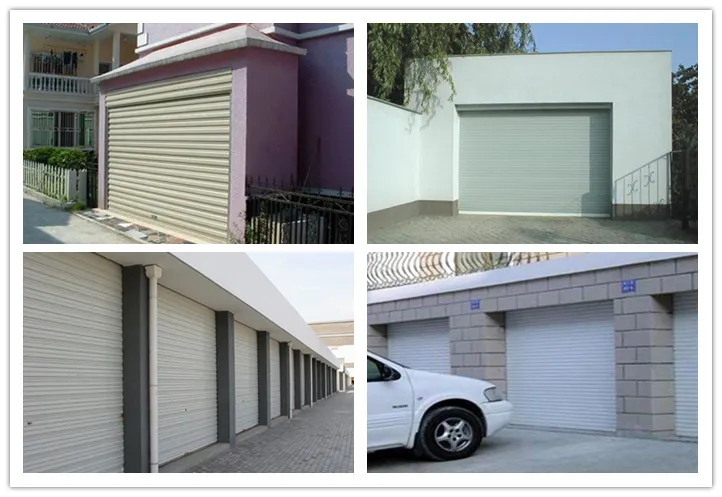

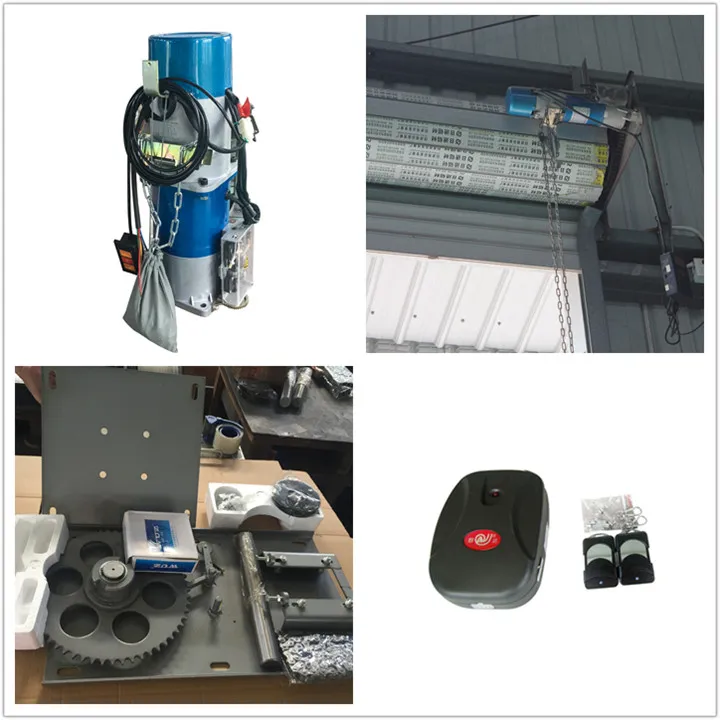

These motors are designed for a wide range of industrial and commercial applications, including shopping centers, warehouses, garages, theaters, hotels, banks, and factories. They are ideal for rolling shutter doors' opening and closing with both electric and manual functions.
| Model No. | Max Lifting Weight (kg) | Max Height (m) | Input Power (W) | Torque (N.m) | Rotation (r/min) | Chain No. |
|---|---|---|---|---|---|---|
| 220V/50HZ | ||||||
| AC300KG-1P | 300 | 6.5 | 450 | 168 | 6.2 | 10A |
| AC500KG-1P | 500 | 6.5 | 450 | 343 | 6.2 | 10A |
| AC600KG-1P | 600 | 6.5 | 680 | 412 | 6.2 | 10A |
| AC800KG-1P | 800 | 7 | 700 | 607 | 4.2 | 10A |
| AC1000KG-1P | 1000 | 7 | 700 | 1102 | 3.5 | 12A |
| 380V/50HZ | ||||||
| AC1000KG-3P | 1000 | 8 | 400 | 1102 | 6.5 | 12A |
| AC1300KG-3P | 1300 | 8 | 600 | 1372 | 6.5 | 12A |
| AC1500KG-3P | 1500 | 8 | 600 | 1610 | 5.7 | 12A |
| AC2000KG-3P | 2000 | 8 | 700 | 2200 | 5.7 | 12A |

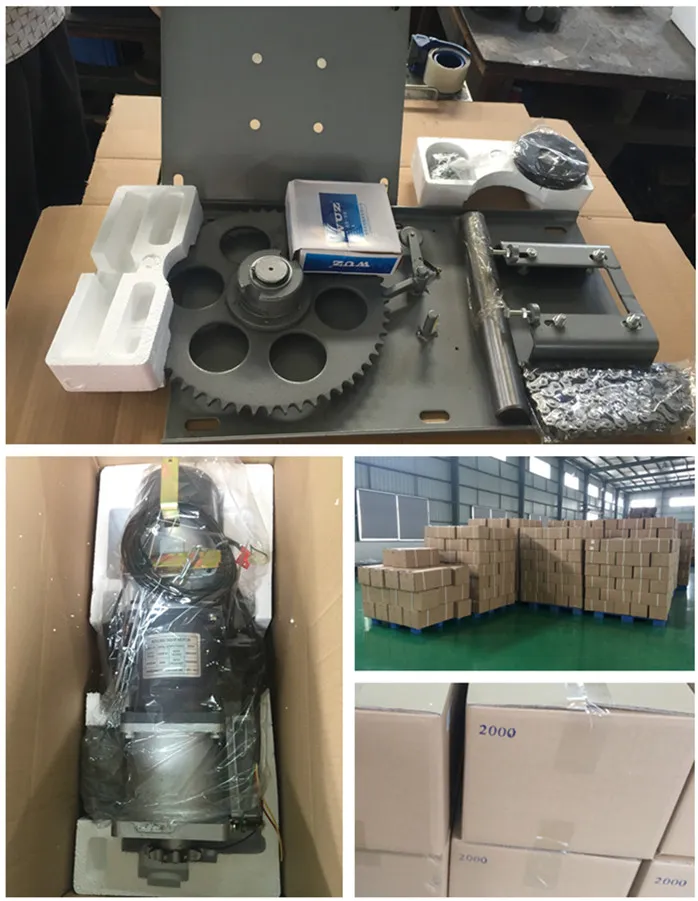

Packing: One set in two cartons, protected by plastic bags inside. Cartons can be customized with specific logos or designs.
Loading Capacity: A 20 GP container typically holds 520-550 PCS of AC motors.
Delivery Time: Goods are delivered within 10-45 days following the receipt of the deposit, depending on order quantity.

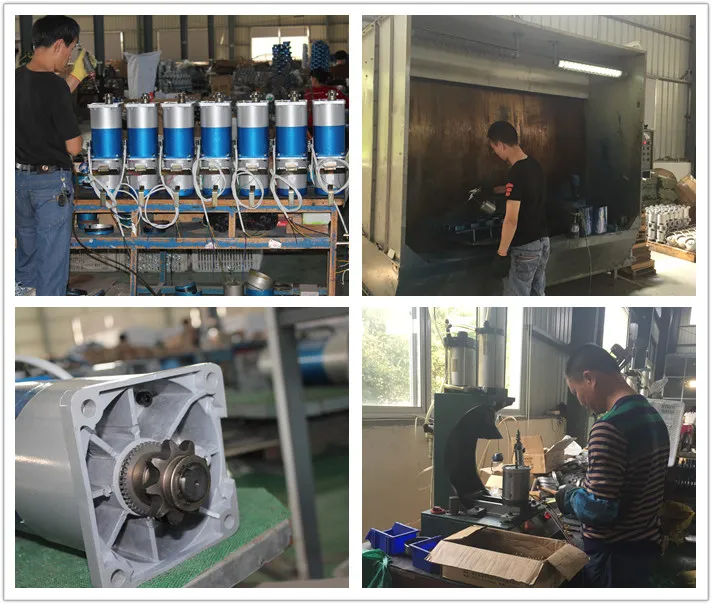

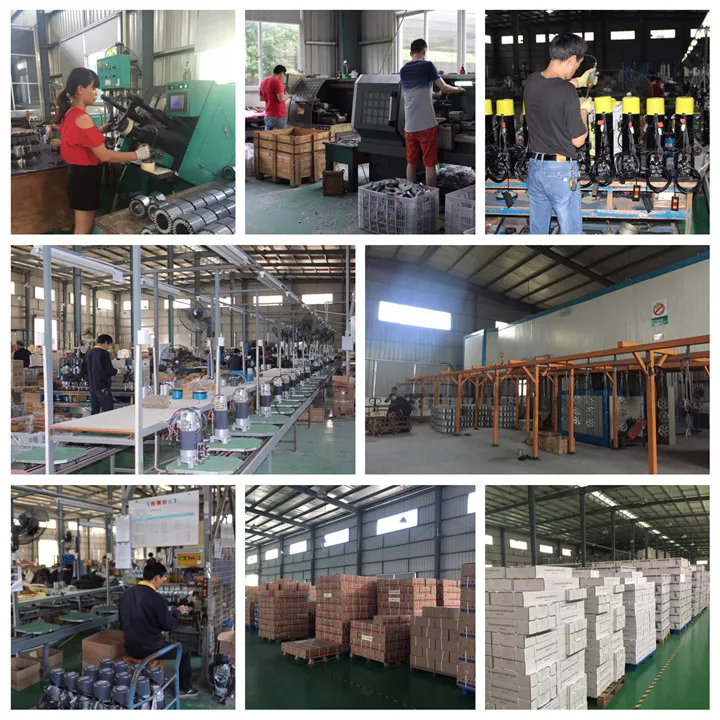

Utilizing advanced production technology and a quality-oriented workforce, our processes include 100% full inspection to ensure high-grade product delivery. Features include elegant design, stable quality, and long service life.

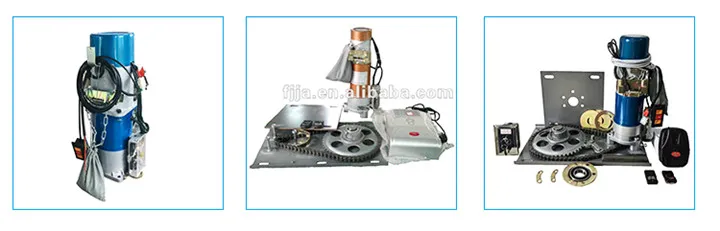

All motors are CE and ISO9001 certified. We offer a full range of AC (300KG to 2000KG) and DC (300KG to 600KG) solutions to meet diverse client requirements.
