Powerful Automatic Roller Shutter Motor Ym35-6s for Enhanced Security

1 / 5

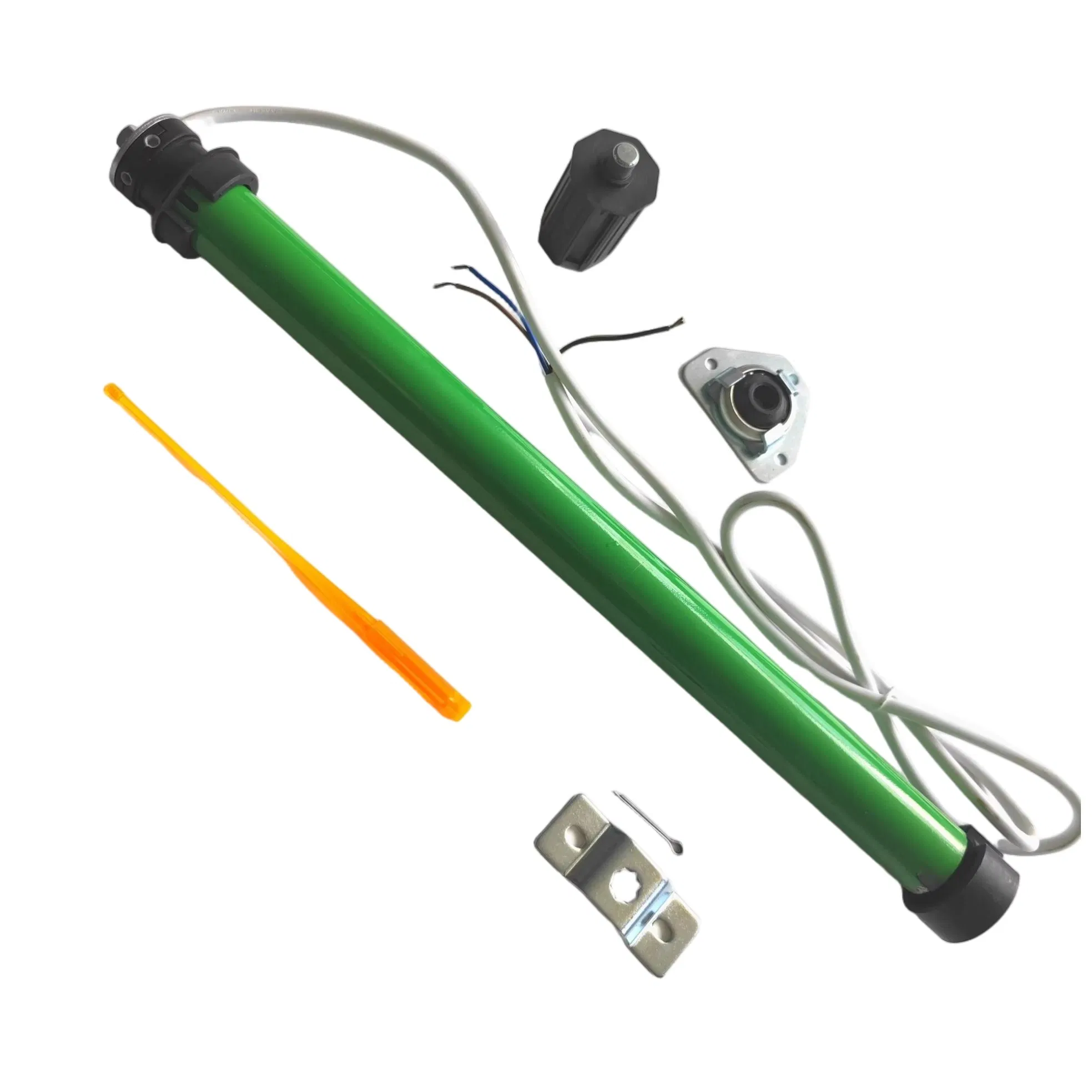

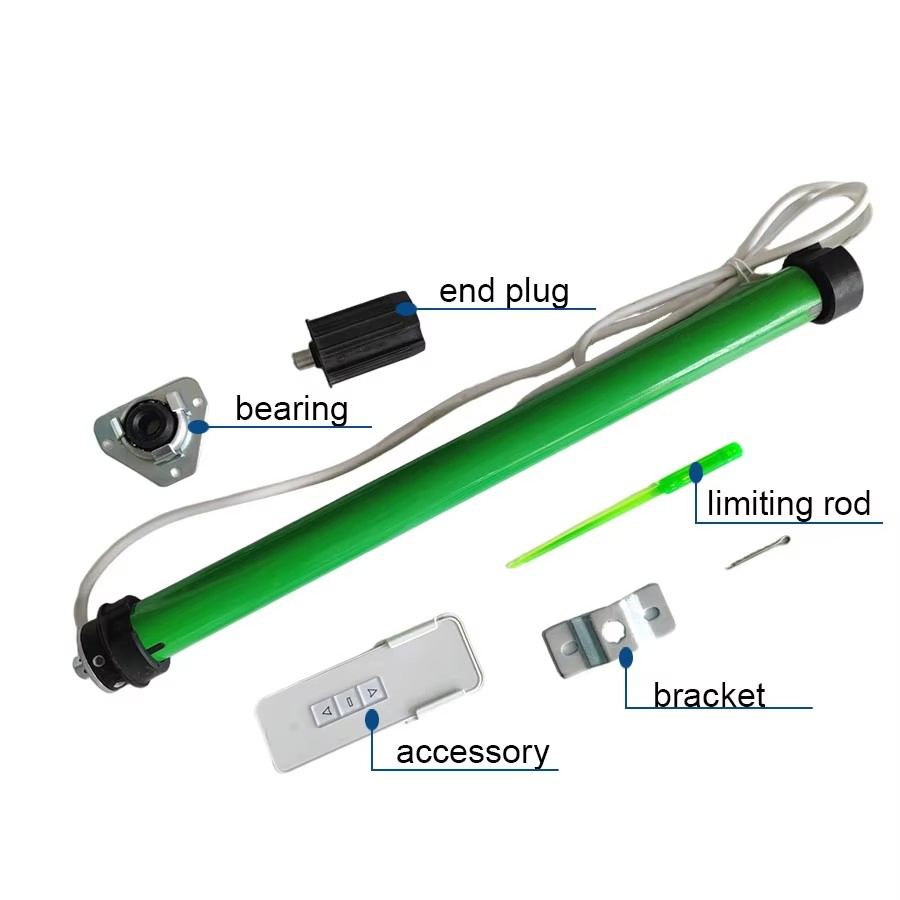

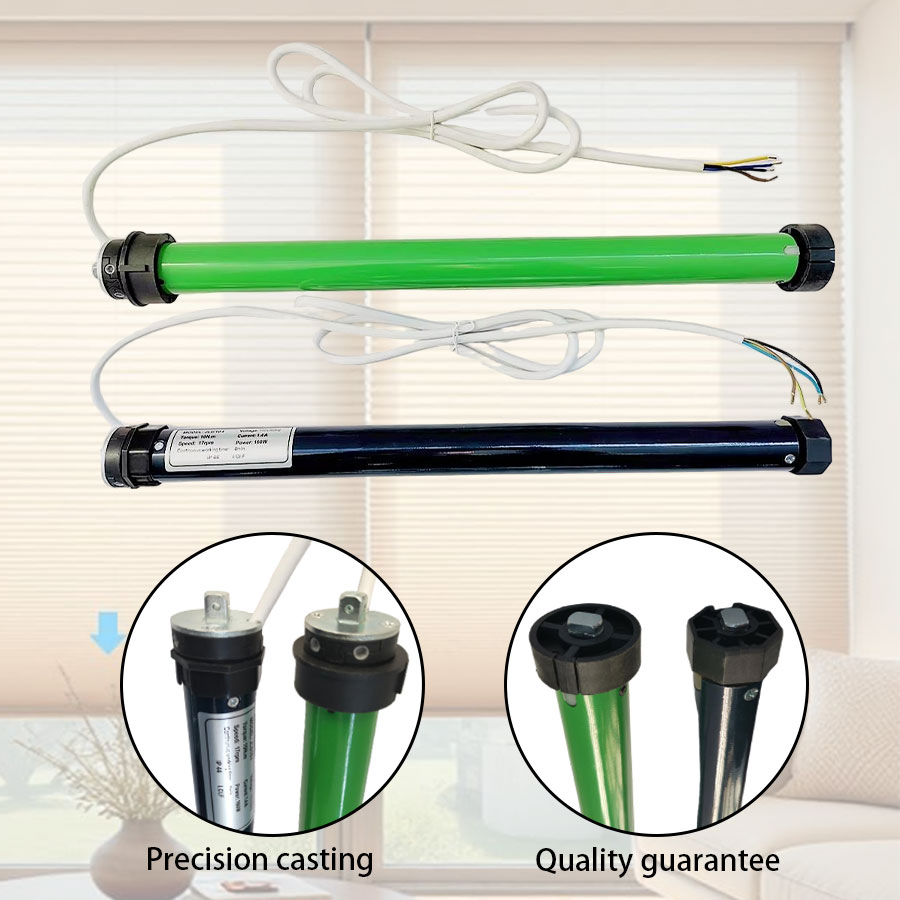

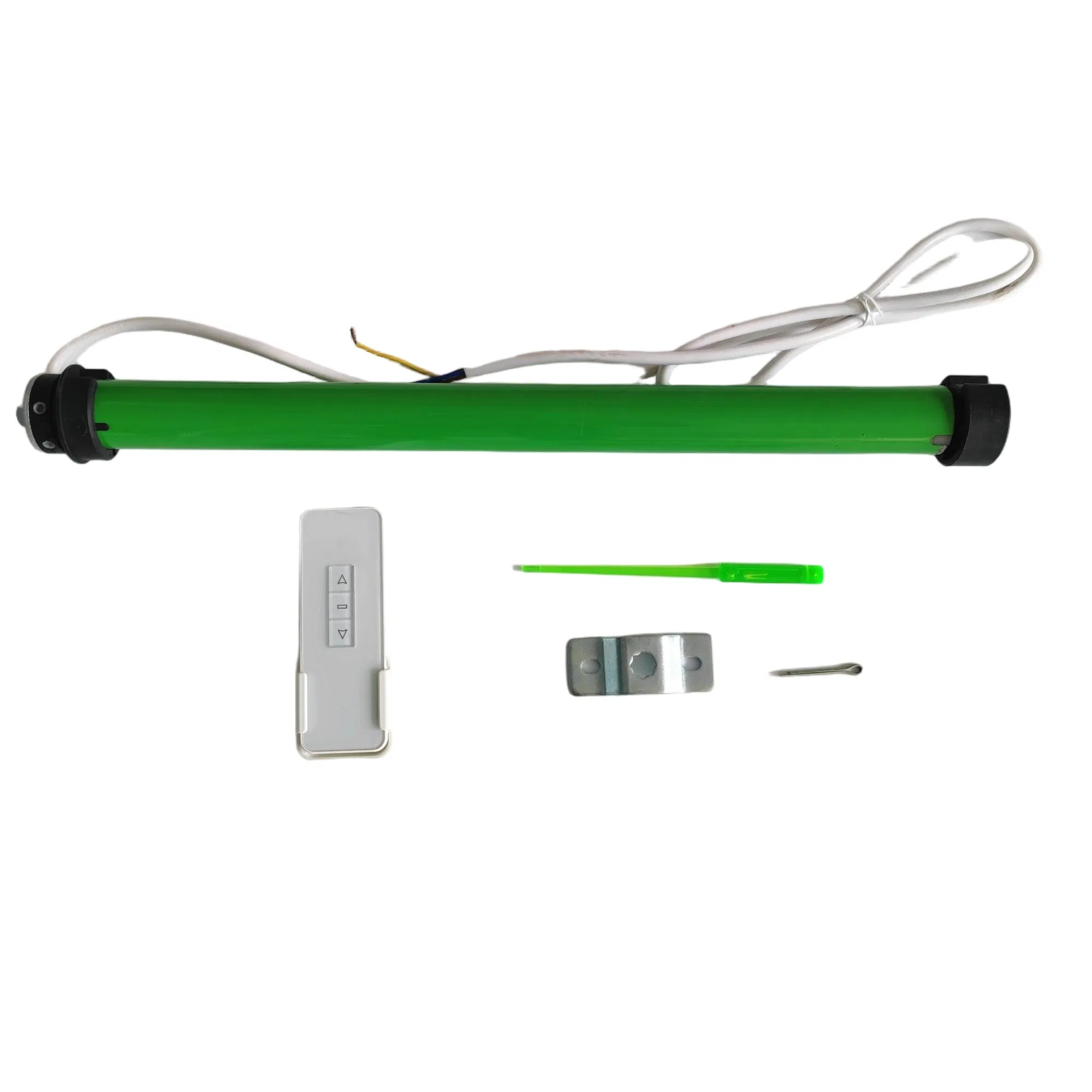

Powerful Automatic Roller Shutter Motor Ym35-6s for Enhanced Security

Customization:	Available
Application:	Universal
Speed:	Constant Speed

Send Inquiry

Product Description

📋 Basic Info

Model NO.

YM35-6S

Number of Stator

Single-Phase

Function

Driving, Control

Casing Protection

Closed Type

Number of Poles

Starting Mode

Variable Frequency Starting

Certification

ISO9001, CCC, CE, RoHS

Torque

6nm

Color

Can Be Customized

Protection Class

IP44

Warranty

5 Years

Transport Package

Carton and Pallet

Specification

0.5m*0.04m*0.15m

Origin

China

HS Code

8501400000

Production Capacity

1000000 Sets/Year

📦 Packaging & Delivery

Package Size

60.00cm * 7.00cm * 7.00cm

Package Gross Weight

1.500kg

⚙️ Product Description

Parameter Specifications	Option A	Option B
Model	YM35-6S	YM35-6S
Rated Torque(N.m)	6	6
Rated Speed(rpm)	17	18
Rated Power(W)	100	100
Rated Current(A)	0.65	0.9
Running Time(min)	>4	>4
Limit Rating(turn)	35	35
Complete Length(mm)	520	520
Complete Weight(KG)	1.5	1.5
Rated Voltage(V)	220-230	100-110
Rated Frequency(Hz)	50	60
Tube Diameter(mm)	35	35

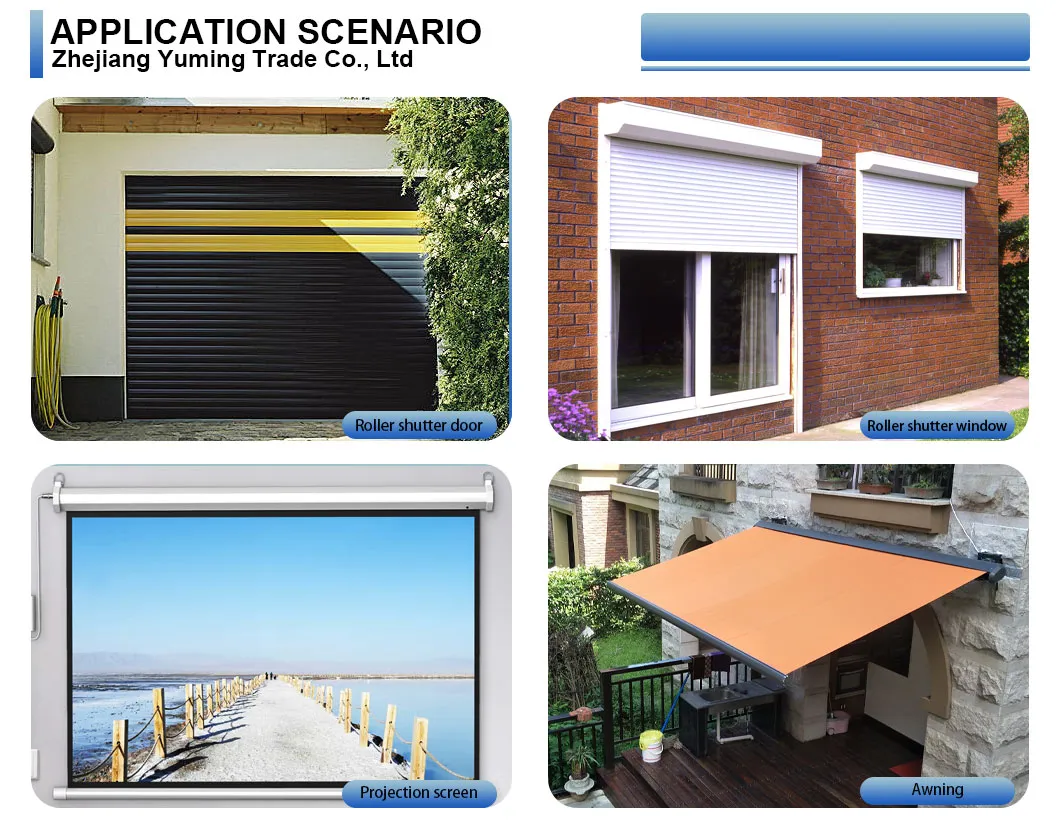

Application Usage Profile

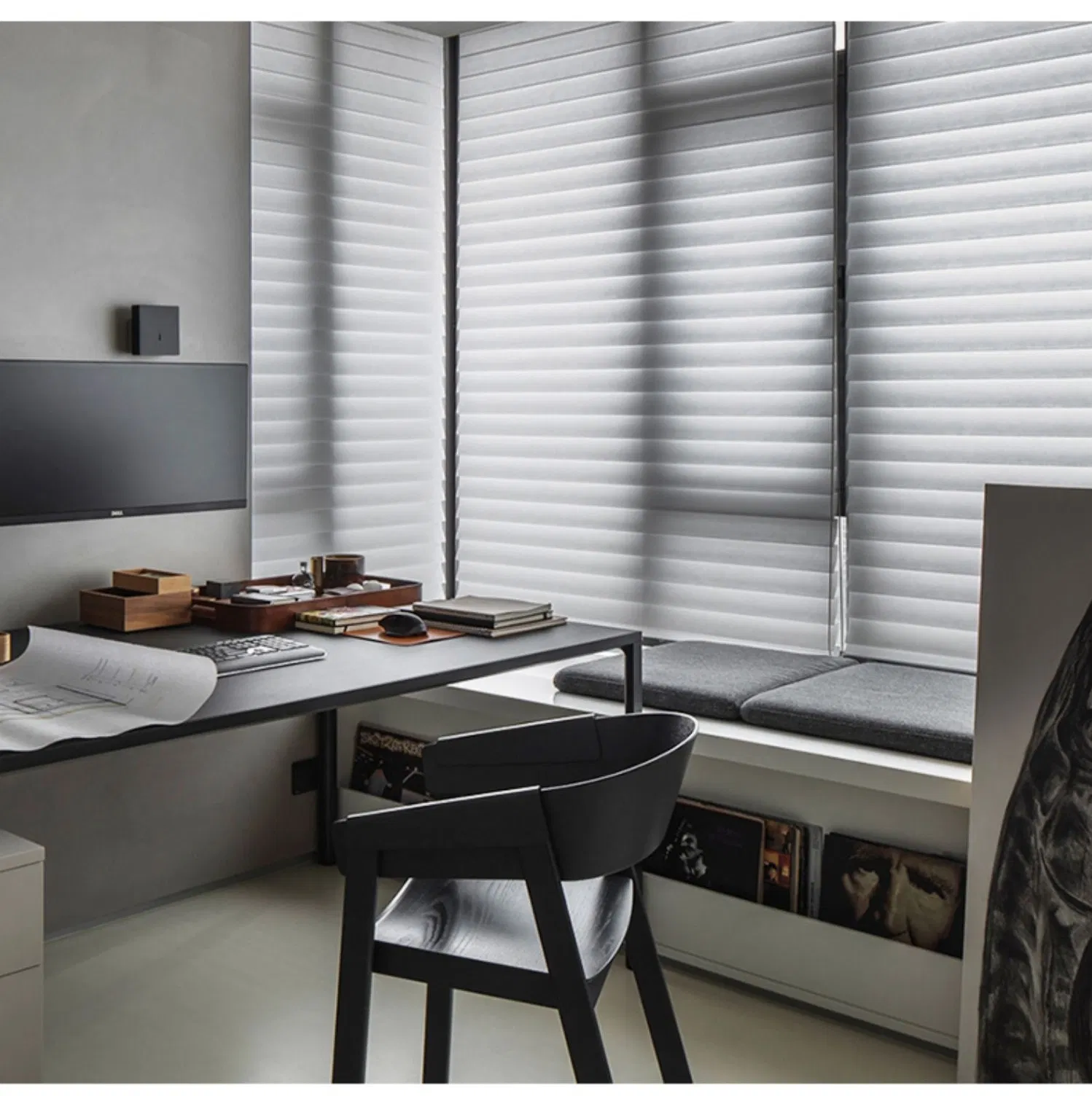

The tubular motor can be used in roller shutters, garage doors & windows, projection screens, and awnings.

💡 FAQ

What is your payment term?

30% T/T in advance, 70% when receiving B/L copy. Or irrevocable L/C.

What is the normal lead time for product orders?

Generally it is 5-7 days if the goods are in stock, or 15-20 days if the goods are not in stock, according to the actual order quantity.

Do you offer OEM service?

Yes. We can customize the design and features for any specific client application.

How can you ensure the motor can drive the machine?

Our manufacturing systematically uses 100% pure copper wire and capacitors with appropriate volume specifications; our expert product managers also provide accurate purchasing guidance.

How can you guarantee the quality?

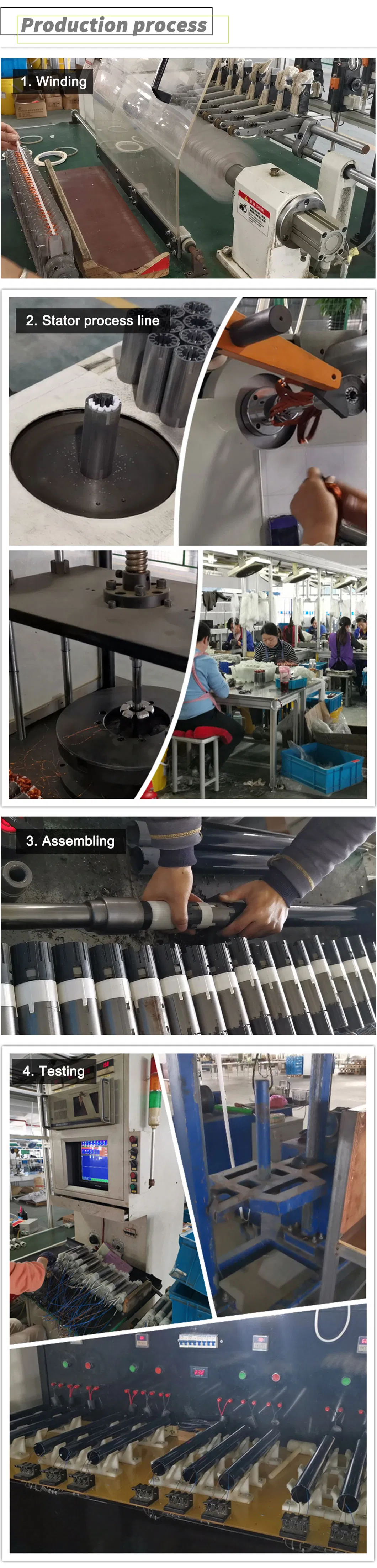

Our production lines carefully check technical drawings and processes for shafts and end covers; additionally, quality inspectors verify dynamic balance repeatedly.

What is your standard packaging method?

All goods will be securely packed in standard export cartons and loaded on durable pallets. Custom specialized packaging methods can also be implemented upon request.
