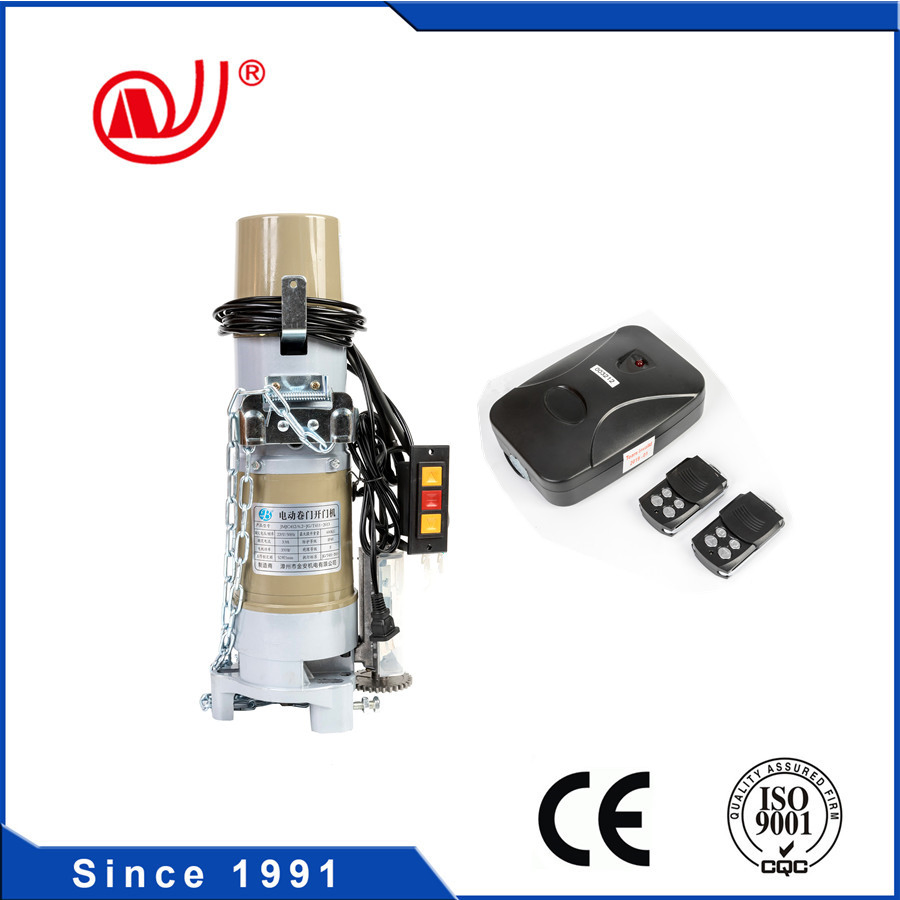

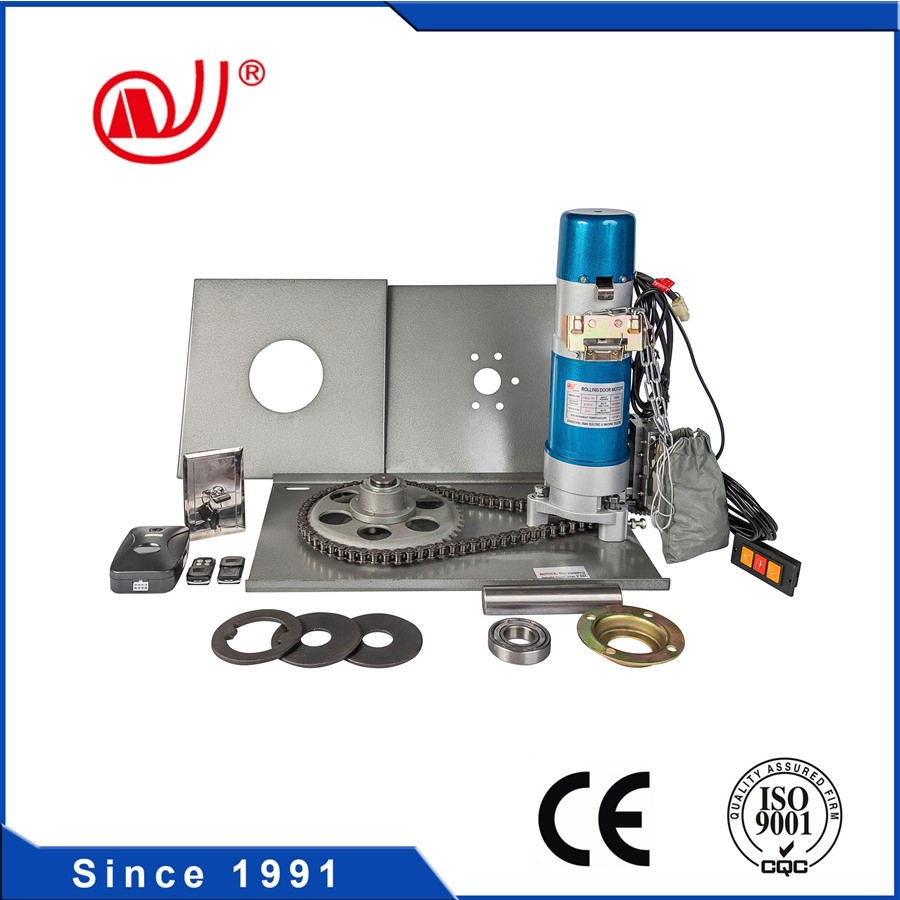

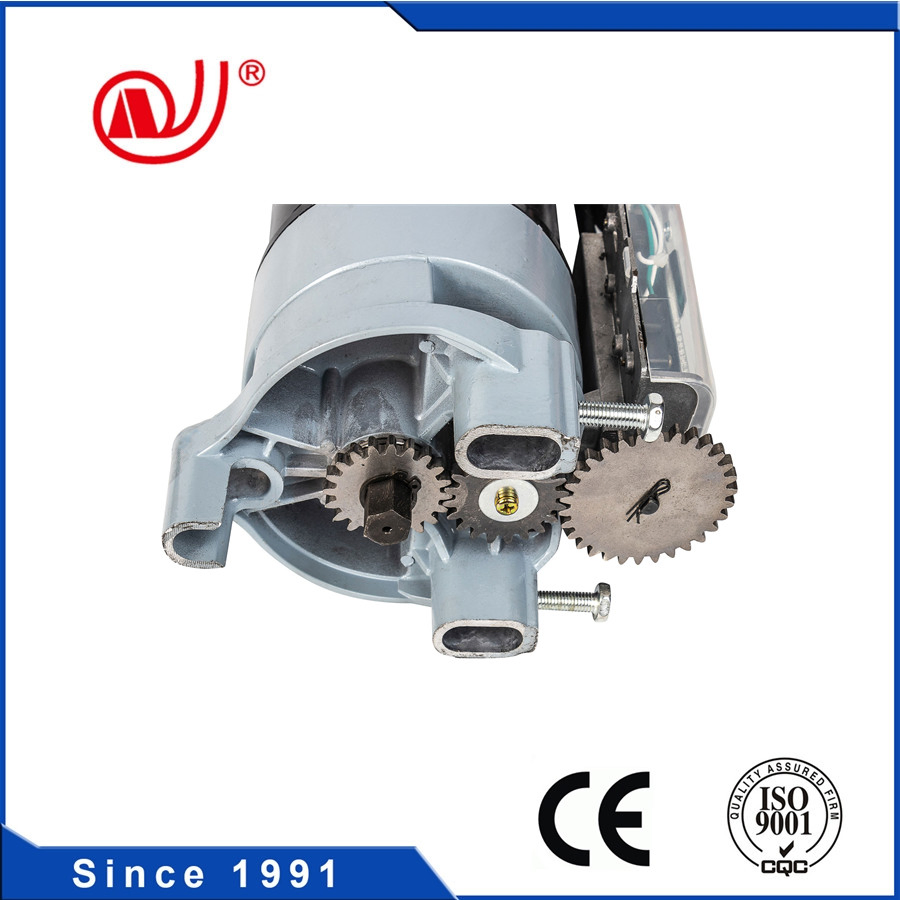

Motor De Persiana Enrolá Vel PARA Abertura Automá Tica De Porta De Garagem De 600kg Fabricado Na China Motor PARA O Brasil

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	One Year

Overview & Basic Info

Model NO. AC600KG-1P

Material Aluminum Alloy

Type Rolling

Open Style Rolling

Opening Type With Remote Control

Special Function Security / Anti-Thief

Color Black, Blue, Gray, Customized

Certification CCC, ISO9001, CE

Position Supermarket, Hotel, Bank, Theater, Warehouse

Product Name Rolling Door Engine

Application Area Supermarket, Hotel, Bank, Warehouse

Usage Control Roller Shutter up and Down

Shell Aluminum Alloy

Motor Winding 100% Copper Wire

Advantage Low Noise

Feature Easy Installation

Sample Acceptable

Remote Control Learning Code or Dial Code

Motor Power 370W

Transport Package One Set in Two Cartons

Specification 52.6*25*19cm

Product Description

Application Area Our motors are applied to shopping centers, warehouses, garages, theaters, hotels, banks, factories and other buildings' rolling shutter doors' opening and closing, with electric and manual functions.

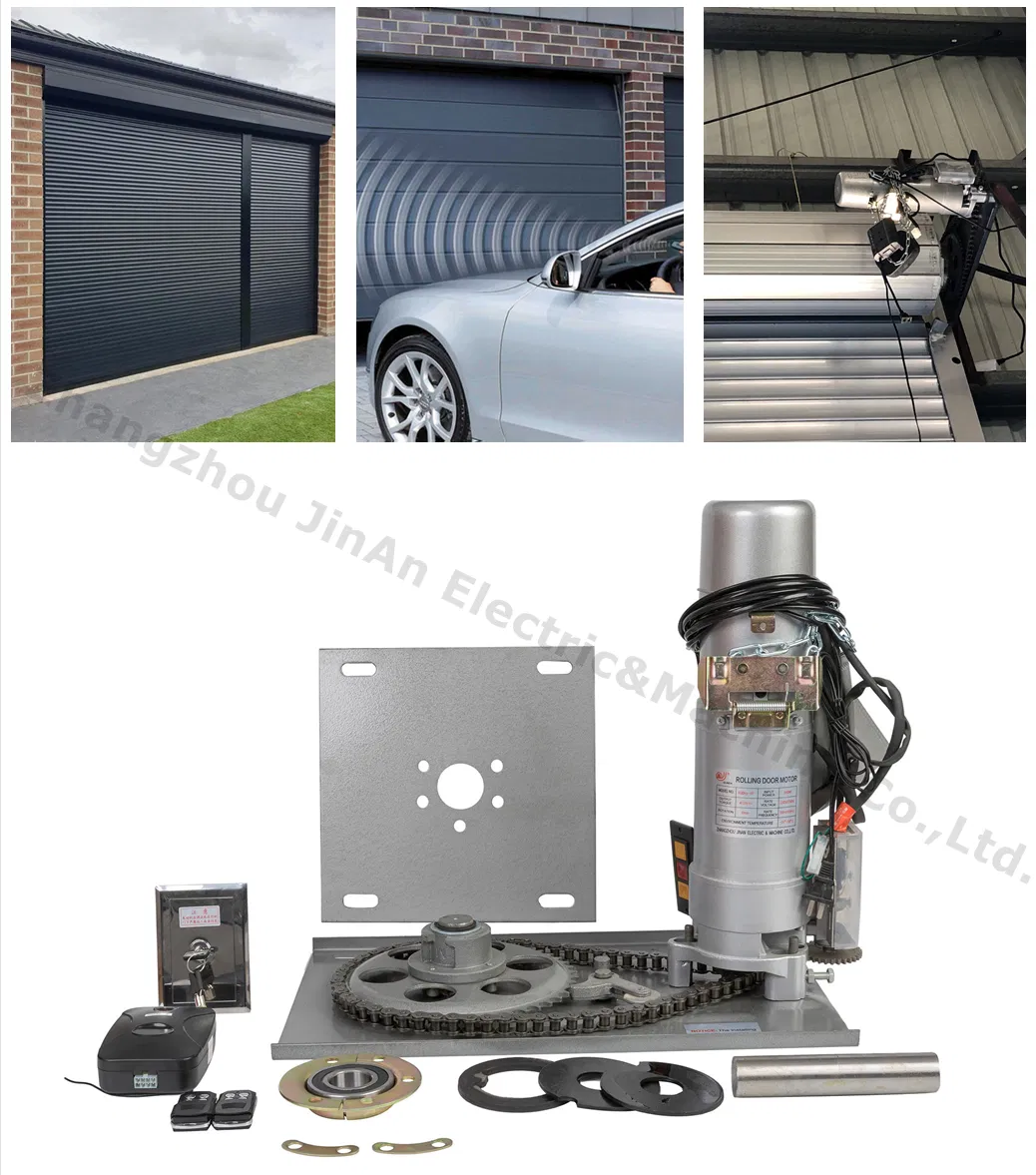

Application Area Chart / Rolling Shutter Motor Application

Key Features

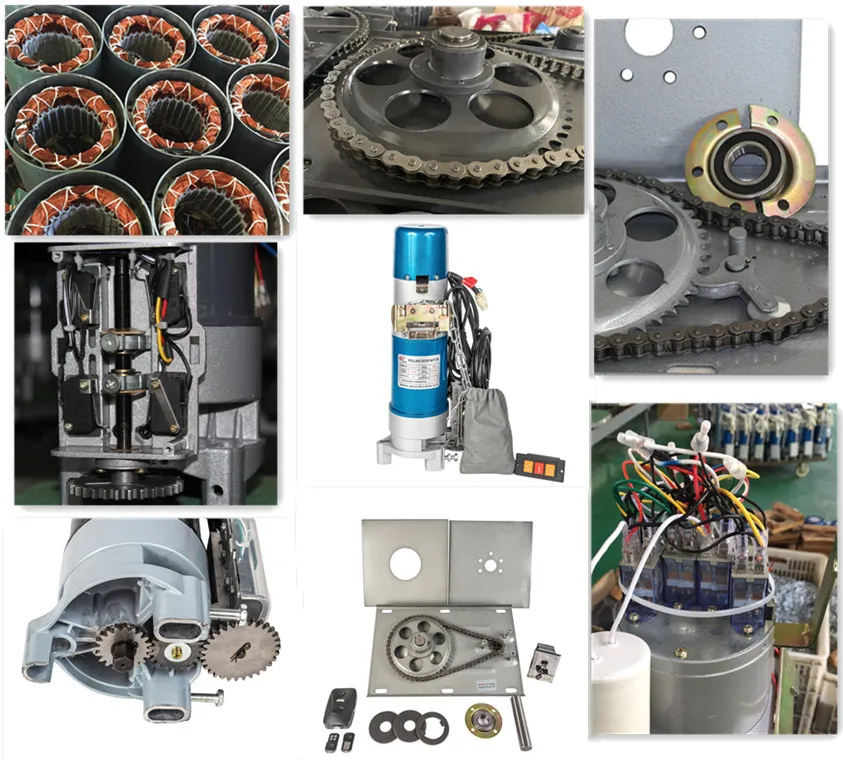

Detailed Features / Construction Diagram

Shell: Aluminum alloy, solid and light, easy to install and maintain.

Relays: 4 relays to make motors work more stable with large lifting power.

Brake Structure: Special mechanical brakes instantly cut off power to ensure absolute safety.

Copper Wire: 100% copper wire featuring large capacity, stable current, and high power (aluminum wire optional).

Micro Switches: 4 Micro Switches inside limit device for accurate control, easy setup, and wide control range.

Anti-dropping device: Prevents accidental injury and guarantees operational safety.

Gearing: Premium alloy steel treated with special techniques for durable hoist performance.

Remote Control: Supports long-distance wireless operation.

Flexible Installation: Left-hand or right-hand layouts are fully supported.

Manual & Electric: Easily operated by either electrical grid or manual mechanism.

Energy Saving: Highly durable, compact profile, and low power consumption with minimal noise output.

Wide Capacity Selection: Available from 300kg up to 2000kg loads depending on gate structures.

Technical Parameters

Model No.	Max lifting weight(kg)	Max lifting height(m)	Rated Input Power(W)	Output Torque(N.m)	Rotation Speed (r/min)	Chain No.
220V / 230V - 50HZ / 60HZ
AC300KG-1P	300	6.5	450	168	6.2	10A
AC500KG-1P	500	6.5	450	343	6.2	10A
AC600KG-1P	600	6.5	680	412	6.2	10A
AC800KG-1P	800	7	700	607	4.2	10A
AC1000KG-1P	1000	7	700	1102	3.5	12A
380V / 415V - 50HZ / 60HZ
AC1000KG-3P	1000	8	400	1102	6.5	12A
AC1300KG-3P	1300	8	600	1372	6.5	12A
AC1500KG-3P	1500	8	600	1610	5.7	12A
AC2000KG-3P	2000	8	800	2200	5.7	12A
DC Motors (24V)
300KG-DC24V	300	6.5	200	168	4.7	10A
500KG-DC24V	500	6.5	250	343	4.7	10A
600KG-DC24V	600	6.5	280	412	4.7	10A

Roller Shutter Motor Technical Dimensions

There are many types of roller shutter motors for your choice. Welcome to leave messages or contact us directly.

Packaging & Shipping

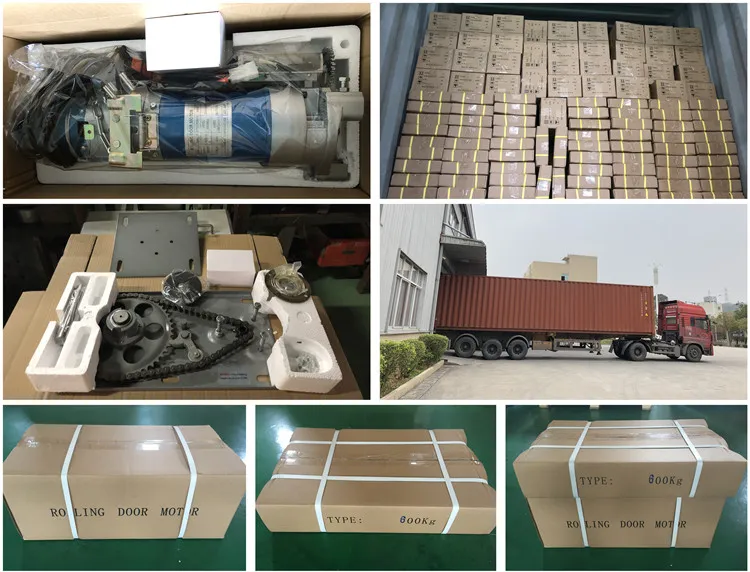

Packing: One set in two cartons, protective plastic bag inside, custom strong carton outside. Cartons are customizable according to needs, such as printing specific logos, layouts, or branding text.

Loading Capacity: A standard 20 GP container can accommodate approximately 520 to 550 sets of AC motors, or 480 to 520 sets of DC motors.

Delivery Lead Time: Delivery can be arranged in 10 to 45 days after receiving standard deposits depending on requested product counts and specific requirements.

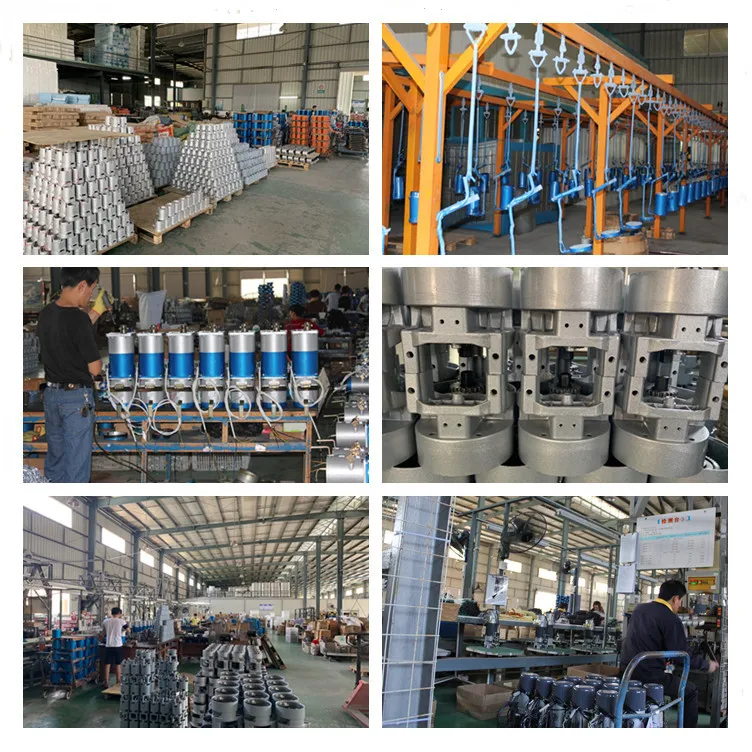

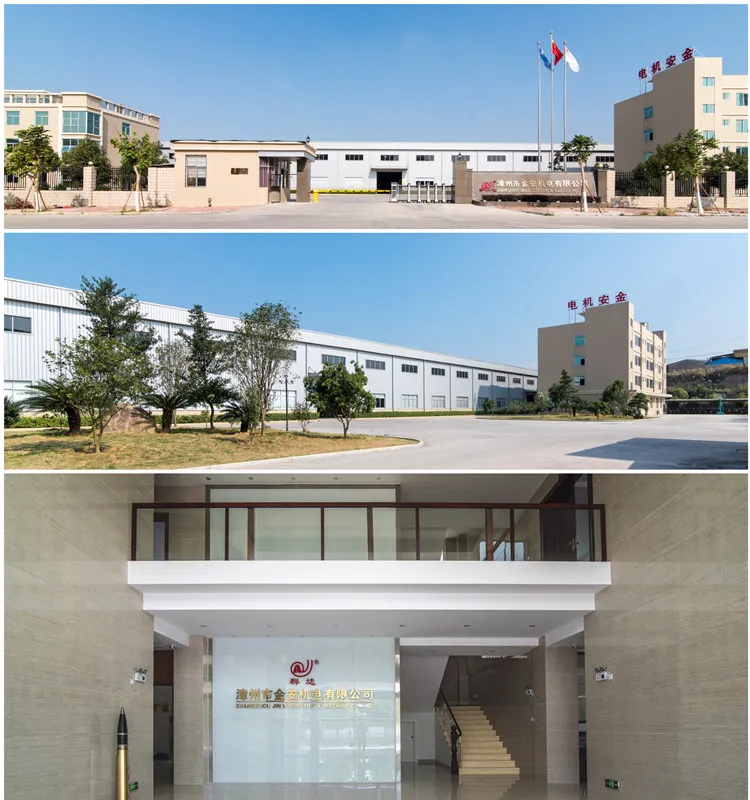

About Our Factory

We are dedicated to developing and producing high-grade electric rolling door motors for over 30 years, equipped with complete CE, CCC, and ISO9001 certifications. Engineered with robust designs, quiet operations, reliable power outputs, easy installation options, and long lifetimes, our rolling motor products are highly preferred by global clients spanning various regions. Welcome to connect and build long-term partnerships!

Exhibitions

Frequently Asked Questions (FAQ)

Q1: Are you a manufacturer or trading company?

A: We are a professional manufacturer with our own factory established since 1991. You are welcome to visit our production facilities.

Q2: Do you provide samples?

A: Yes, samples are available before placing a formal order. However, customers are required to cover the sample costs and courier fees.

Q3: How do you guarantee the quality of the motors?

A: We have highly qualified engineers, reliable raw material suppliers, and an extremely strict quality testing system. Every single motor is individually tested before packing to ensure proper operation.

Q4: What is your standard payment term?

A: In general, we require a 30% deposit before production, and the remaining 70% balance before shipment via T/T. Irrevocable L/C and Western Union are also accepted.

Q5: Do you provide OEM or ODM services?

A: Yes, OEM and ODM orders are accepted. We can customize motor designs, performance configurations, and related accessories according to your dynamic needs.

Q6: What certifications do your products carry?

A: Our rolling shutter door motors have obtained CE, CCC, and ISO9001:2015 certifications, ensuring they comply with international quality and safety benchmarks.
