Torsion Motor
1 / 5

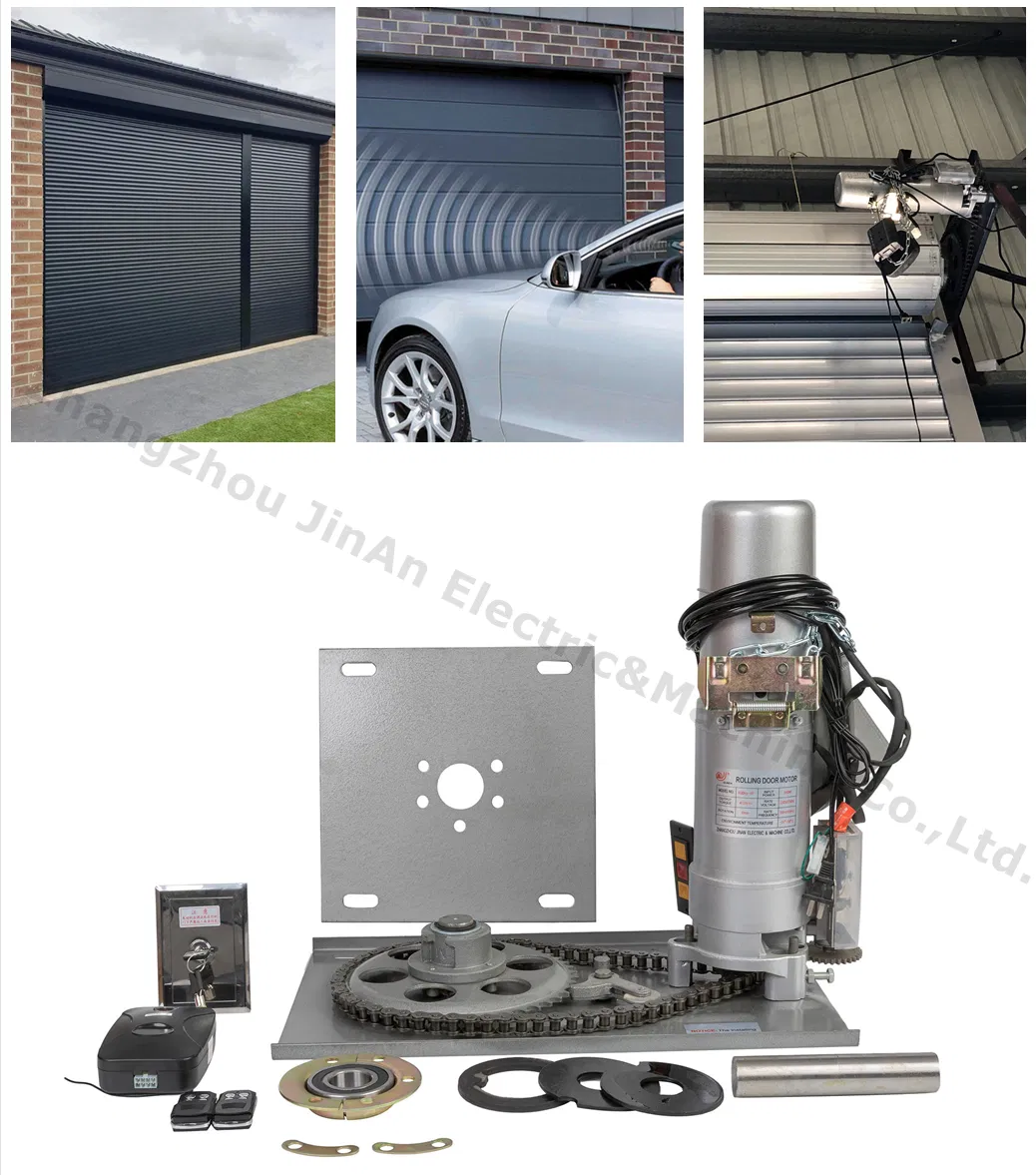

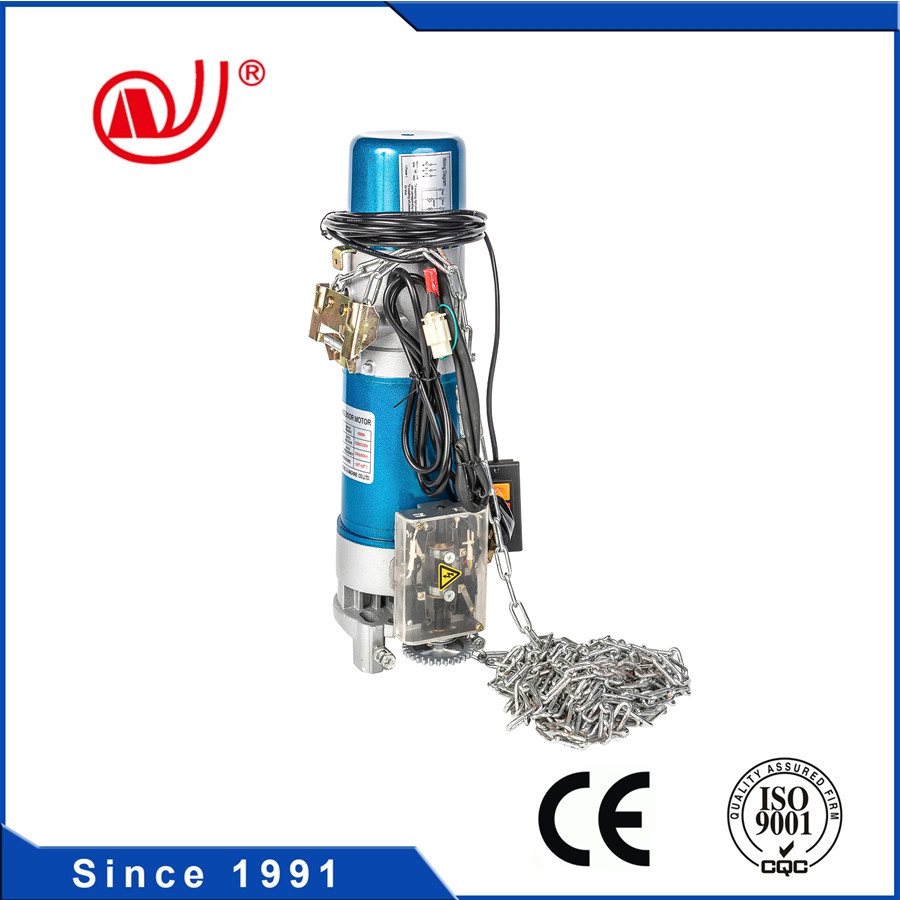

Our motors are applied to shopping centers, warehouses, garages, theaters, hotels, banks, factories and other buildings' rolling shutter doors' opening and closing, with electric and manual function.
Aluminum alloy, solid and light, easy to install and maintain.
Left or Right Installations is OK.
Many types of AC Roller Door Motor For Choosing: 300kg-2000kg suitable for Different Weight of Rolling Doors.
It can be Operated by Electricity and Manual.
Durable, Compact Design, low energy consumption With low noise.

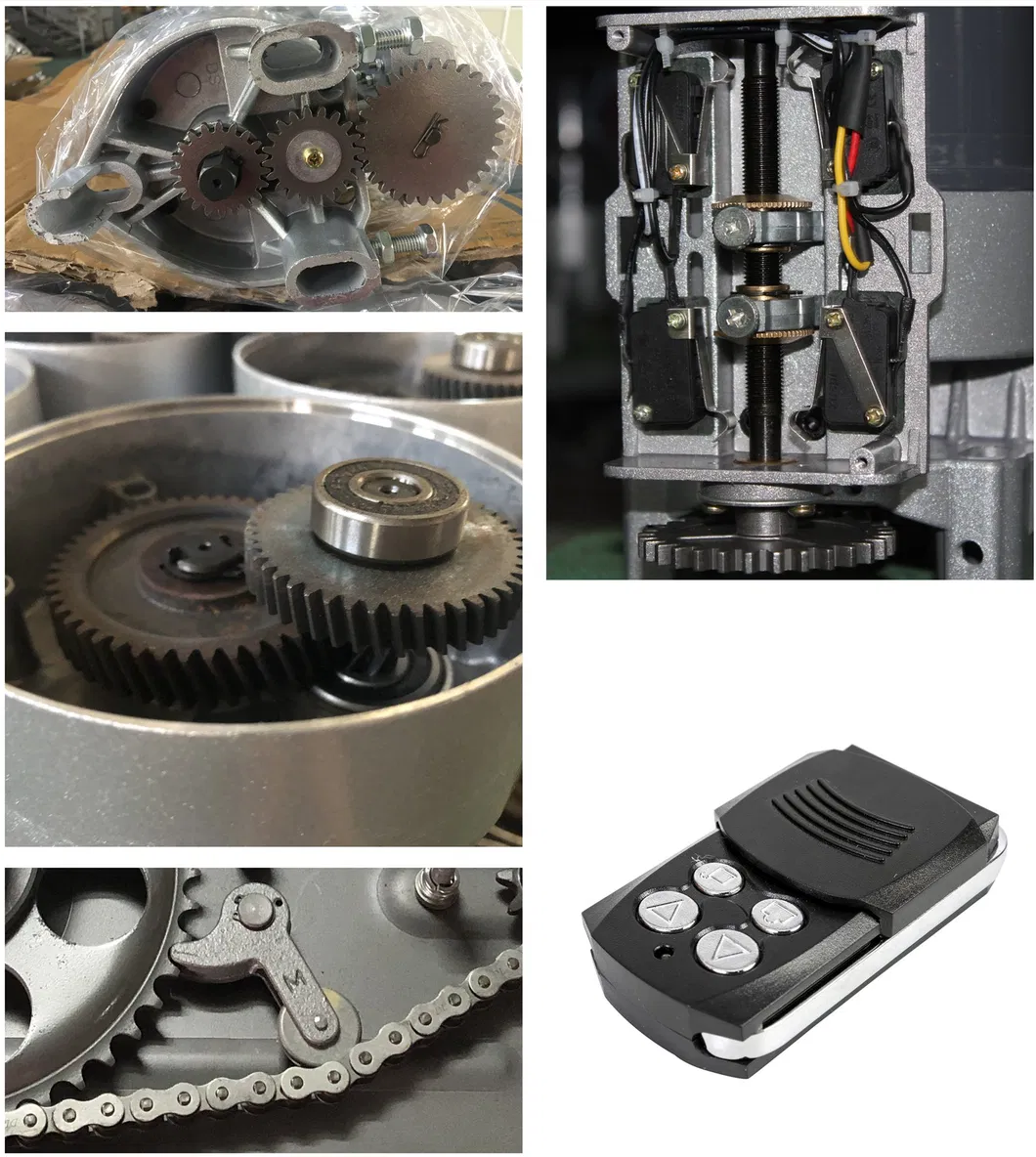

It has Four Relays inside make sure it save character, Four micro switches inside the Limit System.

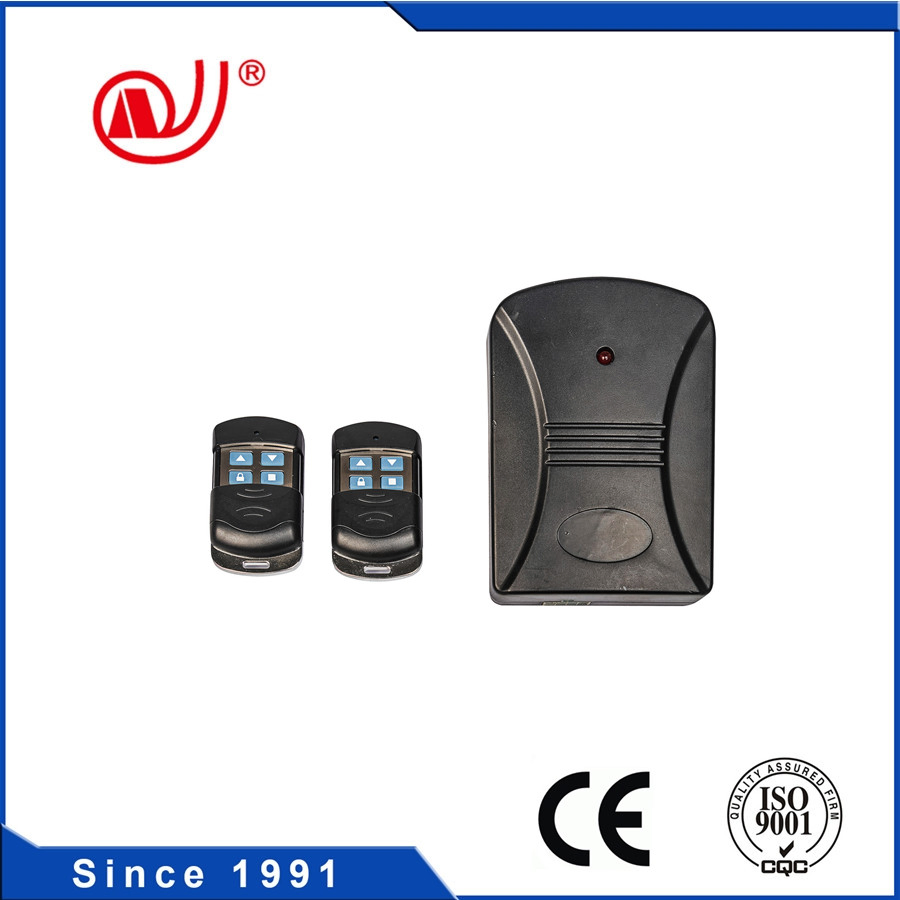

Long-distance operation capability.
Special device mechanical brakes, power cut off in an instant the brakes to ensure absolute safety.
Preventing accidental injury and ensure overall operation safety.
Thermal efficiency protection device, protect rolling door from damage and motor burned.
| Model No. | Max lifting weight(kg) | Max lifting height(m) | Rated Input Power(W) | Output Torque(N.m) | Big reel sprocket Rotation(r/min) | Chain No. |
|---|---|---|---|---|---|---|
| 220V/230V 50HZ/60HZ | ||||||
| AC300KG-1P | 300 | 6.5 | 450 | 168 | 6.2 | 10A |
| AC500KG-1P | 500 | 6.5 | 450 | 343 | 6.2 | 10A |
| AC600KG-1P | 600 | 6.5 | 680 | 412 | 6.2 | 10A |
| AC800KG-1P | 800 | 7 | 700 | 607 | 4.2 | 10A |
| AC1000KG-1P | 1000 | 7 | 700 | 1102 | 3.5 | 12A |
| 380V/415V 50HZ/60HZ | ||||||
| AC1000KG-3P | 1000 | 8 | 400 | 1102 | 6.5 | 12A |
| AC1300KG-3P | 1300 | 8 | 600 | 1372 | 6.5 | 12A |
| AC1500KG-3P | 1500 | 8 | 600 | 1610 | 5.7 | 12A |
| AC2000KG-3P | 2000 | 8 | 800 | 2200 | 5.7 | 12A |
| DC Motors | ||||||
| 300KG-DC24V | 300 | 6.5 | 200 | 168 | 4.7 | 10A |
| 500KG-DC24V | 500 | 6.5 | 250 | 343 | 4.7 | 10A |
| 600KG-DC24V | 600 | 6.5 | 280 | 412 | 4.7 | 10A |

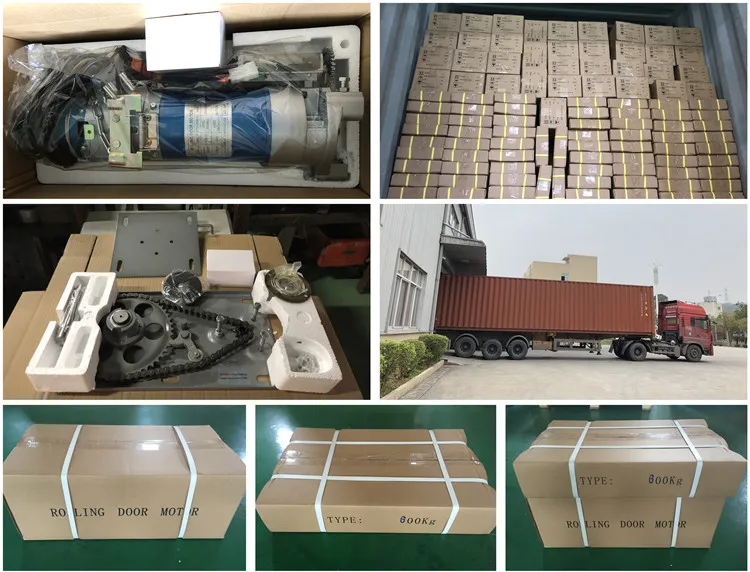

One set in two cartons, plastic bag inside, carton outside. The outside cartons can be customized according to customers' requirements, like printing logo or words on it or according to your own design to print it.
A 20 GP container can hold about 520-550 PCS AC motor, if DC motors, 480-520PCS is available.
We will deliver the goods in 10-45 days after we receive your deposit, which is according to your exact quantity and requirements.
We have AC Motor 300kg to 2000kg and DC Motor 300kg, 500kg, 600kg

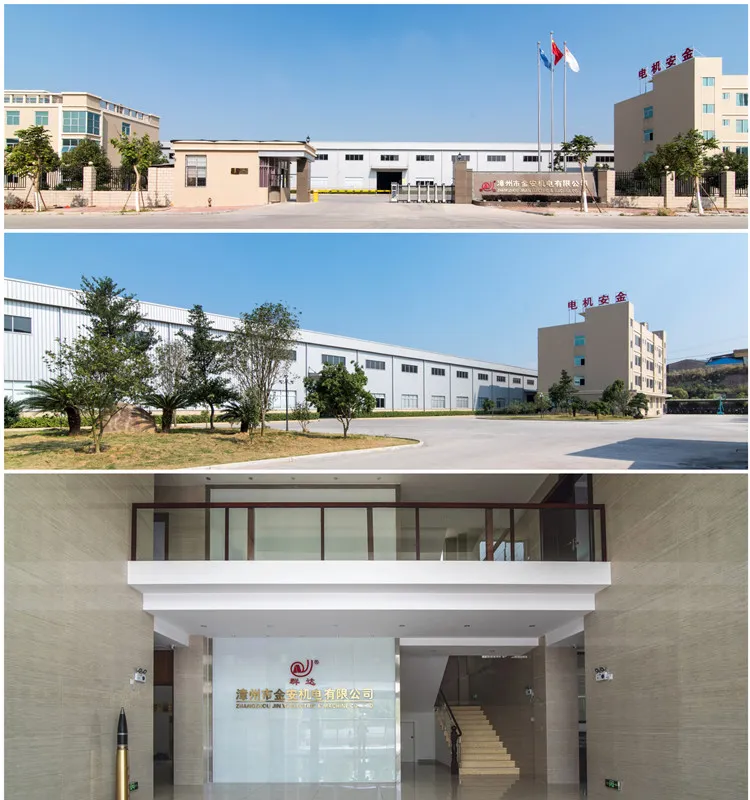

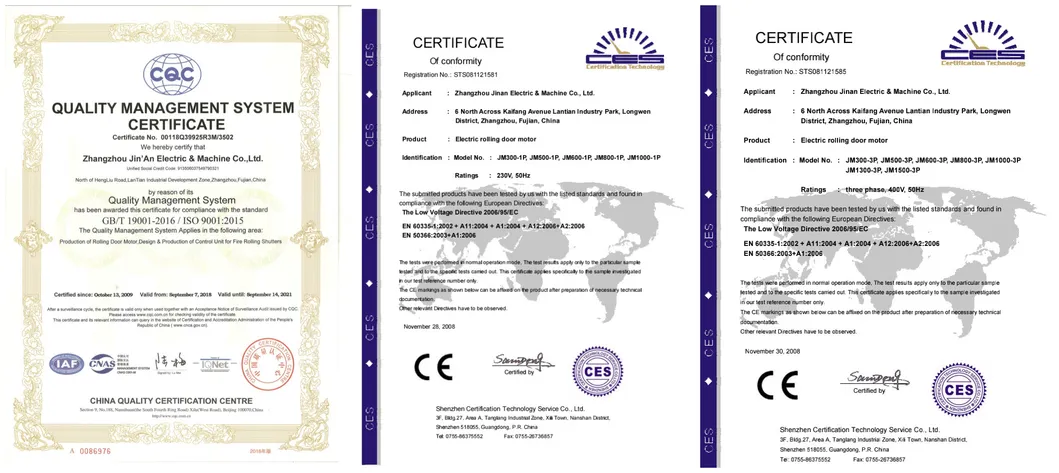

We have been specializing in developing and producing all kinds of electric rolling door motors more than 20 years with CE, ISO9001:2015 approved. With elegant design, stable quality, big power, quiet running, easy installation and long life, Our motors are popular with our customers from South Africa, Dubai, Iran, India, Malaysia, Myanmar, Thailand, Brazil, etc. Warmly welcome to visit us!

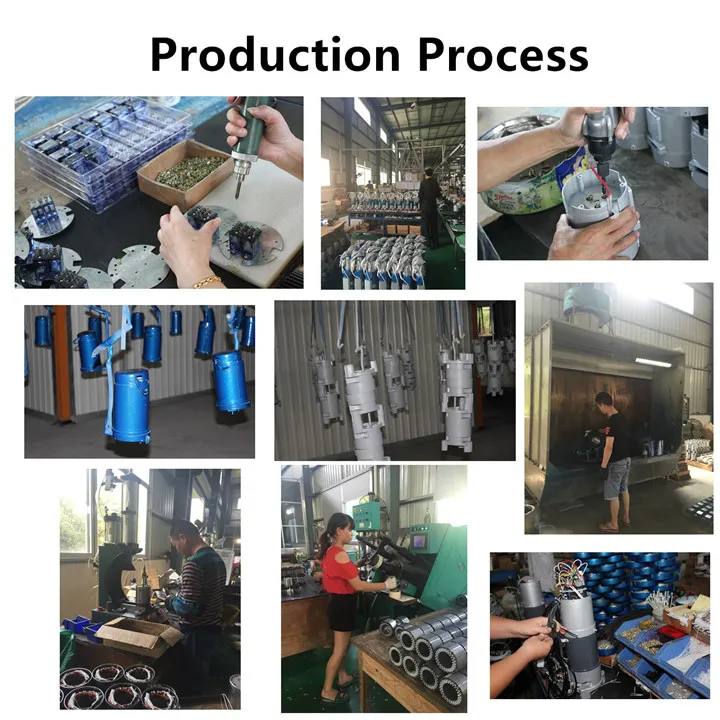

Yes, we are a professional manufacturer of rolling door motors with our own factory.
Normally, if the goods are in stock it is 7-10 days; and it will be 15-35 days based on customer's quantity & request, if the goods are not in stock.
Yes, OEM is acceptable. Please contact us with your requirements, and we will provide you with a reasonable price and samples as soon as possible.

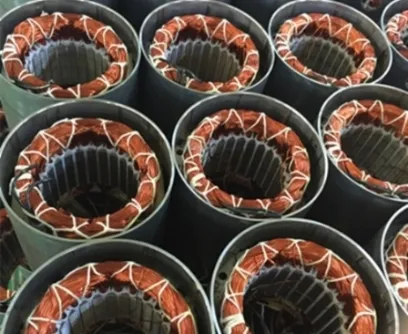

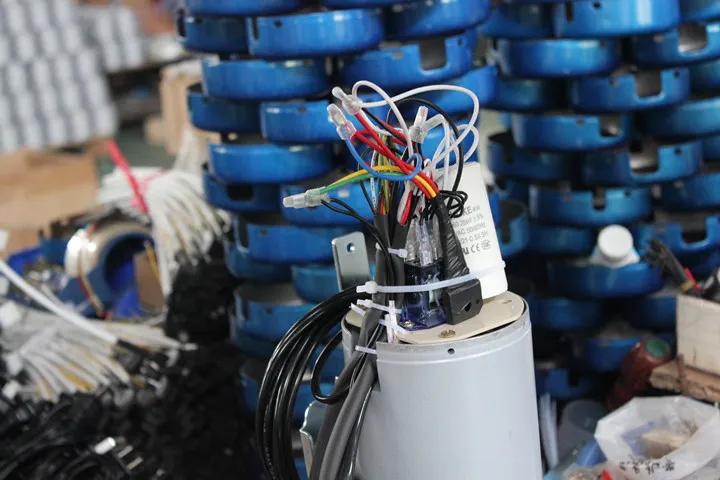

The main material is 100% Copper Wire, and Aluminum Wire is also for option for AC motors.
Any quantity is welcome. Sample order for testing quality is available.
We accept bank transfer. For samples, it should be 100% T/T in advance. For orders, 30% T/T in advance, and 70% balance before delivery.
