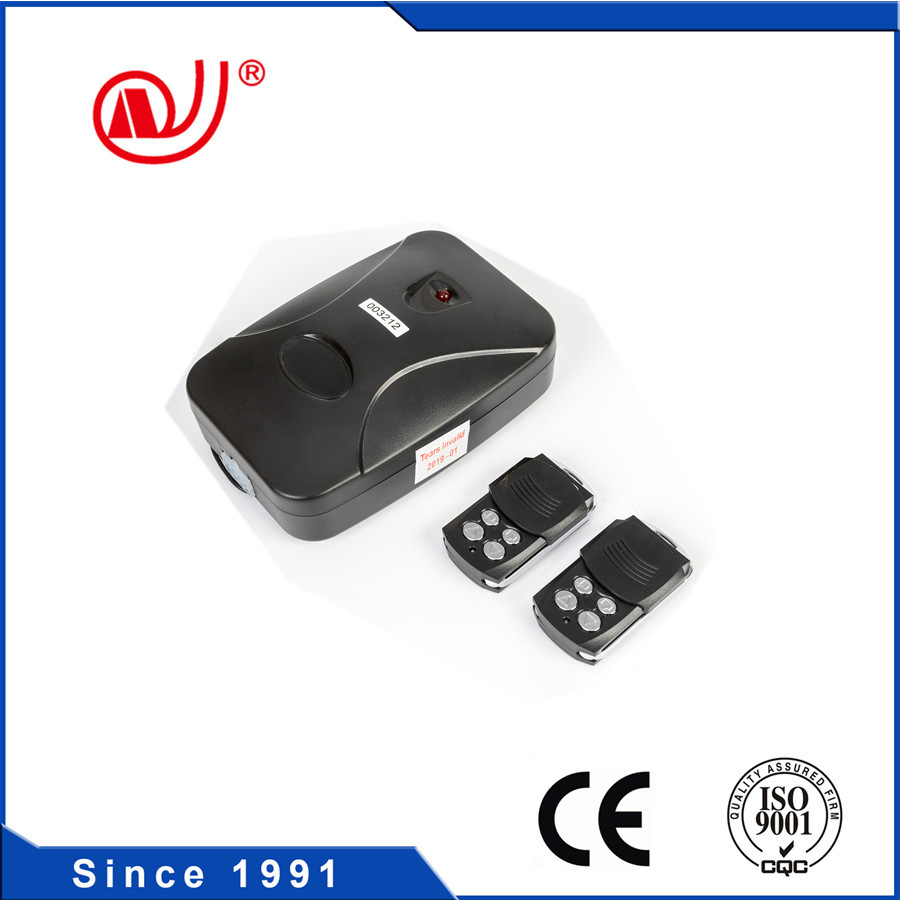

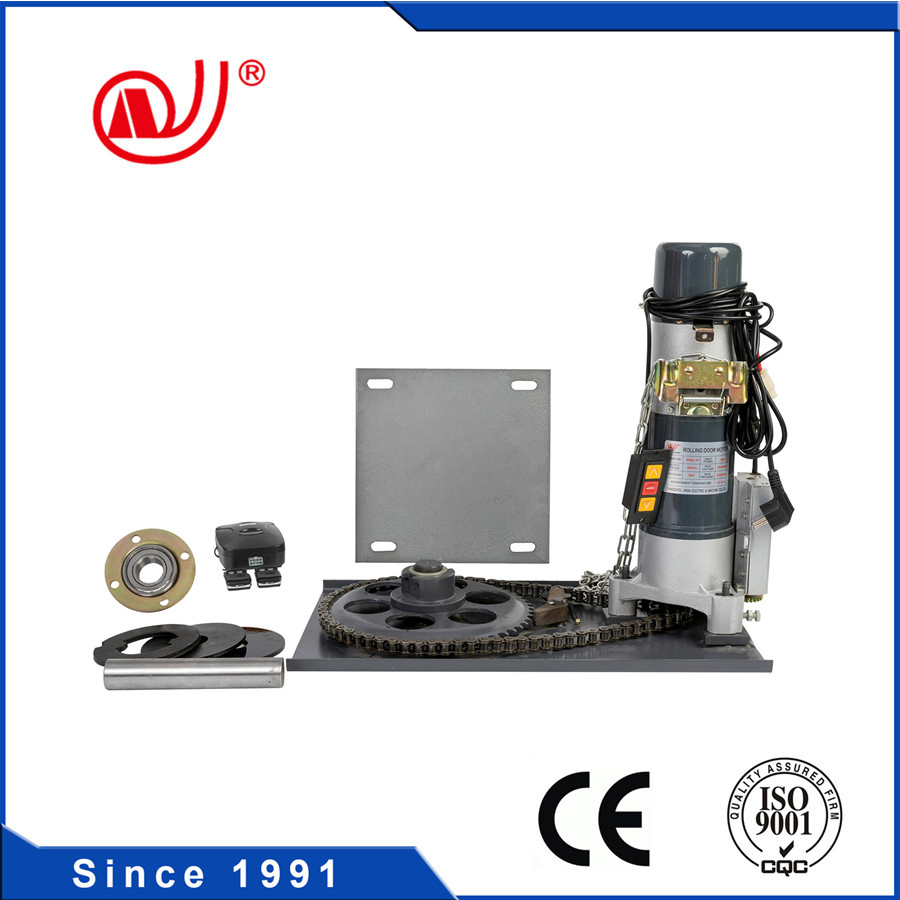

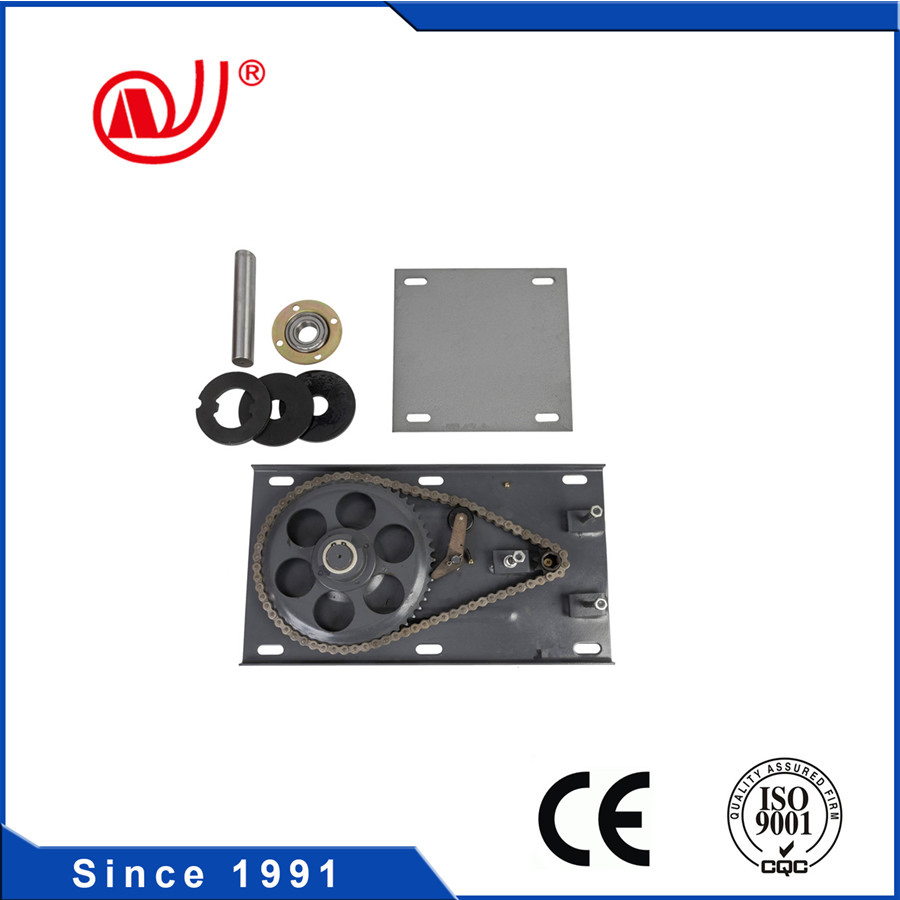

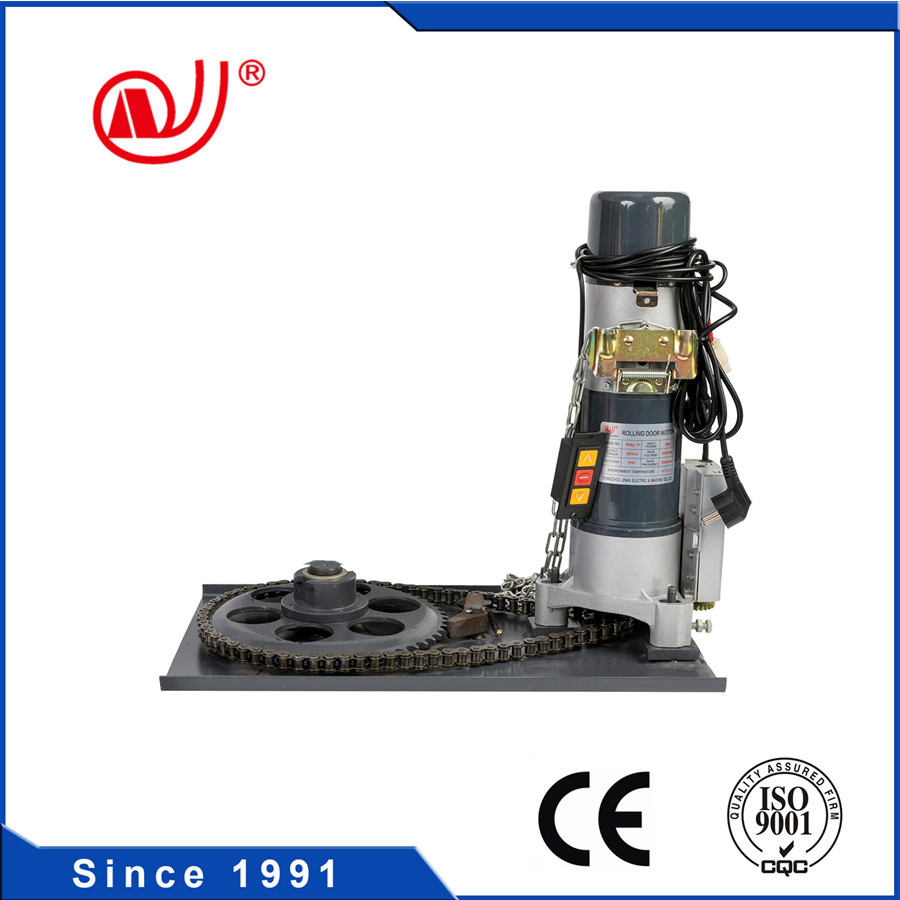

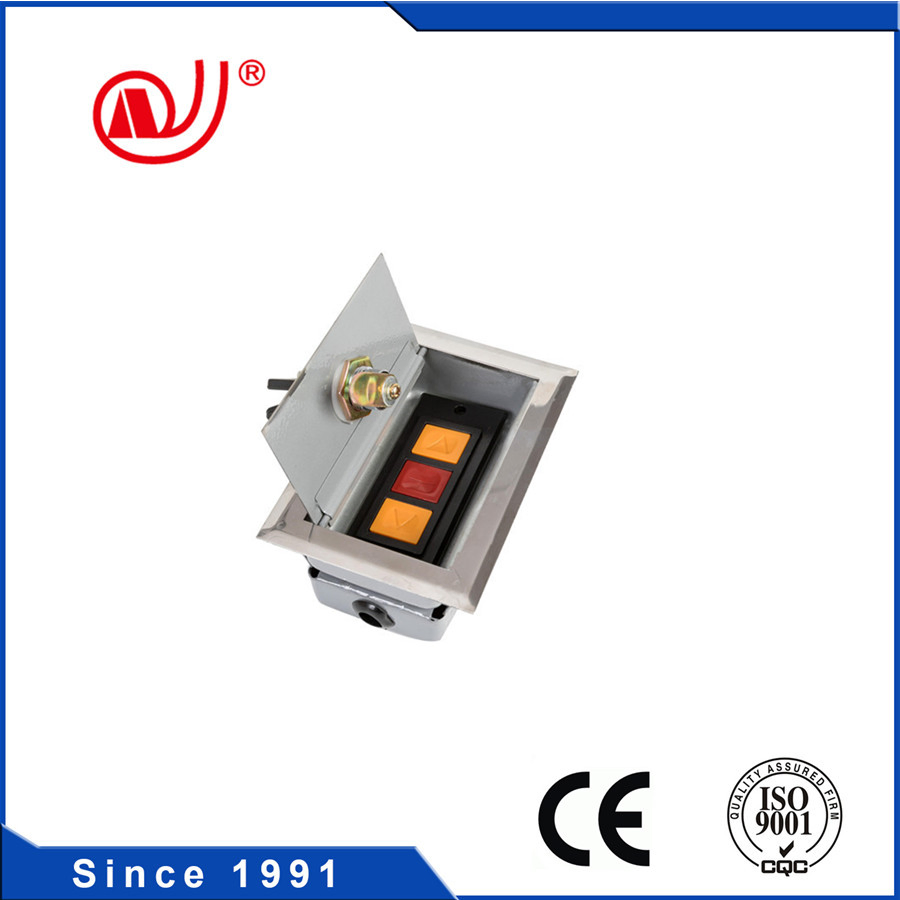

Automatic Door Motor Roller Door Opener 800kg Industrial Roller Shutter Door Motor with Remote Control
Automatic Door Motor Roller Door Opener 800kg Industrial Roller Shutter Door Motor with Remote Control
Automatic Door Motor Roller Door Opener 800kg Industrial Roller Shutter Door Motor with Remote Control
Automatic Door Motor Roller Door Opener 800kg Industrial Roller Shutter Door Motor with Remote Control
Automatic Door Motor Roller Door Opener 800kg Industrial Roller Shutter Door Motor with Remote Control
1 / 5
Automatic Door Motor Roller Door Opener 800kg Industrial Roller Shutter Door Motor with Remote Control
Automatic Door Motor Roller Door Opener 800kg Industrial Roller Shutter Door Motor with Remote Control
Automatic Door Motor Roller Door Opener 800kg Industrial Roller Shutter Door Motor with Remote Control
Automatic Door Motor Roller Door Opener 800kg Industrial Roller Shutter Door Motor with Remote Control
Automatic Door Motor Roller Door Opener 800kg Industrial Roller Shutter Door Motor with Remote Control

Automatic Door Motor Roller Door Opener 800kg Industrial Roller Shutter Door Motor with Remote Control

Customization: Available
After-sales Service: Online Technical Support
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info

Model NO.:AC800KG-1P
Material:Aluminum Alloy
Type:Rolling
Open Style:Remote Control
Color:Blue, Gray, Black
Certification:CCC, ISO9001, CE
Usage:Rolling Door Control
Max Lifting Height:7m

Product Description

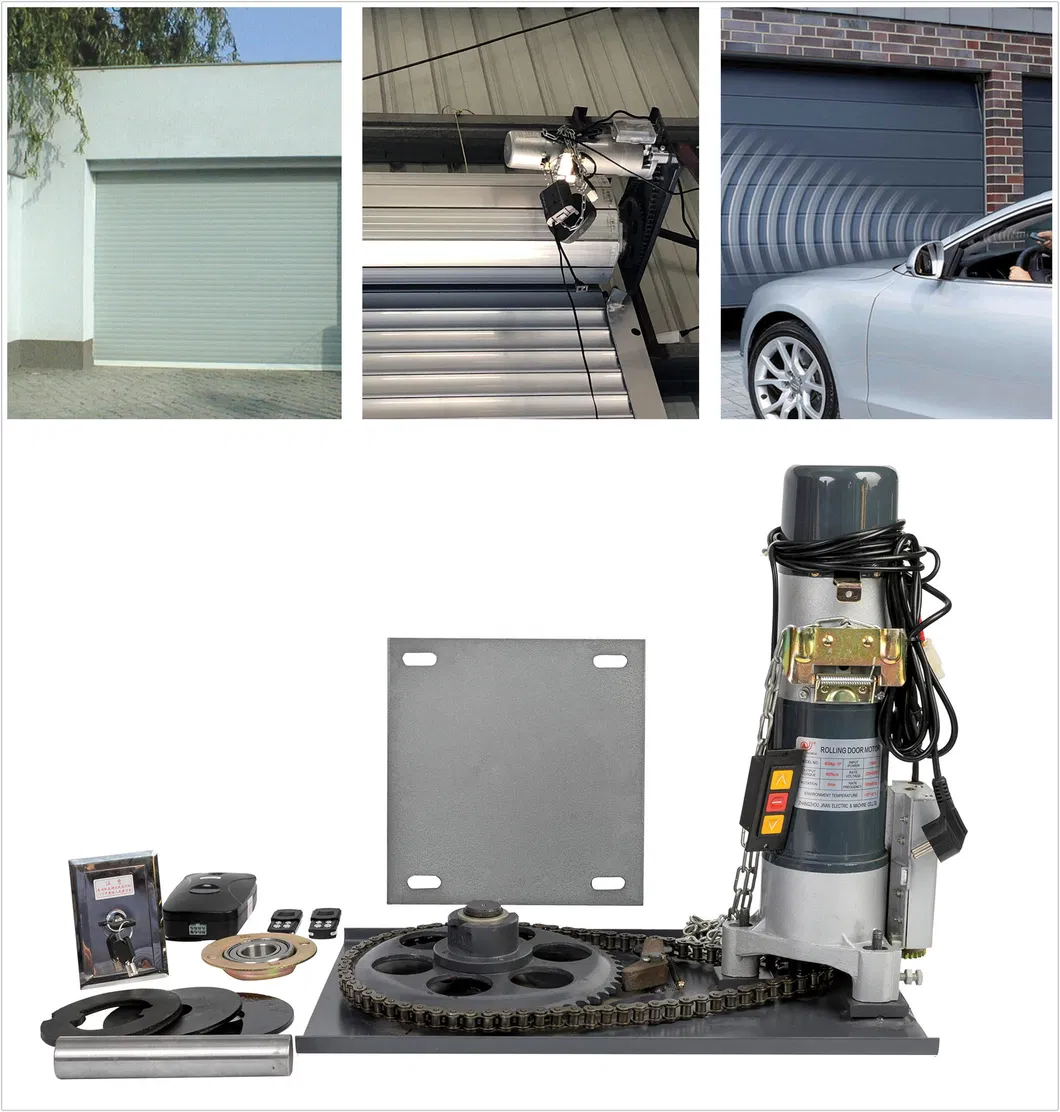

Application Area

Application Area

Our motors are applied to shopping centers, warehouses, garages, theaters, hotels, banks, factories, and other buildings' rolling shutter doors' opening and closing, with electric and manual functions.

Working Environment & Conditions

  • Working Area: Indoor or similar places.
  • Environment Temperature: -20ºC ~ 50ºC.
  • Relative Humidity: ≤90%.
  • Voltage: Fixed voltage × (1 ±10%)V.
  • Frequency: 50Hz±2Hz.
  • Continuous operation should not exceed 6 minutes.

Feature

  • Shell: Aluminum alloy, solid and light, easy to install and maintain.
  • Installation: Left or Right installations are both OK.
  • Capacity: Available from 300kg to 2000kg.
  • Operation: Electricity and Manual modes.
  • Performance: Durable, compact, low energy consumption, and low noise.
  • Safety: Equipped with internal relays, micro switches, mechanical brakes, and anti-dropping devices.

Technical Parameter

Model No. Max Weight(kg) Max Height(m) Power(W) Torque(N.m) Rotation(r/min) Chain No.
AC300KG-1P3006.54501686.210A
AC500KG-1P5006.54503436.210A
AC600KG-1P6006.56804126.210A
AC800KG-1P80077006074.210A
AC1000KG-1P1000770011023.512A

Details & More

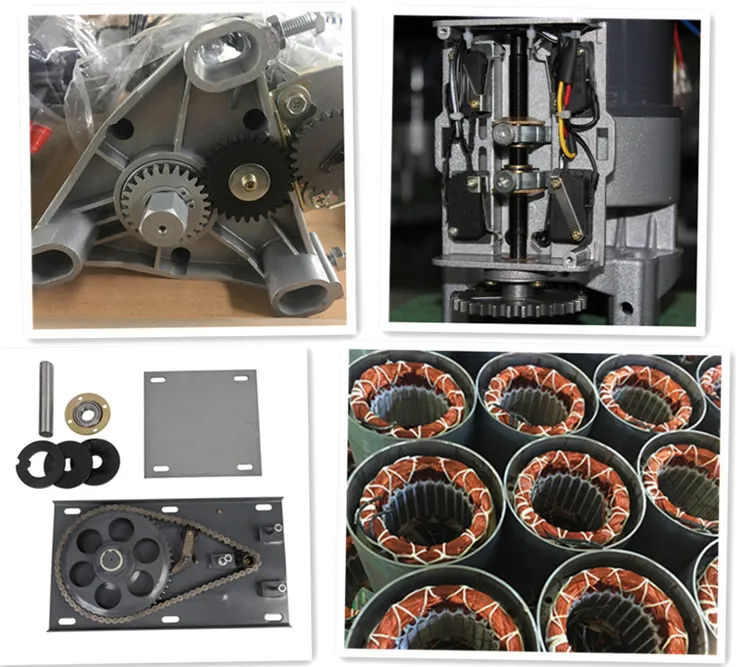

Details

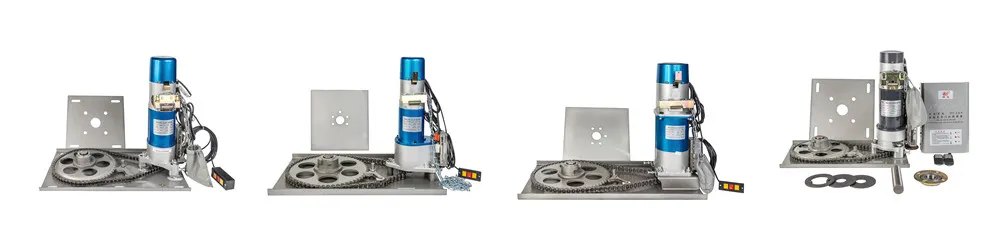

More Choices

Packing & Delivery

Packing
Delivery

Packing: One set in two cartons, plastic bag inside, carton outside. Customized packaging including logo printing is available.

Delivery: Goods will be delivered in 10-45 days after receiving the deposit, depending on quantity and requirements.

Frequently Asked Questions

Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer of rolling door motors with our own factory.
Q: How about the delivery time?
A: Normally, stock items take 7-10 days; custom orders take 15-35 days based on requirements.
Q: Can you provide OEM services?
A: Yes, OEM is acceptable. Please provide your requirements for a quote and samples.
Q: What is the motor winding material?
A: The standard material is 100% Copper Wire, with Aluminum Wire options available for AC motors.
Q: What is the minimum order quantity?
A: Any quantity is welcome. We also provide sample orders for quality testing.
Q: What are your payment terms?
A: We accept Bank Transfers. For samples, 100% T/T in advance. For orders, 30% T/T in advance, and 70% balance before delivery.
