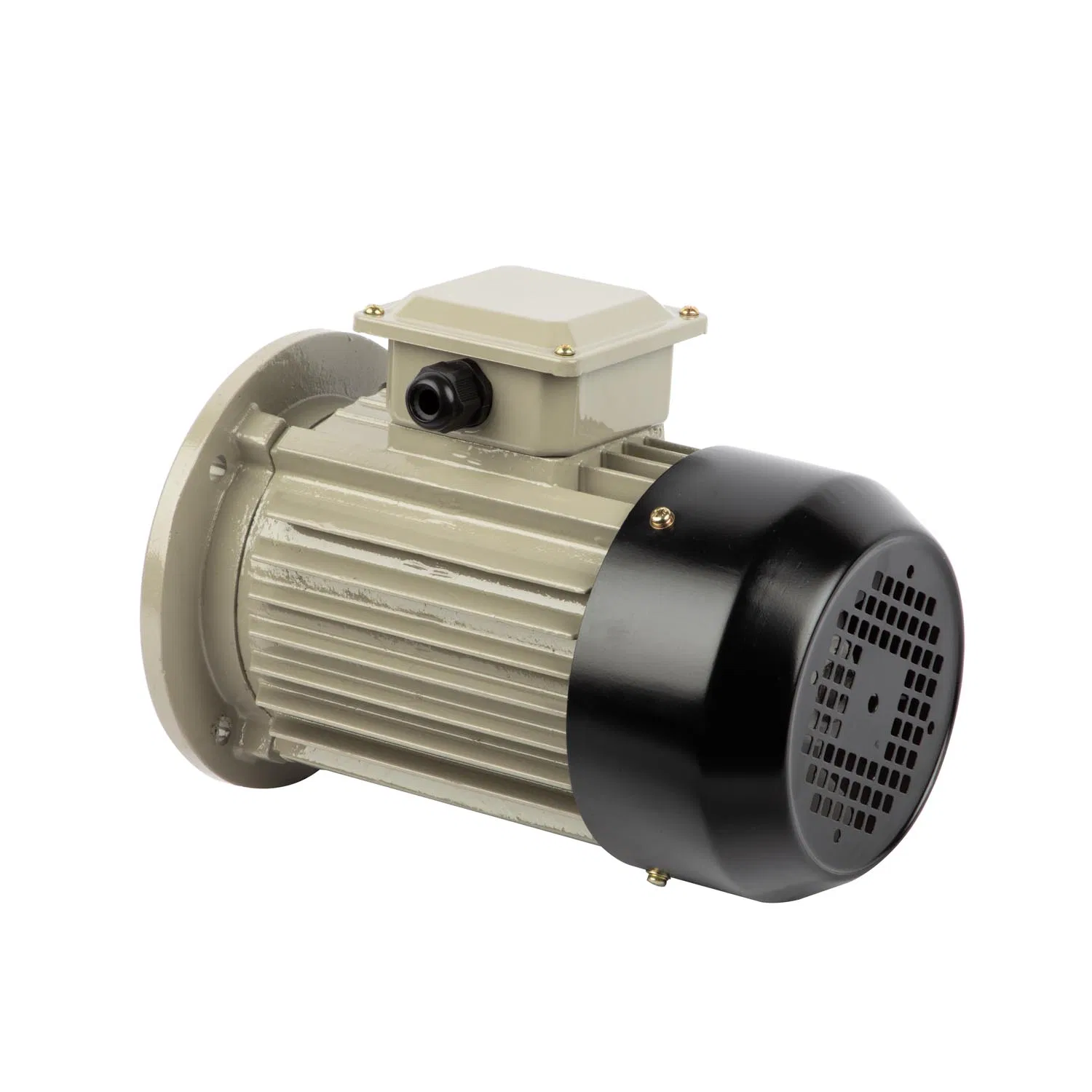

B3, B14, B5, B35 B34, C Face Driving China Garage Door Three Phase Motor

1 / 2

B3, B14, B5, B35 B34, C Face Driving China Garage Door Three Phase Motor

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.YE2 IE2

Number of StatorThree-Phase

FunctionDriving, Control

Casing ProtectionClosed Type

Number of Poles2

Starting ModeDirect on-line Starting

CertificationISO9001, CCC

Frequency50Hz 60Hz

Protection ClassIP22 IP44 IP54 IP55 IP56 IP66

Insulation ClassE,B,F,H

Rpm740rpm - 2800rpm

Mount TypeB3,B14,B5,B35 B34,C Face

Output1HP-460HP

OriginChina

Packaging & Delivery

Package Size52.00cm * 40.00cm * 42.00cm

Package Gross Weight17.000kg

Product Description

High-quality energy-efficient electric motors designed to meet industrial requirements. By utilizing superior materials, high-quality sheet metal, and optimized copper usage in the rotor/stator, these motors deliver high energy efficiency.

Our motors can be customized to suit specific customer needs, featuring a range of options and accessories for various environments. These electric motors are widely used in industrial applications, accounting for approximately 65 percent of electricity consumption in the industry.

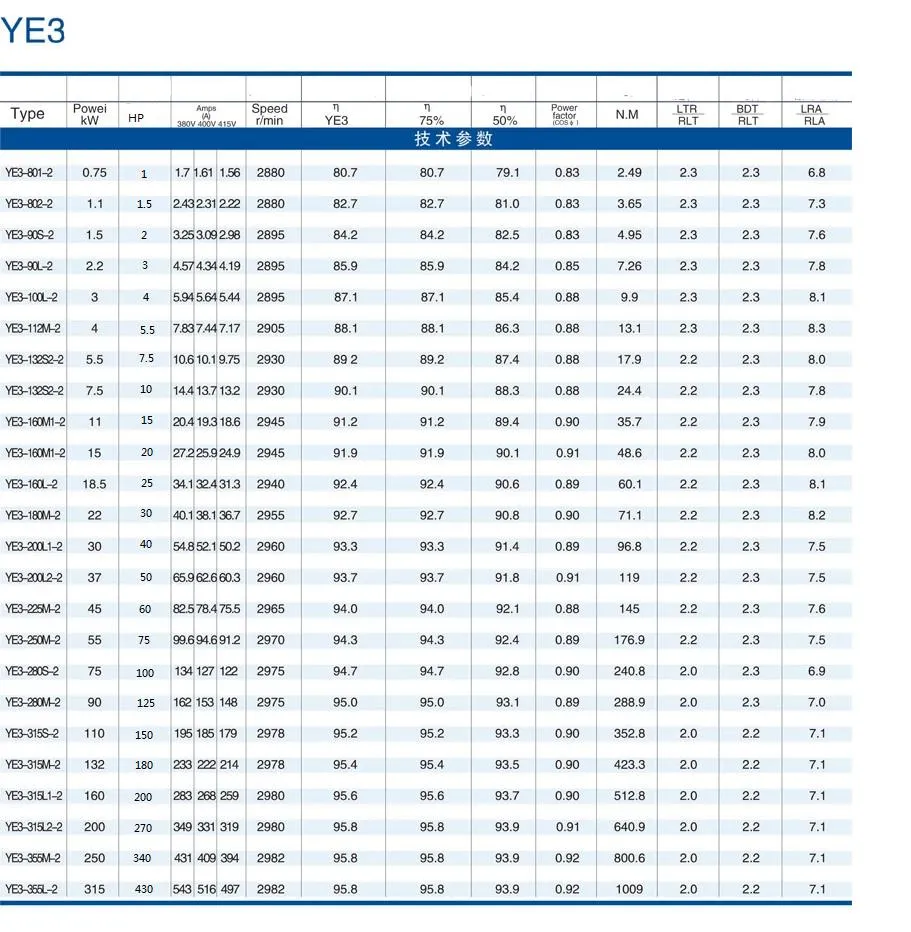

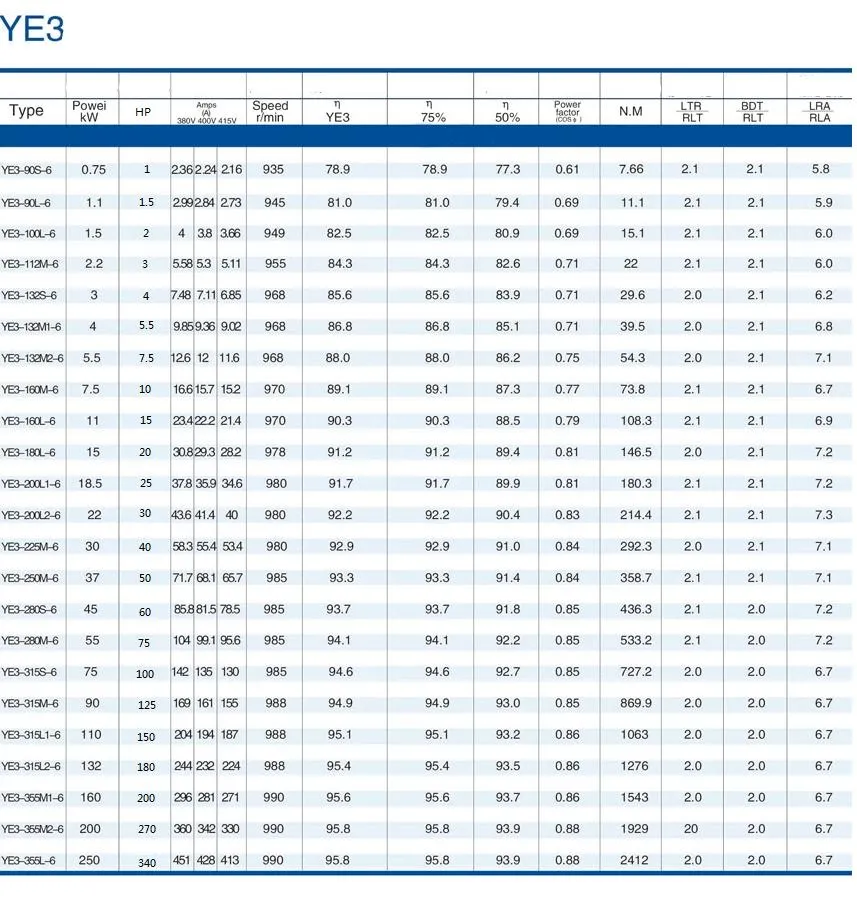

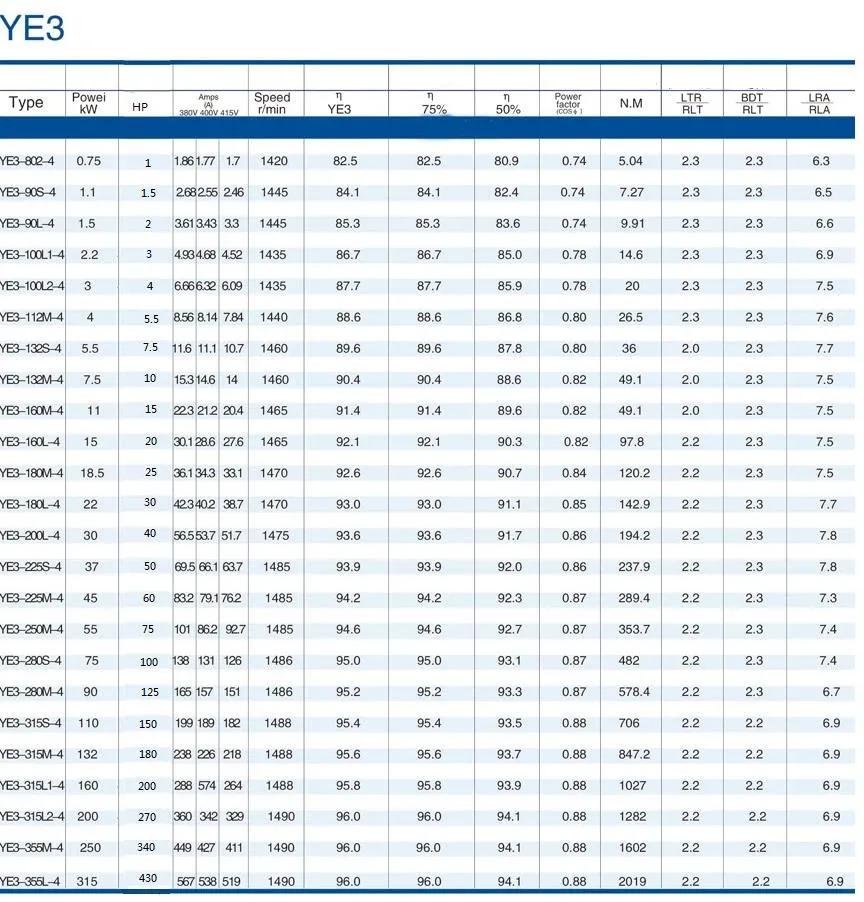

Technical Specifications
Power:	0.75kw-315kw	Voltage:	230/400v, 380v, 400v, 415v, 460v, 660v
Frequency:	50/60hz	Material:	Copper Wire
Insulation Class:	F, B, H	Mounting:	B3/B5/B14/B35/B34
Protection Grade:	IP54, IP44, IP55	Body Material:	Cast iron / Cast aluminum

Frequently Asked Questions

1. What is the energy efficiency standard of these motors?

These motors comply with international efficiency standards (IE2/IE3) designed to reduce energy consumption in industrial applications.

2. Can you customize the motor specifications?

Yes, we provide customization for single-phase and three-phase motors to meet specific customer requirements, including various mounting types and voltages.

3. What housing materials are available?

We offer housings in Cast Iron, Aluminum, Steel, and Stainless Steel depending on the operating environment and application needs.

4. Are these motors suitable for harsh environments?

Yes, our motors come with various protection classes ranging from IP22 to IP66, allowing them to operate in diverse conditions including liquids and high temperatures.

5. Which standards do these motors follow?

Our products meet global standards including IEC, Epact UL, GOST, DIN, and Bsi, ensuring compatibility and safety worldwide.
