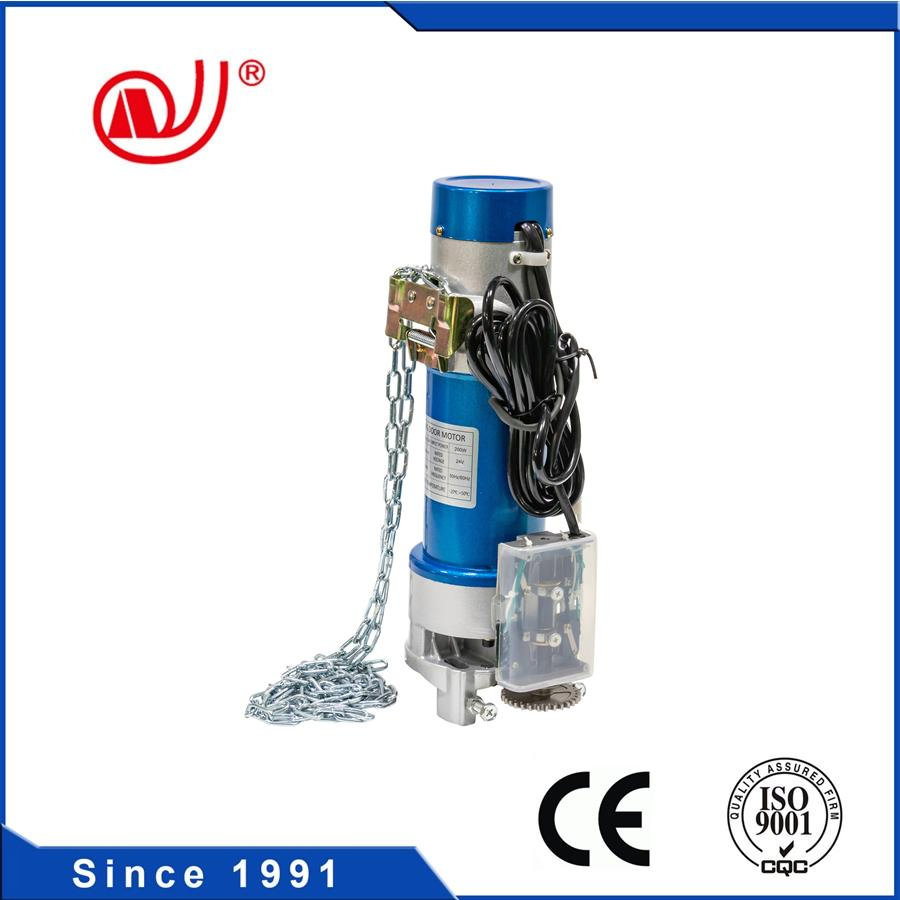

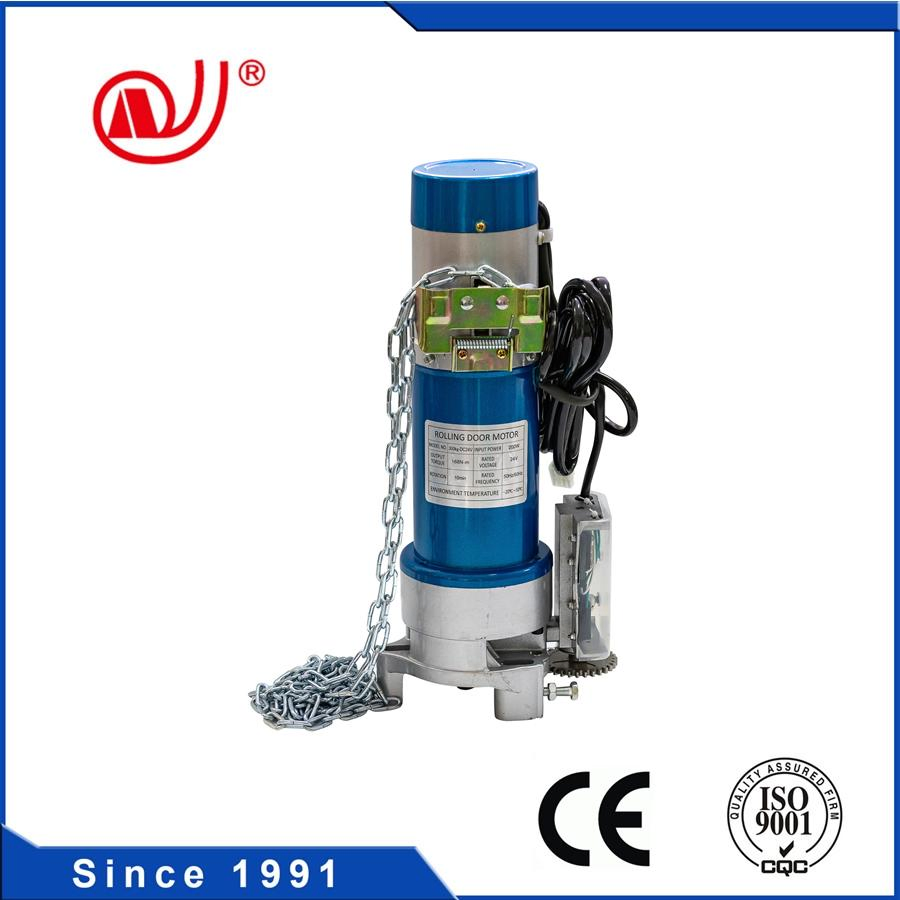

Torsion Motor
1 / 5

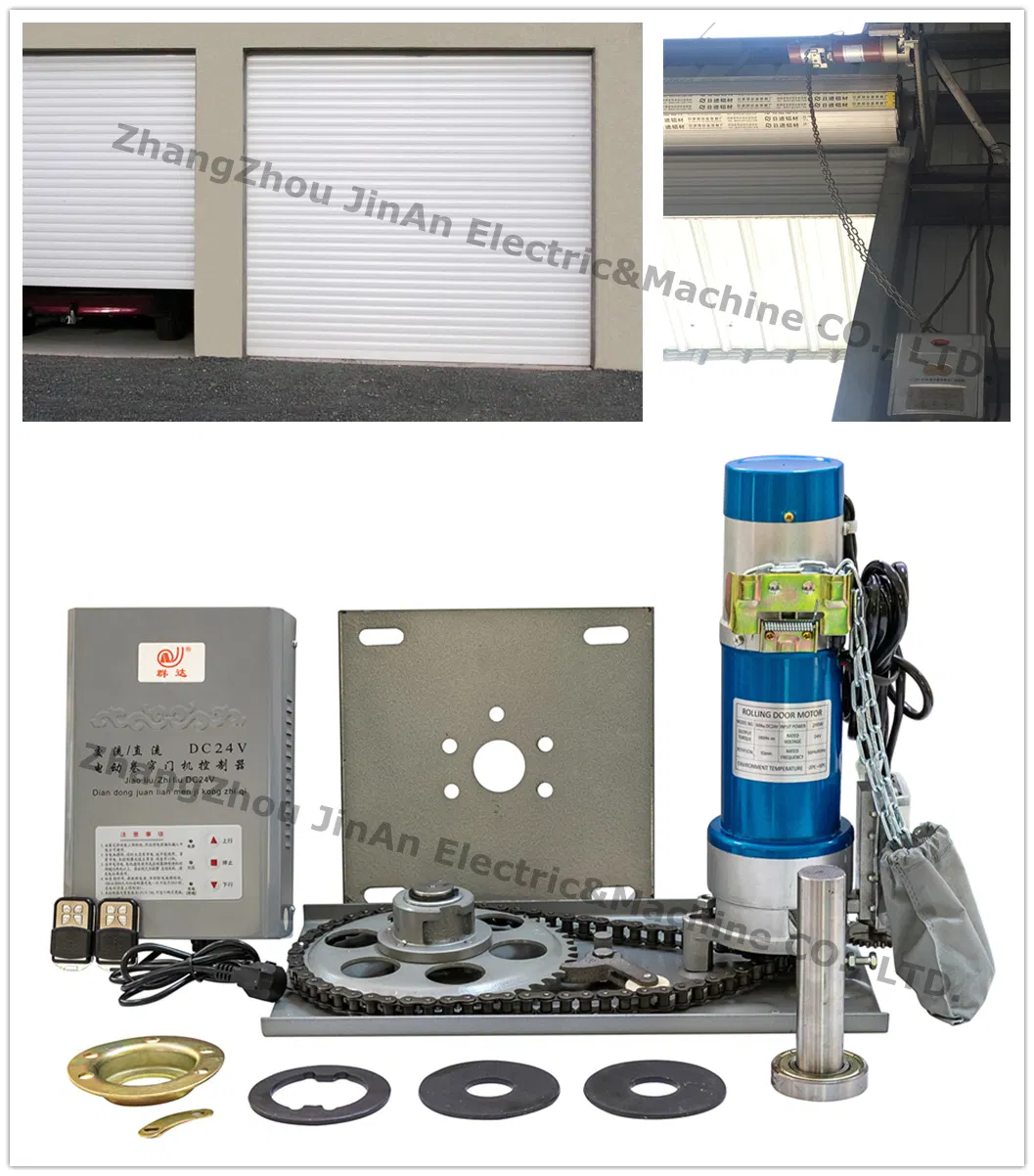

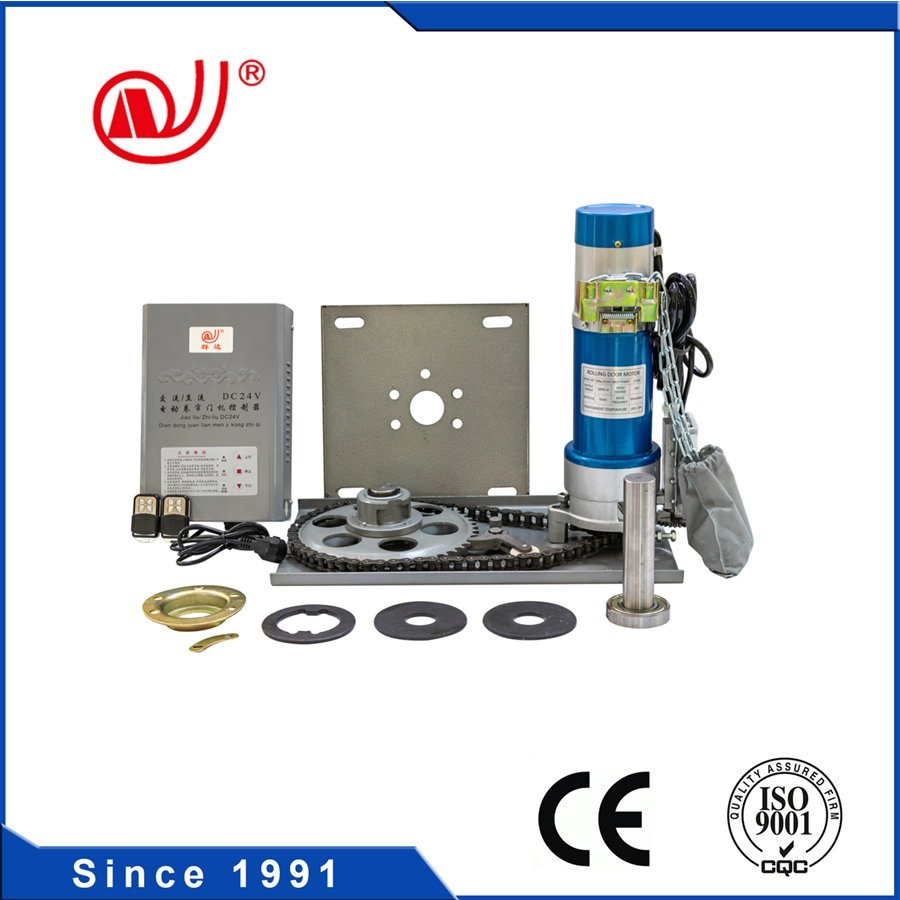

Our motors are applied to shopping centers, warehouse, garages, theaters, hotels, banks, factories and other buildings' rolling shutter doors' opening and closing with electric and manual function.

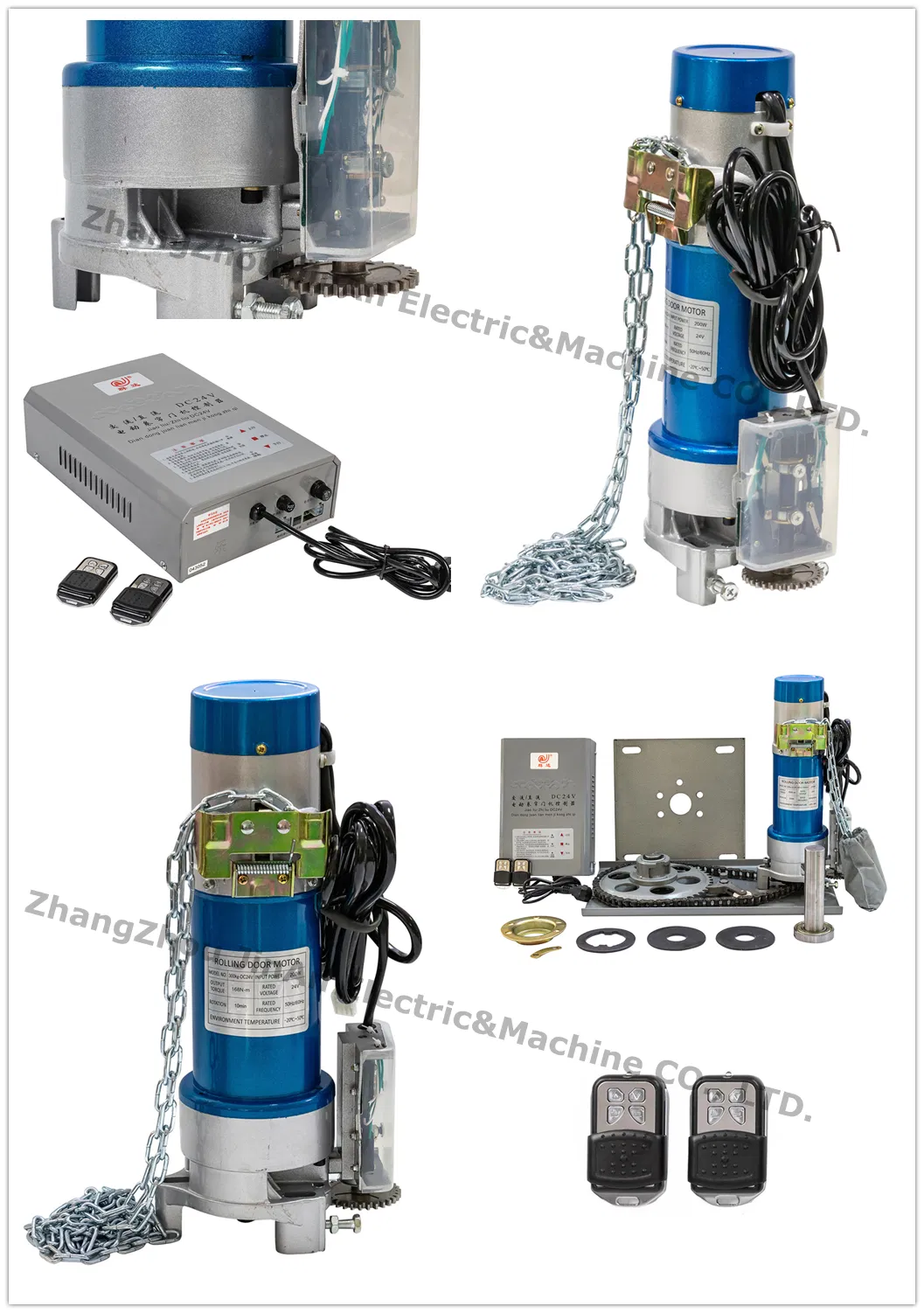

Aluminium alloy construction, solid and light but durable and easy to install.
Designed for low energy consumption and minimal vibration operation.
Correct control limit system allowing easy operation and a large control range.
Equipped with anti-dropping safety mechanism to prevent accidental injury.
| Model No. | Max Lifting Weight (kg) | Max Lifting Height (m) | Rated Input Power (W) | Output Torque (N.m) | Big Reel Sprocket Rotation (r/min) | Chain No. |
|---|---|---|---|---|---|---|
| 220V/230V 50Hz/60Hz AC Motors | ||||||
| AC300KG-1P | 300 | 6.5 | 450 | 168 | 6.2 | 10A |
| AC500KG-1P | 500 | 6.5 | 450 | 343 | 6.2 | 10A |
| AC600KG-1P | 600 | 6.5 | 680 | 412 | 6.2 | 10A |
| AC800KG-1P | 800 | 7.0 | 700 | 607 | 4.2 | 10A |
| AC1000KG-1P | 1000 | 7.0 | 700 | 1102 | 3.5 | 12A |
| 380V/415V 50Hz/60Hz AC Motors | ||||||
| AC1000KG-3P | 1000 | 8.0 | 400 | 1102 | 6.5 | 12A |
| AC1300KG-3P | 1300 | 8.0 | 600 | 1372 | 6.5 | 12A |
| AC1500KG-3P | 1500 | 8.0 | 600 | 1610 | 5.7 | 12A |
| AC2000KG-3P | 2000 | 8.0 | 800 | 2200 | 5.7 | 12A |

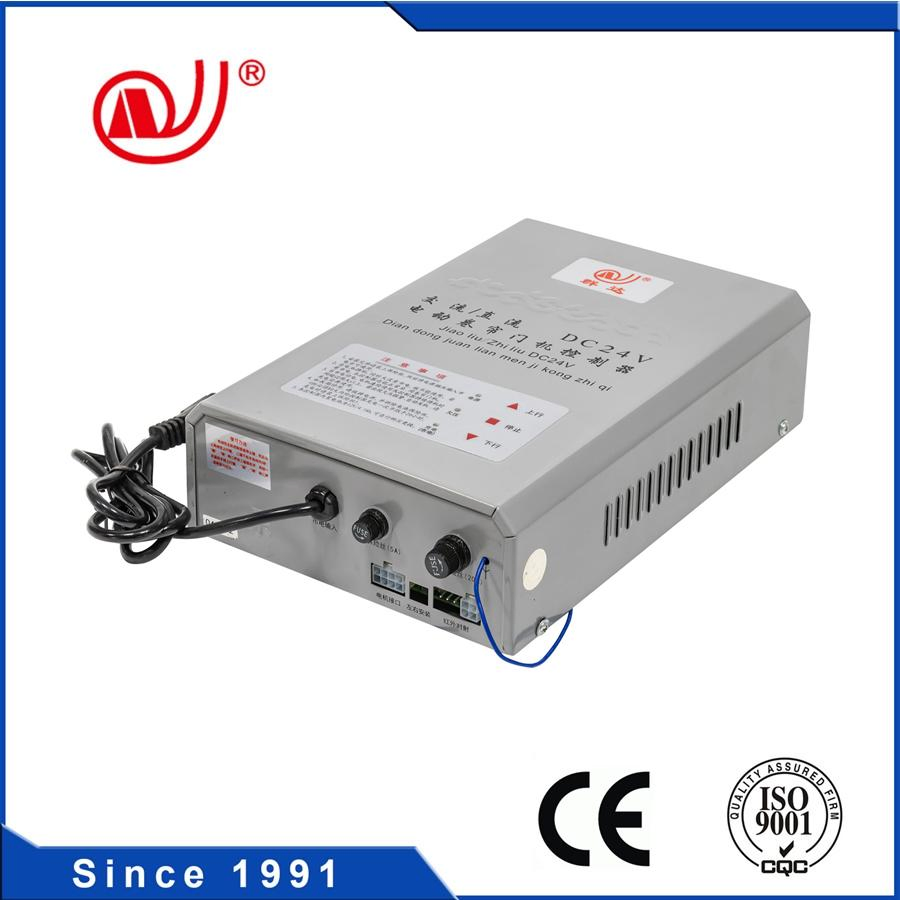

| DC Motors (24V) | ||||||
| 300KG-DC24V | 300 | 6.5 | 200 | 168 | 4.7 | 10A |
| 500KG-DC24V | 500 | 6.5 | 250 | 343 | 4.7 | 10A |
| 600KG-DC24V | 600 | 6.5 | 280 | 412 | 4.7 | 10A |

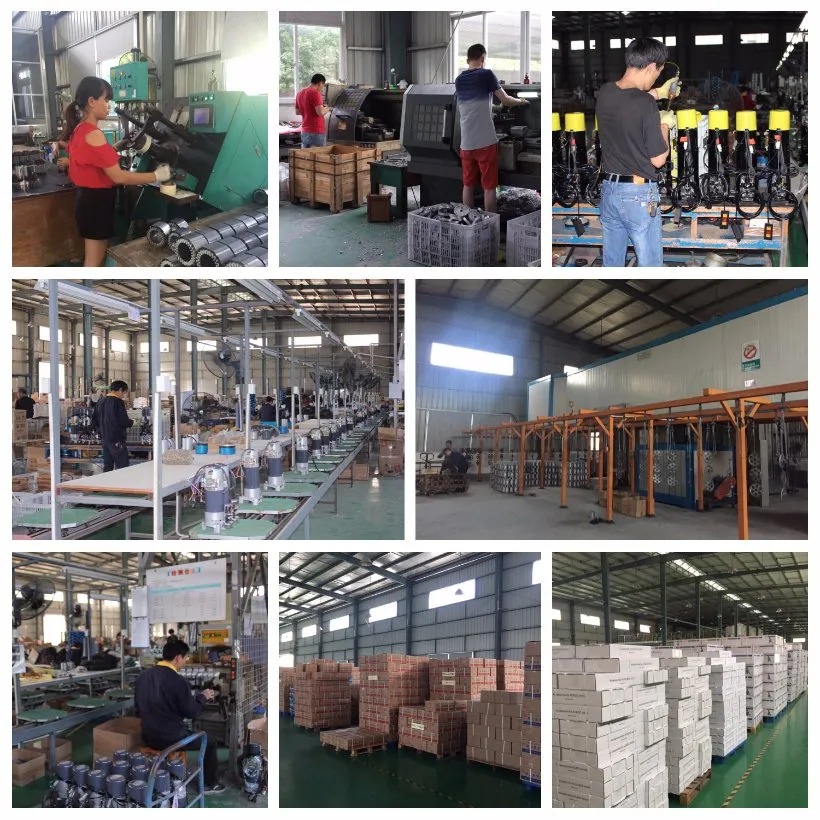

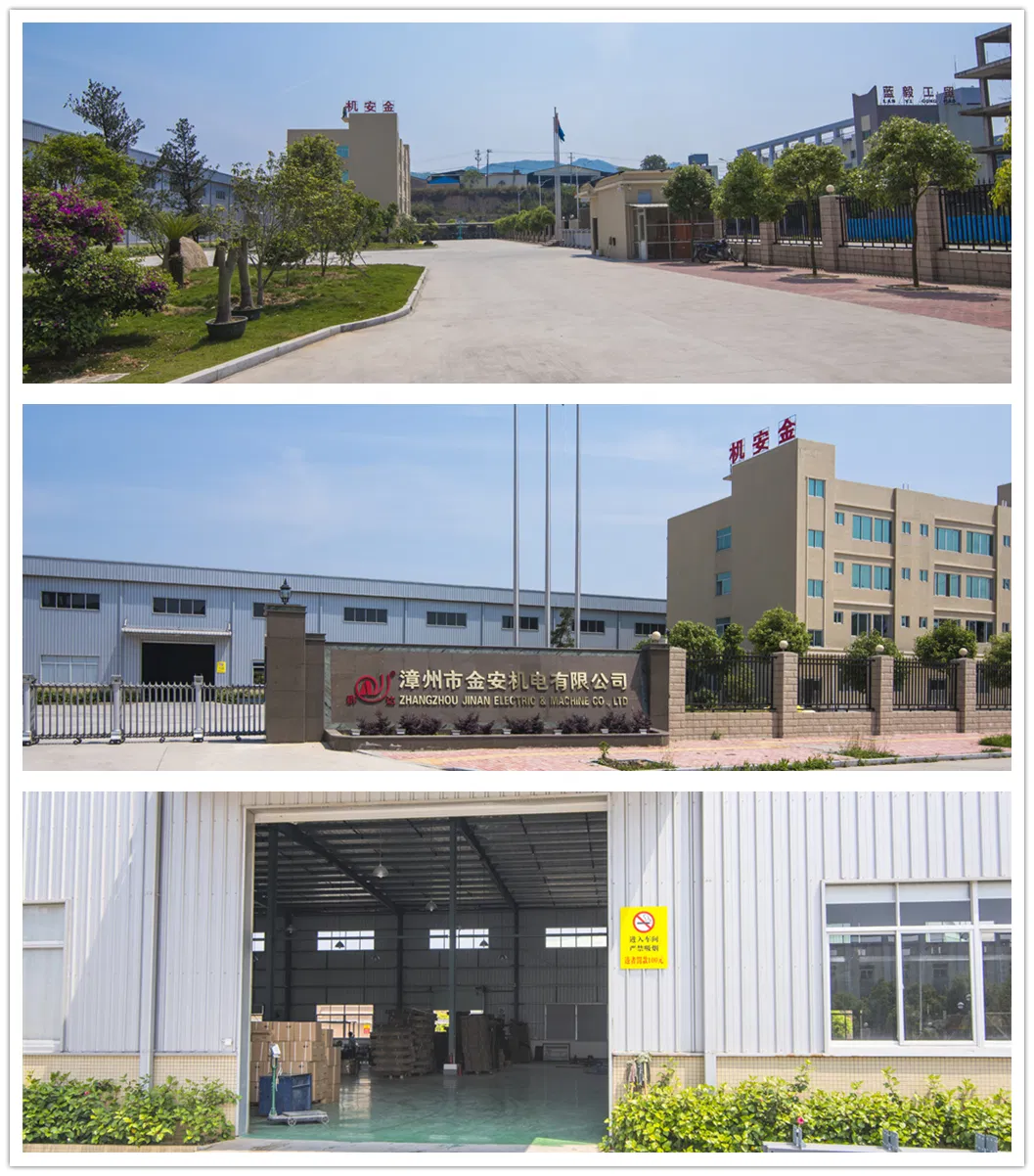

We are a dedicated manufacturer specializing in developing and producing all kinds of rolling door motors since 1991. Through the integration of advanced production technology, specialized equipment, and a highly skilled workforce, we have earned CE and ISO9001 quality certifications. With strict quality control protocols under 100% full inspection, we ensure all products delivered to you are in optimal working condition. Our experienced engineering team offers robust technical support. Characterized by elegant design, stable quality, strong power output, silent running, simple installation, and long service life, our motors are highly popular in global markets.
We consistently stand by our core values of "Pursuing quality, permanent and continuous service" to satisfy international clients. With a positive attitude aimed at continuous improvement and development, we sincerely hope to establish long-term, mutually reliable business partnerships globally.
We provide various power and capacity options including AC Motors (300kg, 500kg, 600kg, 800kg, 1000kg, 1300kg, 1500kg, 2000kg) and DC Motors (300kg, 500kg, 600kg) to perfectly match your specifications.
Yes, we are a professional manufacturer of rolling door motors with our own dedicated production factory.
Normally, if the products are in stock, delivery takes 7-10 days. If the goods are out of stock, it typically takes 15-35 days, depending on the customer's order quantity and configuration request.
Yes, OEM requests are fully acceptable. Please contact us with your specific requirements, and we will arrange matching quotes and samples as quickly as possible.
Our standard primary winding material is 100% copper wire. We also offer aluminum wire configurations for AC motor options if specified.
We welcome orders of any size. Trial sample orders for quality testing purposes are gladly supported.
We accept company bank wire transfers (T/T). For sample orders, we require 100% T/T in advance. For standard bulk orders, we require a 30% T/T deposit in advance, with the remaining 70% balance paid prior to shipment dispatch.
