Basic Info.
Number of Stator
Three-Phase
Certification
ISO9001, CCC
Usage
Controlling Rolling Door's Opening and Closing
Color
Blue, Grey, Customized
Certificates
CE, ISO9001:2015
Transport Package
In Cartons
Specification
70.5*32.5*27.5cm
Production Capacity
12000sets/Month
Product Description
Application Area

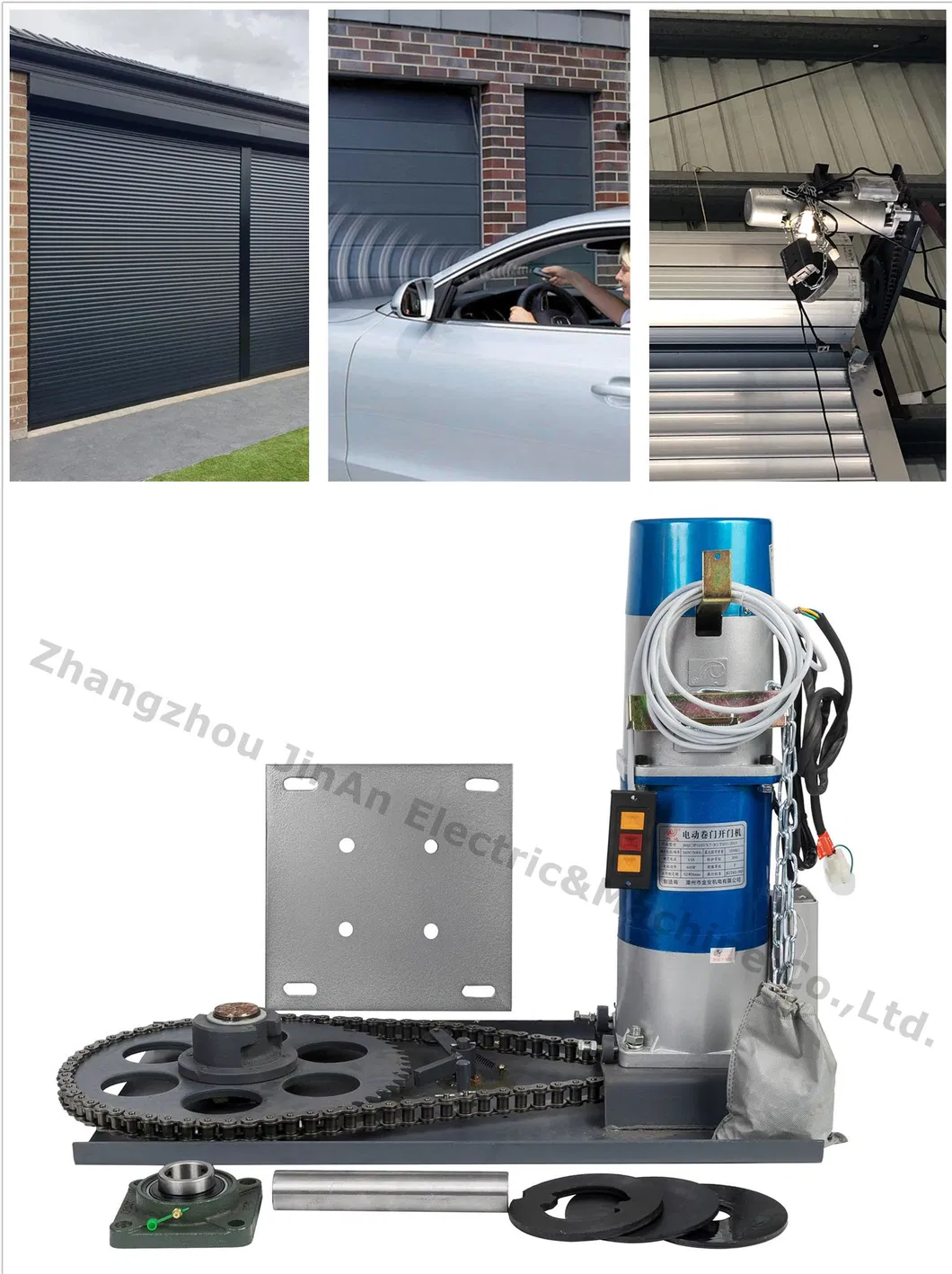

Our motors are applied to shopping centers, warehouses, garages, theaters, hotels, banks, factories, and other buildings' rolling shutter doors' opening and closing, with electric and manual functions.
Features
- Shell: Aluminium alloy, solid and light but durable and easy to install.
- Gearbox: High-quality alloy steel and special technical treatment to guarantee big lifting power.
- Brake structure: Special device mechanical brakes, power cut off in an instant the brakes, to ensure absolute safety brake.
- Transmission System: High accuracy, smooth running, and low noise.
Technical Parameters
| Model No. |
Max Lifting Weight (kg) |
Max Lifting Height (m) |
Rated Input Power (W) |
Output Torque (N.m) |
Big Reel Sproket Rotation (r/min) |
Chain No. |
| 220V/50HZ |
| AC300KG-1P |
300 |
6.5 |
450 |
168 |
6.2 |
10A |
| AC500KG-1P |
500 |
6.5 |
450 |
343 |
6.2 |
10A |
| AC600KG-1P |
600 |
6.5 |
680 |
412 |
6.2 |
10A |
| AC800KG-1P |
800 |
7 |
700 |
607 |
4.2 |
10A |
| AC1000KG-1P |
1000 |
7 |
700 |
1102 |
3.5 |
12A |
| 380V/50HZ |
| AC1000KG-3P |
1000 |
8 |
400 |
1102 |
6.5 |
12A |
| AC1300KG-3P |
1300 |
8 |
600 |
1372 |
6.5 |
12A |
| AC1500KG-3P |
1500 |
8 |
600 |
1610 |
5.7 |
12A |
| AC2000KG-3P |
2000 |
8 |
700 |
2200 |
5.7 |
12A |

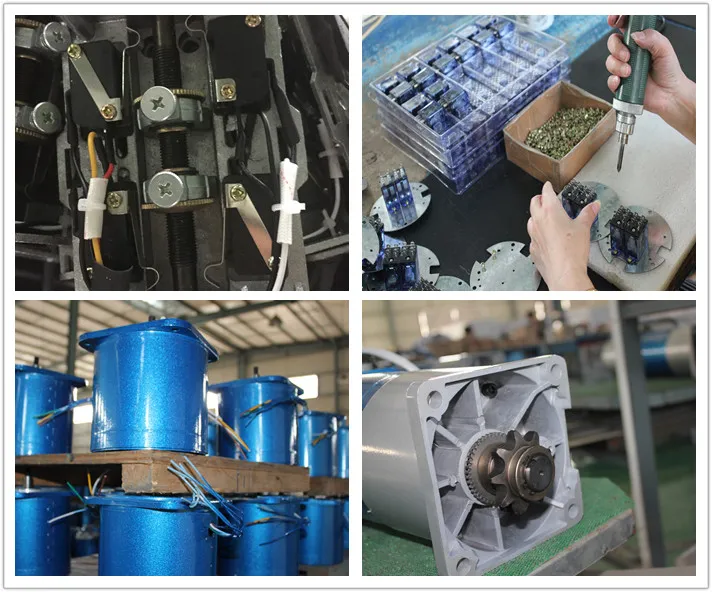

- 4 relays to make motors work more stable and big lifting power.
- 100% copper wiring makes Motors with larger capacity, stable current and durable character.
- 4 Micro switches in limit utensil for correct control, easy operation and big control range.
- An anti-dropping device in bracket board to prevent accidental injury and ensure safety.
- Motors can be customized based on your requirements.

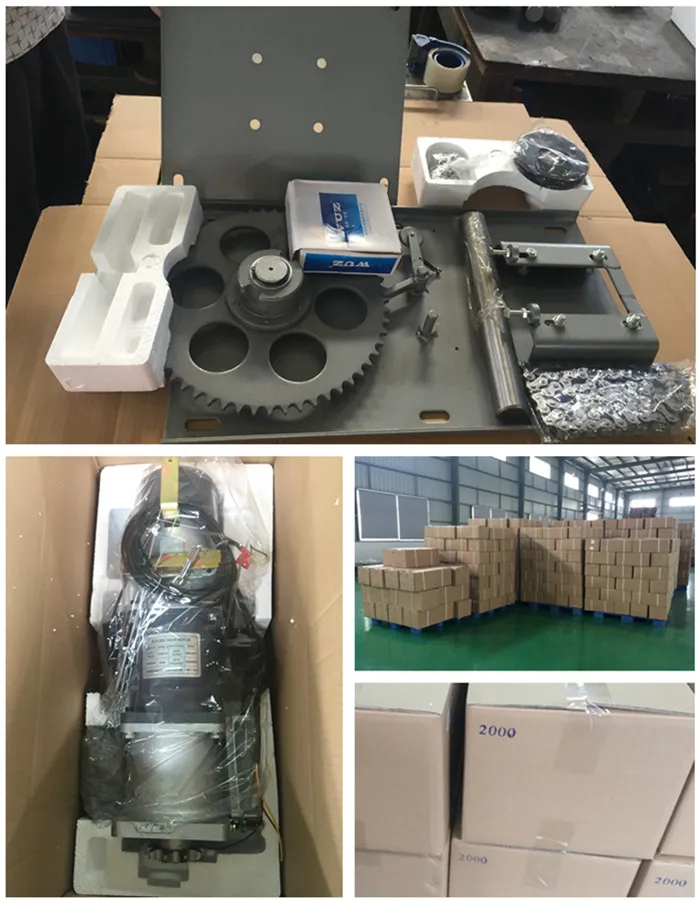

Packing & Delivery
Packing: One set in two cartons, plastic bag inside, carton outside.
(The outside cartons can be customized according to customers' requirements, like printing logo or words on it or according to your own design to print it.)
Loading Capacity: A 20 GP container can hold about 520-550 PCS AC motor, if DC motors, 480-520PCS is available.
Delivery time: We will deliver the goods in 10-45 days after receiving your deposit, which according to your exact quantity and requirements.
Exhibitions
Certificates
All of our motors with CE and ISO9001 certificates.
More Choice for You
Thank you so much for visiting our product pages, we sincerely look forward to your inquiry and welcome to check out our product lines. Kindly leave your message or contact us directly!
Frequently Asked Questions

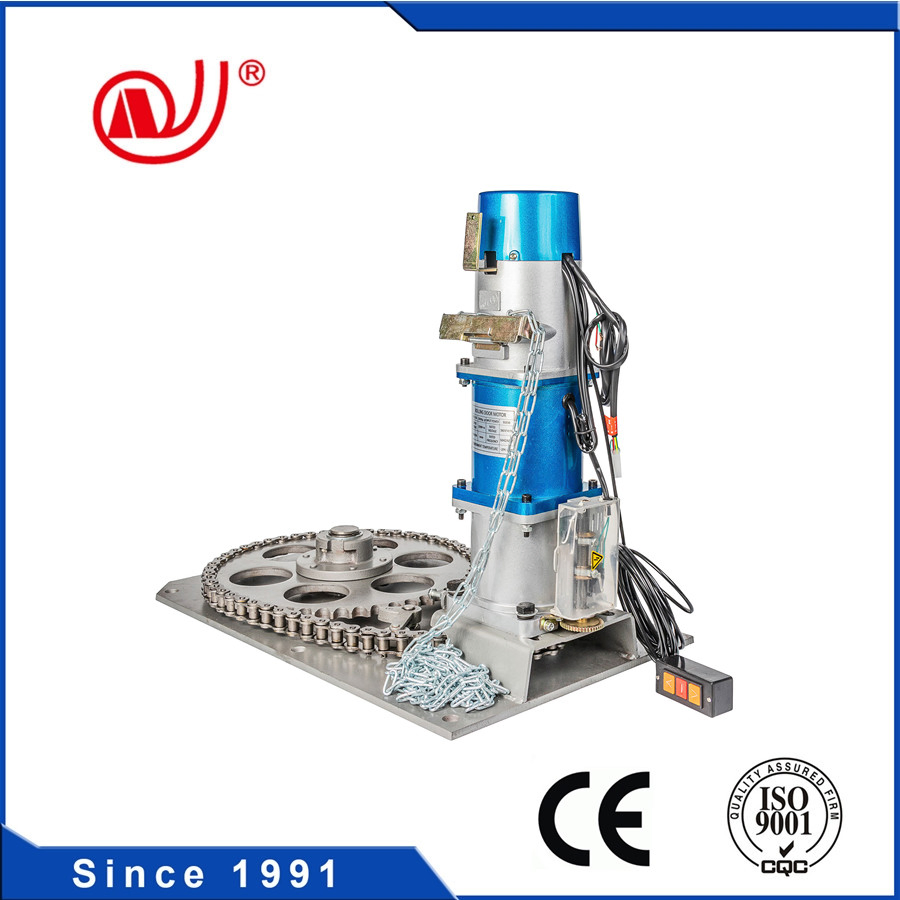

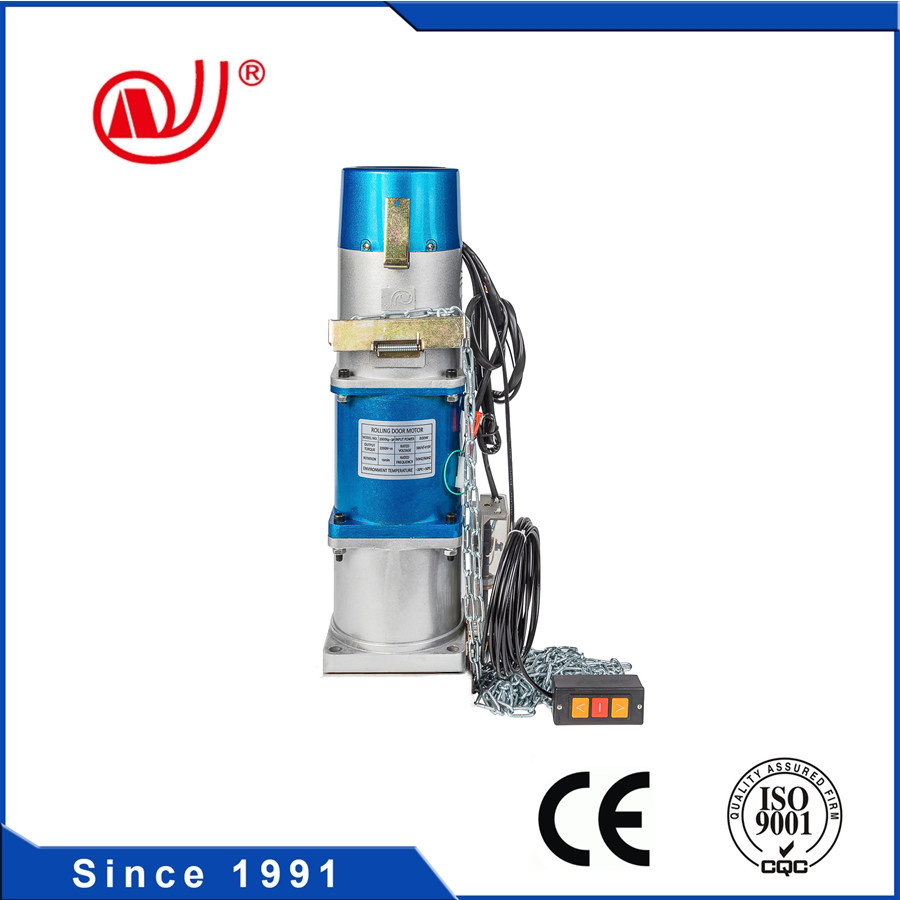

Q1: What is the maximum lifting capacity of the AC2000KG-3P motor?
A1: The AC2000KG-3P motor is designed for heavy-duty industrial installations and features an outstanding maximum lifting capacity of 2000kg.
Q2: Can the rolling shutter motor be operated manually?
A2: Yes, our motors are built with dual functions, supporting both convenient electric remote operation and manual control in case of emergency power outages.
Q3: What safety mechanisms are integrated into this rolling door motor?
A3: The motor features a robust mechanical brake system for immediate power cut-off and an anti-dropping device integrated in the bracket board to prevent accidental drops.
Q4: Why does the motor use 100% copper wiring?
A4: Using 100% copper wiring ensures that the motors have a larger overall capacity, highly stable current distribution, and excellent long-term durability.
Q5: Is customization available for packaging and specifications?
A5: Yes, we provide full customization options for motor configurations, voltage requirements, shell colors, and custom-designed shipping cartons matching your brand requirements.
Q6: What is the estimated delivery time for an order?
A6: Depending on your exact quantity and customization specifications, the standard delivery time ranges between 10 and 45 days after deposit confirmation.
