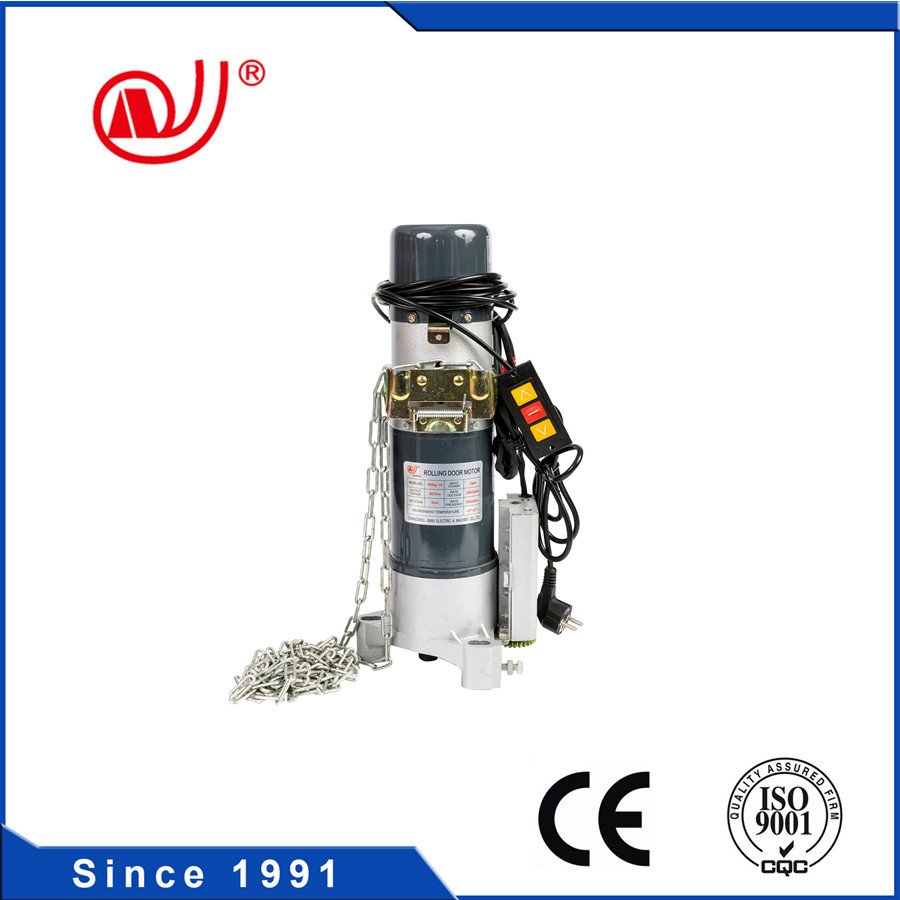

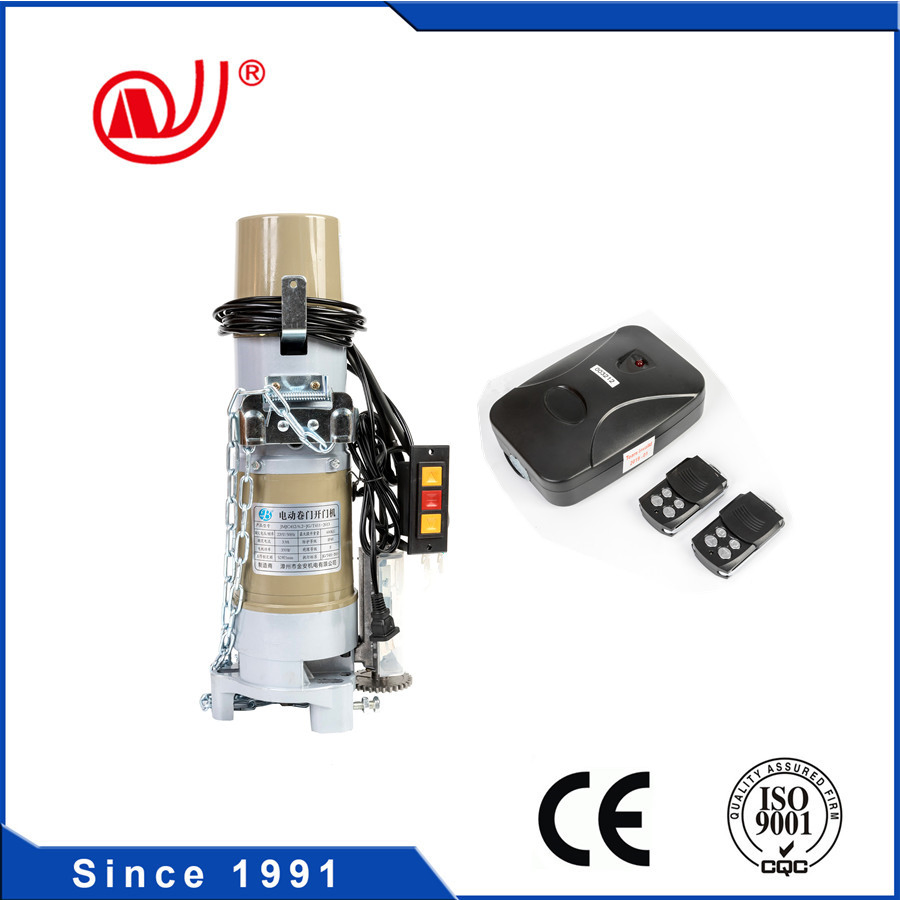

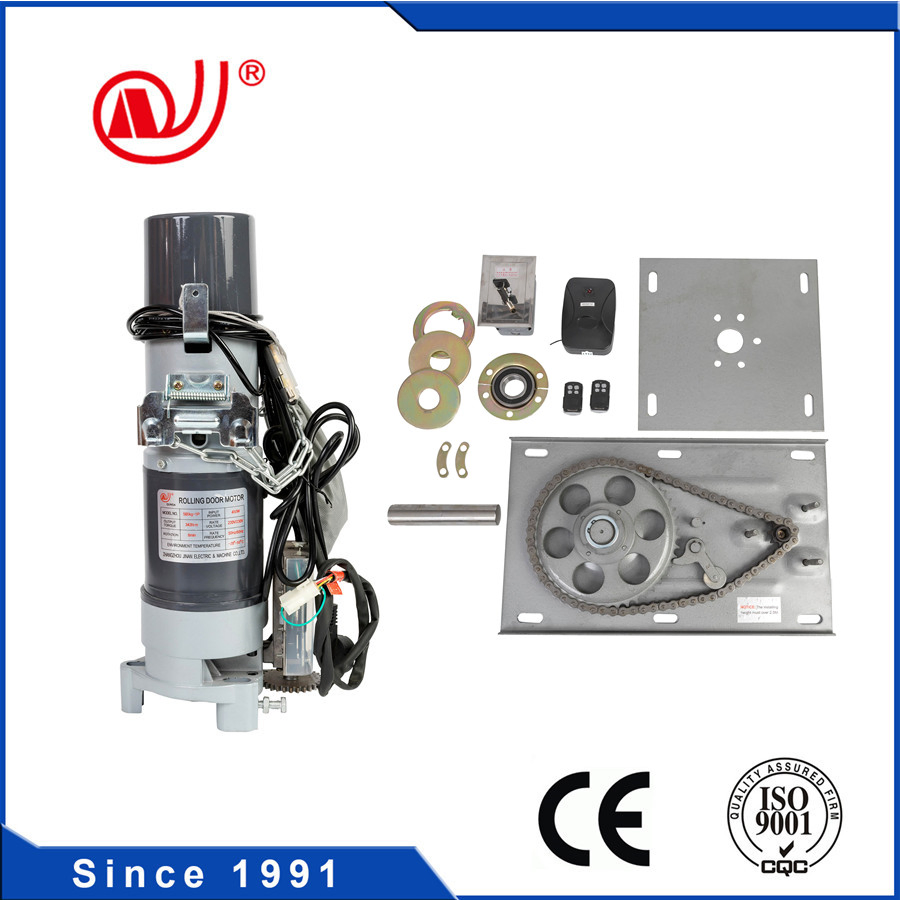

Roller Door Opener Electric Garage Door Motor for Rolling Shutter

Basic Info.

Model NO.

AC500KG-1P

Number of Stator

Single-Phase

Function

Driving, Control

Casing Protection

Protection Type

Starting Mode

with Remote Control

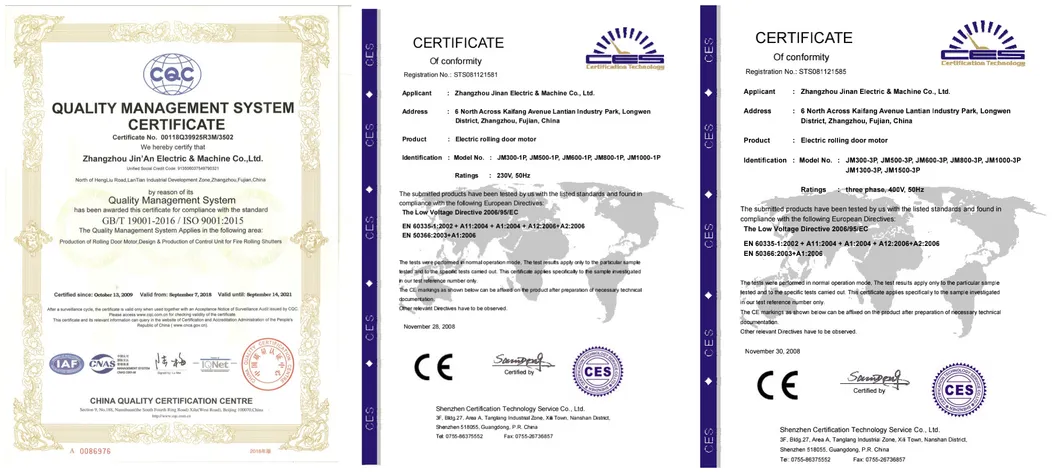

Certification

ISO9001, CCC, CE

Brand

Qunda

Application Area

Supermarket, Hotel, Bank, Factory, Warehouse, etc

Usage

Control Roller Shutter up and Down

Color

Gray, Black, Blue, as You Like

Advantage

Low Noise

Material

100%Copper Wire

Safety Protection

Anti-Dropping Device

Remote Control

Learning Code

Shell

Aluminum Alloy

Feature

Low Noise

Transport Package

One Set in Two Cartons

Specification

52.6*25*19cm

Trademark

Qunda/OEM

Origin

Fujian, China

Packaging & Delivery

Package Size

52.60cm * 31.00cm * 29.00cm

Package Gross Weight

23.000kg

Product Description

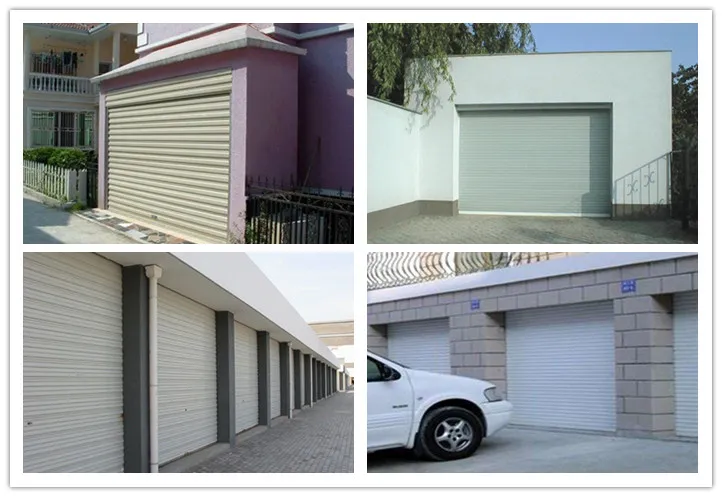

Application Area:

Our motors are applied to shopping centers, warehouses, garages, theaters, hotels, banks, factories and other buildings' rolling shutter doors' opening and closing, with electric and manual functions.

Roller Door Opener Electric Garage Door Motor for Rolling Shutter

Working Environment & Conditions

Working Area: Indoor or similar places
Environment Temperature: -20ºC ~ 50ºC
Relative Humidity: ≤90%
Voltage of Power: Fixed voltage × (1 ±10%)V
Frequency of Power: 50Hz ±2Hz
No strong electromagnetic interference source, explosive medium, or corroding metal medium nearby.
Short working hour system; continuous operation should not exceed 6 minutes.

Key Features:

Shell: Aluminium alloy, solid and light but durable and easy to install.
Low noise: Low energy consumption, small vibration.
Limit System: Correct control, easy operation, and big control range.
Anti-dropping device: Preventing accidental injury and ensuring safety.

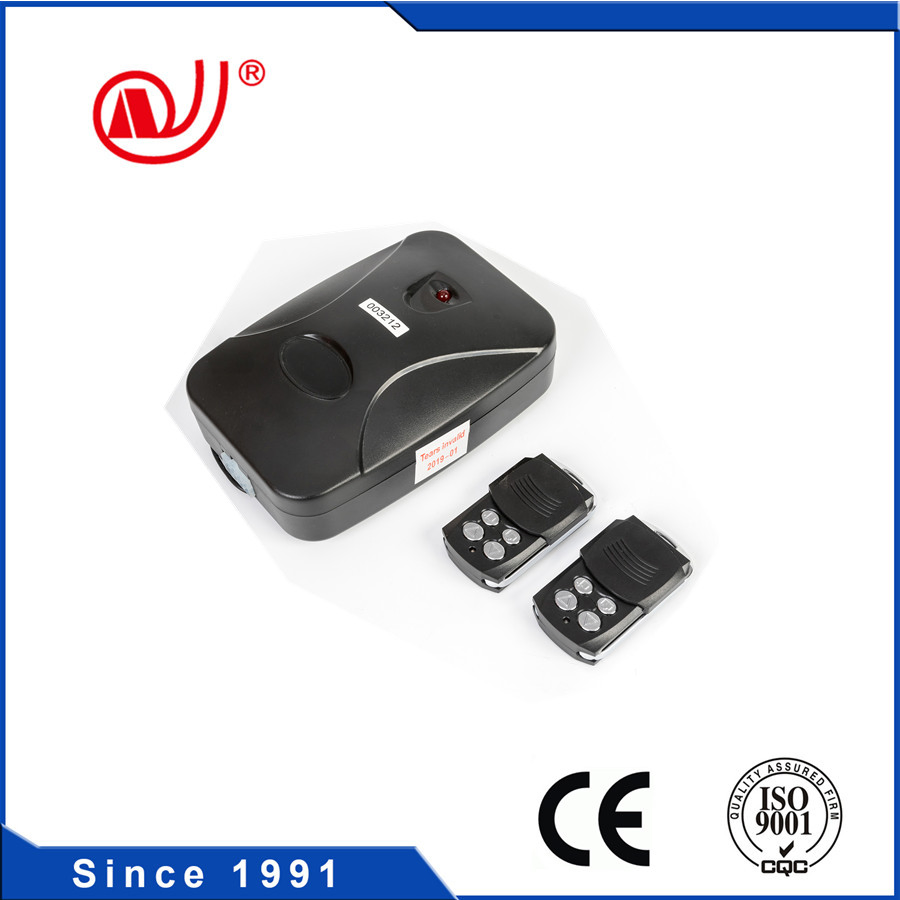

Transmitters: Equipped with secure remote control features.

Technical Parameter

Model No.	Max lifting weight(kg)	Max lifting height(m)	Rated Input Power(W)	Output Torque(N.m)	Big reel sprocket Rotation(r/min)	Chain No.
220V/230V 50HZ/60HZ
AC300KG-1P	300	6.5	450	168	6.2	10A
AC500KG-1P	500	6.5	450	343	6.2	10A
AC600KG-1P	600	6.5	680	412	6.2	10A
AC800KG-1P	800	7	700	607	4.2	10A
AC1000KG-1P	1000	7	700	1102	3.5	12A
380V/415V 50HZ/60HZ
AC1000KG-3P	1000	8	400	1102	6.5	12A
AC1300KG-3P	1300	8	600	1372	6.5	12A
AC1500KG-3P	1500	8	600	1610	5.7	12A
AC2000KG-3P	2000	8	800	2200	5.7	12A
DC Motors
300KG-DC24V	300	6.5	200	168	4.7	10A
500KG-DC24V	500	6.5	250	343	4.7	10A
600KG-DC24V	600	6.5	280	412	4.7	10A

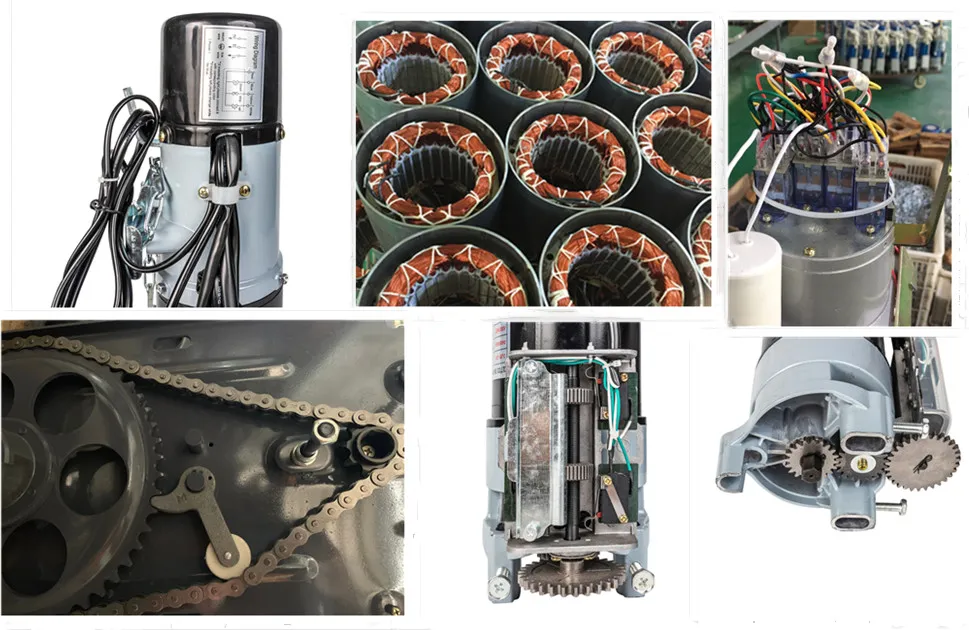

Detailed Photos

4 Relays: Promotes a more stable workflow and increases lifting power.
100% Copper Wire: High capacity, stable current, and reliable power output (aluminum wire options available).
4 Micro Switches: Precisely manages limitations for correct control and range support.
Anti-dropping device: Placed in bracket board to avoid structural failure.
Gear: High-quality alloy steel with special heat treatment guarantees high performance.

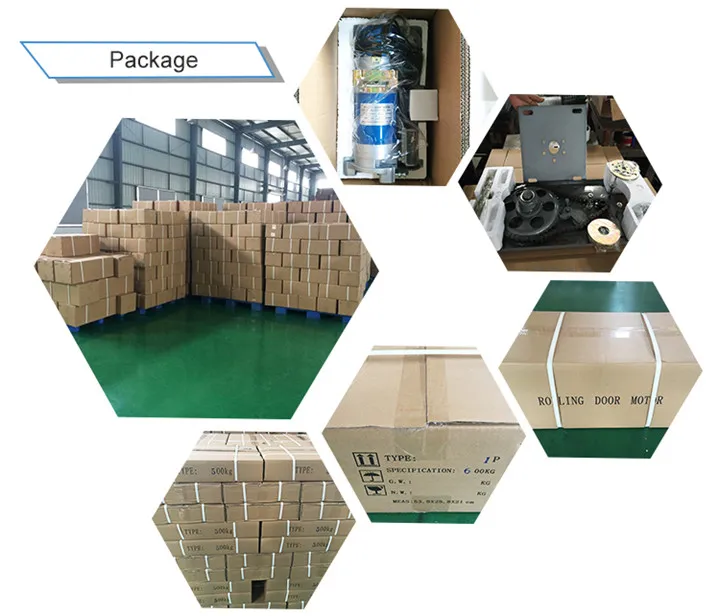

Packing & Delivery

Packing configuration: One set divided into two customized boxes (internal plastic film + external heavy-duty carton).
Loading Capacity: A 20 GP container easily supports approx. 520-550 units of AC motors, or 480-520 units of DC motors.
Delivery Time: Standard dispatch in 10-45 days following a cleared deposit, depending on order size and specifics.

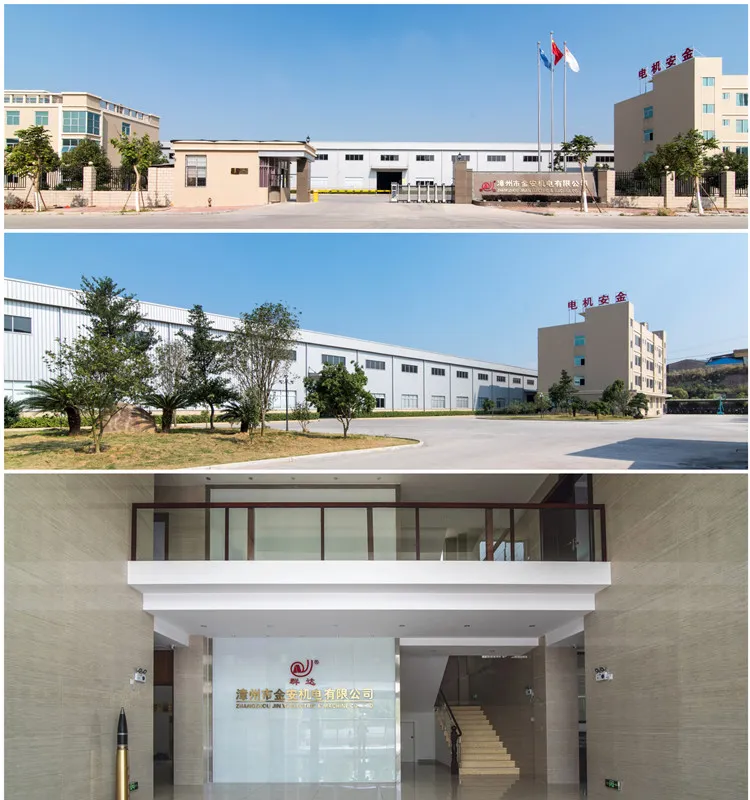

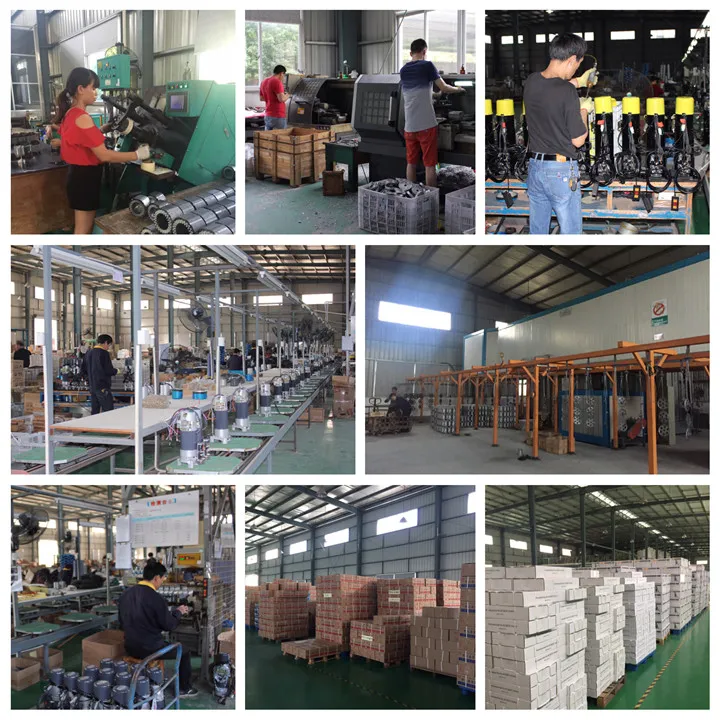

Production Profile & Capabilities

With more than 20 years of expert engineering, our advanced production lines develop robust electric rolling door motor solutions globally approved with CE and ISO9001 certifications. Each product features clean run profiles, simple configuration options, and durable lifespans, supporting buyers worldwide.

Exhibition Records

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional rolling door motor manufacturer featuring our own specialized production facility.

How about the delivery time?

Generally, standard designs in-stock take 7-10 days. Non-stock customized requests take 15-35 days, determined by total order volume.

Can you do OEM options?

Yes! OEM services are supported. Share your precise configurations with us, and we will formulate customized plans and competitive sample options.

What's the material of your Motor Winding?

Our standard winding relies on 100% pure copper wire. We also present premium grade aluminum wire configurations for certain AC model types.

May I know the minimum Order Quantity?

Any quantity is welcome. We accommodate sample orders for standard quality and operations evaluations.

What are your payment terms?

We support standard bank transfers. For sample validation orders, we require 100% advance transfer. For larger commercial wholesale runs, we offer 30% advance deposit with 70% balance settled before shipping.

Thank you very much for reading. Please feel free to leave a inquiry message detailing your requirements, and our engineers will get back to you shortly.
