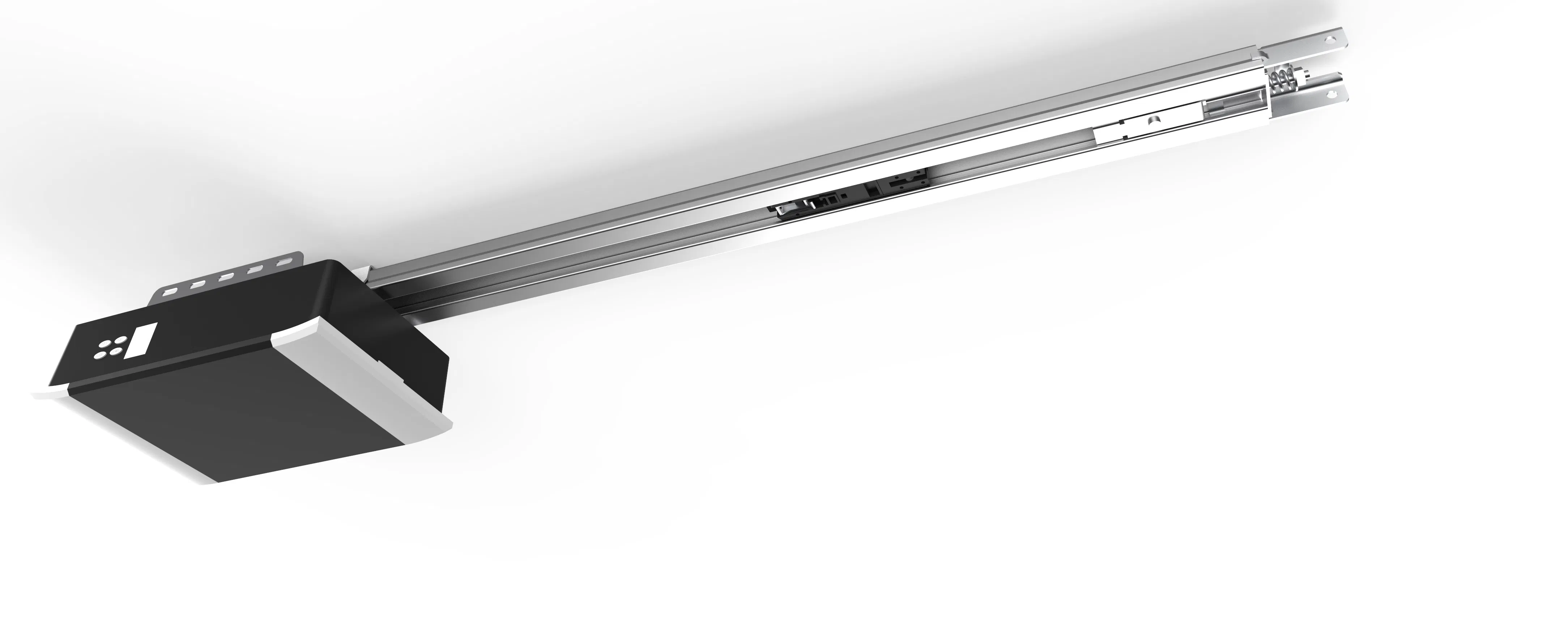

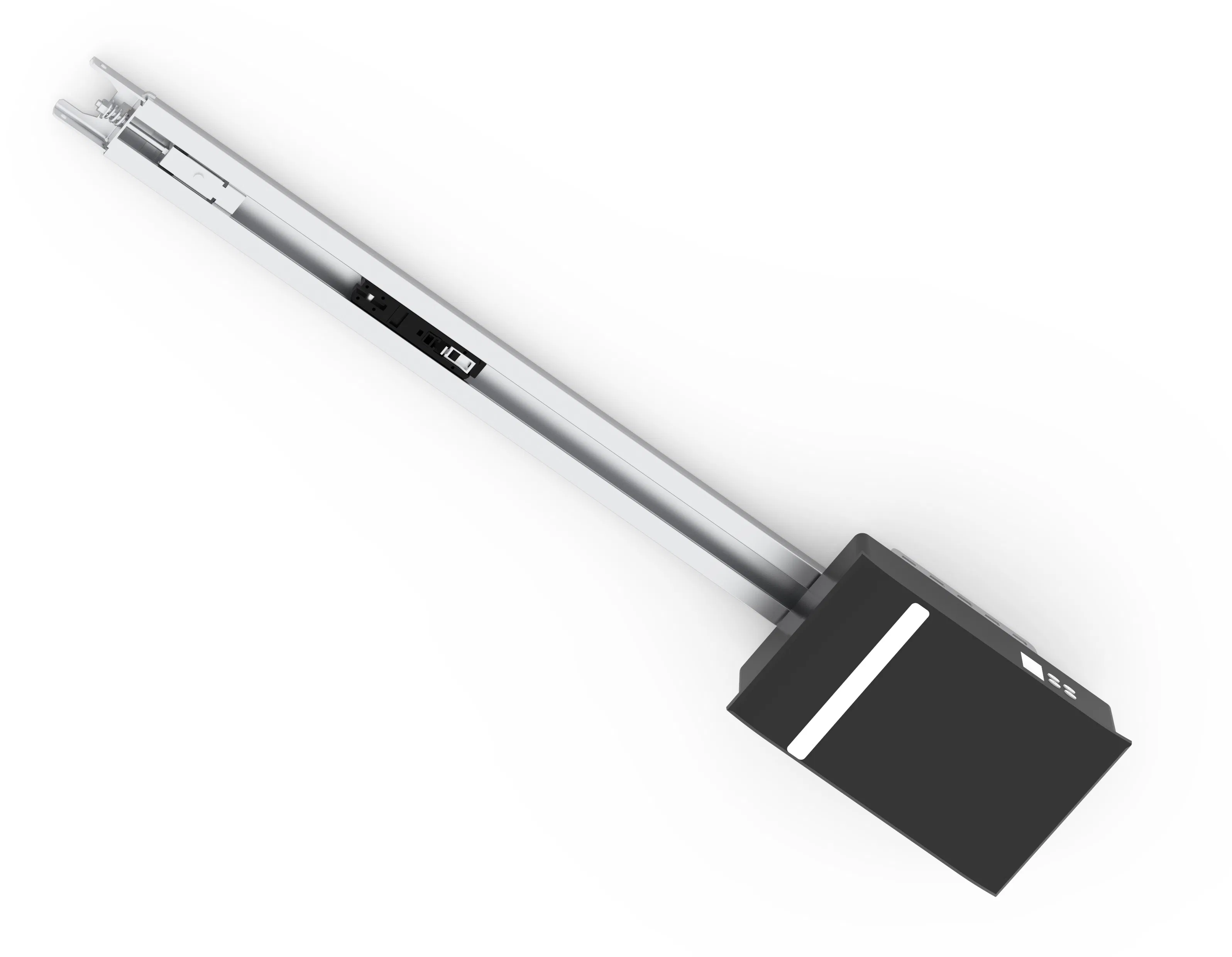

Fashionable Designed Powerful Force Garage Door Opener Oreo Motor with T Rail

1 / 5

Fashionable Designed Powerful Force Garage Door Opener Oreo Motor with T Rail

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Oreo serious

Excitation Mode

Series Excitation

Function

Driving, Open and Close Garage Door

Casing Protection

Protection Type

Number of Poles

Structure

Brush

Certification

Ce, Ce-Red, LVD, EMC, En12453&12445, TUV, C-Tick

Brand

OEM

Lifting Speed

160mm/S

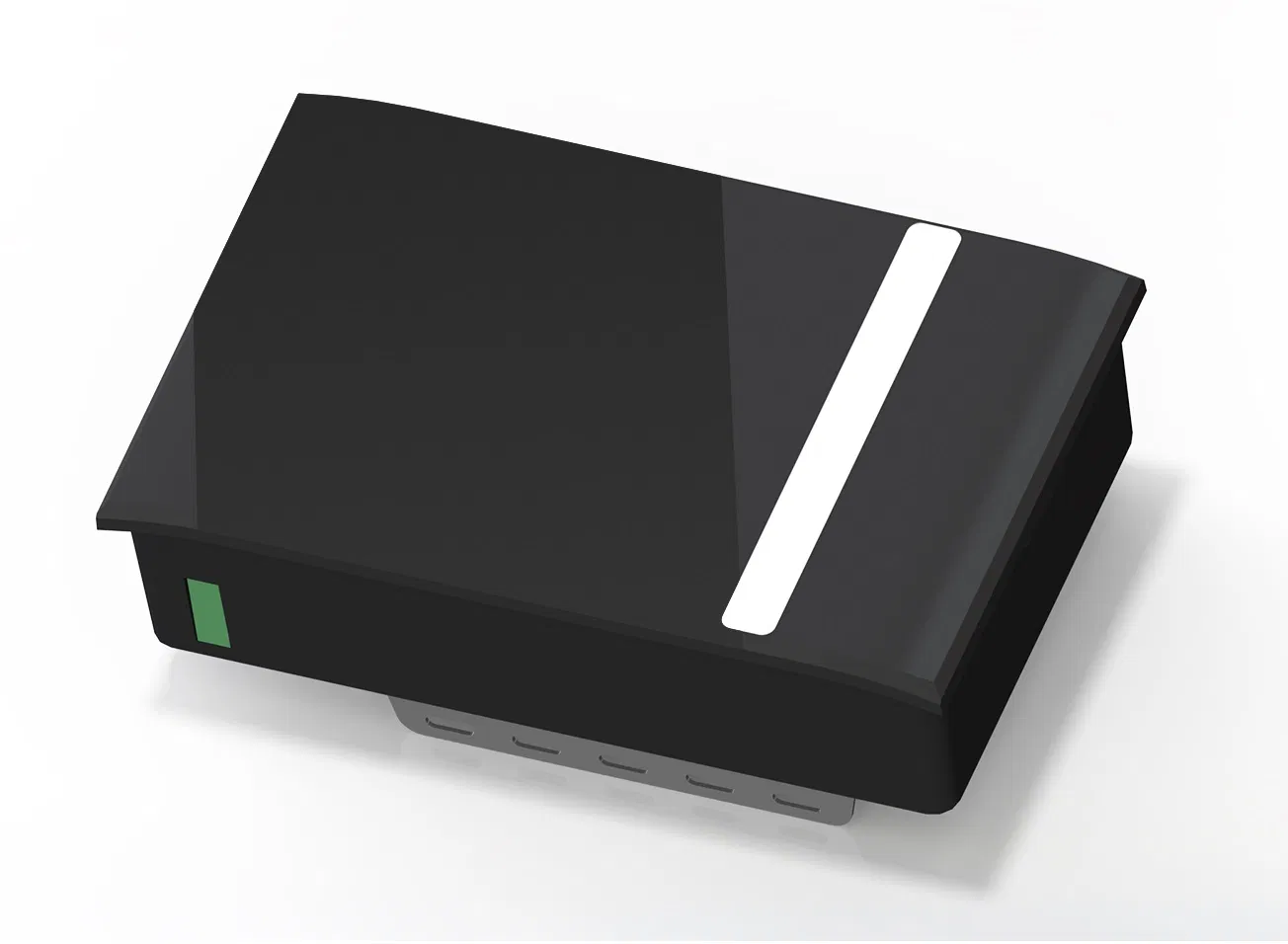

Case Material

Plastic / Aluminum

Base Material

Steel

Color

Black / Grey / Aluminum / Customizing

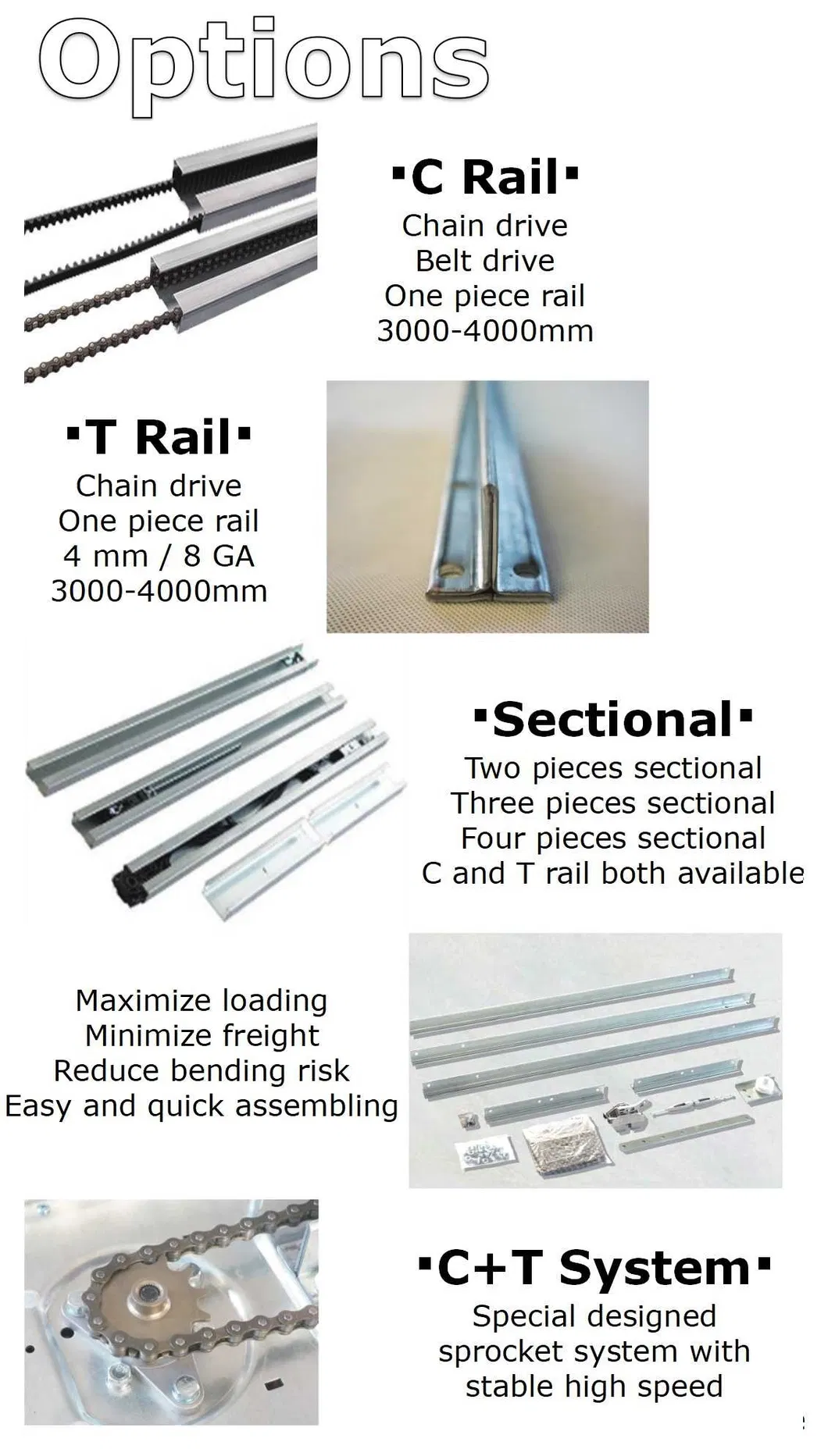

Rail Length

3000~4000mm

Drive Option

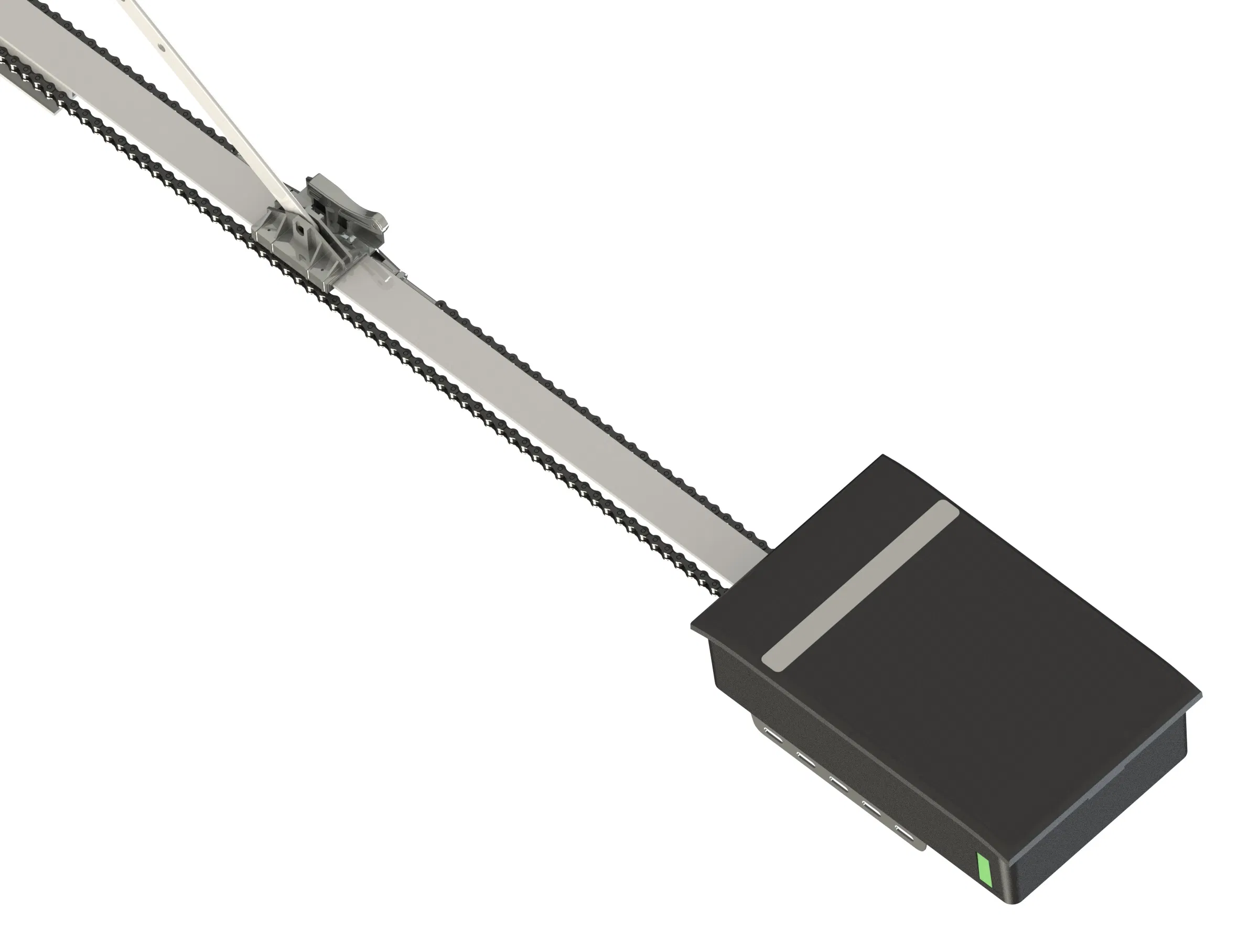

Chain Drive / Belt Drive

Specification

600N / 1000 / 1200N

Capacity

1000000sets / Year

Product Description

OREO Series

600N / 1000N / 1200N Powerful Force
Standard & High Speed Models Available
Advanced Home Automation for Garage Doors

Model	600N / 600N Speed	1000N / 1000N Speed	1200N
Input Voltage	220-240V / 110-127V, 50-60Hz
Max. Opening Speed	160mm/s or 200mm/s (Speed model)
Max. Door Height	2400-5000mm
Bottom Base Material	Metal
Drive Mechanism	Chain/Belt
Max. Door Size	10 m²	15 m²	18 m²
Max. Door Load	80 kg	100 kg	130 kg

Soft-start/stop	More Information Display
Automatic Closing Time Setting	Automatic Closing Height Setting
Maintenance Alarm	Terminal Devices Supported
Maximal Remote Quantity Setting	Travel Speed Setting
Transformer Overload Protection	Reversal Height Setting
433MHz/Rolling Code	Photo Cell ON/OFF Setting
Status Display Remote	Electronic Travel Limit Setting
Reversal Force Setting	L.E.D Off Delay Time Setting

🛑 Have you ever met following problems?

Losing traveling limit after hundreds of operations?
Doors couldn't totally close or open after frequent use?
Openers need to be re-programmed constantly?

All these won't happen to our openers!

Less Maintenance & Longer Lifetime

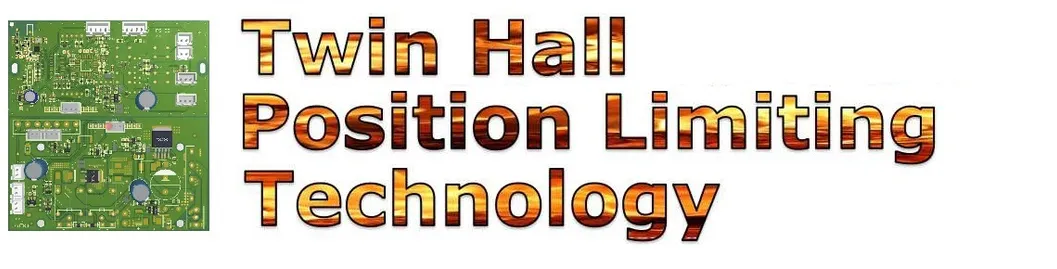

Build-in twin-encoder & Synchronizing device

Higher precision of position limit

No more external mechanical switch

Self-adjustment for different doors

Frequently Asked Questions

Q1: What are the available force specifications for the Oreo series?

The Oreo series comes in three main power specifications: 600N, 1000N, and 1200N, suitable for door sizes ranging from 10m² to 18m².

Q2: Does the garage door opener support different drive mechanisms?

Yes, the system is compatible with both Chain Drive and Belt Drive options to meet different noise and durability requirements.

Q3: How does the twin-encoder system benefit the user?

The built-in twin-encoder and synchronizing device provide higher precision for position limits, eliminating the need for external mechanical switches and reducing traveling deviations.

Q4: What safety certifications does the product hold?

The product is fully certified with CE, CE-Red, LVD, EMC, En12453&12445, TUV, and C-Tick standards, ensuring high safety and reliability.

Q5: Can the travel speed be adjusted?

Yes, the Oreo motor features travel speed settings and includes a "Speed Model" that can reach up to 200mm/s opening speed.

Q6: What kind of protection does the motor have against electrical issues?

The unit is equipped with transformer overload protection and electronic travel limit settings to prevent damage and ensure long-term operation.
